65-844-4

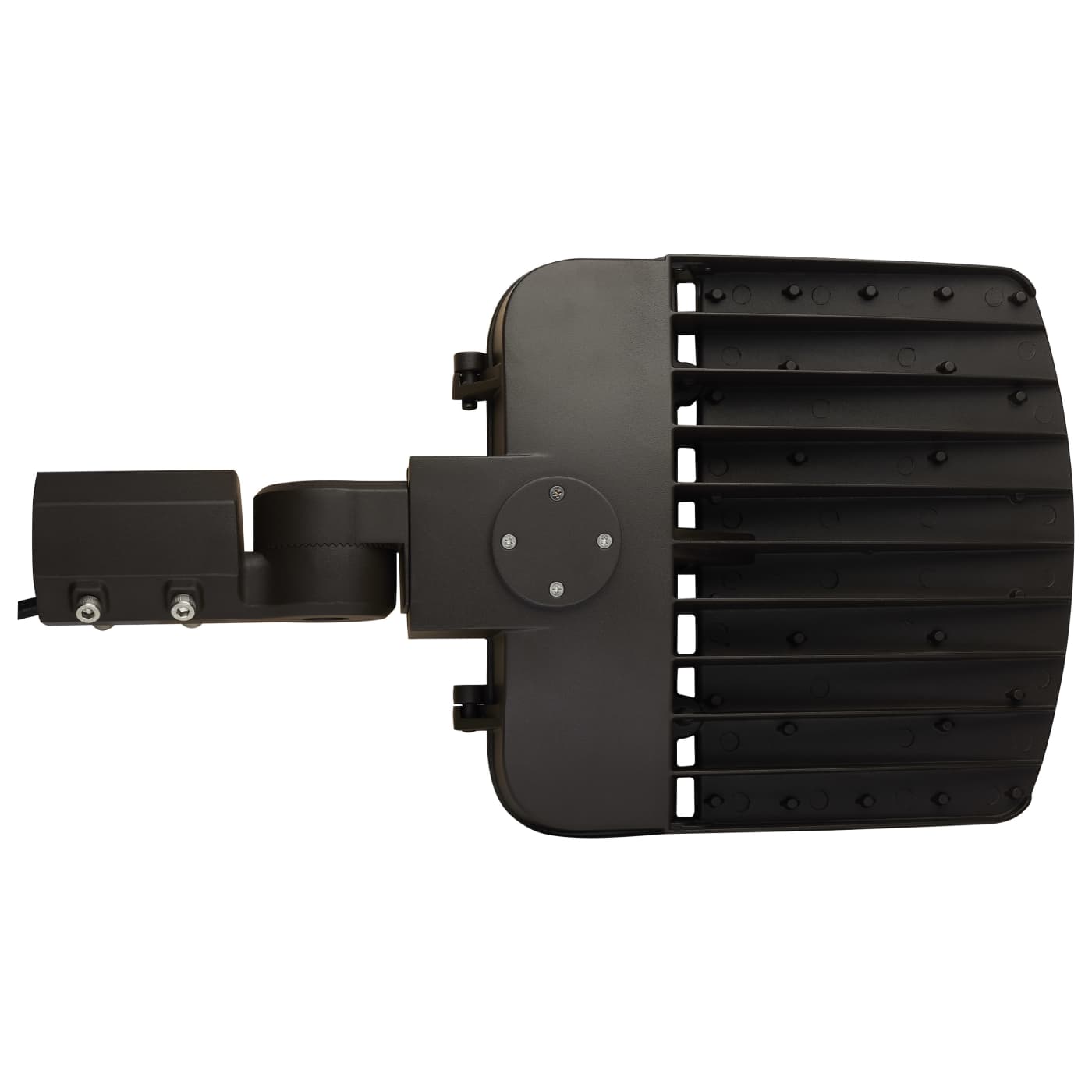

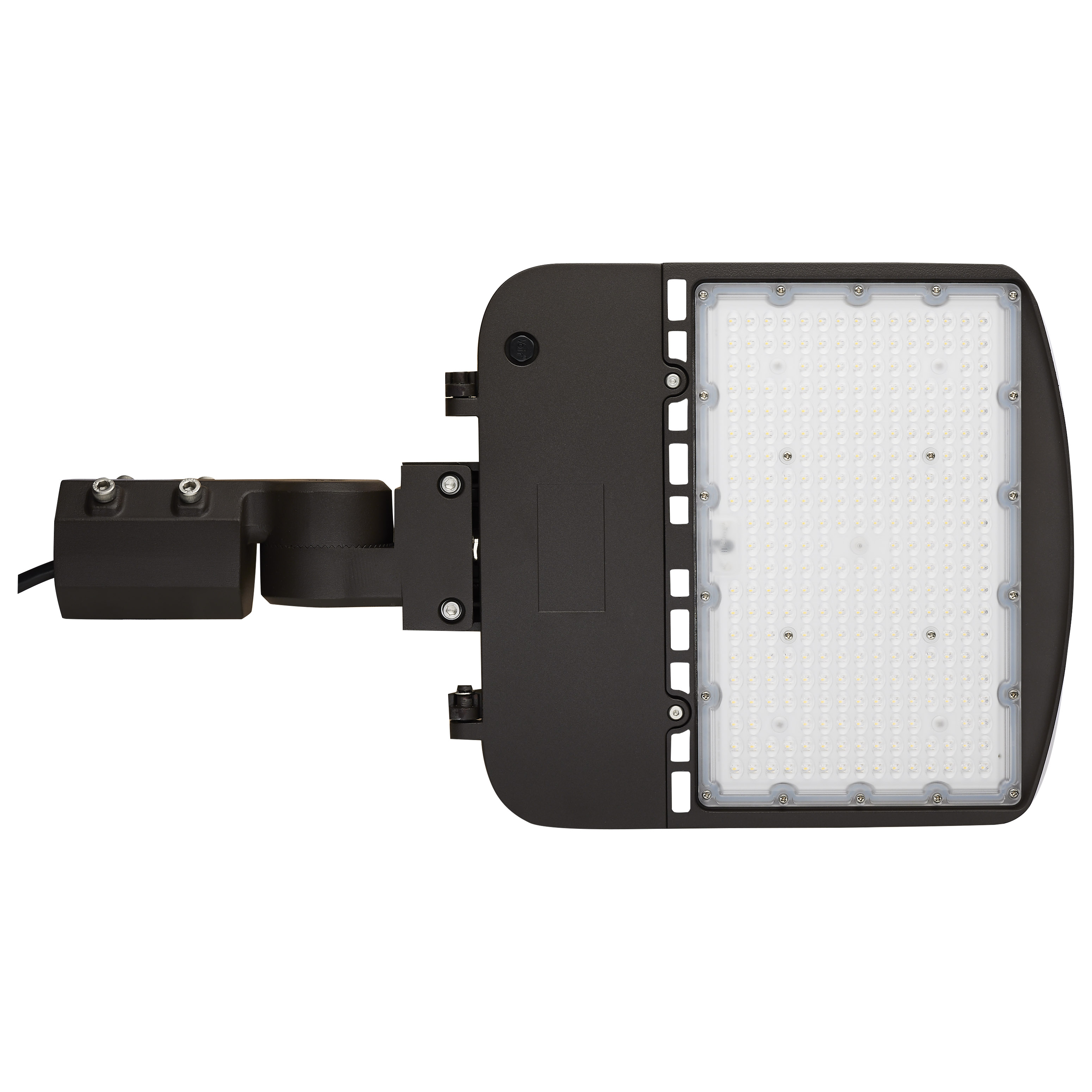

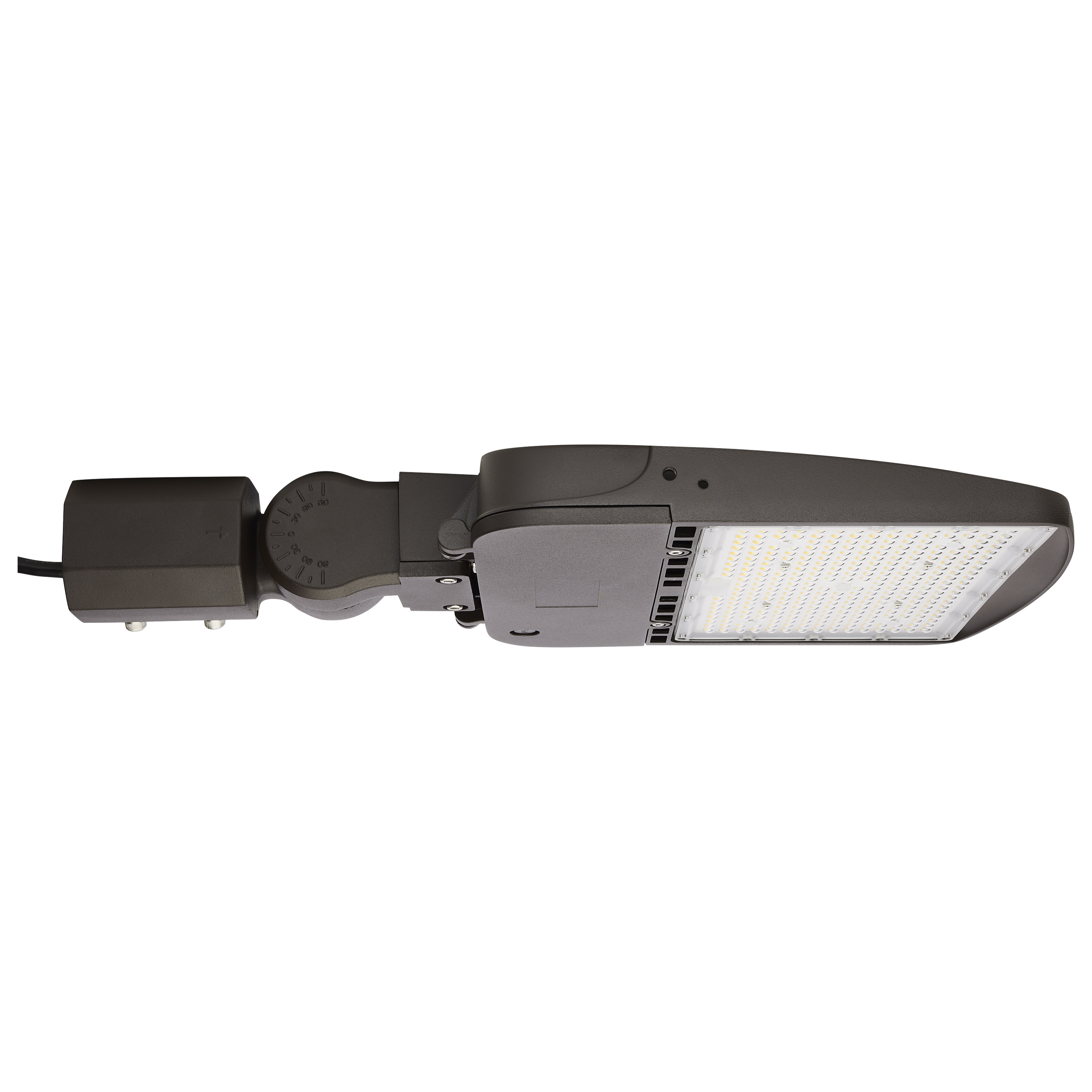

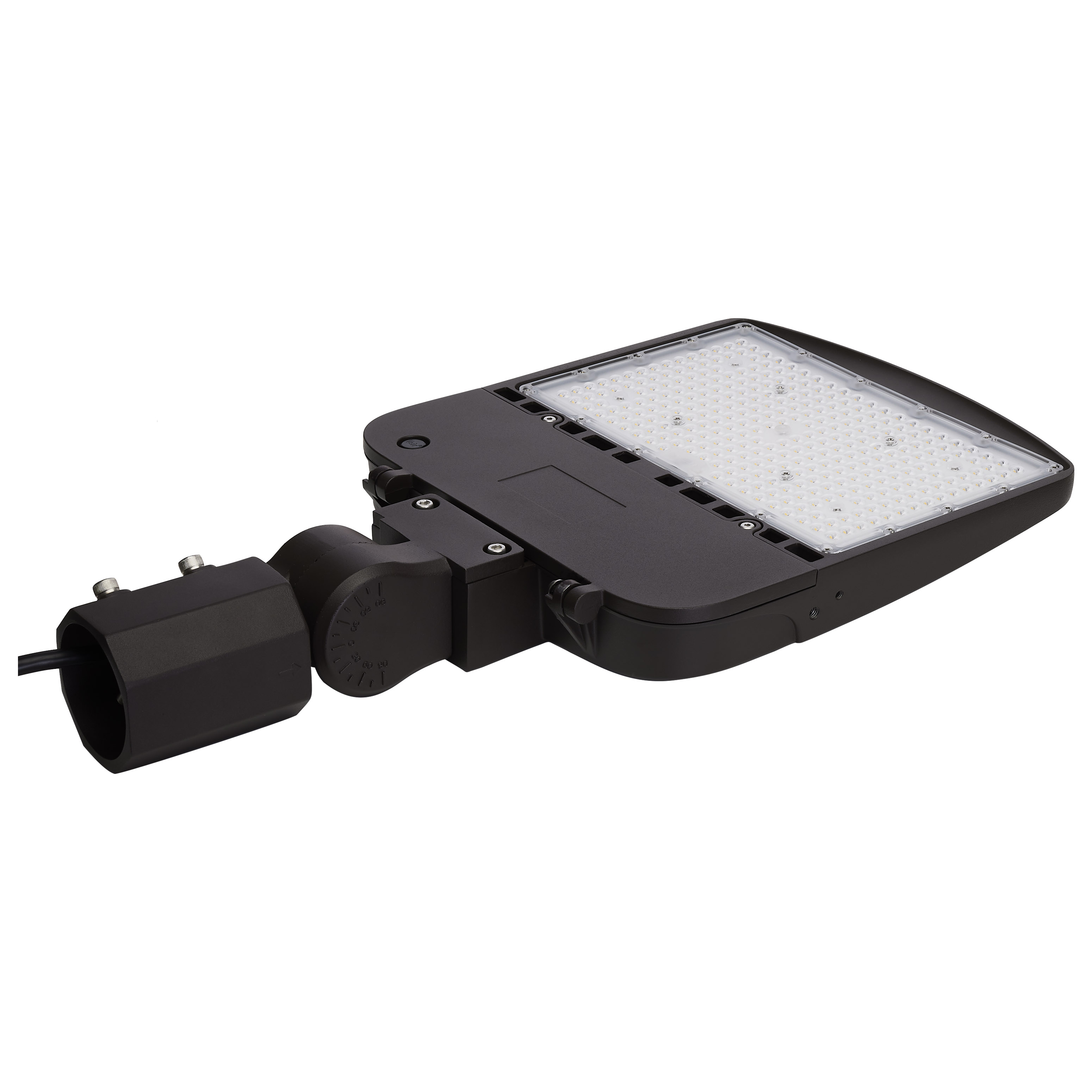

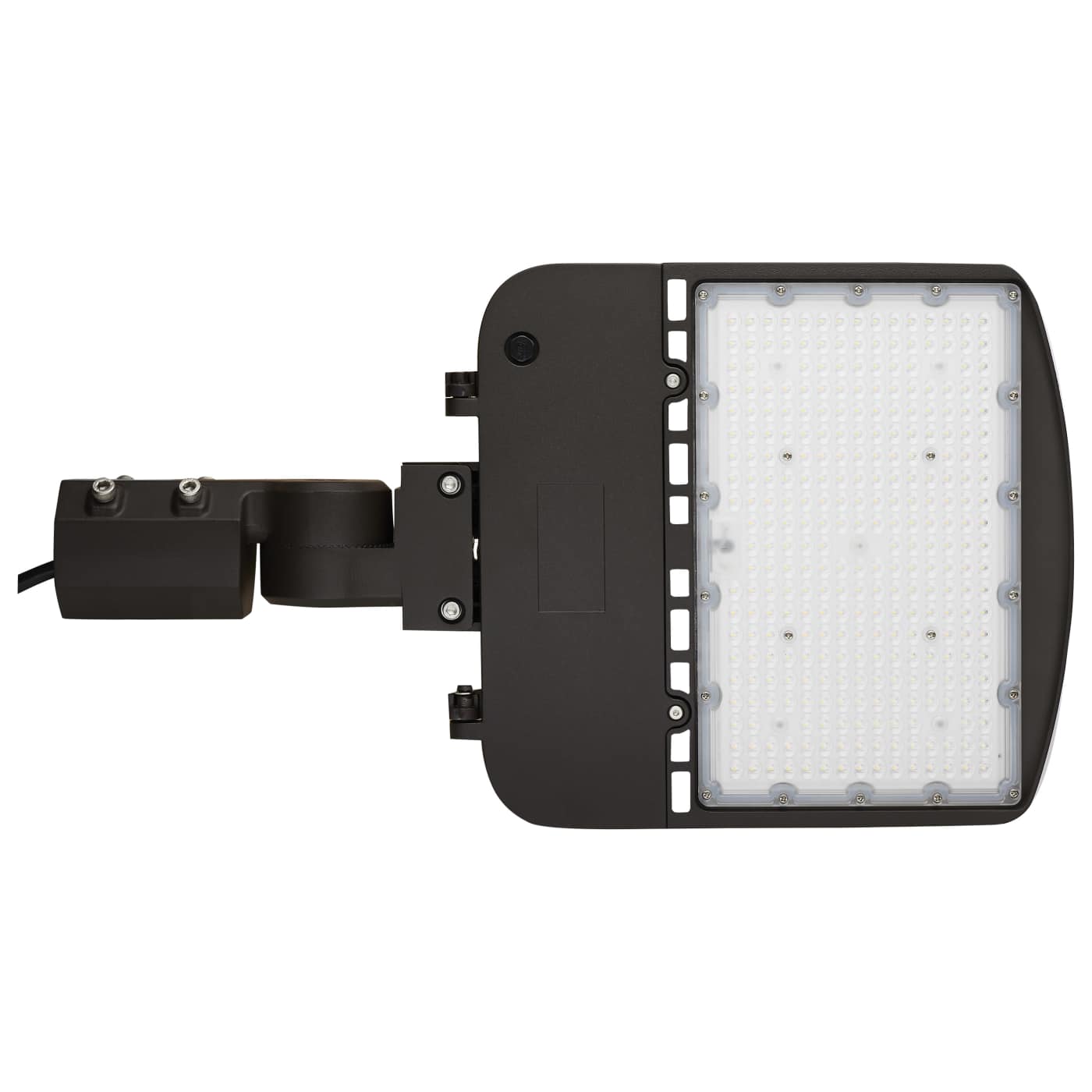

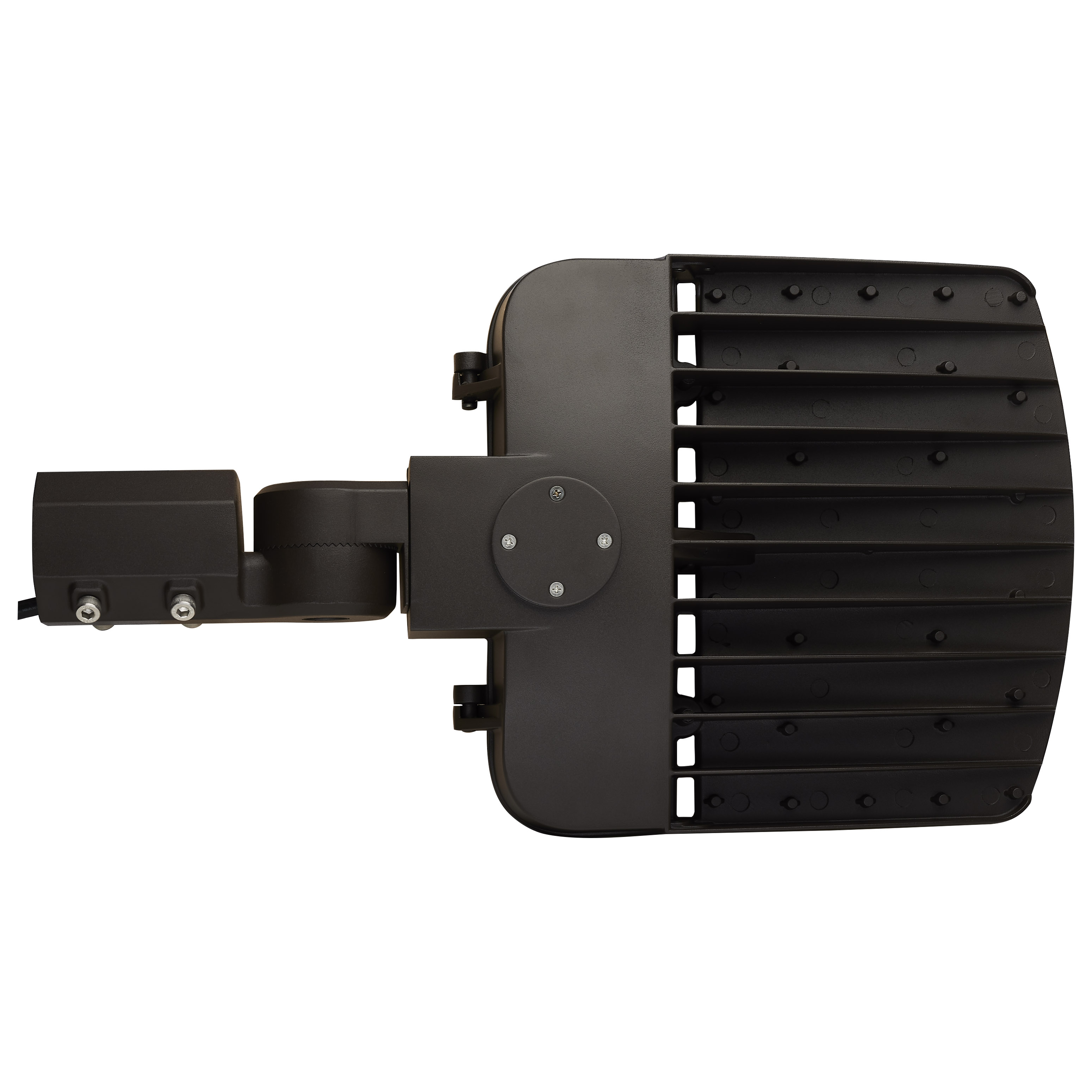

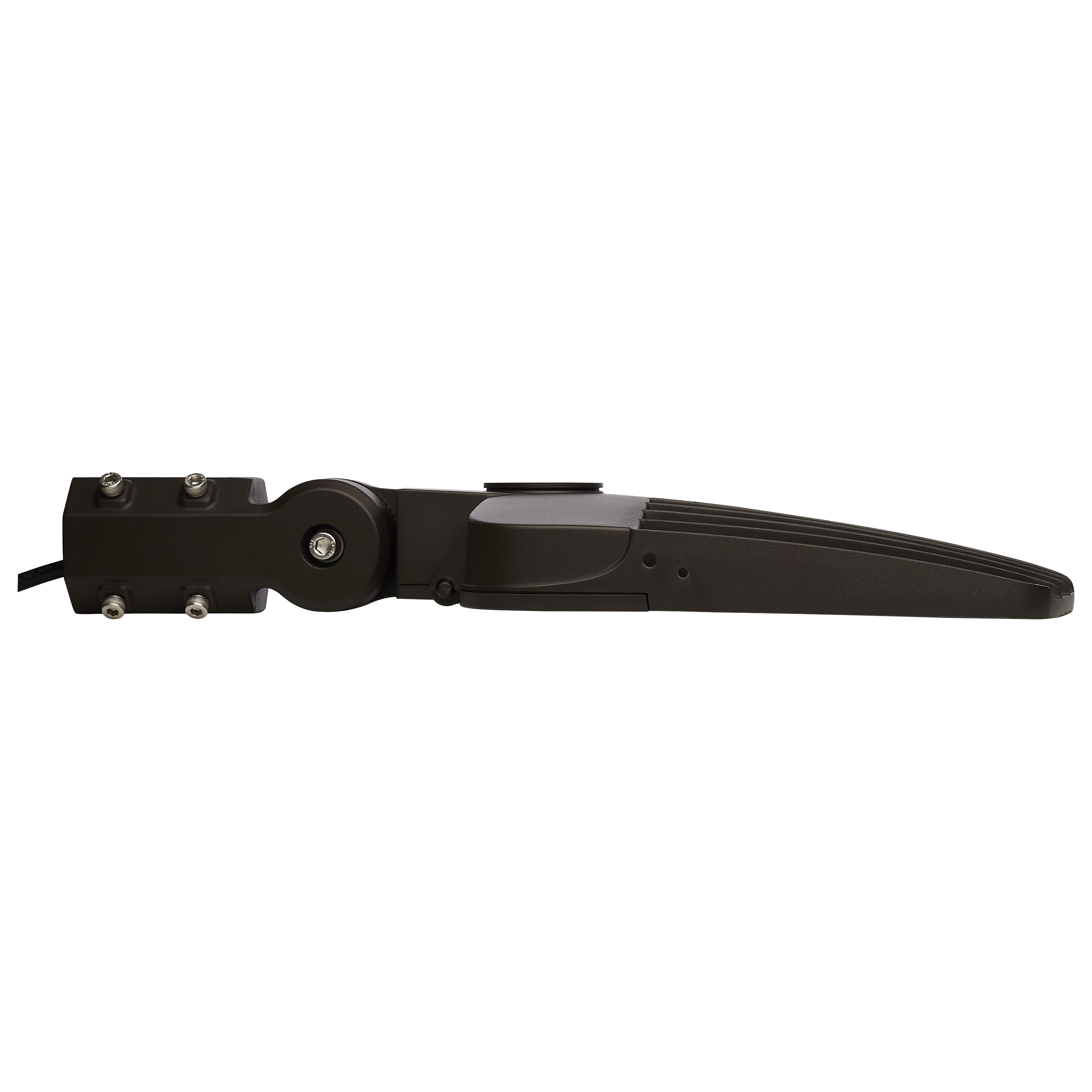

200W LED AREA LIGHT TYPE IV

  • LED Area Light Type IV
  • 200W
  • Bronze Finish
  • 4000K
  • 120-277V
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-844-4 Specifications65-844-4 Area Light Wattage Recommendations.pdf65-844-4 Photometrics with Forward Facing Cutoff Shield.ies
Tools
Lighting Layout Analysis For 65-844-4
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Area Light Type IV; 200W; Bronze Finish; 4000K; 120-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming

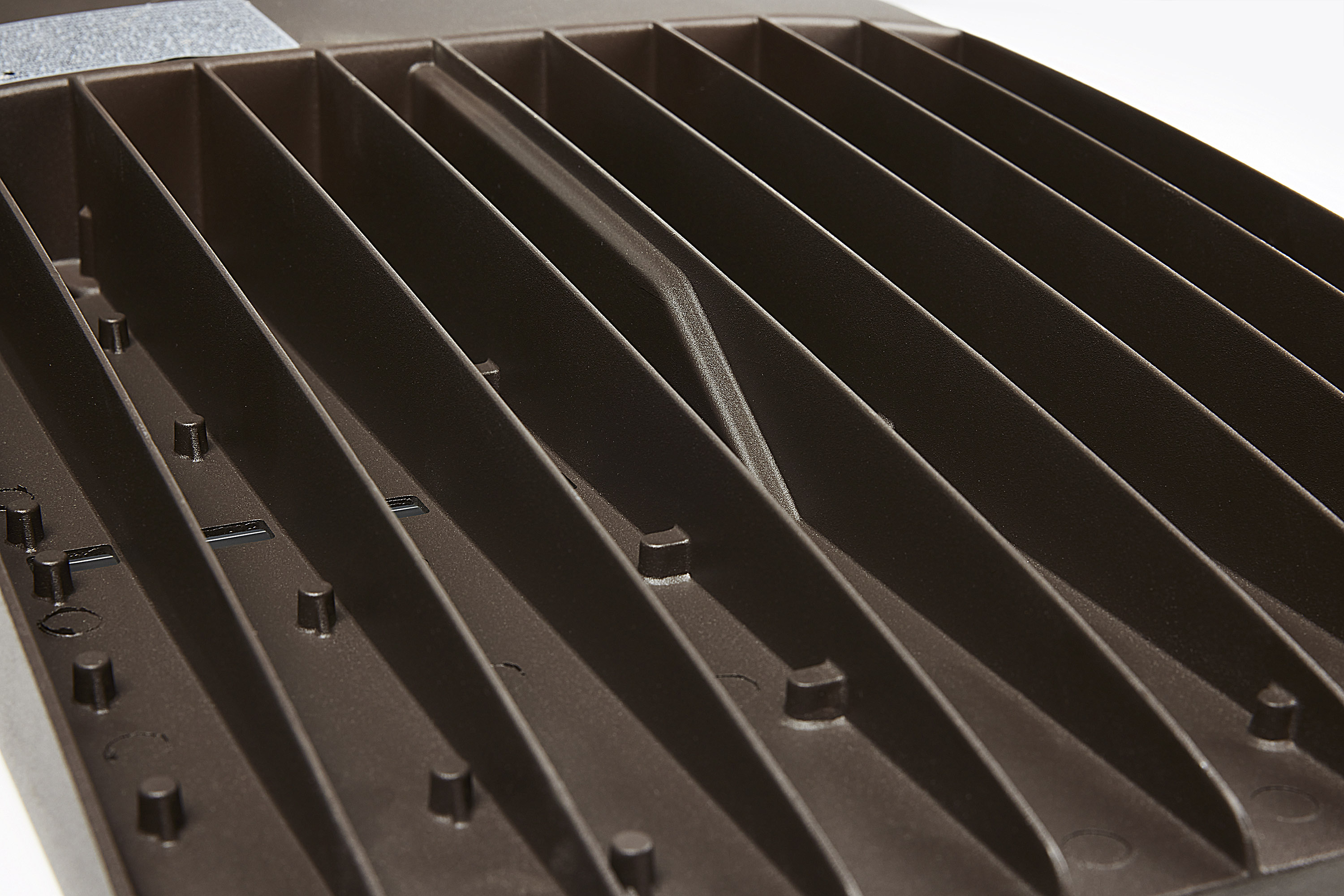

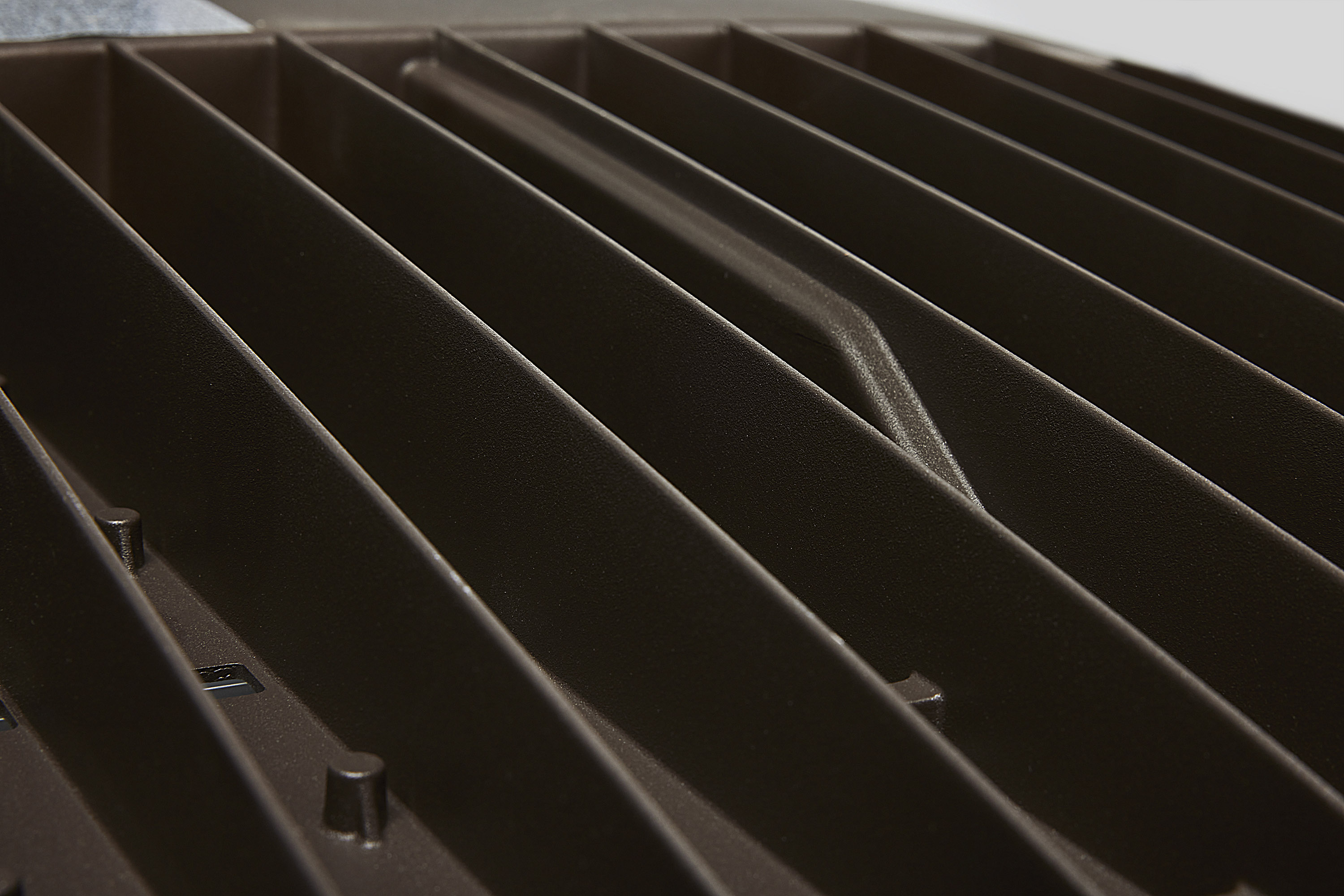

MaterialDie-cast Aluminum
Fixture TypeArea Light

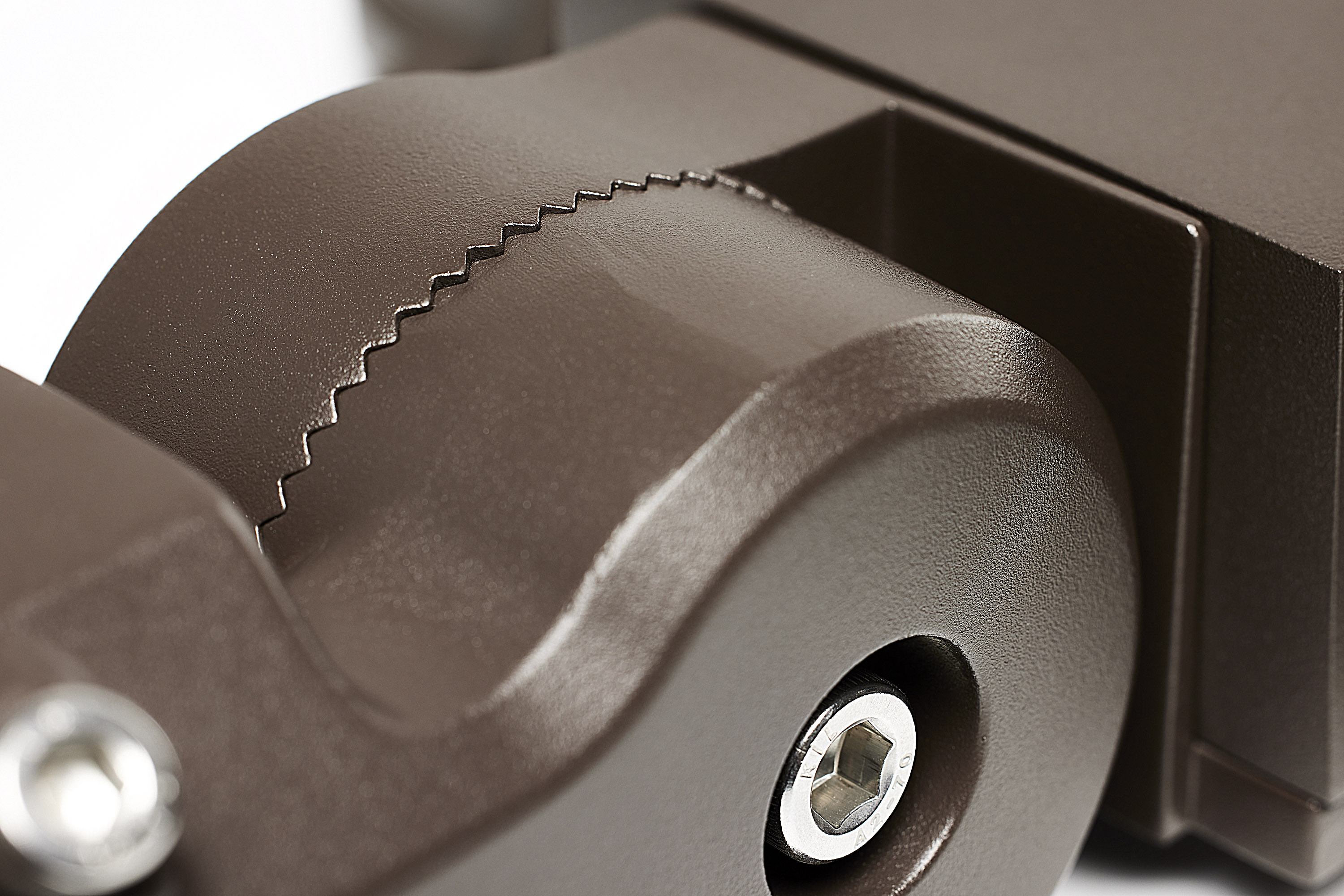

Includes2-3/8 Inch Slip-fitter Mount
Product NotesType IV Light Distribution
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBronze
Additional InfoPowder Coated
Amps1.667-0.722A
Has CameraNo
IOT EnabledNo

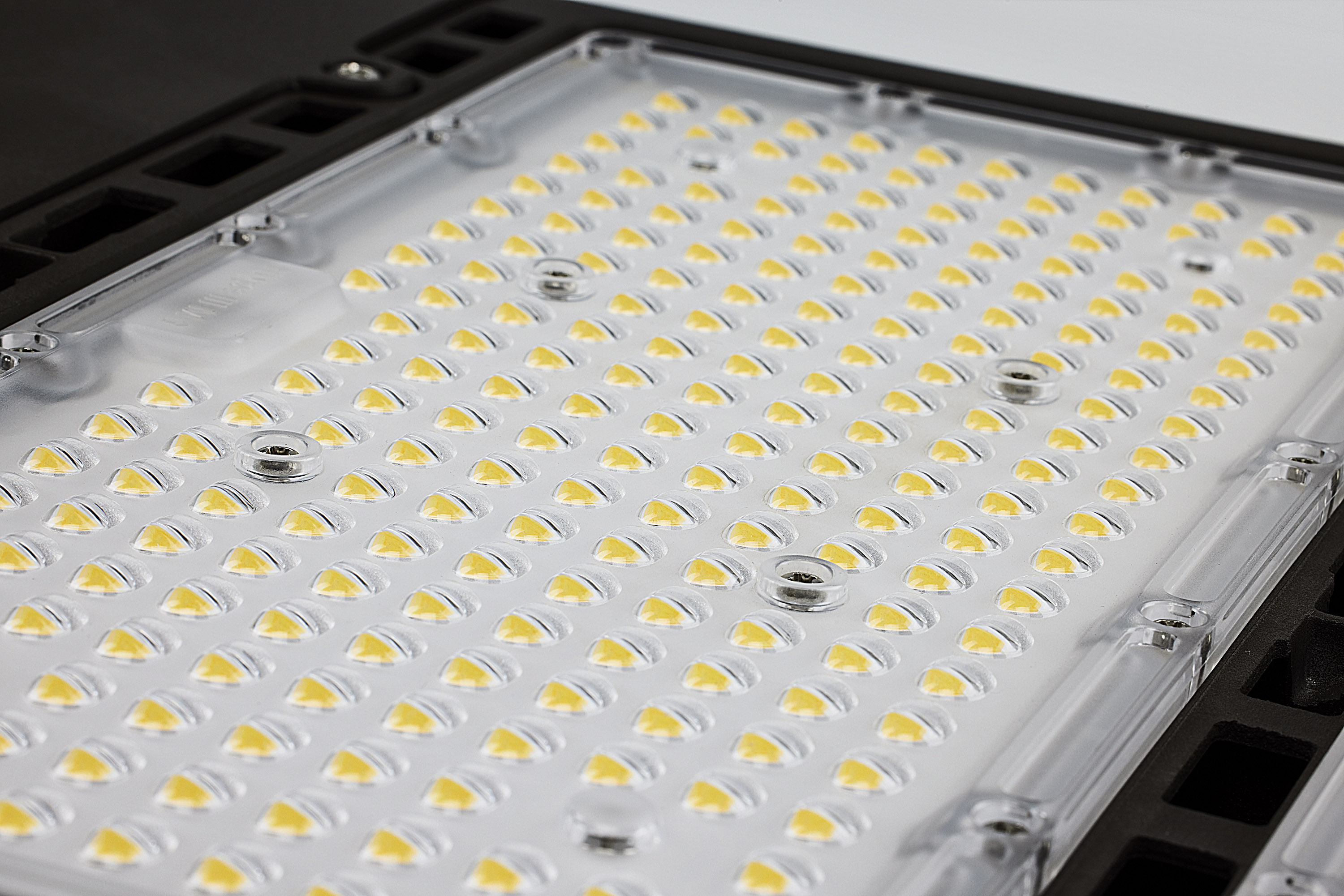

Lens MaterialPolycarbonate (PC)

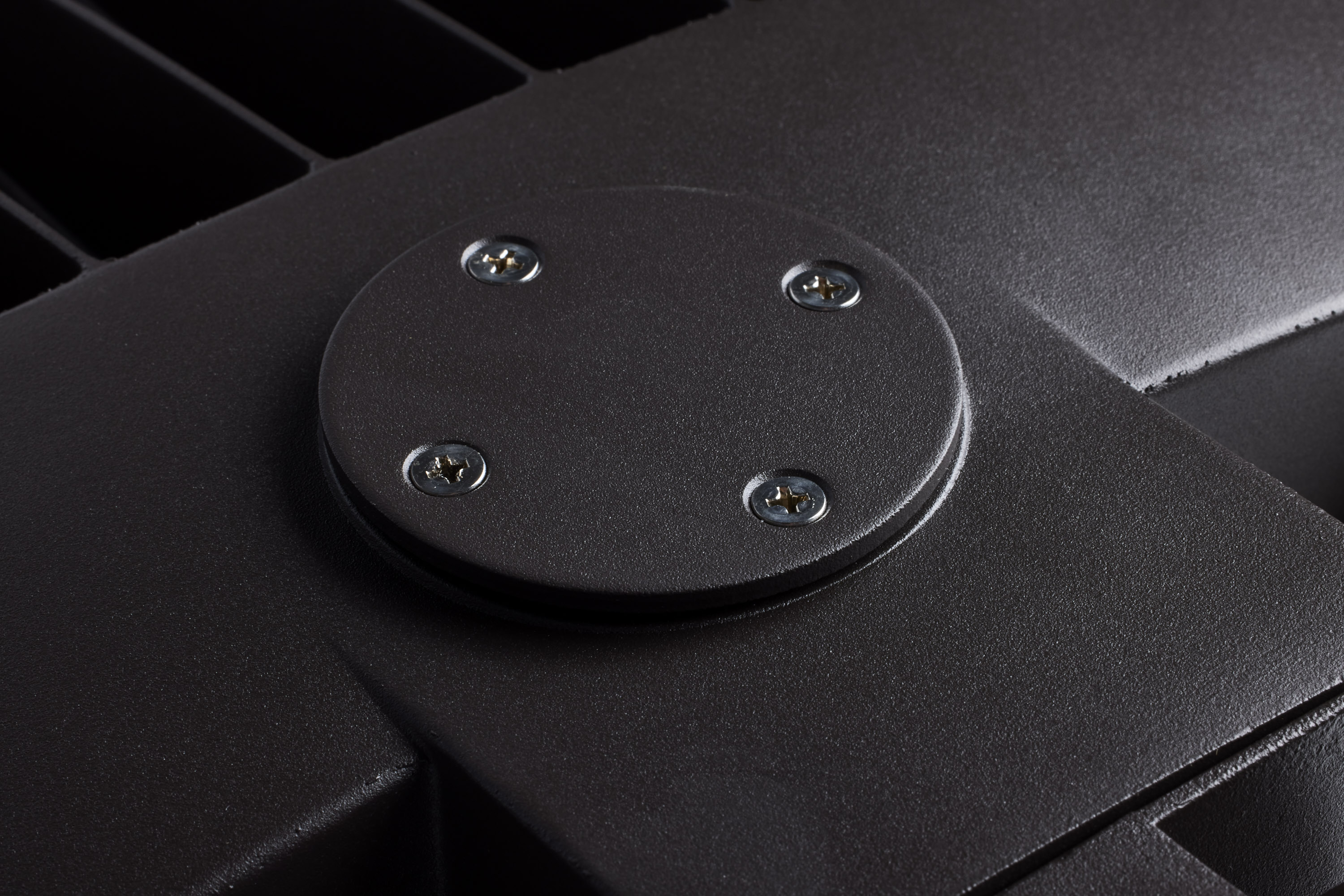

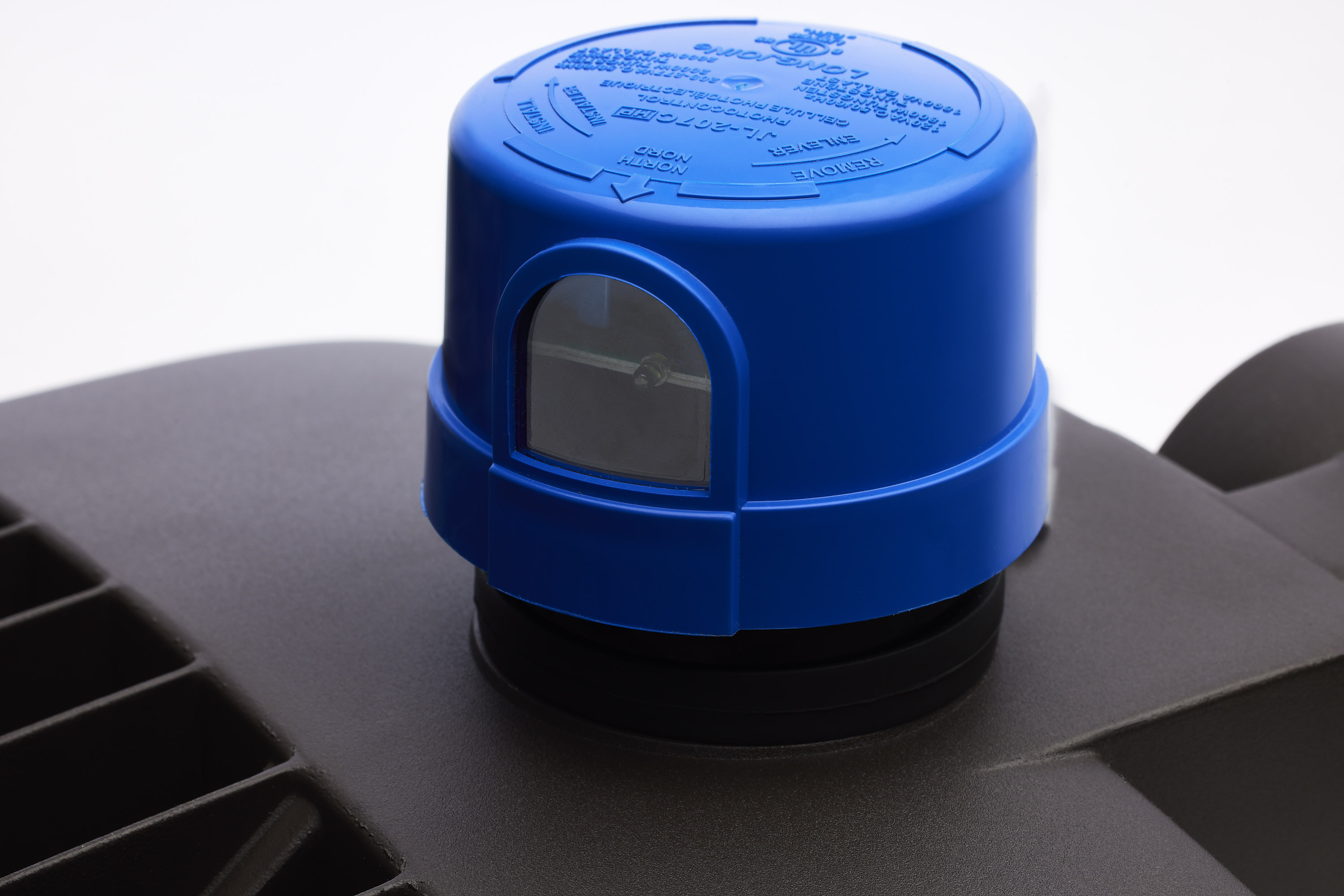

Photo CellOptional
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fixture Lamp Count1
Incandescent Equivalent1500W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent400W

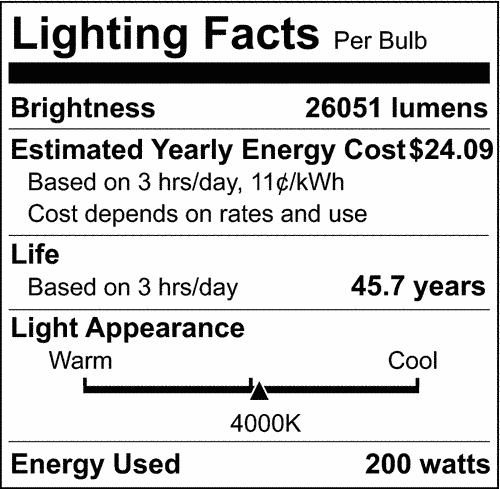

Lumens26051L
Volts120V-277V
Watts200W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB4-U3-G4
CA Prop 65Lead
Dark Sky RatedNo
DLC IDS-6ZN18I
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923684449
Case Cube1.1776
Case Height5.71
Case Length24.8
Case Quantity1
Case UPC10045923684446
Case Weight8.86
Case Width14.37
EA Cube1.1776
EA Height5.71
EA Length24.8
EA Quantity1
EA Weight8.86
EA Width14.37
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.11
Web Length22.4
Web Width14.4
