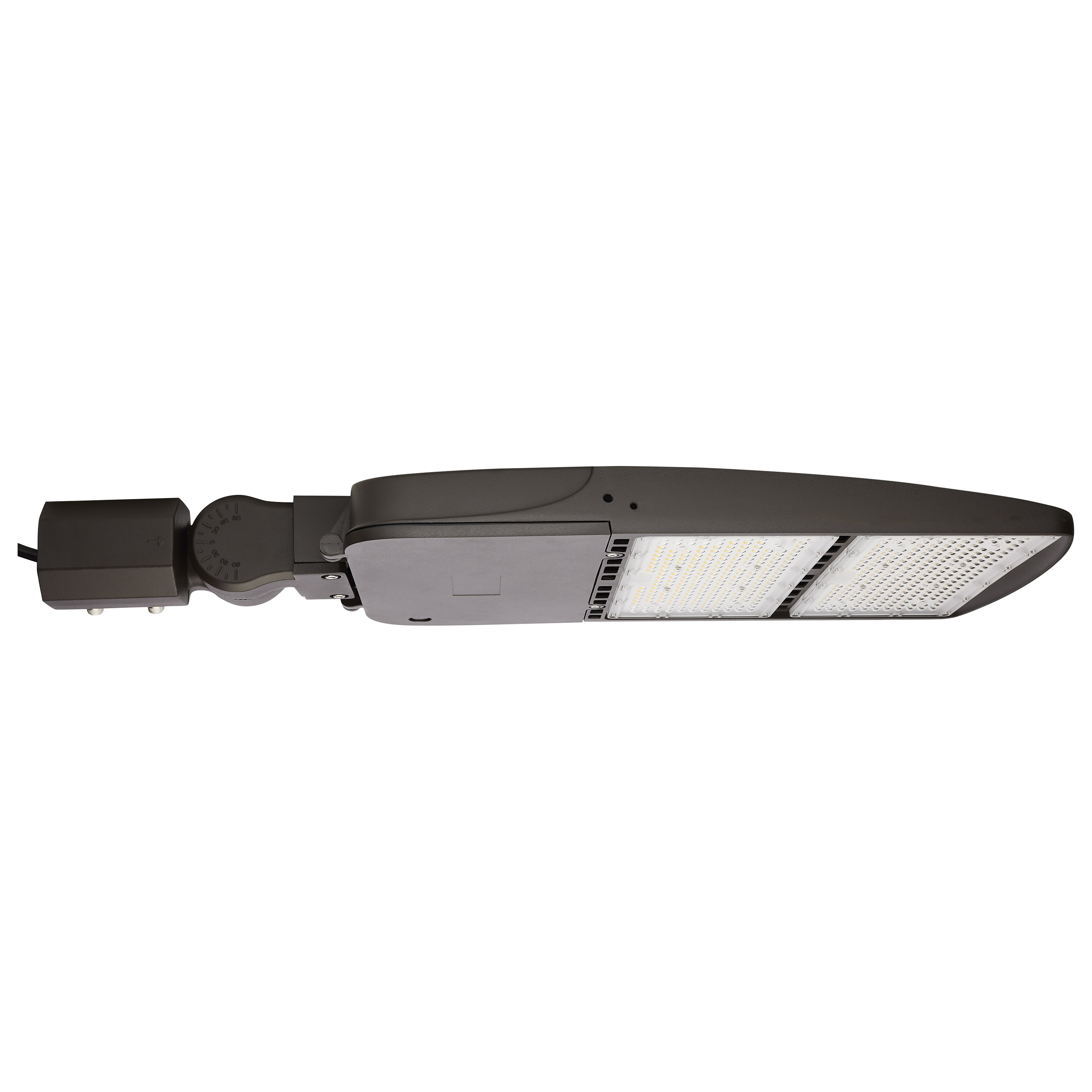

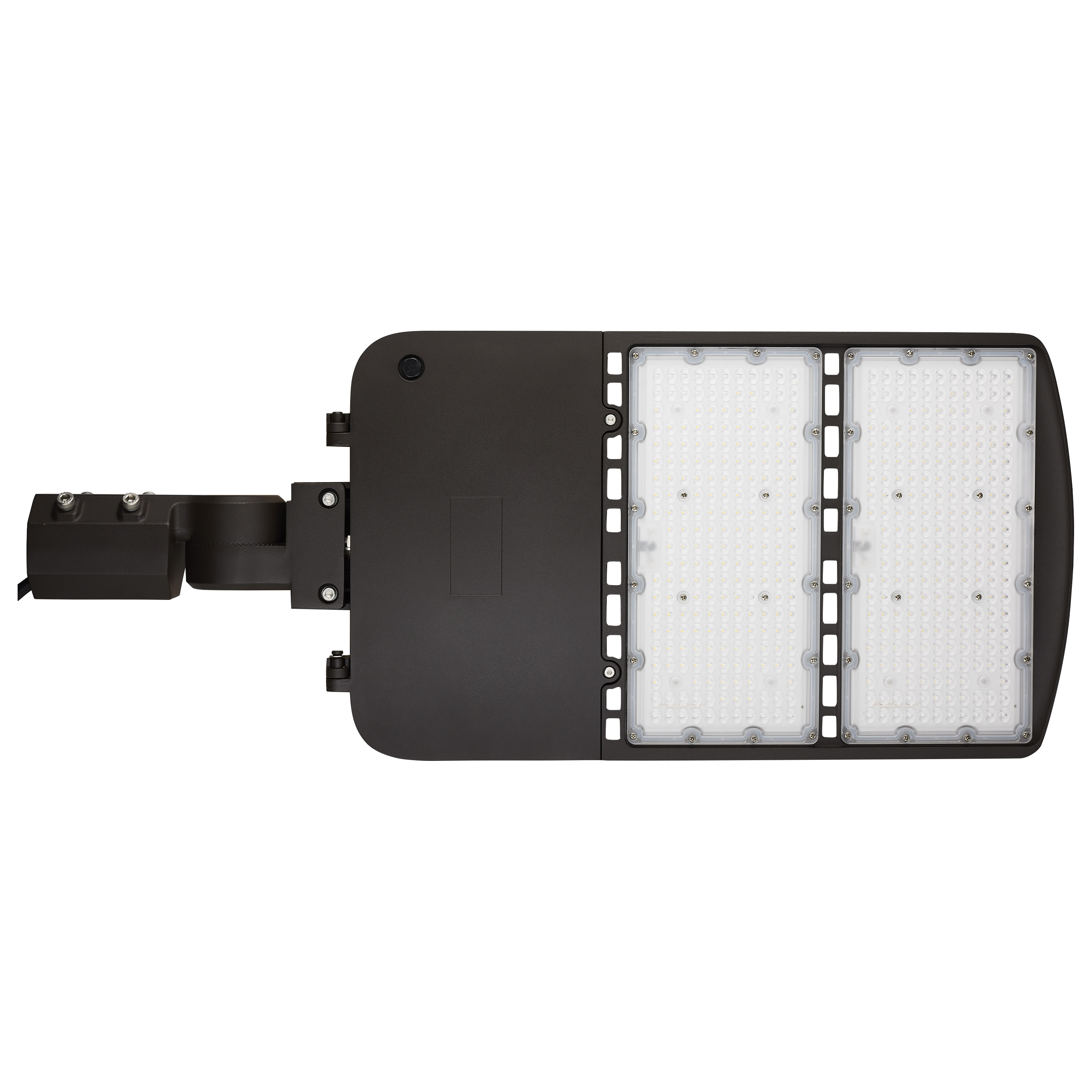

65-846-5

240W LED AREA LIGHT TYPE V

LED Area Light Type V
240W
Bronze Finish
4000K
120-277V

65-846-5 Specifications 65-846-5 Area Light Wattage Recommendations.pdf 65-846-5 Photometrics with Forward Facing Cutoff Shield.ies

Tools

Lighting Layout Analysis For 65-846-5

Create your own analysis for this Part Number

Custom Lighting Layout Analysis

Request a lighting layout

Description

Products Specs

Documents

Compliance

Packaging

Description

Description

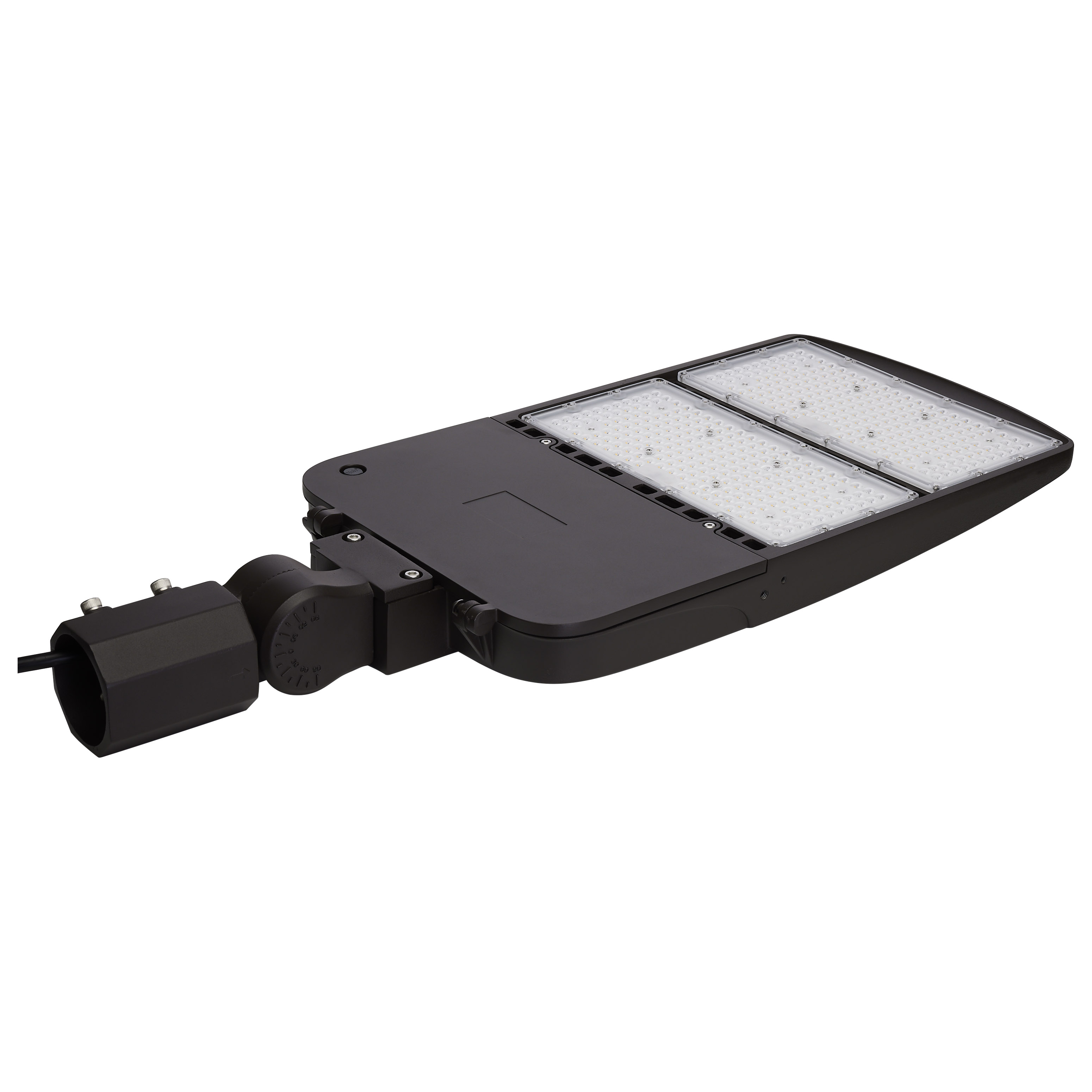

LED Area Light Type V; 240W; Bronze Finish; 4000K; 120-277V

Products Specs

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Dimmable Text	0-10V Dimming
Lamp Filament	LED

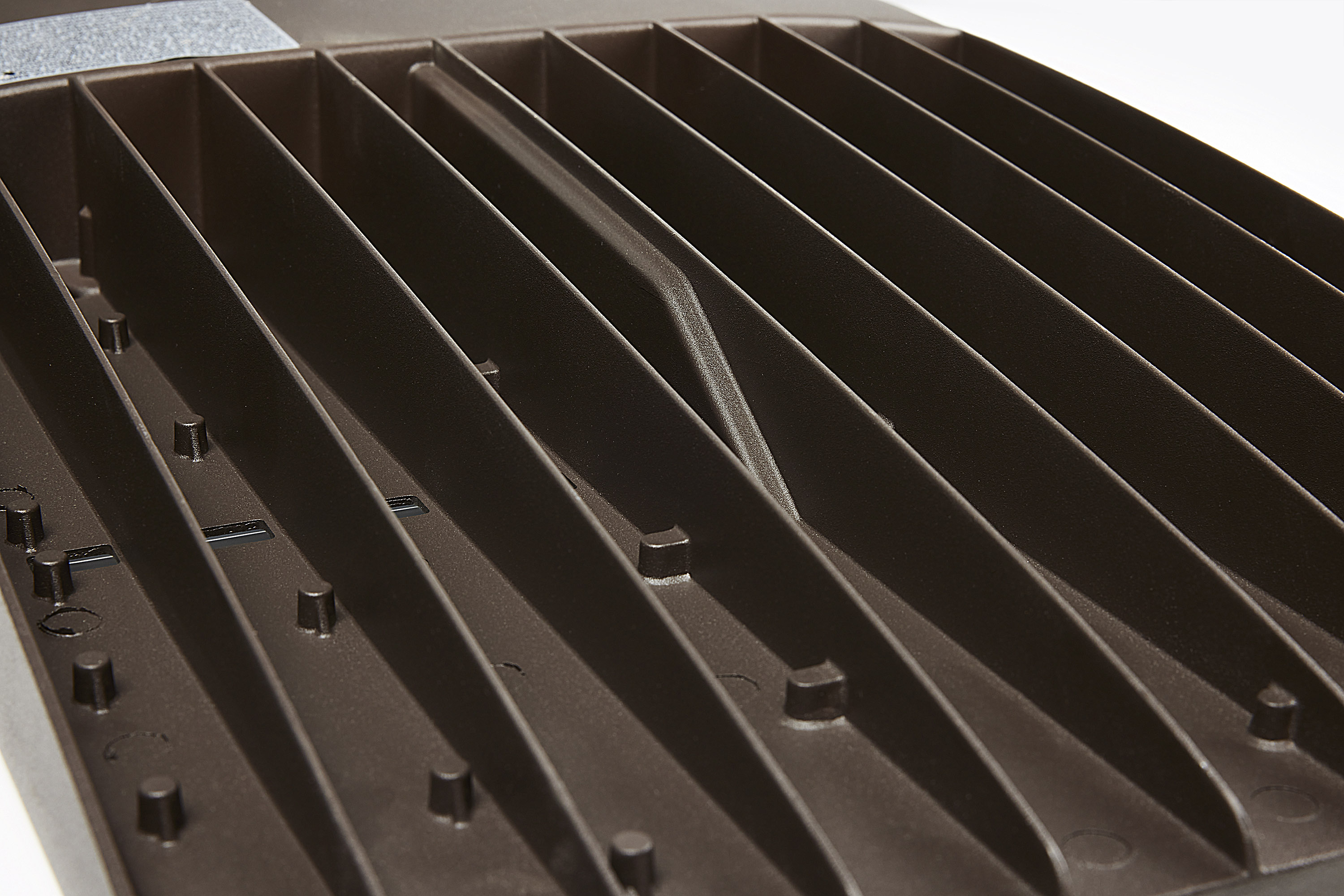

Material	Die-cast Aluminum
Fixture Type	Area Light

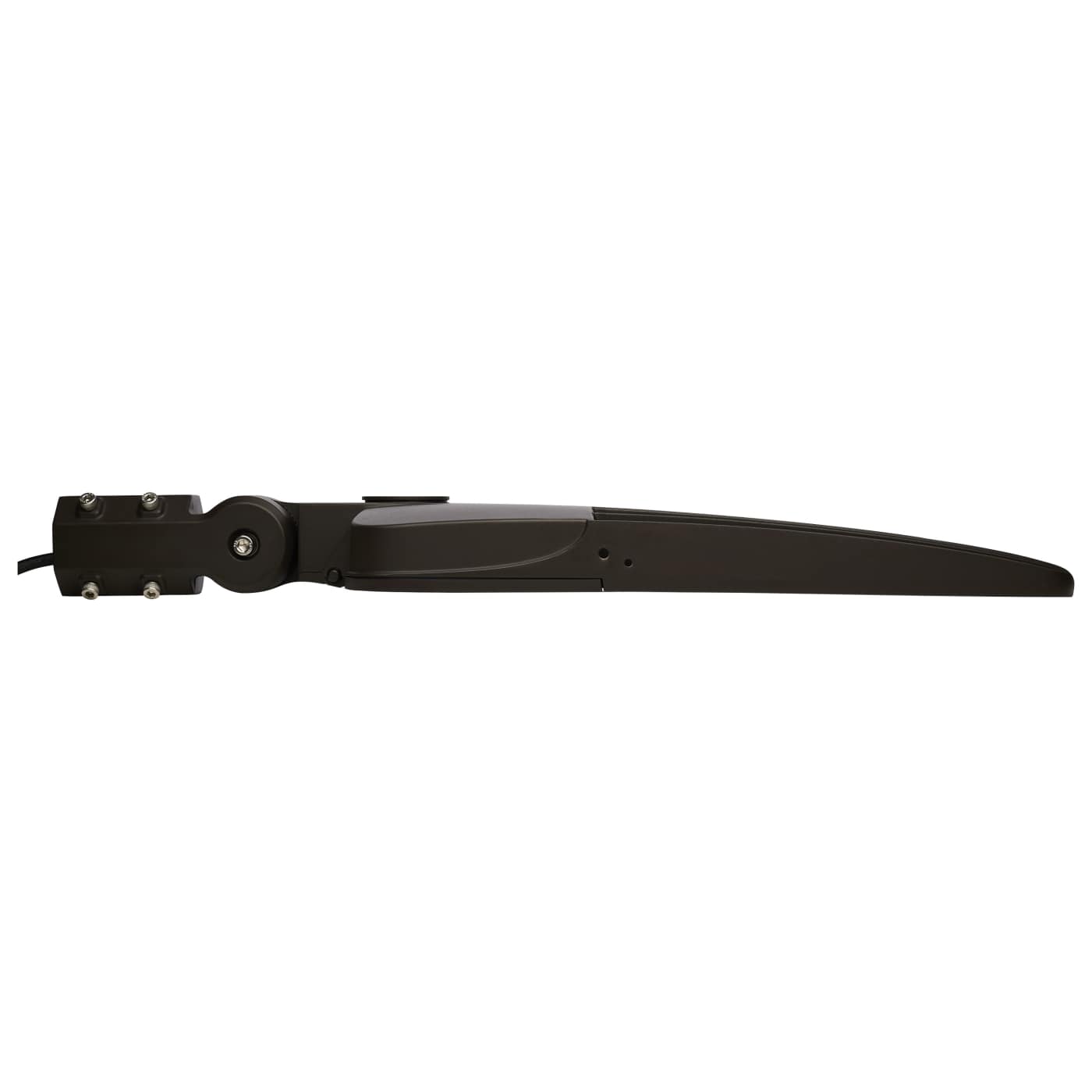

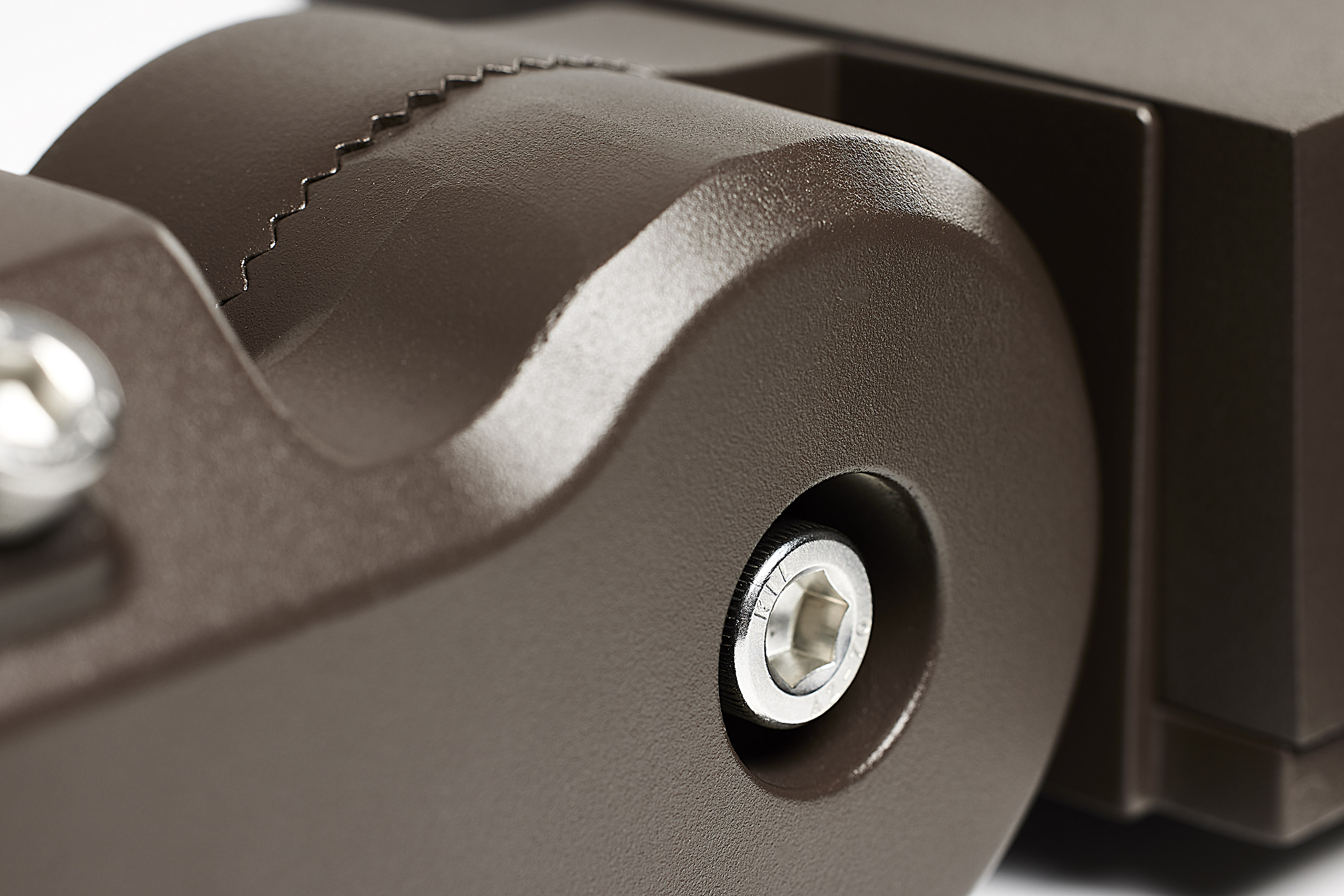

Includes	2-3/8 Inch Slip-fitter Mount
Product Notes	Type V Light Distribution
Status	Active
Style	Utility
Surge Protection	Built-in surge protection - 4KV
CCT Selectable	No
Wattage Selectable	No
Finish Family	Bronze
Additional Info	Powder Coated
Amps	2.00-0.866A
Has Camera	No
IOT Enabled	No

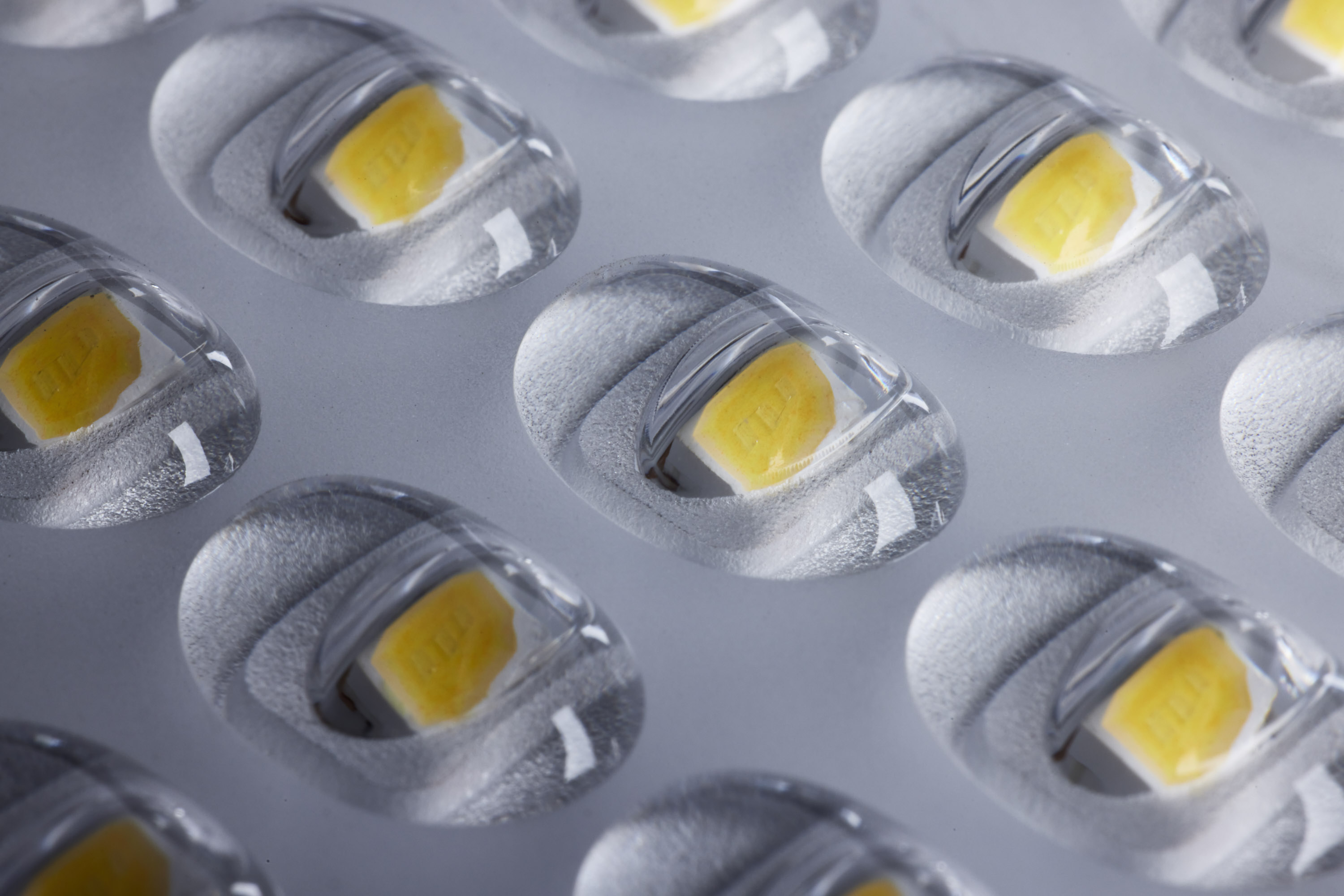

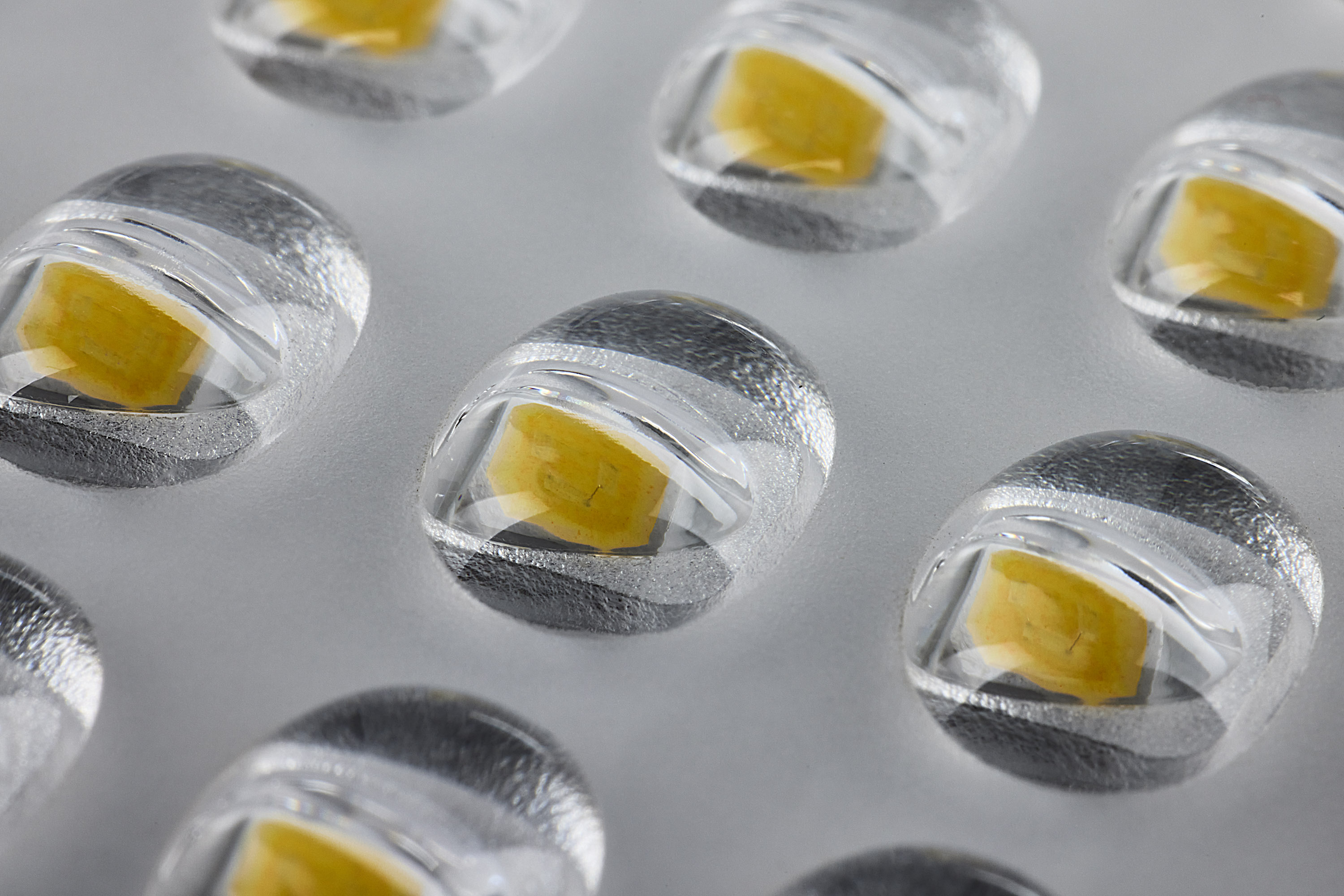

Lens Material	Polycarbonate (PC)

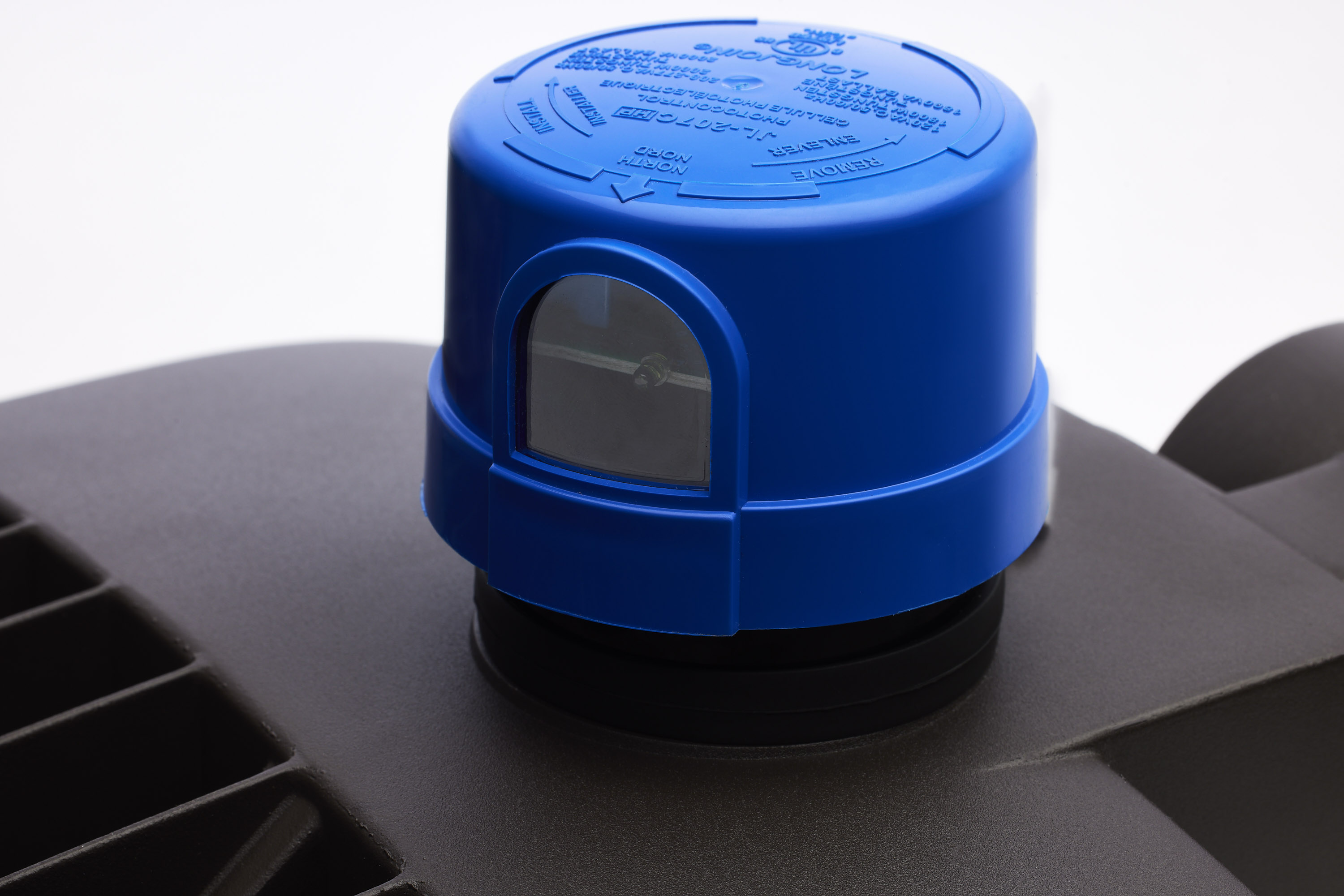

Photo Cell	Optional
Power Factor	>0.9
SDS Class	LED_Fixture
Indoor Outdoor	Indoor, Outdoor
Product Technology	LED
Fixture Lamp Count	1
Incandescent Equivalent	2000W

Electrical

CCT (Kelvin Temp)	4000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Color Temp	Cool White
CRI	80+
Operating Frequency	50/60Hz
Operating Temp	-40C (-40F) to +45C (+113F)
HID Equivalent	500W
Lumens	31481L
Volts	120V-277V
Watts	240W

Physical

Lamp Base	Integrated
Finish	BRONZE
ANSI Base	Integrated

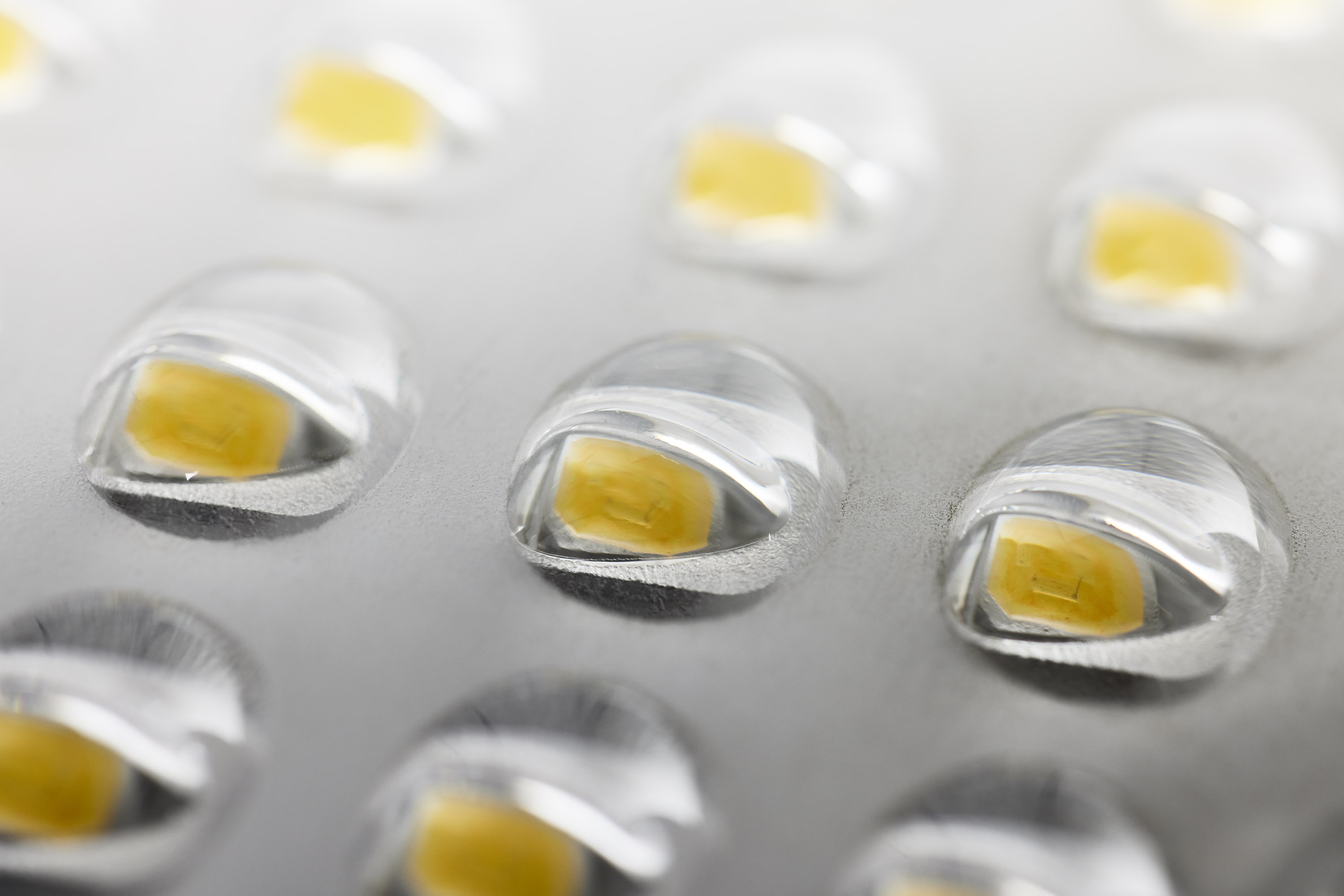

Lamp Type	Integrated LED

Additional Info

Warranty	5-Years

Documents

Compliance

Compliance

Bug Rating	B5-U3-G2
CA Prop 65	Lead
Dark Sky Rated	No
DLC ID	S-H5ZA0W
FCC Compliant	Yes
IP Rating	IP65
Location Rating	Wet
ROHS Compliant	Yes
Safety Listing	cULus - Certified
California Ban	Lawful for sale
DLC Approved	Yes
Energy Star Certified	No
Title 20	Exempt
T24 Compliant	No

Packaging

Packaging

UPC	045923684654
Case Cube	1.5556
Case Height	5.71
Case Length	32.76
Case Quantity	1
Case UPC	10045923684651
Case Weight	12.56
Case Width	14.37
EA Cube	1.5556
EA Height	5.71
EA Length	32.76
EA Quantity	1
EA Weight	12.56
EA Width	14.37
Inner Cube	0.0
Inner Height	0.0
Inner Length	0.0
Inner Quantity	0
Inner Weight	0.0
Inner Width	0.0
Pack Type	Box

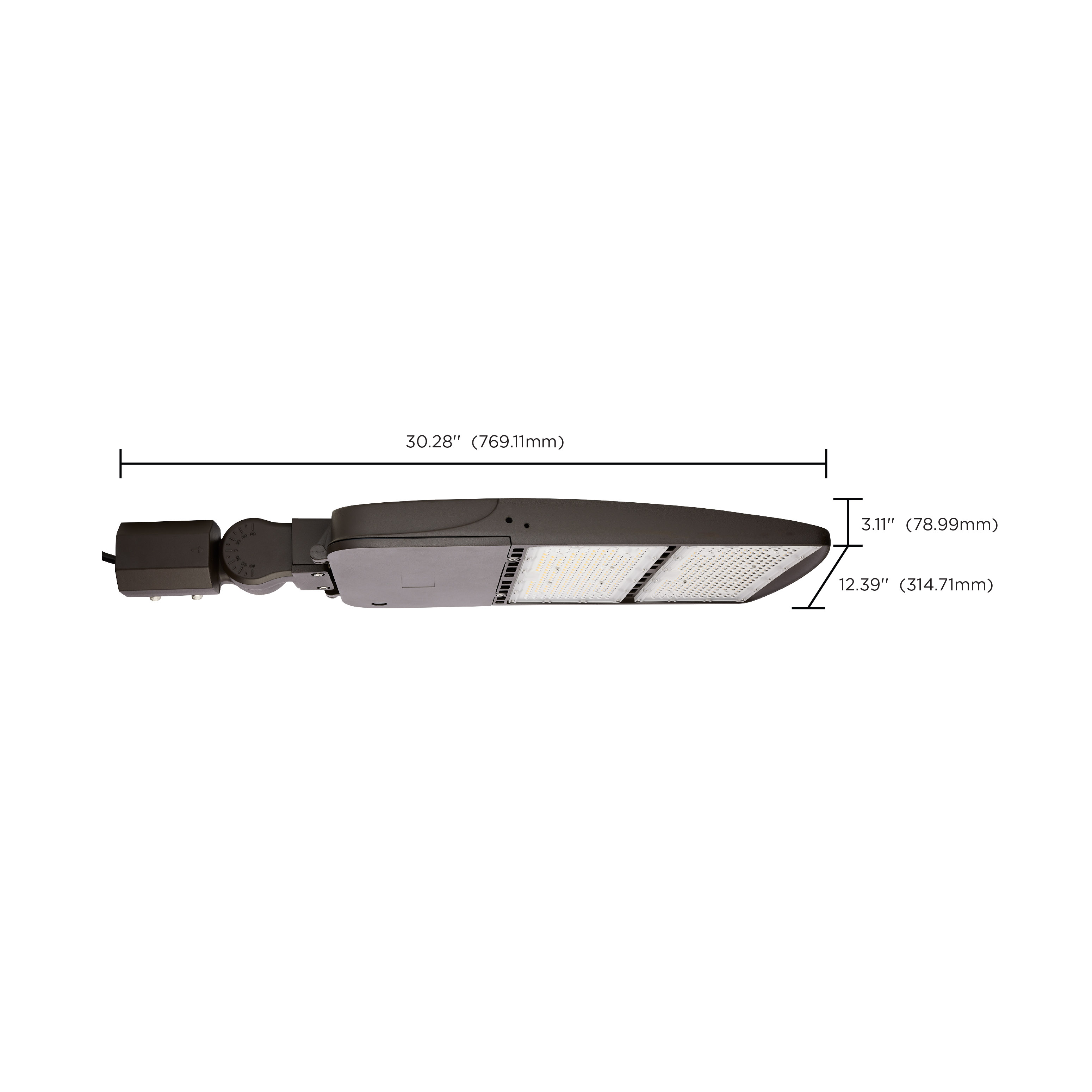

Web Height	3.11
Web Length	30.28
Web Width	12.39
