65-861-5

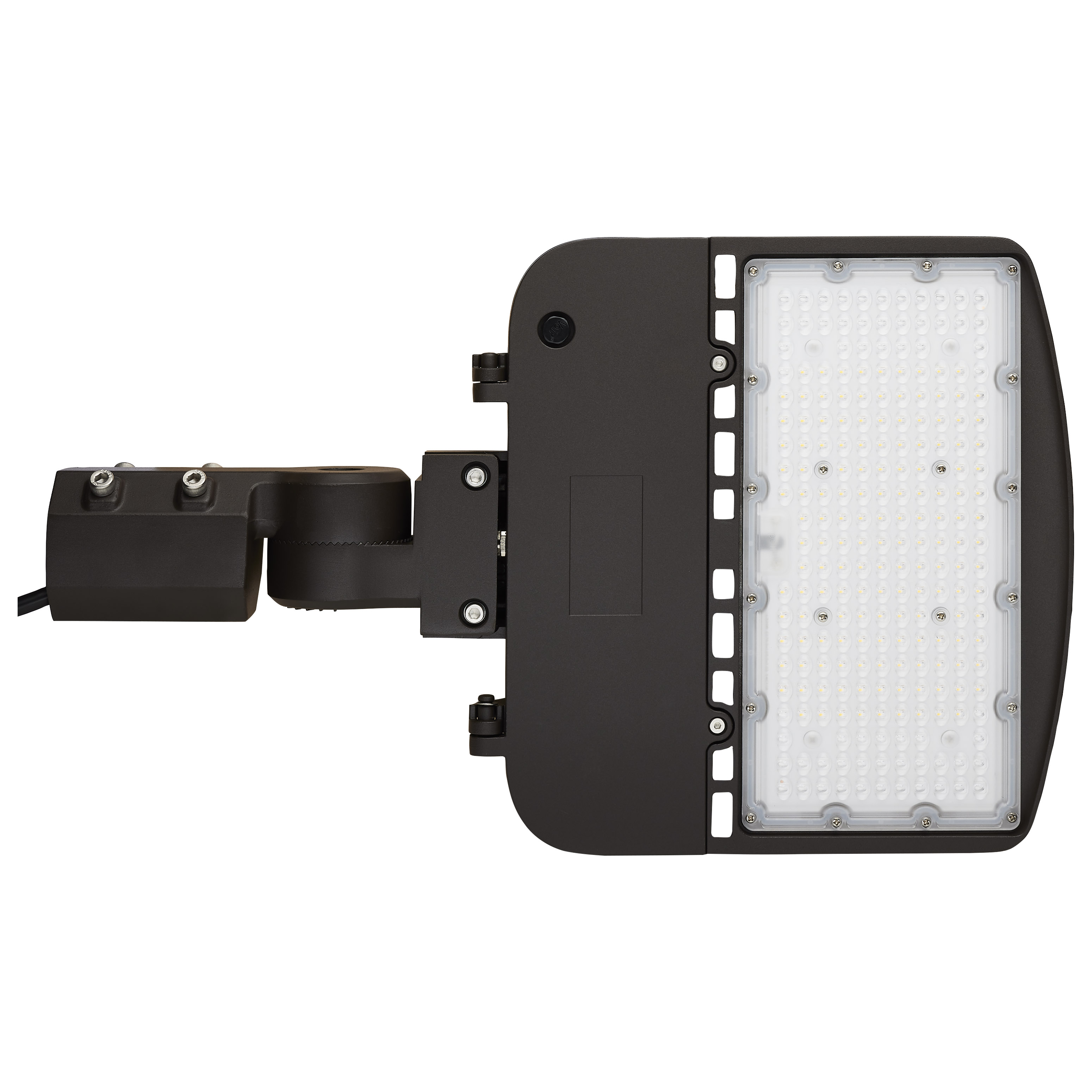

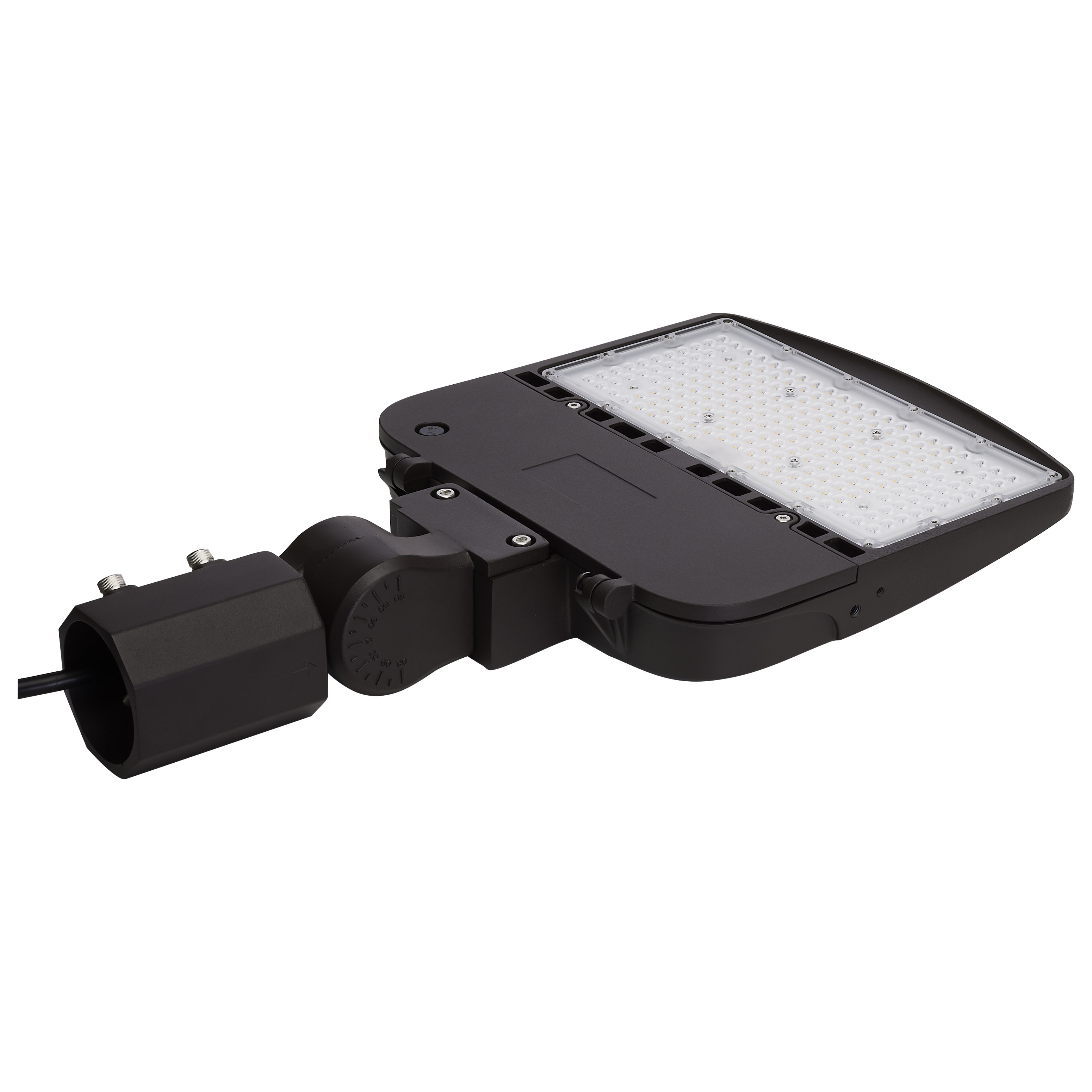

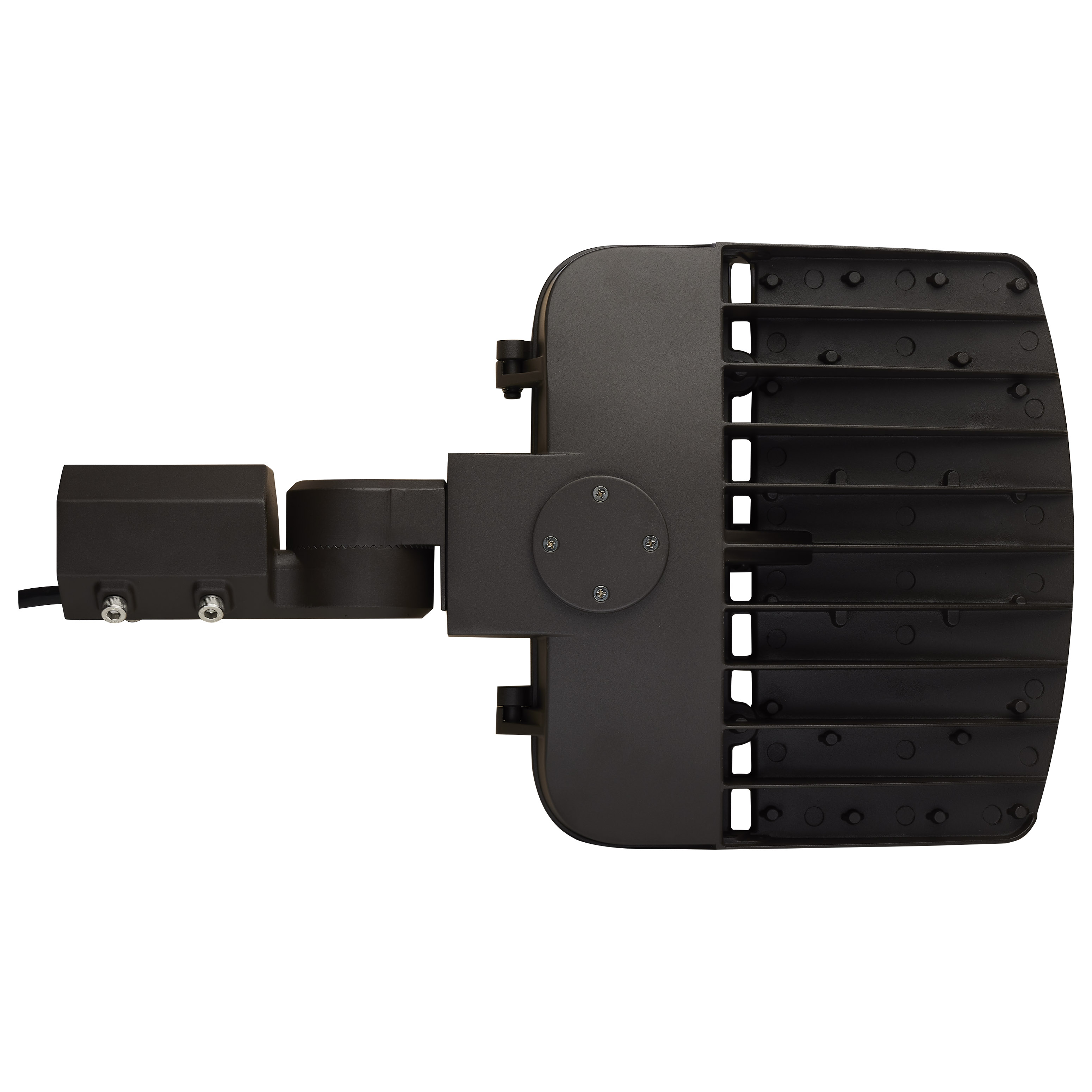

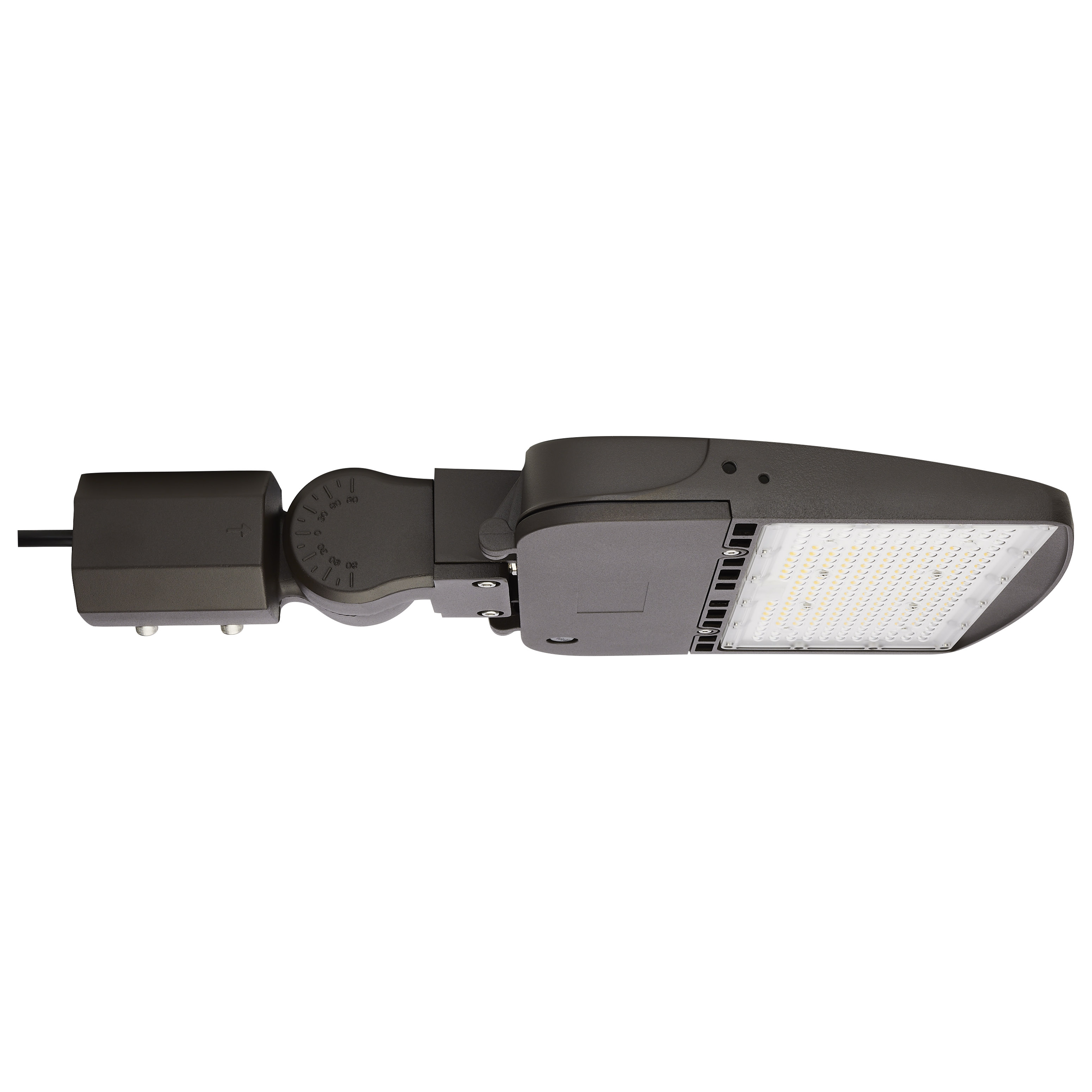

100W LED AREA LIGHT TYPE V

  • LED Area Light Type V
  • 100W
  • Bronze Finish
  • 5000K
  • 277-480V
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-861-5 Specifications65-861-5 Area Light Wattage Recommendations.pdf65-861-5 Photometrics.ies
Tools
Lighting Layout Analysis For 65-861-5
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Area Light Type V; 100W; Bronze Finish; 5000K; 277-480V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming
Lamp FilamentLED

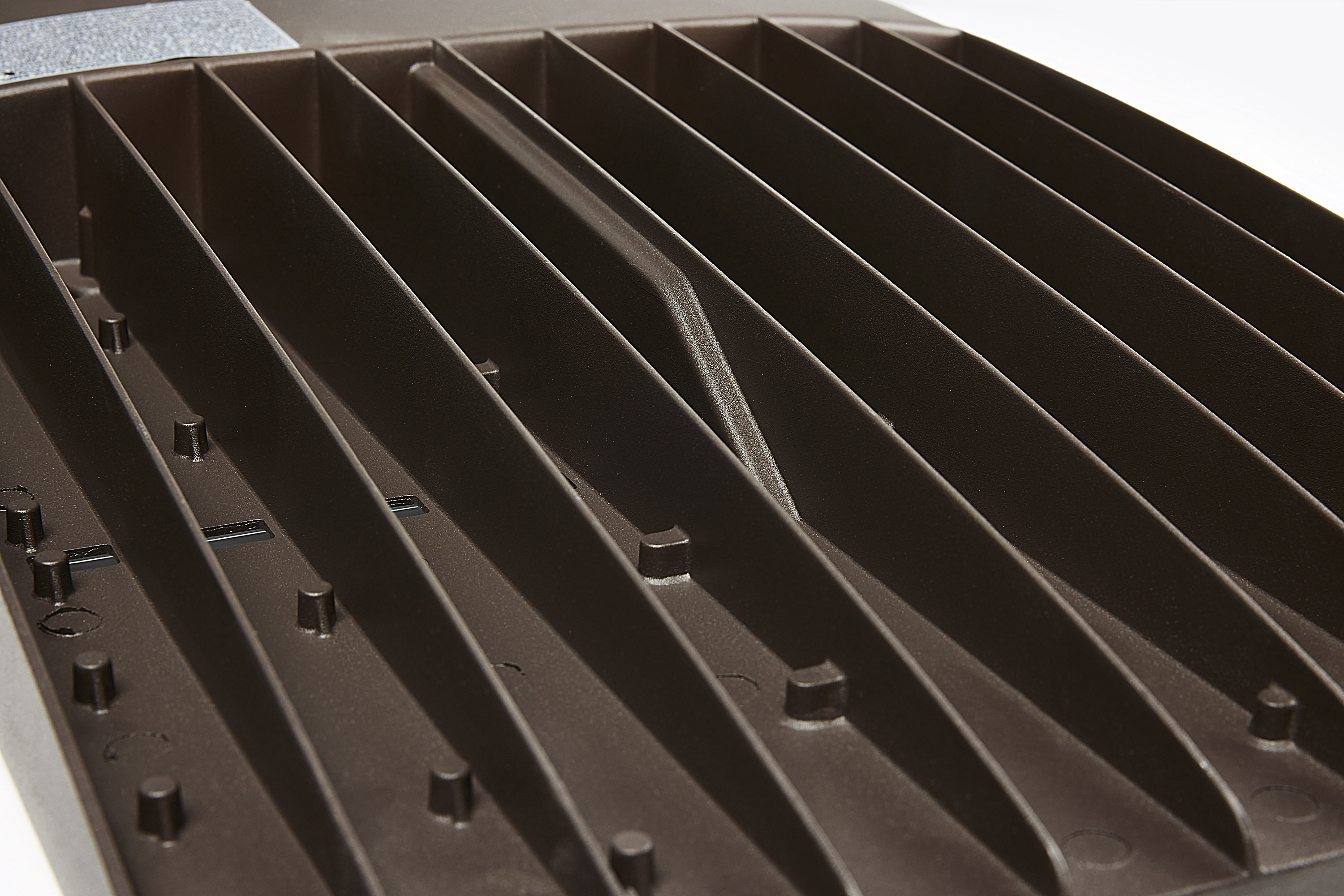

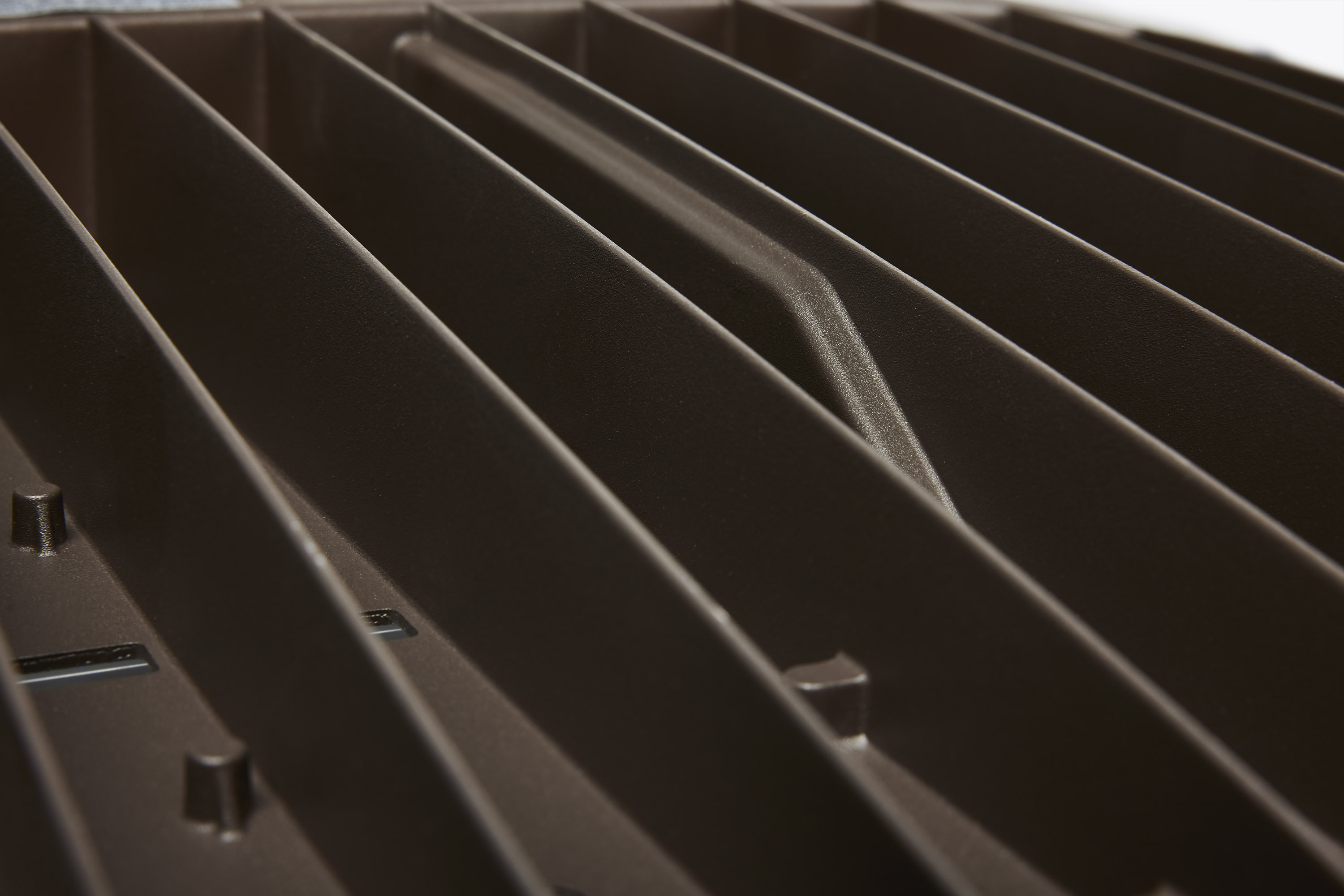

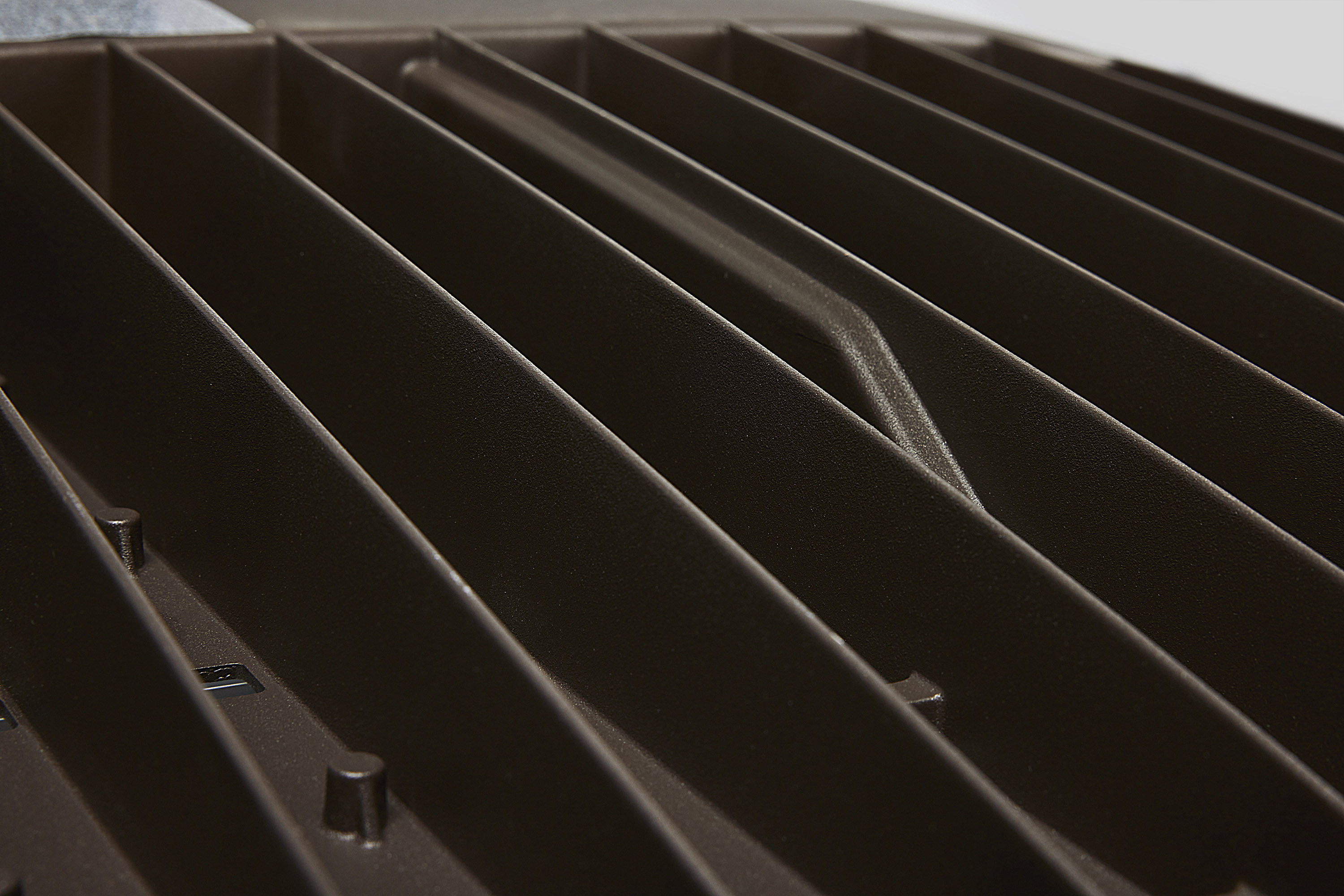

MaterialDie-cast Aluminum
Fixture TypeArea Light

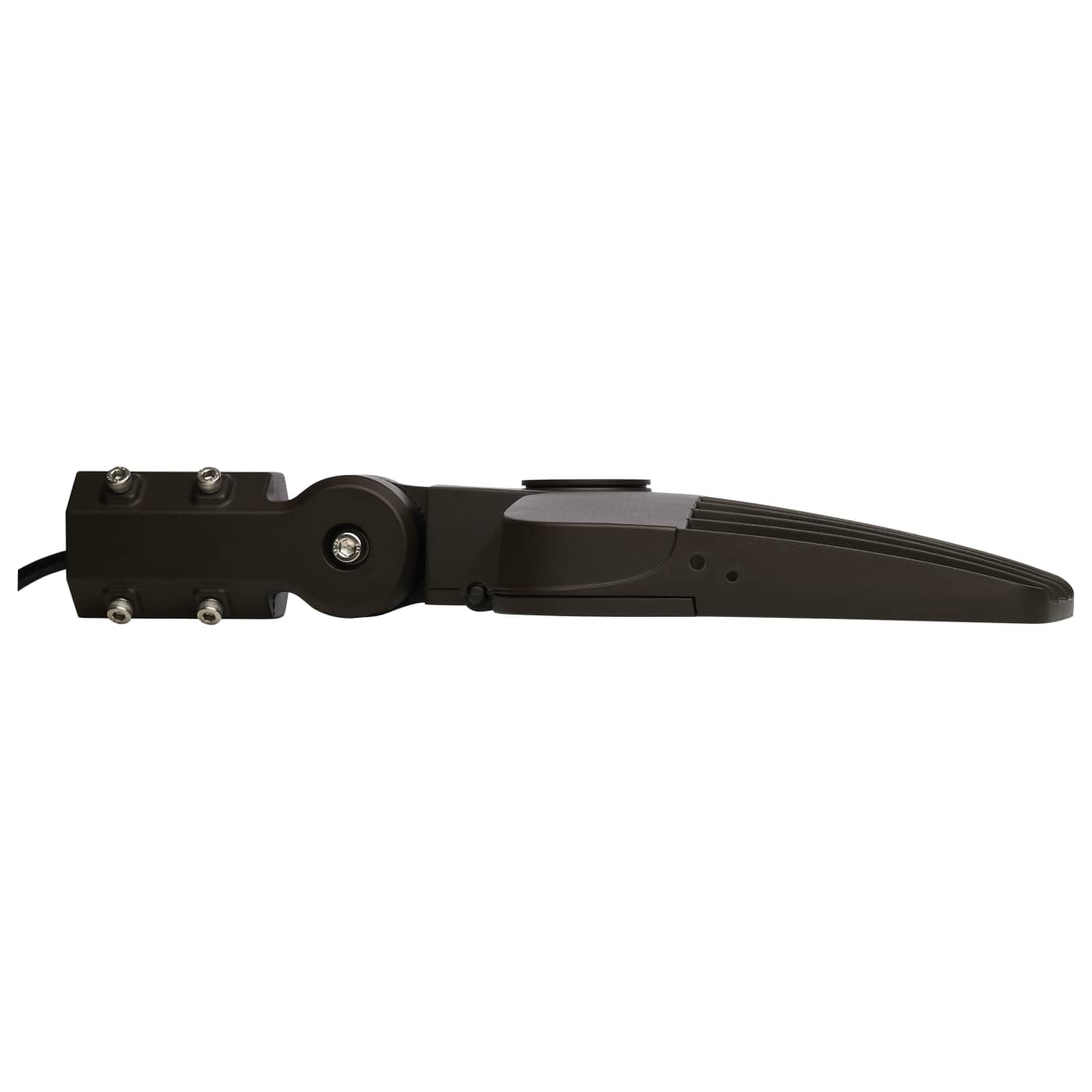

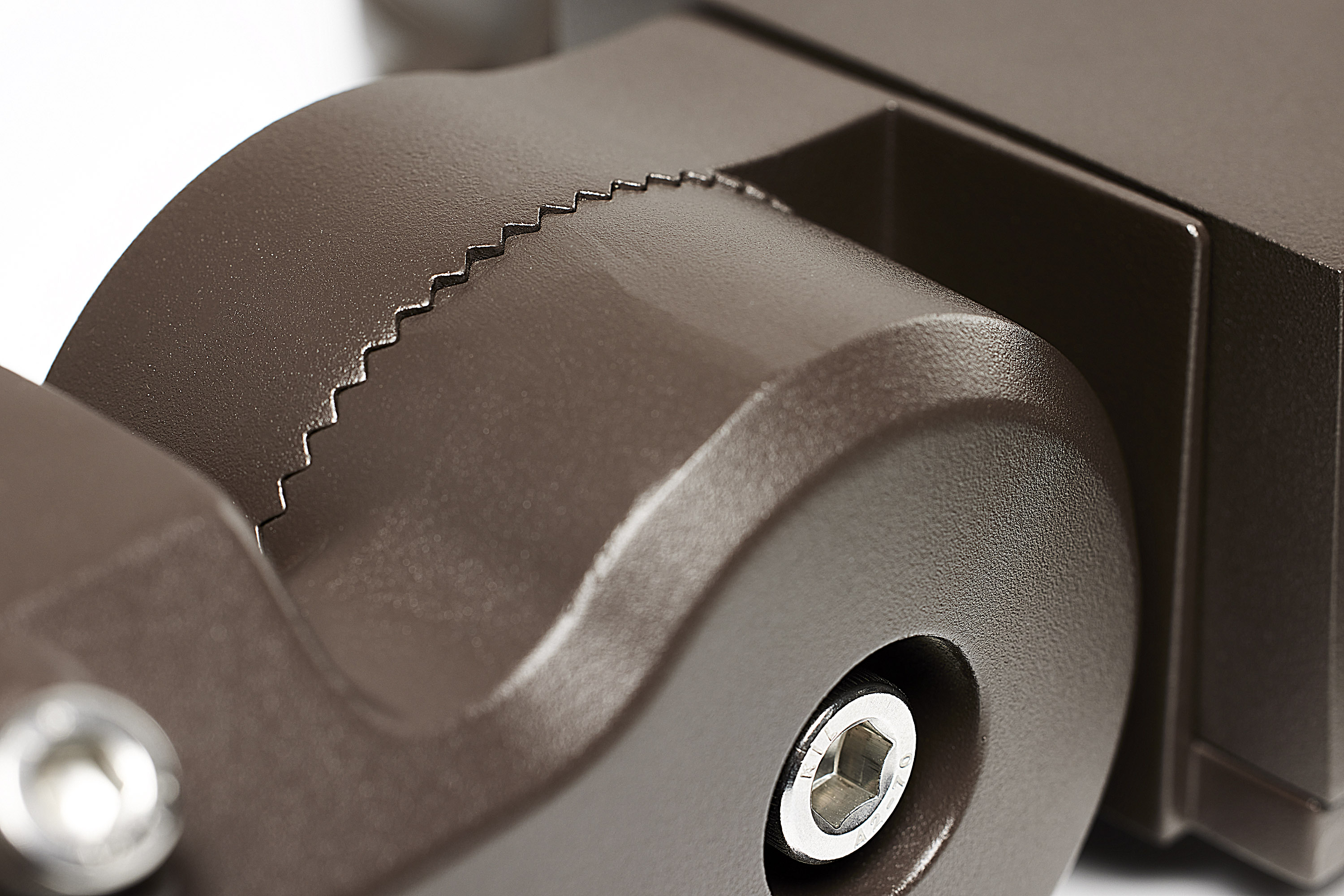

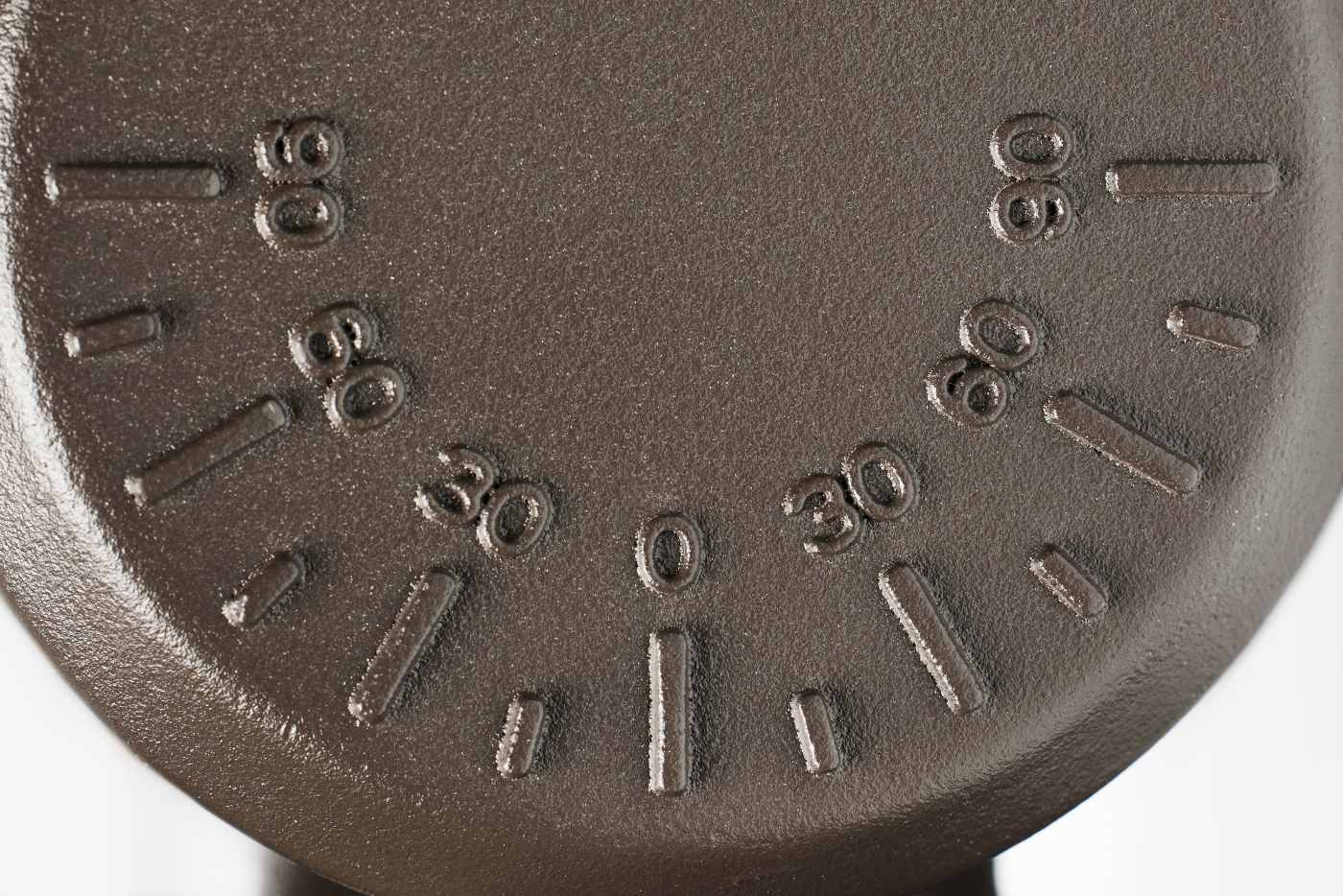

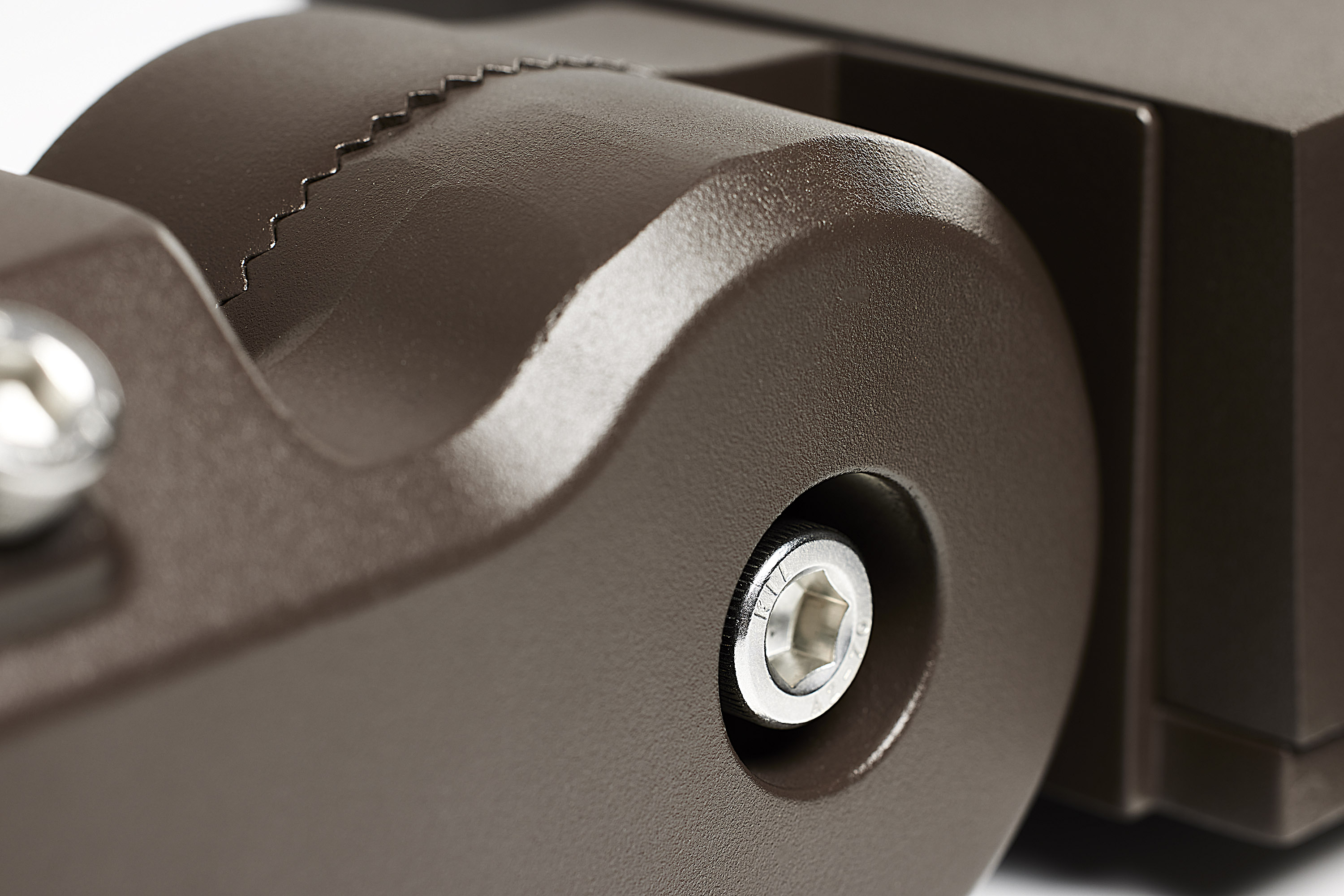

IncludesSlip-fitter Mount
Product NotesType V Light Distribution
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBronze
Additional InfoPowder Coated
Amps0.361-0.208A
Has CameraNo
IOT EnabledNo

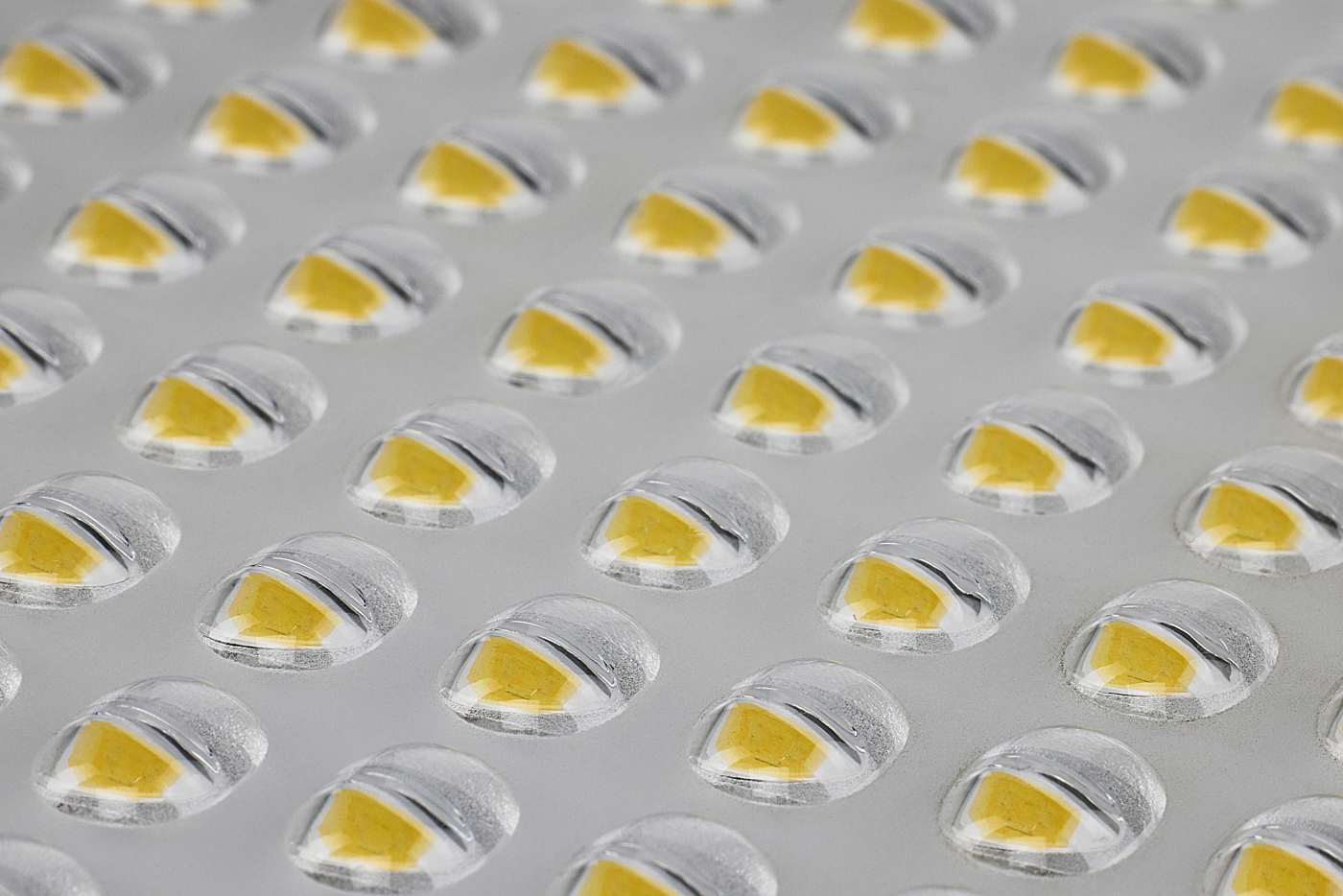

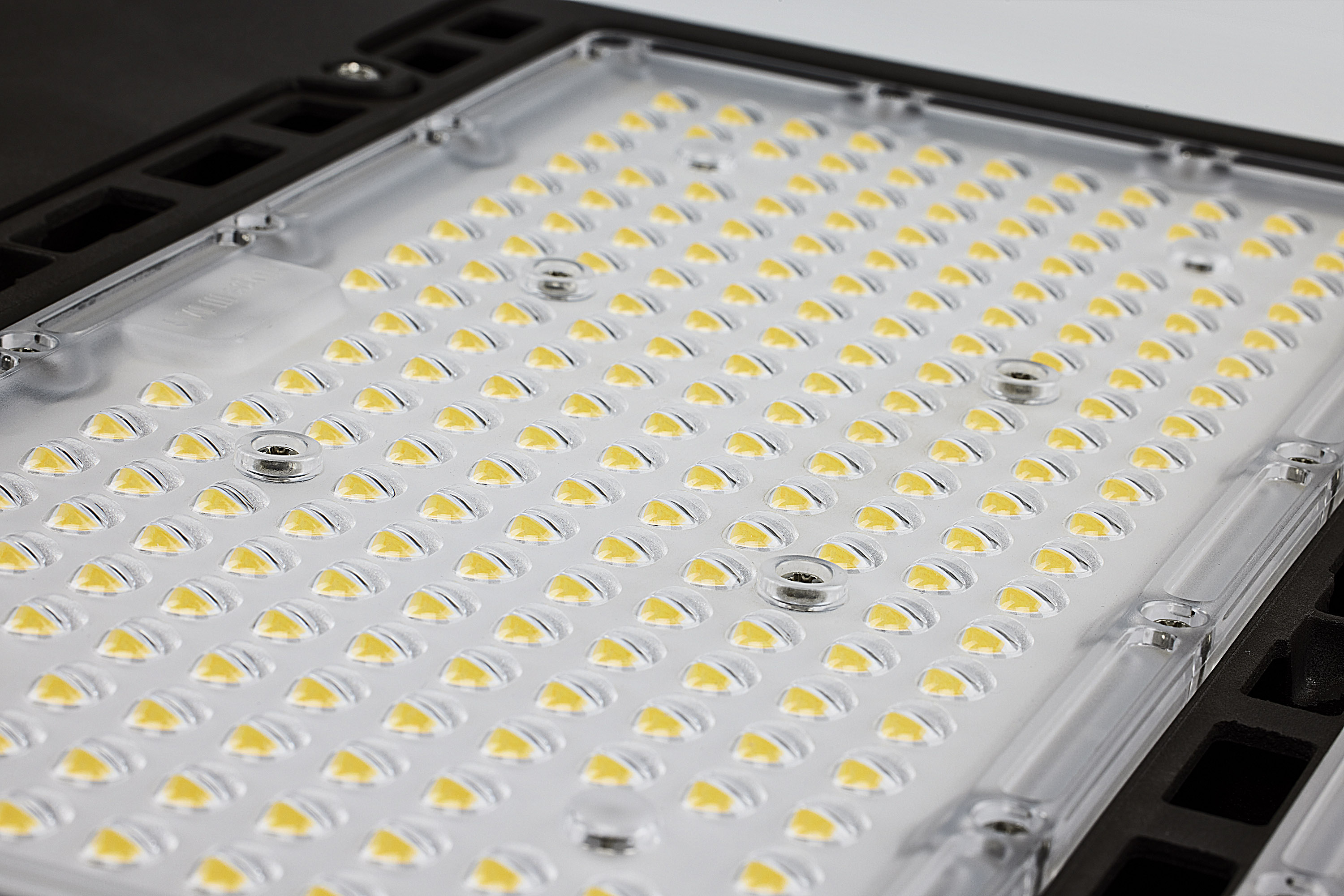

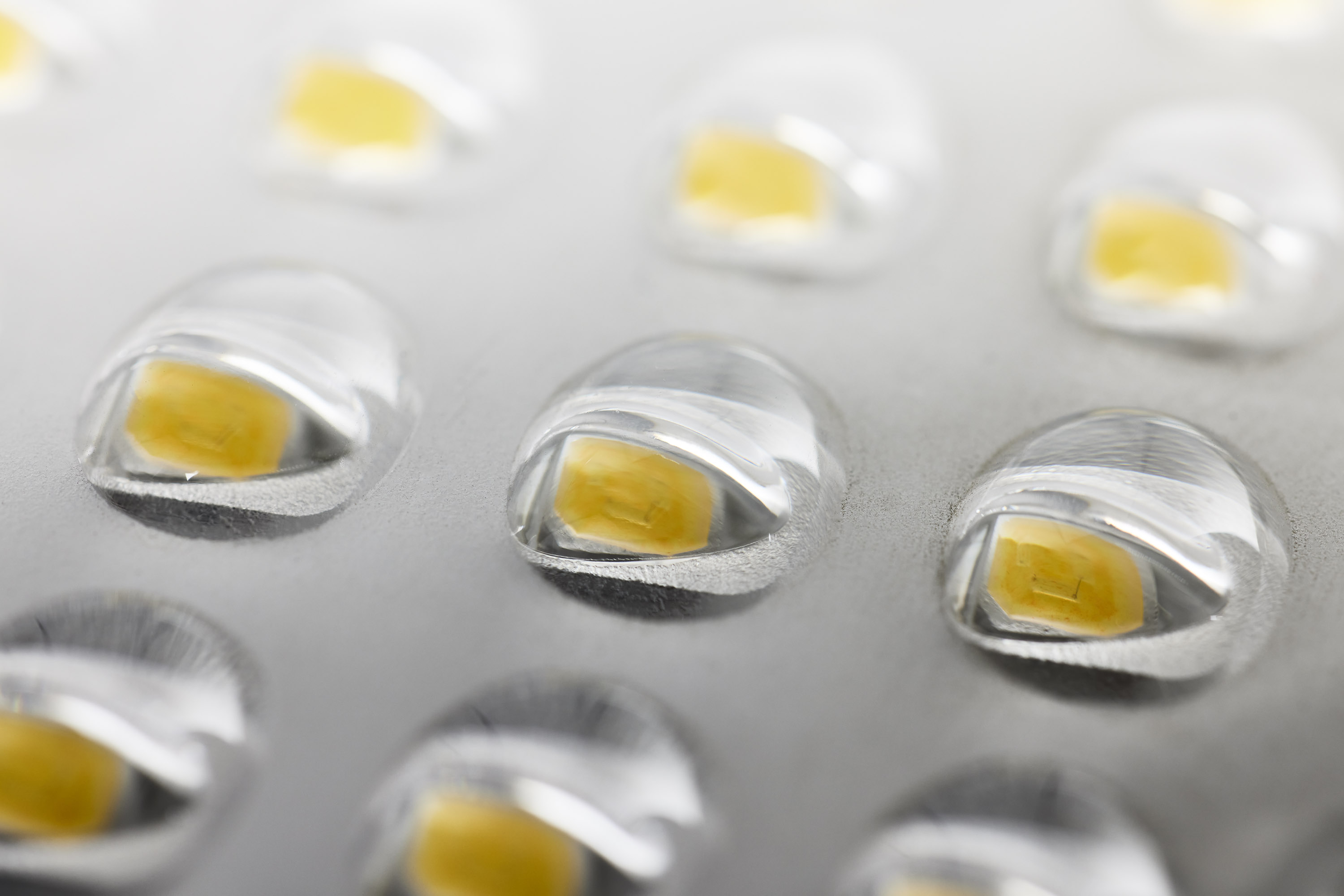

Lens MaterialPolycarbonate (PC)

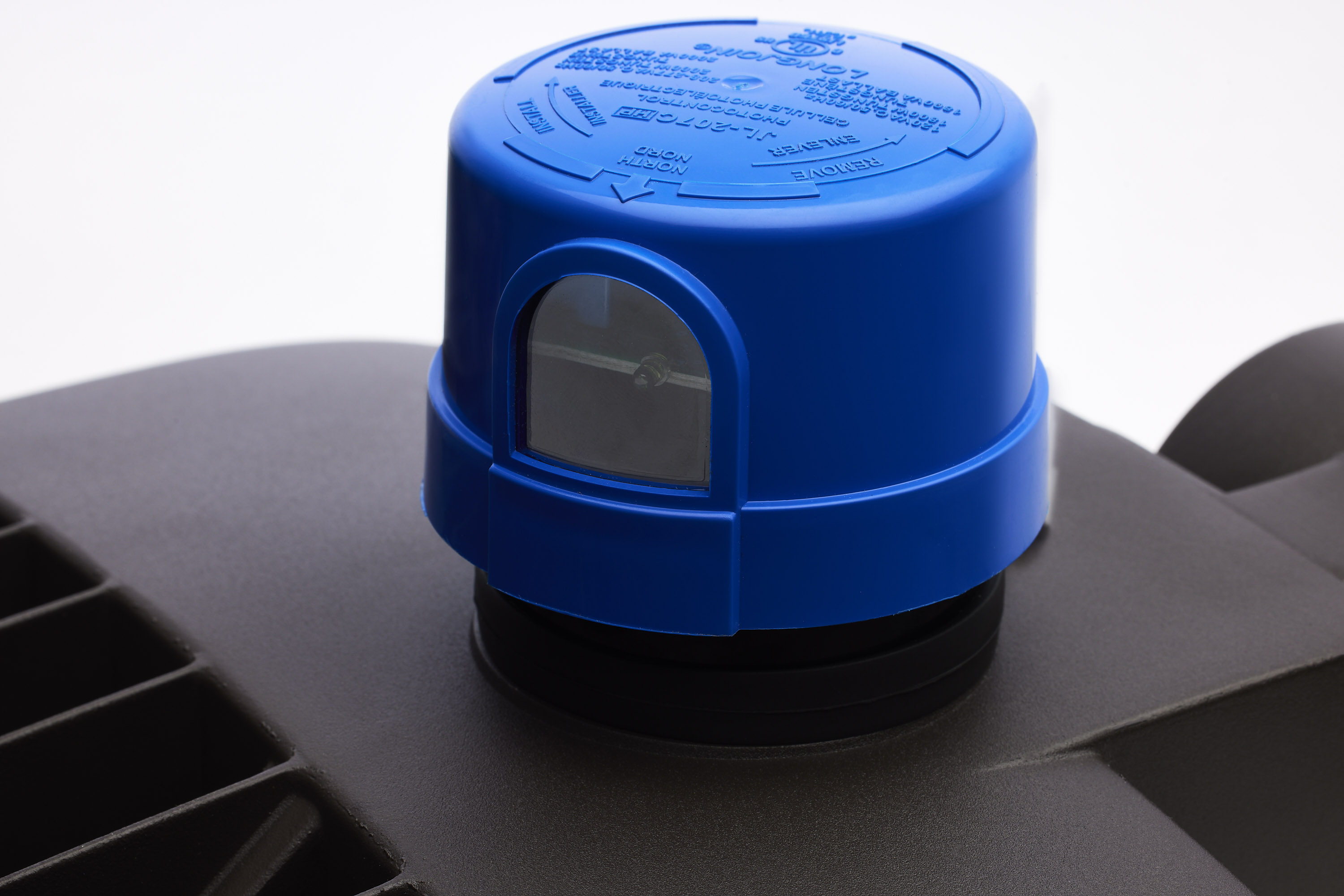

Photo CellOptional
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fixture Lamp Count1
Incandescent Equivalent500W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated50000
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent250W

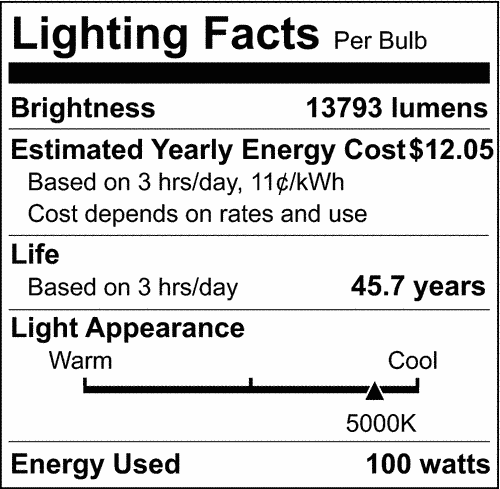

Lumens13793L
Volts277V-480V
Watts100W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB5-U3-G2
CA Prop 65Lead
Dark Sky RatedNo
DLC IDS-4A1D9R
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923686153
Case Cube1.1031
Case Height5.71
Case Length23.23
Case Quantity1
Case UPC10045923686150
Case Weight8.29
Case Width14.37
EA Cube1.1031
EA Height5.71
EA Length23.23
EA Quantity1
EA Weight8.29
EA Width14.37
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.11
Web Length20.71
Web Width12.4
