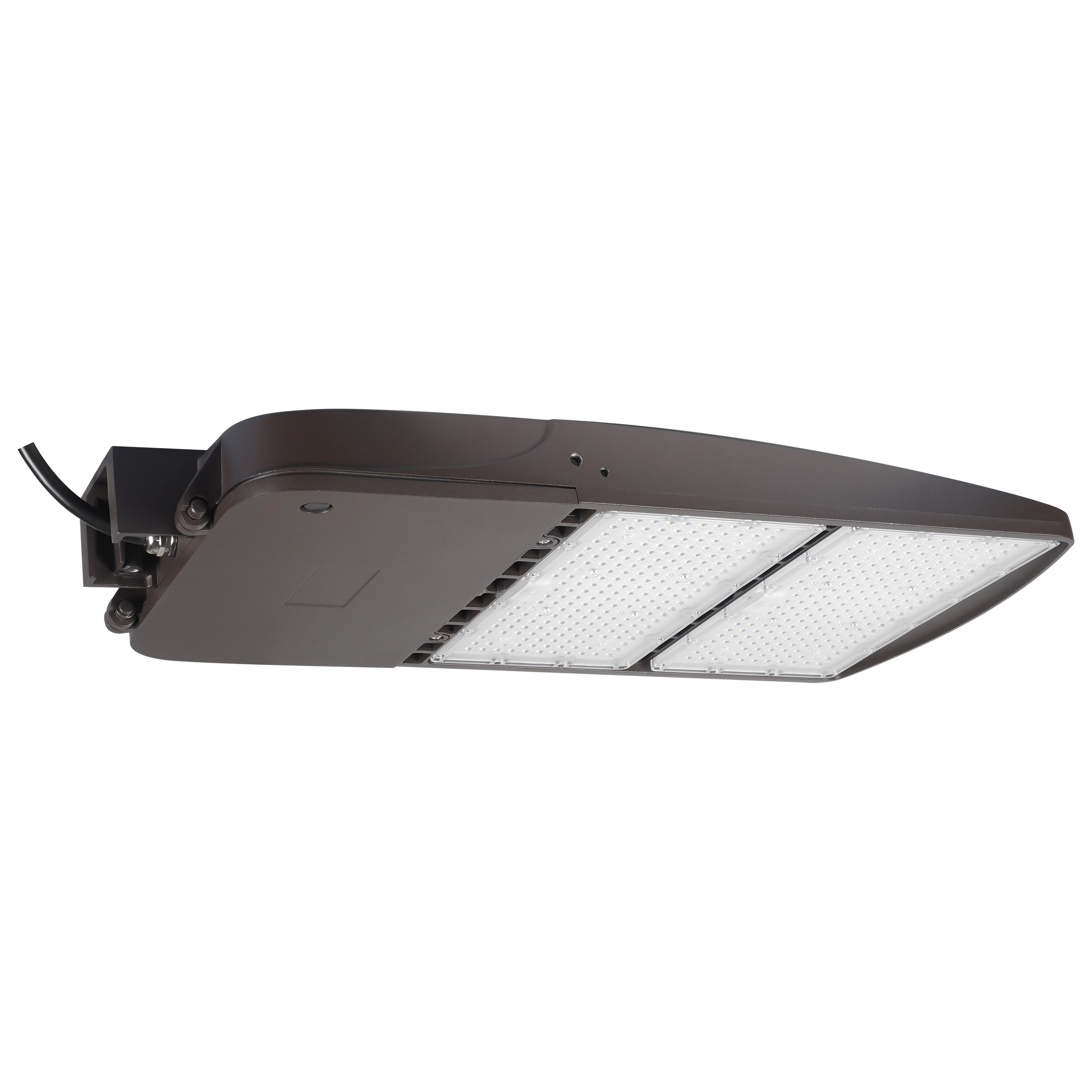

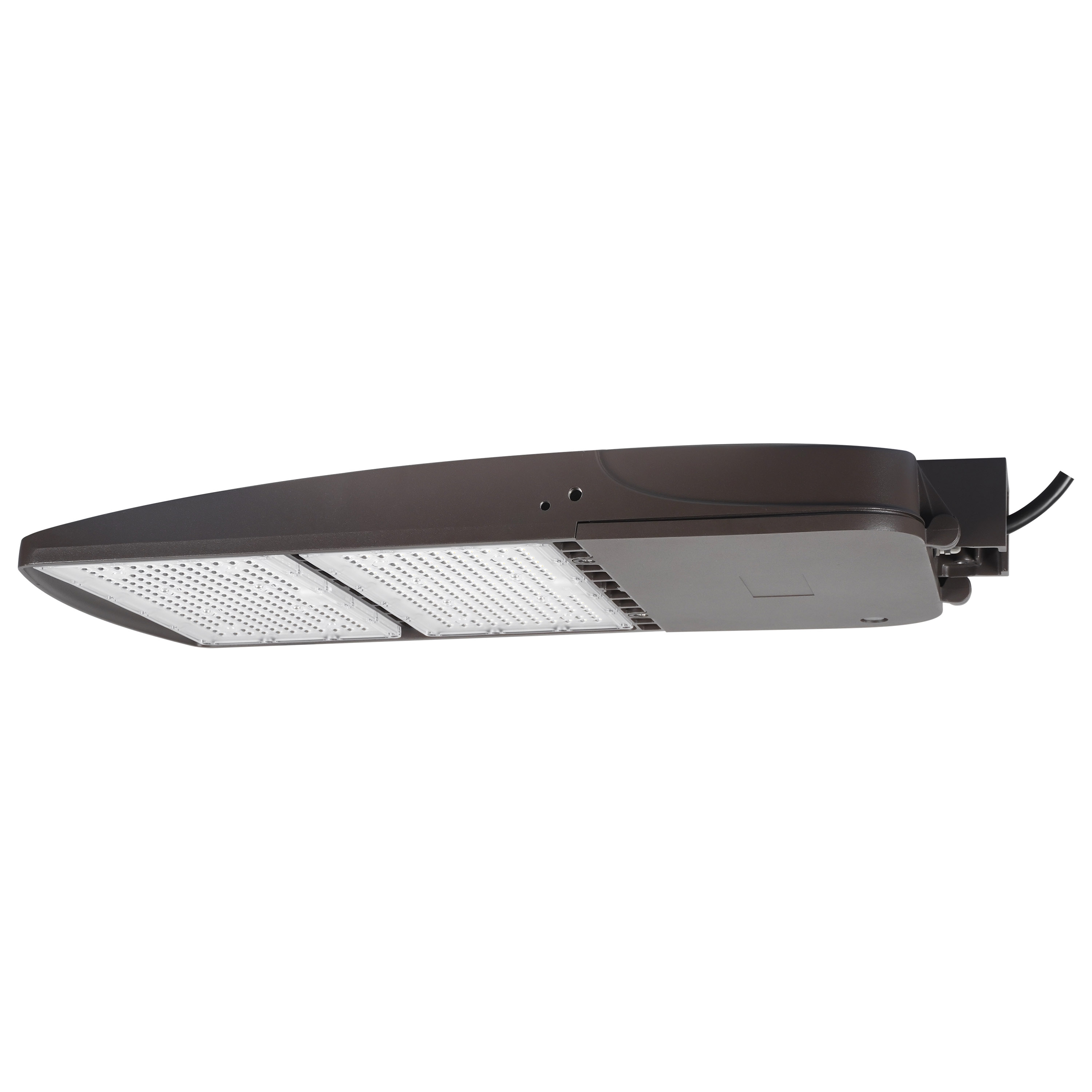

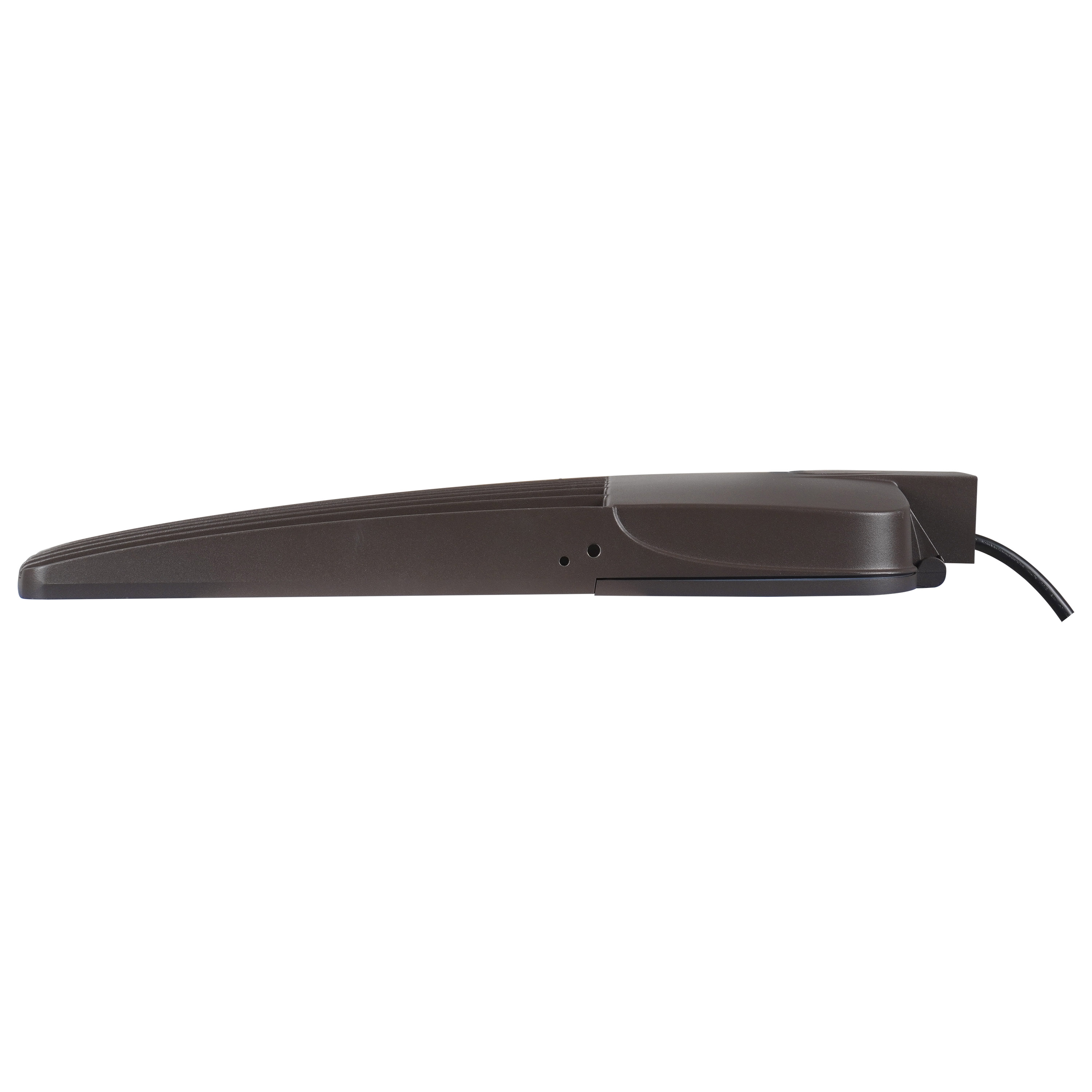

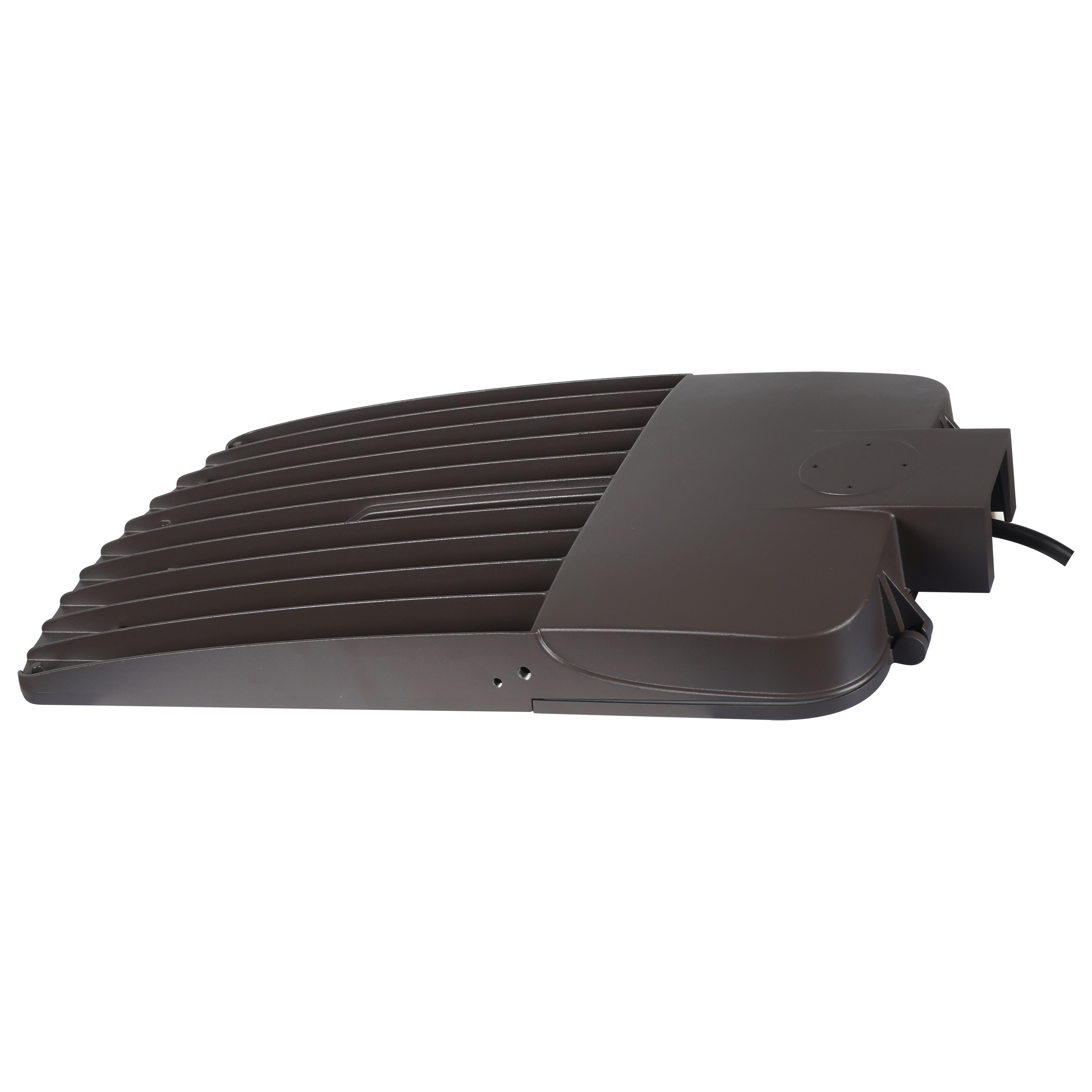

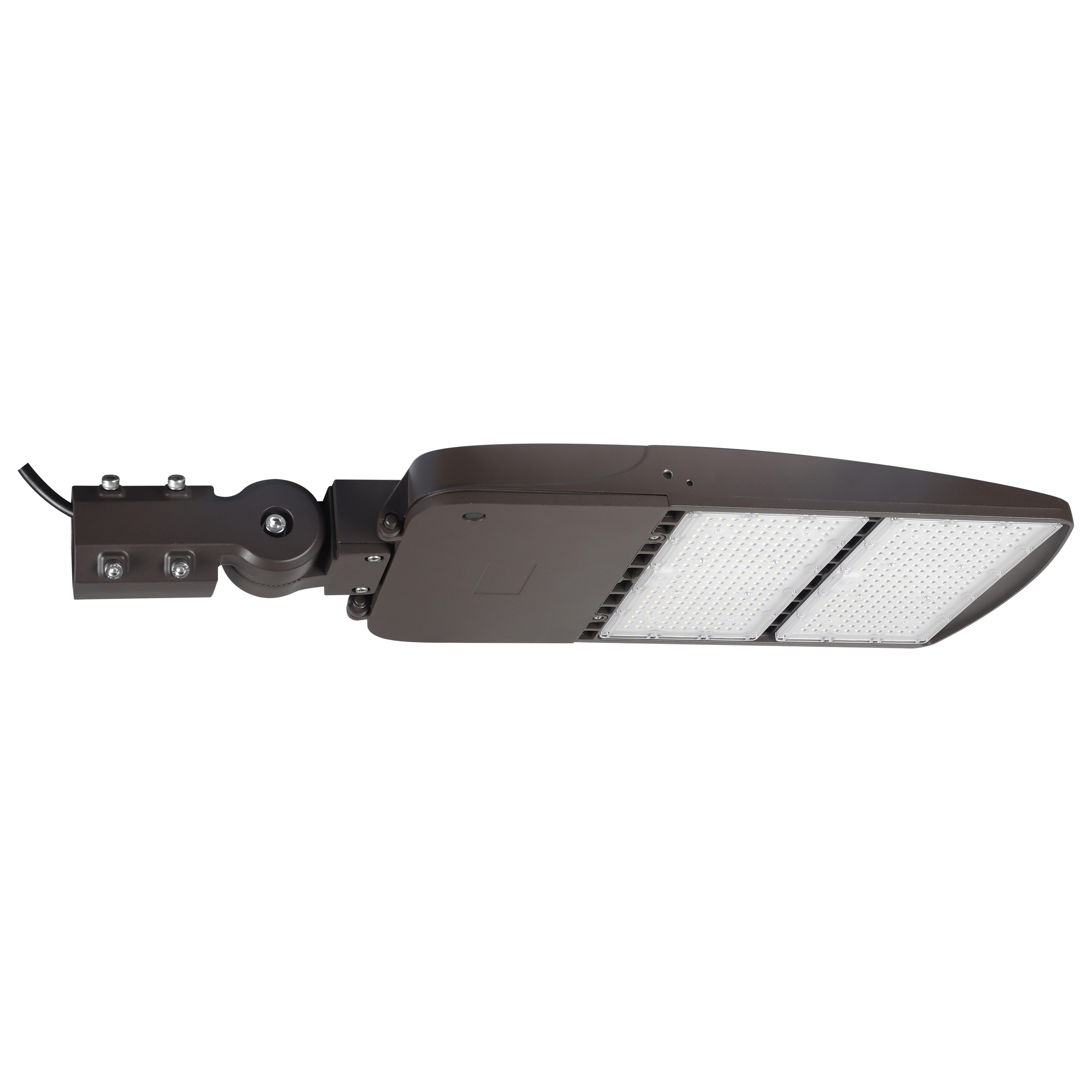

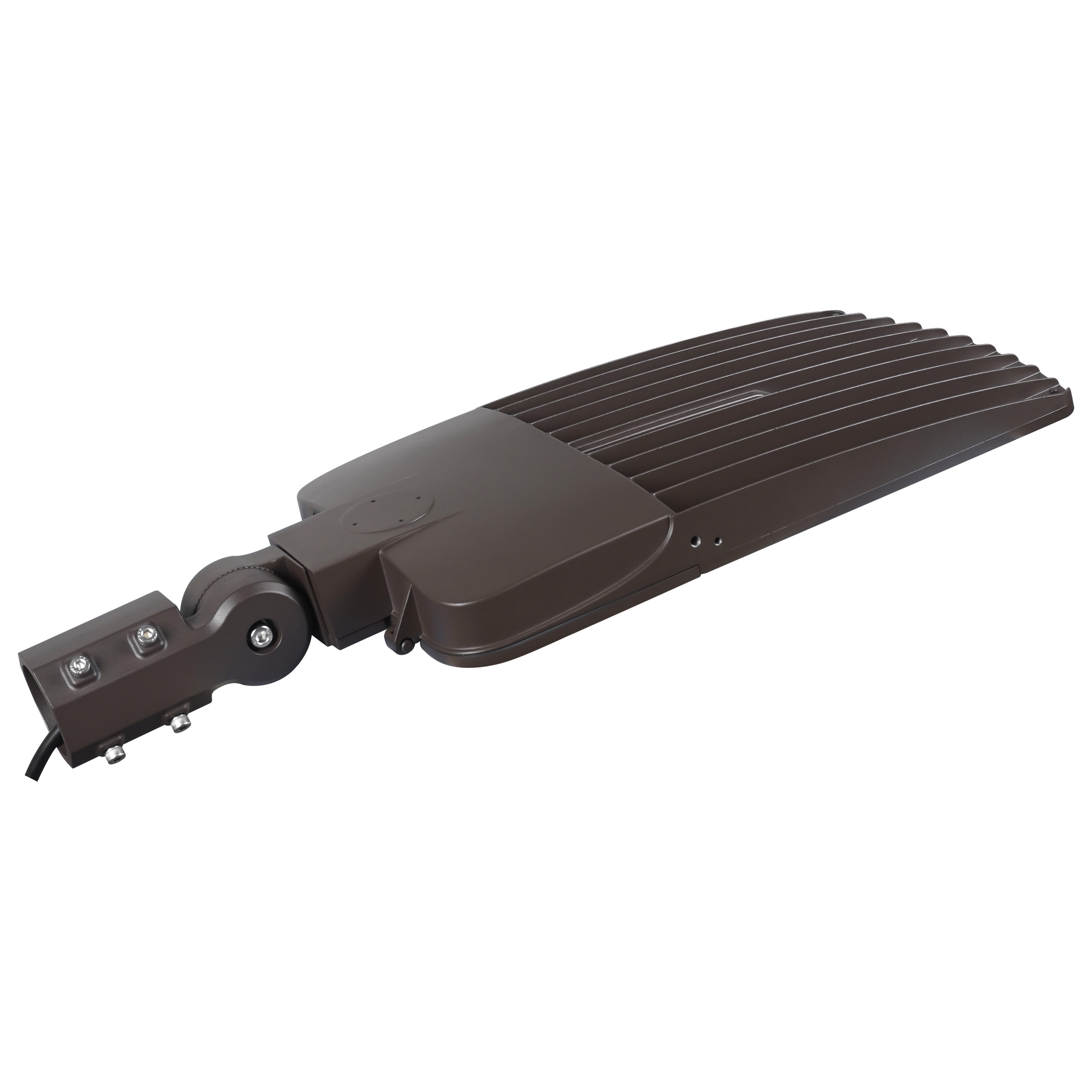

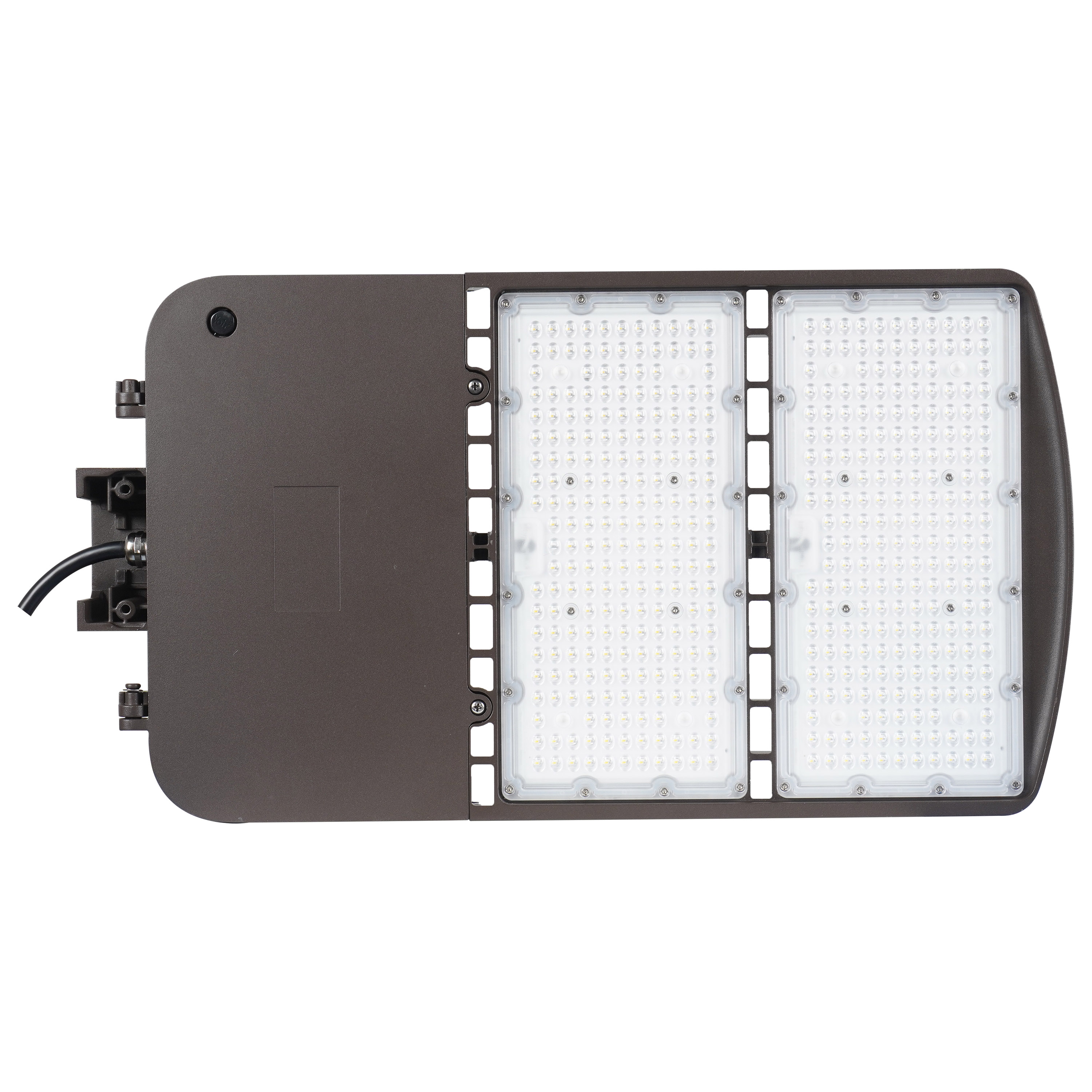

65-864 200W LED AREA LIGHT TYPE III

65-864

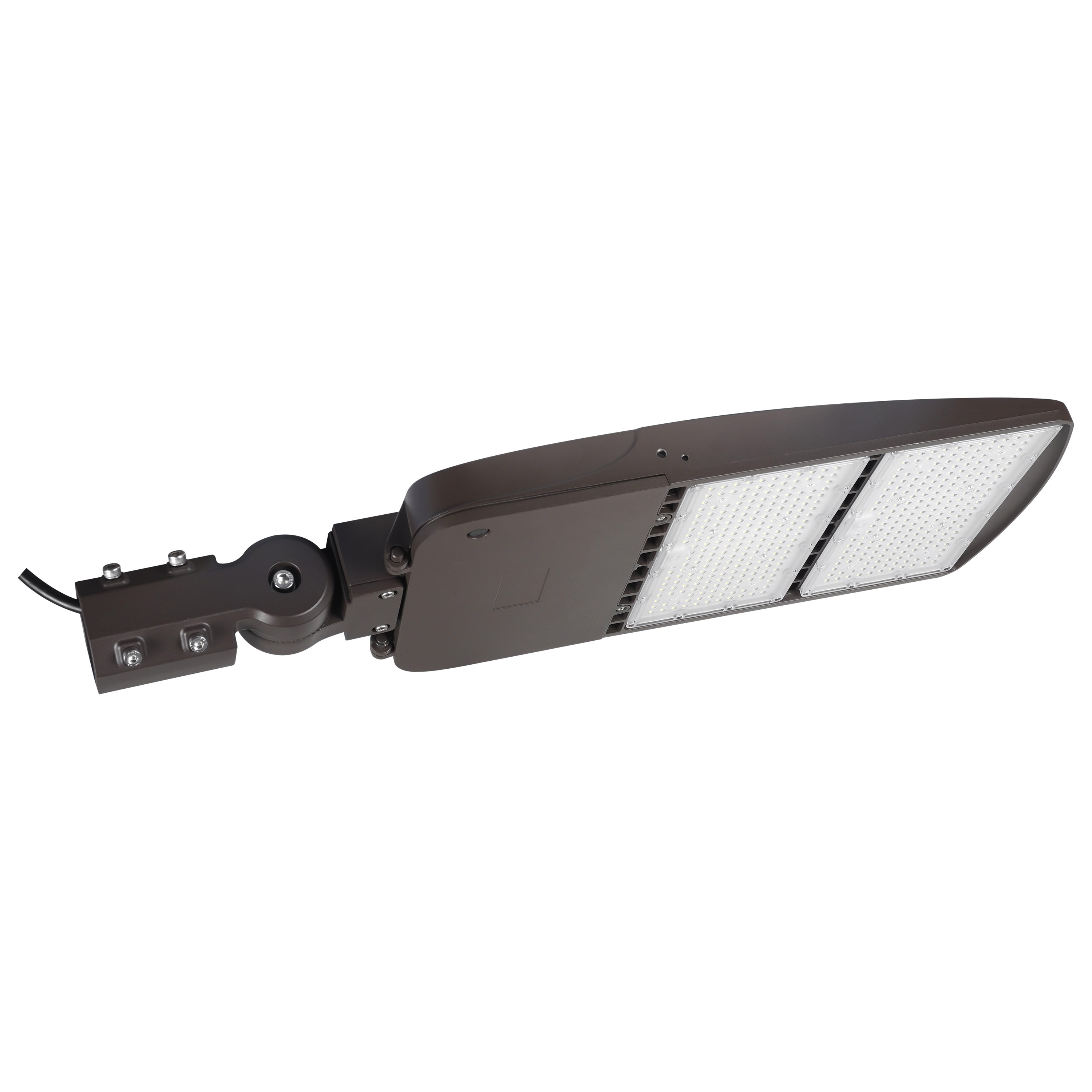

200W LED AREA LIGHT TYPE III

LED Area Light Type III; 200W; Bronze Finish; 4000K; 277-480V


SATCO|NUVO's LED Area Light Type III provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using die cast aluminum and impact resistant lenses and featuring an IP65 rating, provide ample lighting for both indoor and outdoor events. The lamps offer 50,000 hours of life and built in 4KV surge protection.
  • Maintenance free - no bulb to change

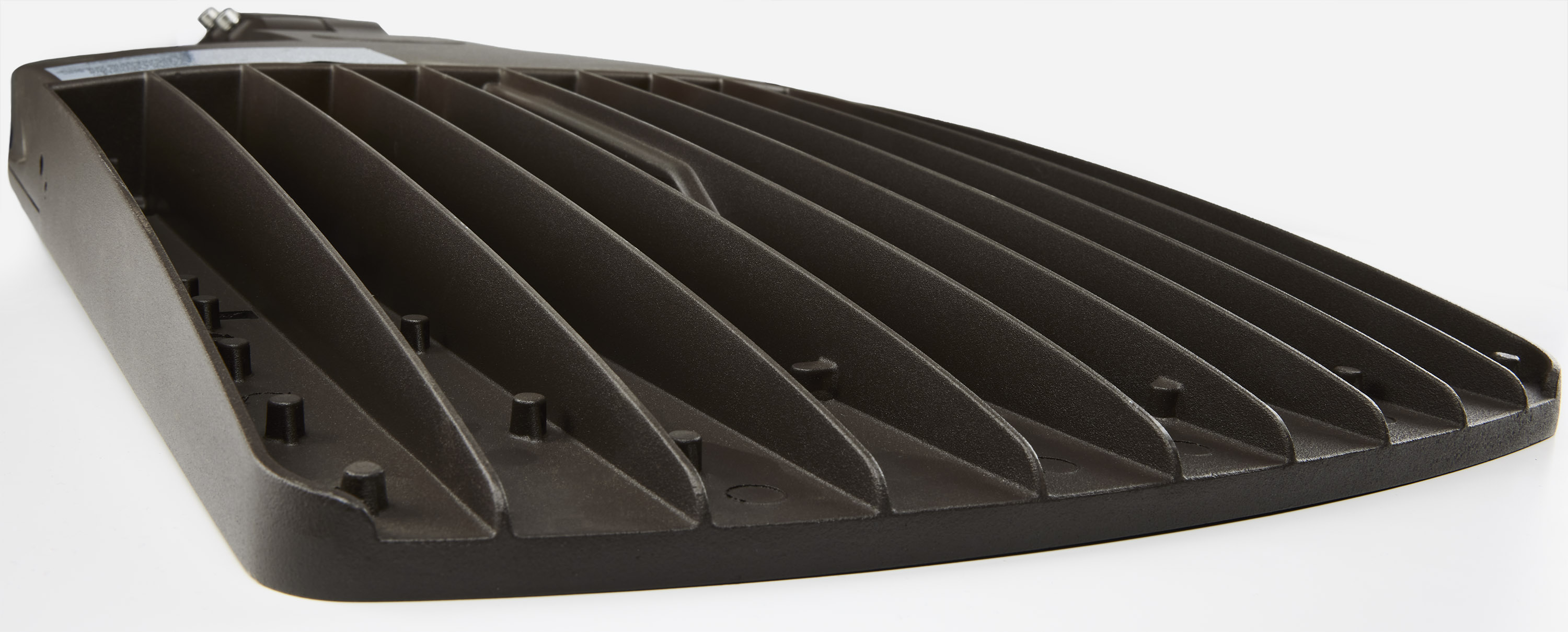

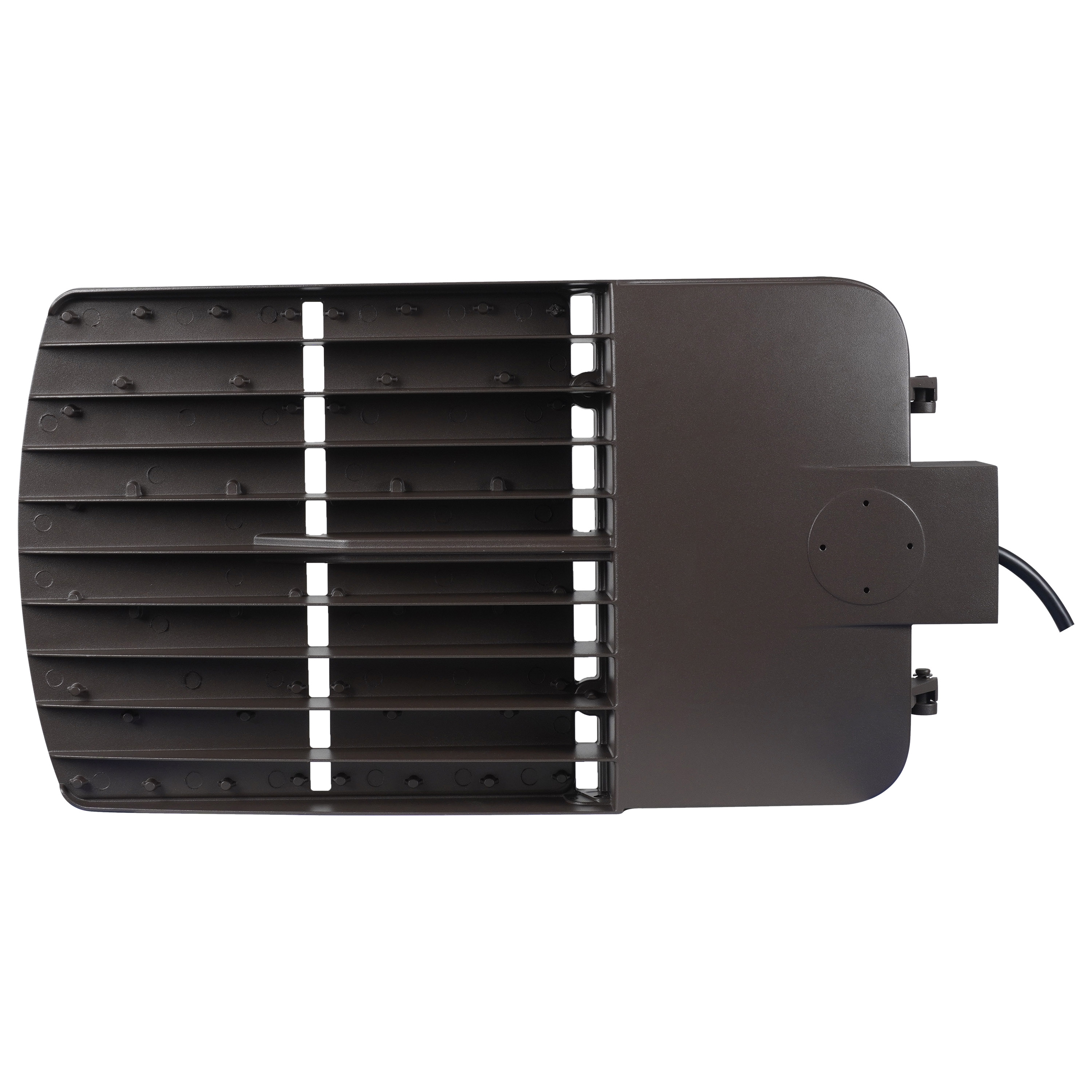

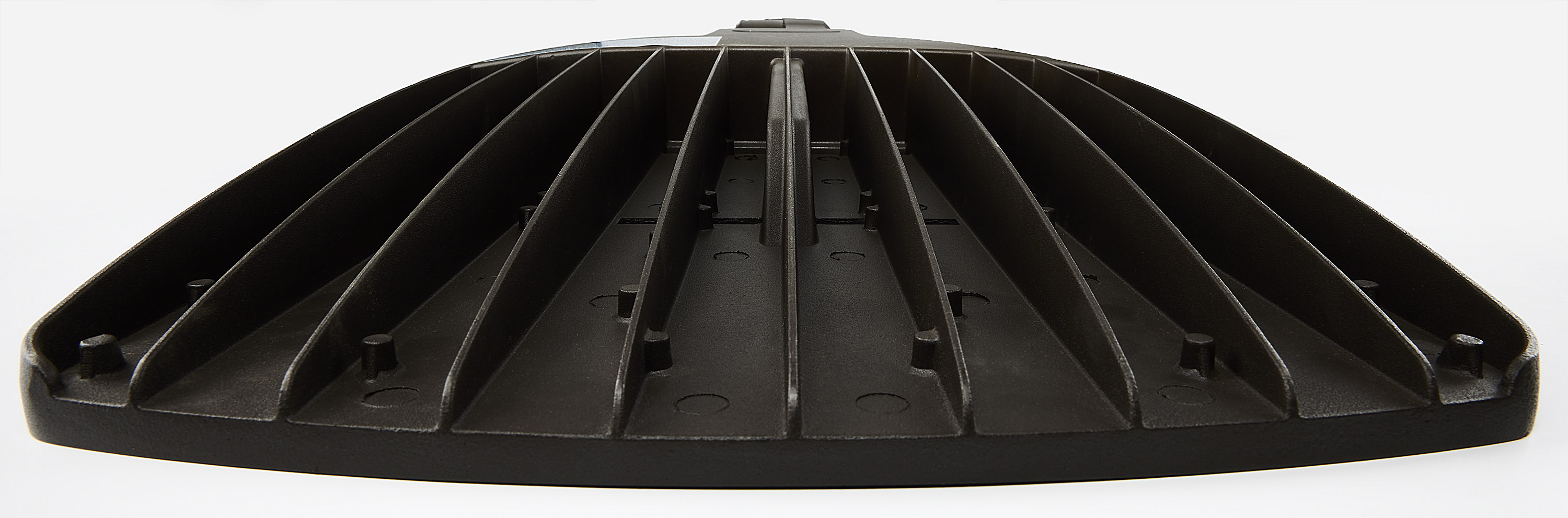

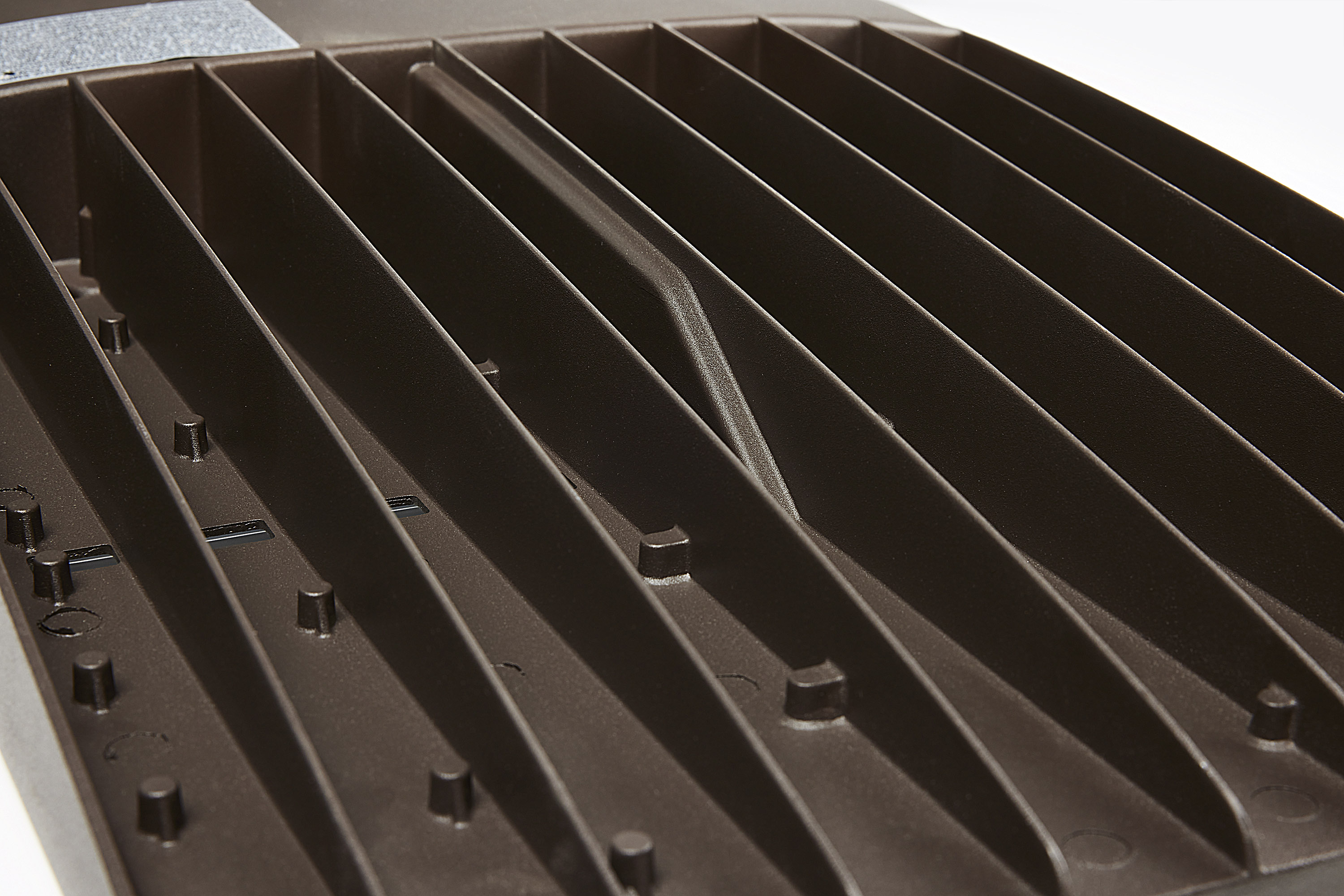

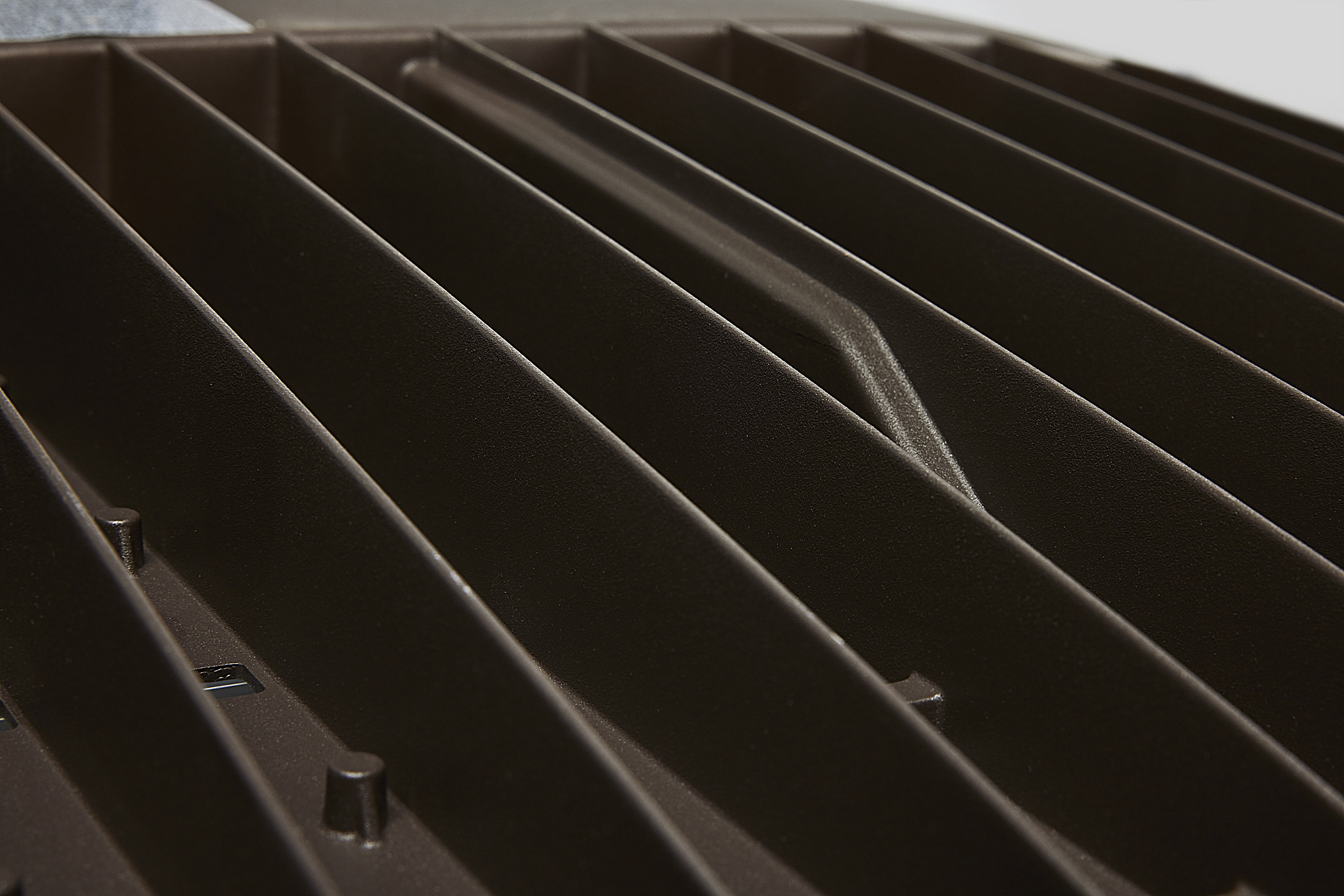

  • Die-cast aluminum body
  • UV Stabilized powder coasted bronze finish

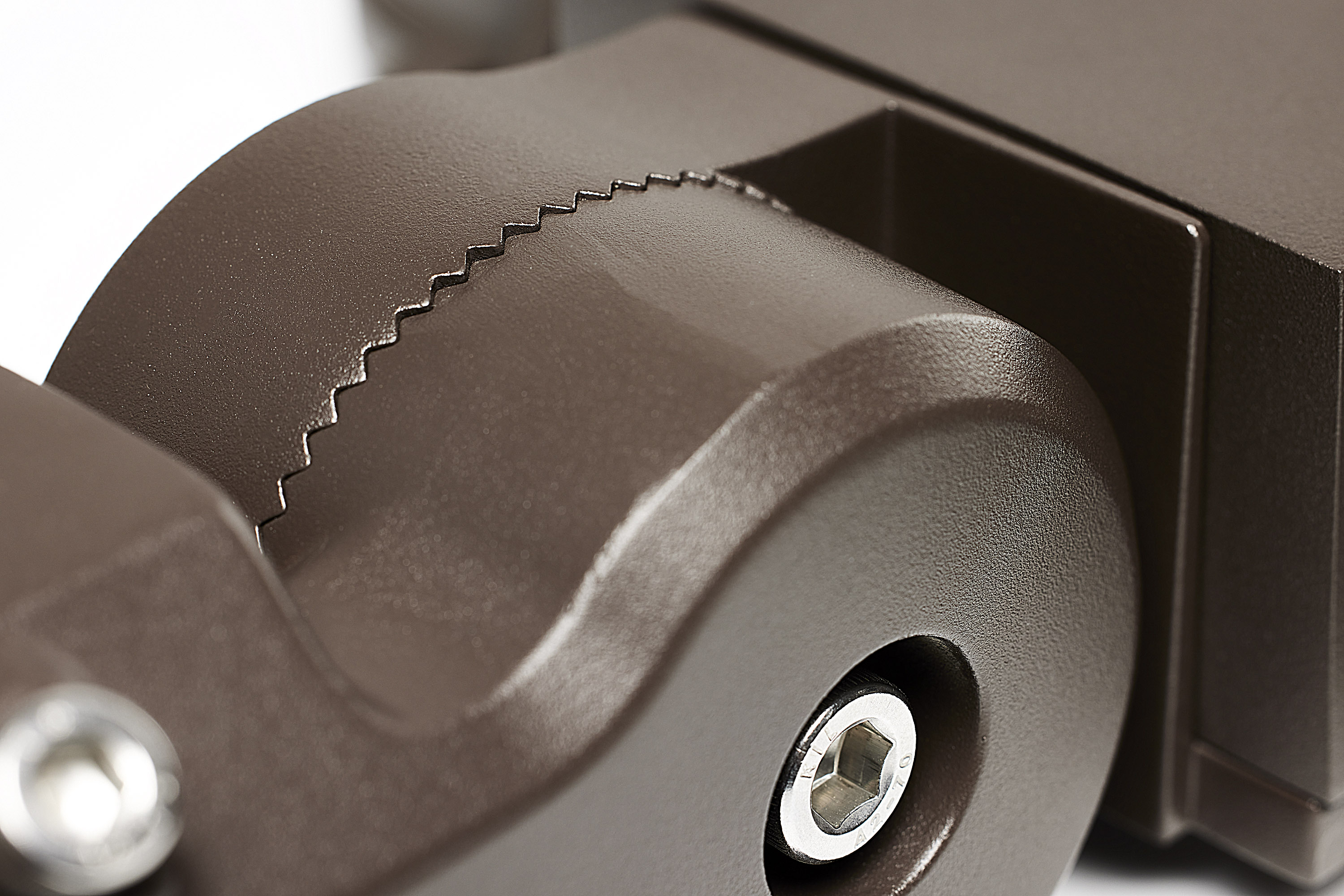

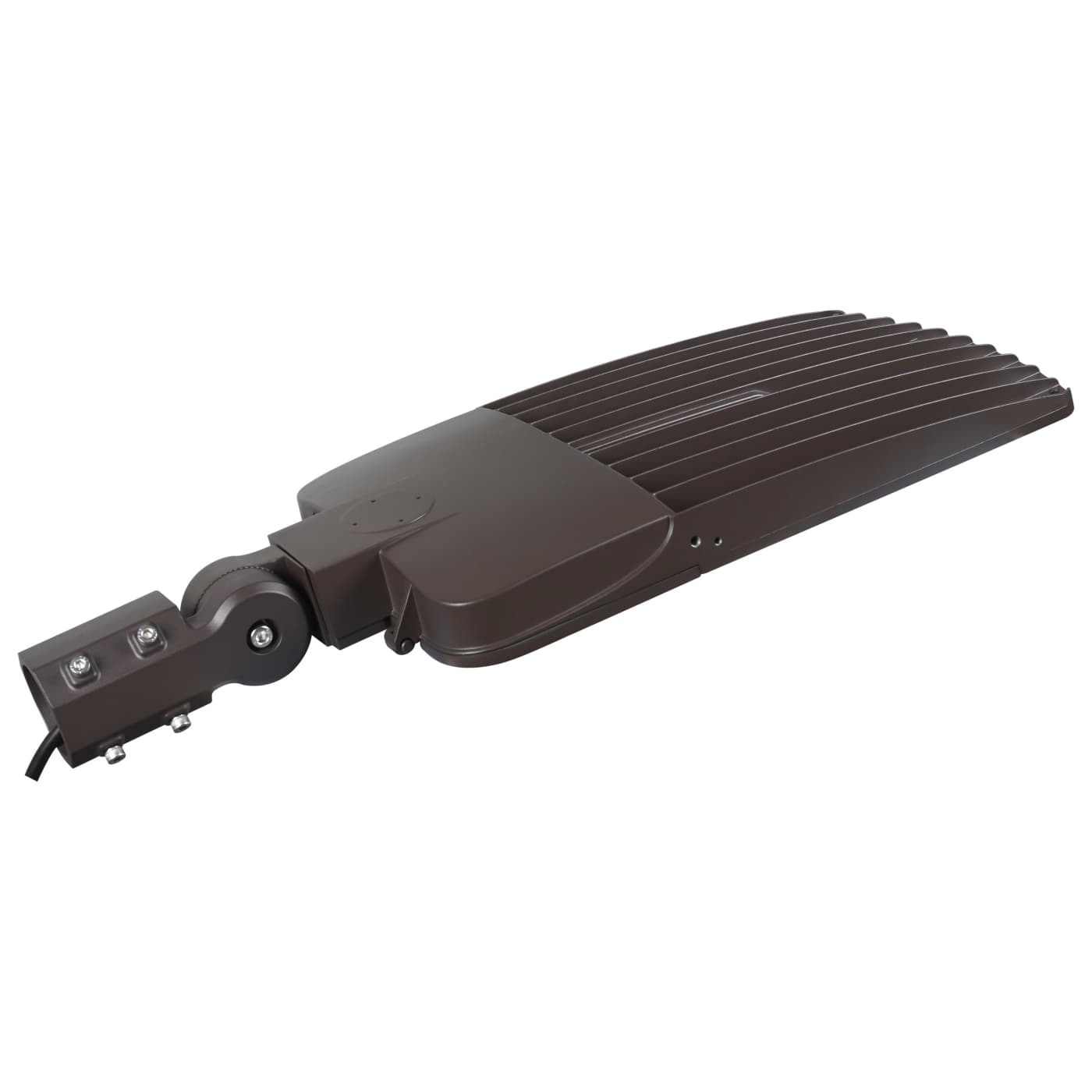

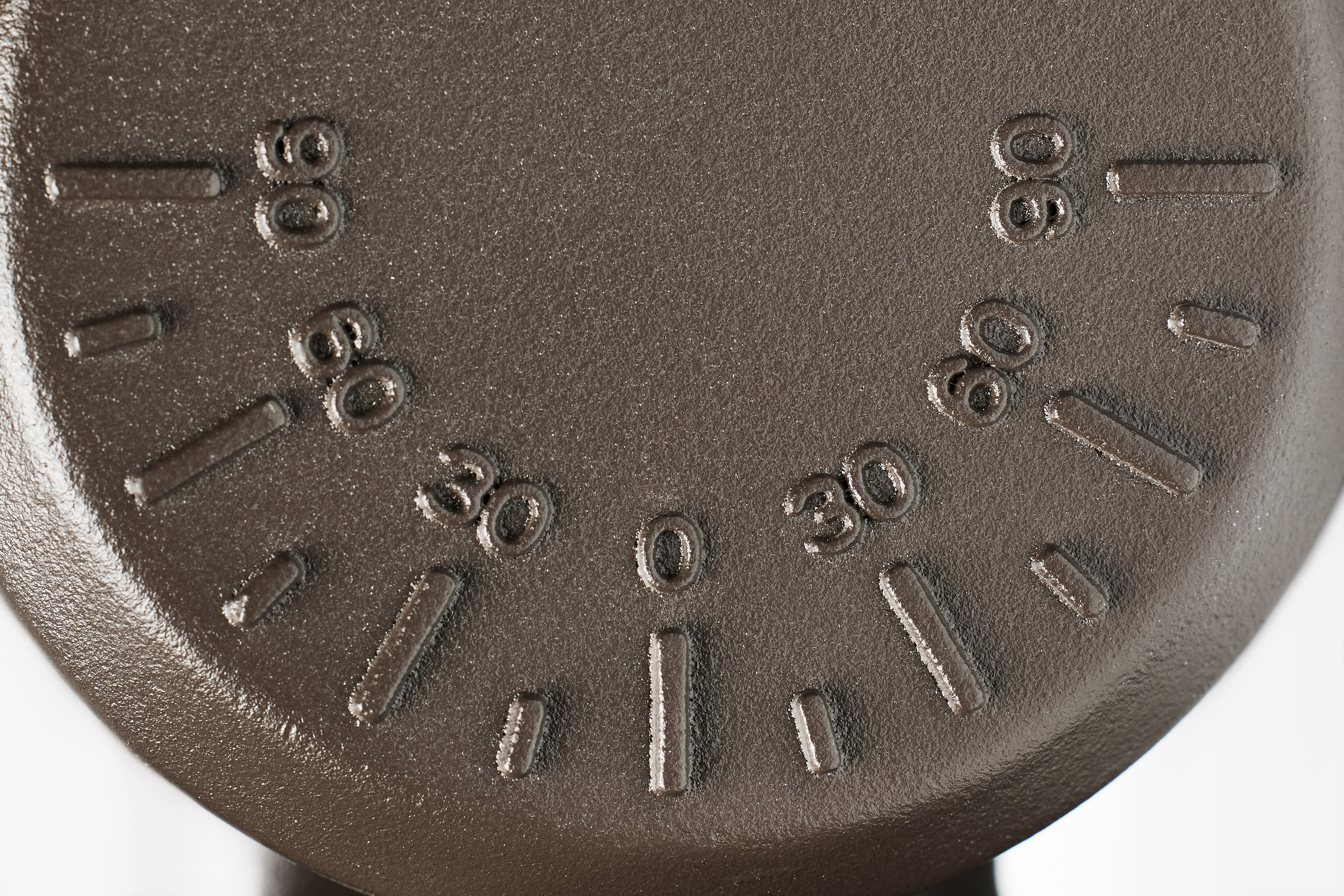

  • Slip-fitter mount included
  • IP65 Rated
  • Multiple mounting options available
  • Add-on sensors available
Lights

65-864

200W LED AREA LIGHT TYPE III

LED Area Light Type III; 200W; Bronze Finish; 4000K; 277-480V

SATCO|NUVO's LED Area Light Type III provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using die cast aluminum and impact resistant lenses and featuring an IP65 rating, provide ample lighting for both indoor and outdoor events. The lamps offer 50,000 hours of life and built in 4KV surge protection.
  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • UV Stabilized powder coasted bronze finish
  • Slip-fitter mount included
  • IP65 Rated
  • Multiple mounting options available
  • Add-on sensors available

Specifications

General
StatusActive
Fixture TypeArea Light
FinishBronze
Wattage200W
Lumen Output26051L
CCT (Kelvin)4000K
TemperatureCool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor; Outdoor
Specifications
TechnologyLED
Wattage200W
Lumen Output26051L
CCT (Kelvin)4000K
Color TemperatureCool White
CRI80
Voltage277V-480V
Rated Hours50000
Operating Temperature-40C (-40F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming
Photocell or SensorOptional
Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 4KV
Weight (lb.)8.42
IP RatingIP65
MaterialDie-Cast Aluminum

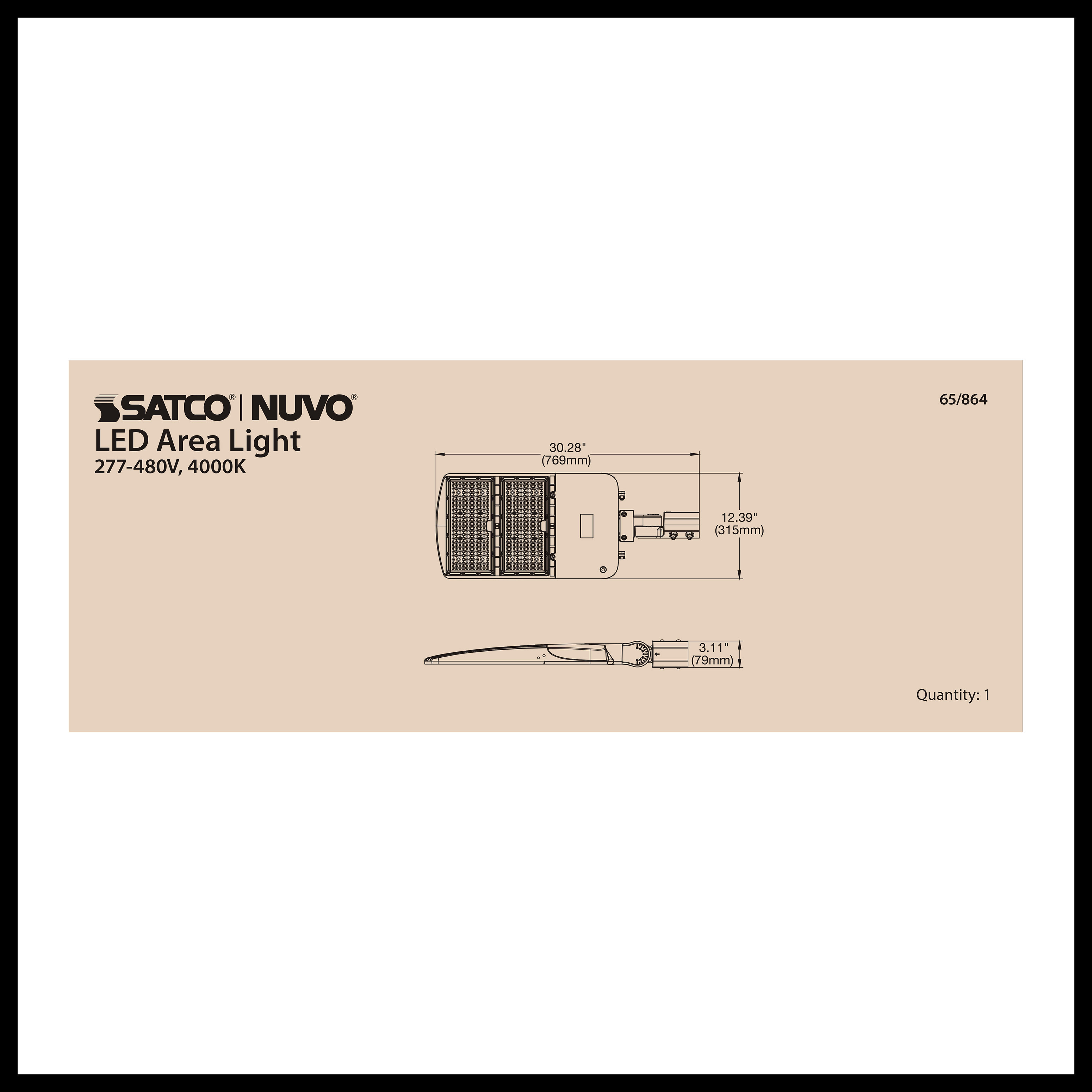

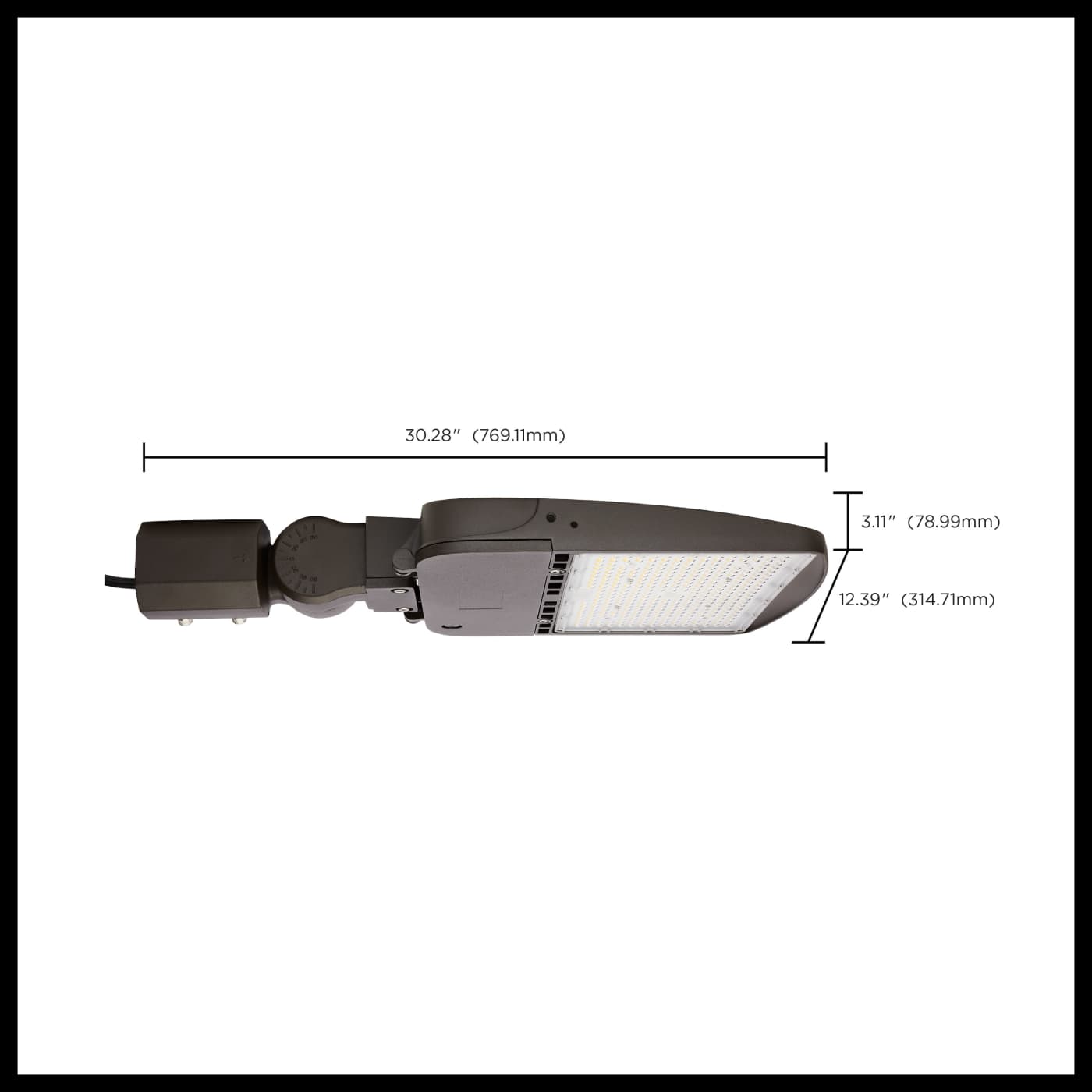

Dimensions
Height (in.)3.11
Width (in.)12.39
Length (in.)30.28
Compliance
Safety ListingcULus - Certified
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDPL6887J3VH7R
ADA CompliantNo
B.U.G. RatingB3-U3-G3
Dark Sky CompliantNo
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Additional InformationPowder Coated
Specification NoteType III Light Distribution
Includes2-3/8 inch Slip-fitter Mount
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923652660
Each Quantity1
Each Length (in.)32.76
Each Width (in.)14.37
Each Height (in.)5.71
Each Weight (lb.)8.86
Each Cube (CuFt.)1.5556
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923652667
Case Quantity1
Case Length (in.)32.76
Case Width (in.)14.37
Case Height (in.)5.71
Case Weight (lb.)8.86
Case Cube (CuFt.)1.5556
