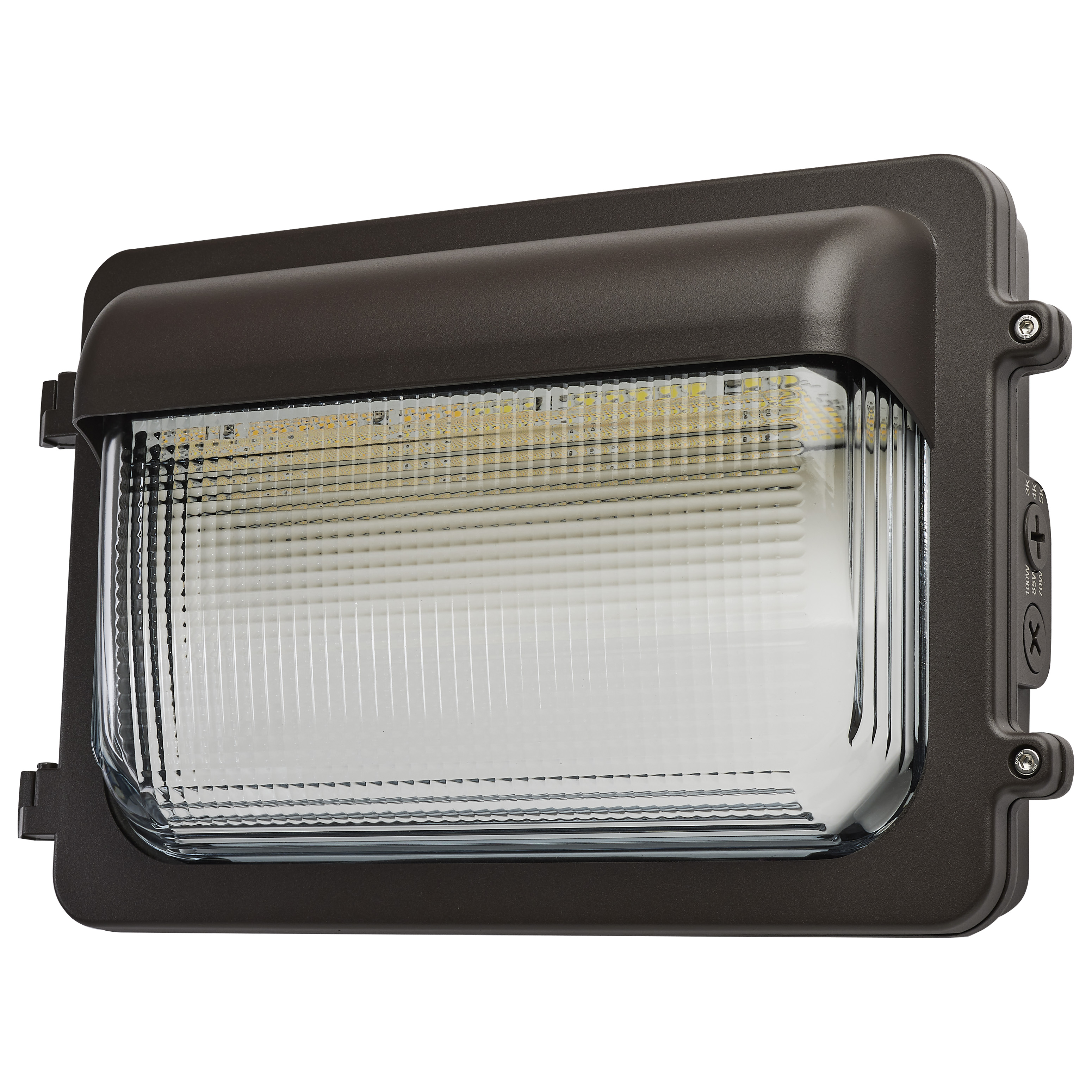

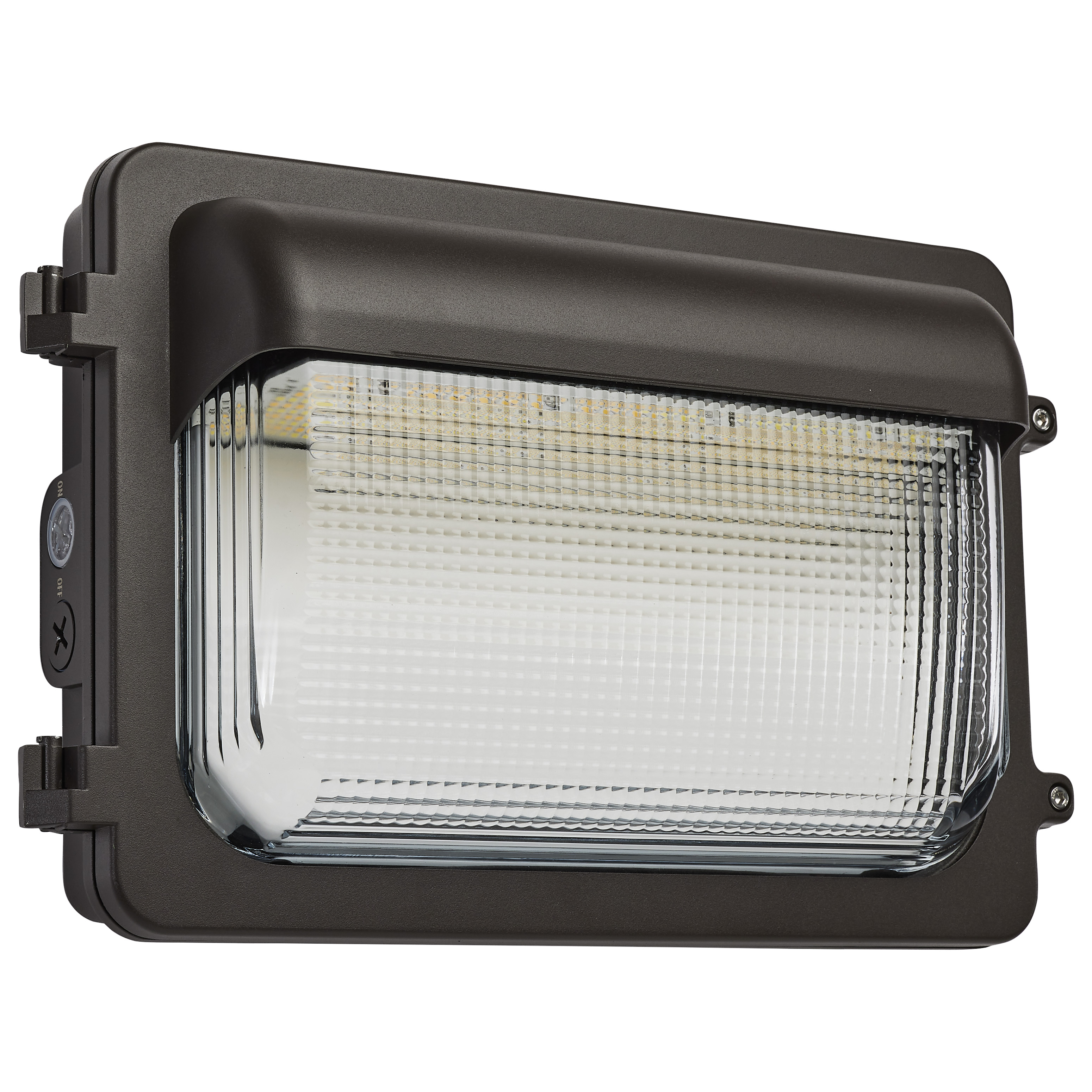

65-887

LED EM LOW PRO WALL PACK

  • LED Low Profile Wall Pack
  • Wattage 70/85/100W and CCT 3K/4K/5K Selectable

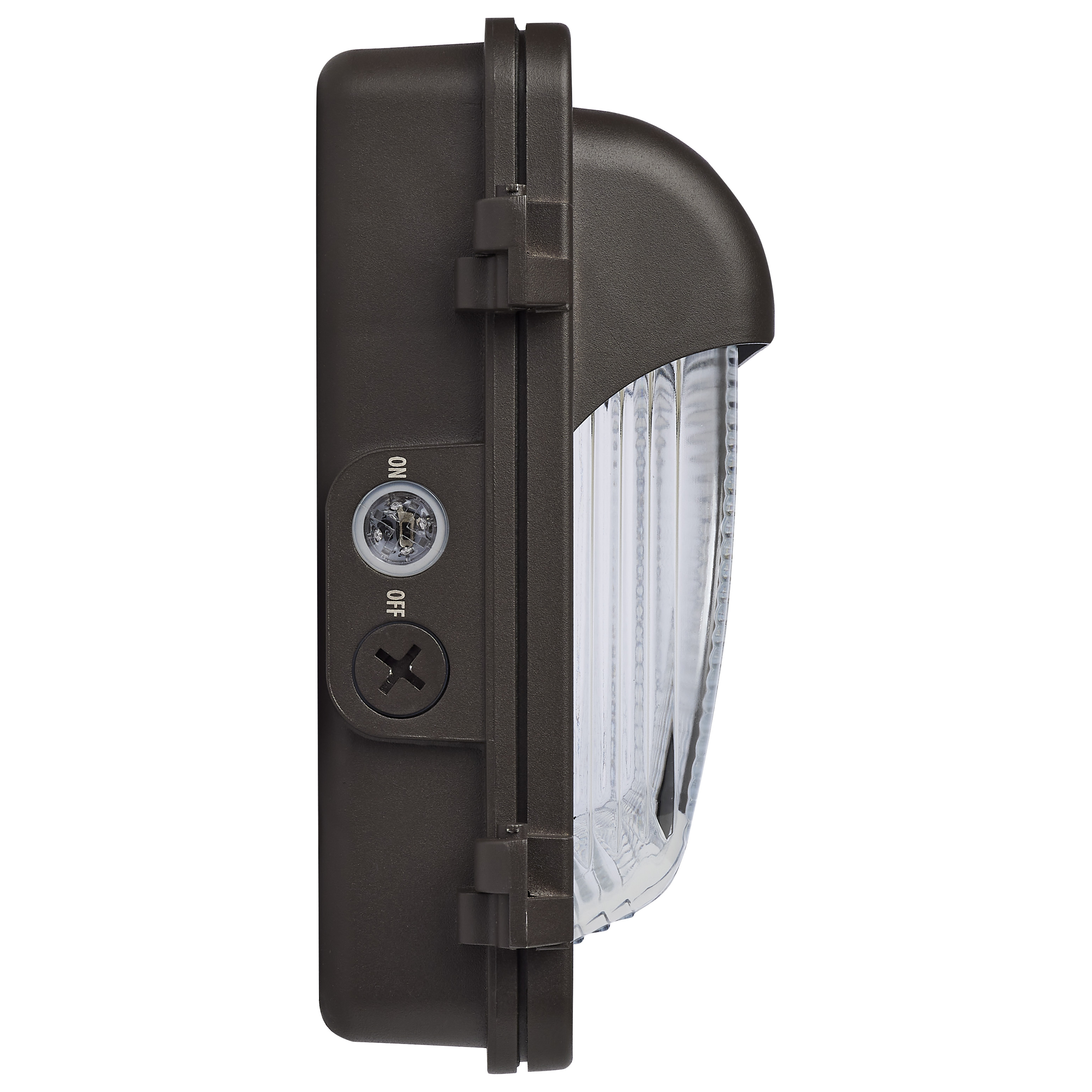

  • Photocell
  • Emergency Battery
  • Bronze Finish
cc_selectable^y^1
ip_rating^IP65^1
title_20^y^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-887 Specifications65-887 Instructions.pdf
Tools
Lighting Layout Analysis For 65-887
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

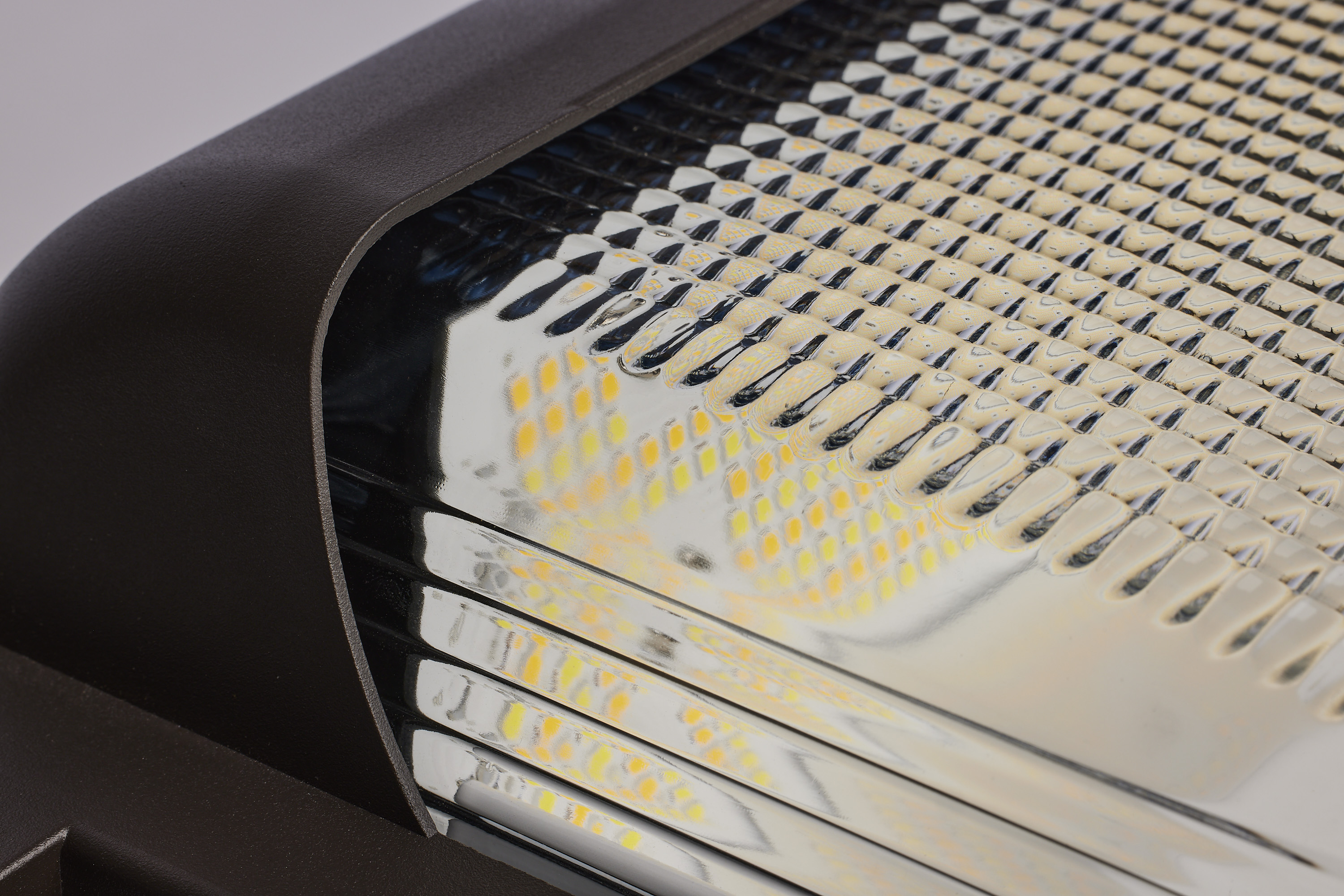

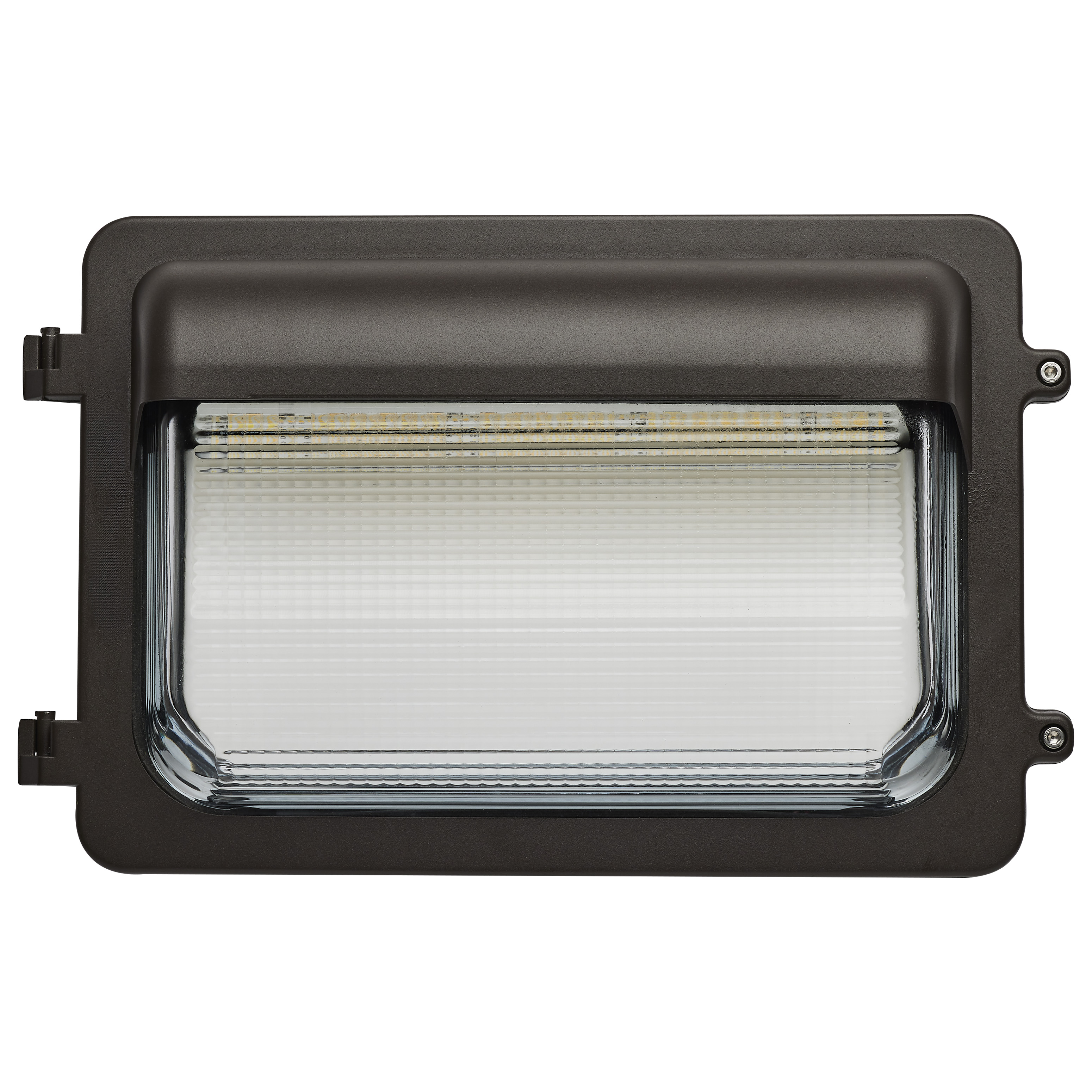

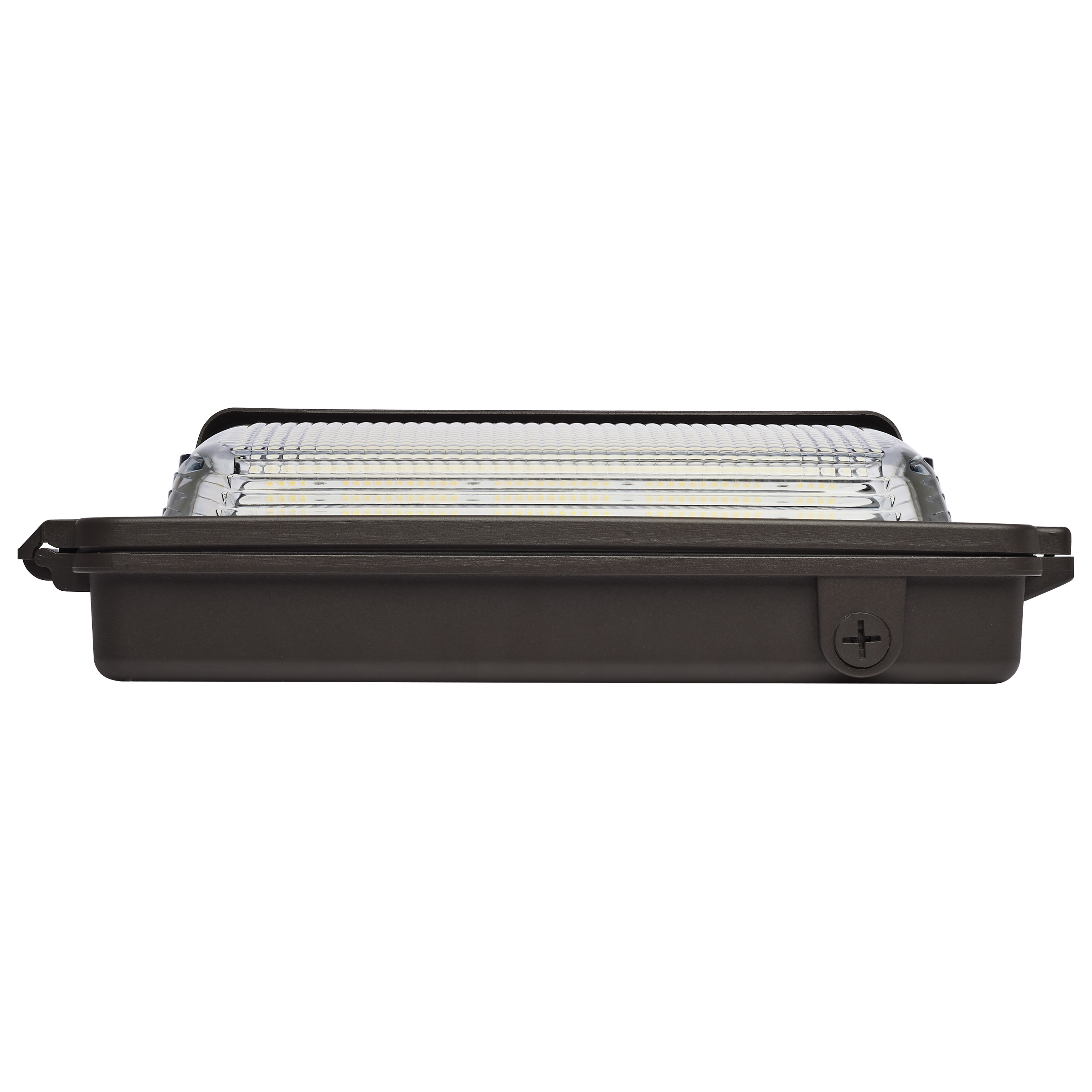

SATCO NUVO's 65-887 LED Low Profile Wall Pack with Emergency Battery Backup is a versatile fixture that offers field-selectable settings (70-Watt/85-Watt/100-Watt) with 3 CCT options (3000K, 4000K, 5000K), allowing you to tailor the lighting to your needs. Its sleek and durable design, featuring an IK08 vandal-resistant glass lens and integrated bypassable photocell, ensures long-lasting performance, while the die-cast aluminum construction and borosilicate glass lens guarantee both style and durability. Integrated battery backup offers at least 90 minutes of illumination in the event of a power outage and light paths of egress.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated

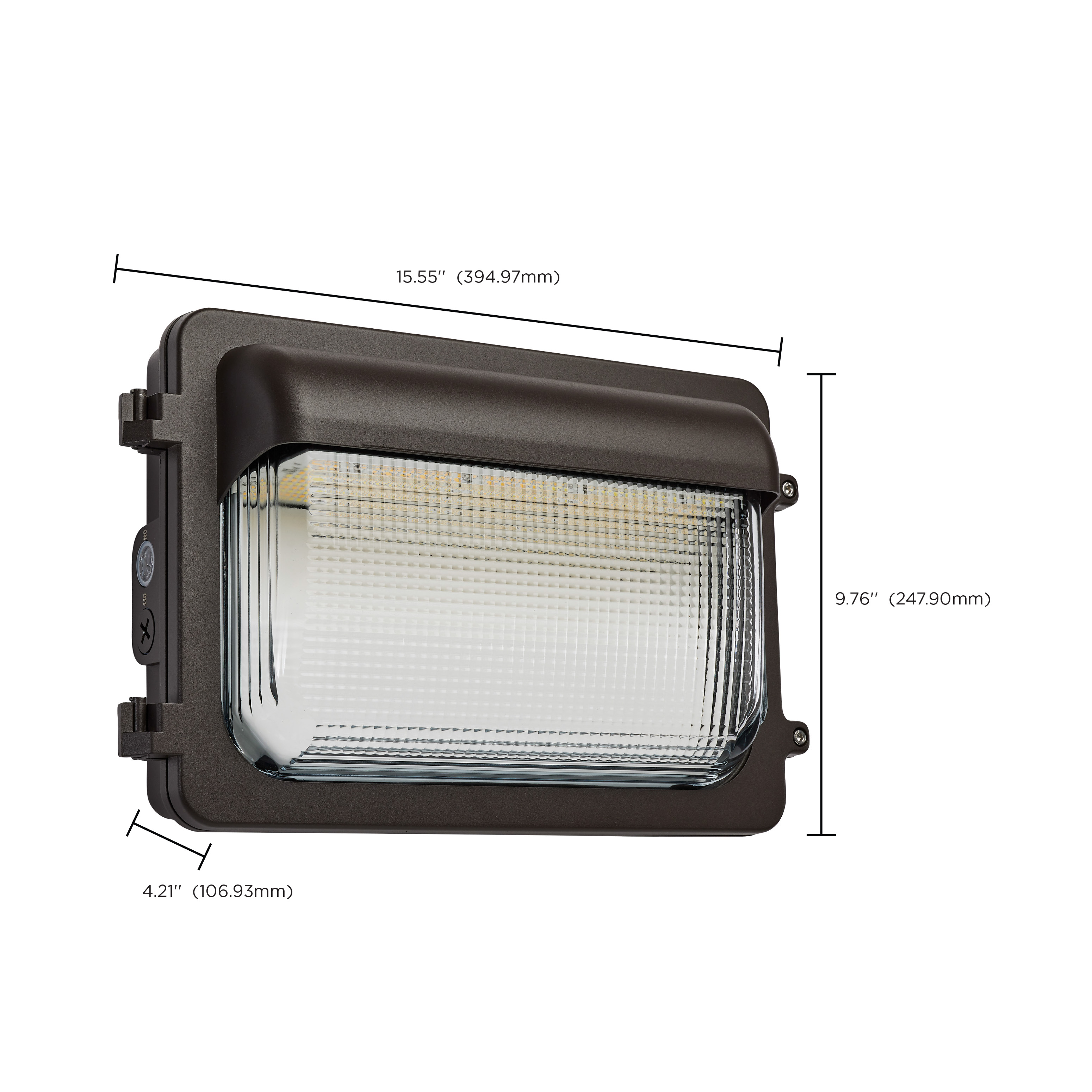

Extends (in)4.21

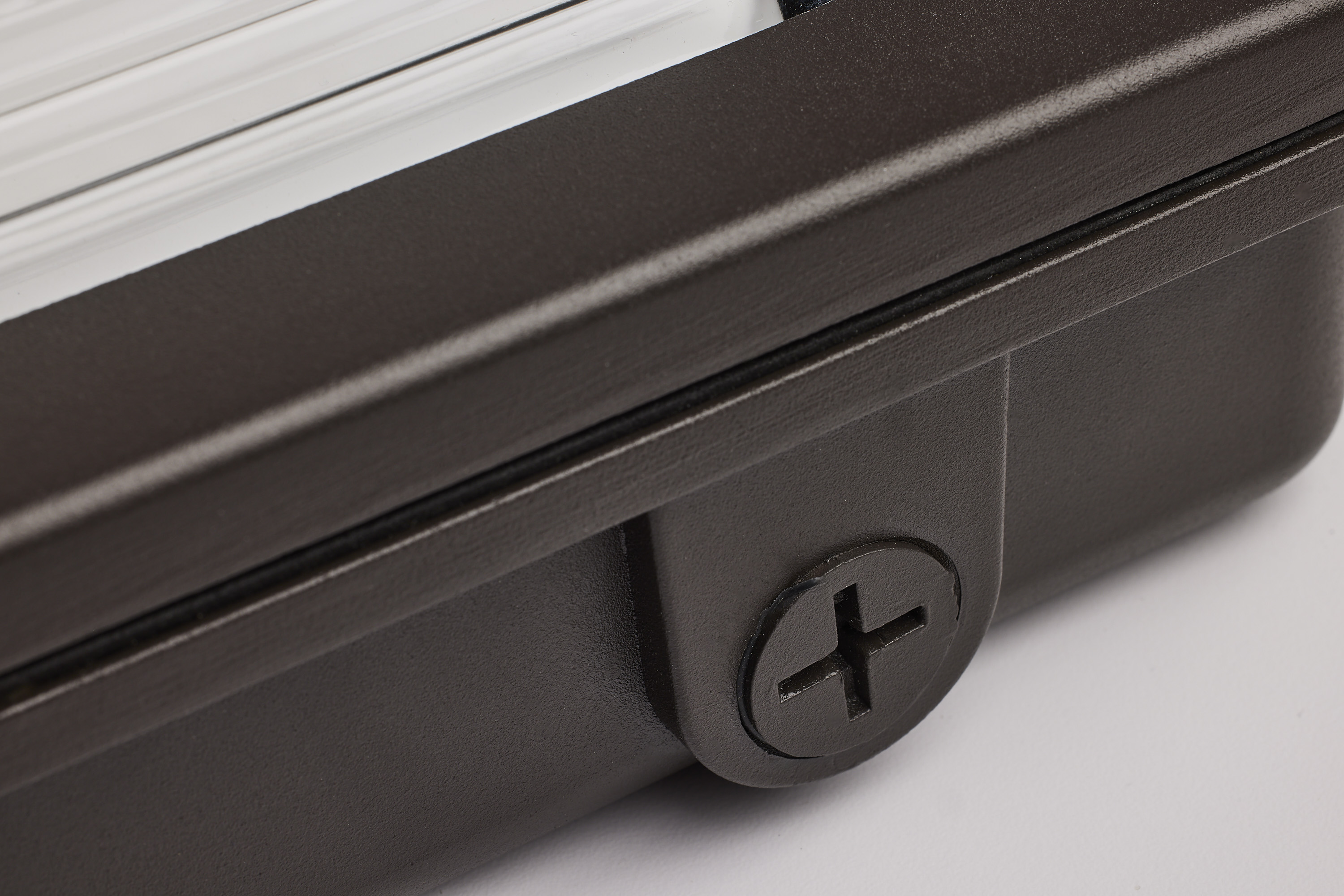

MaterialDie-cast Aluminum
Fixture TypeWall Pack
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyBronze
Amps0.583-0.253/0.708-0.307/0.833-0.361A
Has CameraNo

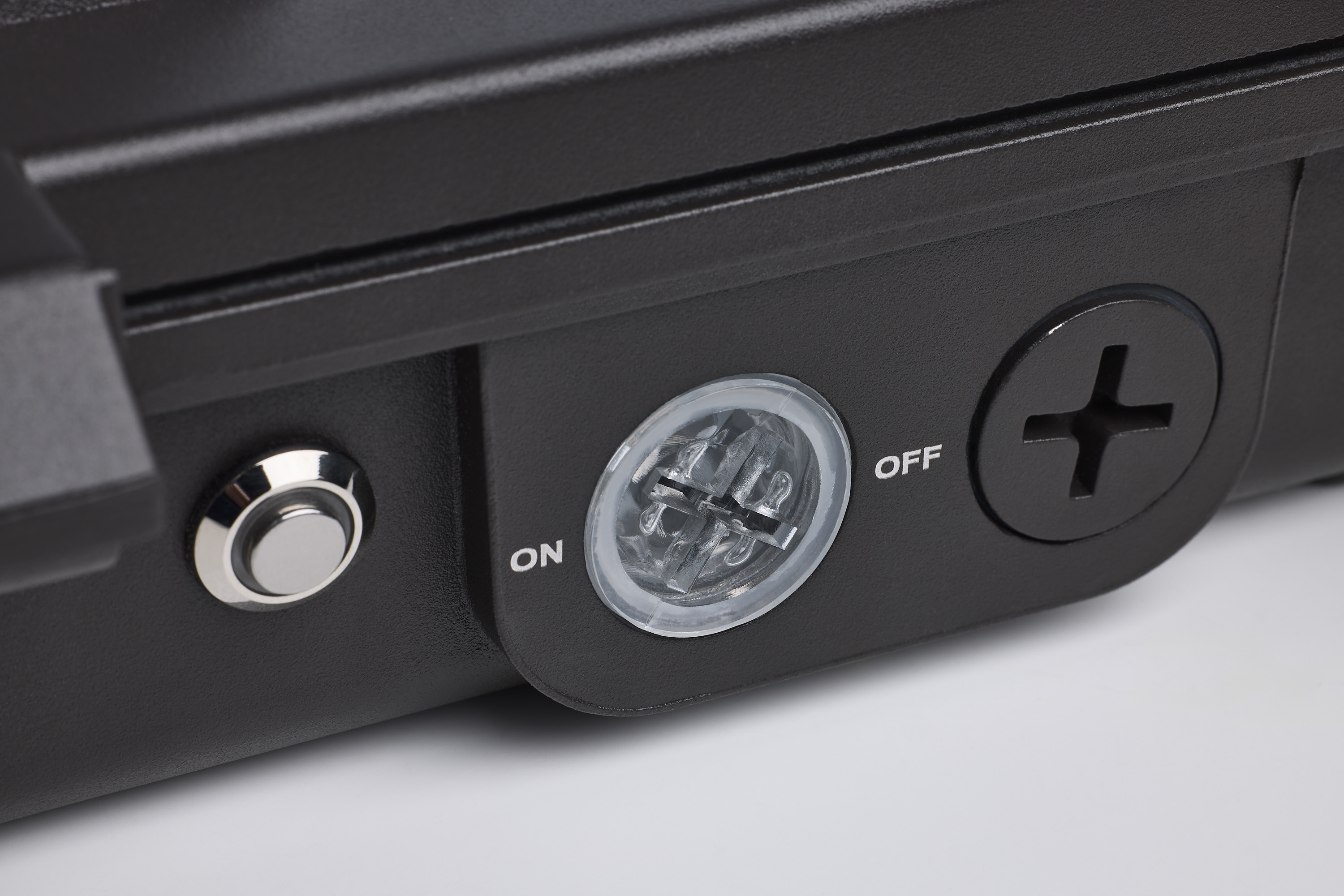

Integrated FeaturesIntegrated EM and Photocell
IOT EnabledNo
Lens FinishClear

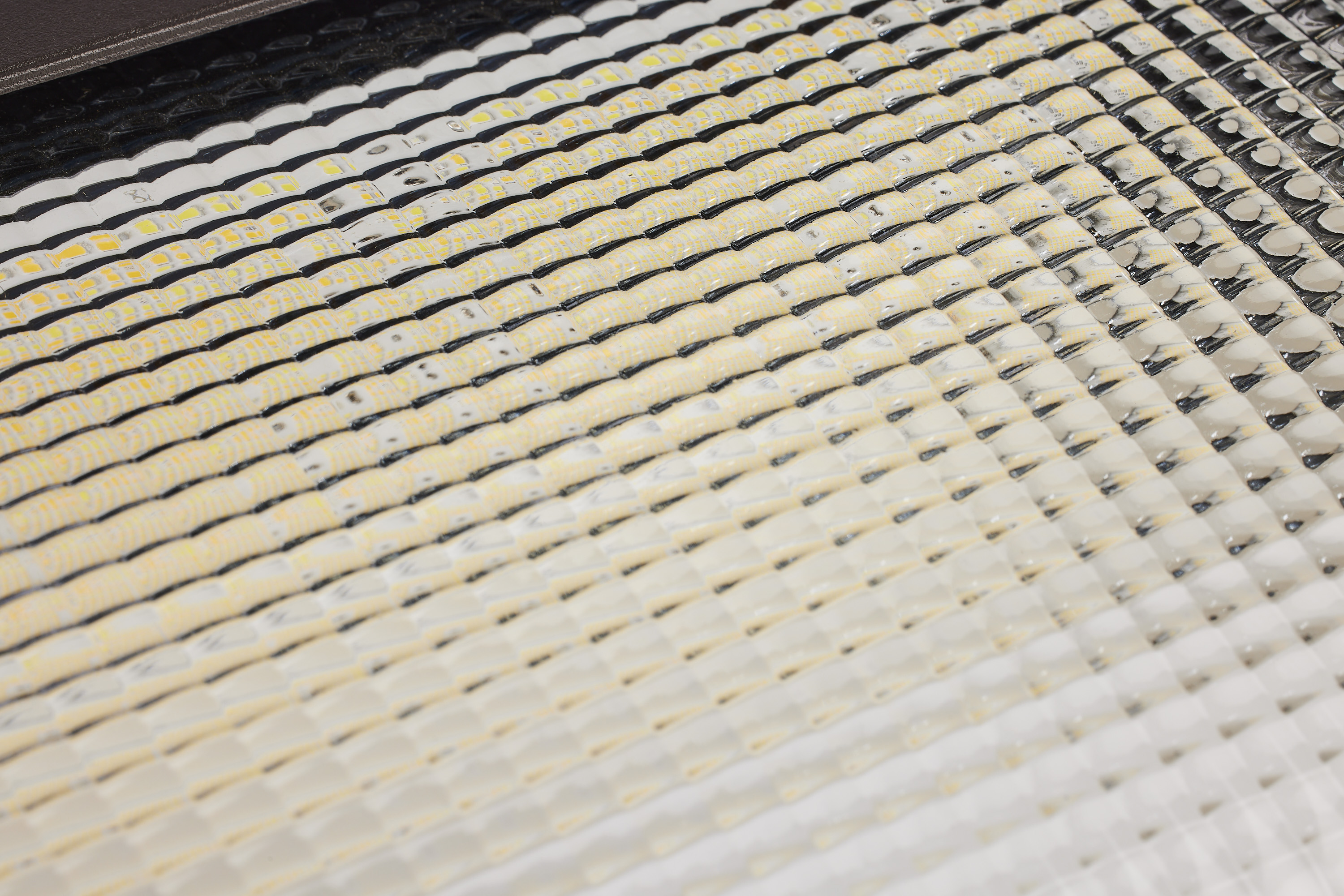

Lens MaterialBorosilicate Glass
LensedYes
Photo CellHas Photocell
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Incandescent Equivalent550W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +122F (-40C to +50C)
HID Equivalent175W/265W/350W

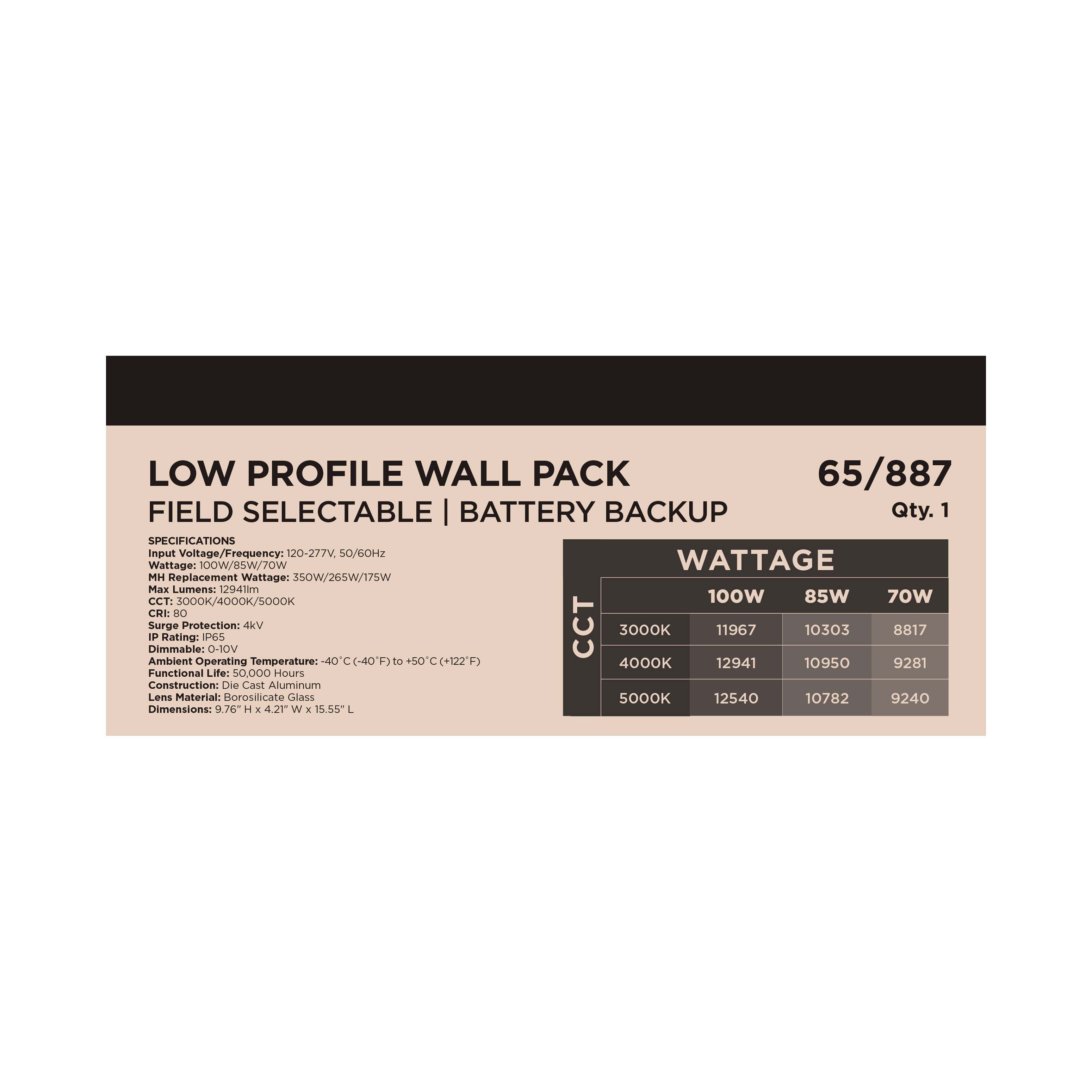

Lumens8817L-12941L
Volts120V-277V
Watts70W/85W/100W
Max Lumens12941L
ConnectionHardwire
Battery ChemistryLiFePO4
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeTrapezoid
Mounting ProcedureWall
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantNo
Bug RatingB1-U3-G5
CA Prop 65Lead
Dark Sky RatedNo
DLC IDS-5PBPY7
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Yes
T24/JA8 CompliantNo
Packaging
UPC045923413537
Case Cube0.638
Case Height5.25
Case Length17.5
Case Quantity1
Case UPC10045923413534
Case Weight10.6
Case Width12.0
EA Cube0.2791
EA Height5.25
EA Length17.5
EA Quantity1
EA Weight10.6
EA Width5.25
Pack TypeBrown Box
Web Height9.76
Web Width15.55
