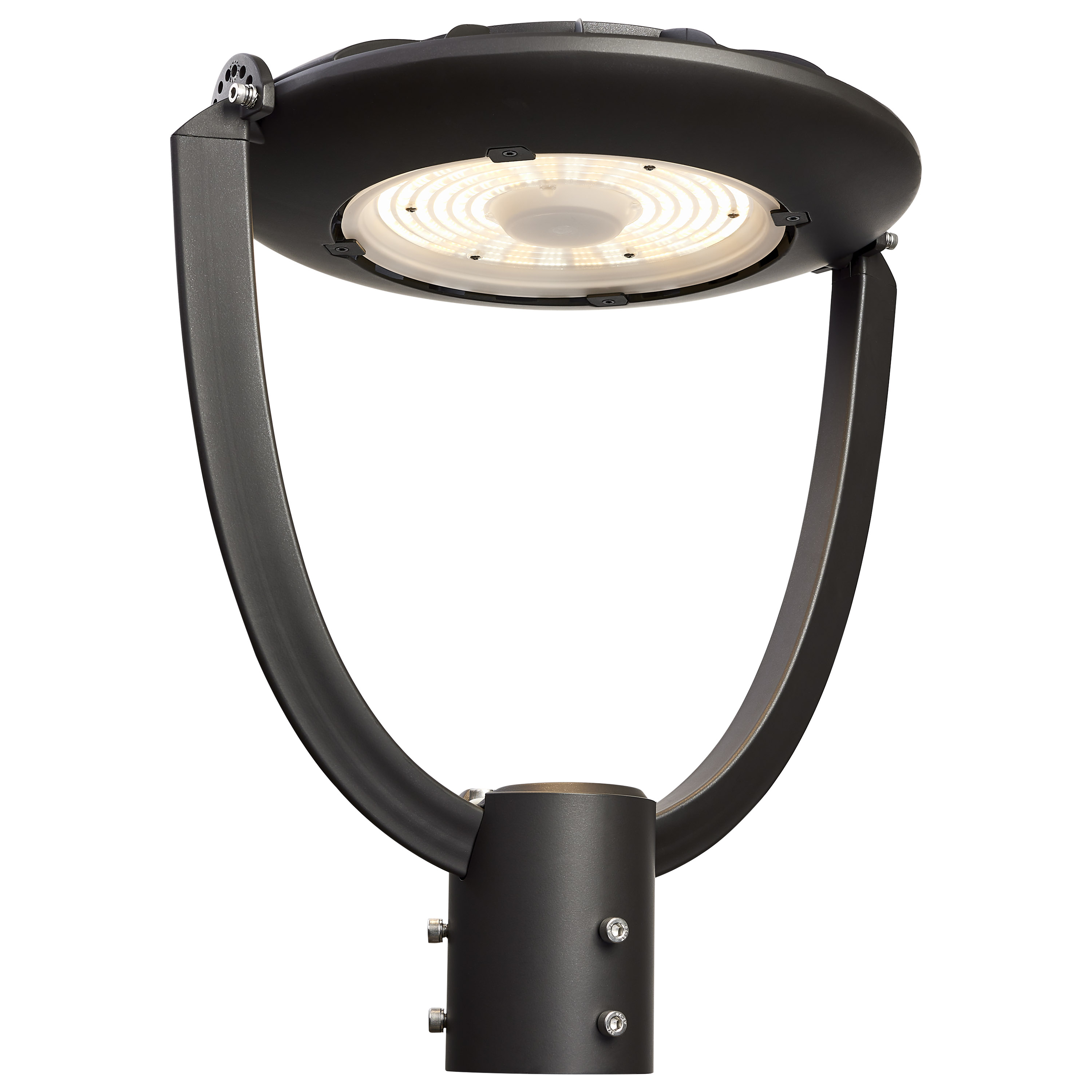

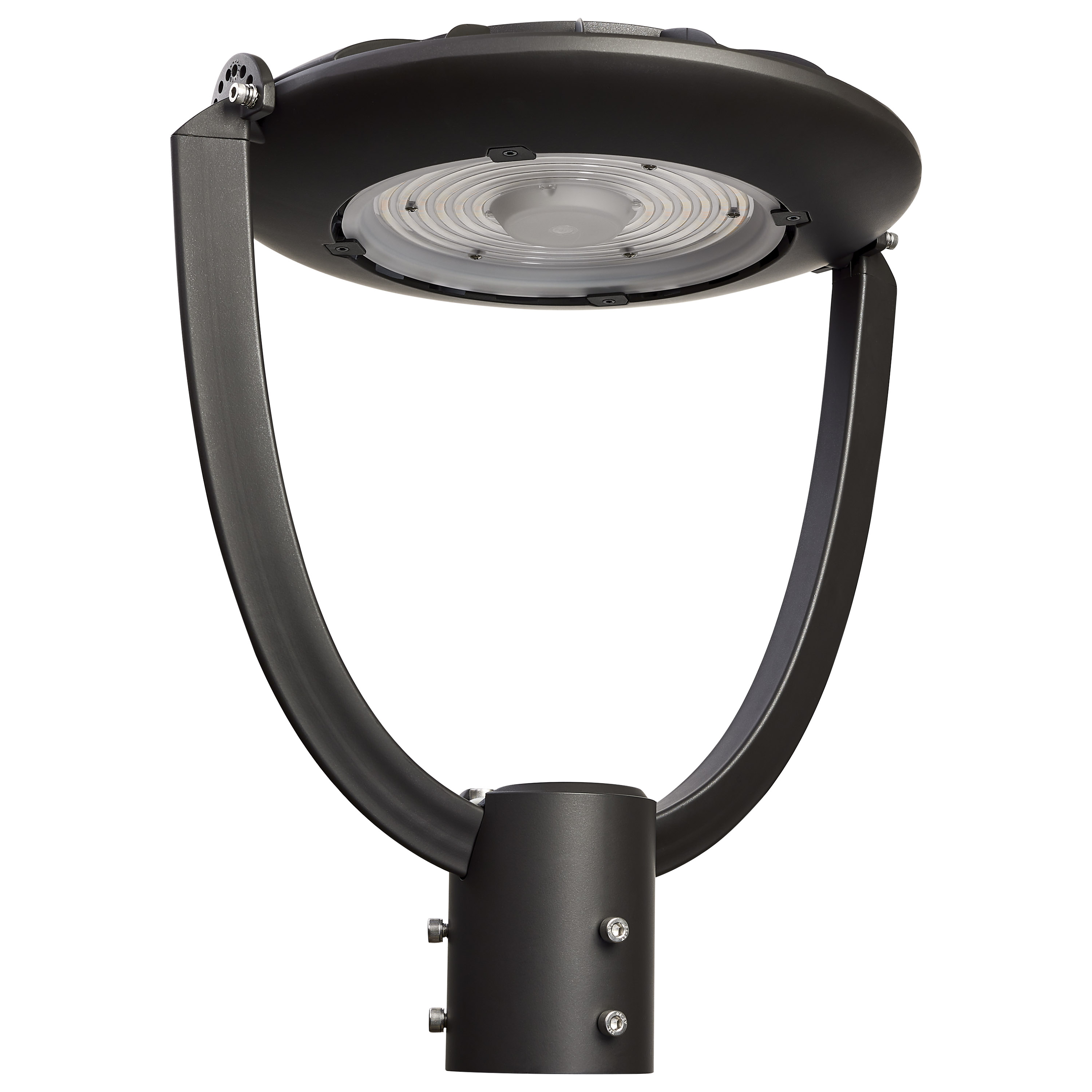

65-893 LED 100W POST TOP CCT SELECT

65-893

LED 100W POST TOP CCT SELECT

100 Watt Adjustable Post Top LED; CCT Selectable; 120-347 Volt

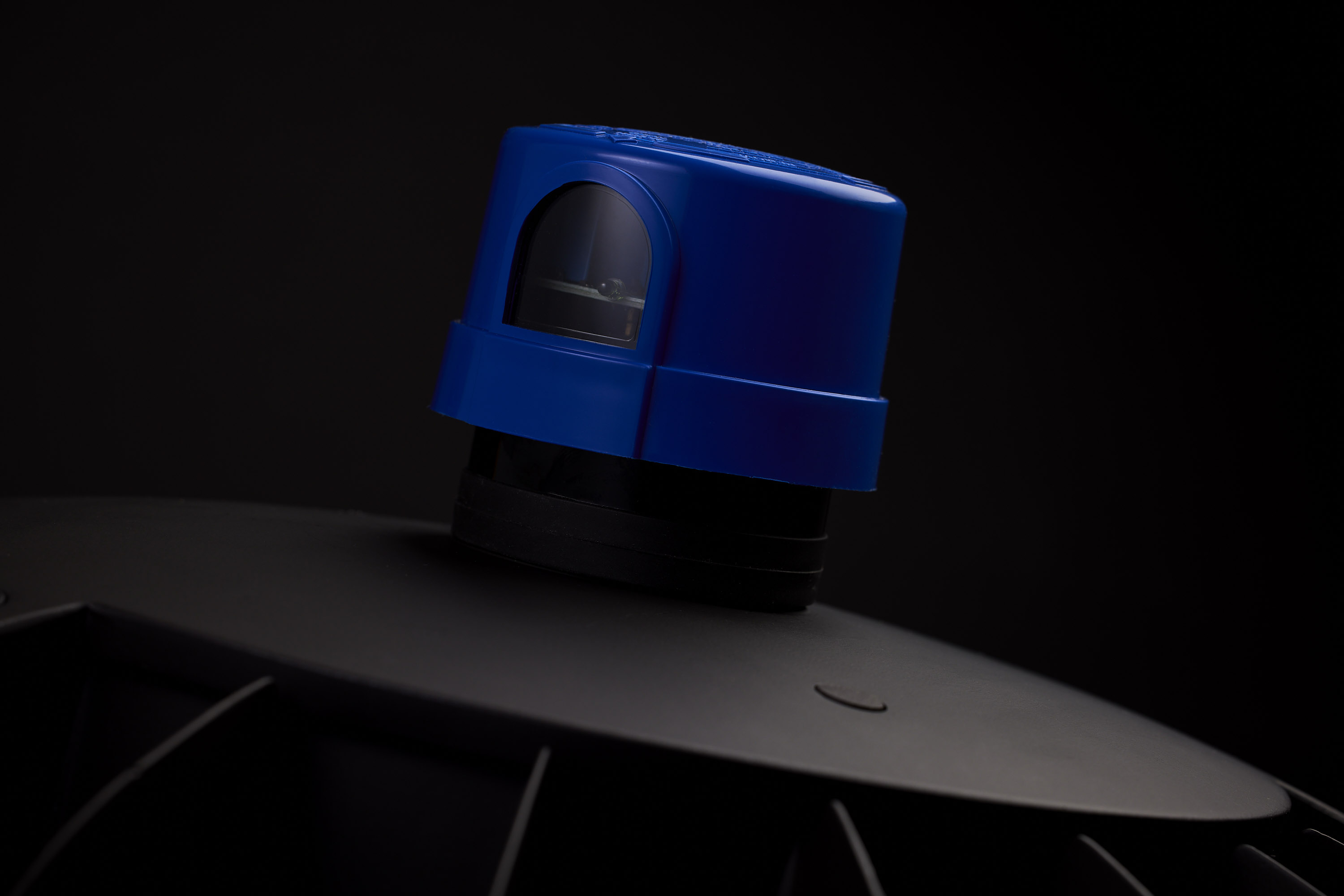

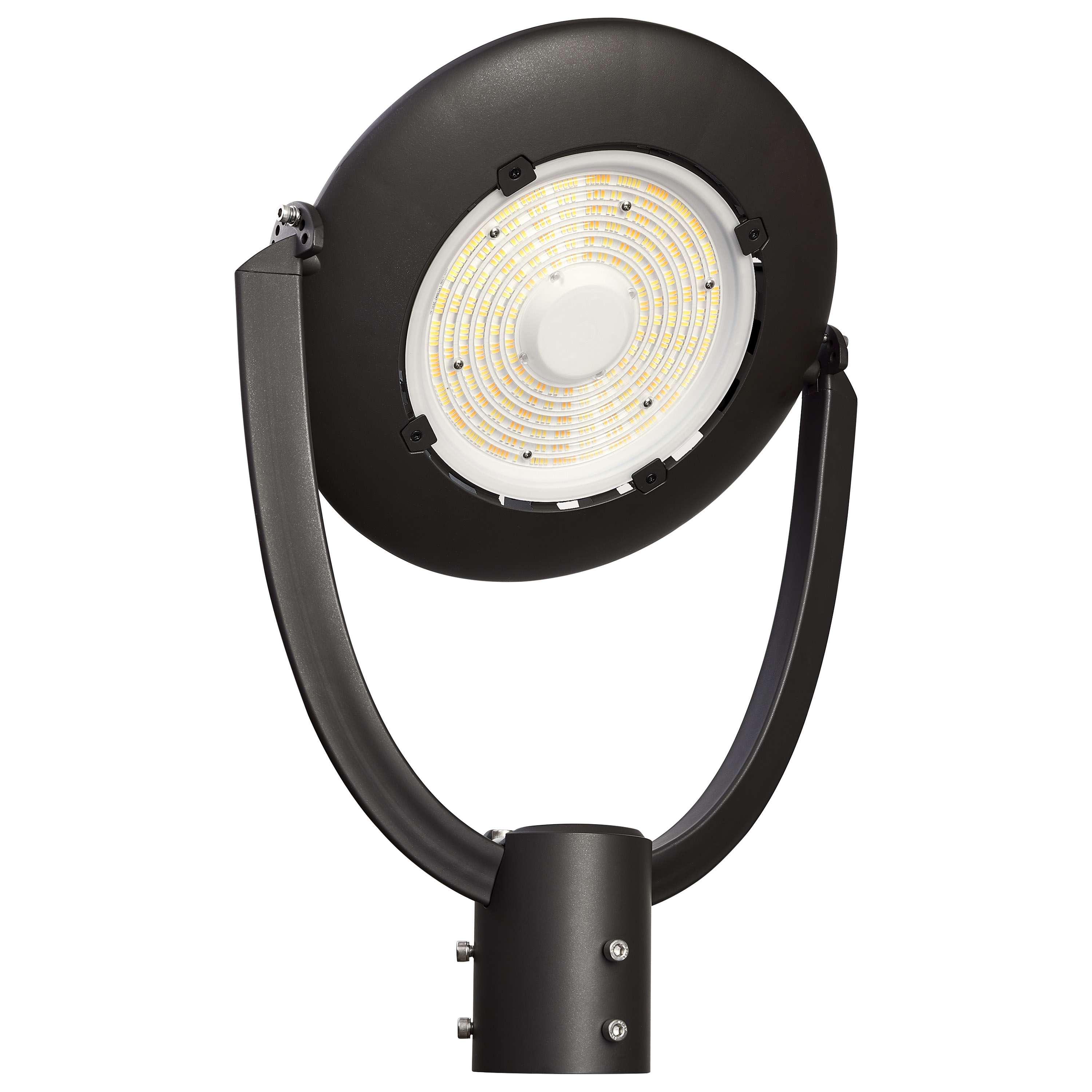

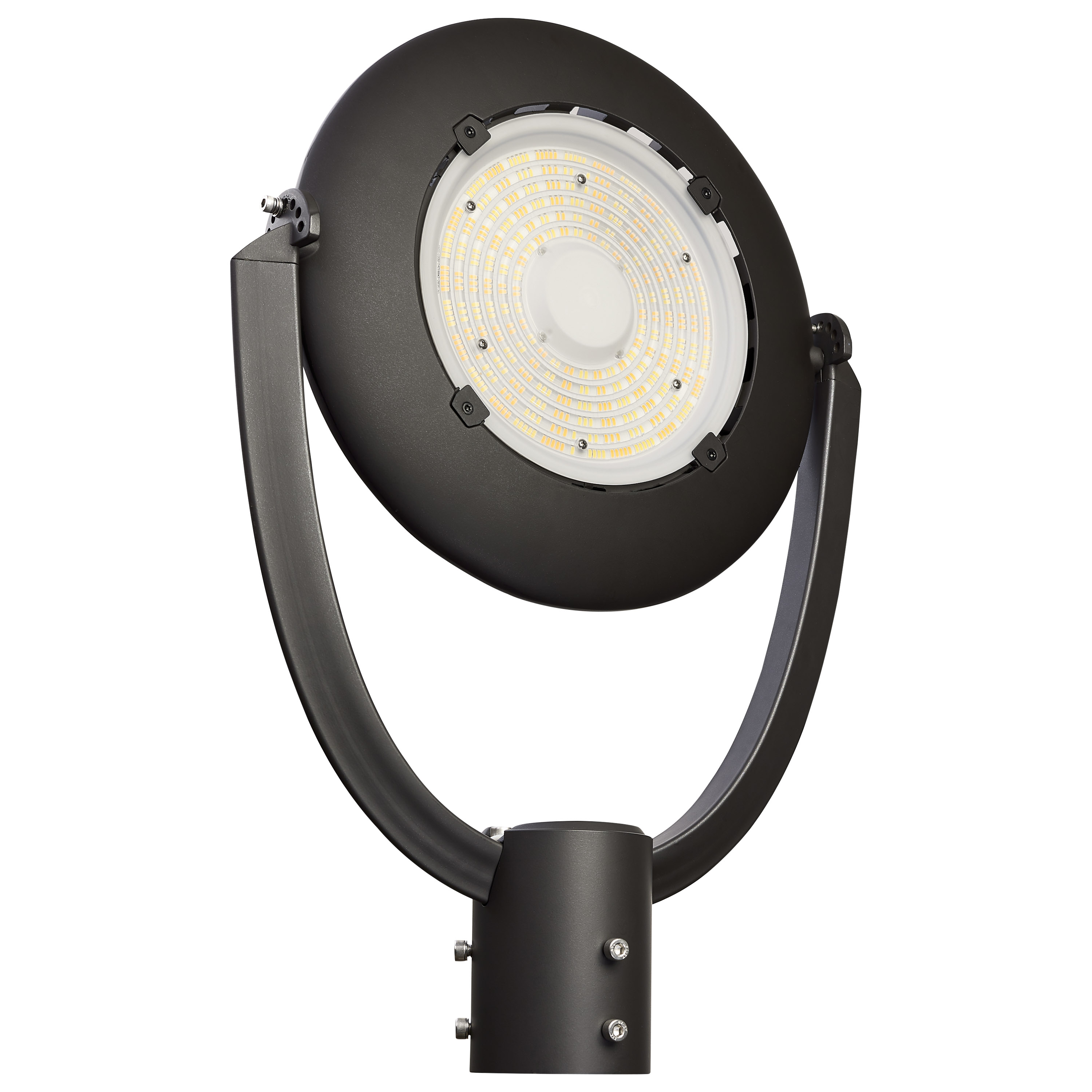

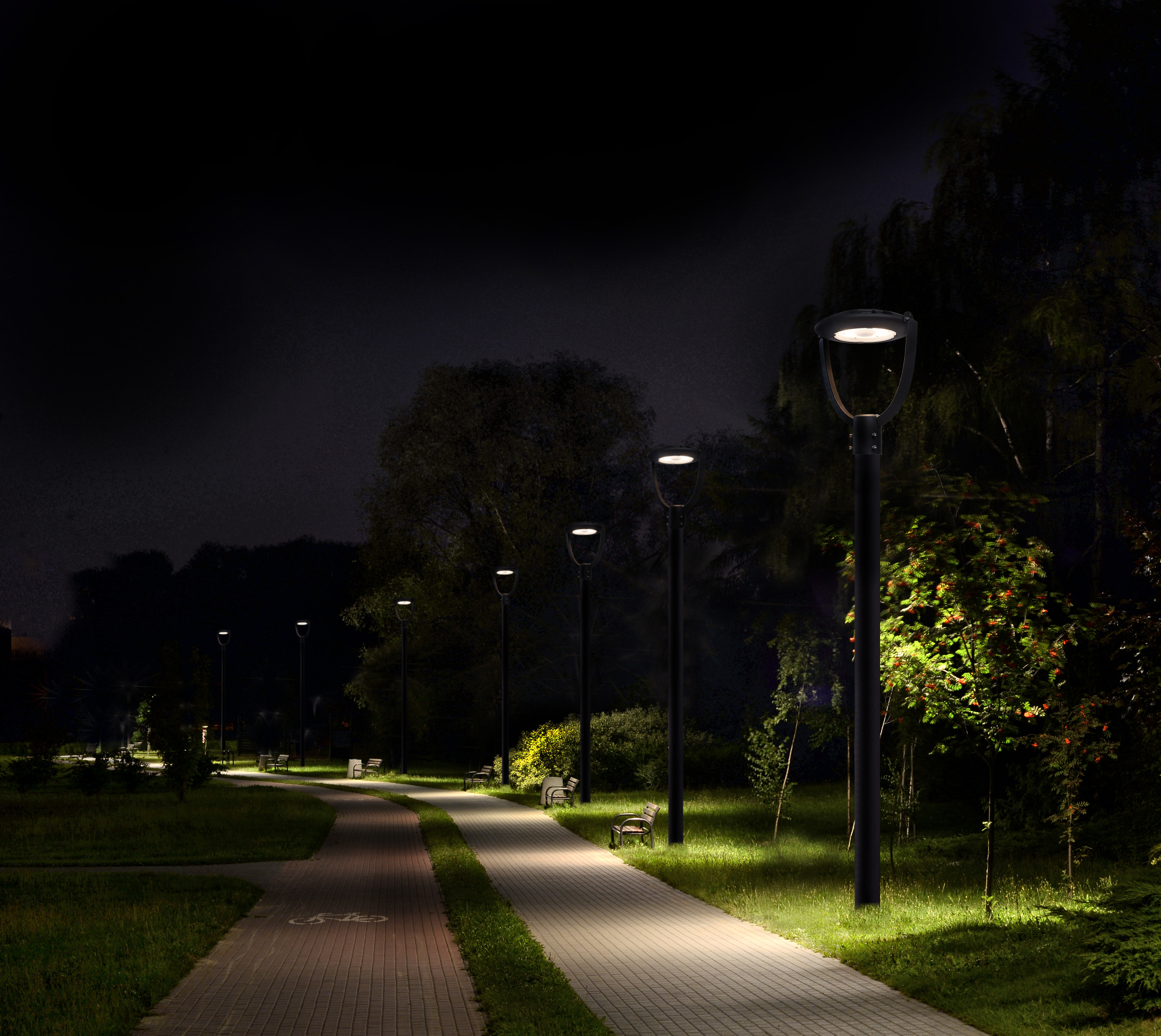

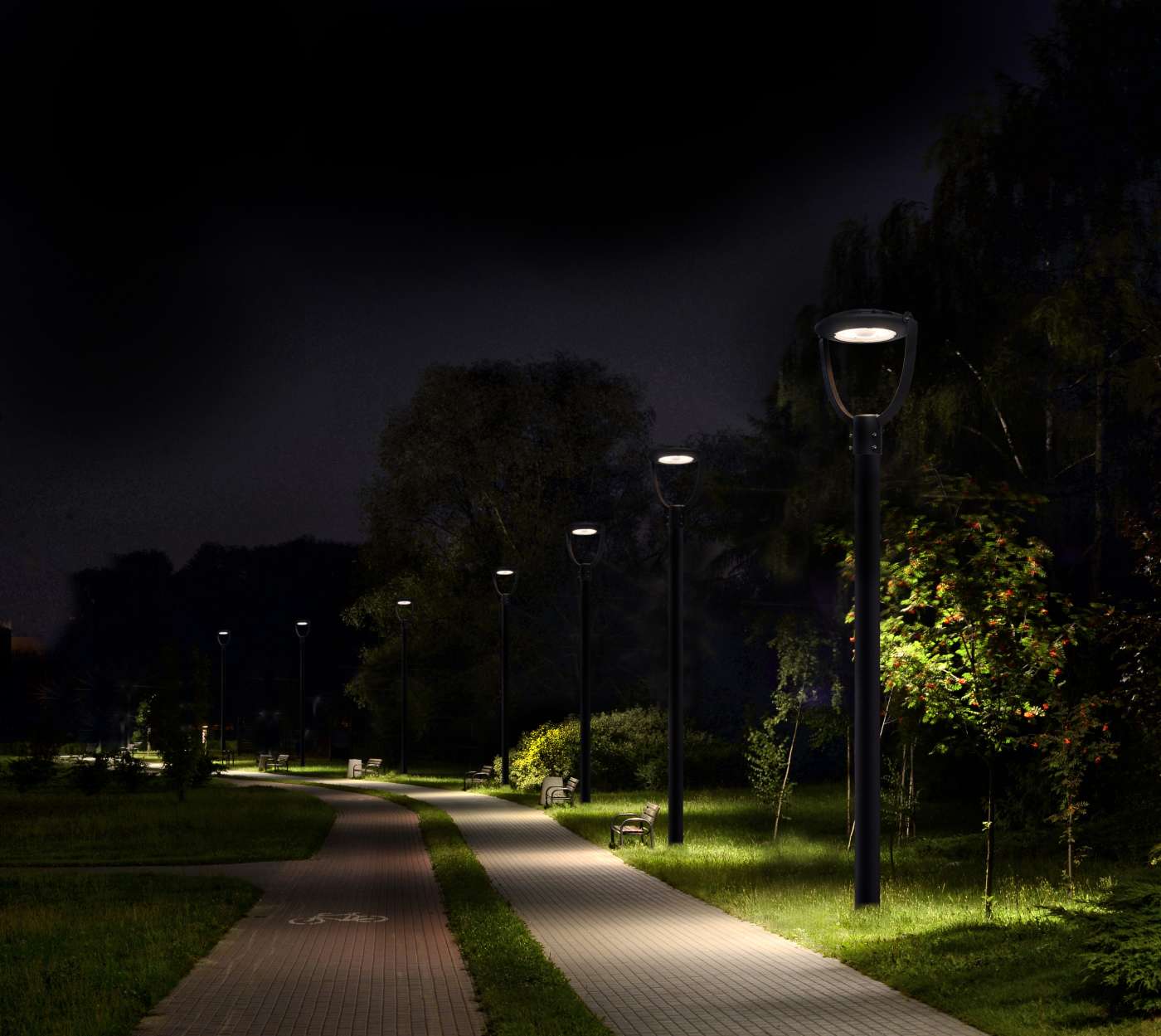

SATCO|NUVO's LED Adjustable Post Top exterior fixtures offer a sleek, contemporary design ideal for commercial pathways, parks, campuses, and general area lighting environments requiring a highly efficient architectural light source with precise control. Unique to this product is the locking, articulating head, allowing adjustments from 0-90 degrees for precise directional illumination. Color selectable choices include 3000K/4000K/5000K with 120V-347V input voltage options. The Post Top fixtures are offered in 4 popular wattages to service a variety of lighting applications. All models feature an integrated NEMA photocell receptacle. These high-performance luminaires are DLC 5.1 compliant, IP65 rated and deliver significant energy savings and reduce maintenance costs dramatically.

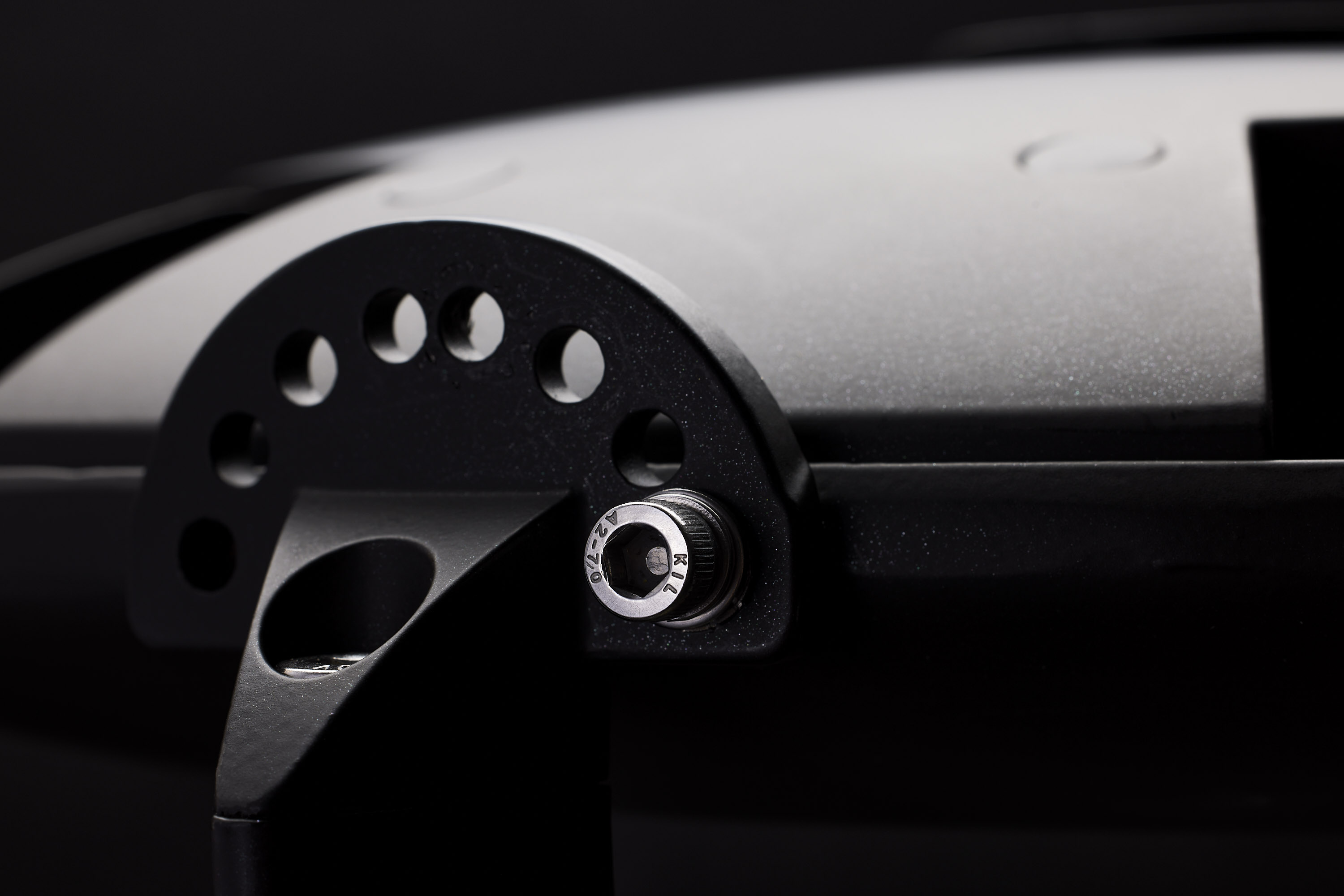

  • 0-90 degree adjustable illumination

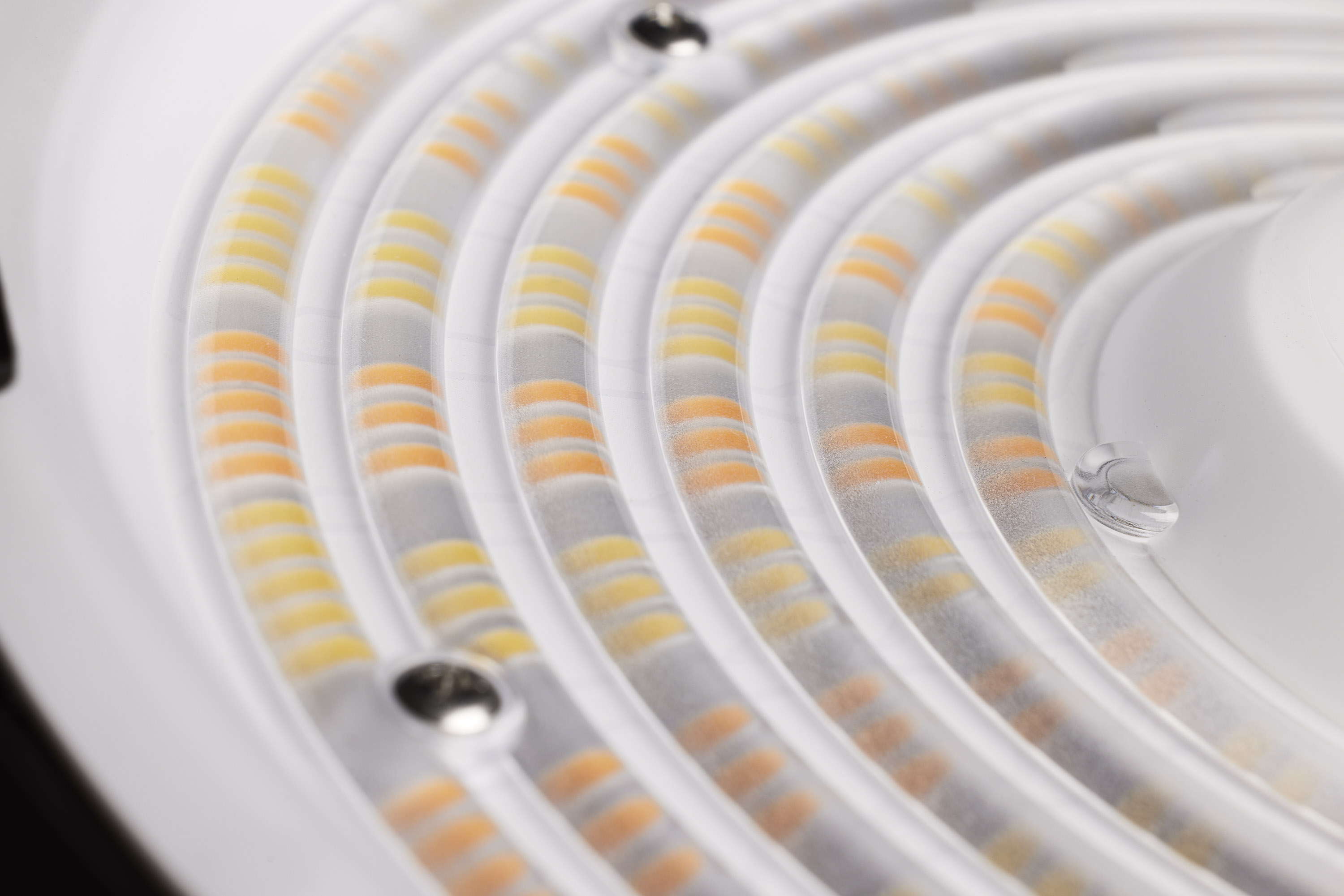

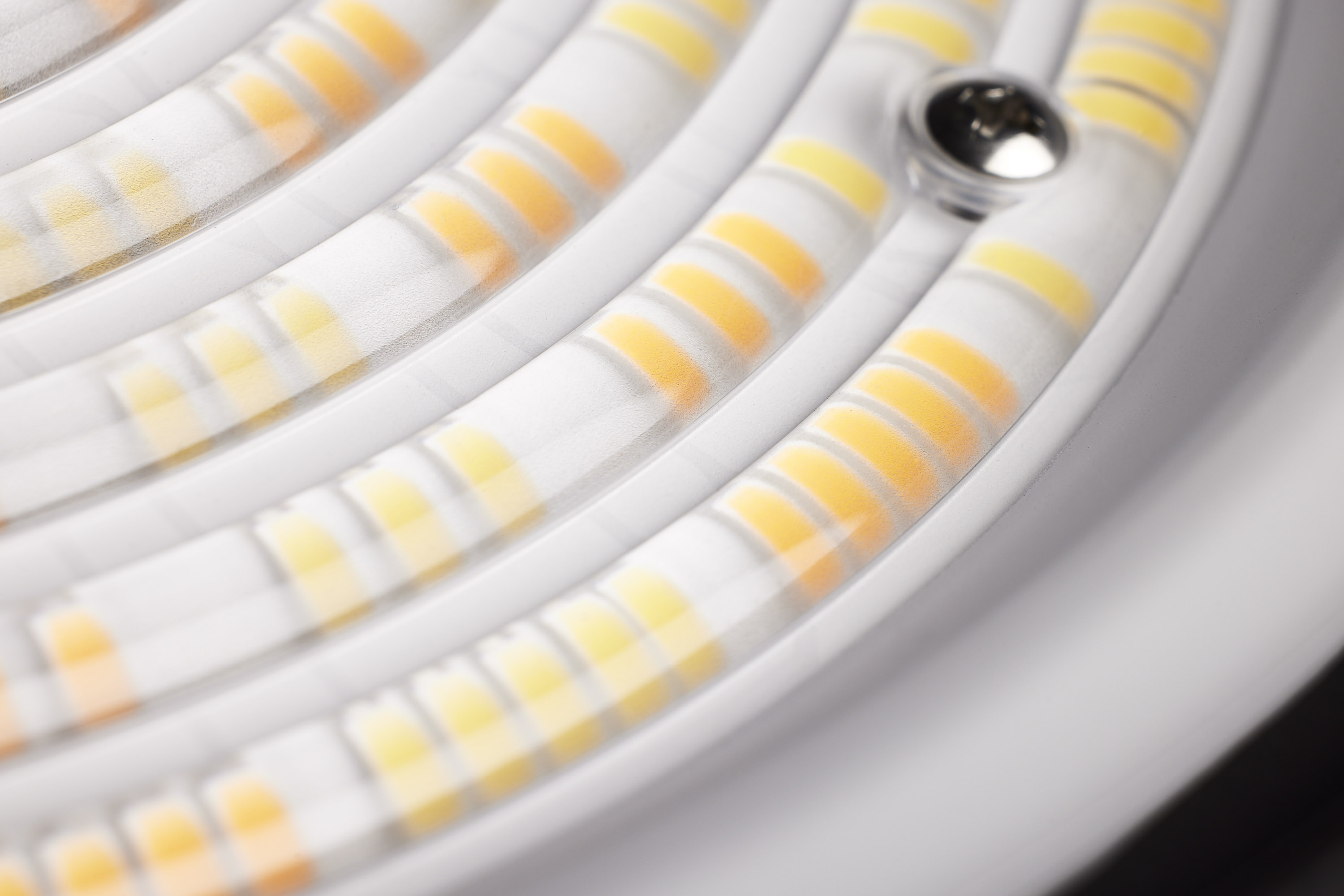

  • 3K/4K/5K Color Selectable
  • IK08 Impact Rated
  • IP65 Rated
  • Bronze Powder Coated Finish
  • DLC 5.1 Listed
Lights

65-893

LED 100W POST TOP CCT SELECT

100 Watt Adjustable Post Top LED; CCT Selectable; 120-347 Volt

SATCO|NUVO's LED Adjustable Post Top exterior fixtures offer a sleek, contemporary design ideal for commercial pathways, parks, campuses, and general area lighting environments requiring a highly efficient architectural light source with precise control. Unique to this product is the locking, articulating head, allowing adjustments from 0-90 degrees for precise directional illumination. Color selectable choices include 3000K/4000K/5000K with 120V-347V input voltage options. The Post Top fixtures are offered in 4 popular wattages to service a variety of lighting applications. All models feature an integrated NEMA photocell receptacle. These high-performance luminaires are DLC 5.1 compliant, IP65 rated and deliver significant energy savings and reduce maintenance costs dramatically.
  • 0-90 degree adjustable illumination
  • 3K/4K/5K Color Selectable
  • IK08 Impact Rated
  • IP65 Rated
  • Bronze Powder Coated Finish
  • DLC 5.1 Listed

Specifications

General
StatusActive
Fixture TypePost Top
FinishBronze
Wattage100W
Lumen Output12000L/13500/12806L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm White to Natural Light
IP RatingIP65
Indoor or Outdoor FixtureOutdoor
Specifications
TechnologyLED
Wattage100W
Lumen Output12000L/13500/12806L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm White to Natural Light
CRI80
Voltage120V-347V
Beam Angle90
Rated Hours50000
Operating Temperature-40C (-40F) to +50C (+122F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming
Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 6KV
Weight (lb.)18.5
IP RatingIP65
MaterialDie-Cast Aluminum

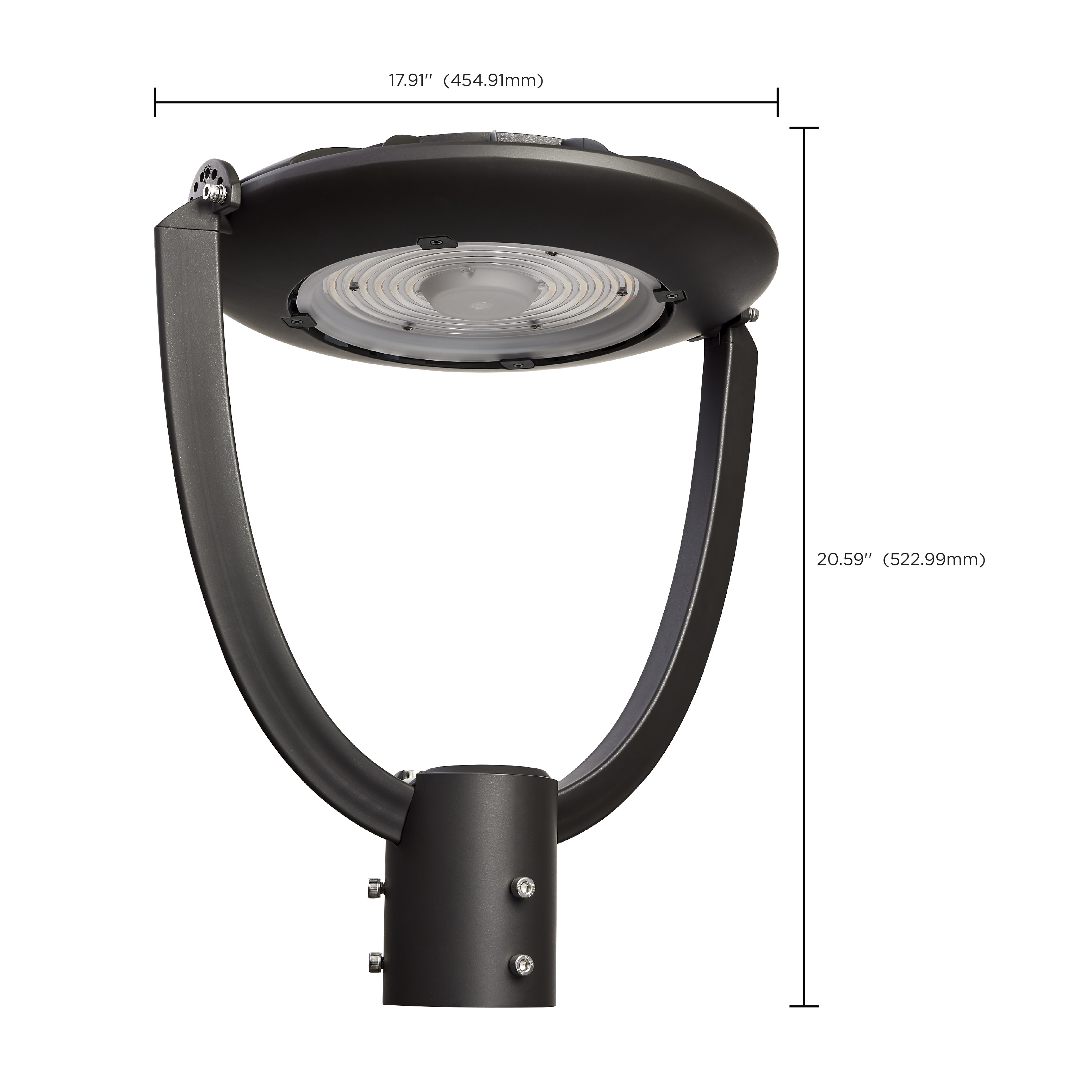

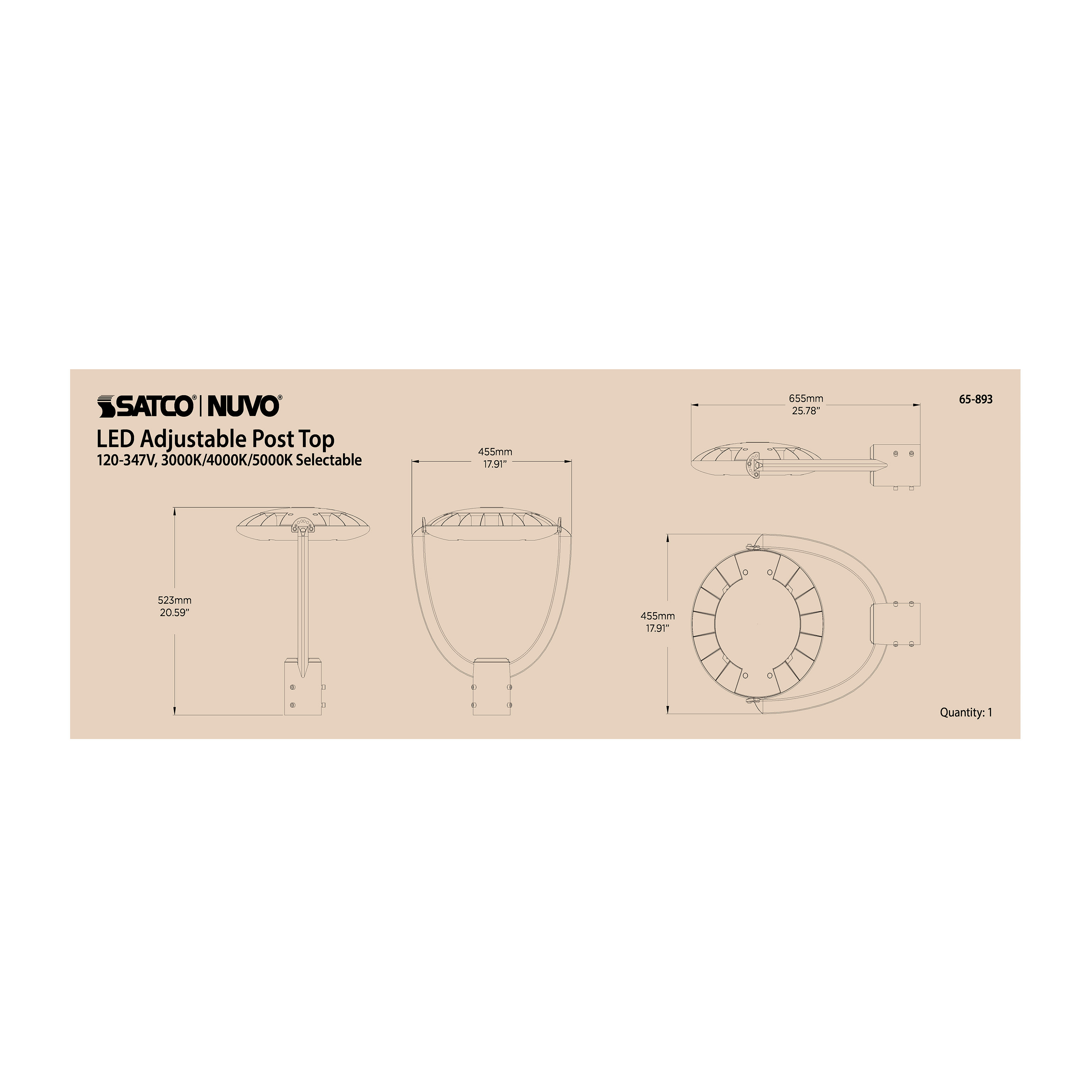

Dimensions
Height (in.)20.59
Width (in.)17.91
Compliance
Safety ListingcULus
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-J760DV
B.U.G. RatingB3-U3-G2
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Additional InformationPowder Coated
Includes3 Inch Fitter
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923608582
Each Quantity1
Each Length (in.)28.74
Each Width (in.)20.28
Each Height (in.)7.09
Each Weight (lb.)19.25
Each Cube (CuFt.)2.3914

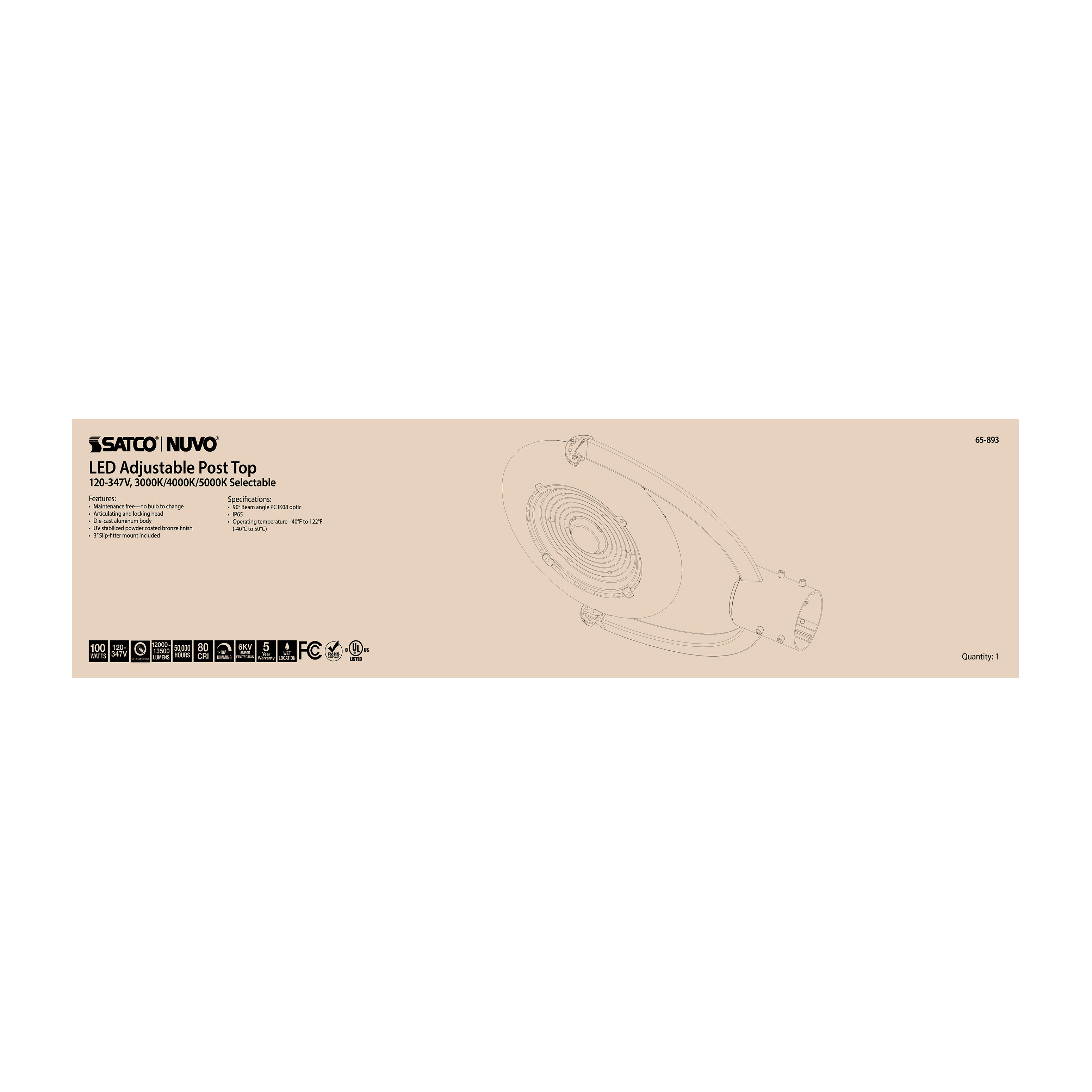

Pack TypeBrown Box
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000

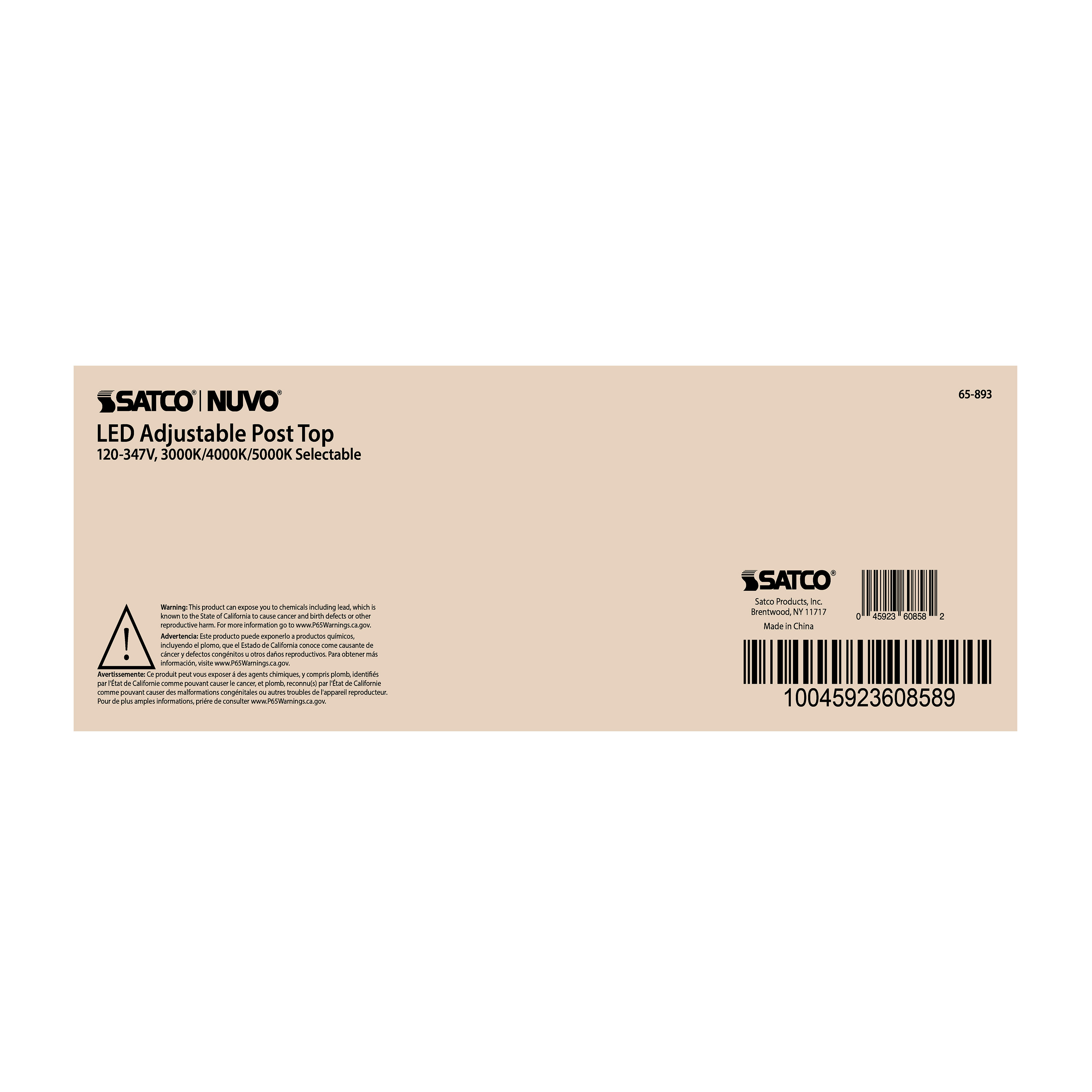

Case UPC10045923608589
Case Quantity1
Case Length (in.)28.74
Case Width (in.)20.28
Case Height (in.)7.09
Case Weight (lb.)19.25
Case Cube (CuFt.)2.3914
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Eaton DF10P Visit
Dimmer Eaton SF10P Visit
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Lutron DVTV PP347H 347V Only Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01 Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
