65-895

LED SM POST TOP W/PC 120-347V

  • 75/55/35 Watt
  • 3K/4K/5K CCT Small LED Post Top
  • Bronze
  • 120-347 Volt
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-895 Specifications65-895 Instructions.pdf
Tools
Lighting Layout Analysis For 65-895
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

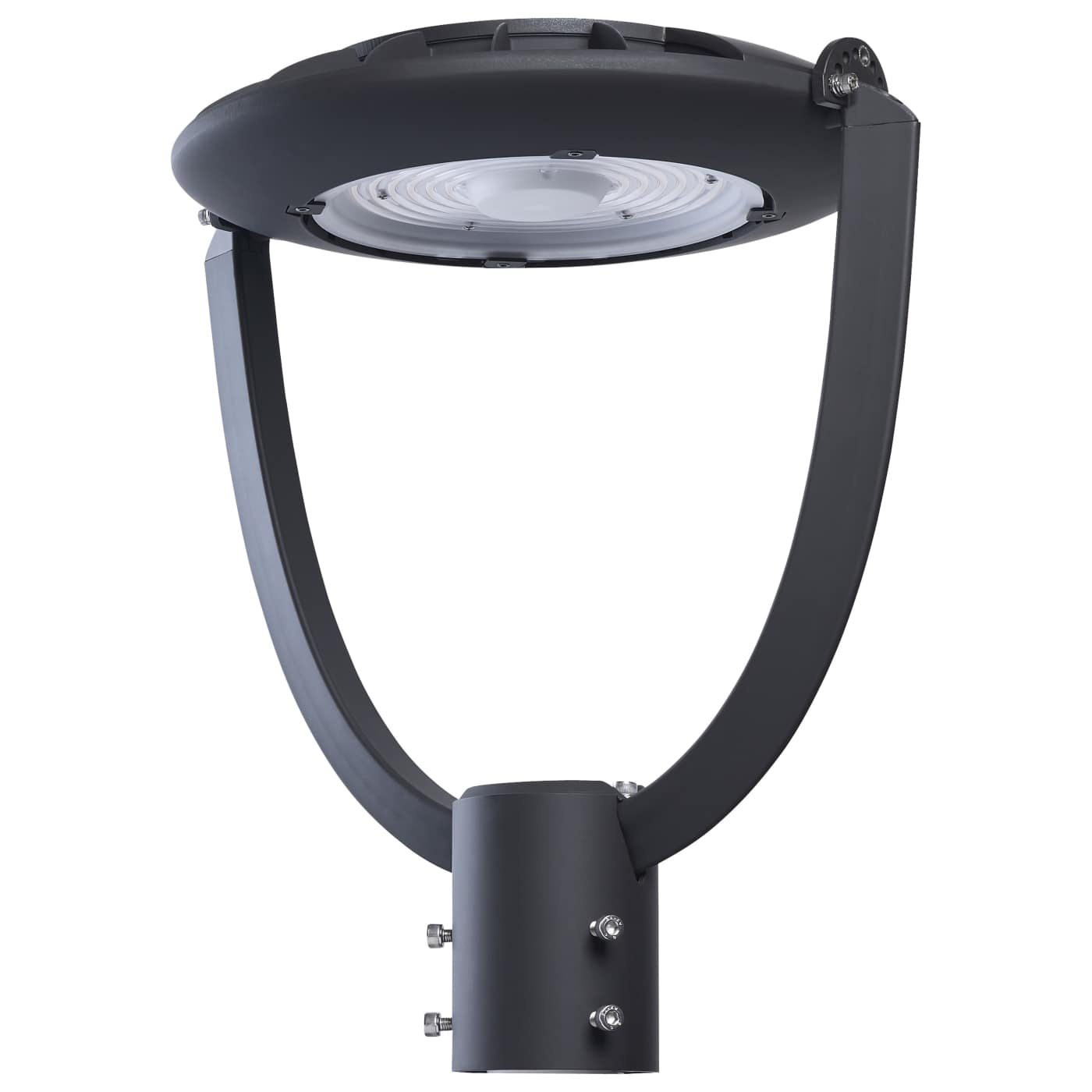

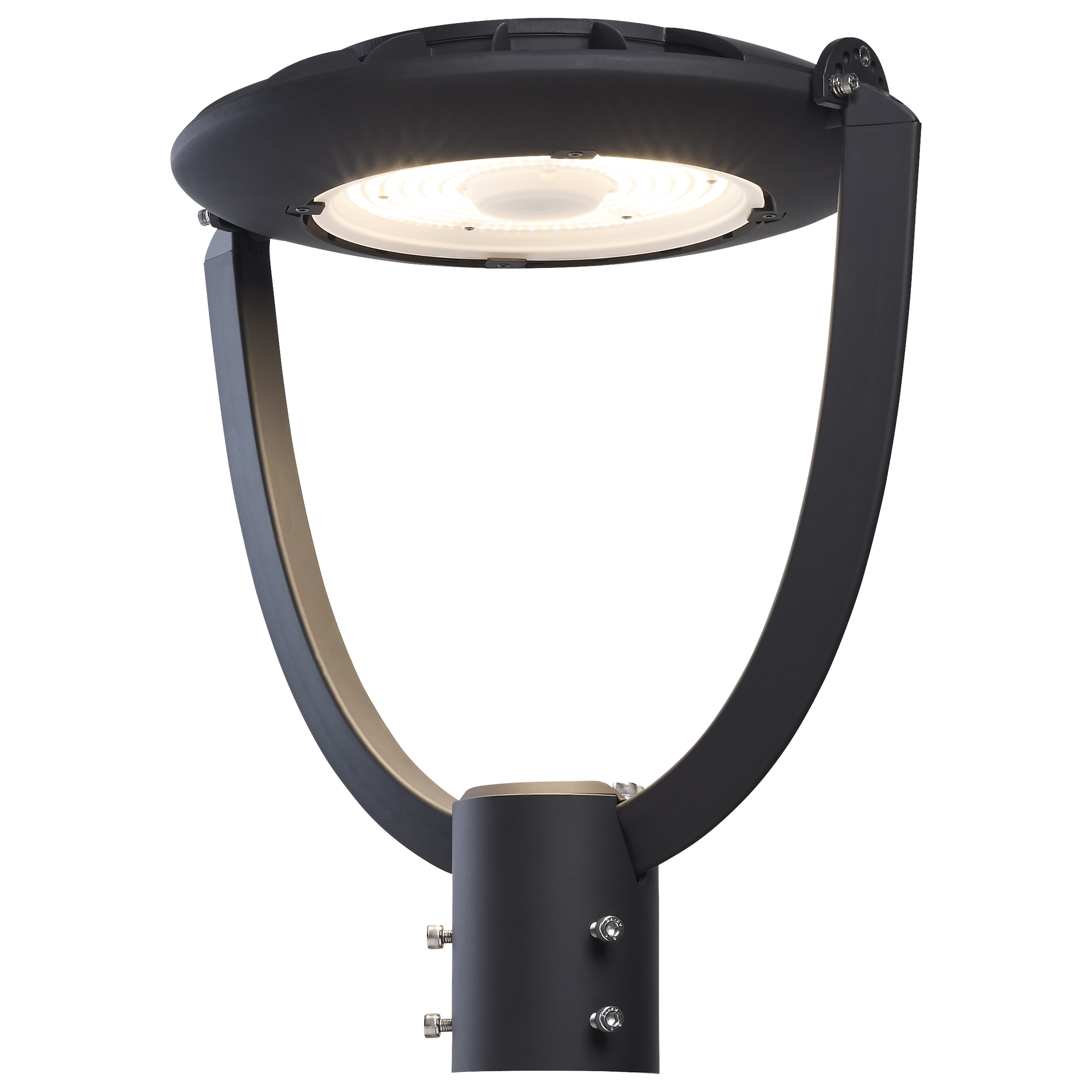

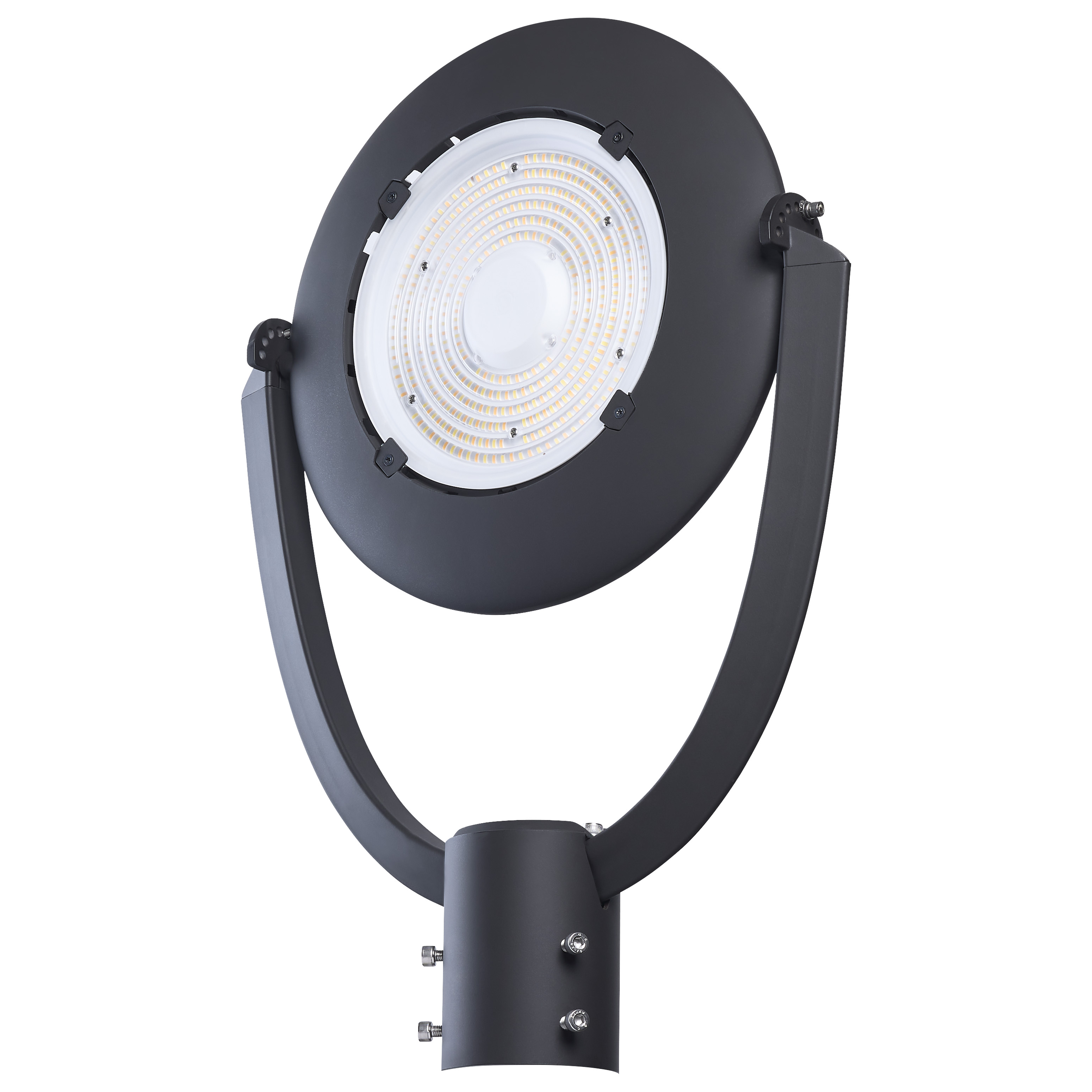

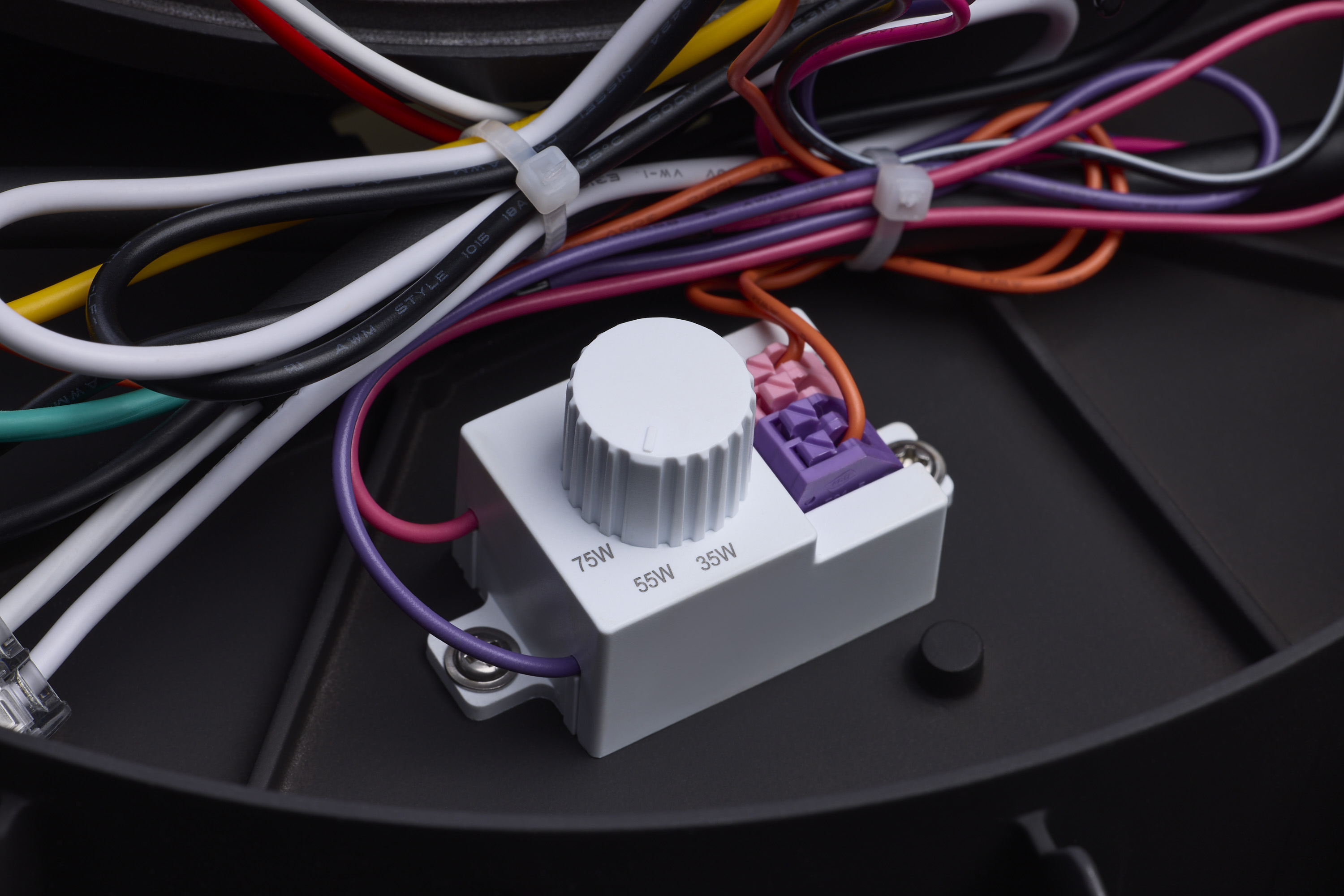

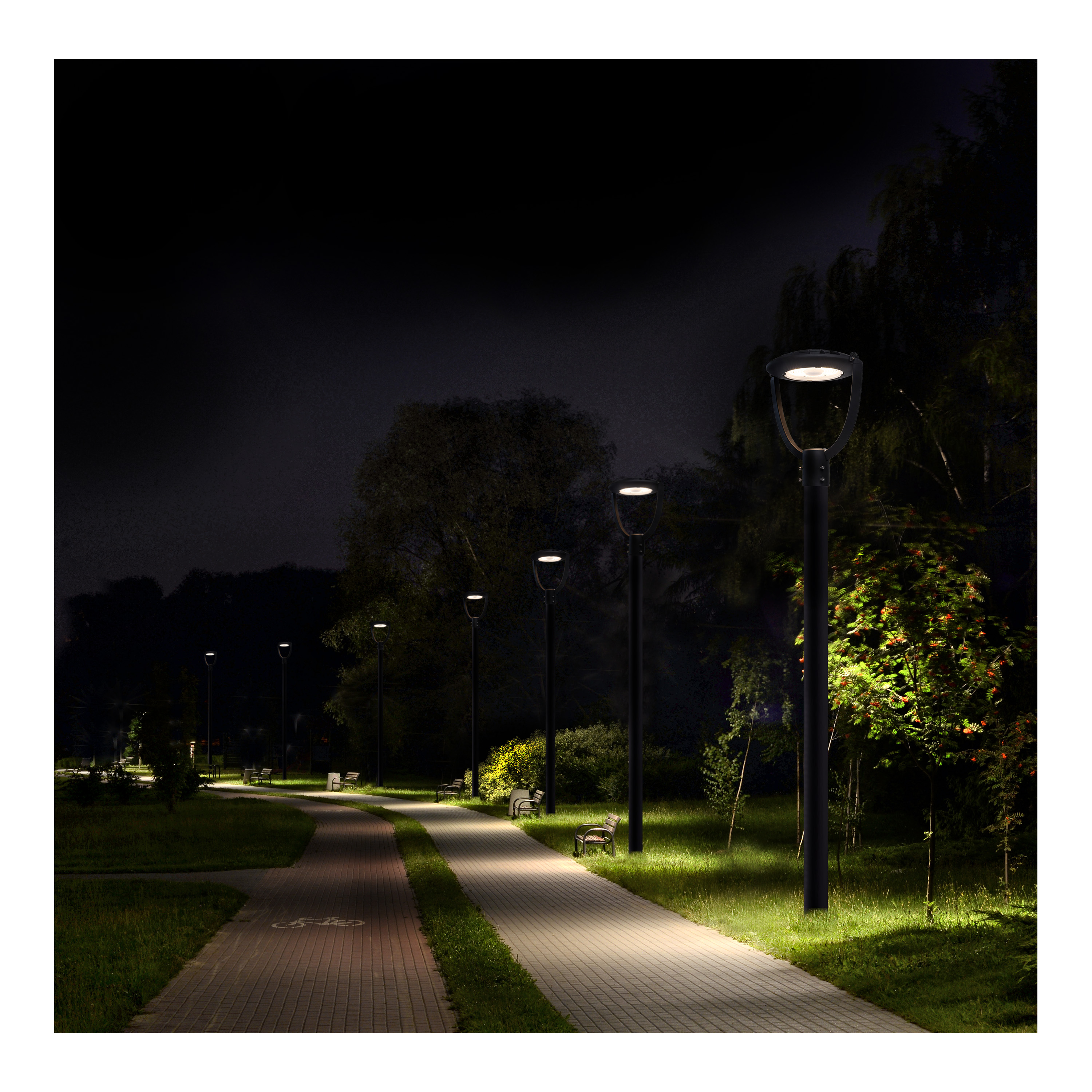

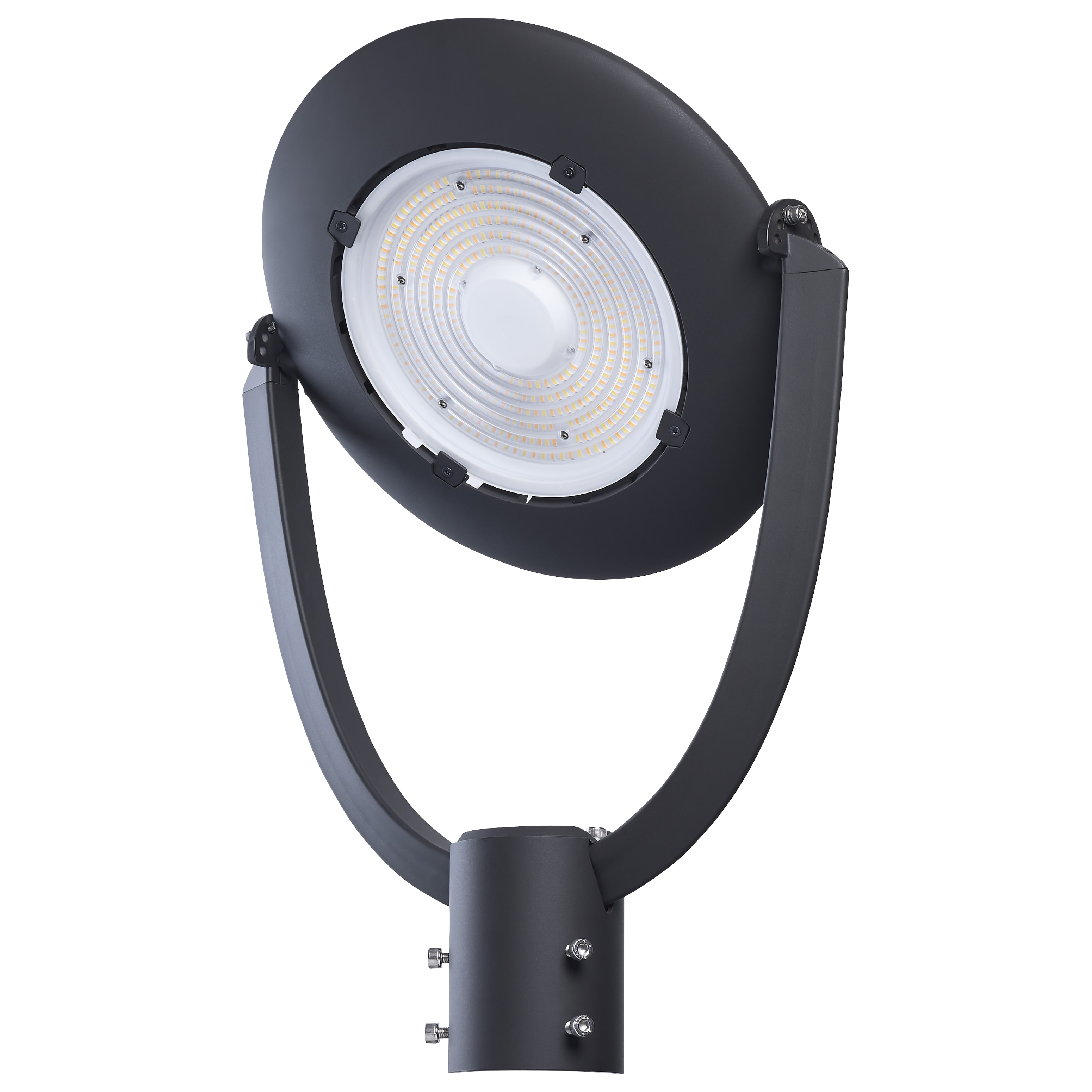

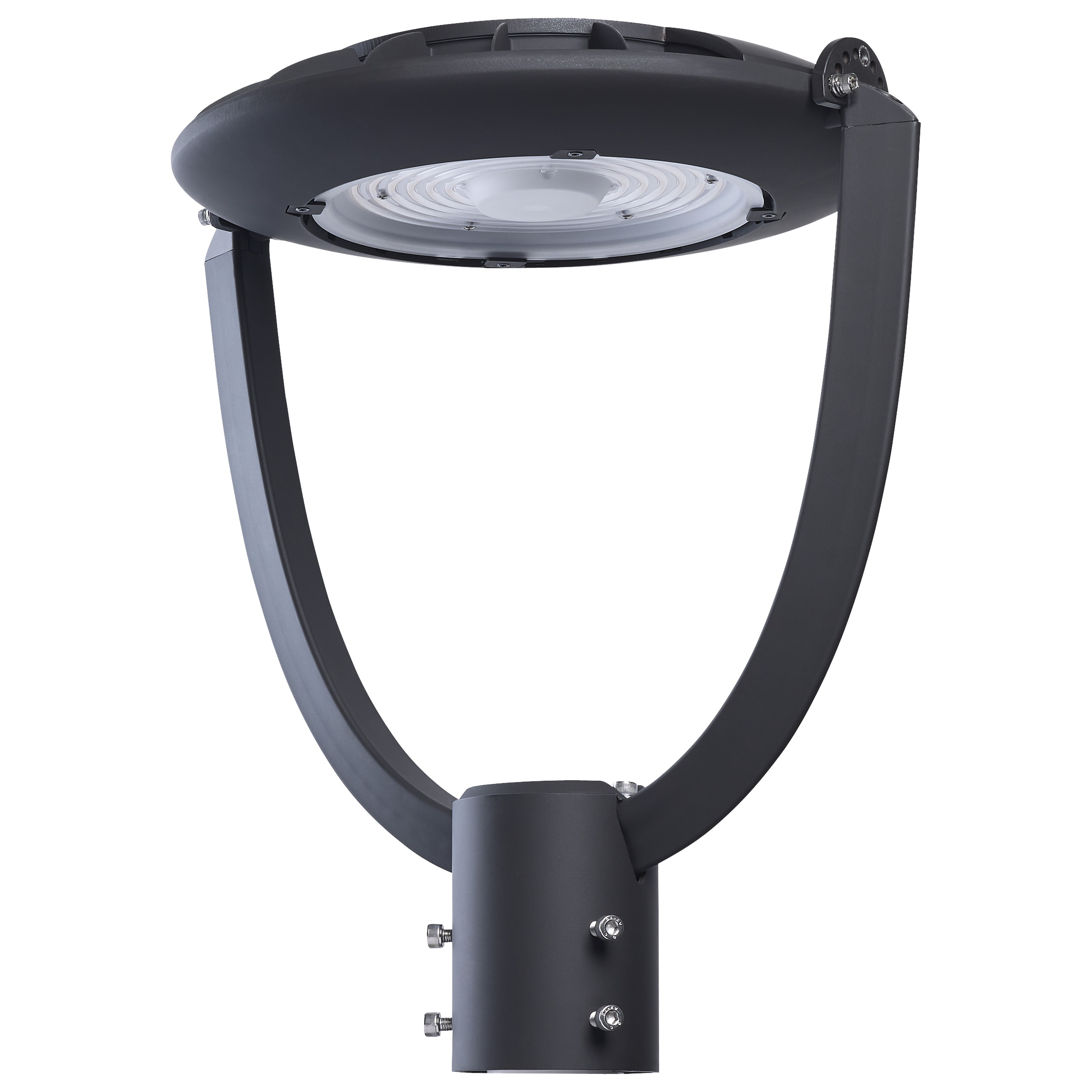

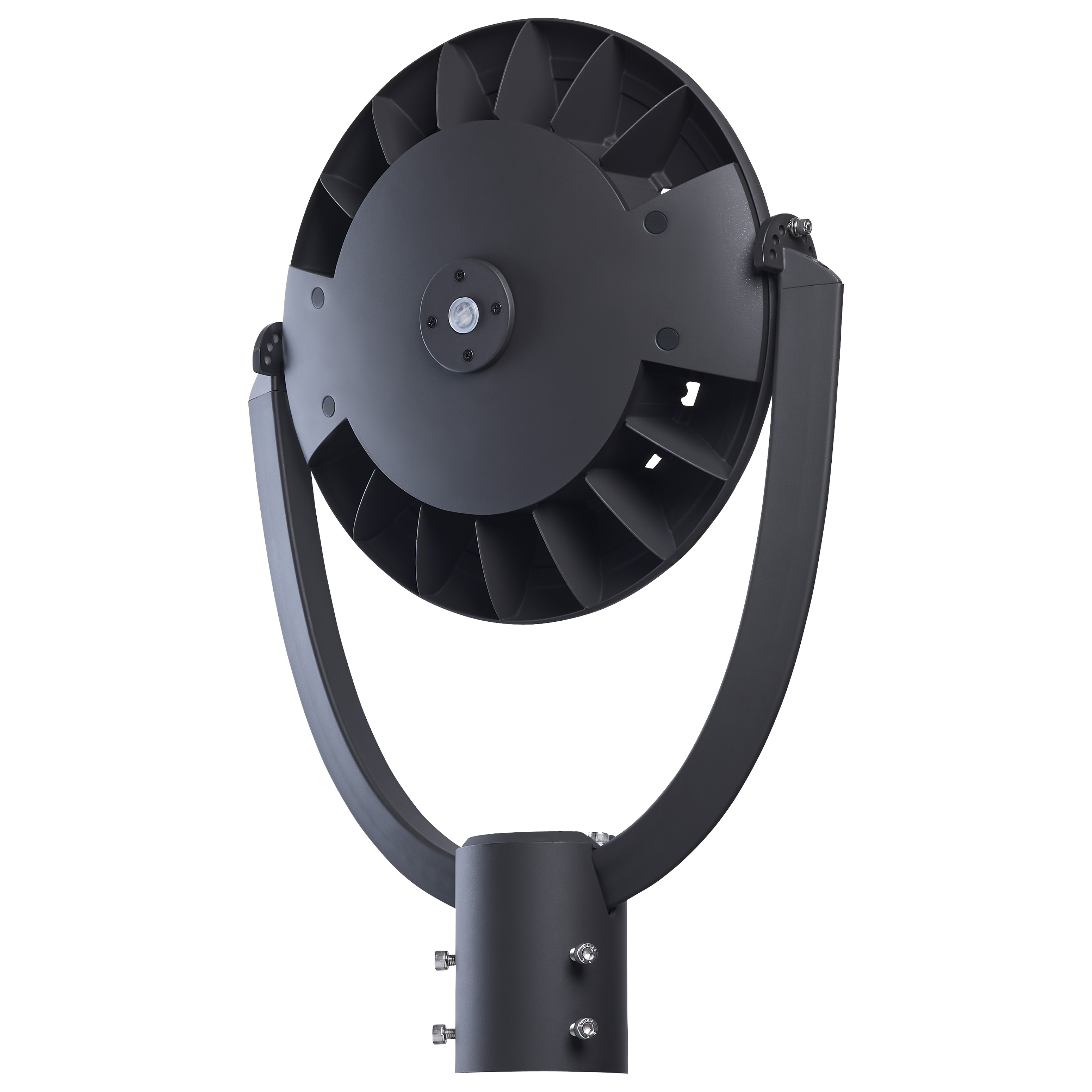

SATCO NUVO's 65-895 Adjustable LED Post Top Fixture combines decorative styling with versatile performance for pathways, campuses, parking areas, and other outdoor communal spaces. Featuring selectable wattages of 75W, 55W, or 35W and adjustable CCT options (3000K-5000K), this fixture allows for customized illumination to suit a variety of applications. A fully articulating head directs light where it is needed most, while the integrated by-passable photocell provides convenient dusk-to-dawn operation. Constructed with a durable powder-coated bronze housing, IP65 wet-location protection, and IK08 impact resistance, the 65-895 delivers reliable long-lasting performance in demanding exterior environments.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated

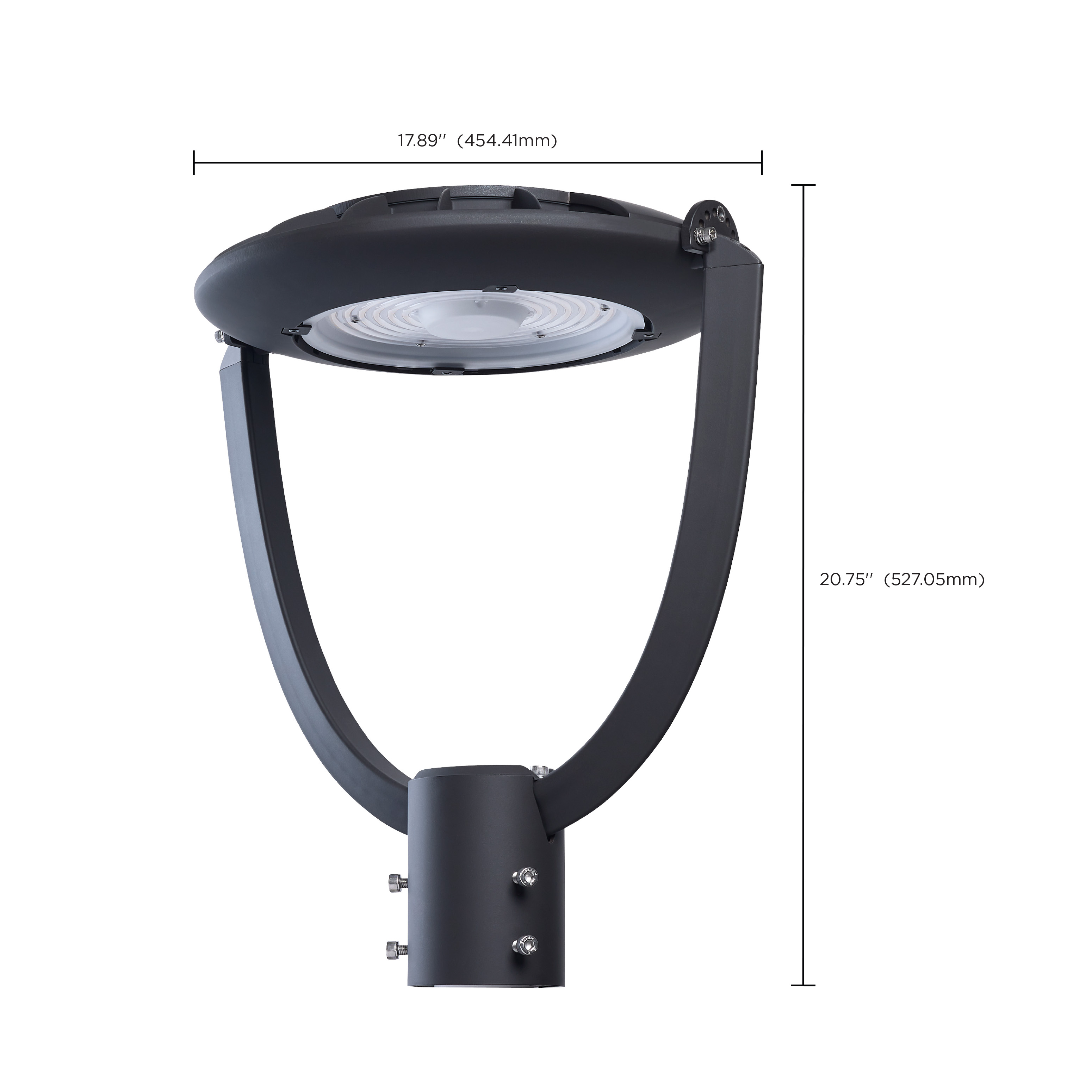

Diameter17.89
Fitter3
MaterialDie-cast Aluminum
Fixture TypePost Top
Product NotesDefault Wattage: 75W
StatusActive
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%
Wire ColorBlack

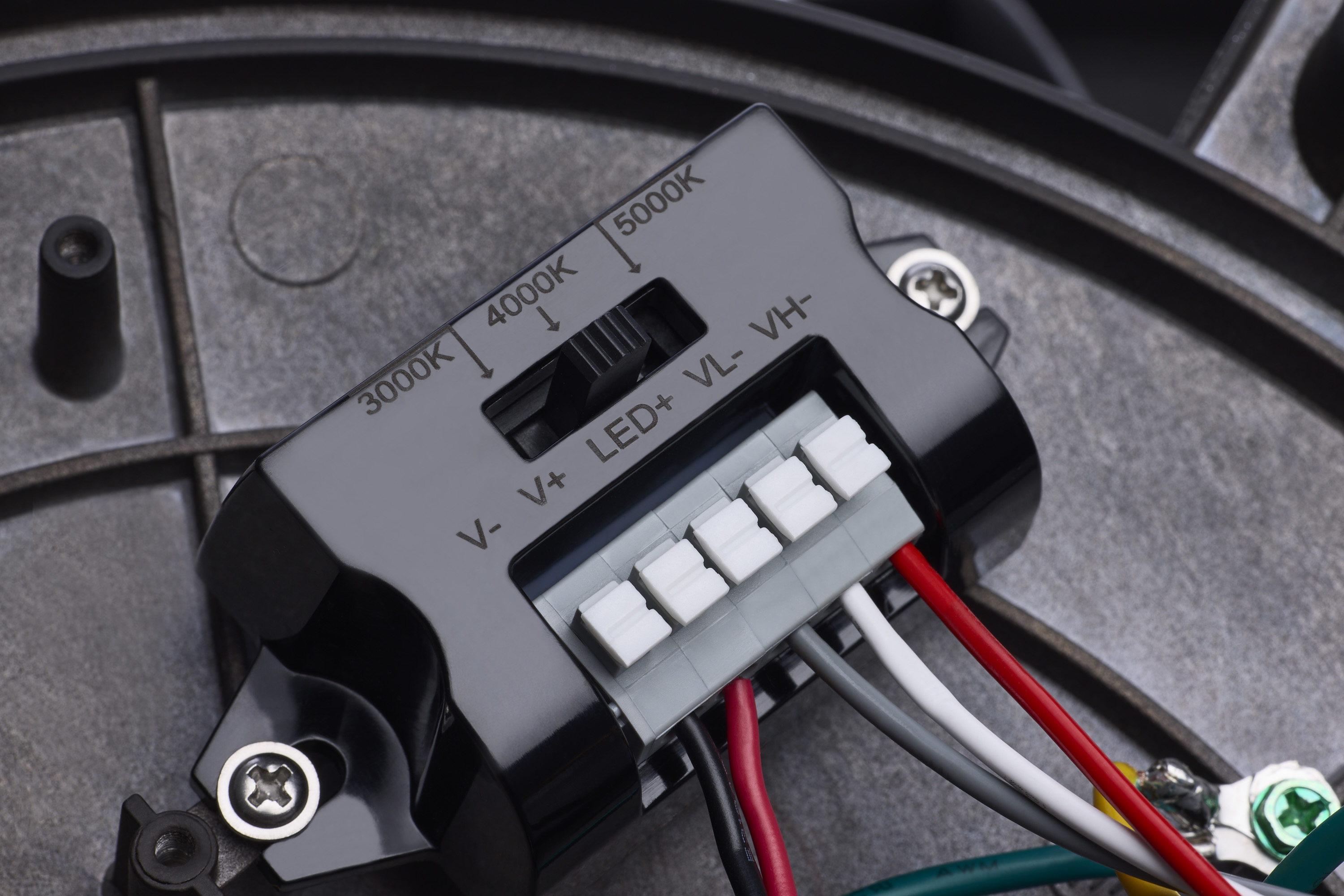

CCT SelectableYes
Wattage SelectableYes
Finish FamilyBronze
Amps0.630-0.220/0.460-0.410/0.290-0.100A
Integrated FeaturesIntegrated Photocell
IOT EnabledNo
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
LensedYes

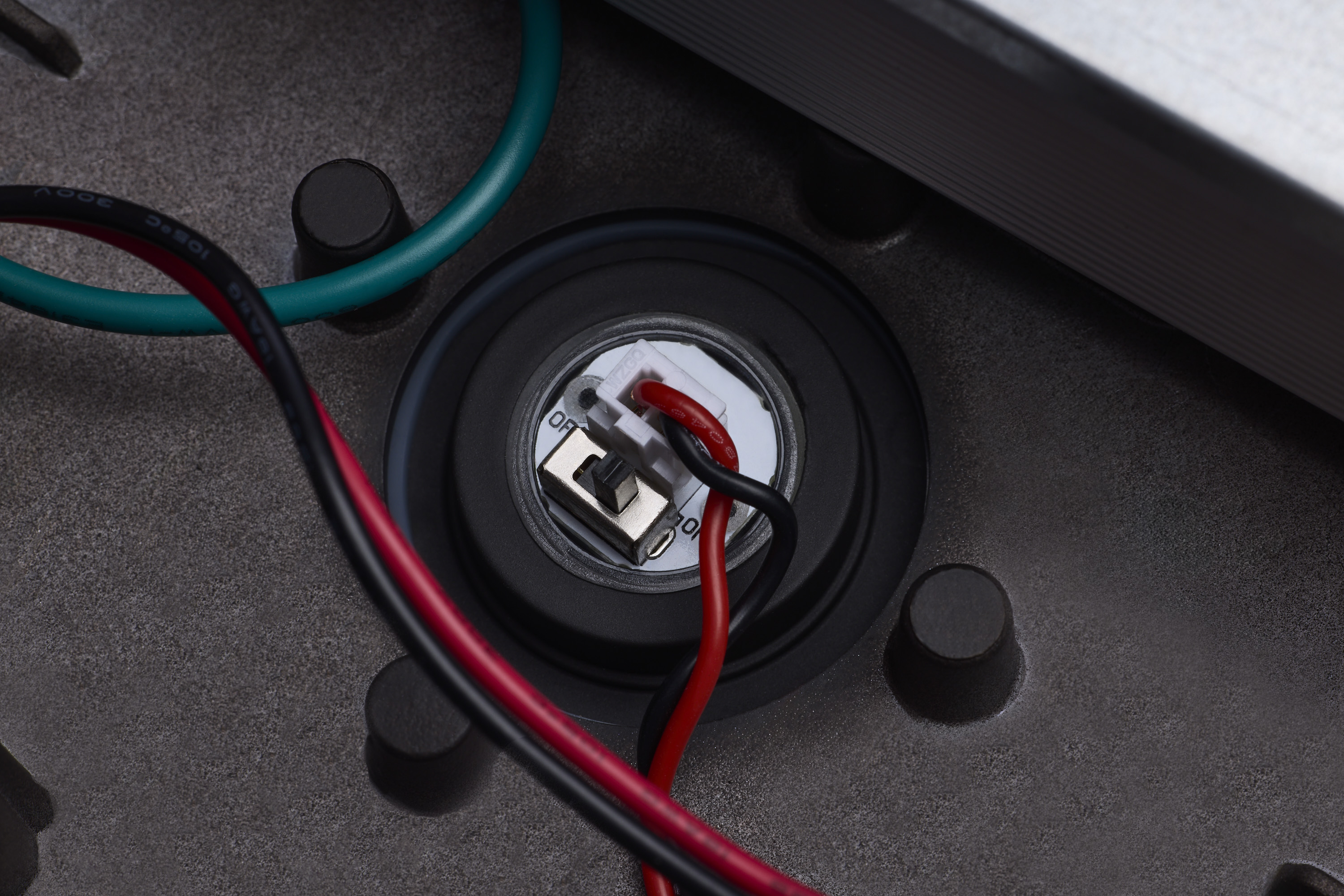

Photo CellYes - Bypassable
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Battery Operating Temp+32F to +113F (0C to +45C)
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp+32F to +113F (0C to +45C)
HID Equivalent100W-175W
Lumens10875L-4375L
Volts120V-347V
Watts75W/55W/35W
Max Lumens4375L
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishBRONZE
Housing ColorBronze
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedurePost
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB3-U3-G1
CA Prop 65Lead
DLC IDS-41BG1L
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923652905
Case Cube2.3914
Case Height7.09
Case Length28.74
Case Quantity1
Case UPC10045923652902
Case Weight12.98
Case Width20.28
EA Cube2.3914
EA Height7.09
EA Length28.74
EA Quantity1
EA Weight12.98
EA Width20.28
Pack TypeBox
Web Height20.75
Web Width17.89
