65-896

LED LG POST TOP W/PC 120-347V

  • 150/125/100 Watt
  • 3K/4K/5K CCT Large LED Post Top
  • Bronze
  • 120-347 Volt
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

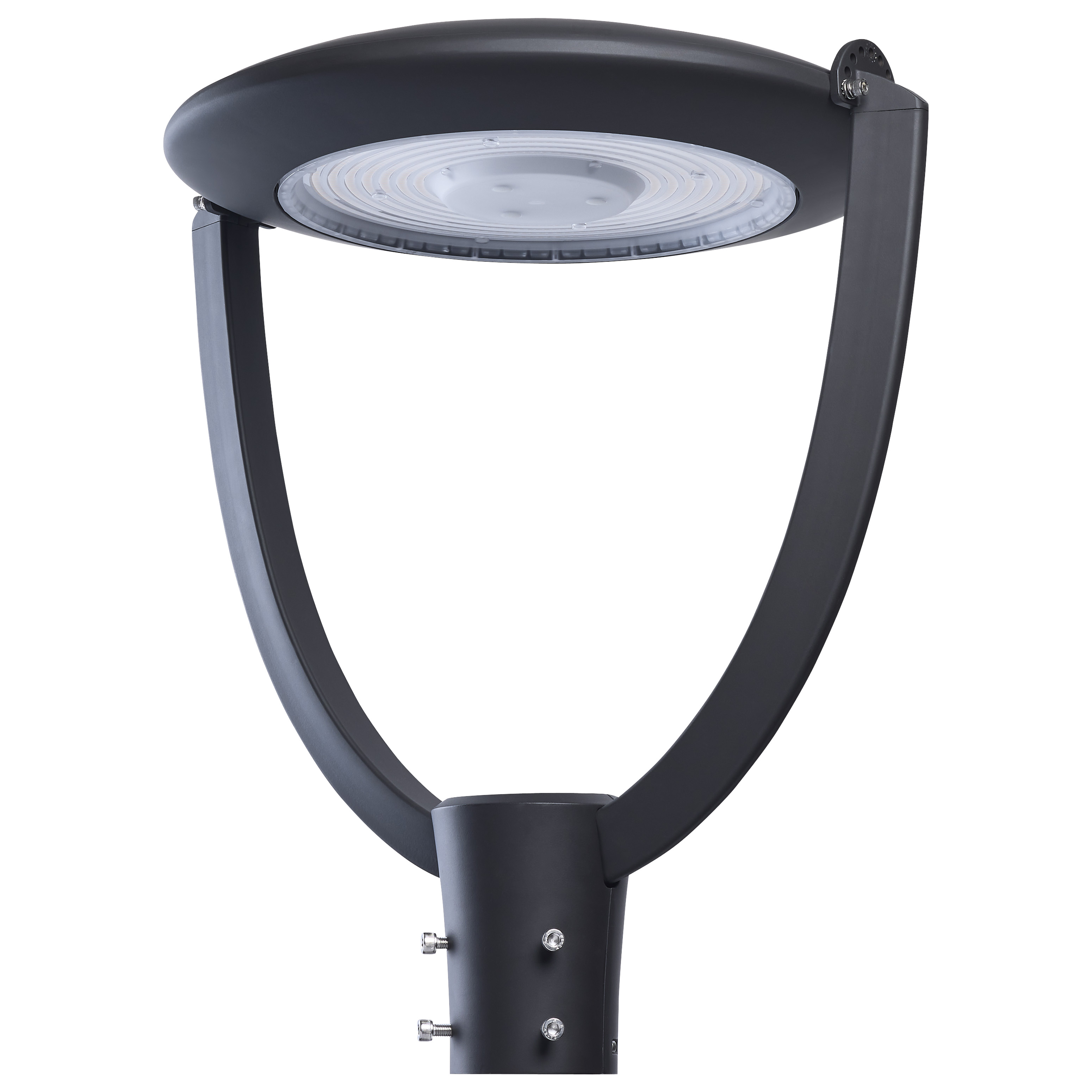

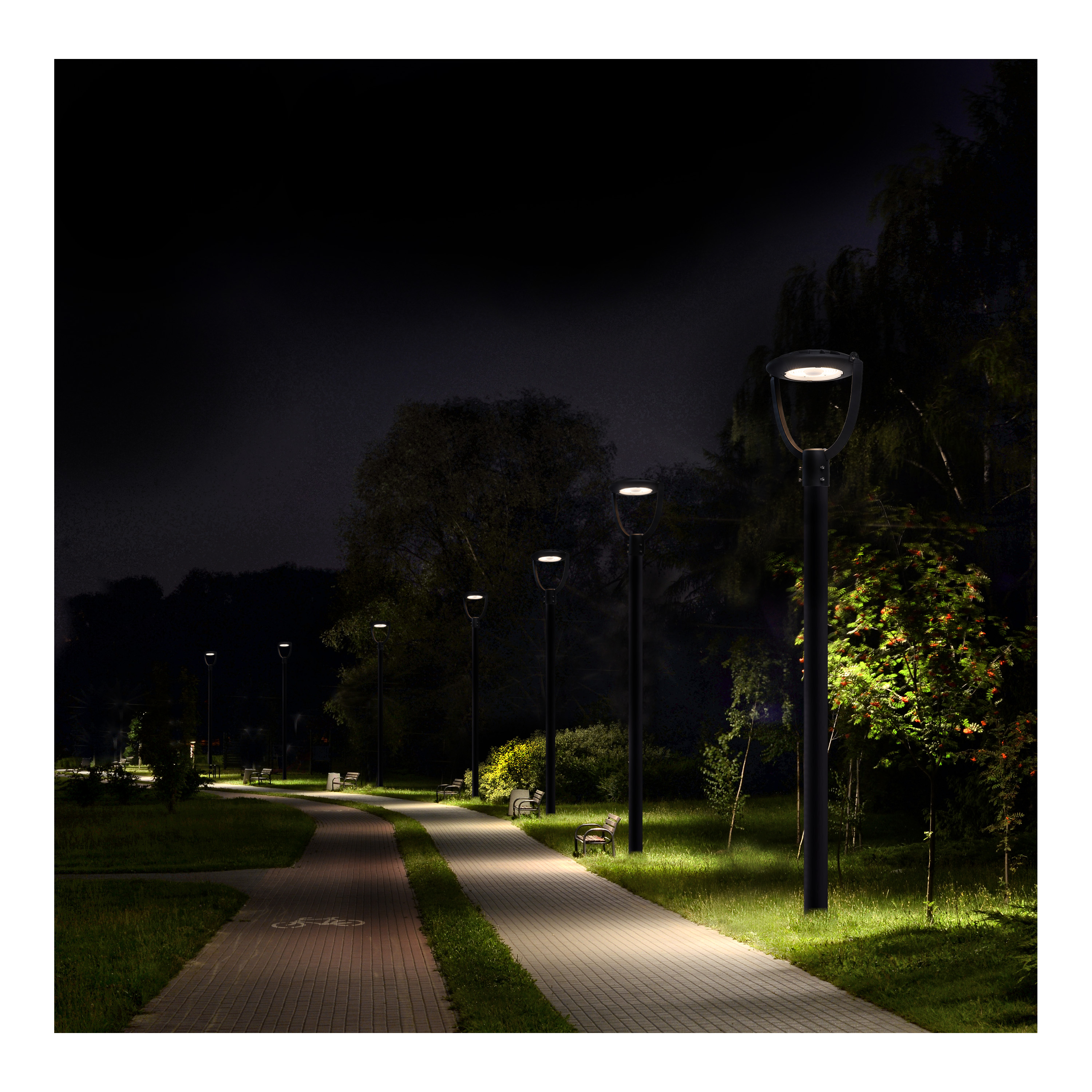

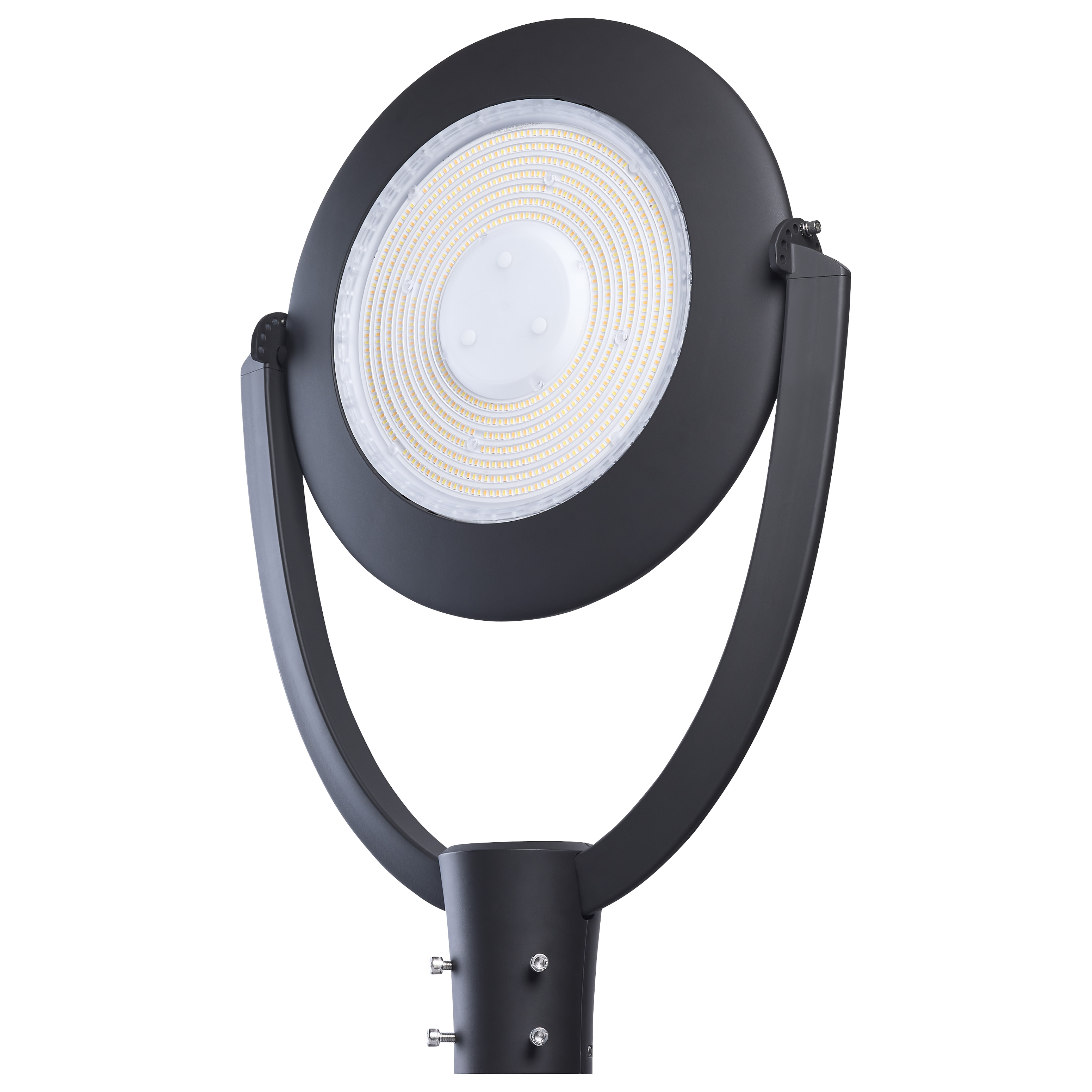

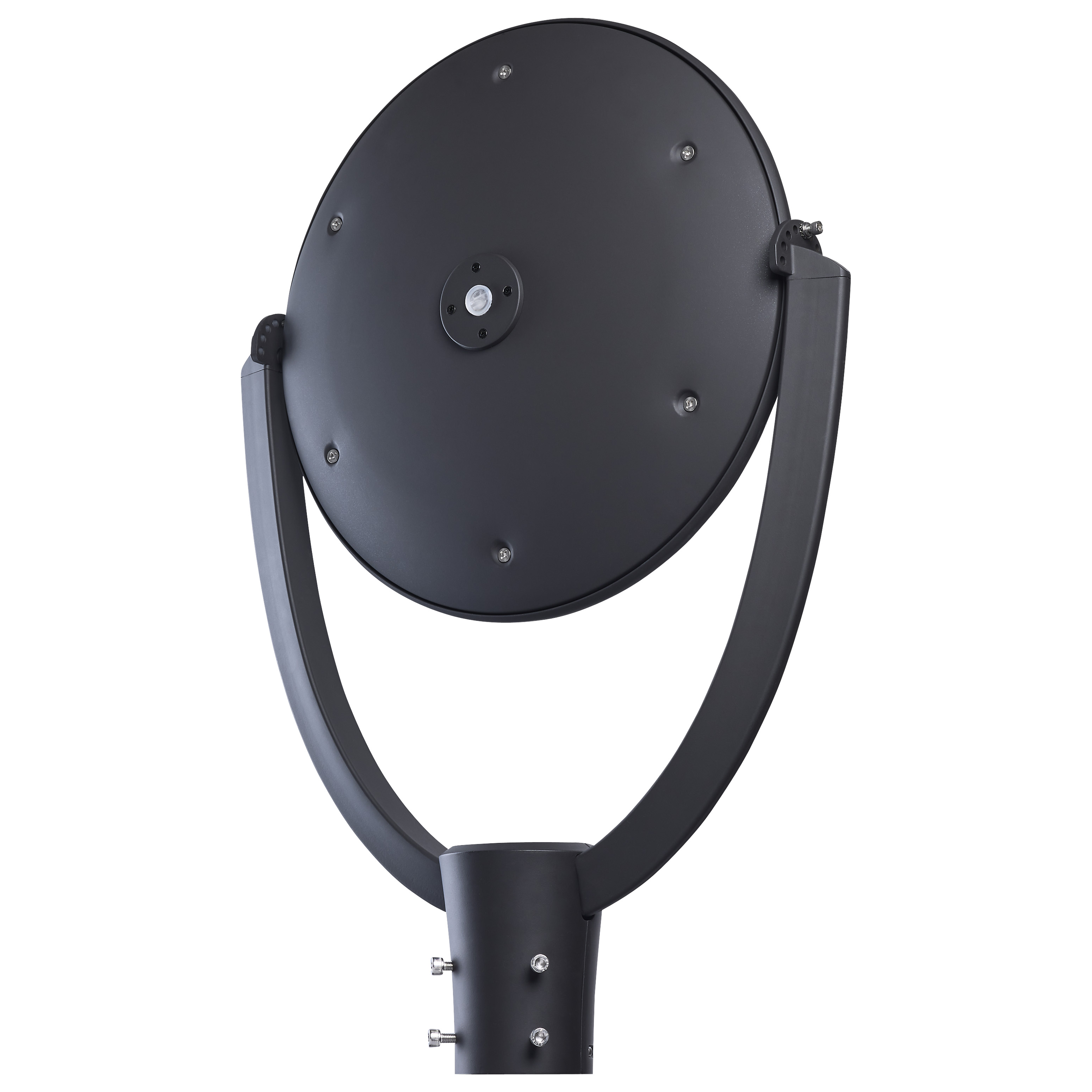

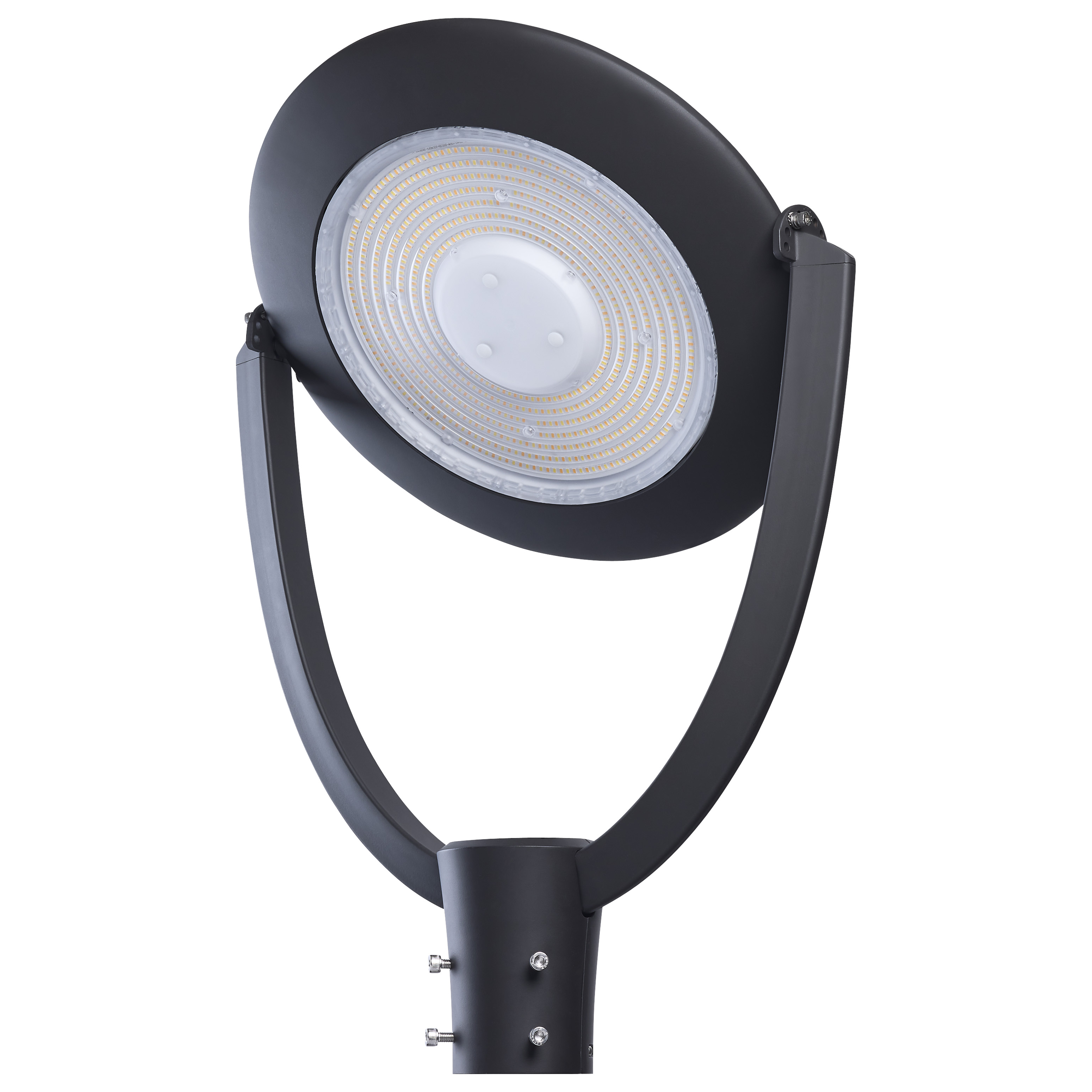

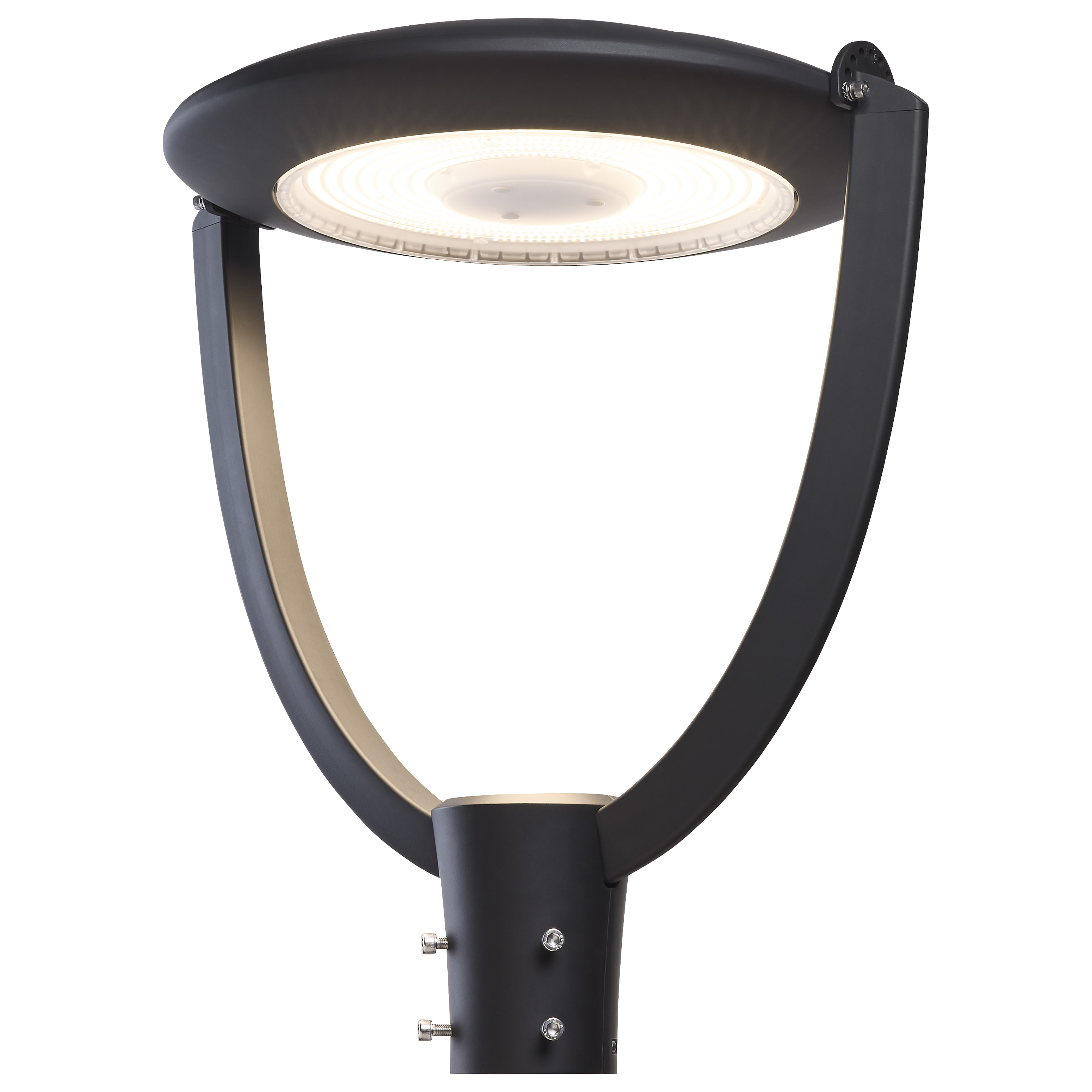

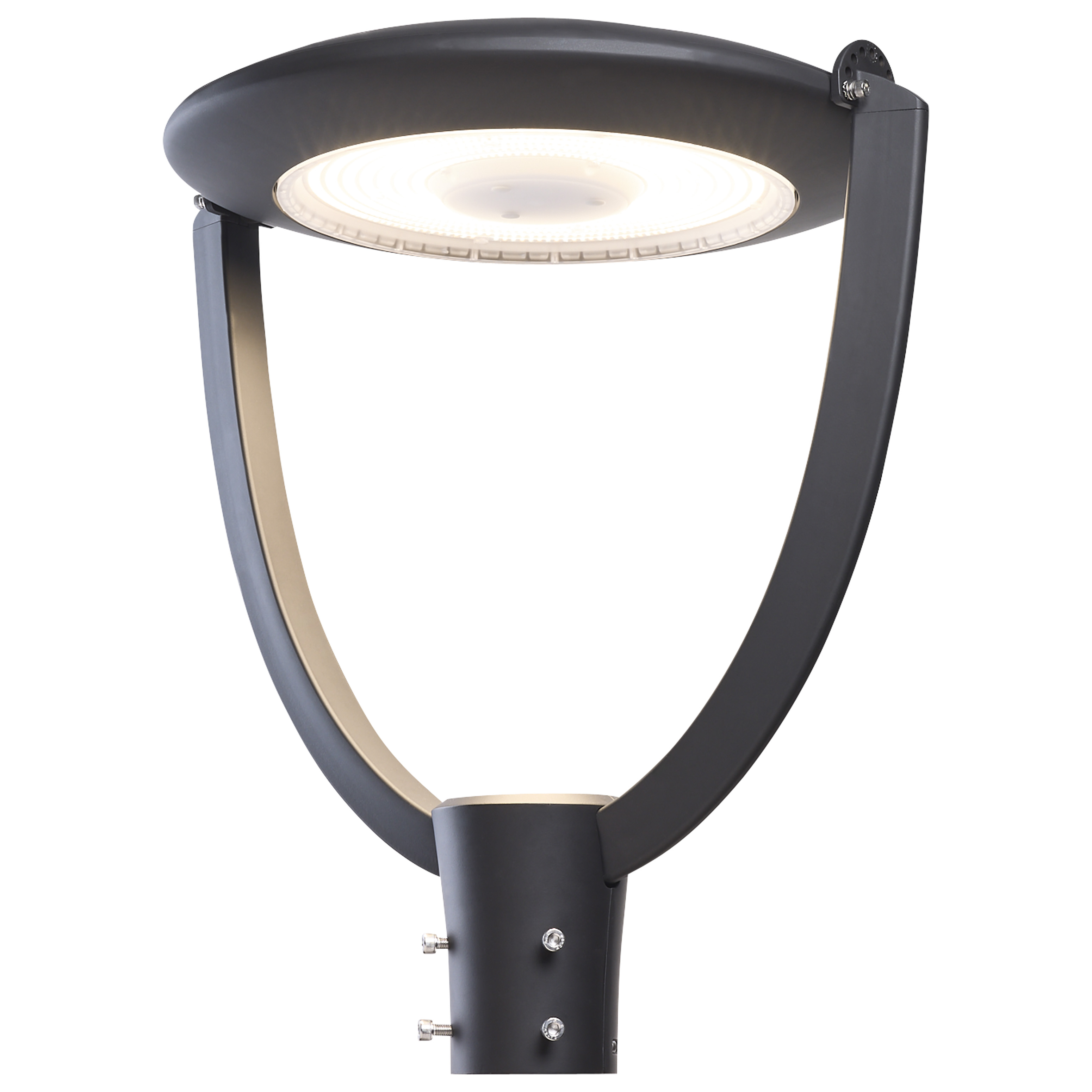

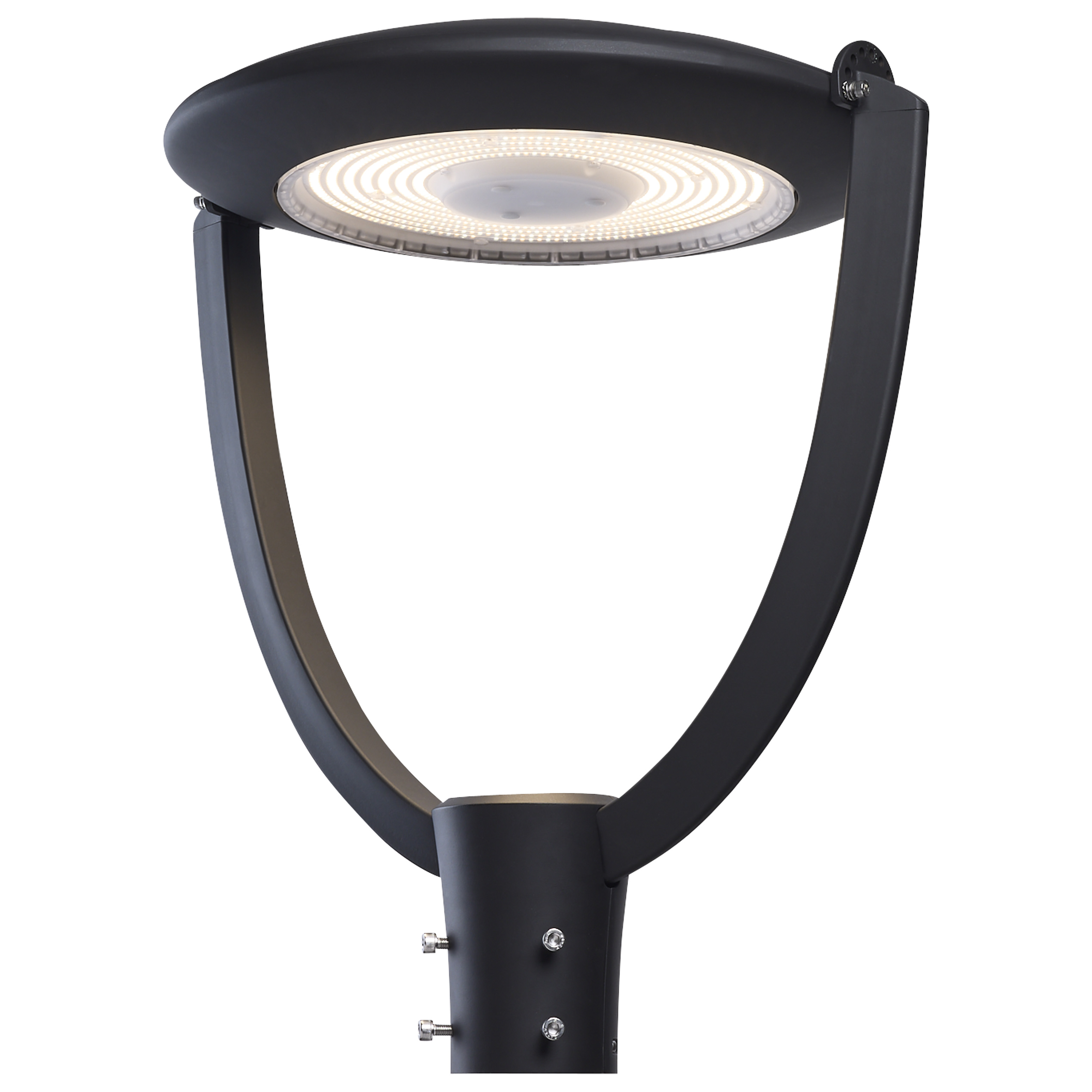

SATCO NUVO's 65-896 Adjustable LED Post Top Fixture delivers powerful illumination with decorative styling for pathways, campuses, parking areas, and other outdoor communal spaces. Featuring selectable wattages of 150W, 125W, or 100W along with adjustable CCT options (3000K-5000K), this fixture provides versatile performance for a wide range of exterior lighting applications. The fully articulating head allows light to be directed where it is needed most, while the integrated by-passable photocell offers convenient dusk-to-dawn operation. Finished with a durable powder-coated bronze housing and built with IP65 wet-location protection and IK08 impact resistance, the 65-896 is engineered for dependable long-lasting outdoor performance.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter20.89
Fitter3
MaterialDie-cast Aluminum
Fixture TypePost Top
Product NotesDefault Wattage: 150W
StatusActive
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%
Wire ColorBlack

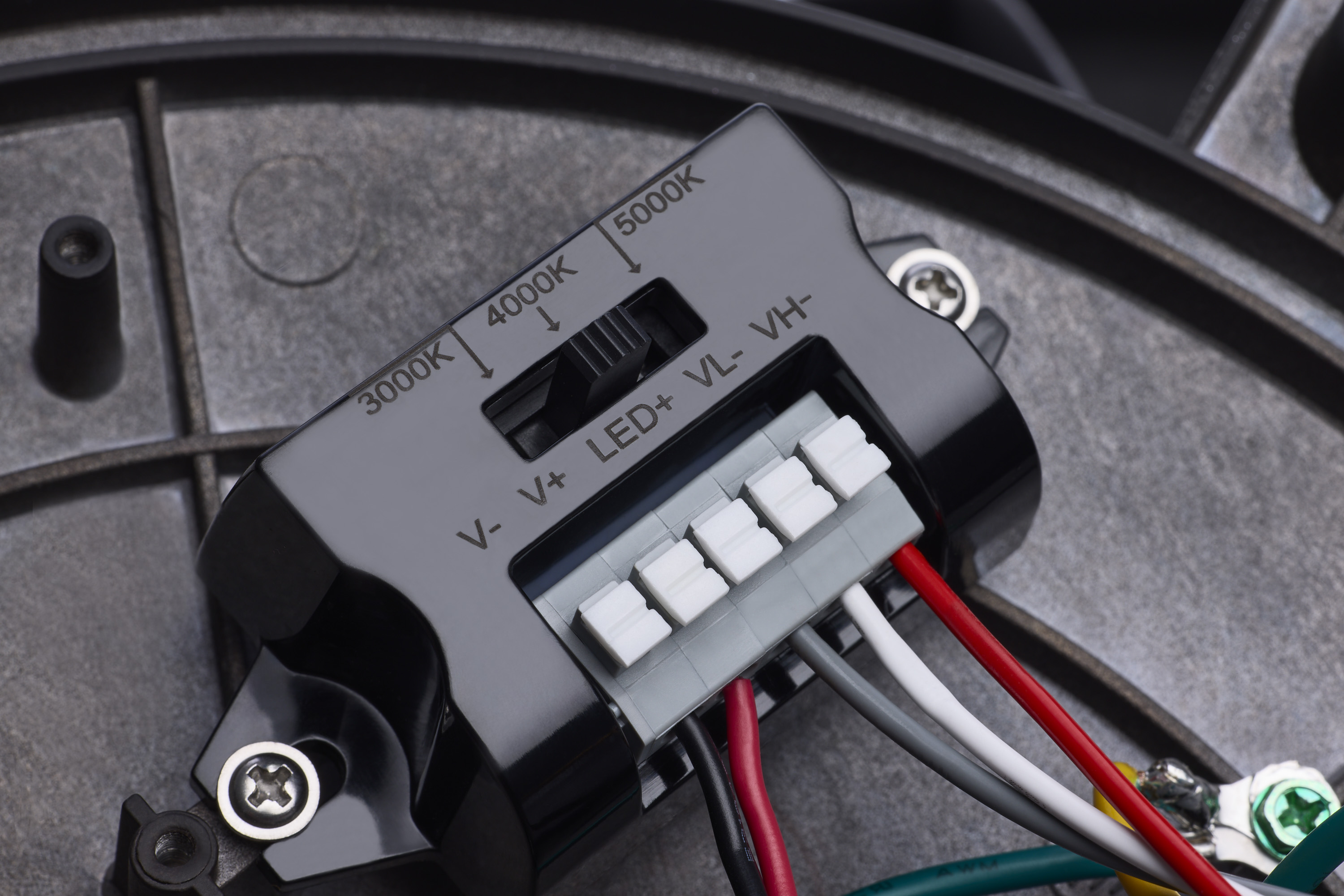

CCT SelectableYes

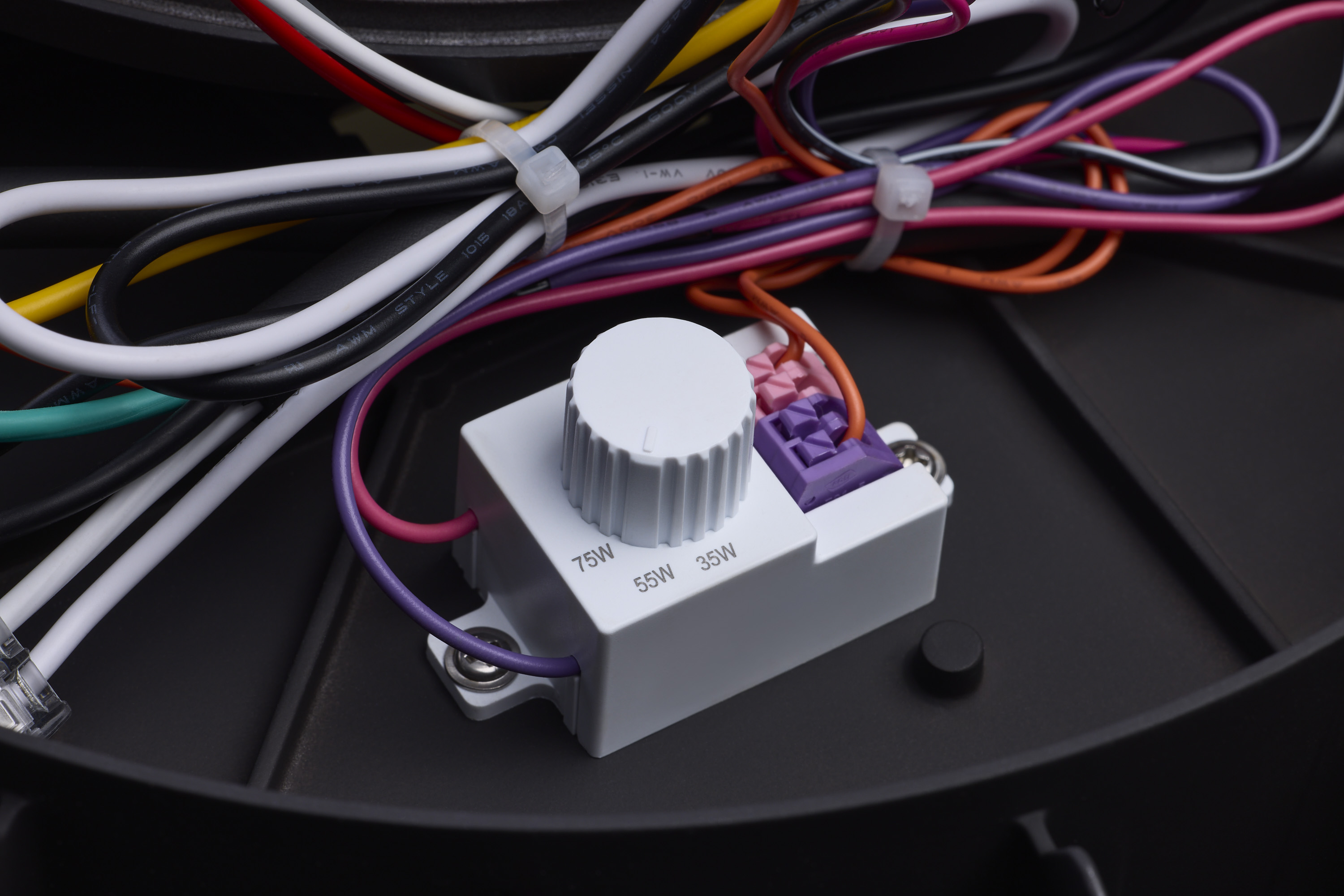

Wattage SelectableYes
Finish FamilyBronze
Amps1.250-0.430/1.040-0.360/0.830-0.290A
Integrated FeaturesIntegrated Photocell
IOT EnabledNo
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
LensedYes

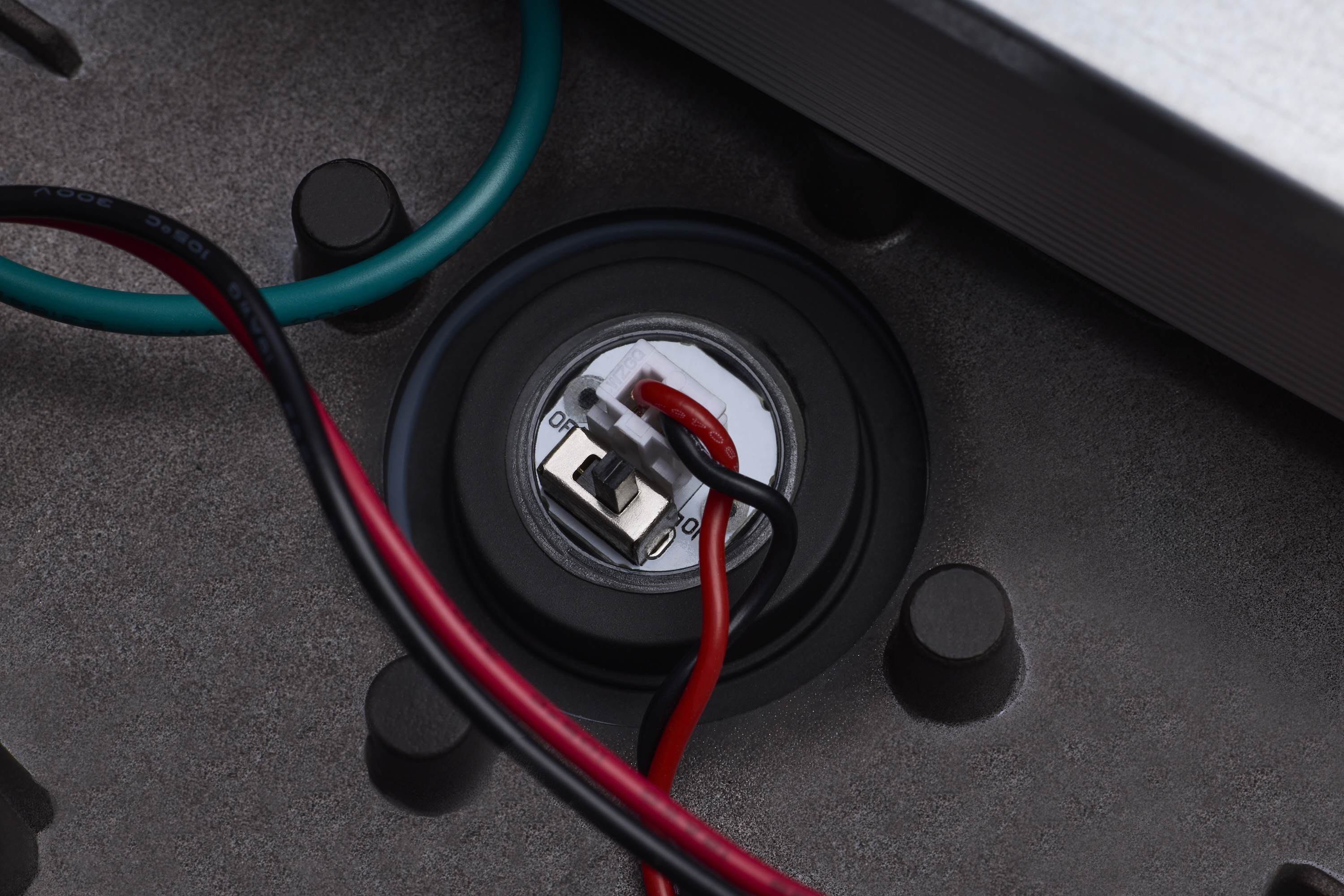

Photo CellYes - Bypassable
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Battery Operating Temp+32F to +113F (0C to +45C)
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp+32F to +113F (0C to +45C)
HID Equivalent225W-300W
Lumens21750L-12500L
Volts120V-347V
Watts150W/125W/100W
Max Lumens12500L
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishBRONZE
Housing ColorBronze
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedurePost
Additional Info
Warranty5-Years
Compliance
Bug RatingB4-U3-G1
CA Prop 65Lead
DLC IDS-KZ0WWW
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923653001
Case Cube2.6723
Case Height6.1
Case Length32.87
Case Quantity1
Case UPC10045923653008
Case Weight19.14
Case Width23.03
EA Cube2.6723
EA Height6.1
EA Length32.87
EA Quantity1
EA Weight19.14
EA Width23.03
Pack TypeBox

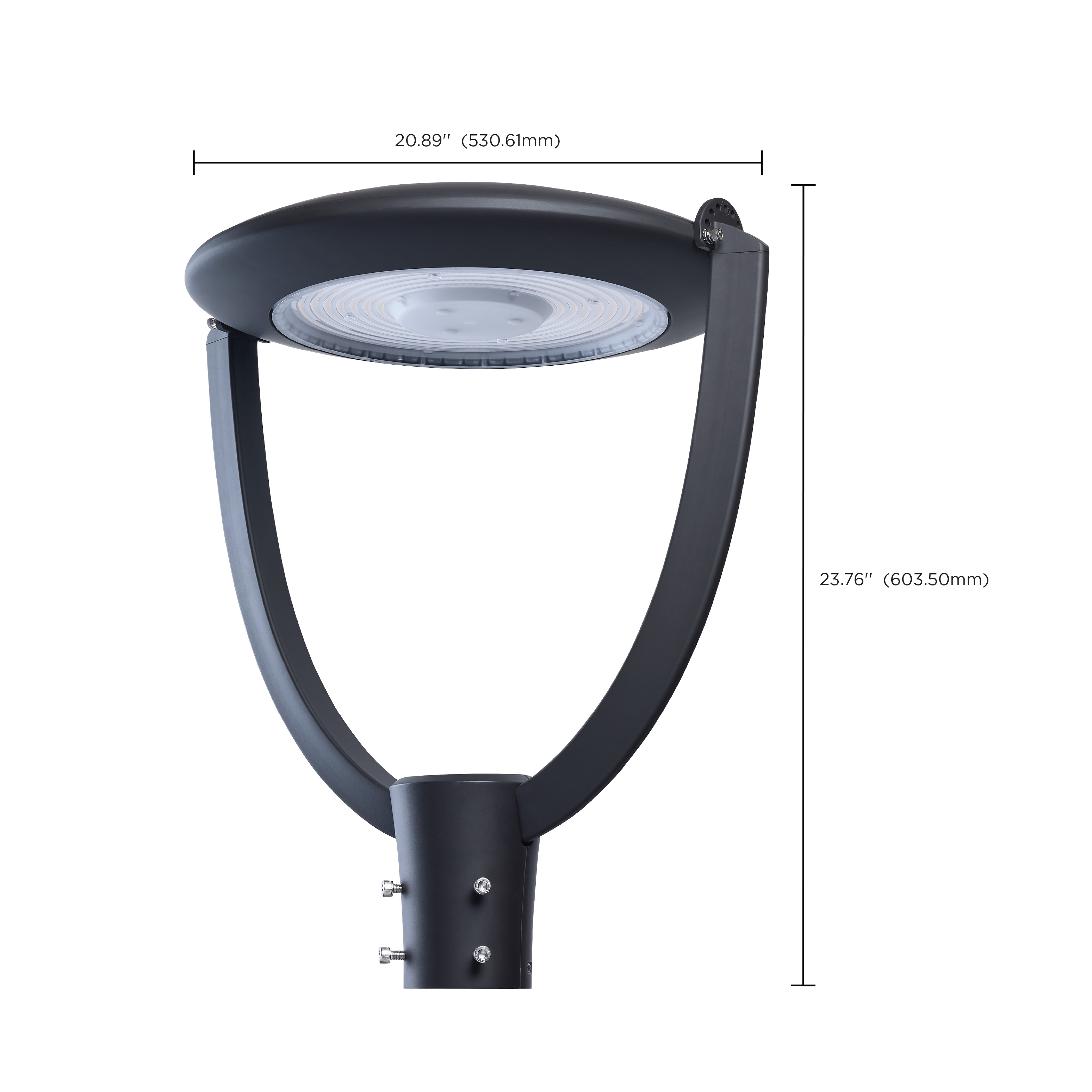

Web Height23.76
Web Width20.89
