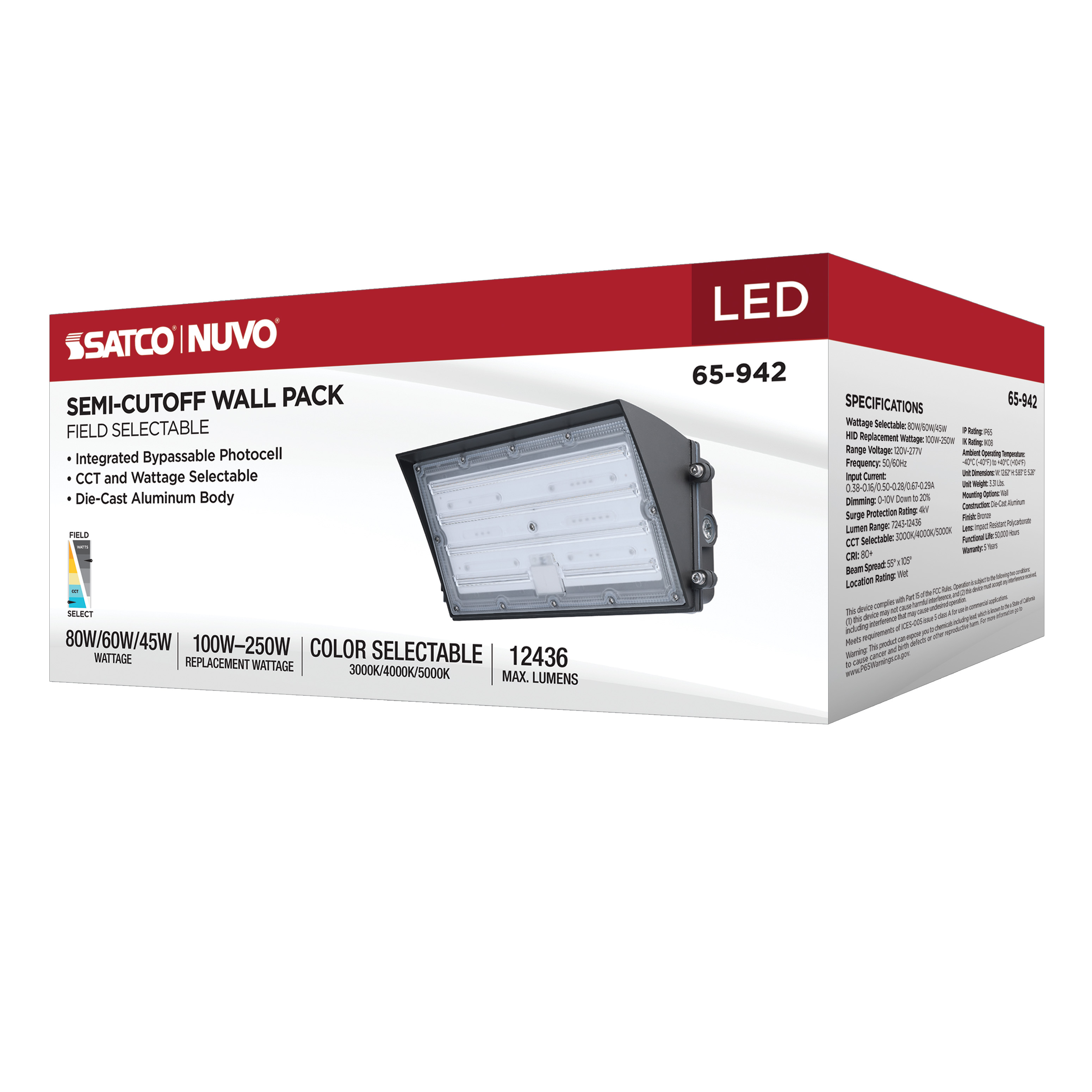

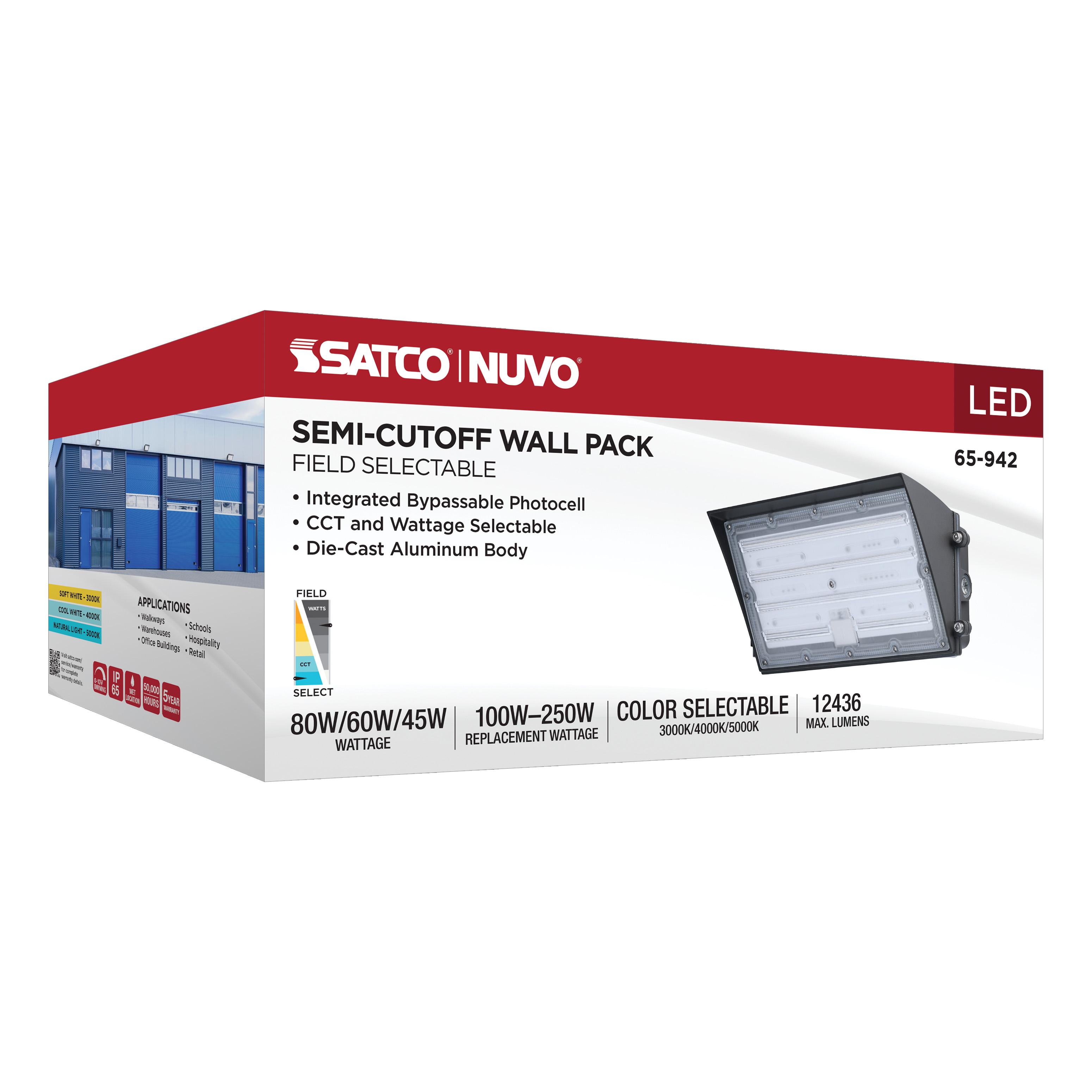

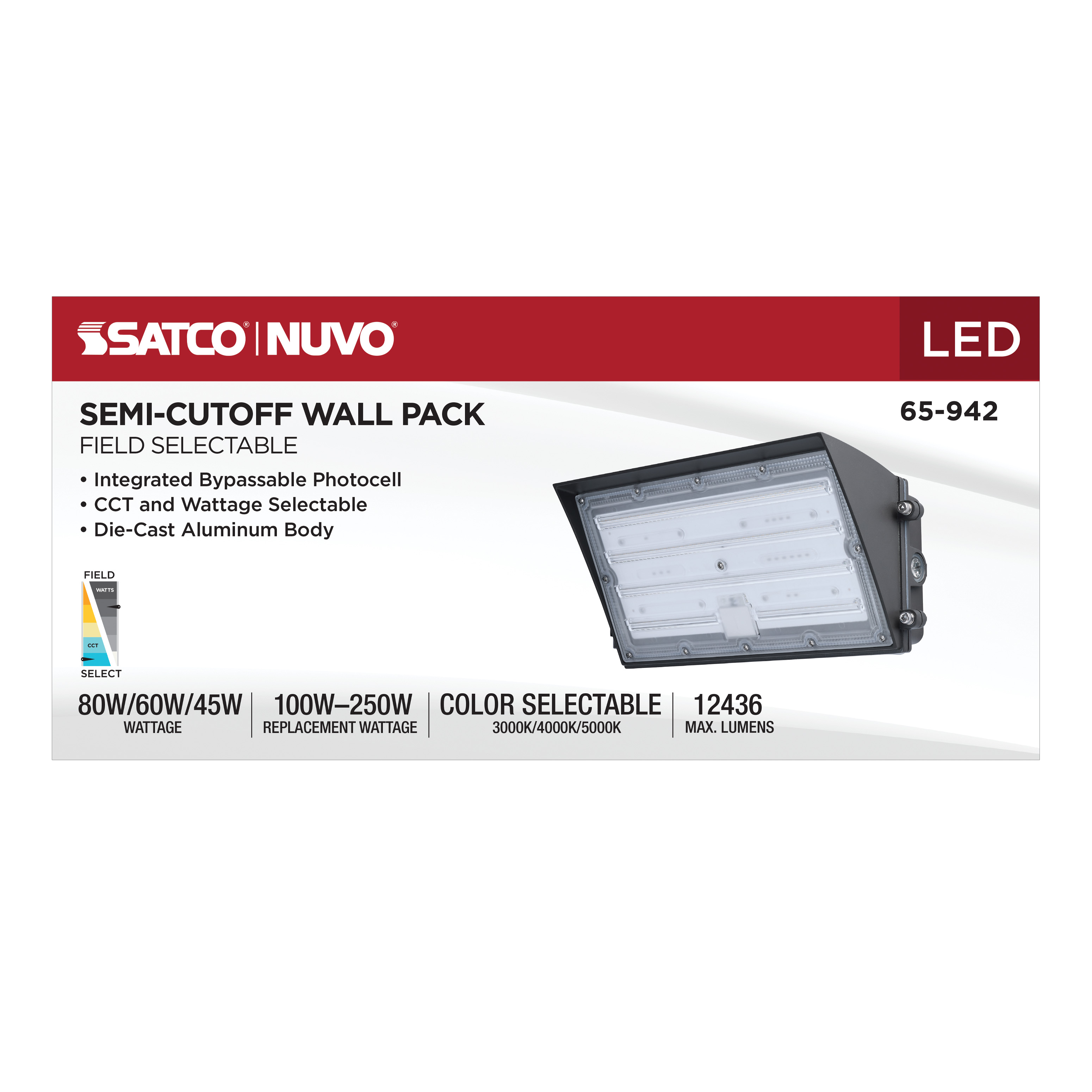

65-942

SEMI CUTOFF WALL PACK

  • 45/60/80 Watt
  • 3K/4K/5K CCT Selectable LED Semi Cutoff Wall Pack
  • 120-277 Volt
  • Bronze Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

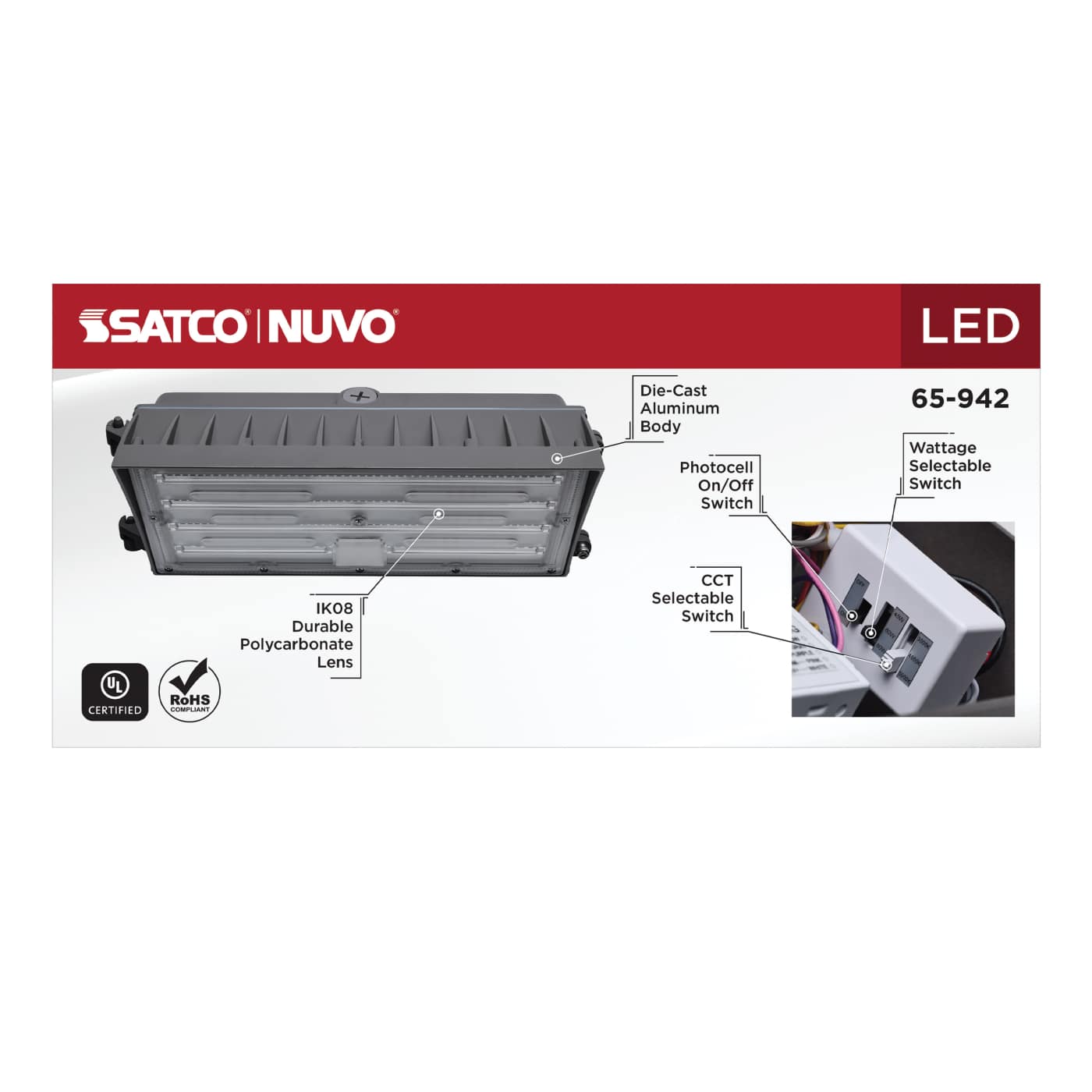

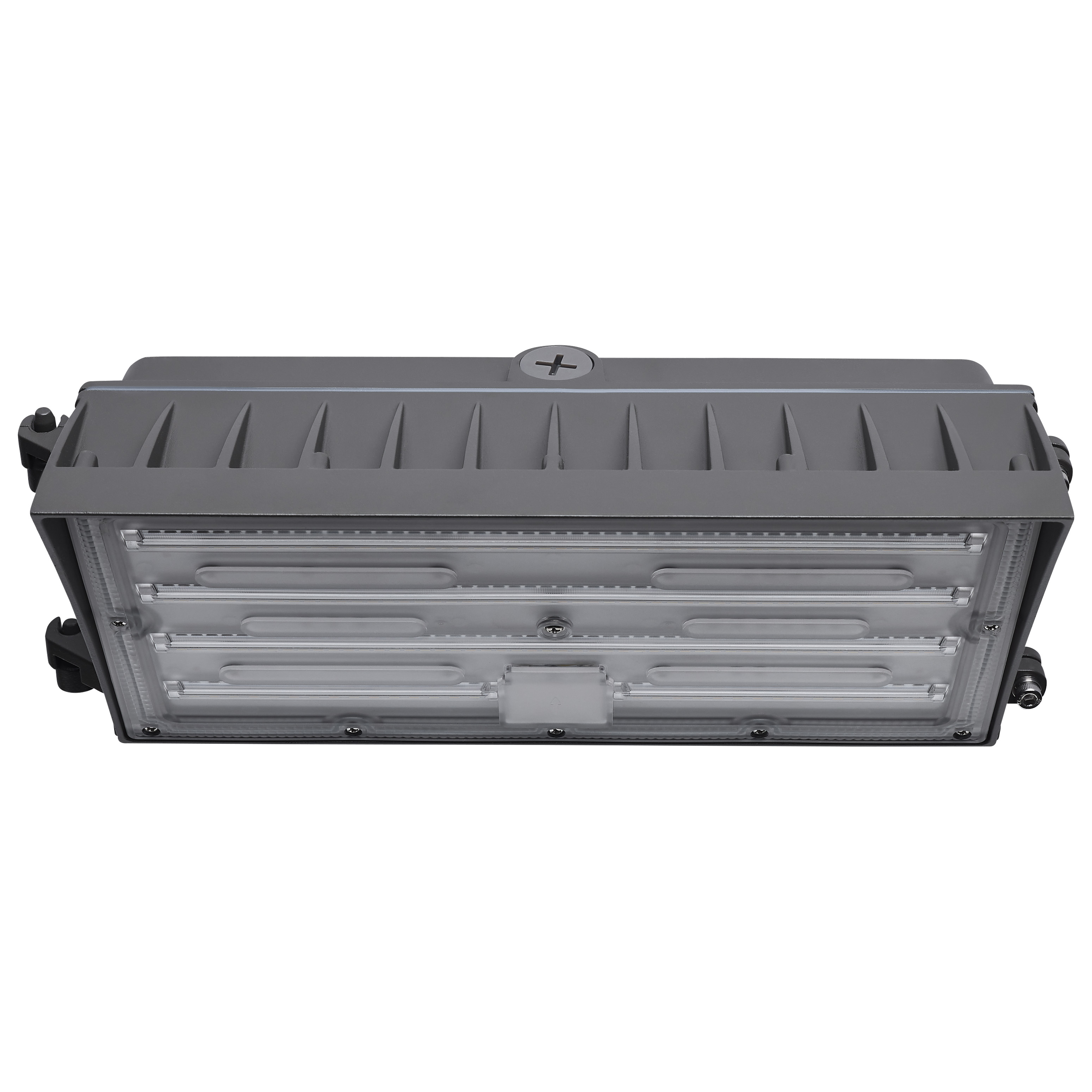

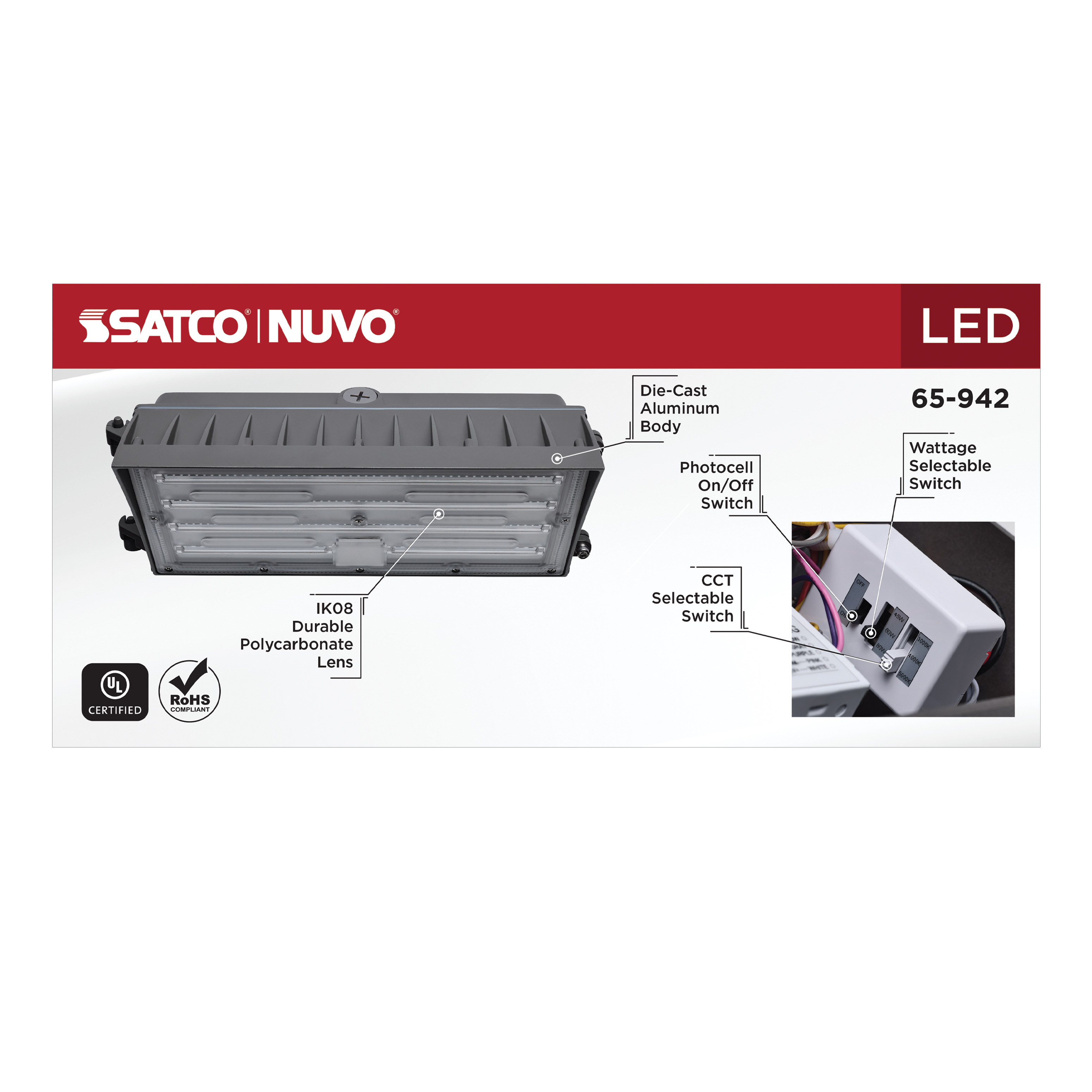

Designed to provide broad, effective illumination for commercial exteriors, the 65-942 LED Semi Cutoff Wall Pack combines performance, flexibility, and durability in one dependable solution. Field-selectable technology allows for on-site customization of light levels and color temperature, making it easy to adapt the fixture to the needs of the space. A built-in, bypassable photocell enables automatic dusk-to-dawn operation, while dimmer compatibility offers additional energy management options. The rugged die-cast aluminum housing with a corrosion-resistant bronze finish and impact-resistant polycarbonate lens ensures long-lasting reliability in demanding outdoor environments. With its semi-cutoff distribution, this fixture delivers wider forward light spread and increased vertical illumination.

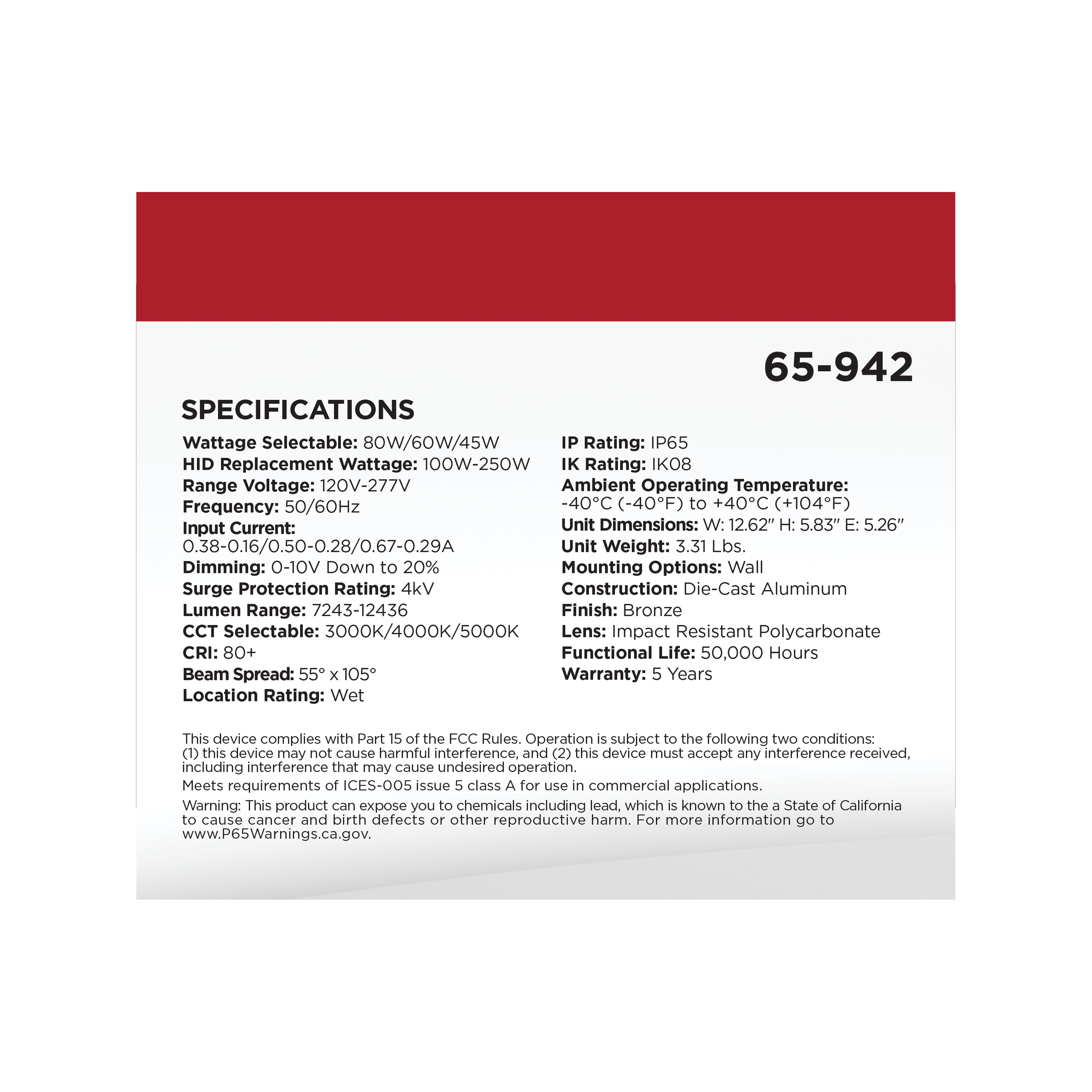

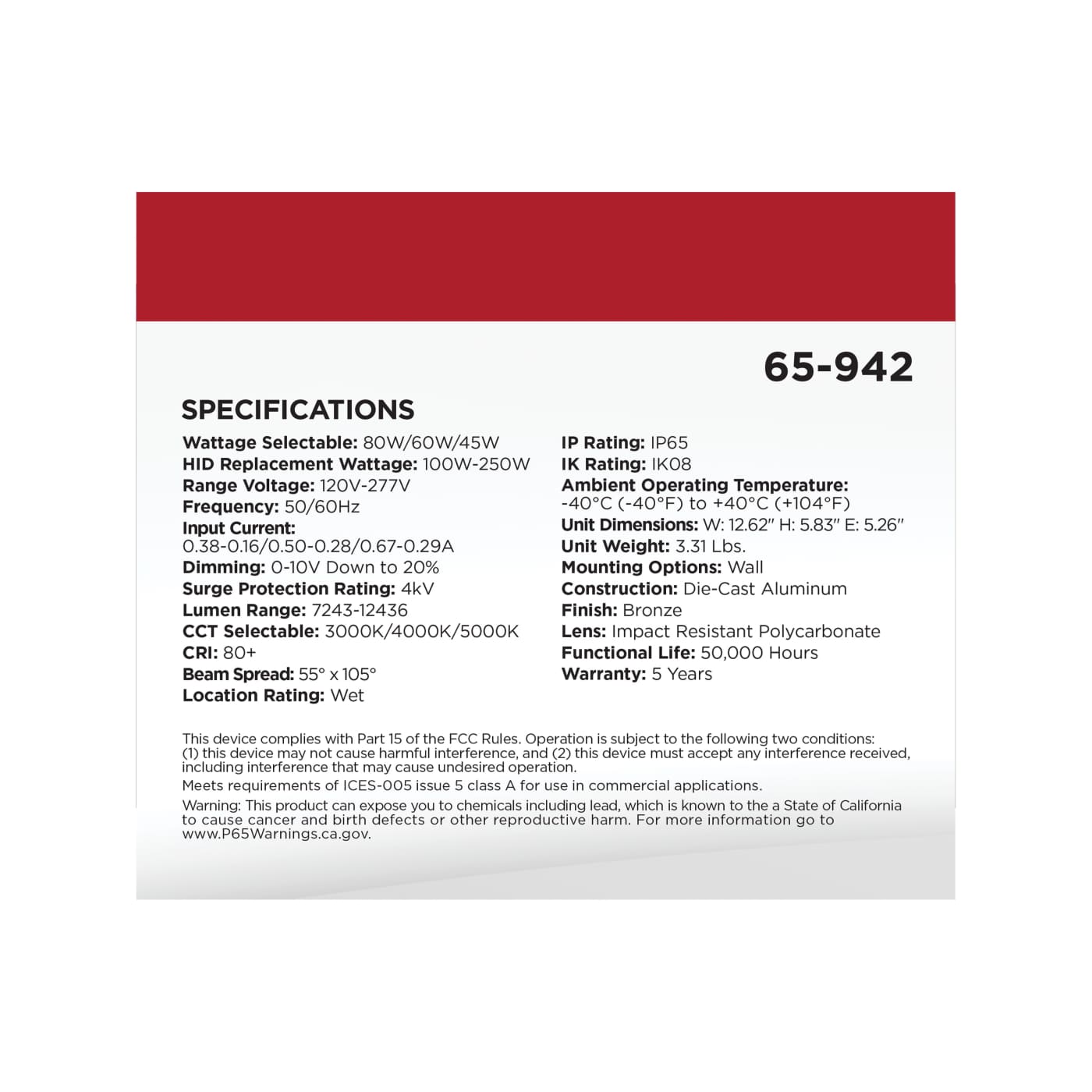

Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated

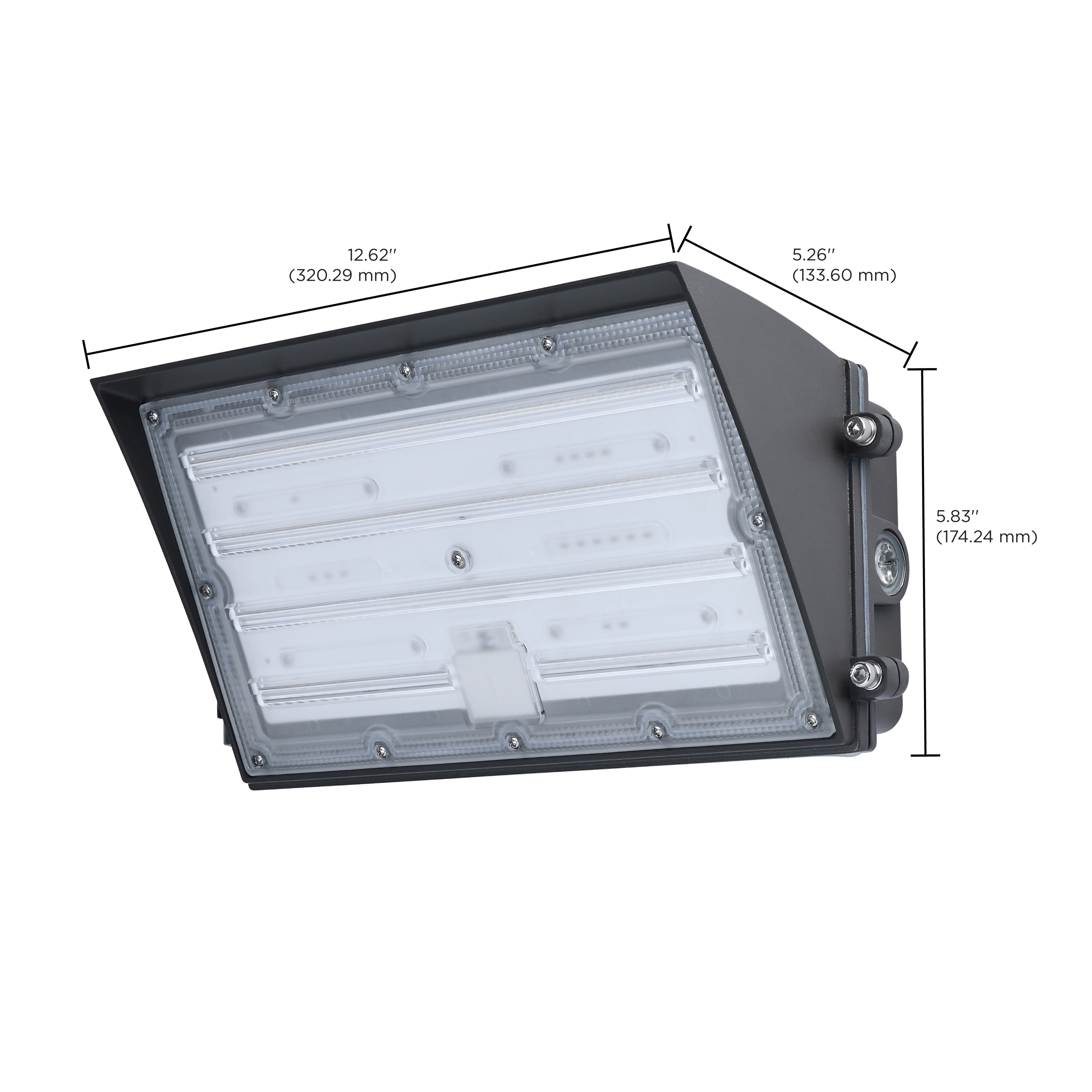

Extends (in)5.26
MaterialDie-cast Aluminum
Fixture TypeWall Pack
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion11.60%

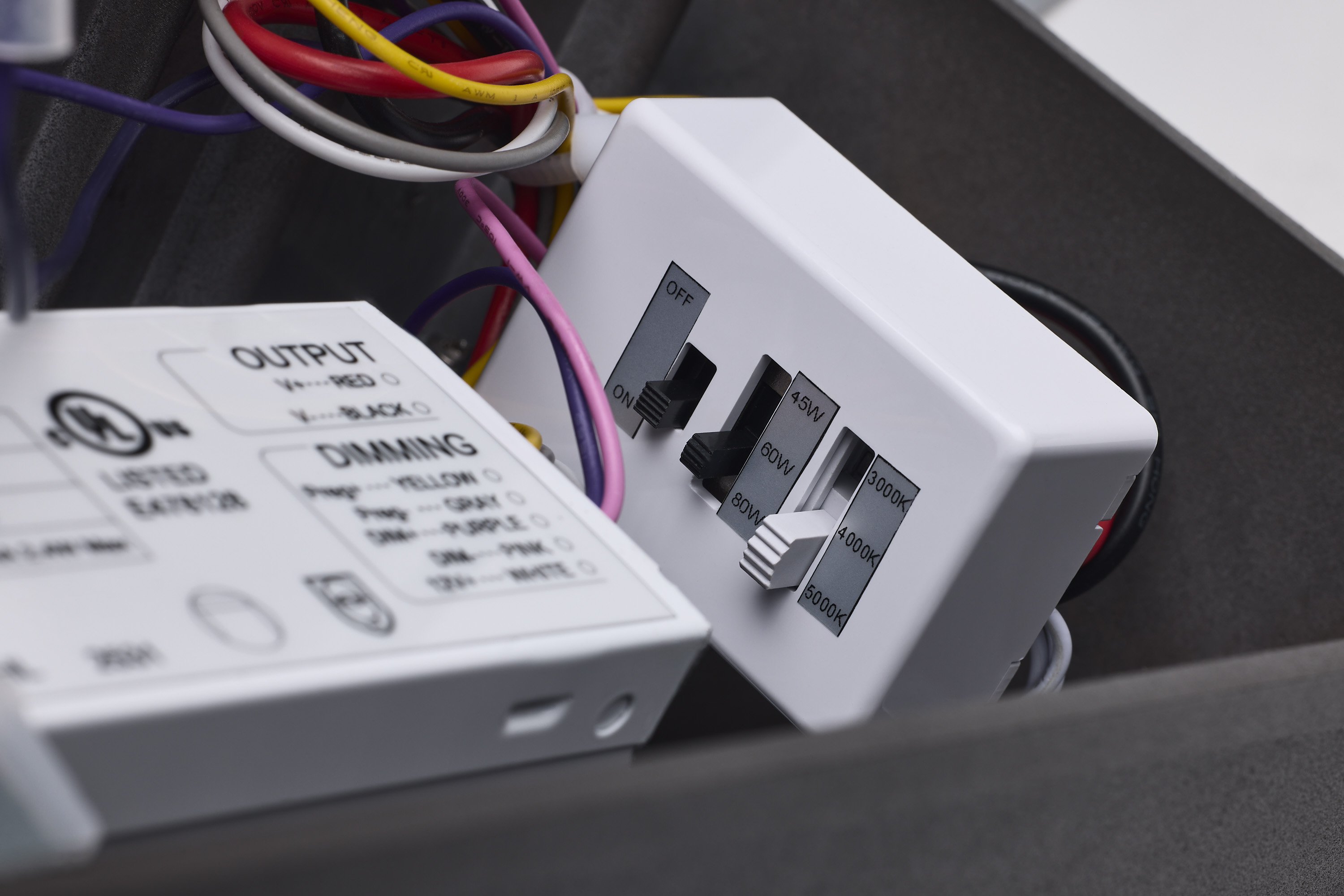

CCT SelectableYes
Wattage SelectableYes
Finish FamilyBronze
Amps0.375-0.162/0.500-0.217/0.667-0.289A
Integrated FeaturesIntegrated Photocell
IOT EnabledNo
Lens FinishOpaque
Lens MaterialImpact Resistant PC
LensedYes

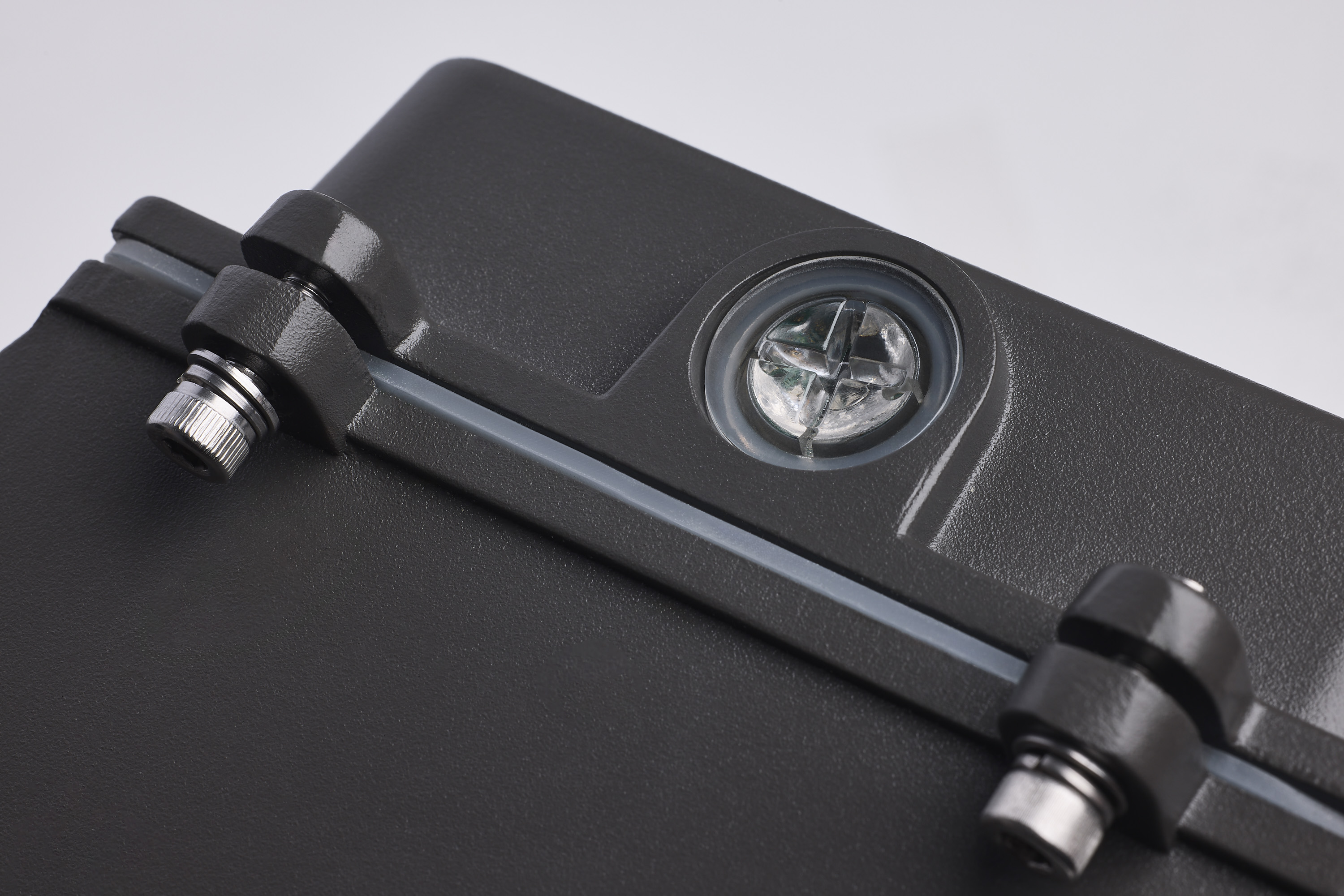

Photo CellYes - Bypassable
Power Factor>0.9
Indoor OutdoorOutdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)55x105
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +104F (-40C to +40C)
HID Equivalent100W-250W
Lumens7243L-12436L
Volts120V-277V
Watts45W/60W/80W
Max Lumens12436L
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedureWall
Additional Info
Warranty5-Years
Compliance
Bug RatingB1-U4-G3
CA Prop 65Lead
DLC IDS-VC4ZR0
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923410284
Case Cube1.7826
Case Height13.98
Case Length15.55
Case Quantity4
Case UPC10045923410281
Case Weight22.71
Case Width14.17
EA Cube0.3554
EA Height6.3
EA Length13.39
EA Quantity1
EA Weight4.94
EA Width7.28
Pack TypeBox
Web Height5.83
Web Width12.62
