| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming Only |

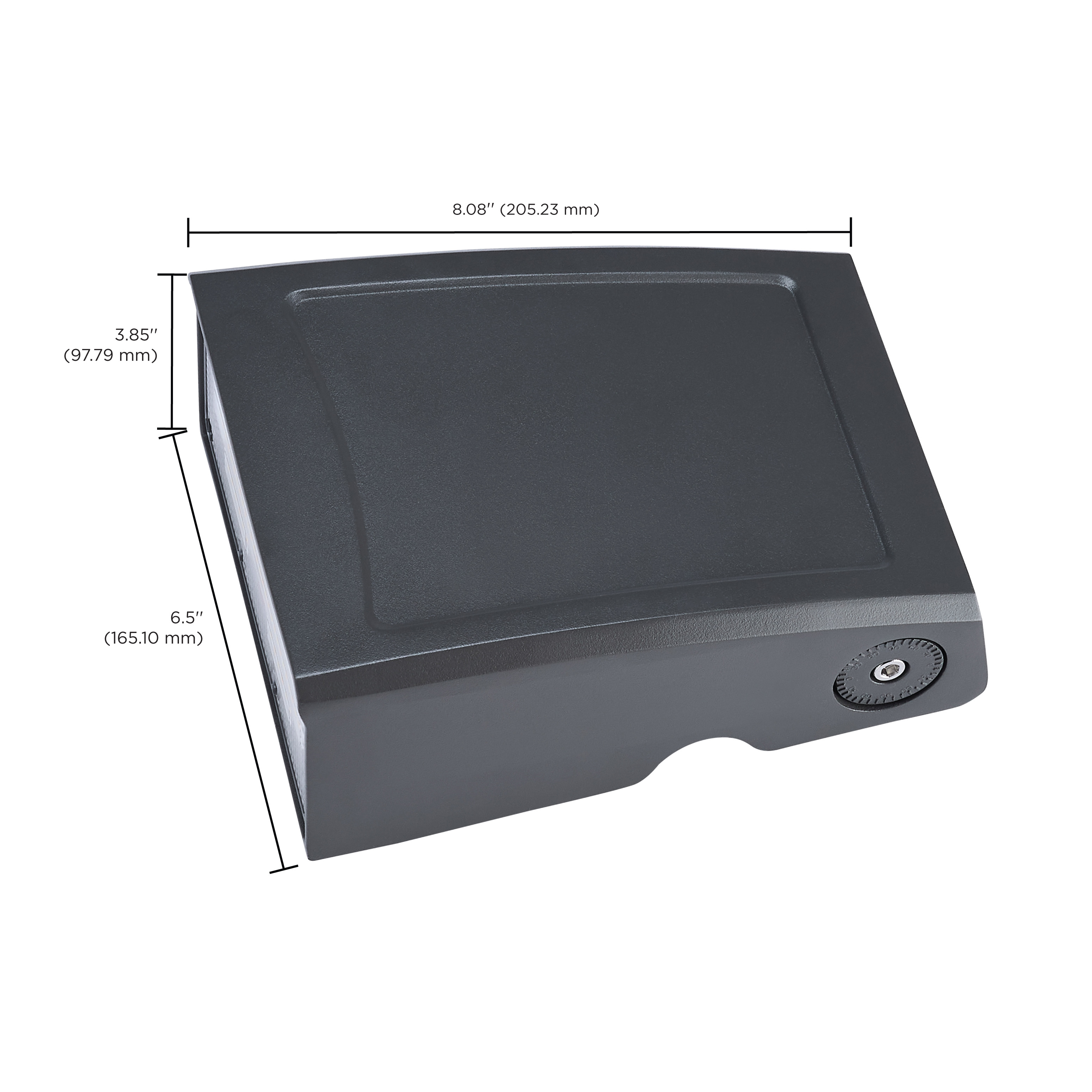

| Extends (in) | 8.08 |
| Material | Die-cast Aluminum |

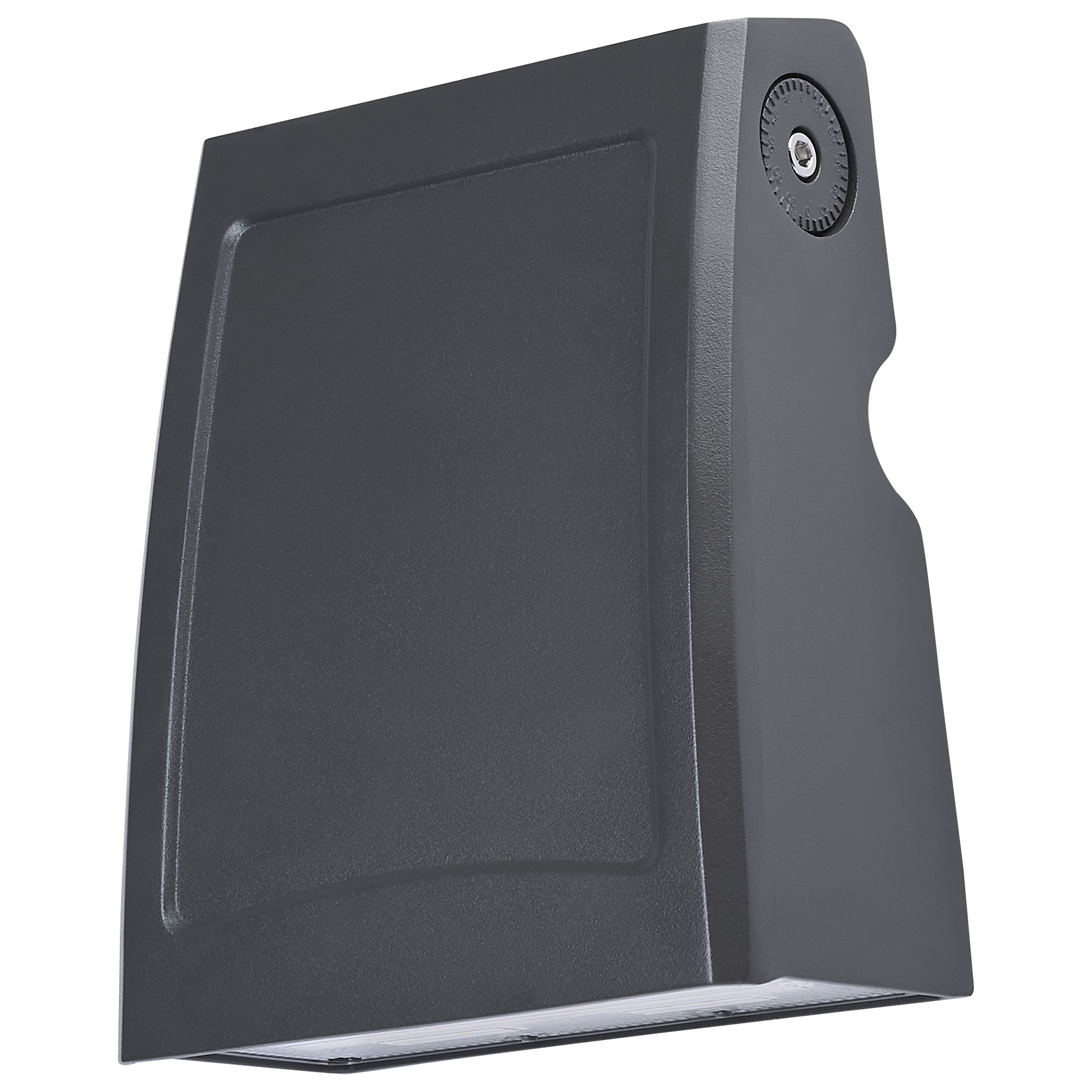

| Fixture Type | Wall Pack |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 9.70% |

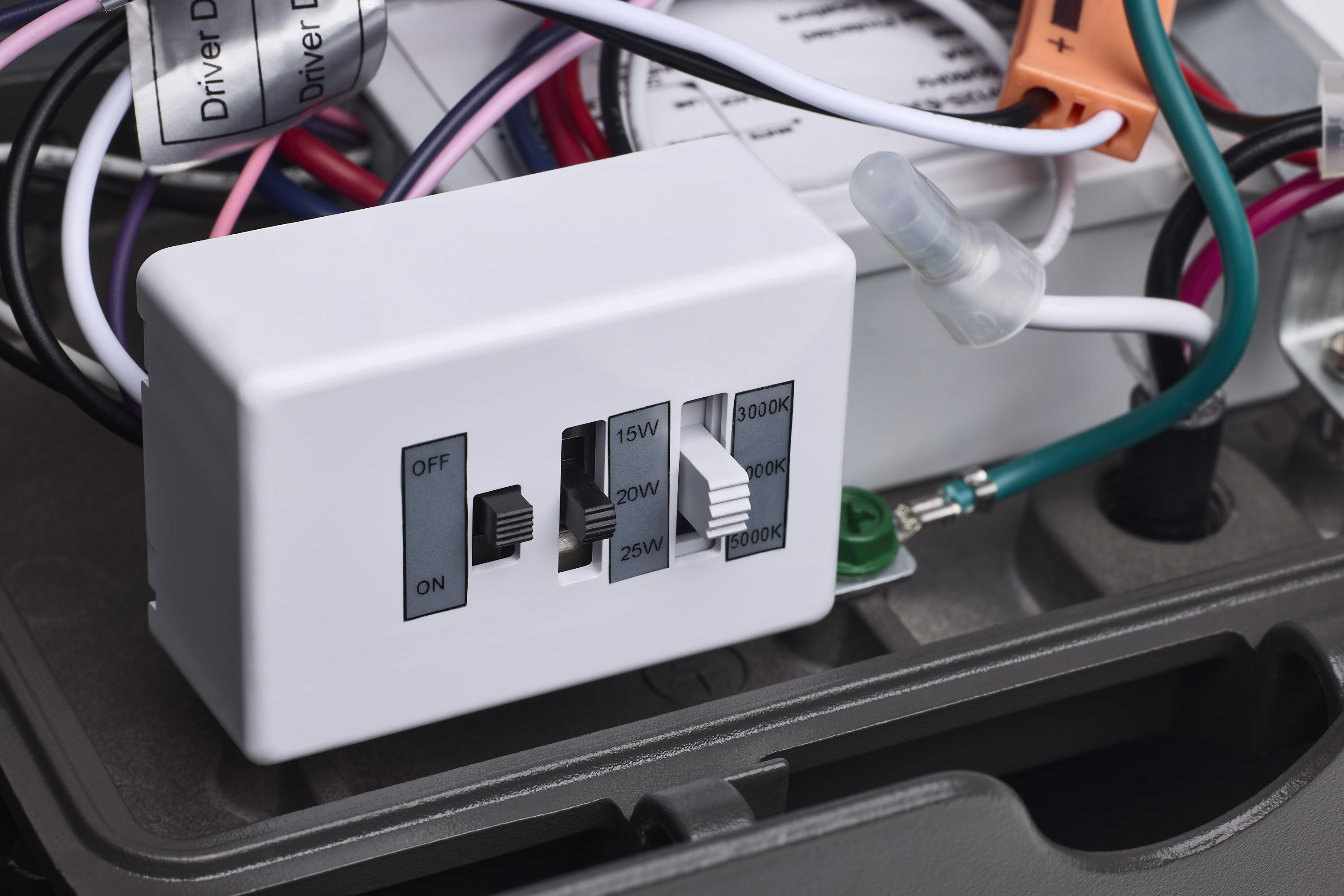

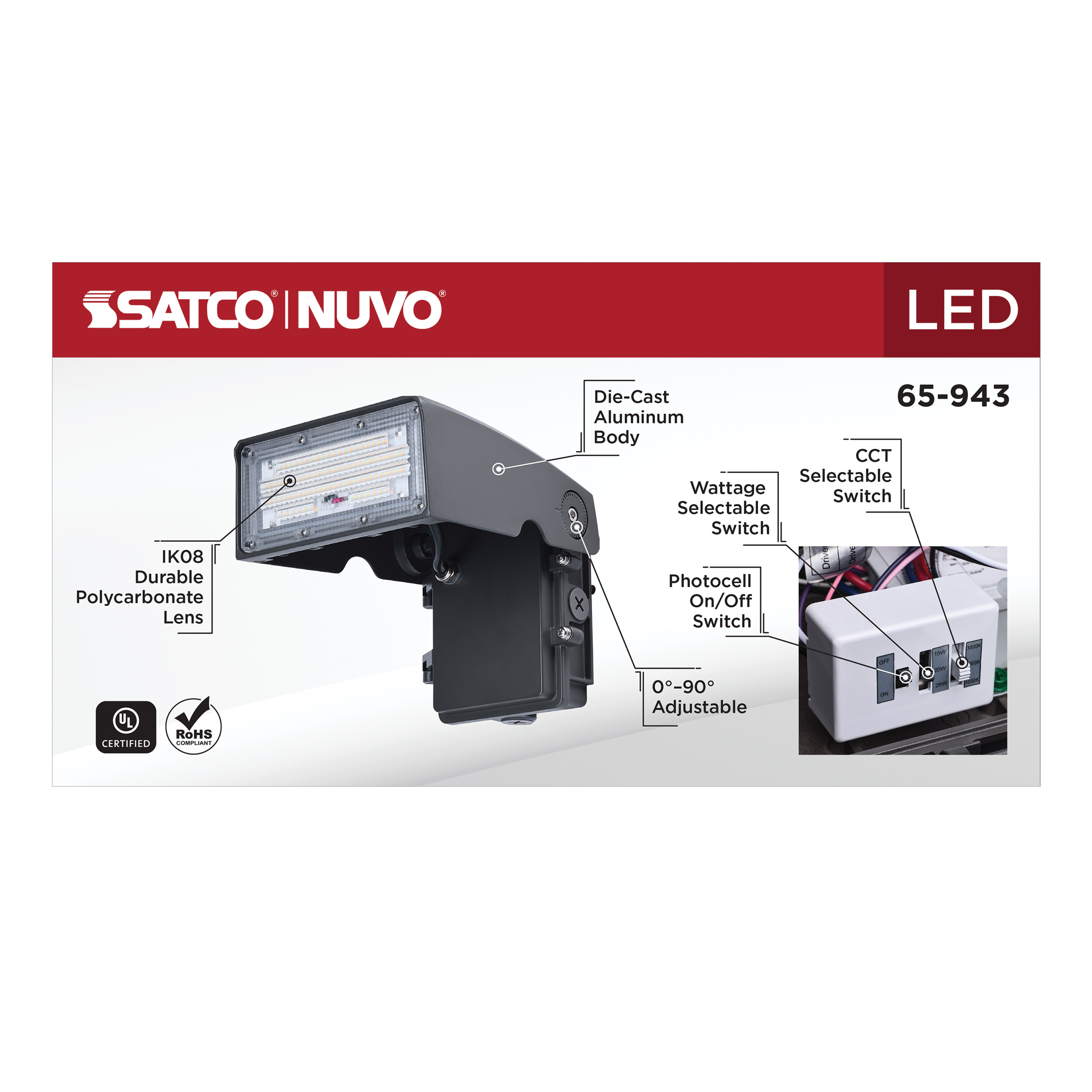

| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| Finish Family | Bronze |
| Amps | 0.125-0.054/0.167-0.072/0.208-0.090A |
| IOT Enabled | No |
| Lens Finish | Opaque |
| Lens Material | Impact Resistant PC |
| Lensed | Yes |

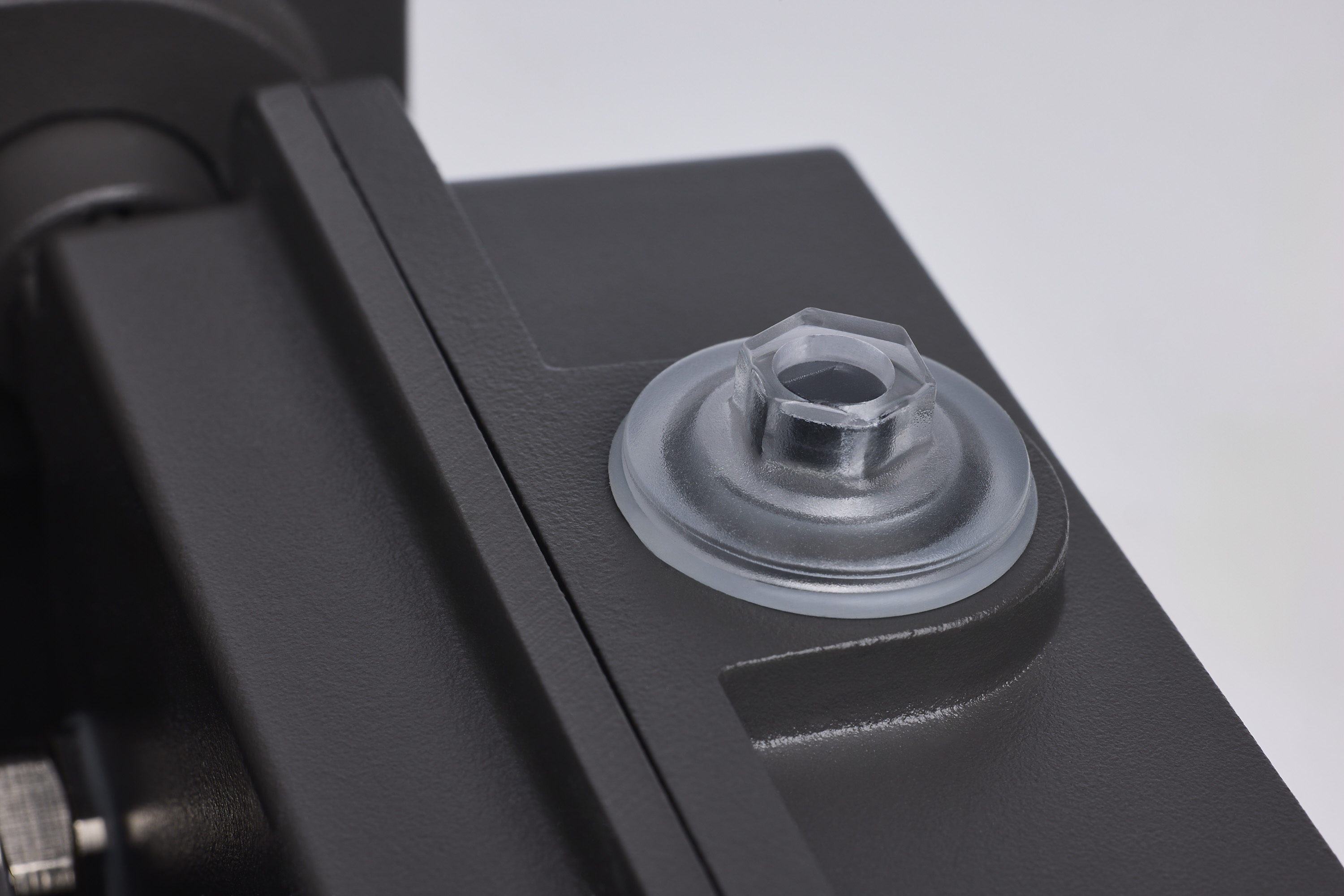

| Photo Cell | Yes - Bypassable |
| Power Factor | >0.9 |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 65x95 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +40C (+104F) |
| HID Equivalent | 70W-100W |
| Lumens | 2193L-3669L |
| Volts | 120V-277V |
| Watts | 15W/20W/25W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| FCC Compliant | Yes |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| California Ban | Lawful for sale |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923410291 |
|---|---|
| Case Cube | 1.0003 |
| Case Height | 11.02 |
| Case Length | 15.94 |
| Case Quantity | 4 |
| Case UPC | 10045923410298 |
| Case Weight | 17.31 |
| Case Width | 9.84 |
| EA Cube | 0.193 |
| EA Height | 4.92 |
| EA Length | 9.06 |
| EA Quantity | 1 |
| EA Weight | 4.08 |
| EA Width | 7.48 |
| Inner Cube | 0.0 |
| Pack Type | Box |
| Web Height | 3.84 |
| Web Width | 6.5 |
