65-980

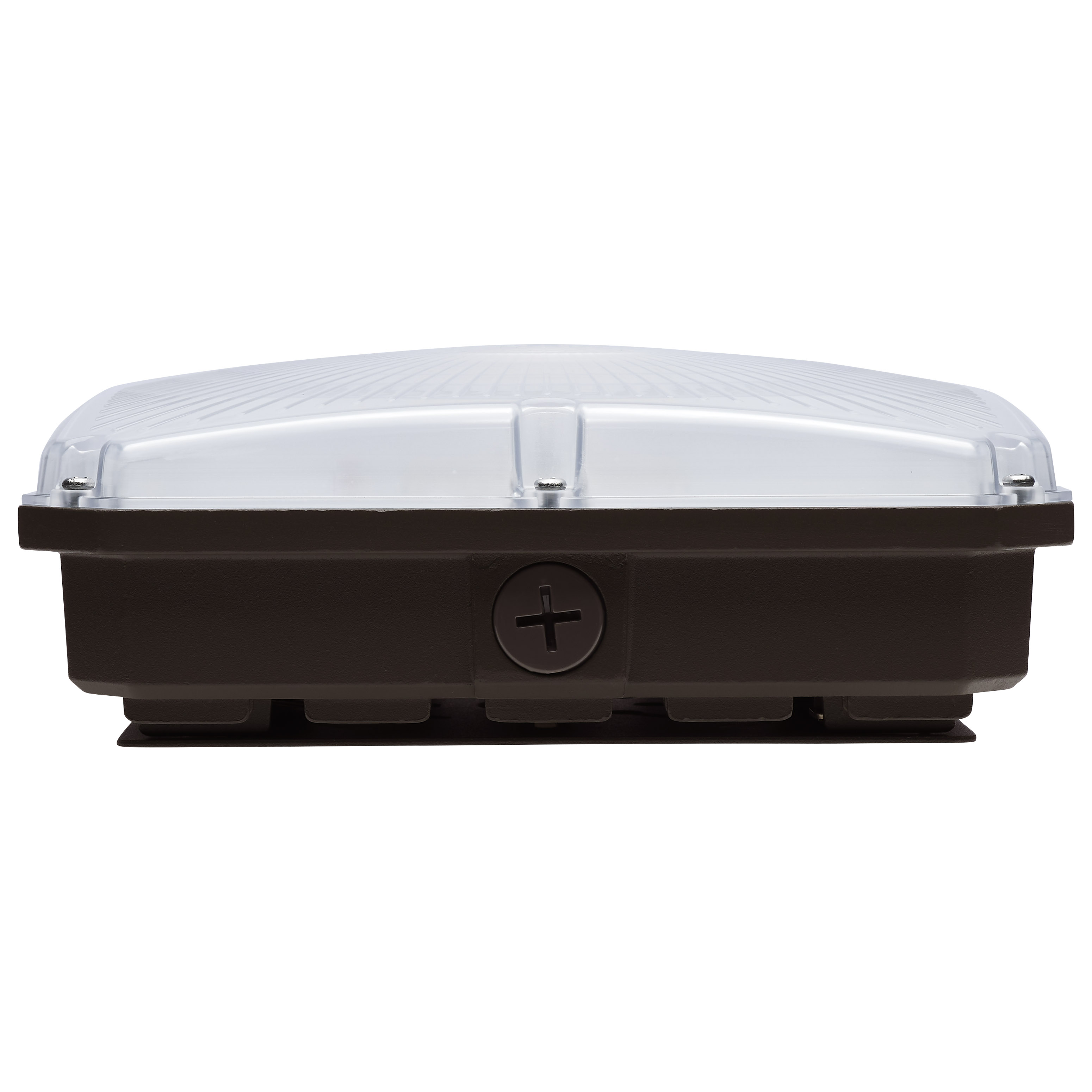

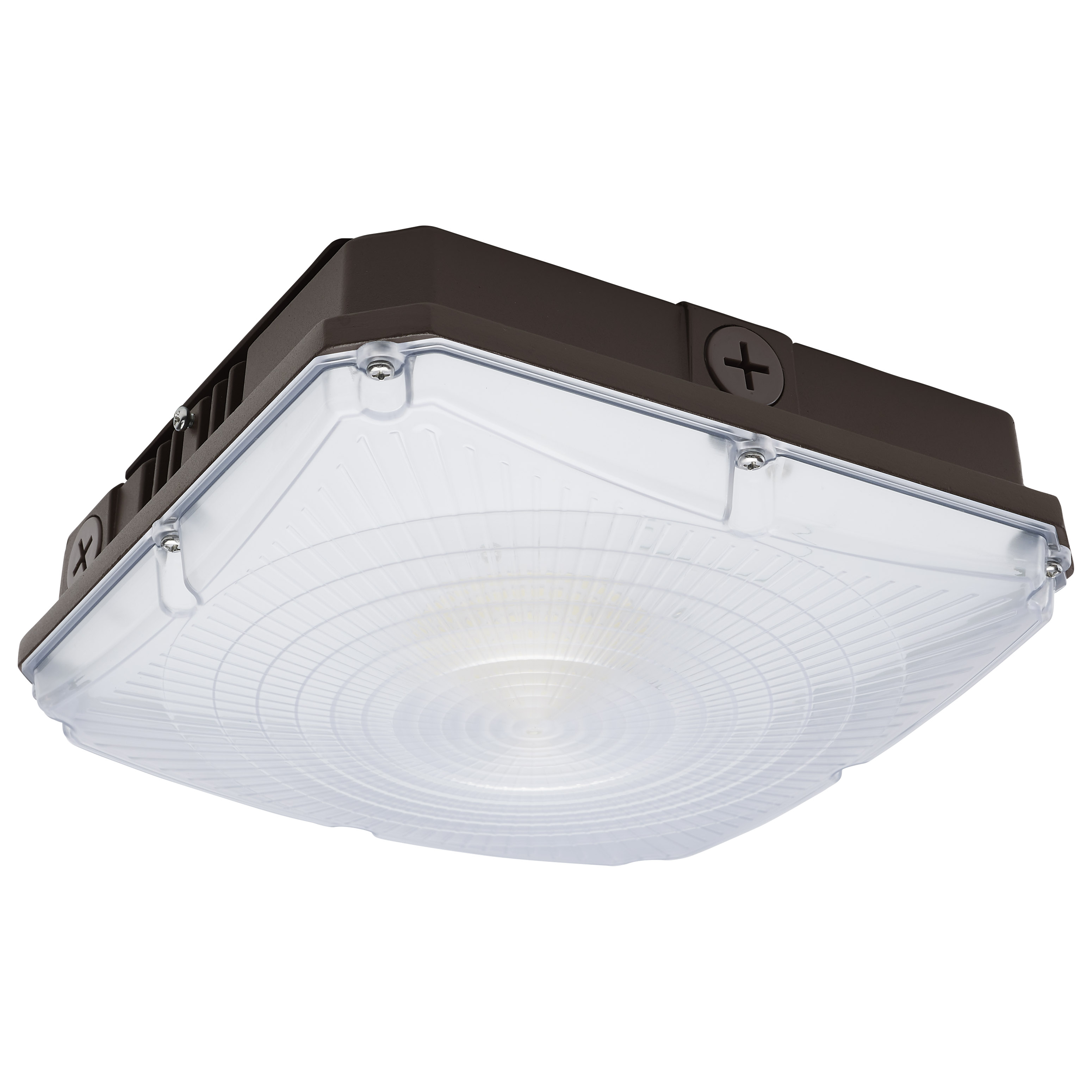

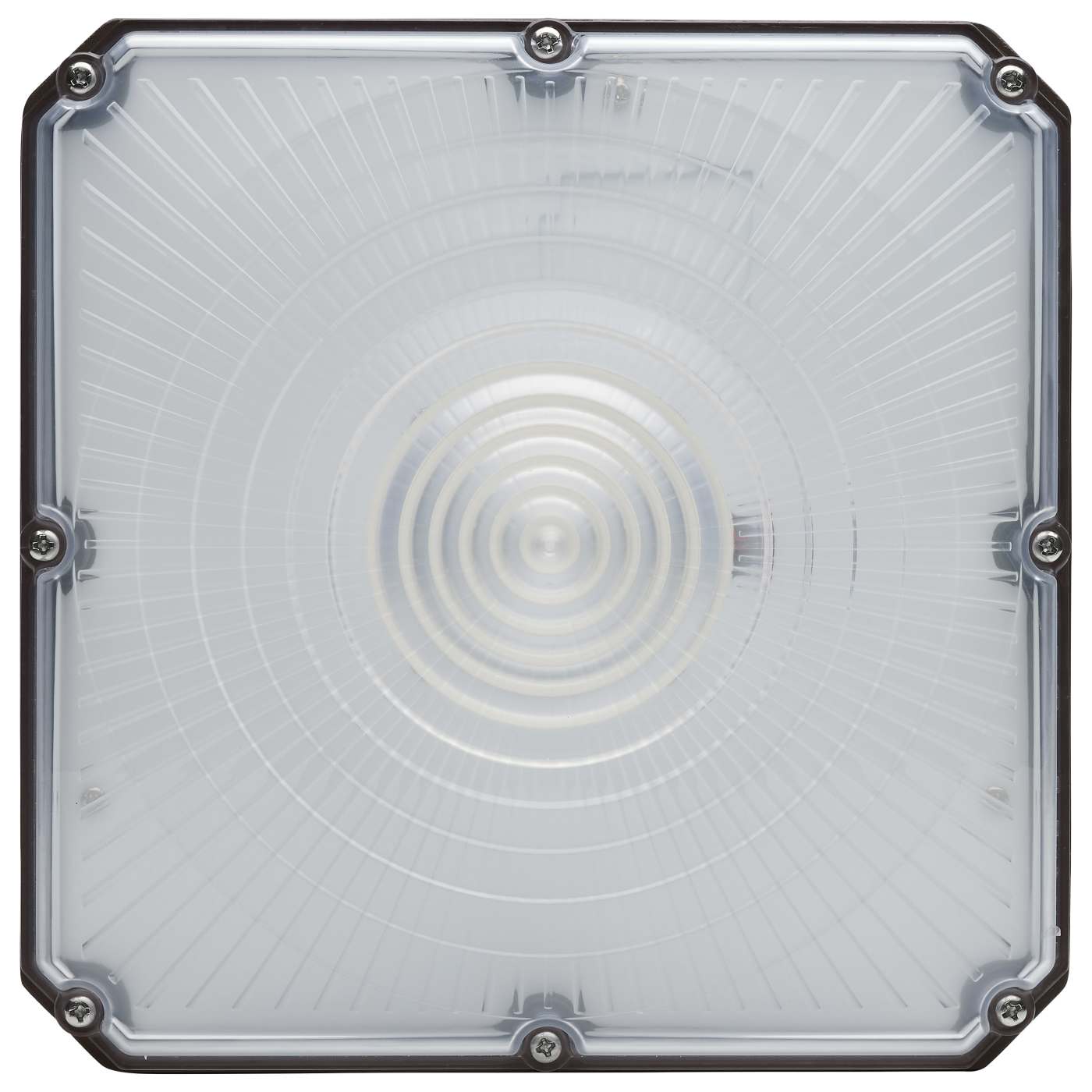

8.5" LED SELECTABLE CANOPY

  • 8.5 Inch LED Field Selectable Canopy Fixture
  • 25/30/40 Watts
  • 3K/4K/5K CCT
  • Bronze Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-980 Specifications65-980 Photometrics 25W 4000K.ies65-980 Photometrics 25W 5000K.ies
Tools
Lighting Layout Analysis For 65-980
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
8.5 Inch LED Field Selectable Canopy Fixture; 25/30/40 Watts; 3K/4K/5K CCT; Bronze Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion10.20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.210-0.090/0.250-0.108/0.333-0.144A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Photo CellNo
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent150W/250W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent52W/71W/90W
Lumens3125L-5400L
Volts120V-277V
Watts25W/30W/40W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB2-U3-G2
CA Prop 65Lead
DLC IDS-4CXTMX
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923659461
Case Cube2.2451
Case Height11.42
Case Length21.46
Case Quantity6
Case UPC10045923659468
Case Weight25.79
Case Width15.83
EA Cube0.3185
EA Height10.51
EA Length10.39
EA Quantity1
EA Weight3.53
EA Width5.04
Inner Cube0.0
Pack TypeColor Box

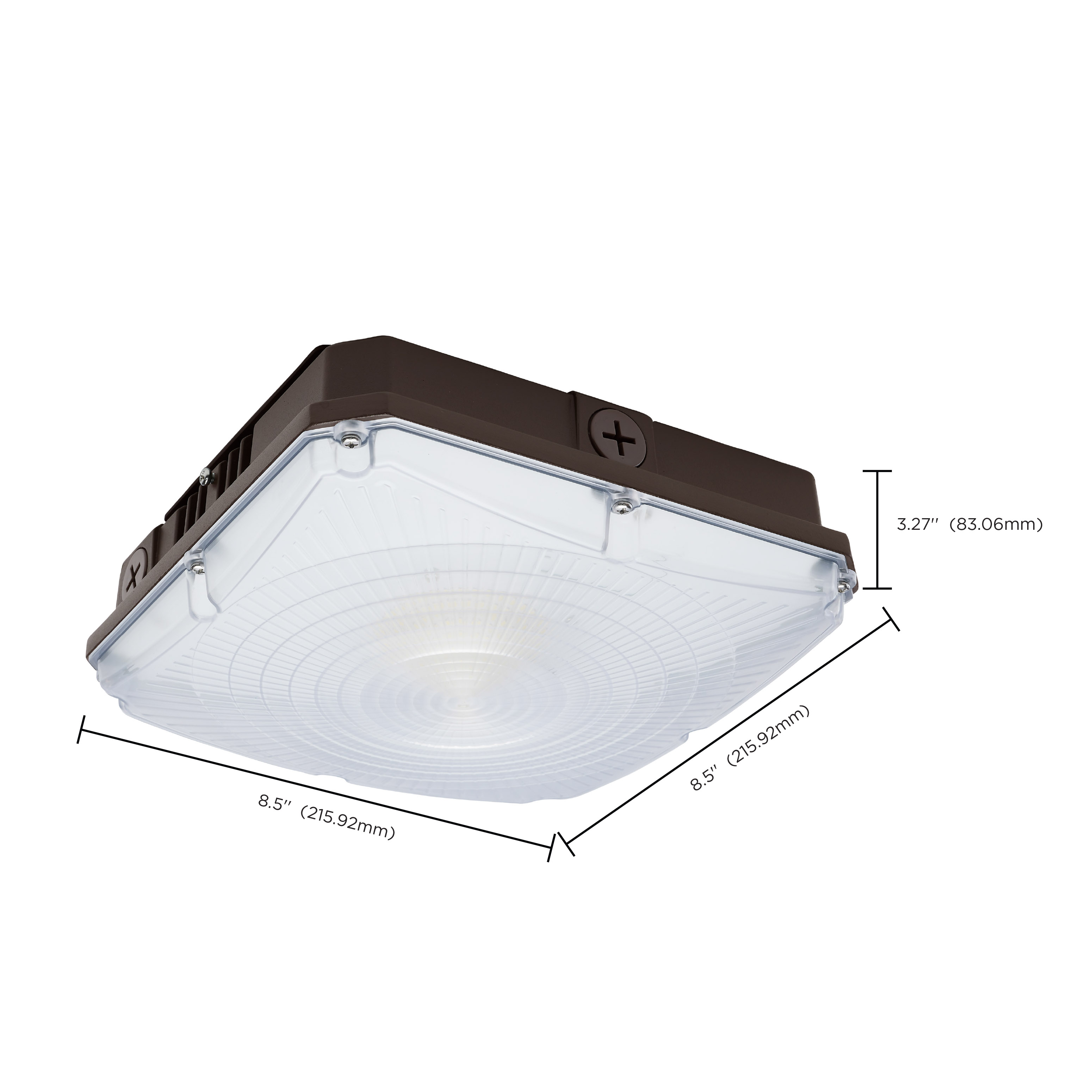

Web Height3.27
Web Length8.5
Web Width8.5
