65-981

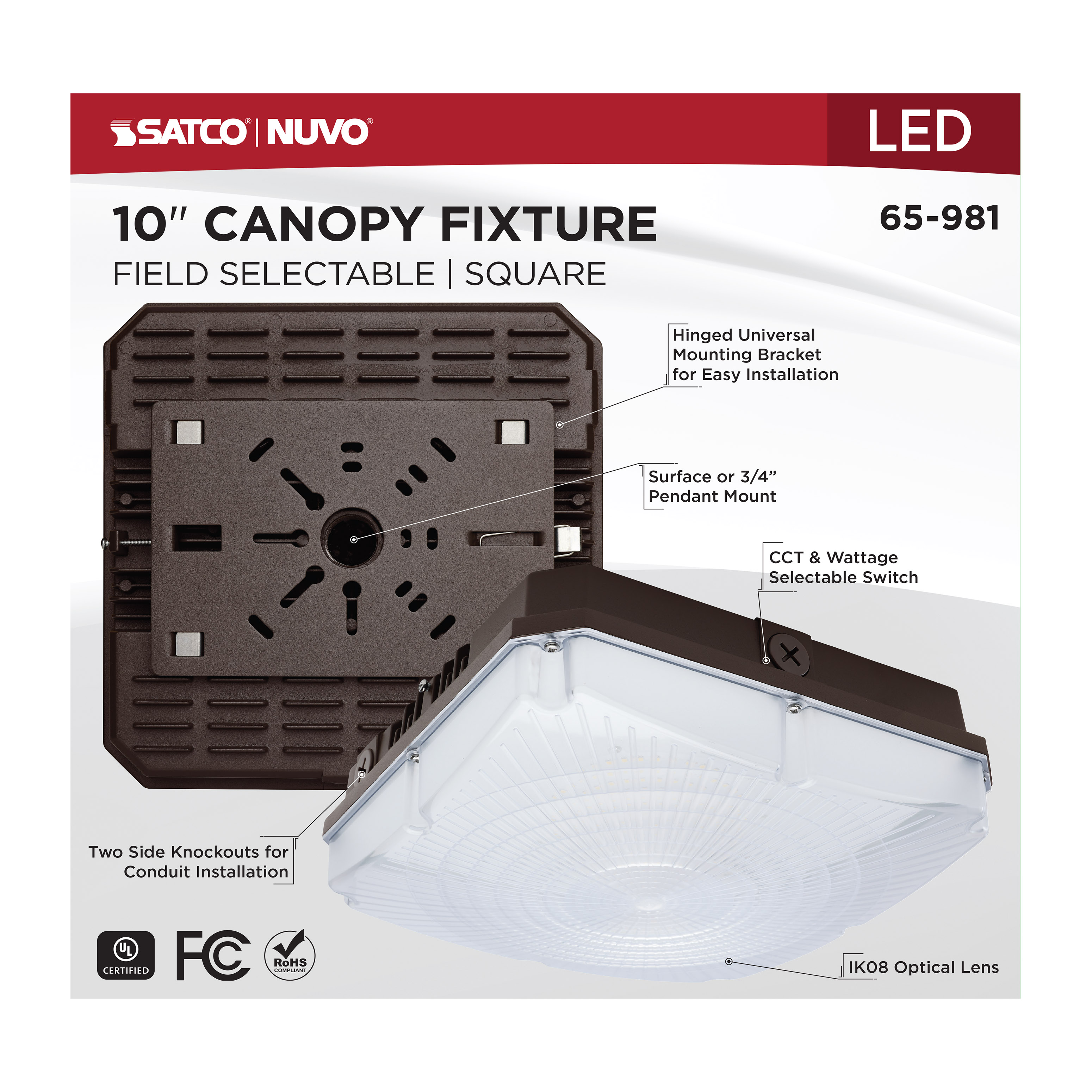

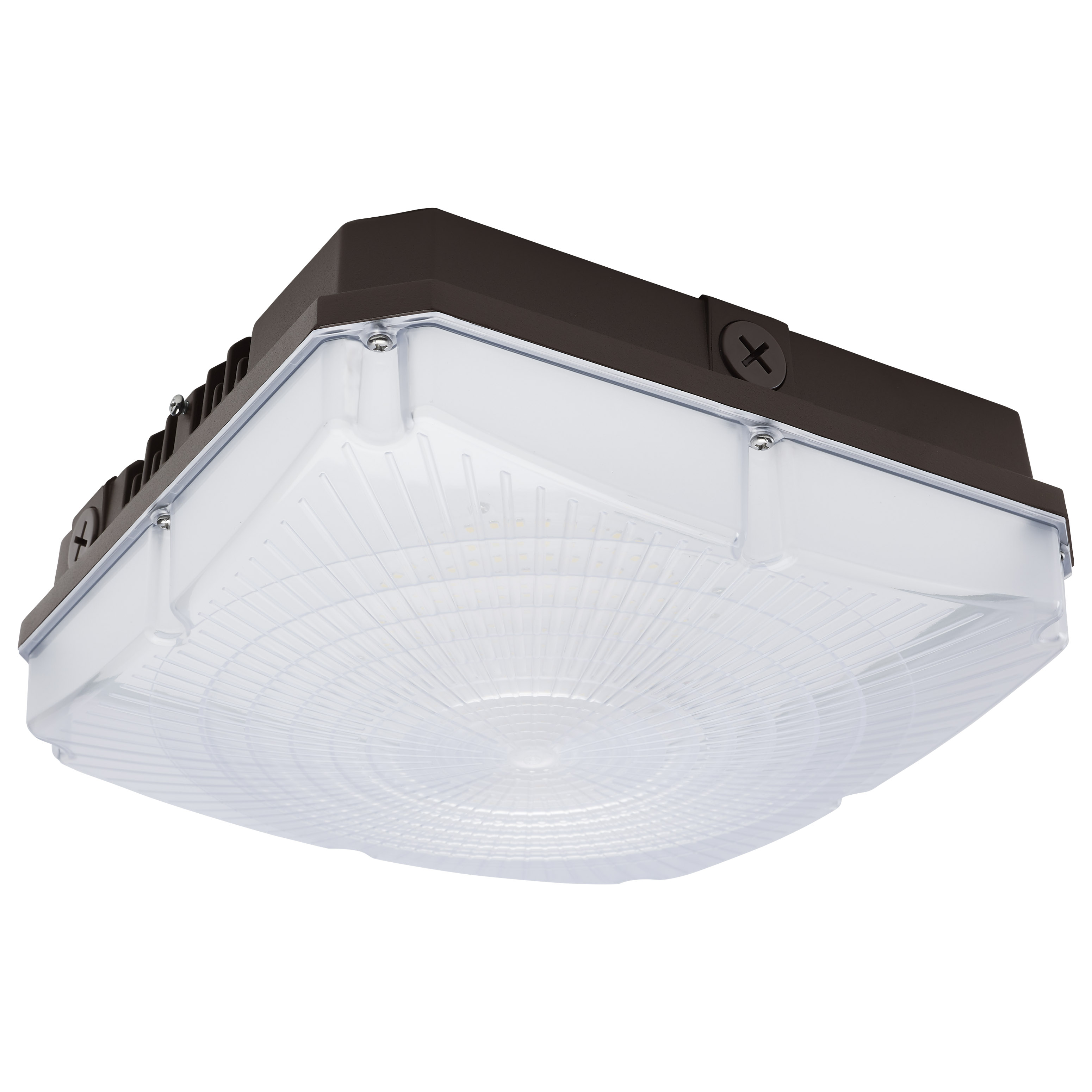

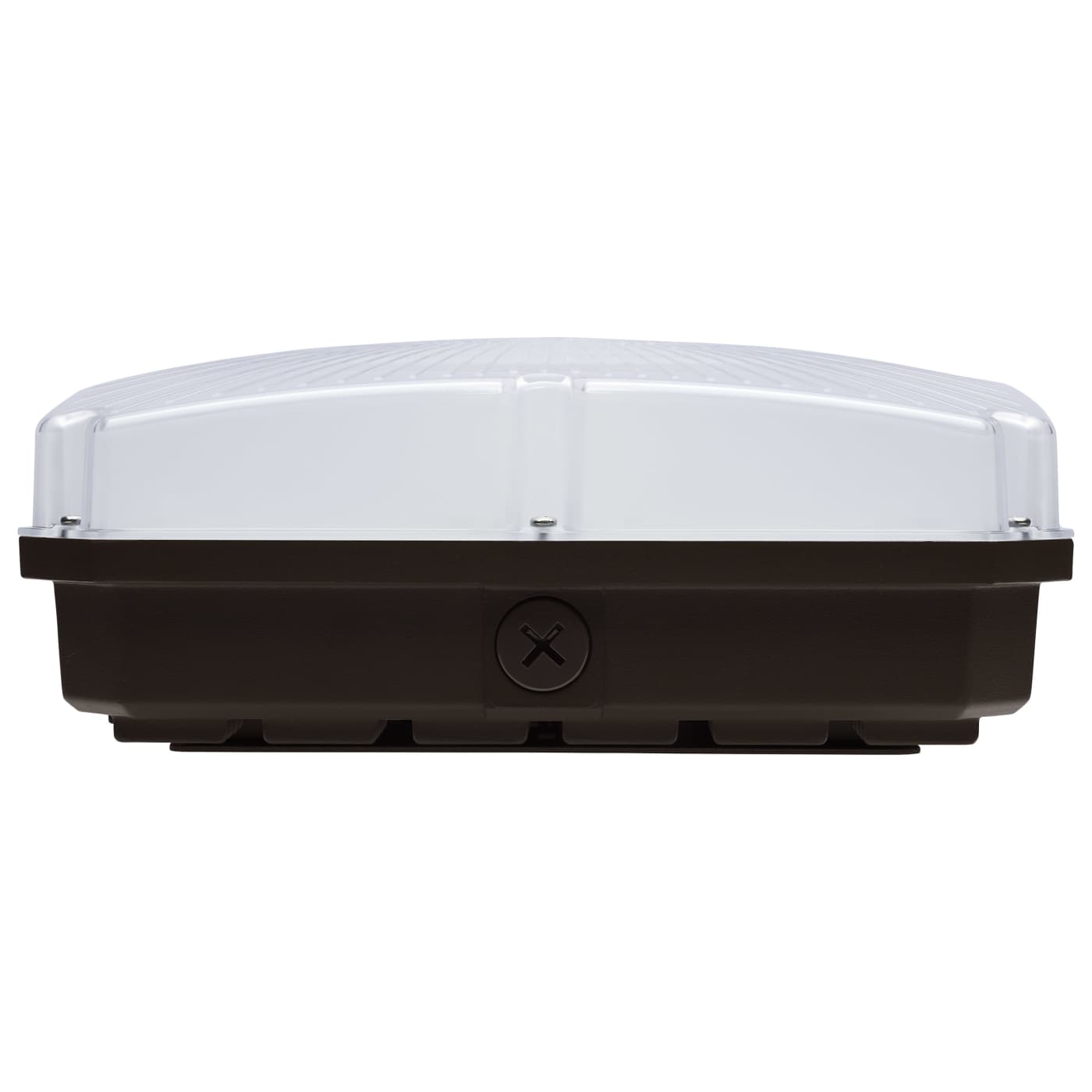

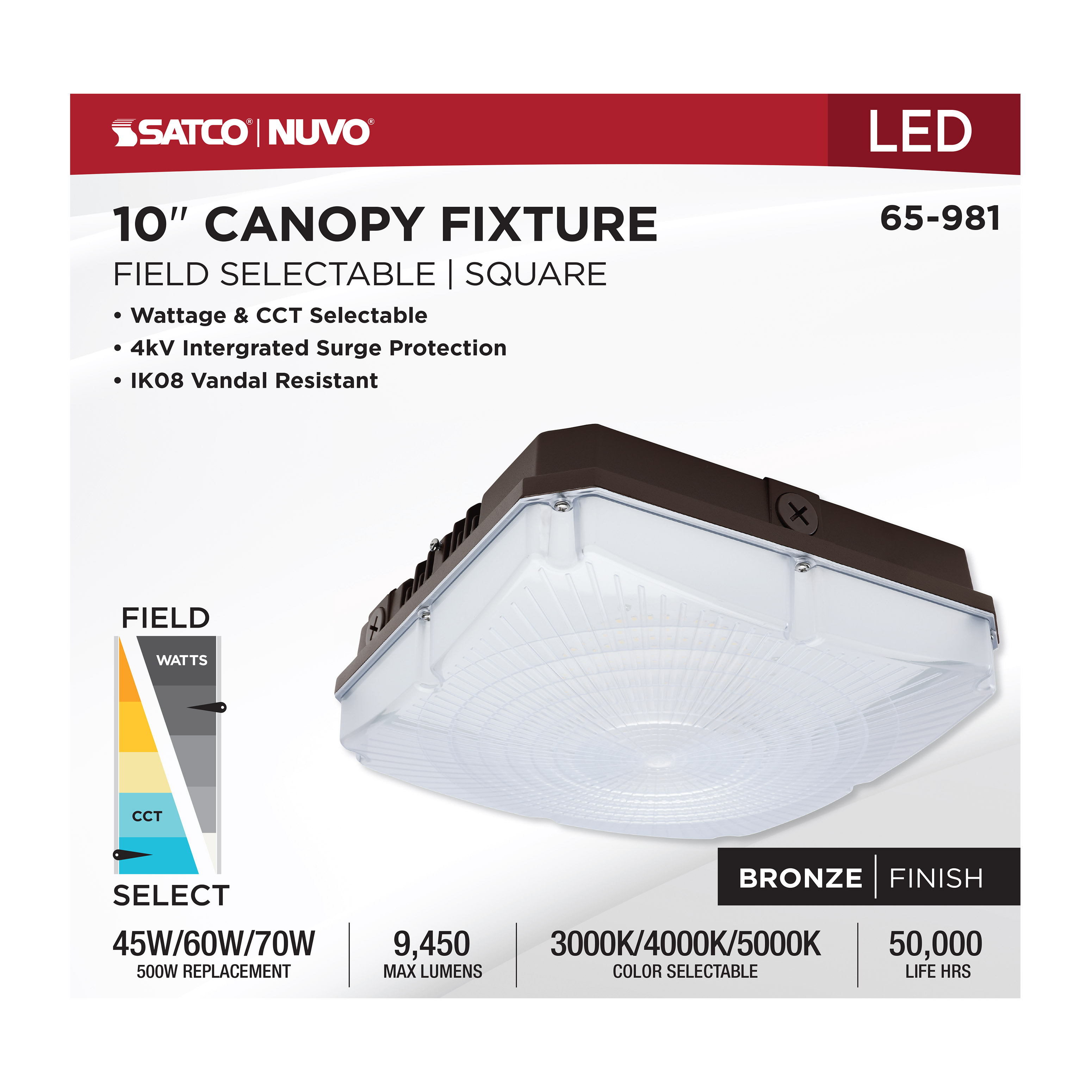

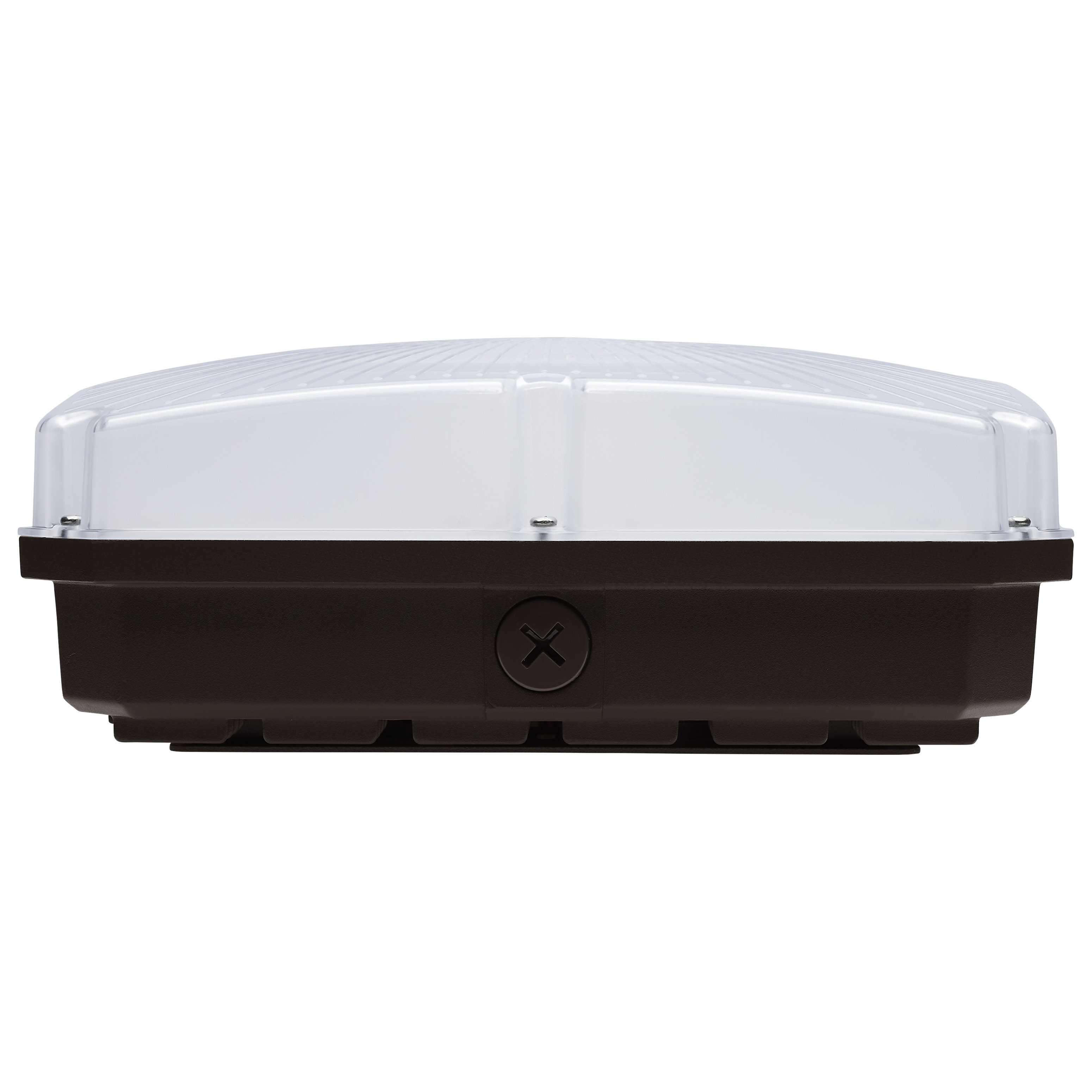

10" LED SELECTABLE CANOPY

  • 10 Inch LED Field Selectable Canopy Fixture
  • 45/60/70 Watts
  • 3K/4K/5K CCT
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-981 Specifications65-981 Instructions65-981 Spec Chart
Tools
Lighting Layout Analysis For 65-981
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
10 Inch LED Field Selectable Canopy Fixture; 45/60/70 Watts; 3K/4K/5K CCT

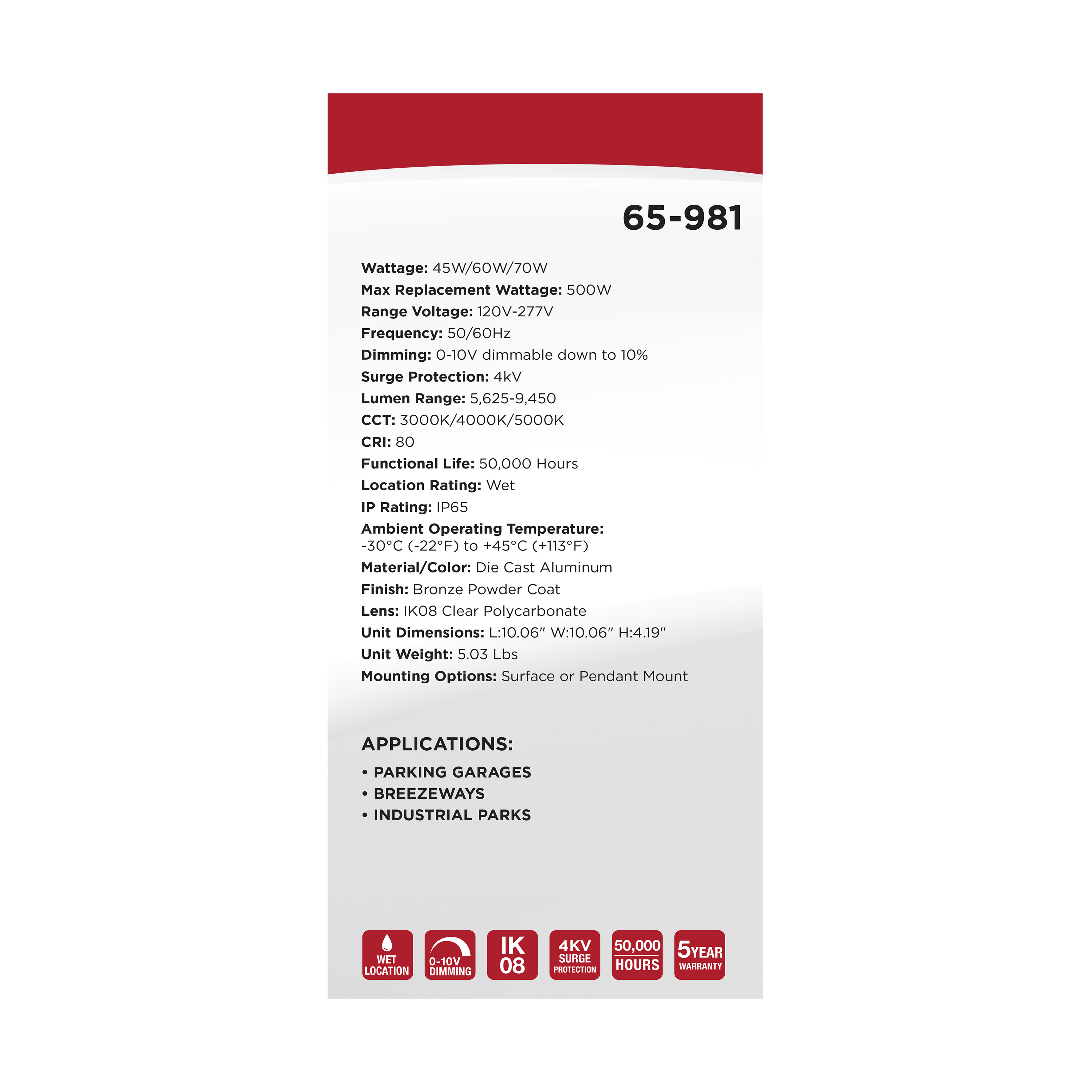

Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion9.50%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.375-0.162/0.500-0.217/0.583-0.253A
Has CameraFalse
IOT EnabledFalse

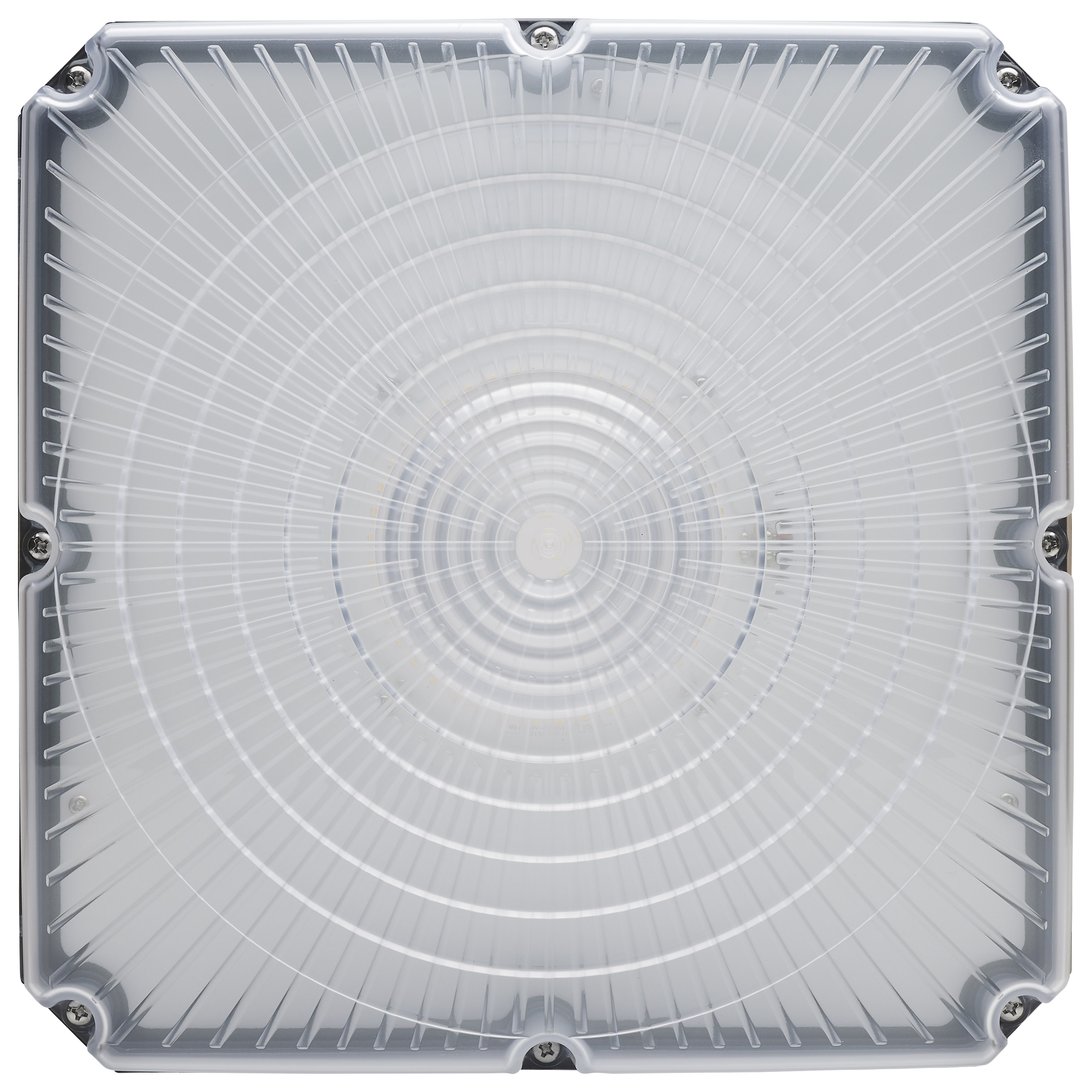

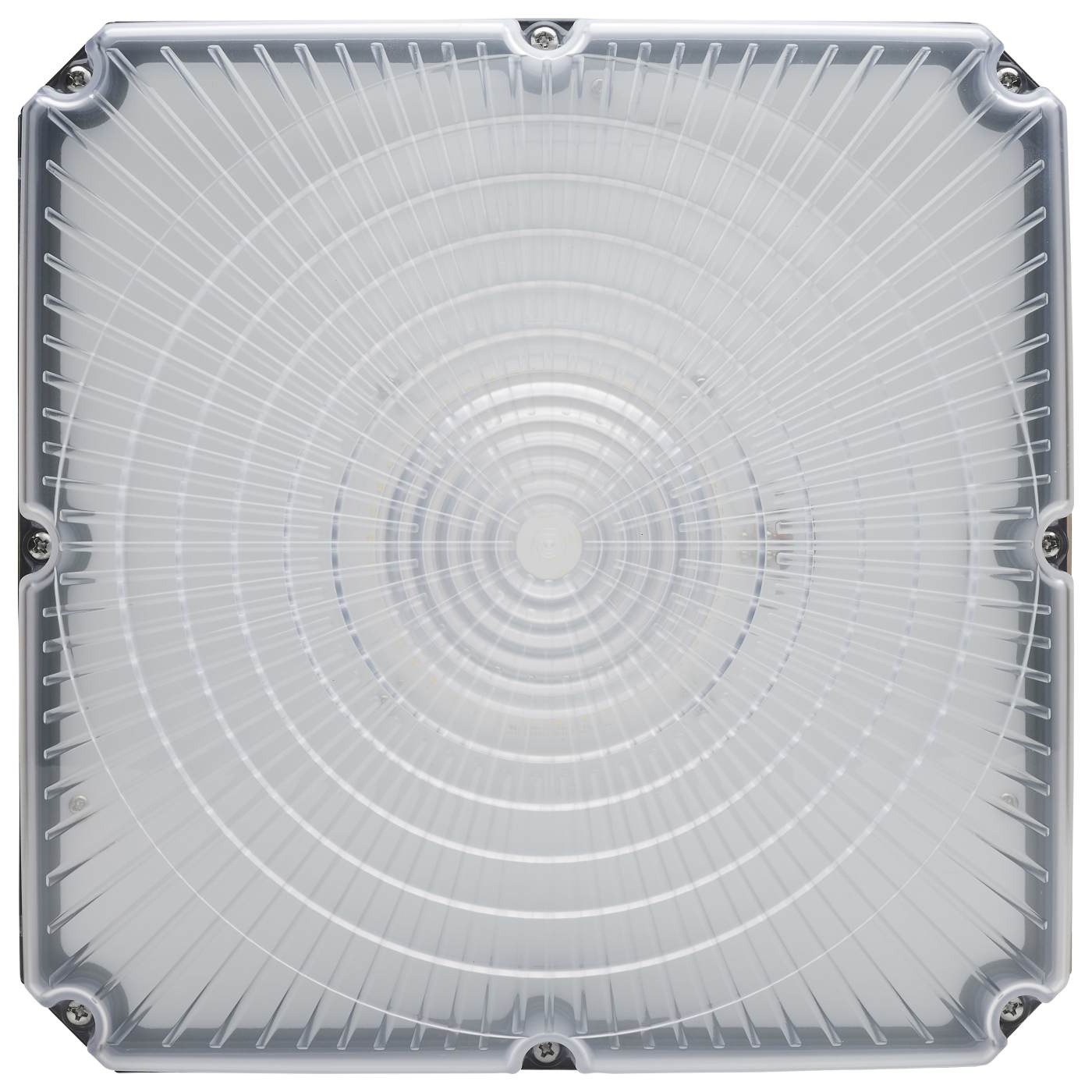

Lens FinishClear
Lens MaterialPolycarbonate (PC)
Photo CellNo
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent300W/400W/500W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent94W/125W/158W

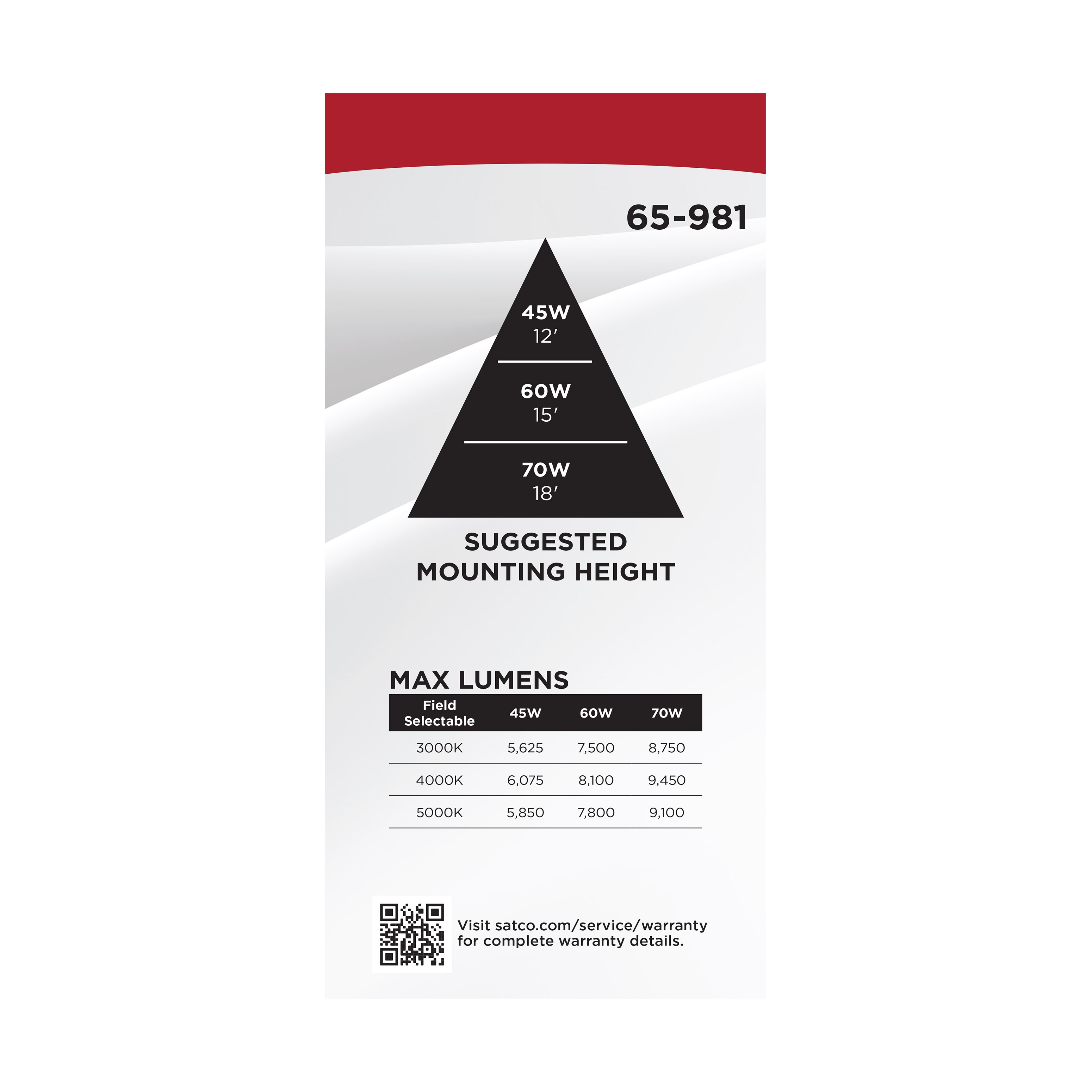

Lumens5625L-9450L
Volts120V-277V
Watts45W/60W/70W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB3-U3-G3
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-TVN5KW
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923659478
Case Cube2.0625
Case Height12.4
Case Length23.03
Case Quantity4
Case UPC10045923659475
Case Weight25.02
Case Width12.48
EA Cube0.4402
EA Height11.61
EA Length11.89
EA Quantity1
EA Weight5.29
EA Width5.51
Inner Cube0.0
Pack TypeColor Box

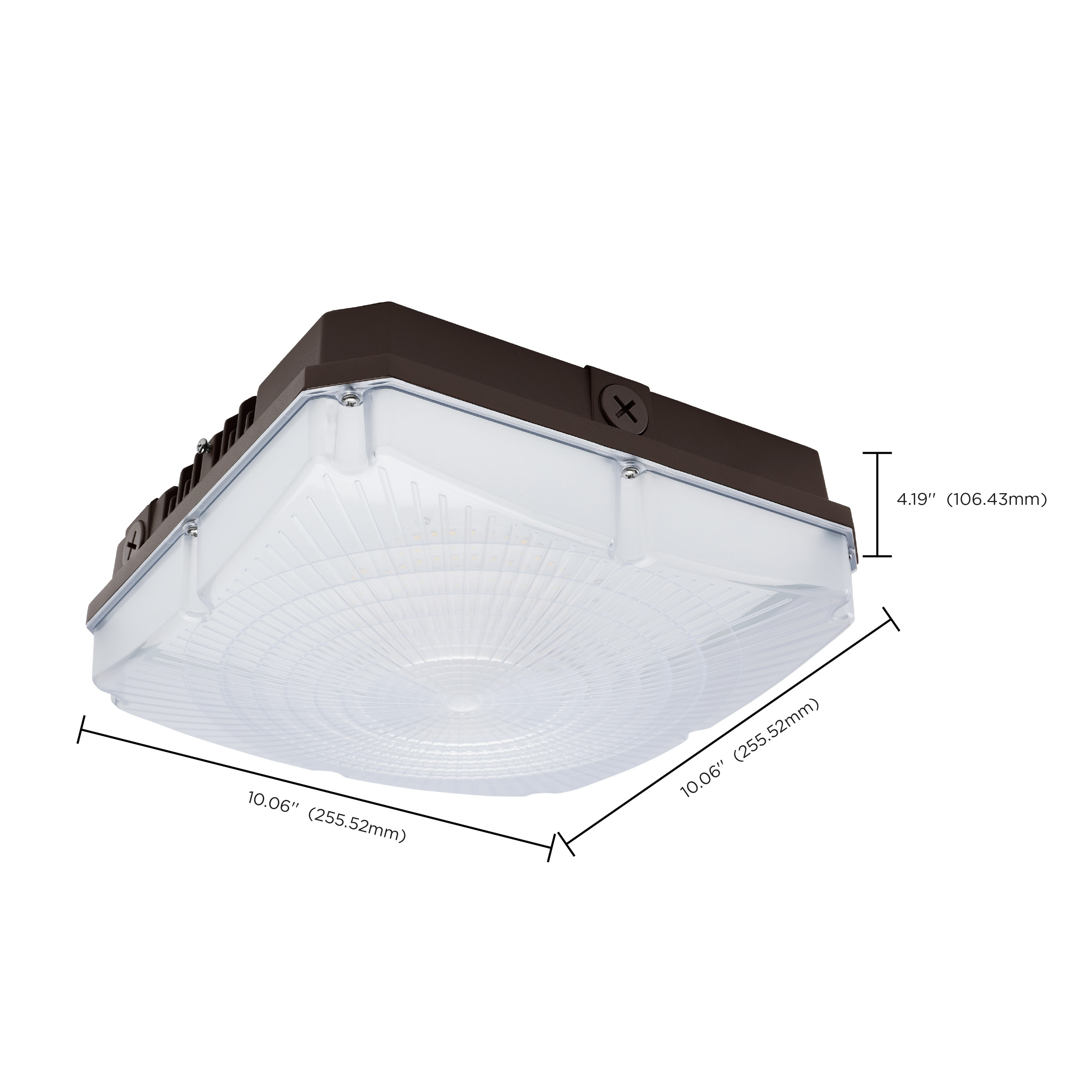

Web Height4.19
Web Length10.06
Web Width10.06
