65-982

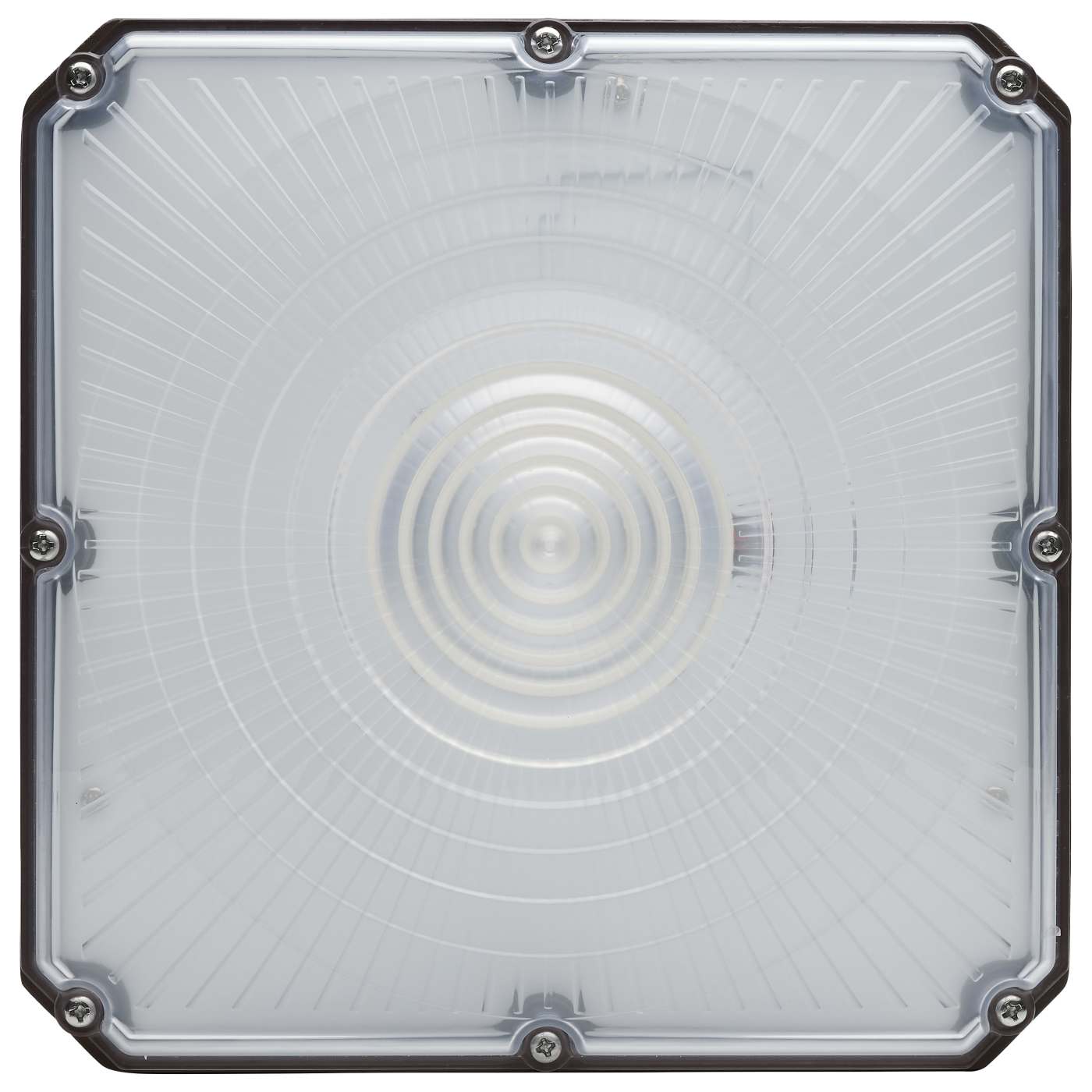

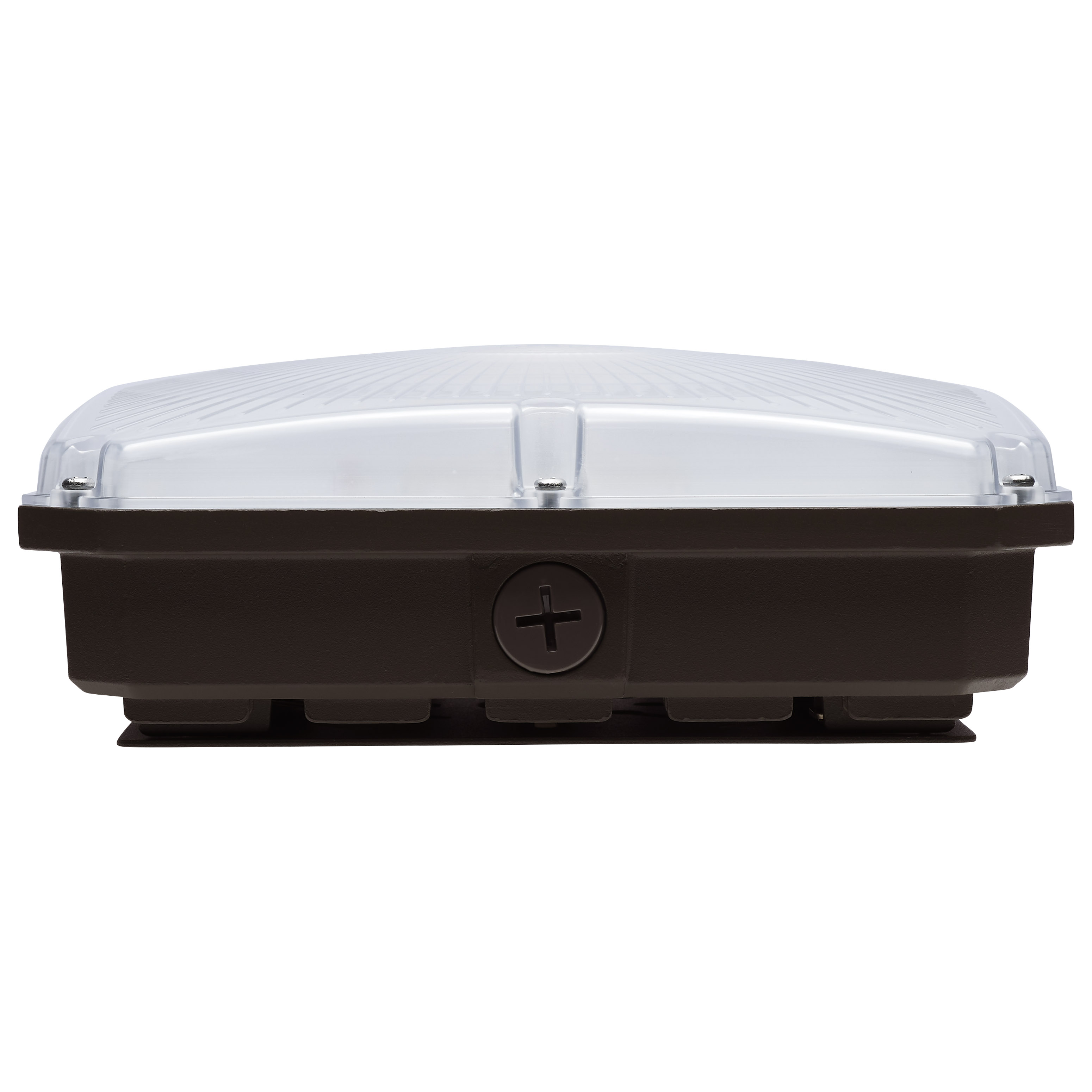

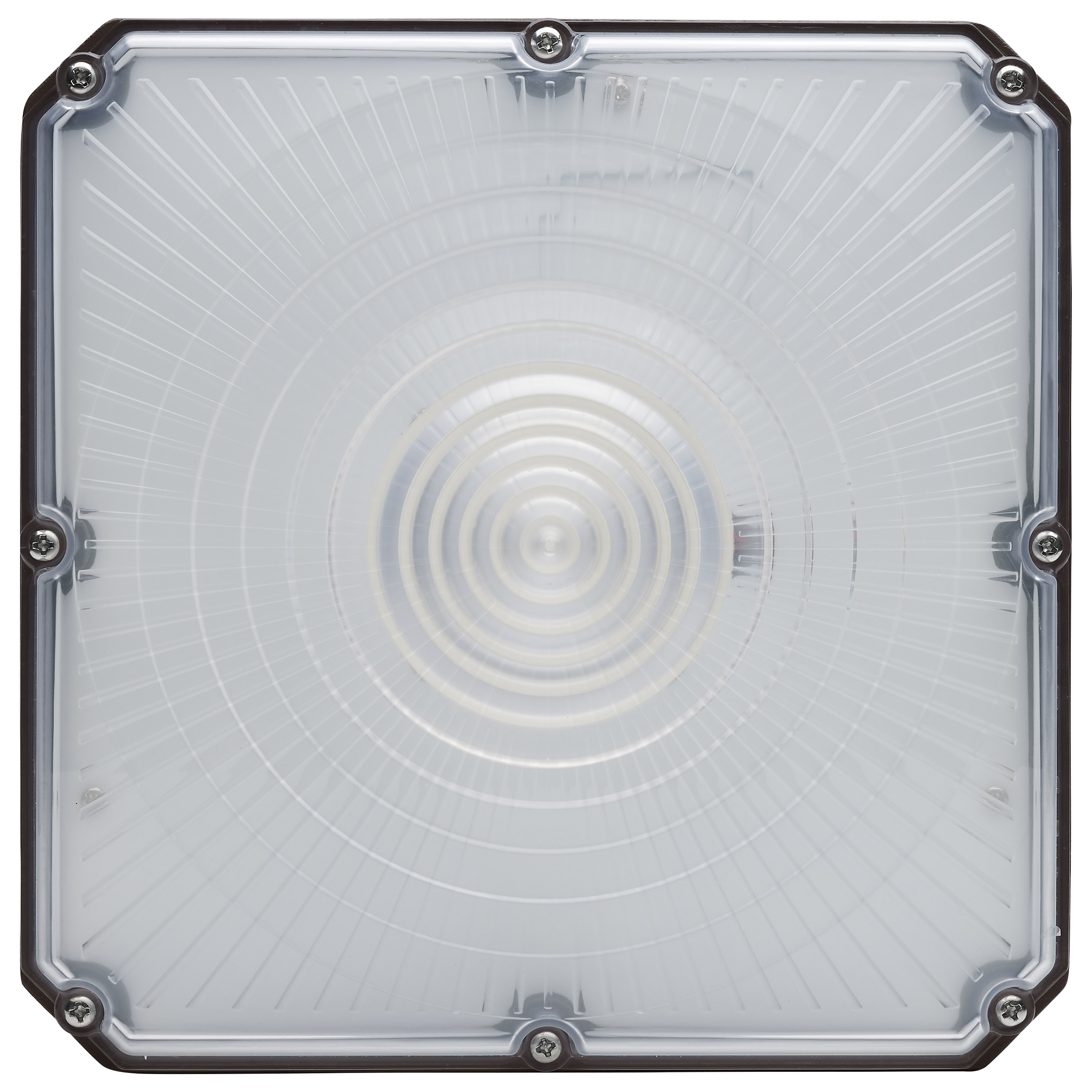

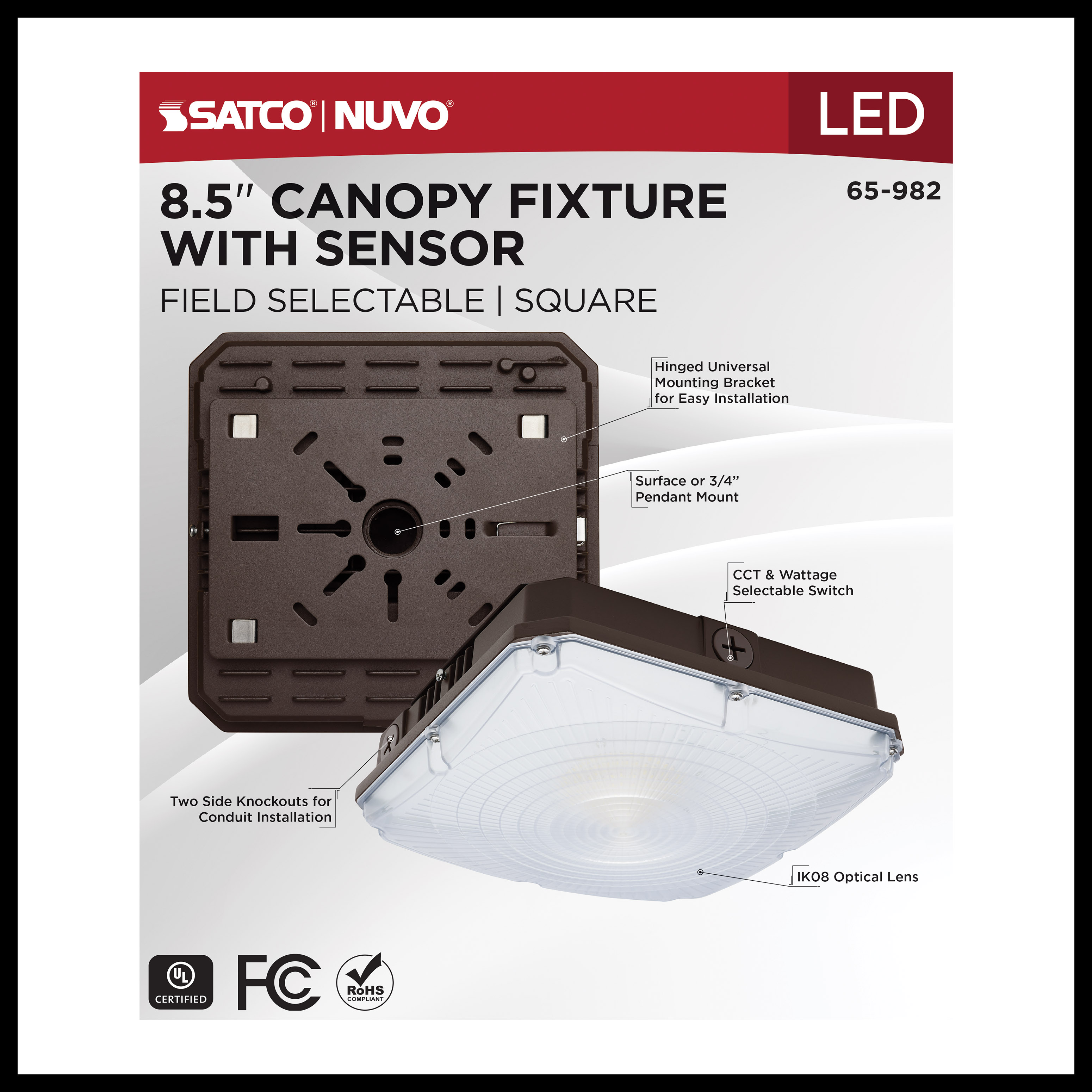

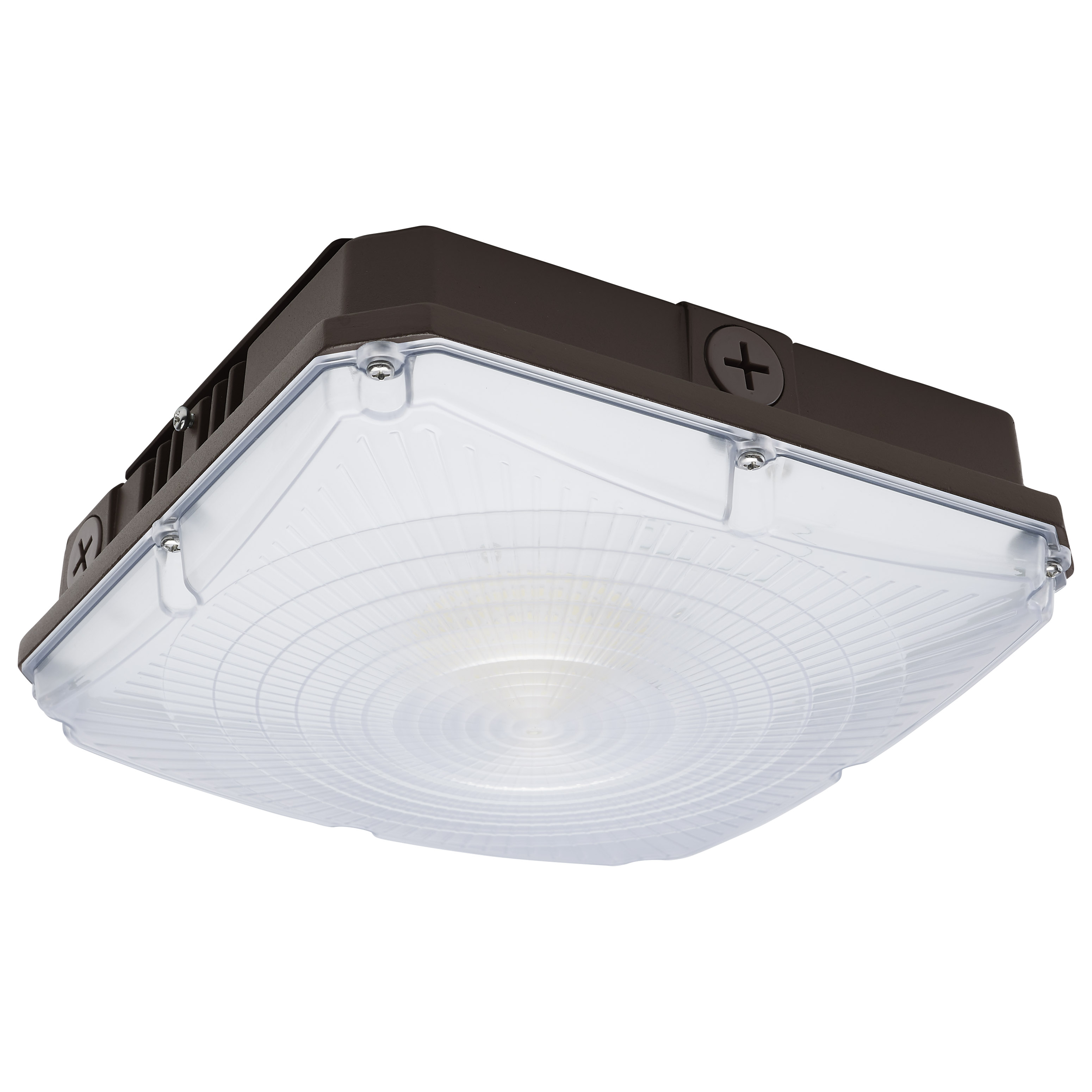

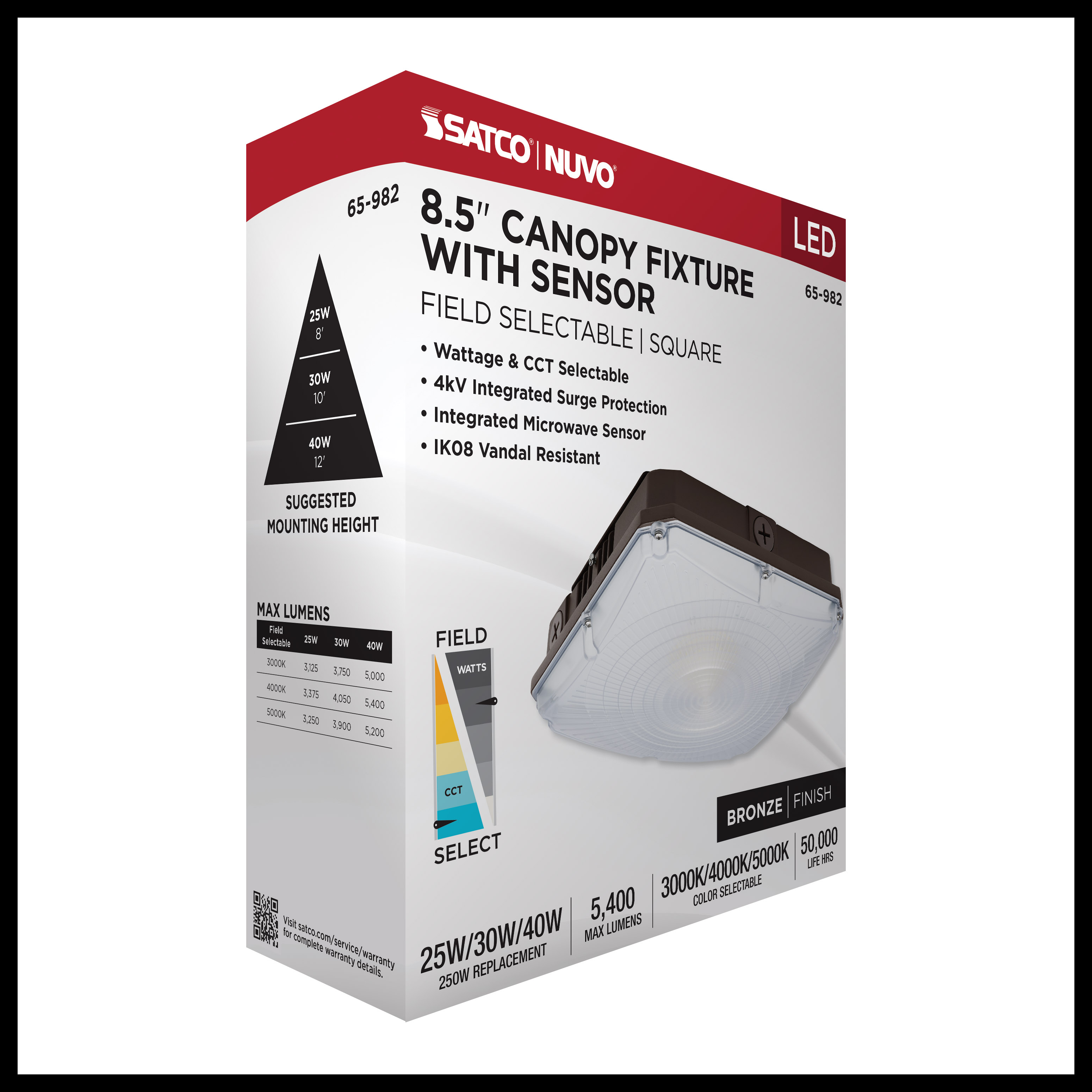

8.5" LED CANOPY W/SENSOR

  • 8.5 Inch LED Field Selectable Canopy Fixture With Sensor
  • 25/30/40 Watts
  • 3K/4K/5K CCT
  • 120-277 Range Voltage
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-982 Specifications65-982 Spec Chart65-982 Instructions
Tools
Lighting Layout Analysis For 65-982
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
8.5 Inch LED Field Selectable Canopy Fixture With Sensor; 25/30/40 Watts; 3K/4K/5K CCT; 120-277 Range Voltage

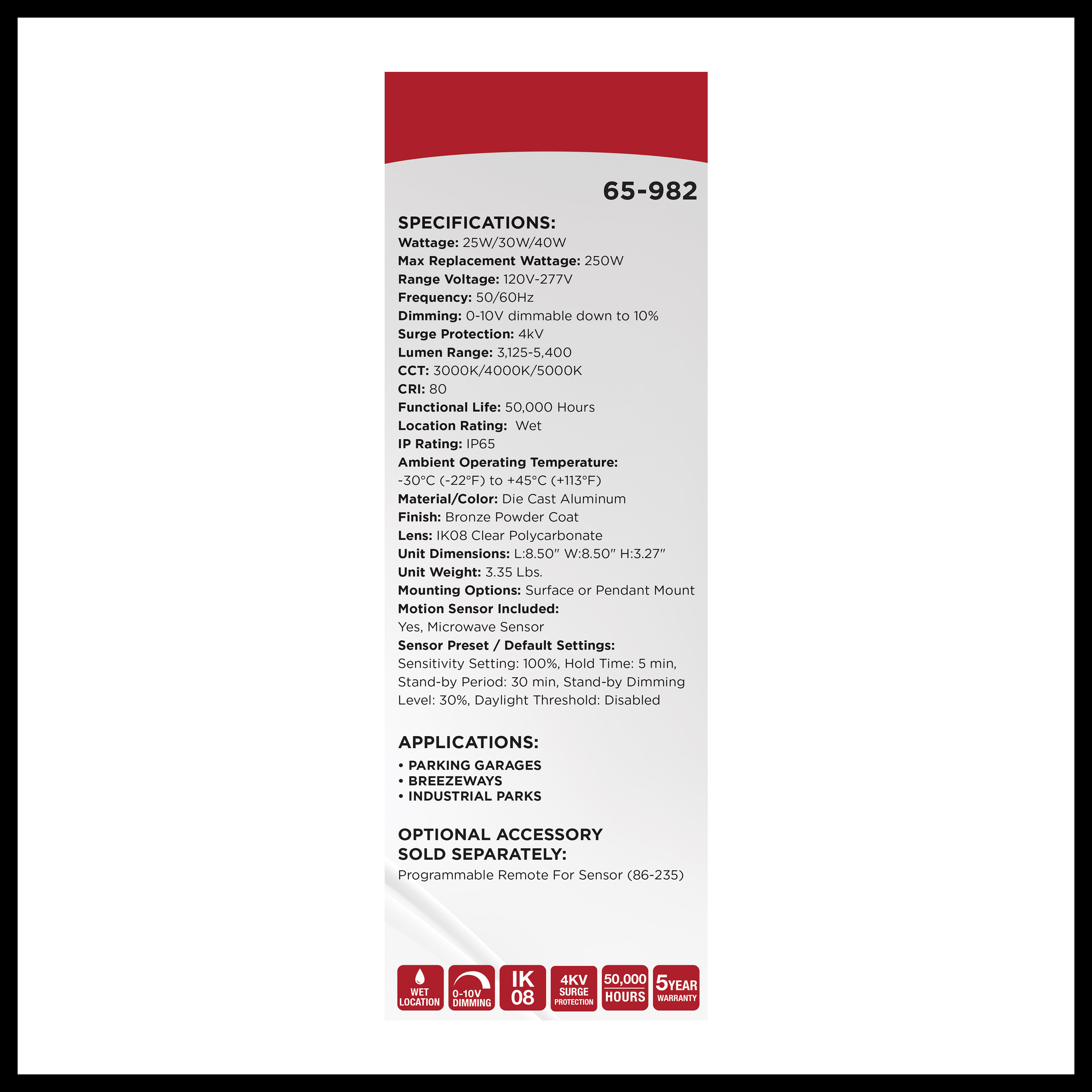

Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming; Bi-Level Dimmable
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion10.20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.210-0.090/0.250-0.108/0.333-0.144A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Photo CellHas Motion Sensor
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent150W/250W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent52W/71W/90W

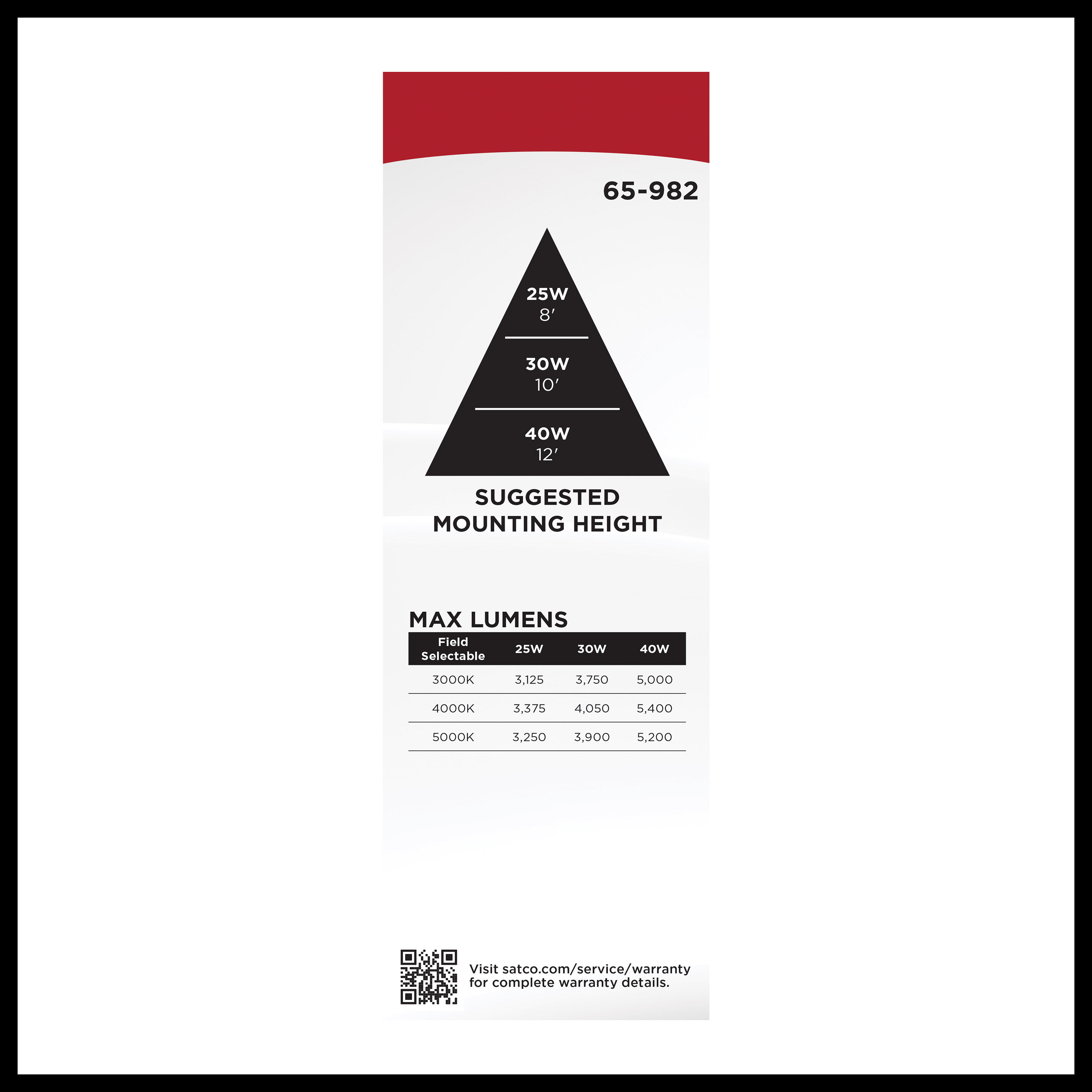

Lumens3125L-5400L
Volts120V-277V
Watts25W/30W/40W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB2-U3-G2
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-4CXTMX
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923403699
Case Cube1.4205
Case Height10.43
Case Length19.29
Case Quantity6
Case UPC10045923403696
Case Weight25.79
Case Width12.2
EA Cube0.1756
EA Height9.25
EA Length9.06
EA Quantity1
EA Weight3.53
EA Width3.62
Inner Cube0.0
Pack TypeColor Box

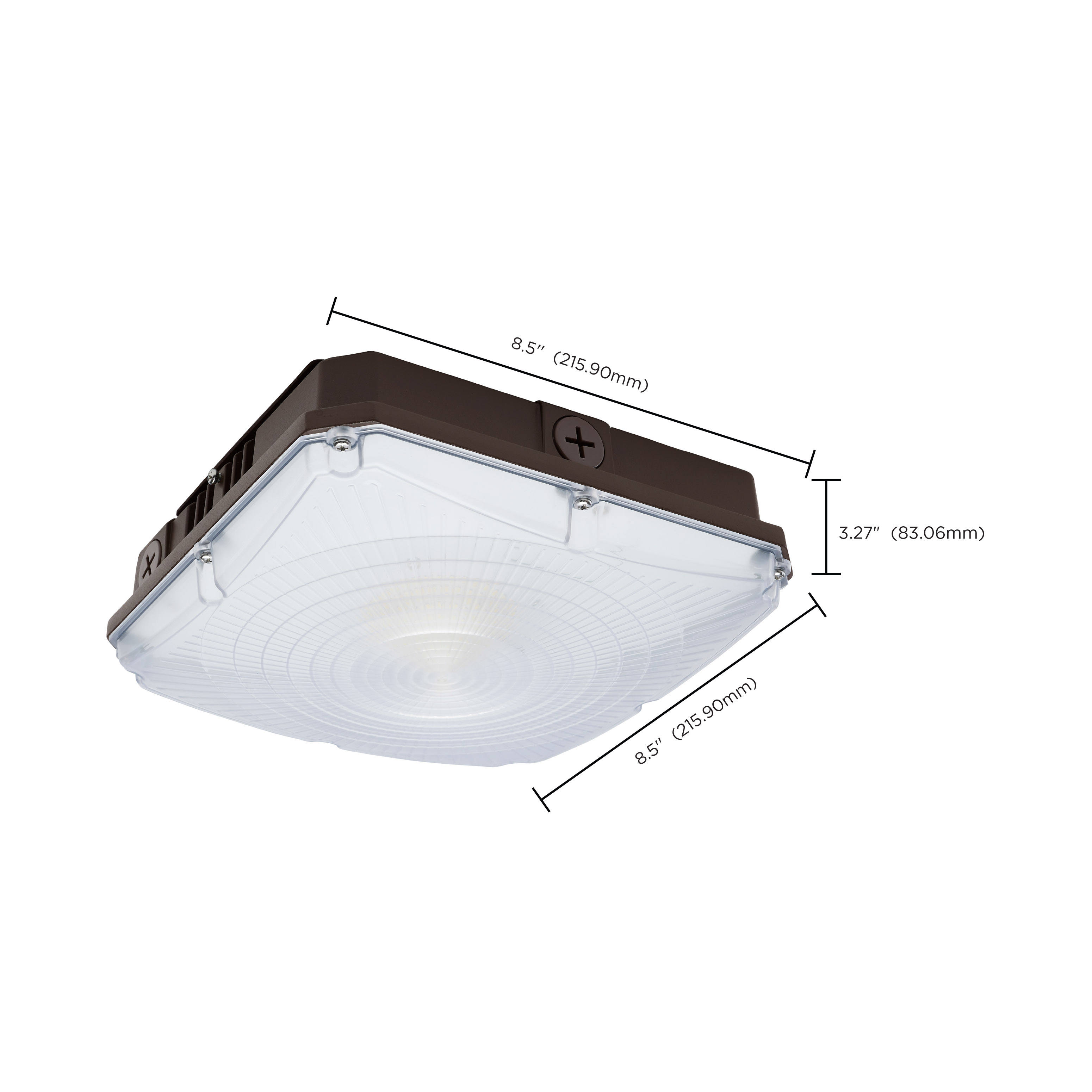

Web Height3.27
Web Length8.5
Web Width8.5
