65-983

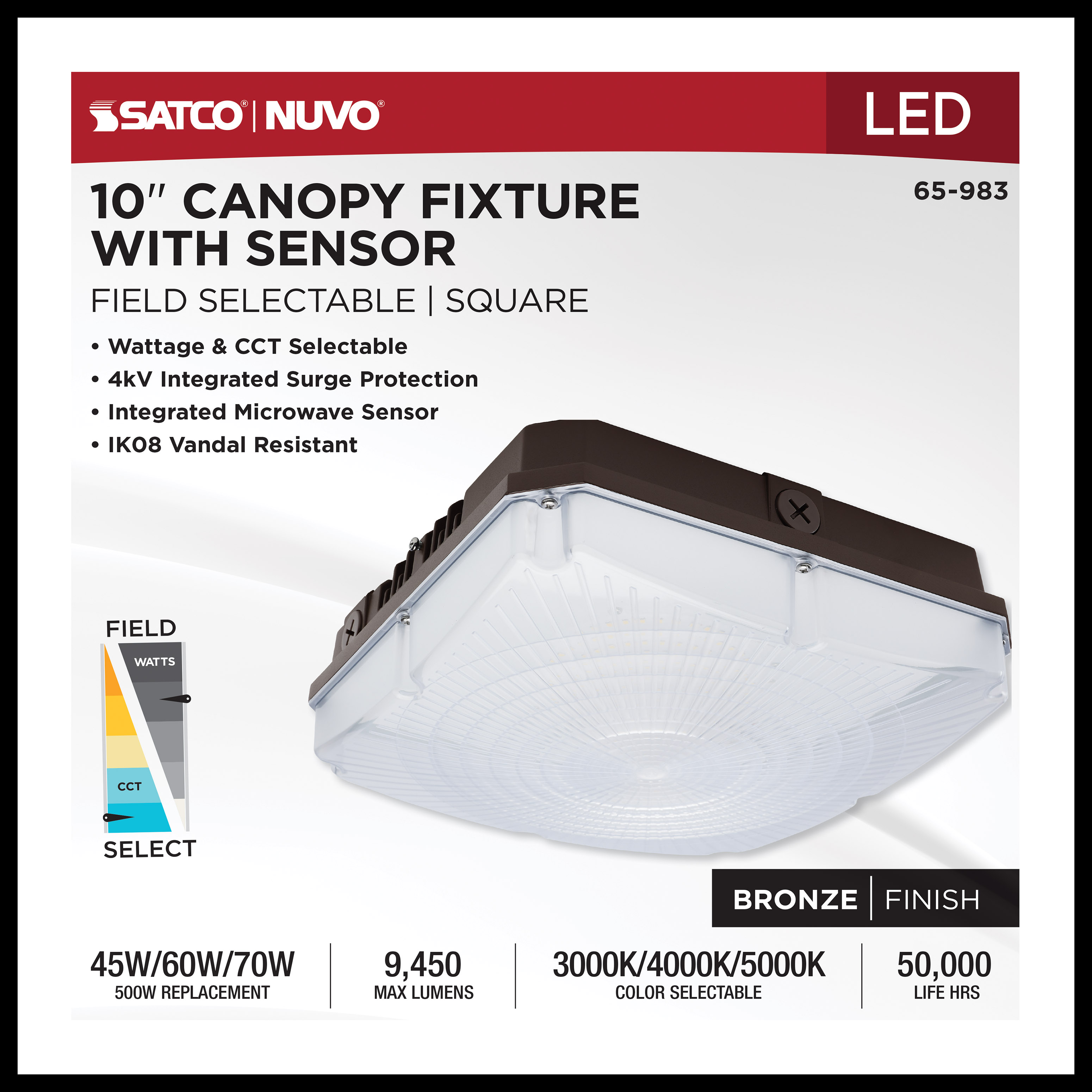

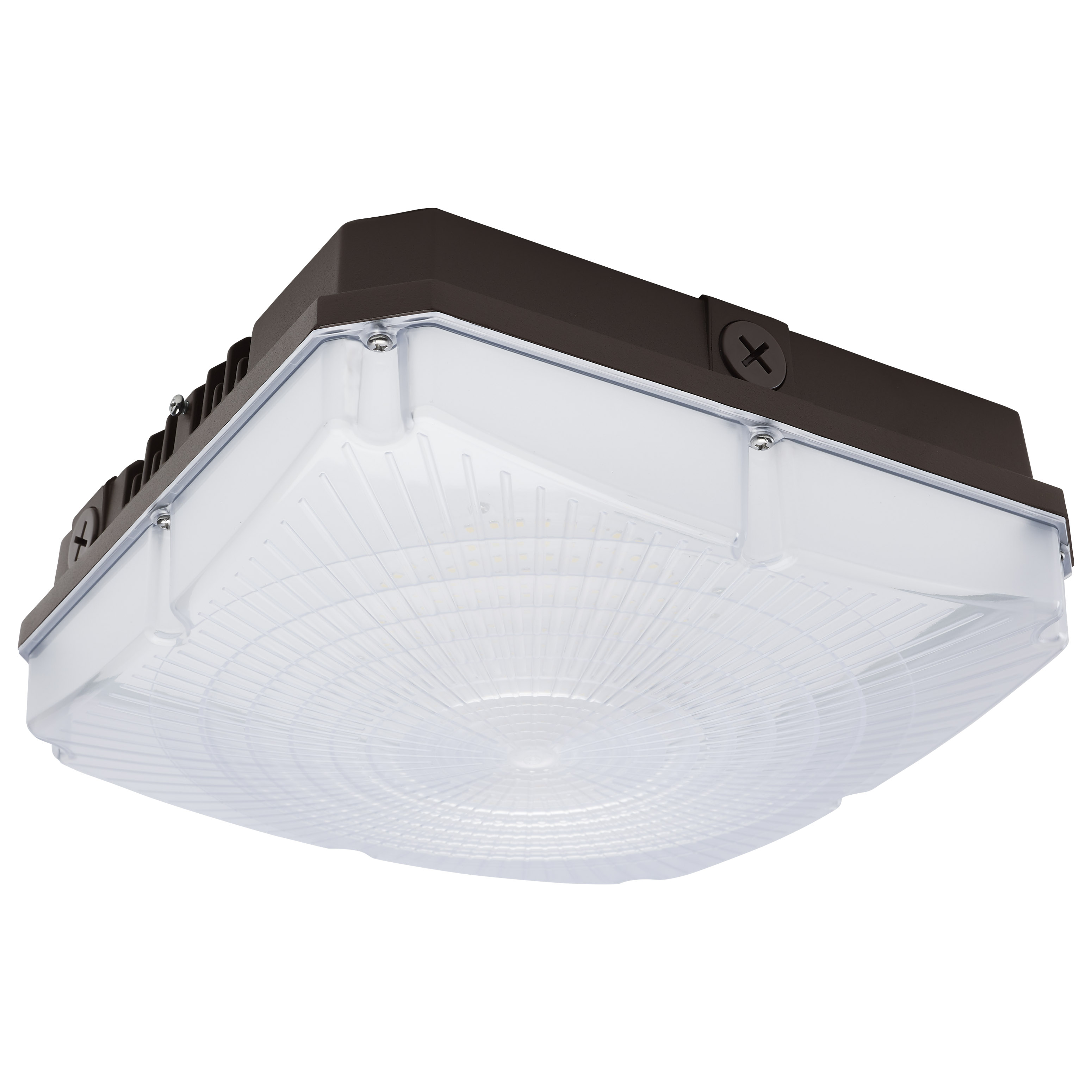

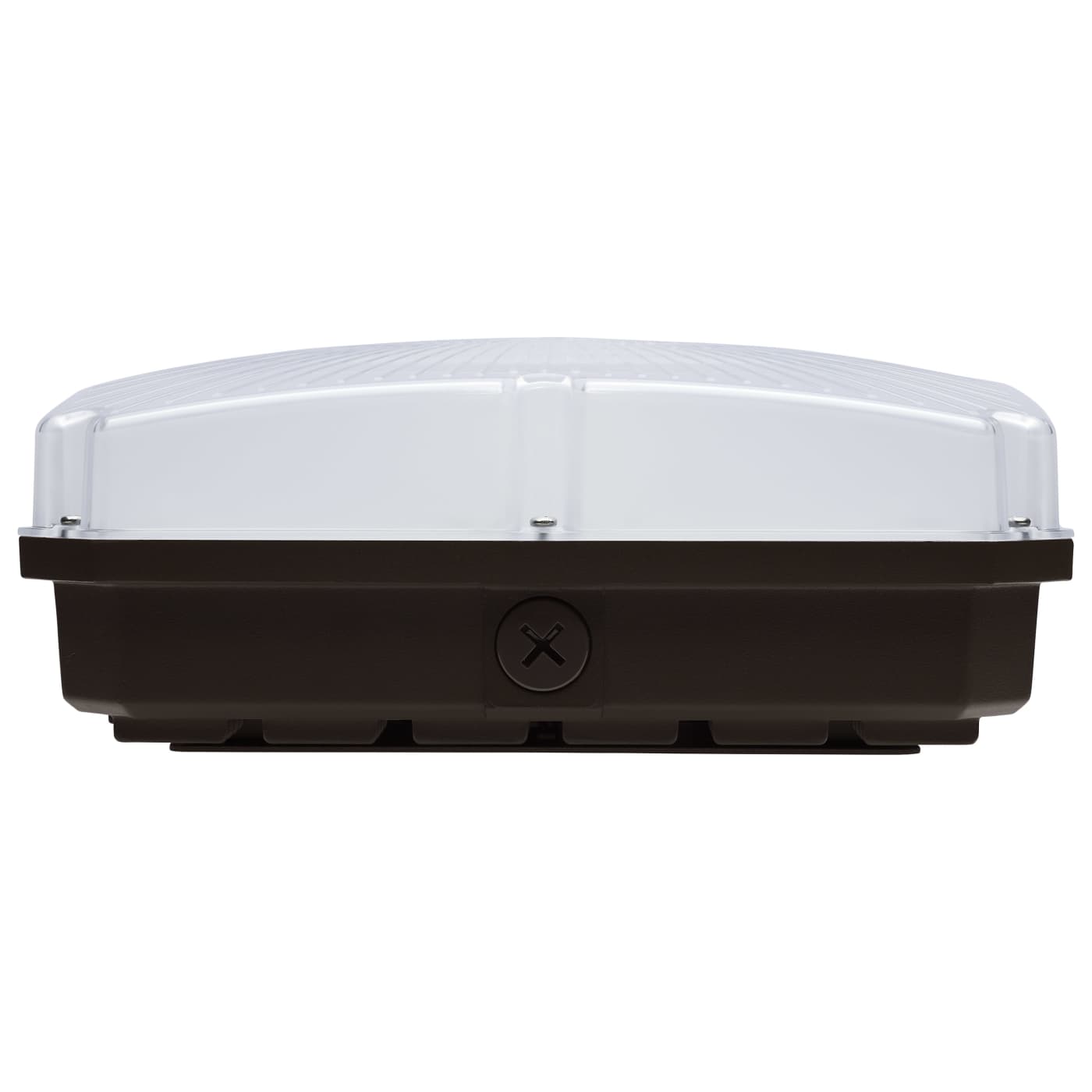

10" LED CANOPY W/SENSOR

  • 10 Inch LED Field Selectable Canopy Fixture With Sensor
  • 45/60/70 Watts
  • 3K/4K/5K CCT
  • 120-277 Range Voltage
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

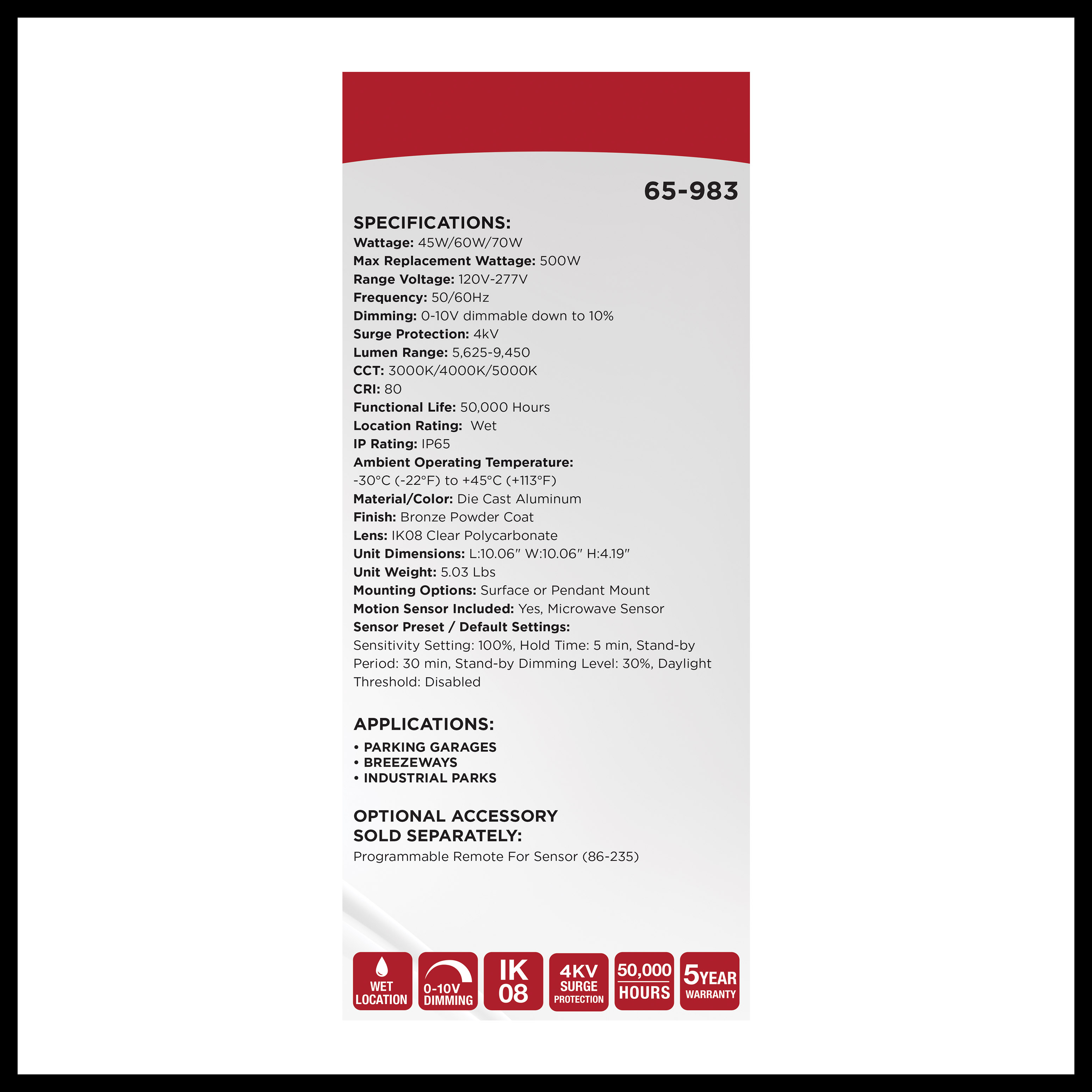

65-983 Specifications65-983 Spec Chart65-983 Instructions
Tools
Lighting Layout Analysis For 65-983
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
10 Inch LED Field Selectable Canopy Fixture With Sensor; 45/60/70 Watts; 3K/4K/5K CCT; 120-277 Range Voltage
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming; Bi-Level Dimmable
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion9.50%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.375-0.162/0.500-0.217/0.583-0.253A
Has CameraFalse
IOT EnabledFalse

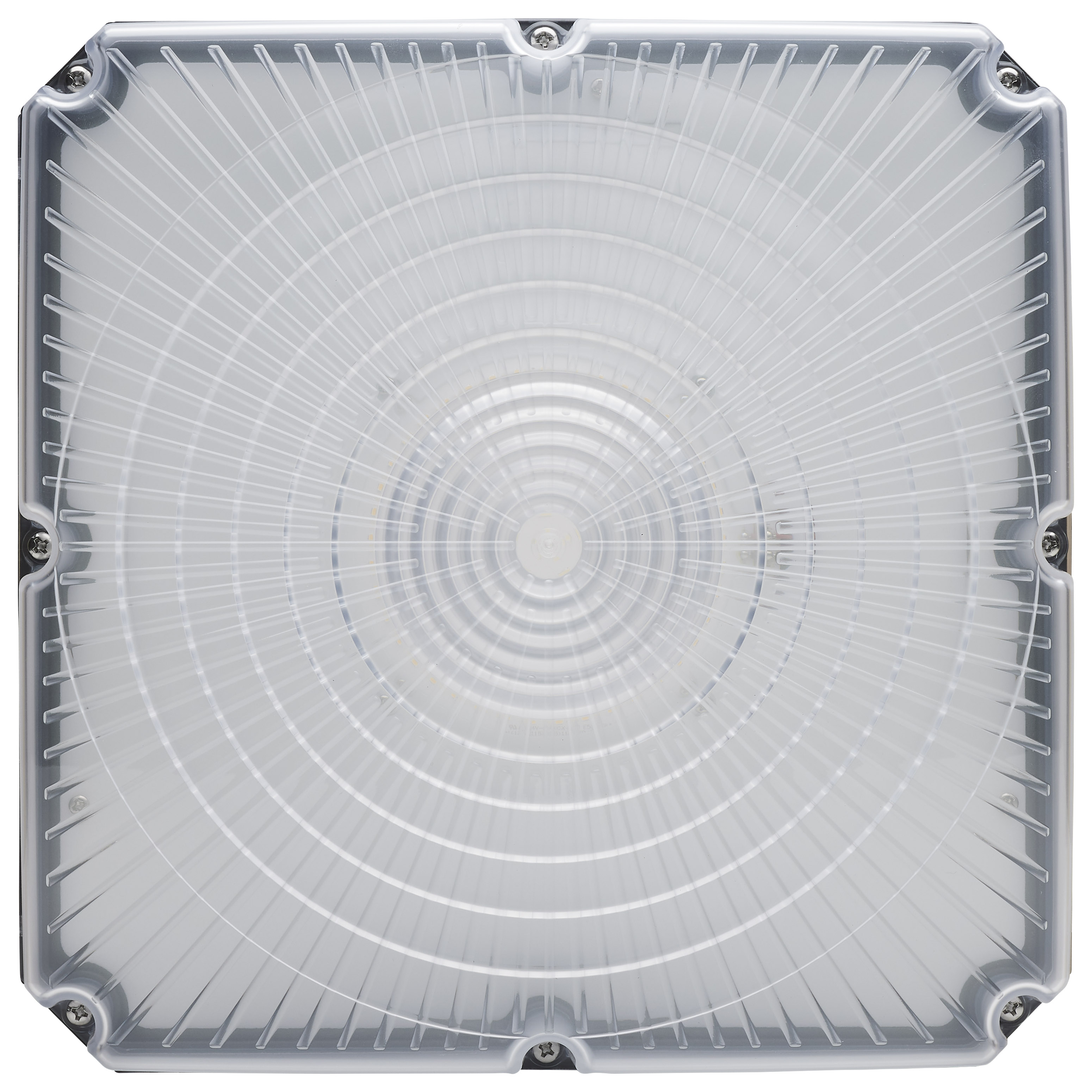

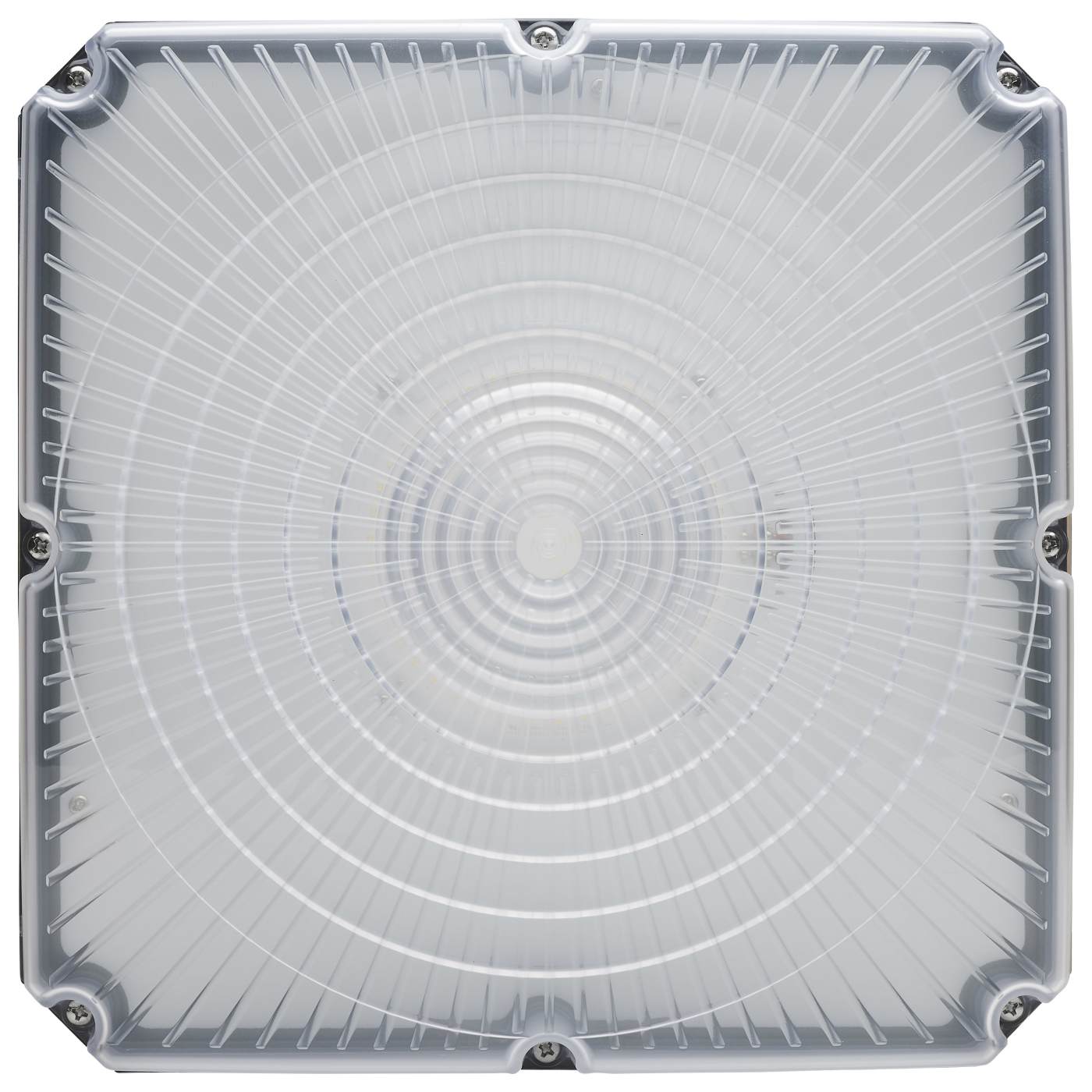

Lens FinishClear
Lens MaterialPolycarbonate (PC)
Photo CellHas Motion Sensor
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent300W/400W/500W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent94W/125W/158W
Lumens5625L-9450L
Volts120V-277V
Watts45W/60W/70W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB3-U3-G3
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-TVN5KW
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923403705
Case Cube1.5574
Case Height12.01
Case Length19.76
Case Quantity4
Case UPC10045923403702
Case Weight25.02
Case Width11.34
EA Cube0.3022
EA Height10.83
EA Length10.55
EA Quantity1
EA Weight5.29
EA Width4.57
Inner Cube0.0
Pack TypeColor Box

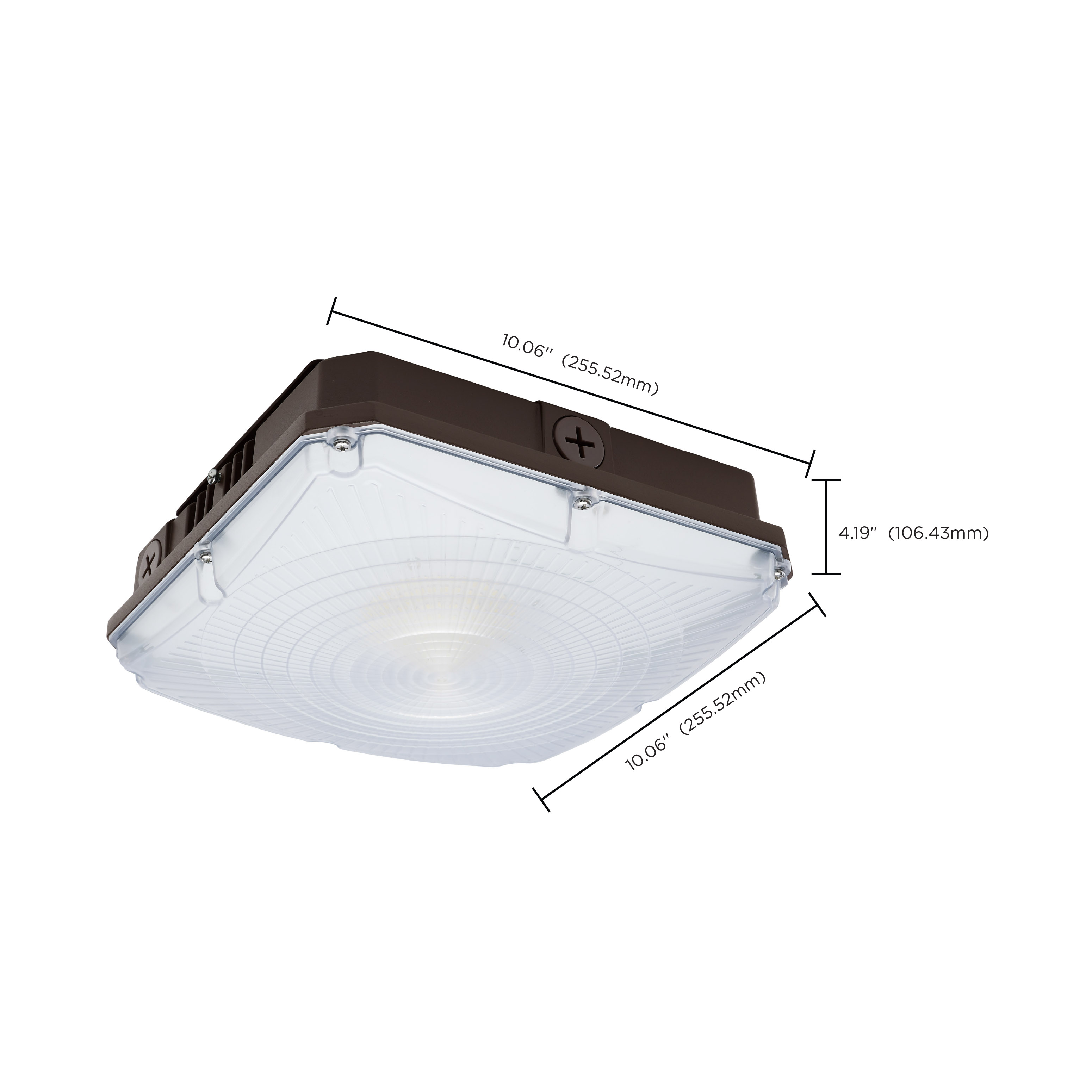

Web Height4.19
Web Length10.06
Web Width10.06
