67-101

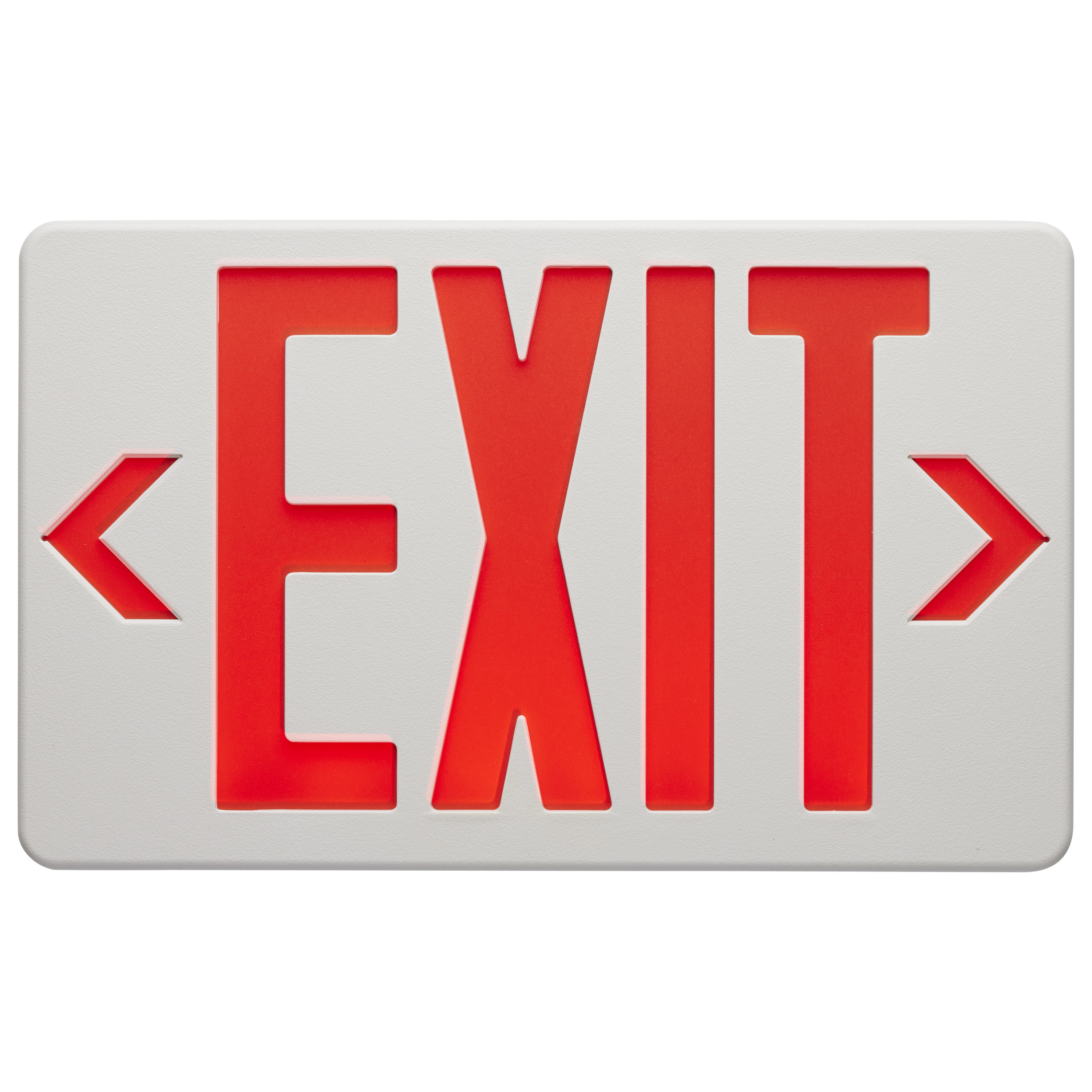

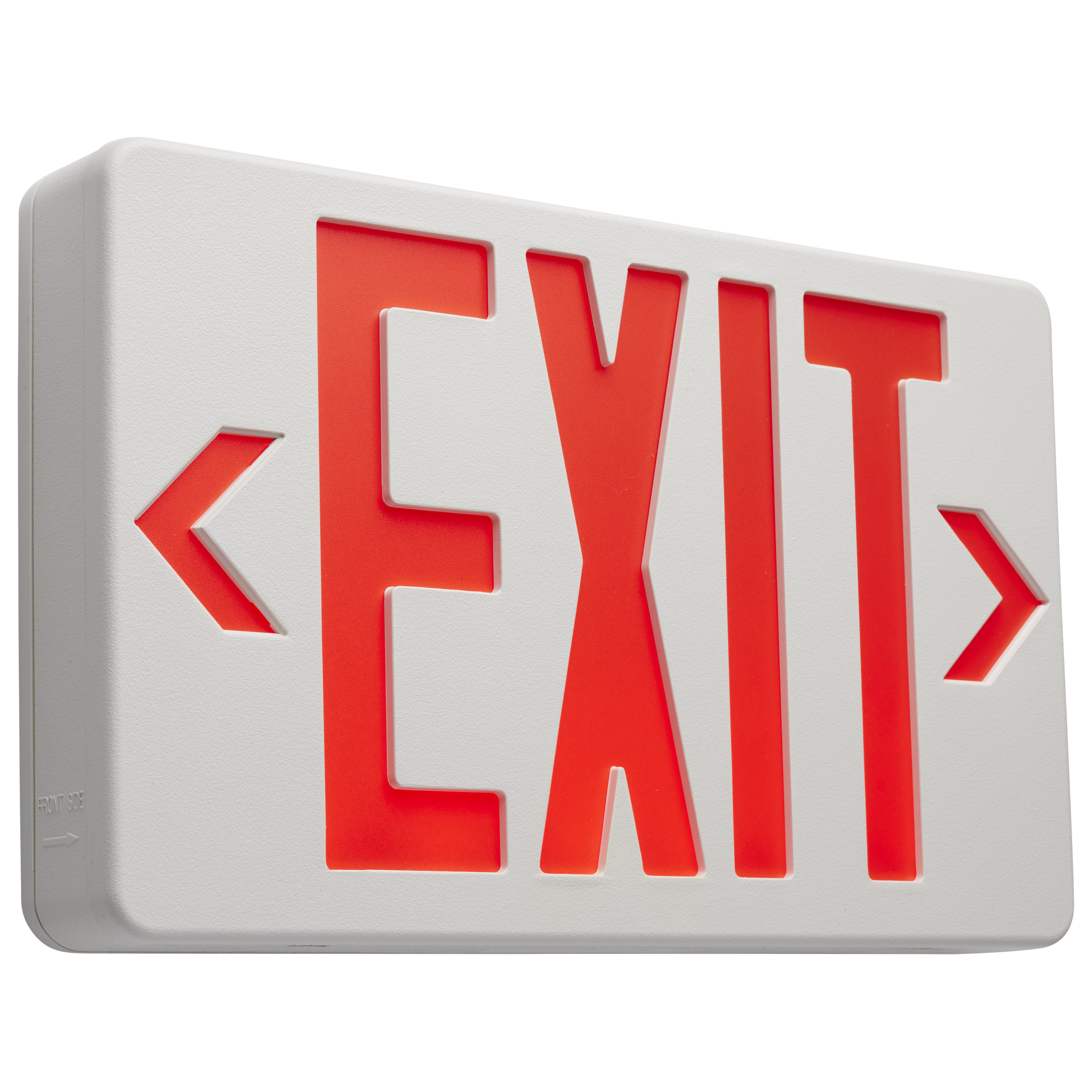

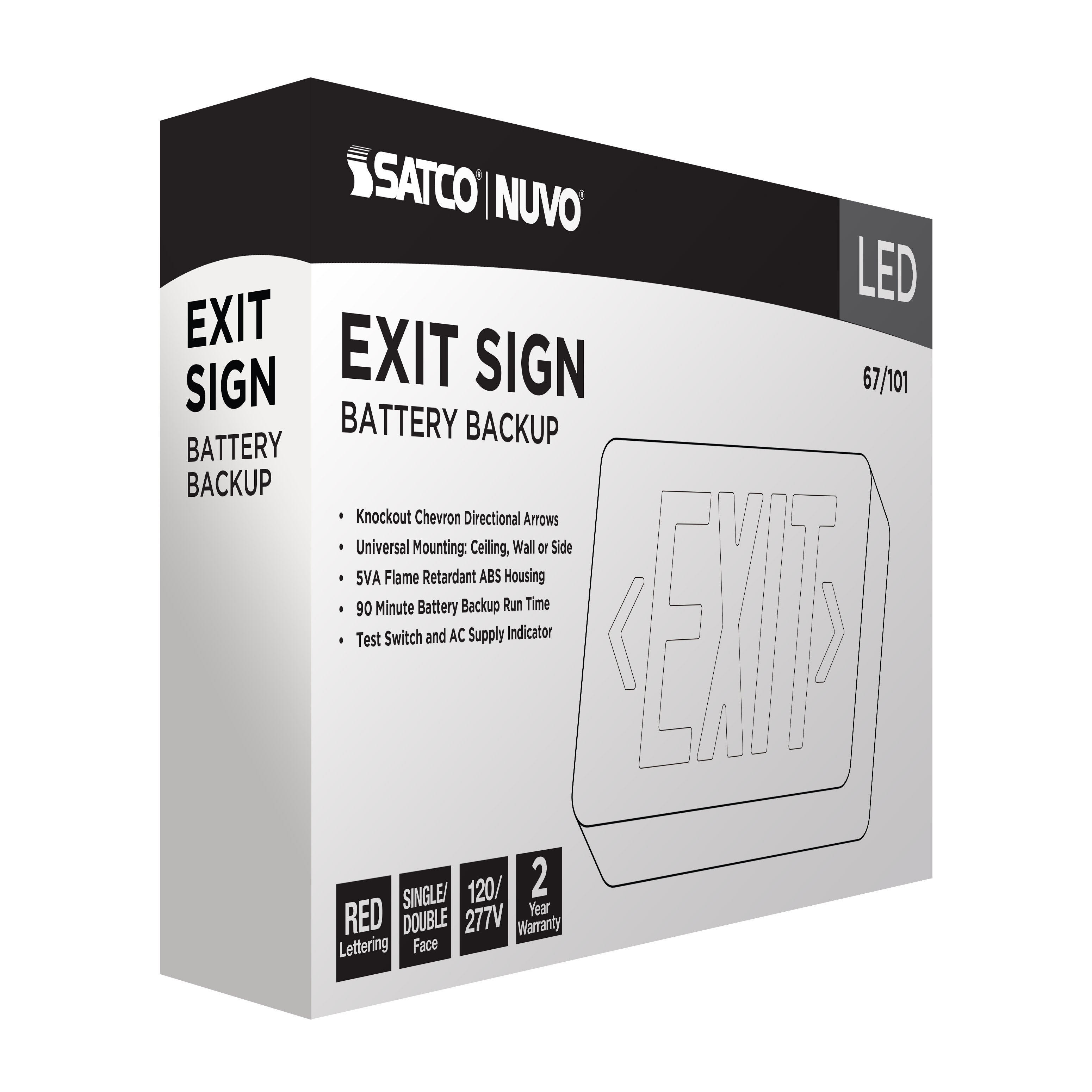

EXIT SIGN - RED

  • Red LED Exit Sign, 90min Ni-Cad backup, 120/277V, Single/Dual Face, Universal Mounting
  • White Finish
location_rating^damp^1
title_20^y^1
volts^120-277v^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

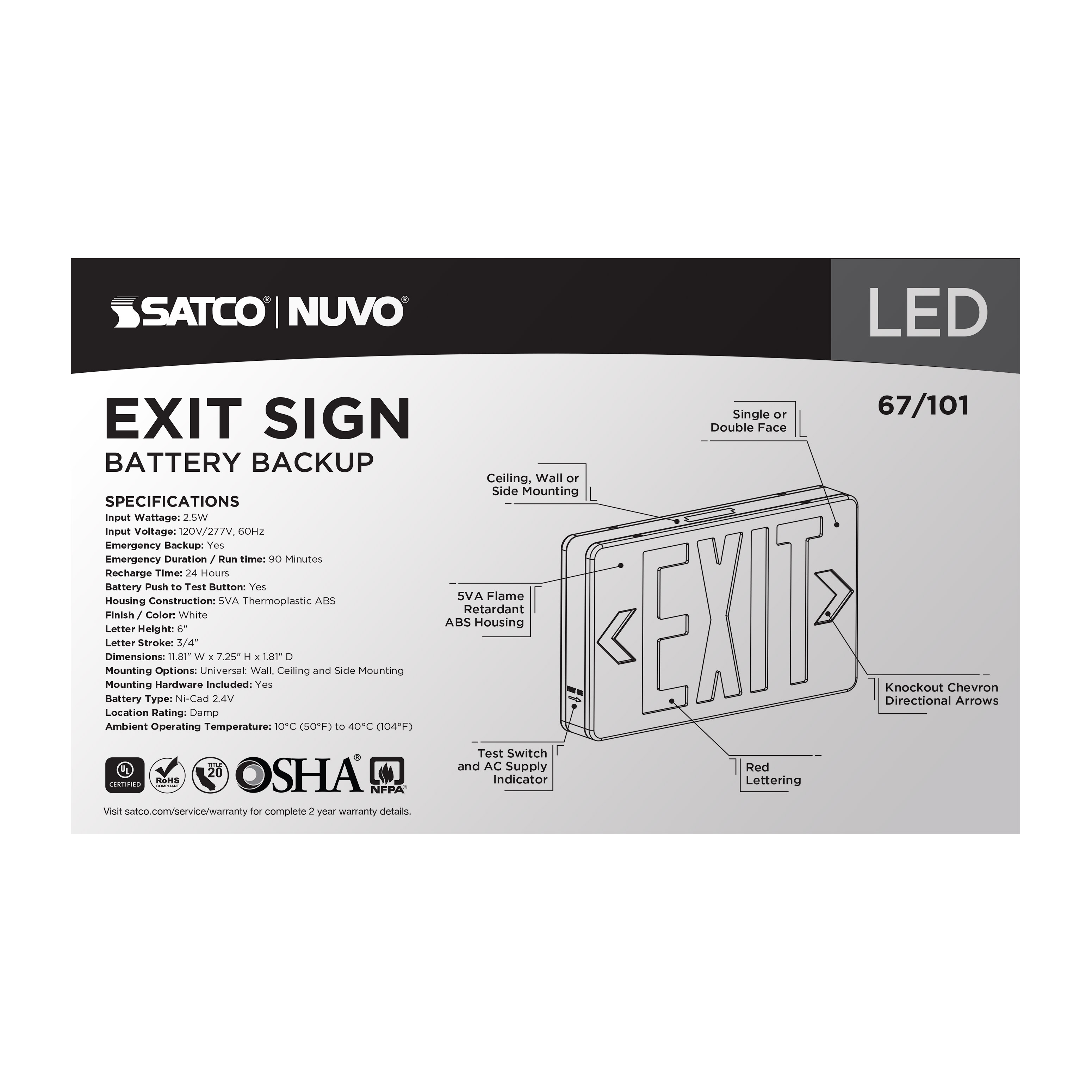

Maximize the safety of your building occupants with SATCO NUVO's LED Exit Sign 67-101 with Battery Backup, in red lettering. With universal mounting options (ceiling, wall, or side) and a choice of single/double face configuration, installation and proper orientation has never been easier. The SVA flame retardant ABS housing ensures durability and reliability, while the 90-minute battery backup run time meets standard safety requirements. The battery push-to-test button and AC supply indicator allows for easy maintenance and monitoring. Additional features include a SVA flame retardant thermoplastic ABS housing construction, white finish, damp location rating, and compliance with OSHA and NFPA.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialThermo Plastic
Fixture TypeExit Sign
IncludesMounting hardware and accessories
Product NotesUL94V-0, Thermoplastic, 2.4V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 3KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoInput Wattage: 2.5W; Output Wattage: 0.4W; Energy Used in Maintenance Mode: 2.5W
Amps0.008/0.003A
Has CameraNo
IOT EnabledNo
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Electrical
DimmableNon-Dimmable
Operating Frequency60Hz
Operating Temp+50F to +104F (+10C to +40C)
Volts120V/277V
Watts2.5W
Battery ChemistryNi-Cad
Replaceable Battery TypeAA
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedureUniversal
Additional Info
Warranty2-Years
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingULus - Certified, ULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24/JA8 CompliantNo
Packaging
UPC045923675683
Case Cube1.7502
Case Height15.75
Case Length12.6
Case Quantity12
Case UPC10045923675680
Case Weight30.36
Case Width15.24
EA Cube0.1231
EA Height7.48
EA Length12.05
EA Quantity1
EA Weight2.48
EA Width2.36
Pack TypeBox

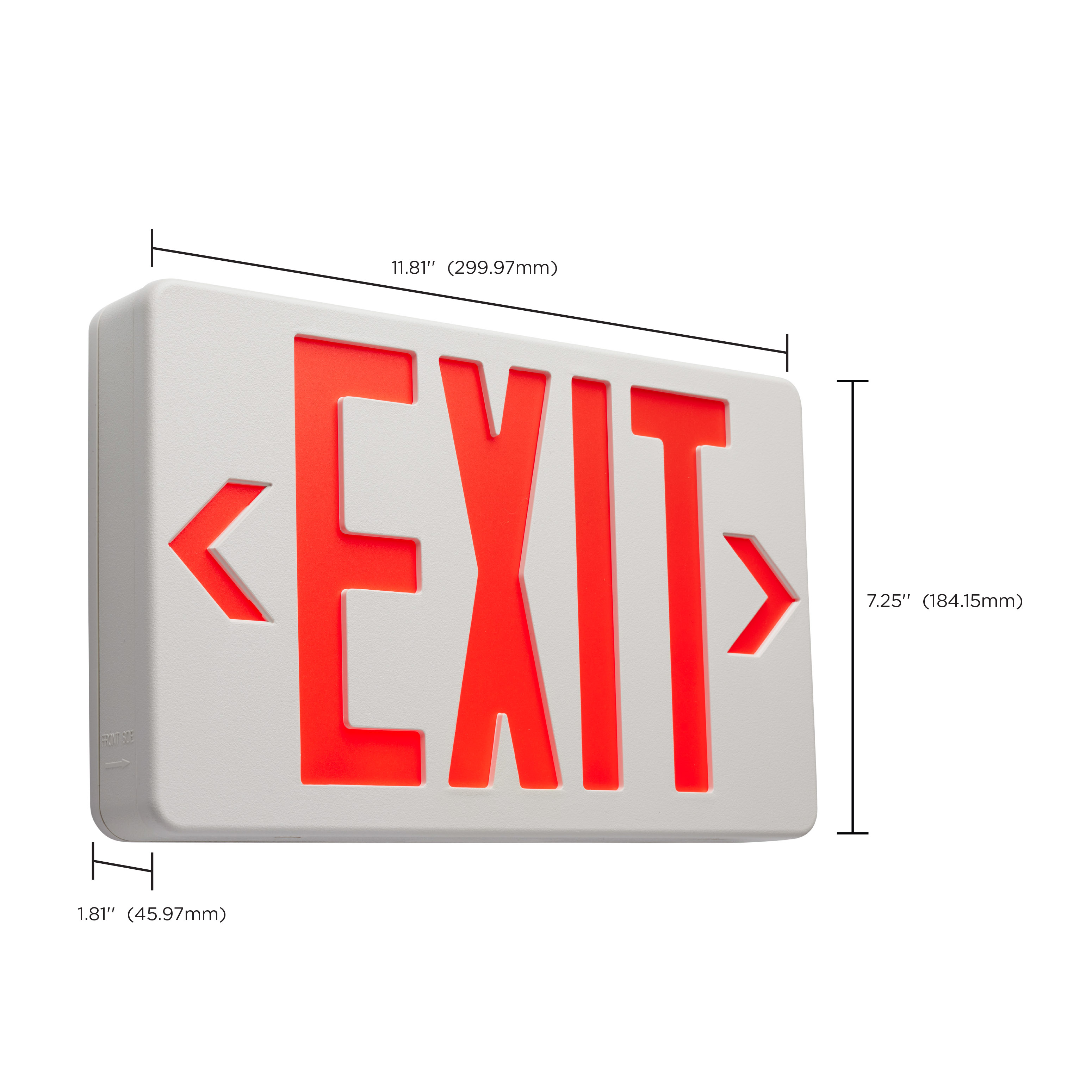

Web Height7.25
Web Length1.81
Web Width11.81
