| Company | SATCO |
|---|---|
| Material | Steel |

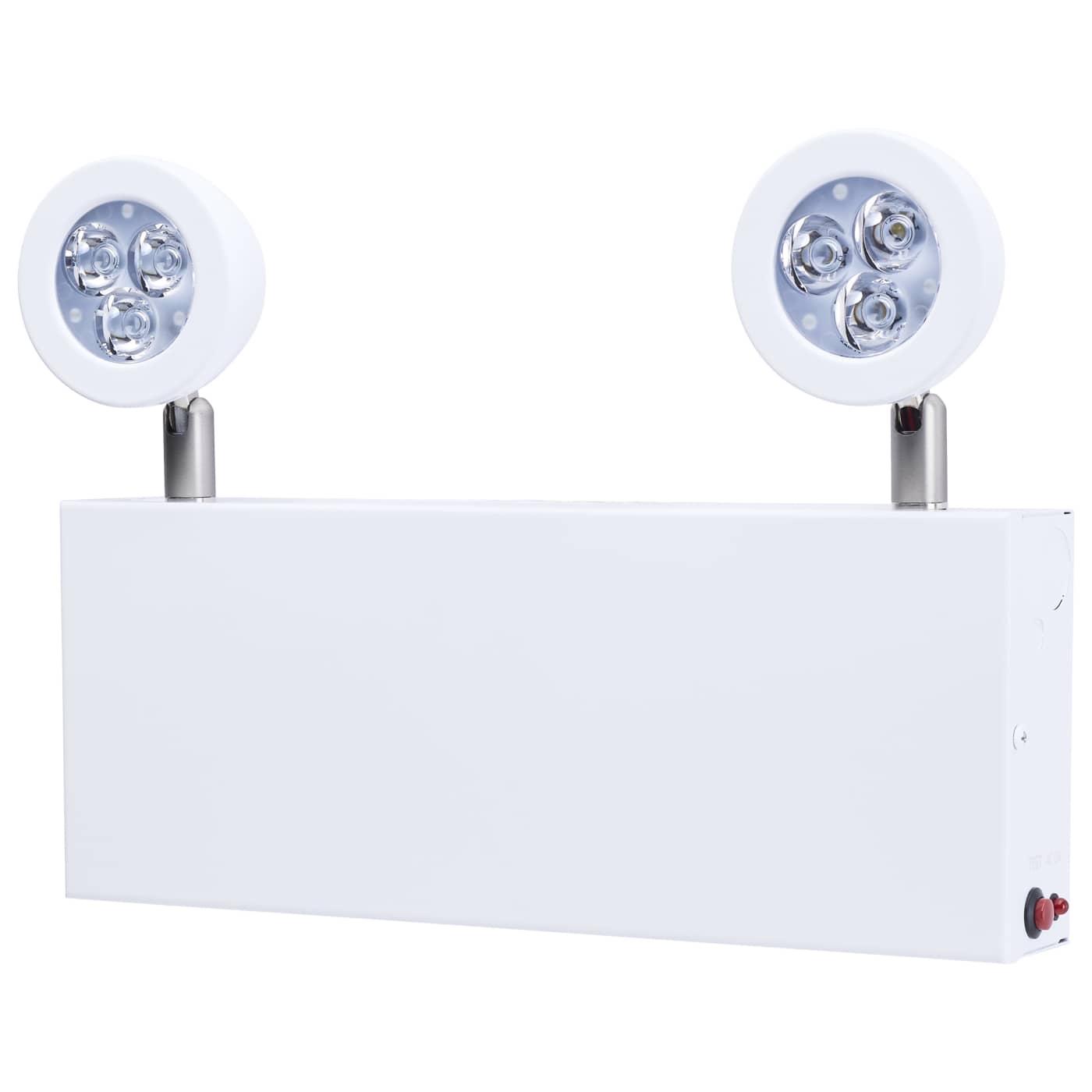

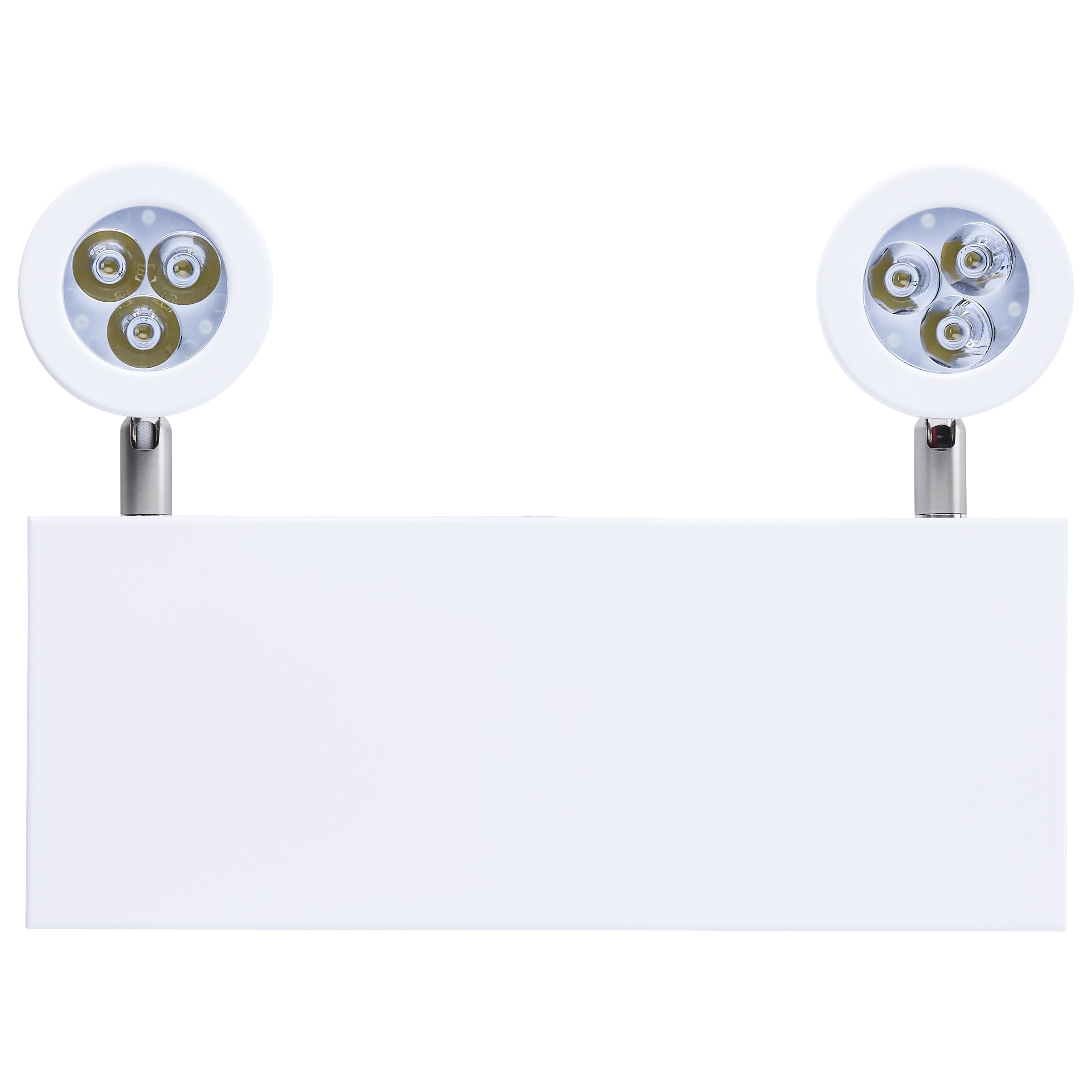

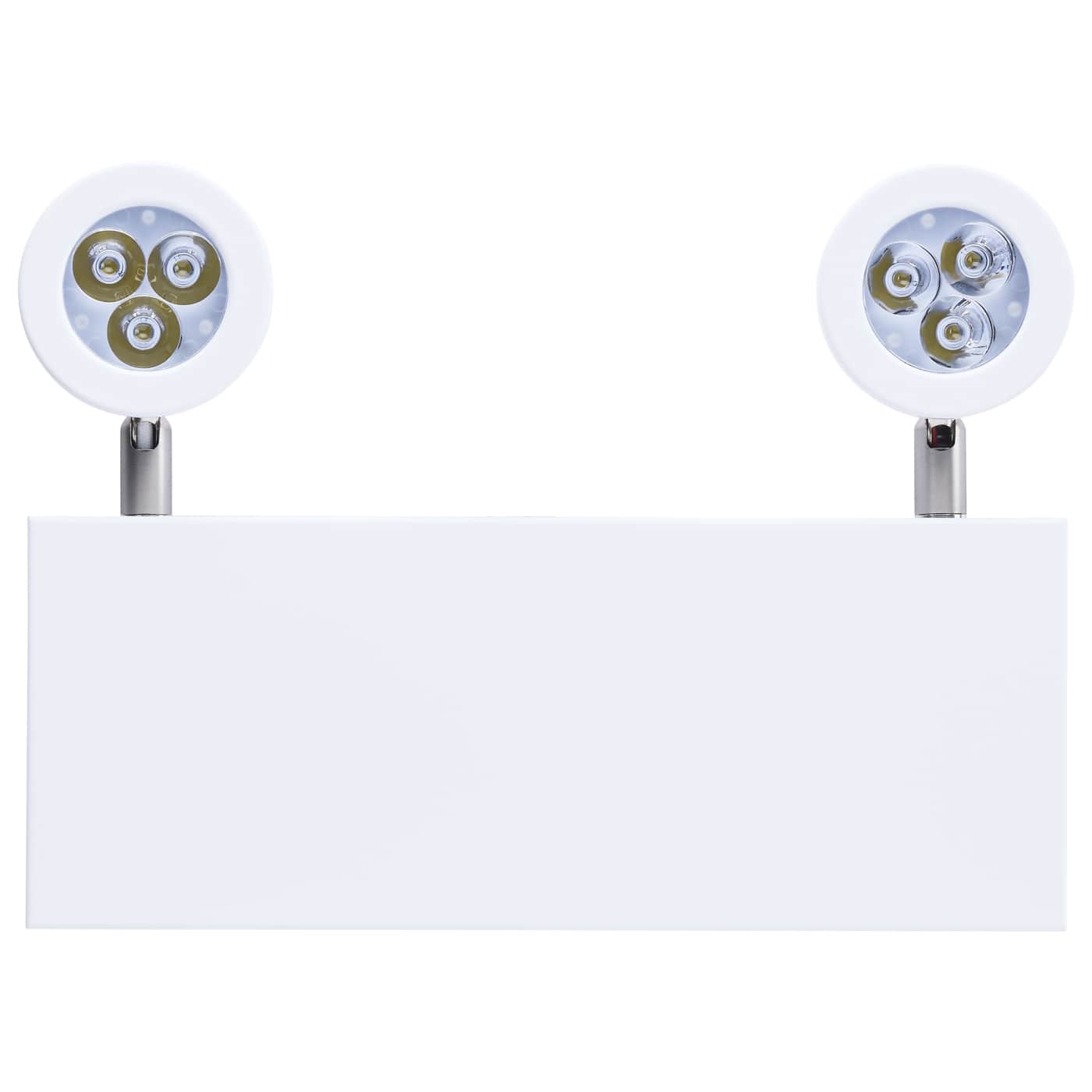

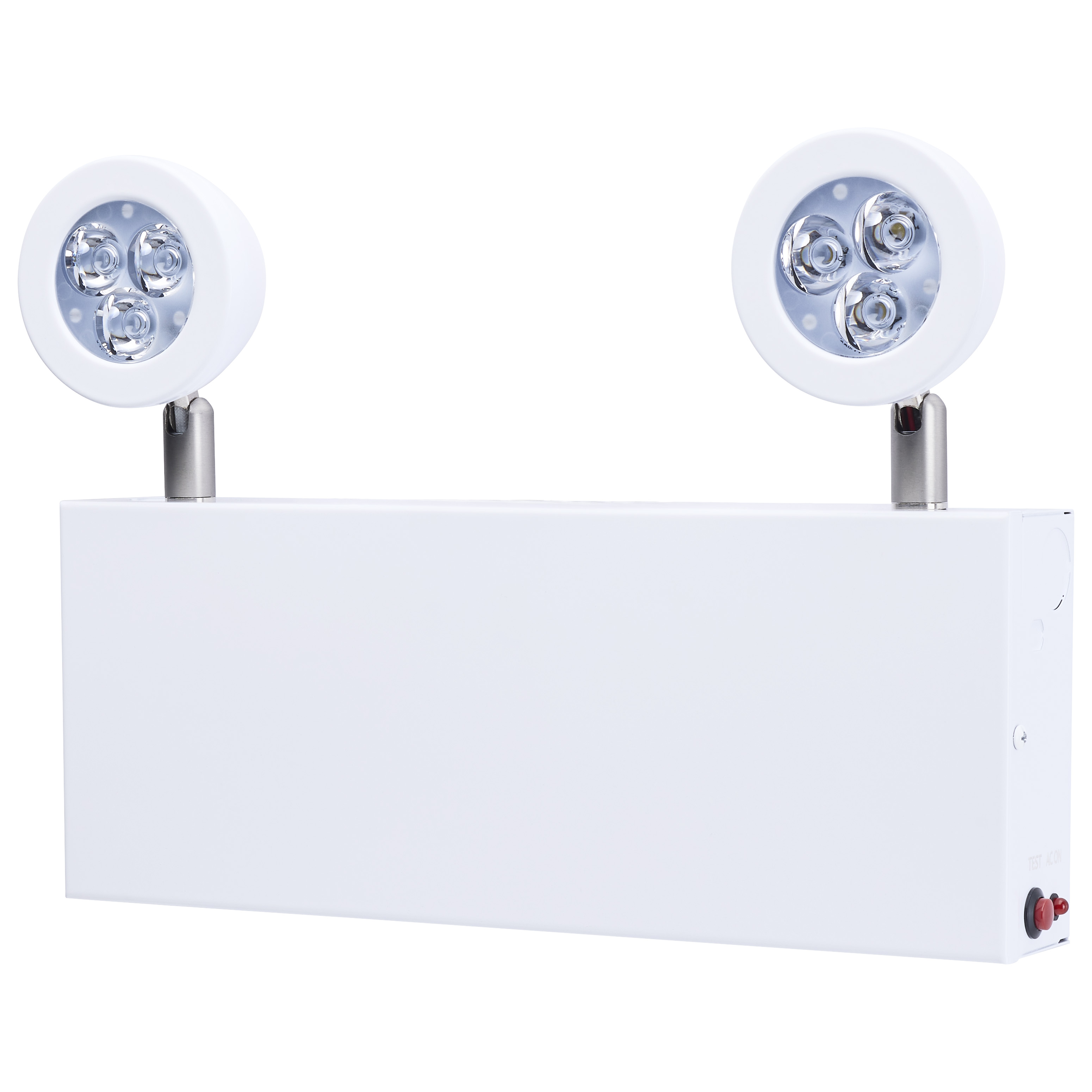

| Fixture Type | Exit Sign |
| Product Notes | 90 minute discharge time; 24 Hour Recharge Time; surface mounting. |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 1KV |
| Total Harmonic Distortion | <130% |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.033-0.014A |
| Lens Finish | Frosted |
| Lens Material | Acrylic |
| Power Factor | >0.4 |
| SDS Class | Lithium_Ion_Battery |
| Indoor Outdoor | Indoor |

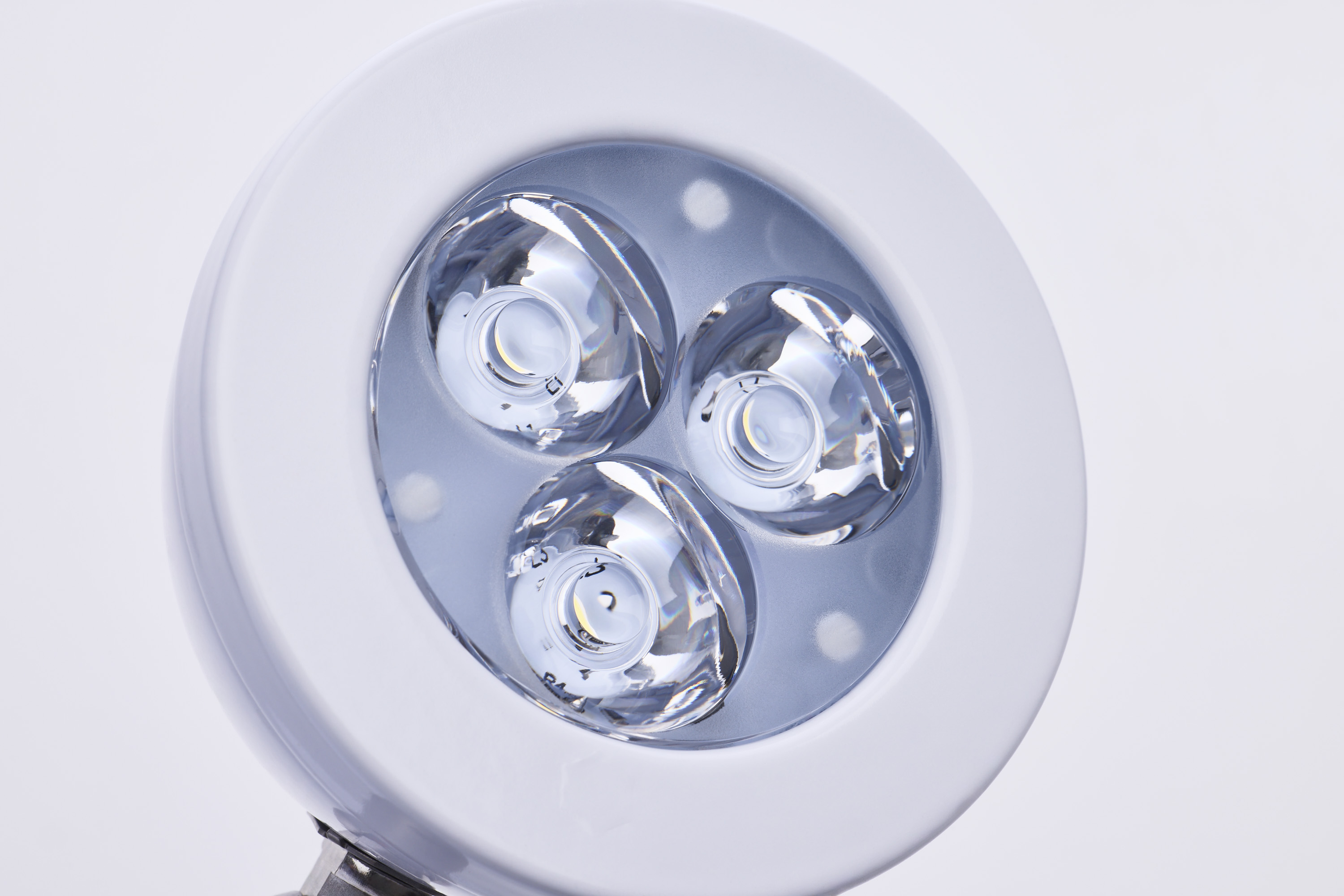

| Product Technology | LED |
| CCT (Kelvin Temp) | 5700K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 12 |
| Color Temp | Daylight |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | +41F to +113F (+5C to +45C) |
| Lumens | 800L |
| Volts | 120V-277V |
| Watts | 4W |
| Lamp Base | Integrated |
|---|---|
| Finish | Gloss White |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 2-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| Dark Sky Rated | No |
| FCC Compliant | Yes |
| IP Rating | IP40 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Listed |
| California Ban | Non-Compliant |
| Energy Star Certified | No |
| Title 20 | No |
| T24/JA8 Compliant | No |
| US State Ban | CA |
| UPC | 045923415777 |
|---|---|
| Case Cube | 1.0295 |
| Case Height | 10.63 |
| Case Length | 14.17 |
| Case Quantity | 4 |
| Case UPC | 10045923415774 |
| Case Weight | 15.87 |
| Case Width | 11.81 |
| EA Cube | 0.2104 |
| EA Height | 2.76 |
| EA Length | 13.39 |
| EA Quantity | 1 |
| EA Weight | 13.24 |
| EA Width | 9.84 |
| Pack Type | Kraft Box |

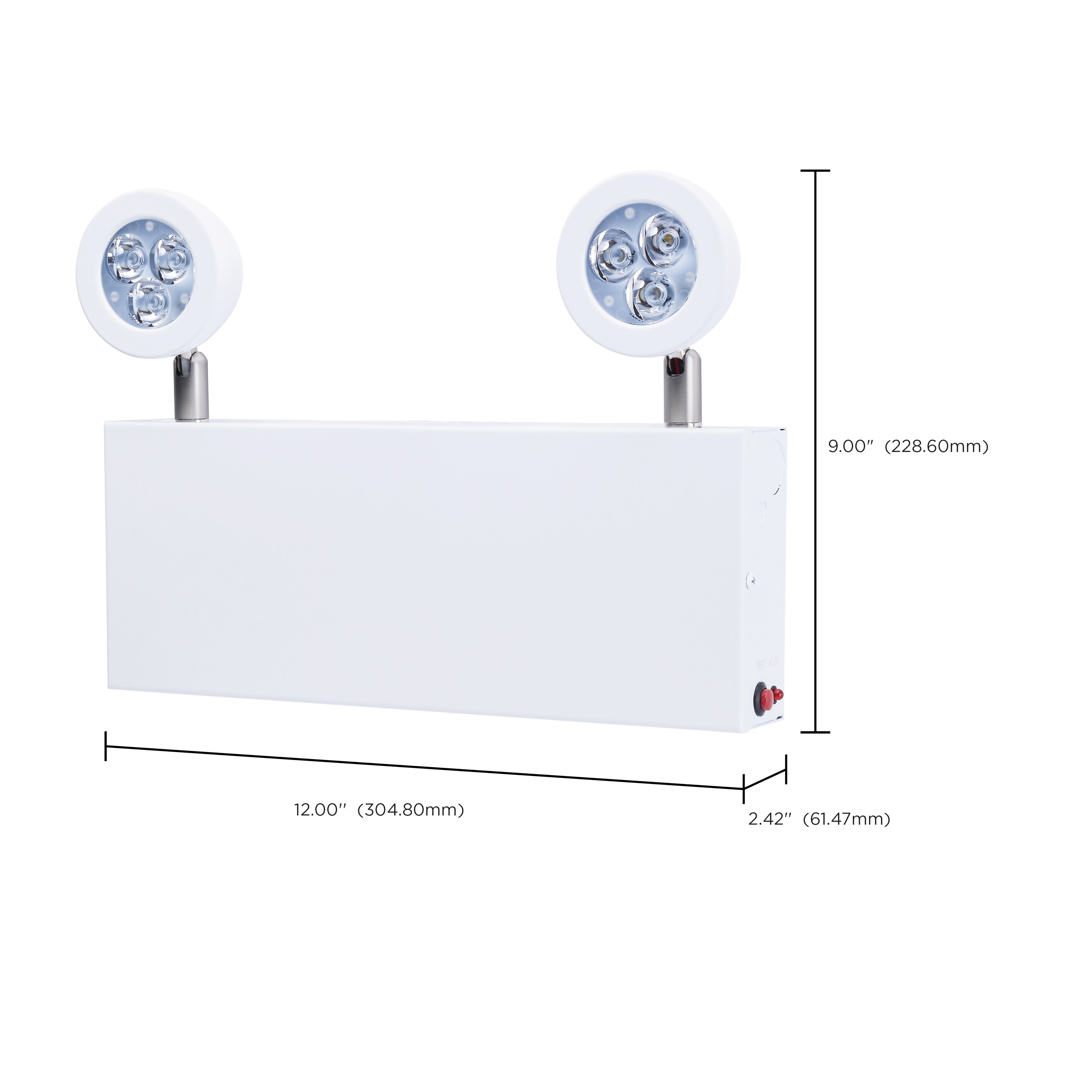

| Web Height | 9.0 |
| Web Length | 2.42 |
| Web Width | 12.0 |
