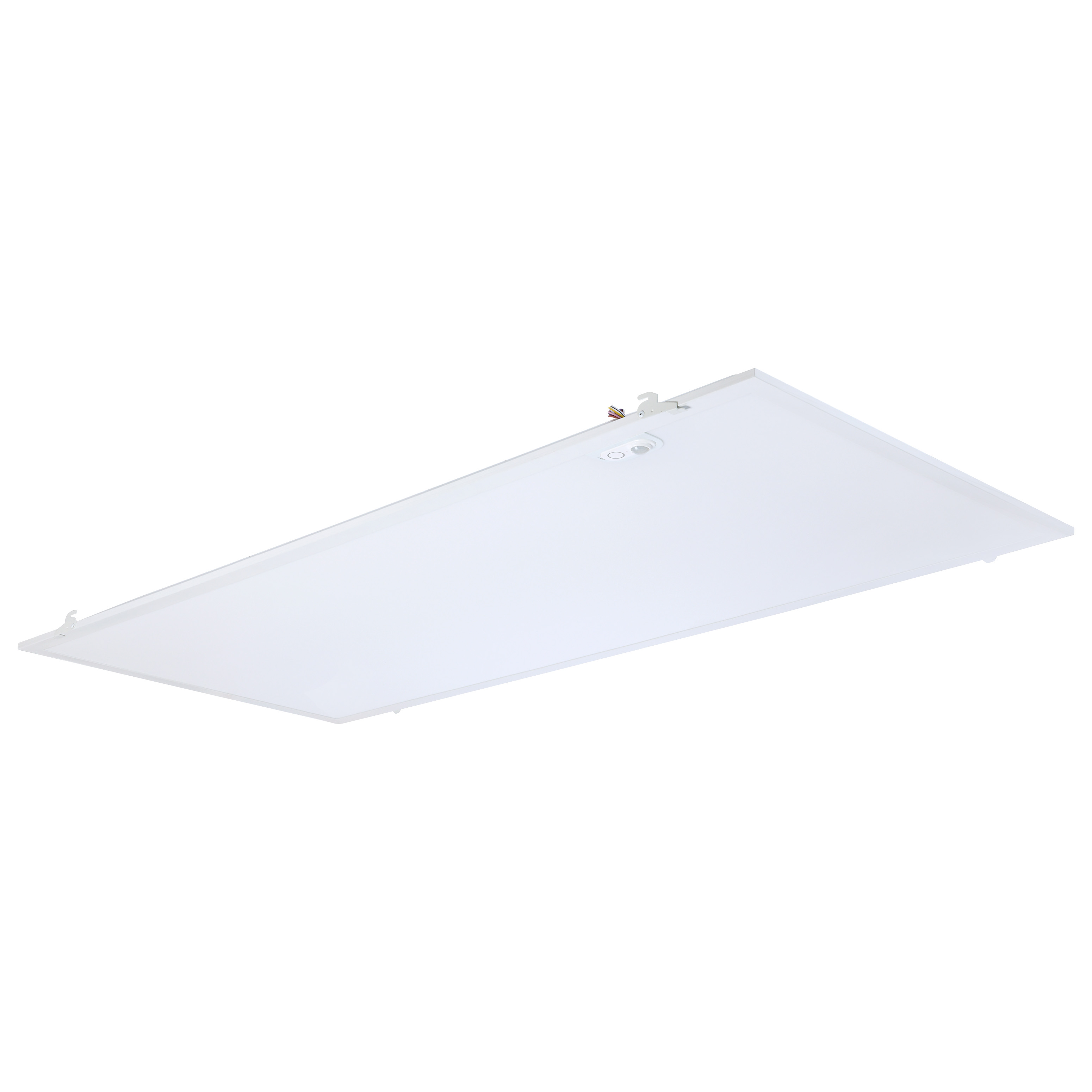

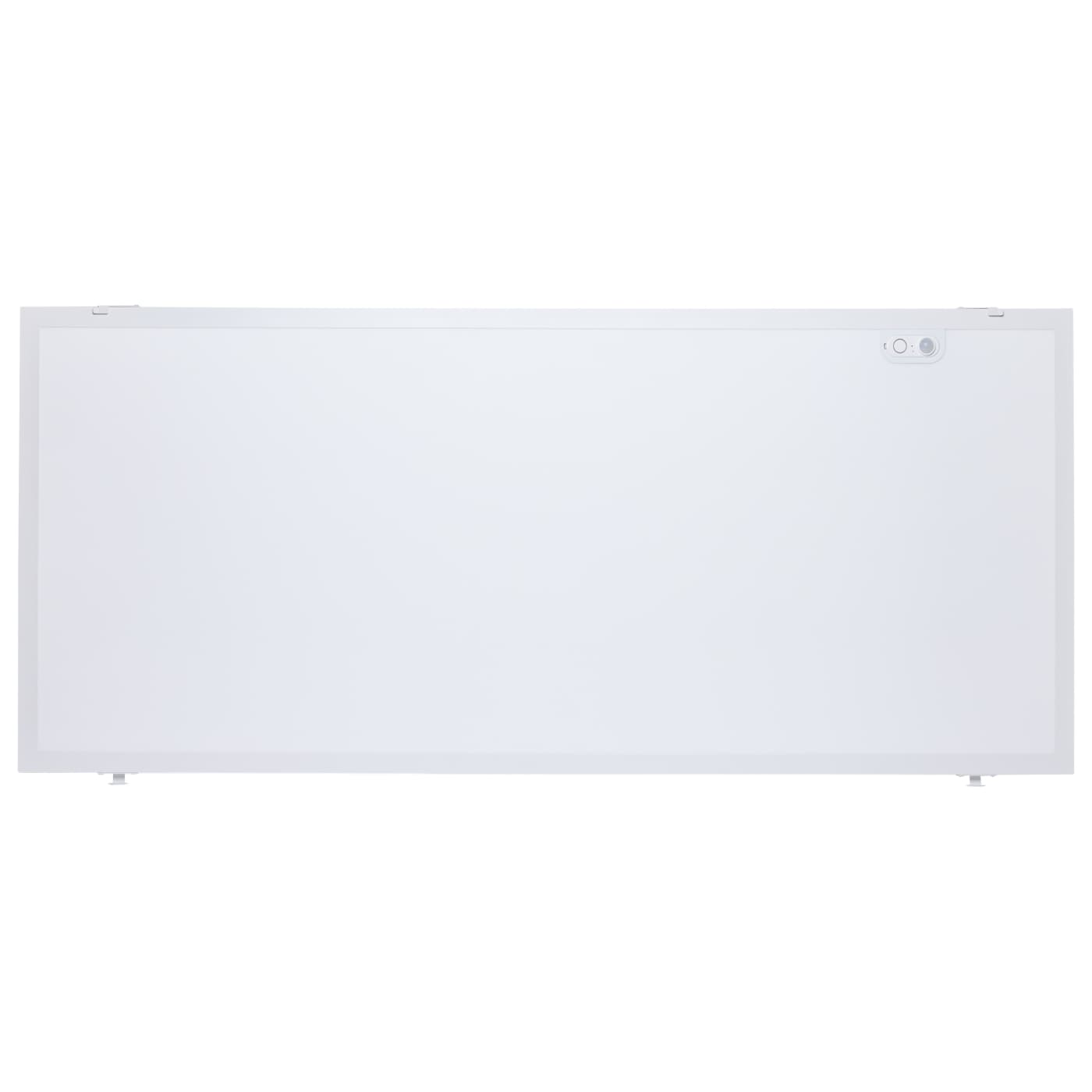

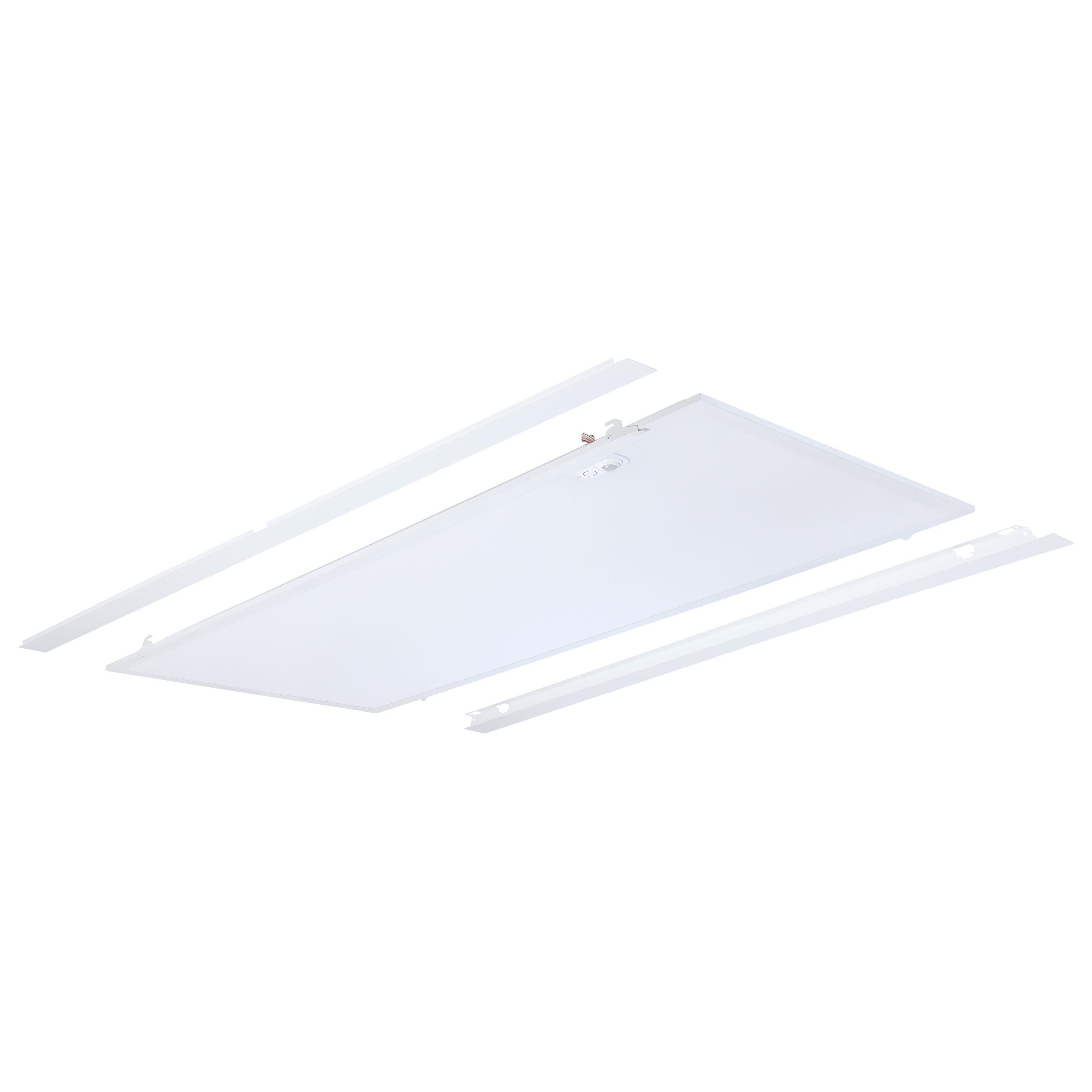

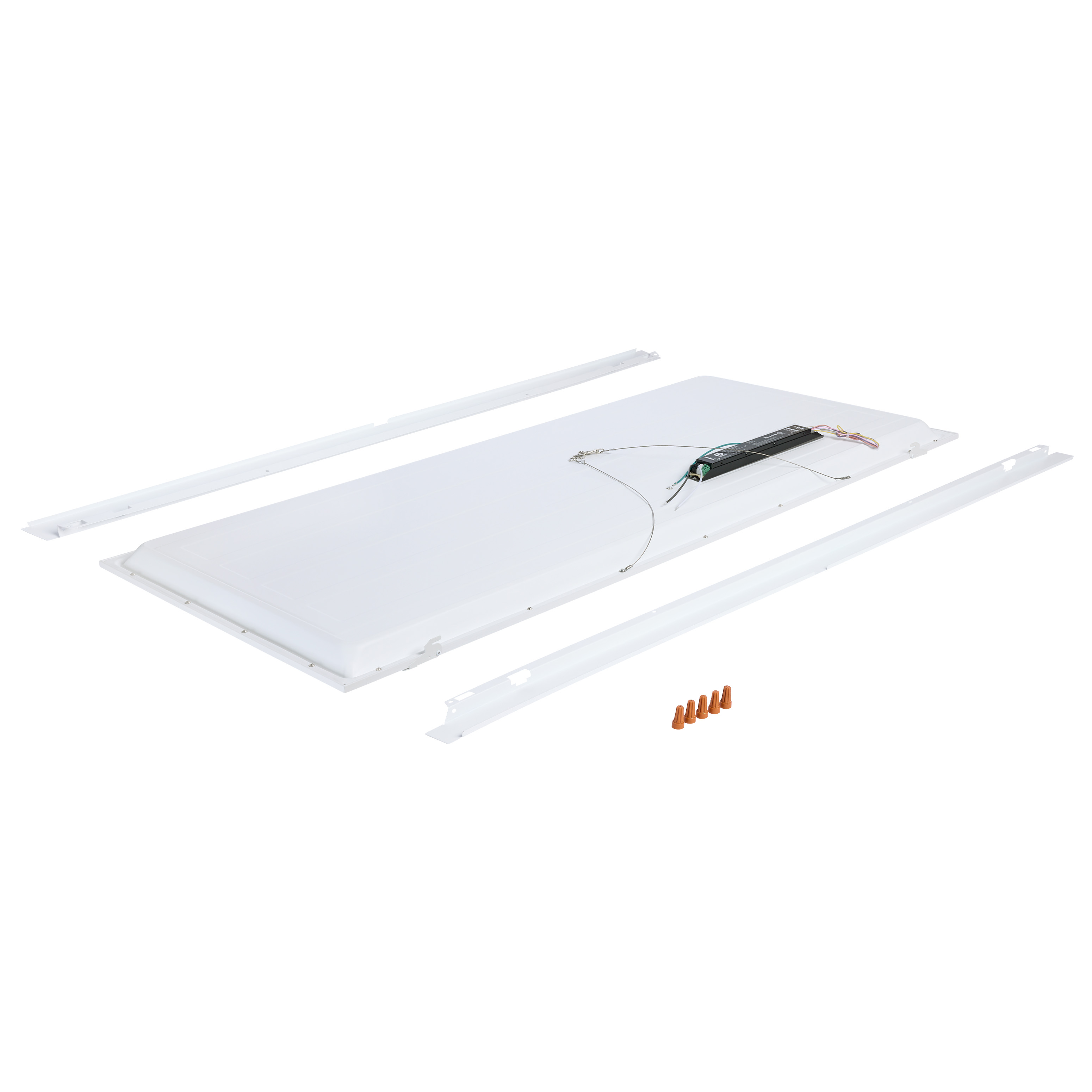

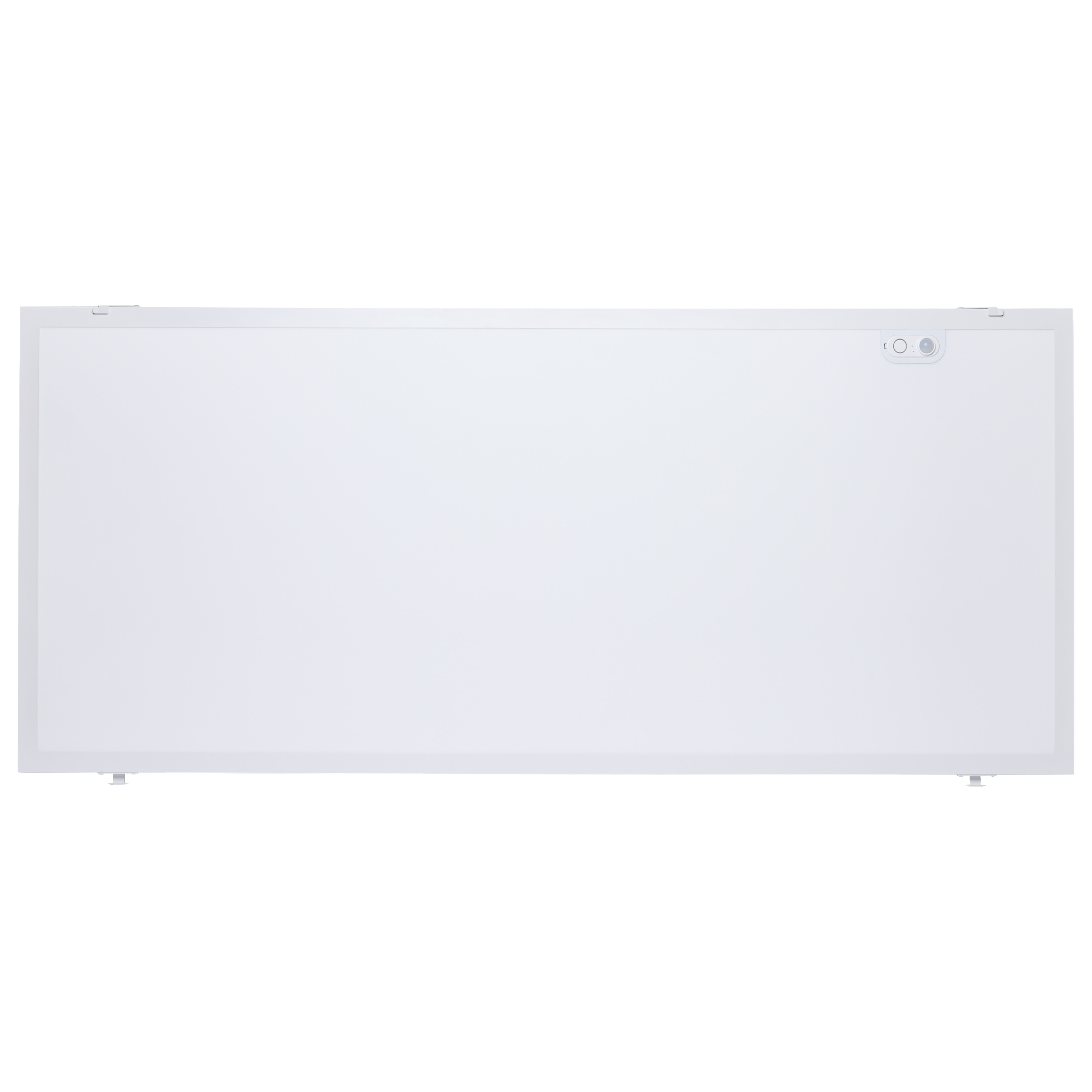

68-109 DOMINO 2X4 PANEL RETROFIT KIT

Description

SATCO NUVO's 68-109 2x4 Domino Flat Panel Troffer Retrofit Door Kit (50W) combines modern LED performance with integrated Domino network lighting control for a streamlined retrofit solution with minimal disruption. Designed to reduce upgrade material waste and simplify installation in existing troffer applications, this retrofit kit features tunable white CCT selectable technology from 3500K to 5000K and low optical flicker to support visual comfort in task-oriented environments. Constructed with a durable steel body and aluminum trim, the fixture delivers long-lasting performance with a clean architectural appearance. Domino is a hub-free, Bluetooth mesh solution that enables intelligent, zone-based lighting control through the Domino App across commercial spaces.

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Starfish Communication Protocol	Domino Bluetooth Mesh 2.4 GHz
Material	Steel
Fixture Type	Troffer
Product Notes	Default Wattage: 50W
Status	Active
Surge Protection	Built-in surge protection - 2KV
Total Harmonic Distortion	<20%
CCT Selectable	Yes
Wattage Selectable	No
Finish Family	White
Amps	0.458A

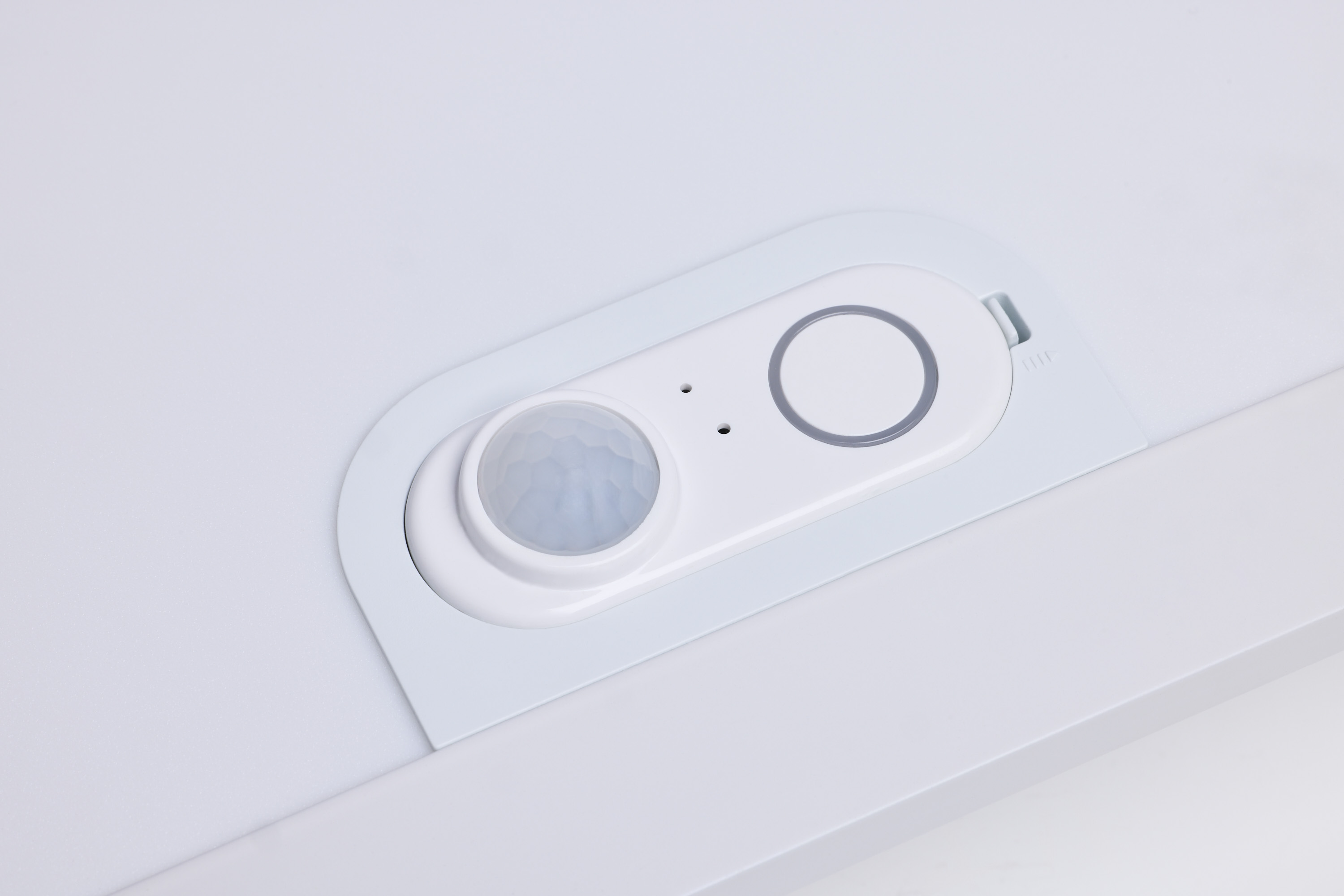

Integrated Features	Integrated NLC Sensor
IOT Enabled	Yes
Lens Finish	White
Lens Material	Polycarbonate (PC)
Lensed	Yes
Power Factor	0.9
SDS Class	LED_Fixture
Indoor Outdoor	Indoor
Product Technology	LED
Incandescent Equivalent	250W

Electrical

CCT (Kelvin Temp)	3500K-5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	120
Color Temp	Neutral White to Natural Light
CRI	80+
Dimming Type	0-10V Dimming
Operating Frequency	50/60Hz
Operating Temp	-4F to +113F (-20C to +45C)
Lumens	4050L-6750L
Volts	120V-347V
Watts	50W
Max Lumens	6750L
Connection	Hardwire

Physical

Lamp Base	Integrated
Finish	WHITE
ANSI Base	Integrated
Lamp Type	Integrated LED
Fixture Shape	Rectangle
Mounting Procedure	Ceiling

Additional Info

Warranty	5-Years

Documents

DOMINO Wireless Network Controlled Flat Panel Troffer Retrofit Door Kits With PIR, Daylight Harvesting And Color Tuning Sensor

68-109 Specifications

68-109_Instructions.pdf

DOMINO NETWORKED LIGHTING CONTROLS

Compliance

CA Prop 65	Lead
DLC ID	S-XBDB38
FCC Compliant	Yes
IP Rating	IP20
Location Rating	Damp
NSF Approved	No
ROHS Compliant	Yes
Safety Listing	cETLus
California Ban	Lawful for sale
DLC Approved	Yes
Title 20	Exempt
T24/JA8 Compliant	No

Packaging

UPC	045923413568
Case Cube	1.96
Case Height	23.82
Case Length	48.58
Case Quantity	1
Case UPC	10045923413565
Case Weight	4.95
Case Width	2.95
EA Cube	2.1812
EA Height	24.02
EA Length	48.58
EA Quantity	1
EA Weight	4.95
EA Width	3.23
Pack Type	Box

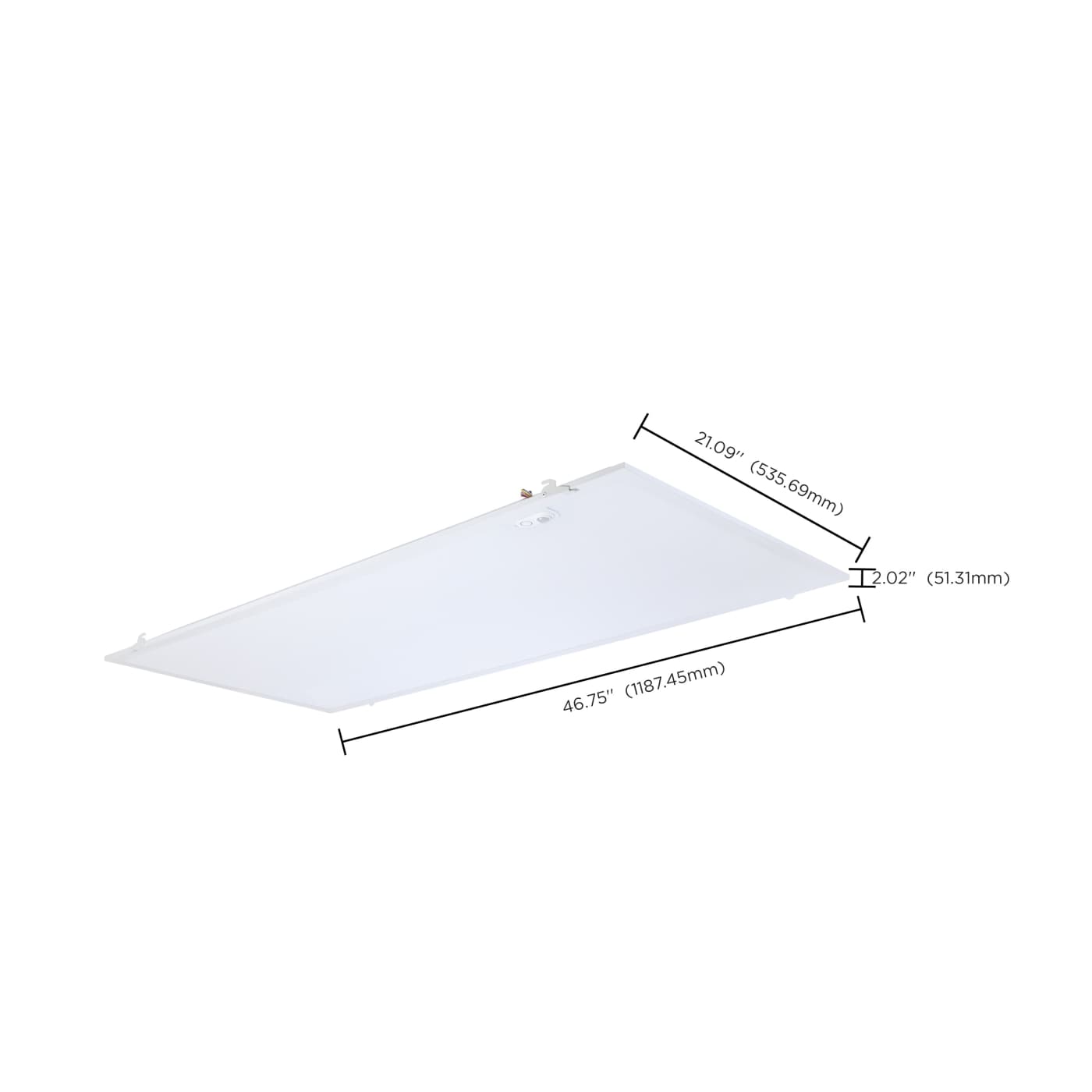

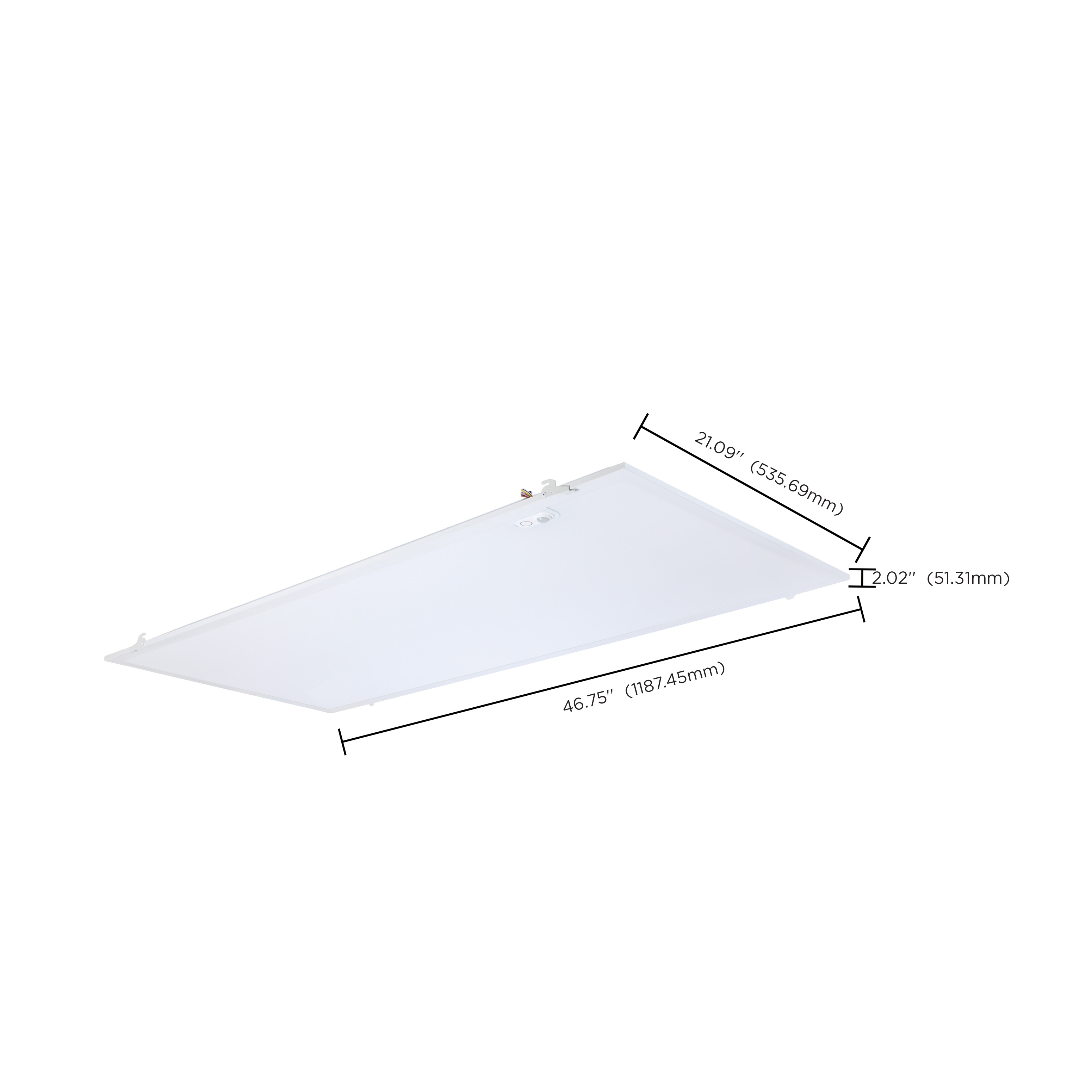

Web Height	2.02
Web Length	46.75
Web Width	21.09
