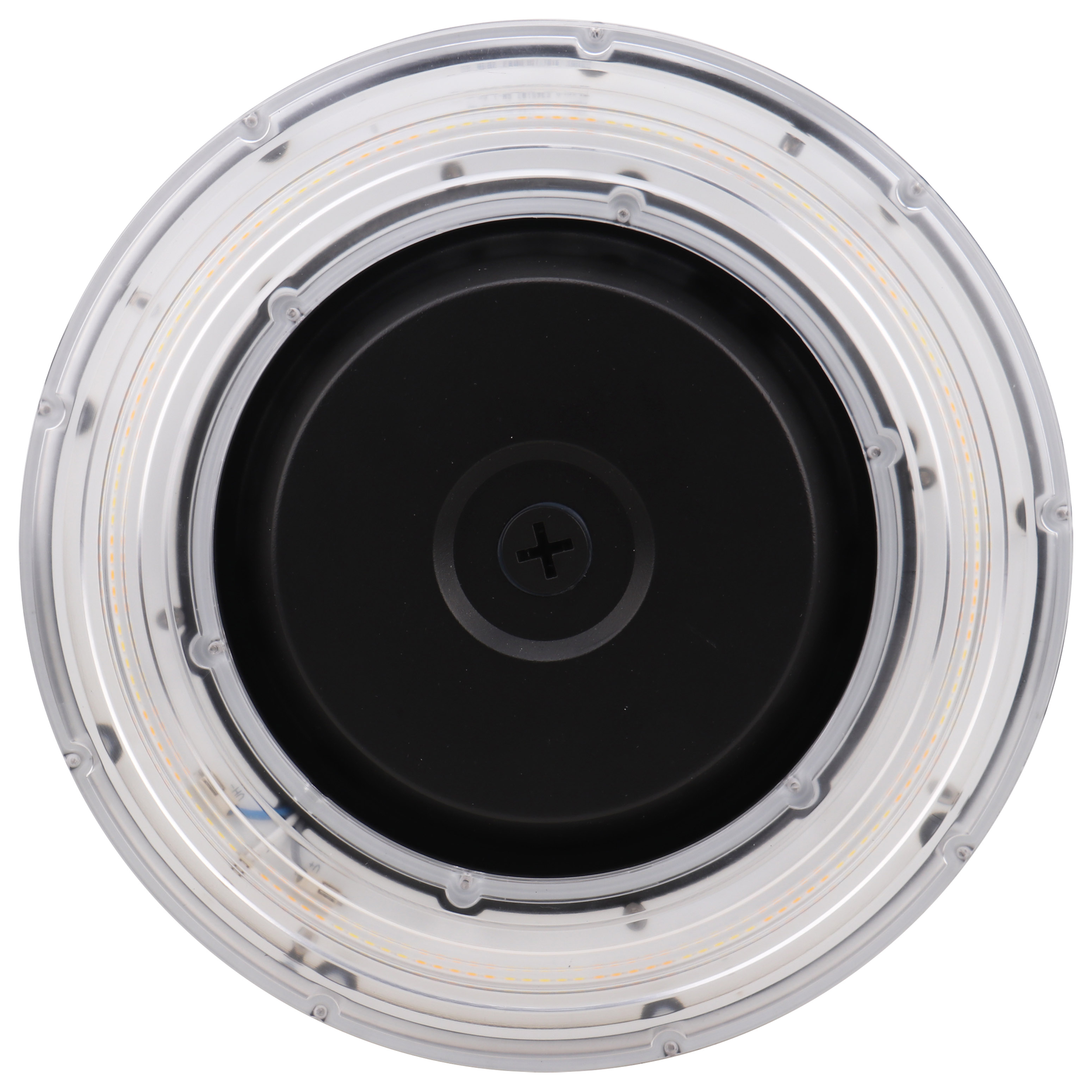

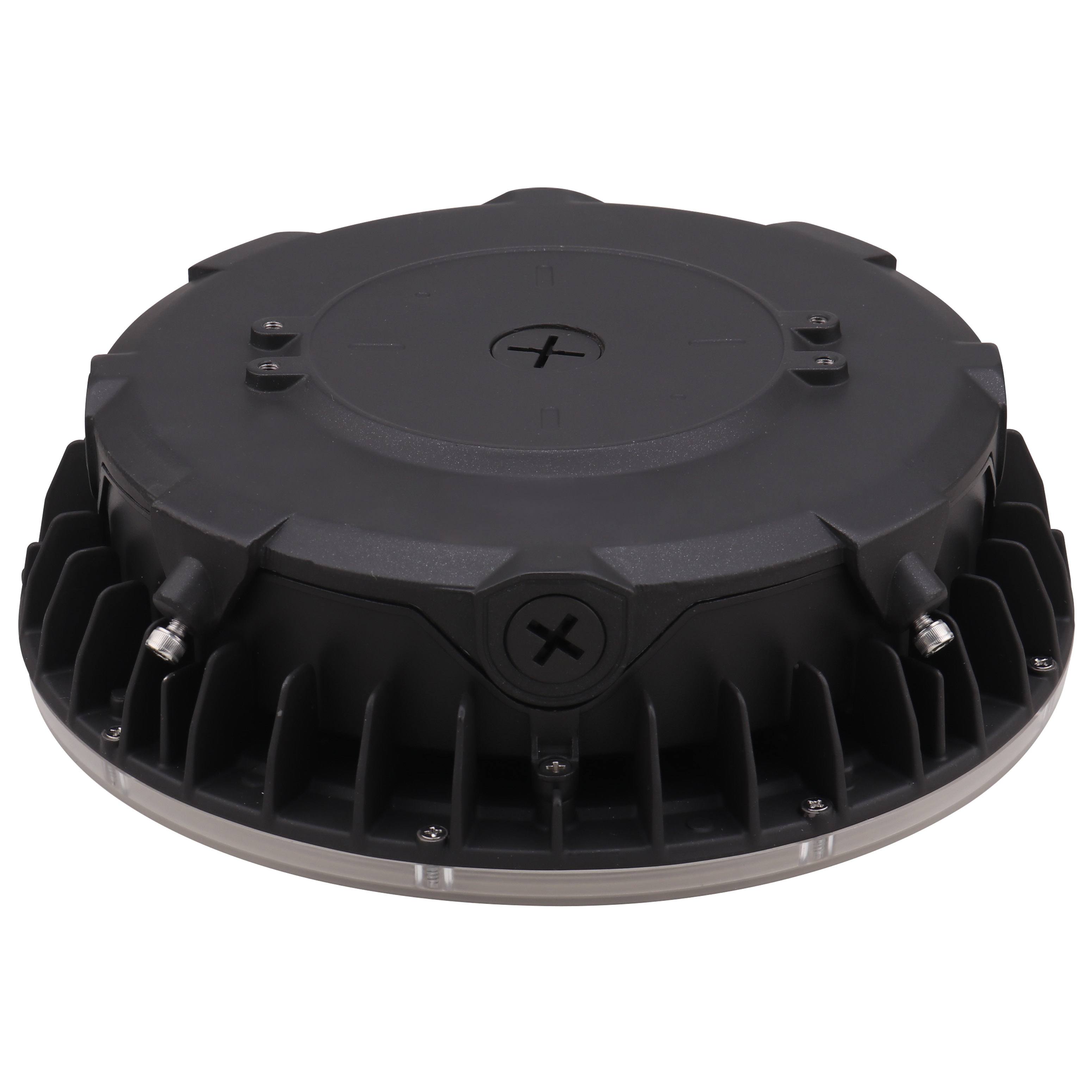

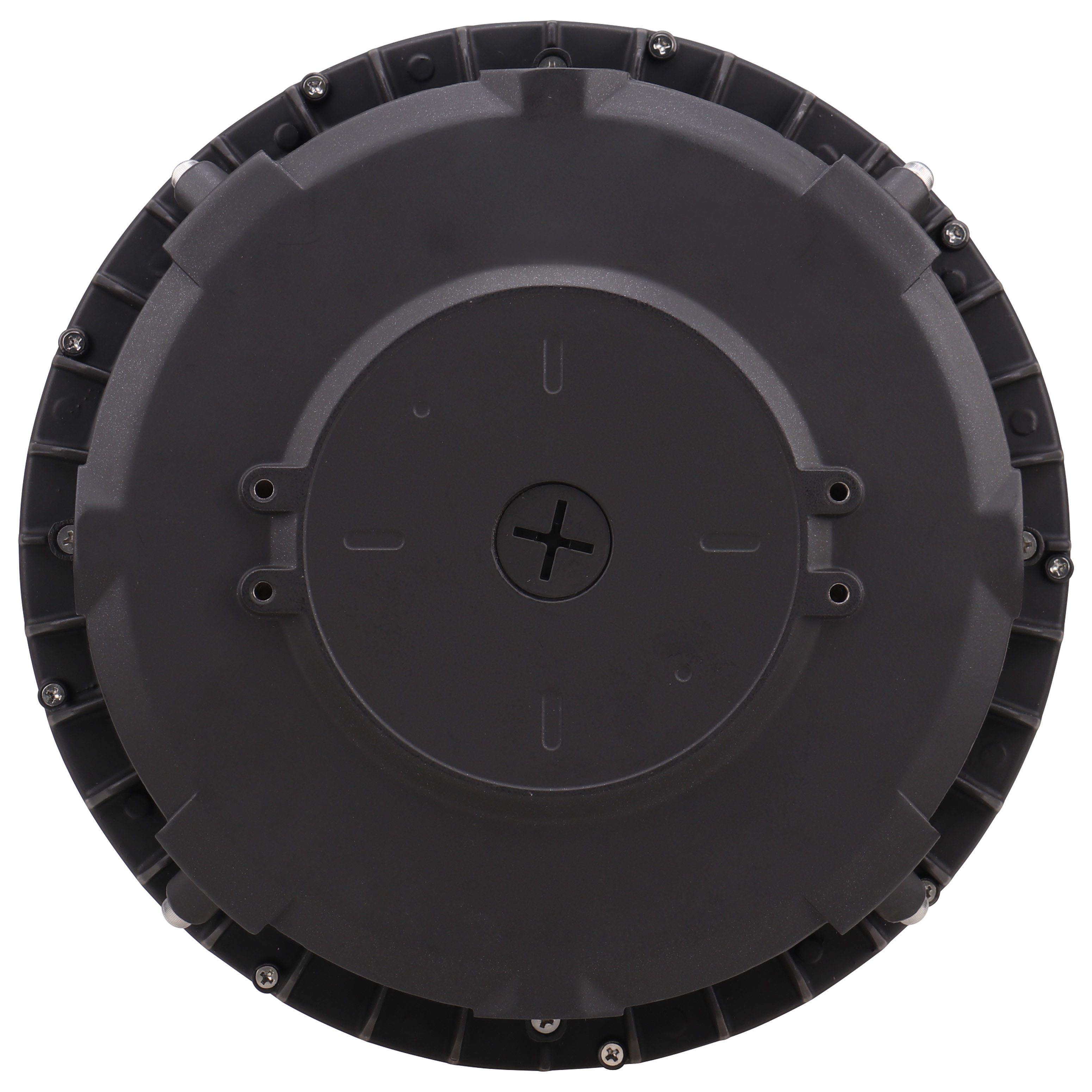

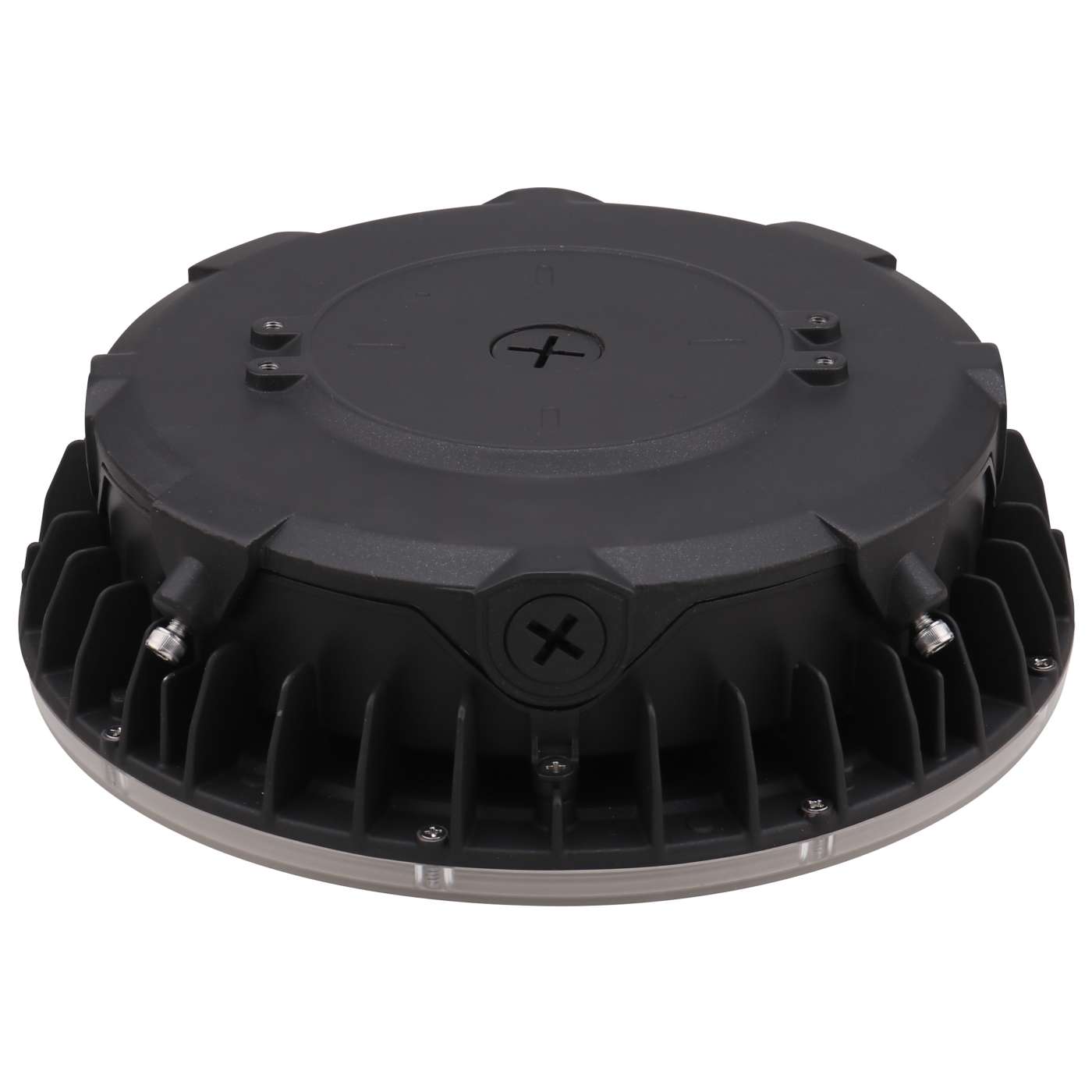

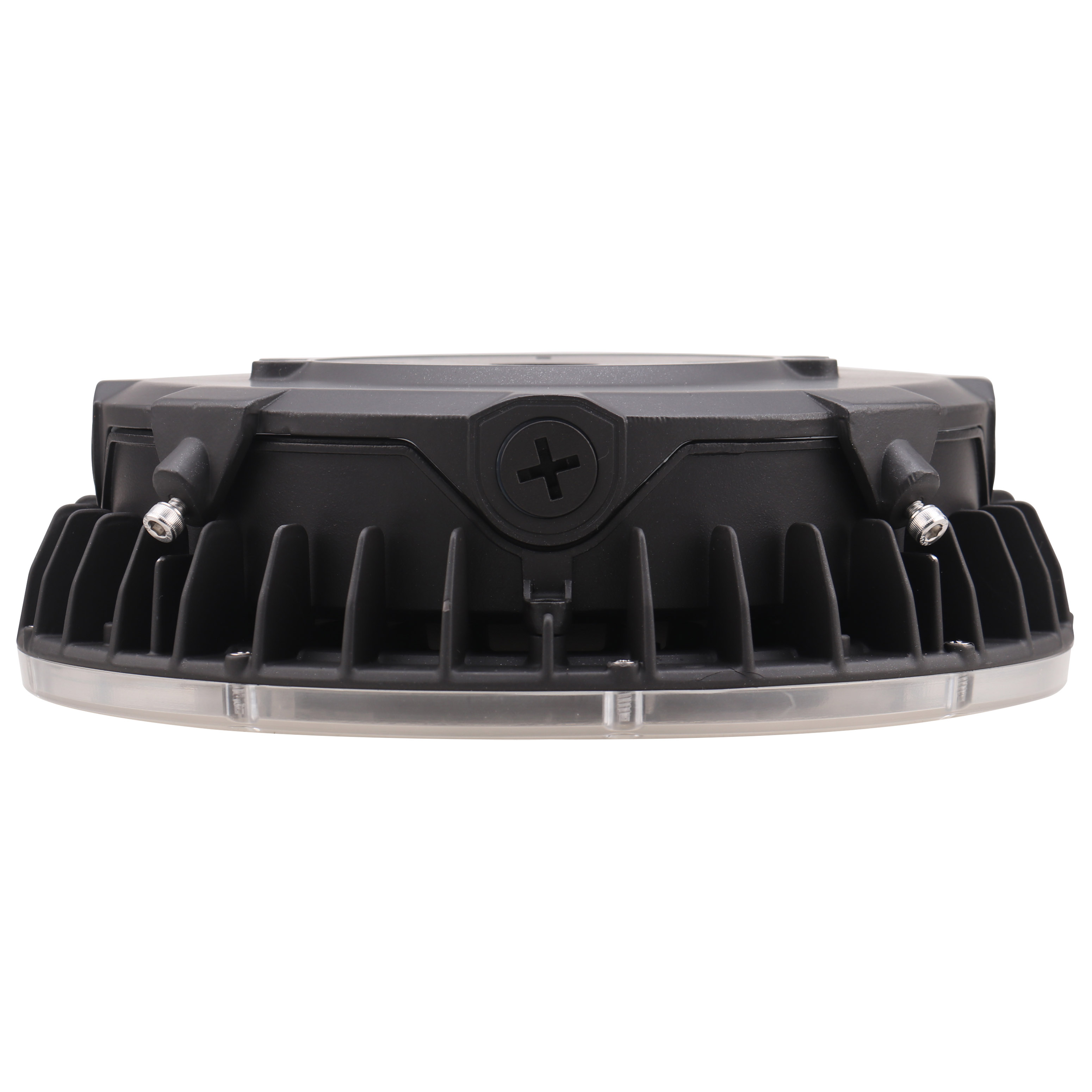

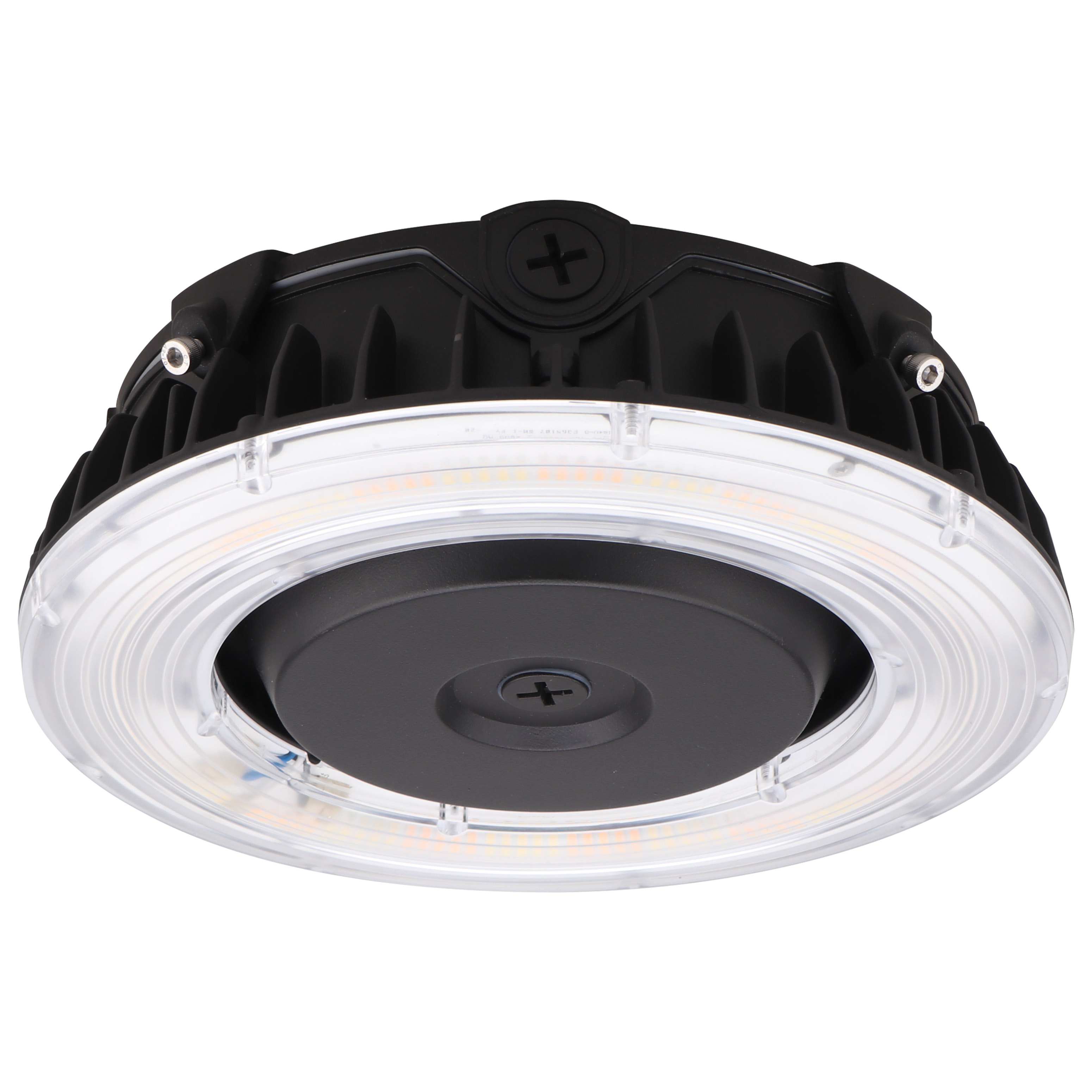

68-152 DOMINO 55W ROUND CANOPY LIGHT

Description

SATCO NUVO's 68-152, 55W LED Round Canopy Light in bronze is the perfect combination of durability and versatile functionality-now available with integrated Domino network lighting control for simplified setup and management through the Domino App. This rugged fixture is IK08 impact rated and constructed from premium die-cast aluminum to withstand demanding environments. With 3 CCT selectable options (3000K/4000K/5000K), it offers flexibility during installation to suit a variety of applications, from parking garages and loading docks to outdoor security lighting. Domino is a hub-free, Bluetooth mesh solution that enables intelligent, zone-based control across commercial lighting environments with no additional hardware required.

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Starfish Communication Protocol	Domino Bluetooth Mesh 2.4 GHz

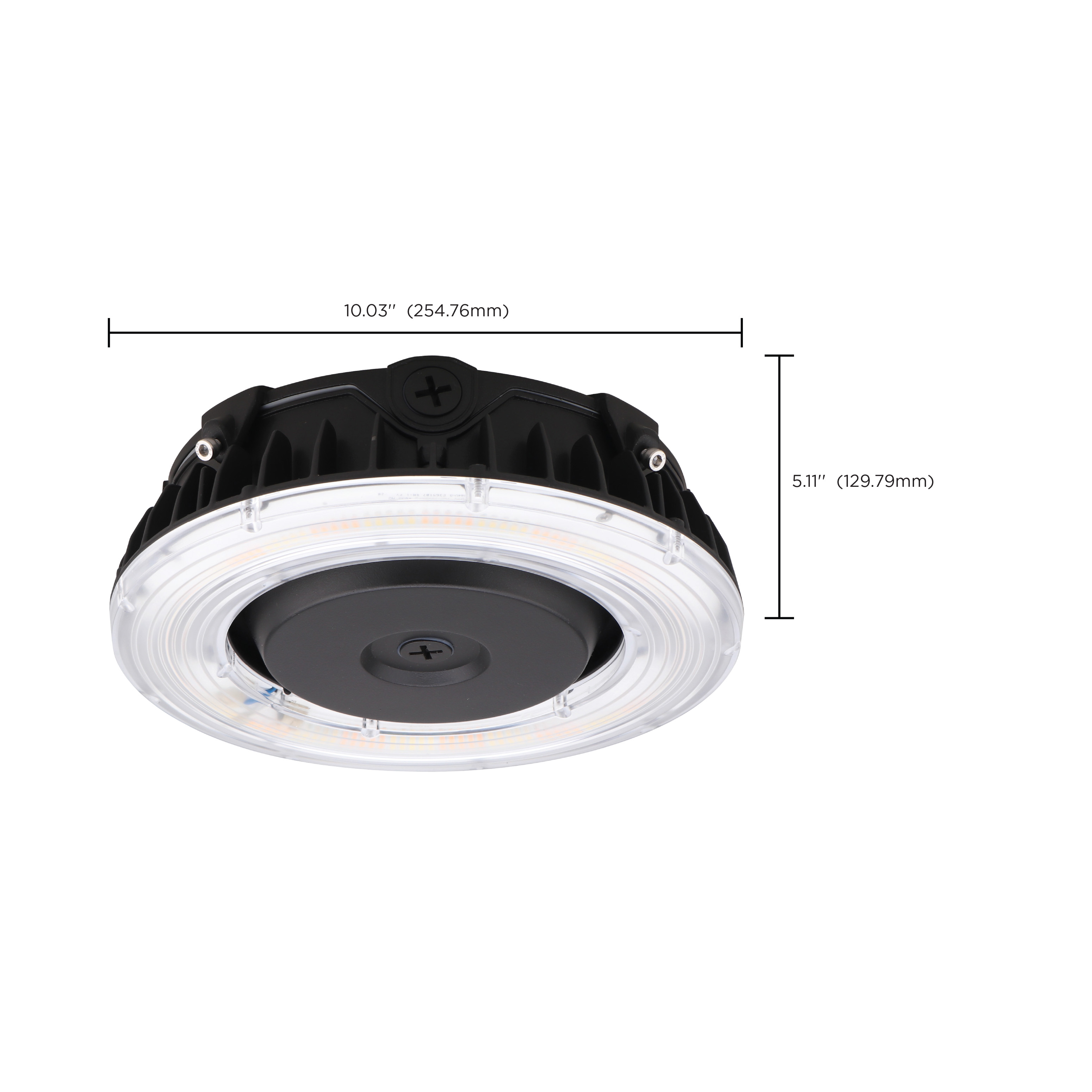

Diameter	10.03
Material	Die-cast Aluminum
Fixture Type	Canopy
Status	Active
Surge Protection	Built-in surge protection - 6KV
CCT Selectable	Yes
Wattage Selectable	No
Finish Family	Bronze
Amps	0.458-0.159A
Has Camera	No
Integrated Features	Integrated NLC Sensor
IOT Enabled	Yes
Lens Finish	Clear
Lens Material	Polycarbonate (PC)
Lensed	Yes
Photo Cell	No
Power Factor	0.9
Sloped Ceiling Compatible	Yes
Indoor Outdoor	Indoor and Outdoor
Product Technology	LED
Incandescent Equivalent	125W

Electrical

CCT (Kelvin Temp)	3000K/4000K/5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	150
Color Temp	Soft White to Natural Light
CRI	80+
Dimming Type	Only With Domino App
Operating Frequency	50/60Hz
Operating Temp	-22F to +113F (-30C to +45C)
Lumens	7733L/8002L/7920L
Volts	120V-347V
Watts	55W
Max Lumens	8002L
Connection	Hardwire

Physical

Lamp Base	Integrated
Finish	BRONZE
ANSI Base	Integrated
Lamp Type	Integrated LED
Fixture Shape	Round
Mounting Procedure	Ceiling, Ceiling Pendant

Additional Info

Warranty	5-Years

Documents

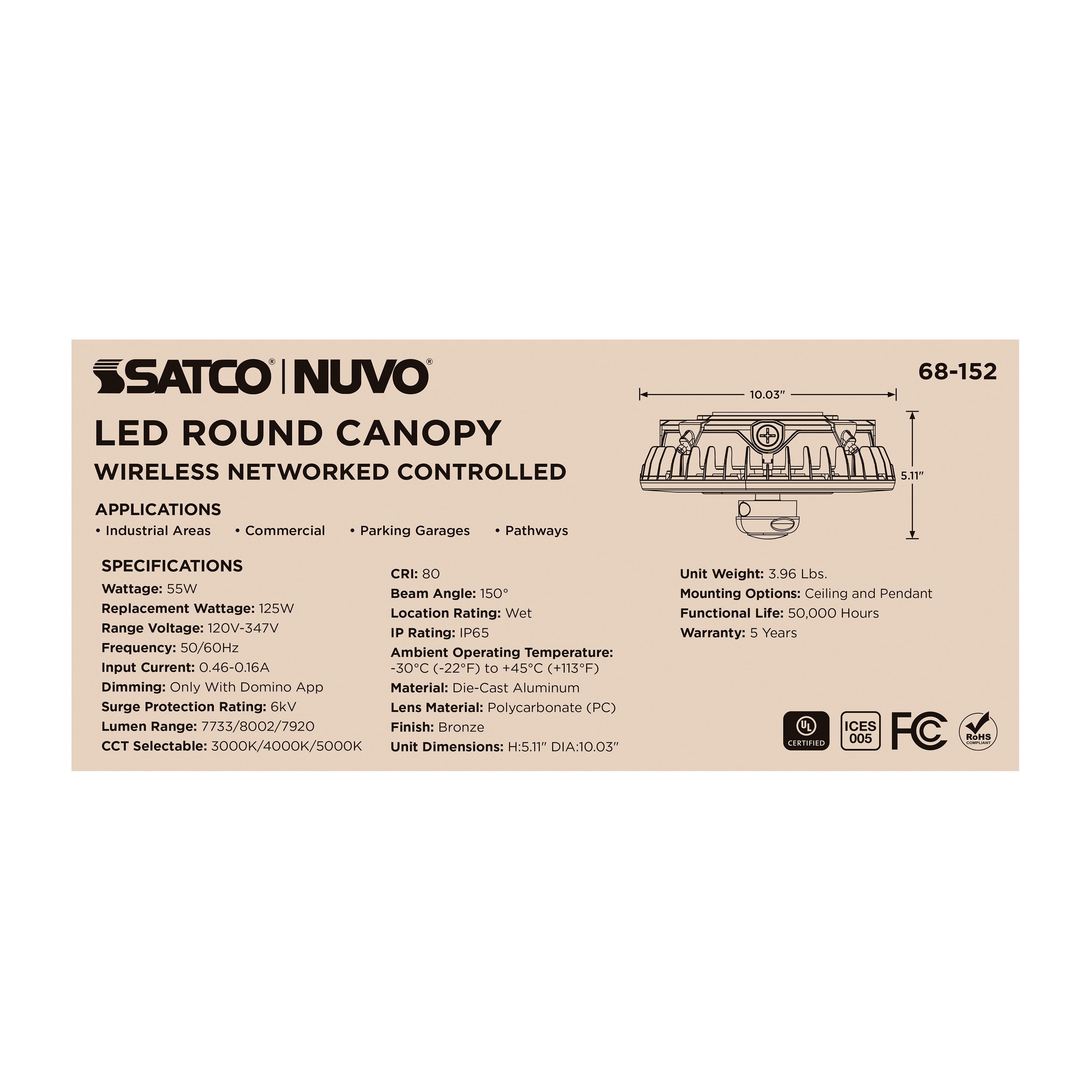

68-152 Specifications

68-152_Instructions.pdf

DOMINO NETWORKED LIGHTING CONTROLS

DOMINO NETWORKED LIGHTING CONTROLS APPLICATION GUIDE

68-152_Spec_Chart.pdf

Compliance

ADA Compliant	No
Bug Rating	B3-U3-G2
CA Prop 65	Lead
DLC ID	S-KRB2LB
FCC Compliant	Yes
IP Rating	IP65
Location Rating	Wet
NSF Approved	No
ROHS Compliant	Yes
Safety Listing	cULus
California Ban	Lawful for sale
DLC Approved	Yes
Title 20	Exempt
T24/JA8 Compliant	No

Packaging

UPC	045923683374
Case Cube	1.1531
Case Height	12.6
Case Length	13.39
Case Quantity	2
Case UPC	10045923683371
Case Weight	11.7
Case Width	11.81
EA Cube	0.482
EA Height	5.51
EA Length	12.8
EA Quantity	1
EA Weight	4.98
EA Width	11.81
Pack Type	Box
Web Height	5.11
Web Width	10.03
