68-171

DOMINO 8.5" CANOPY LIGHT SQ

  • DOMINO
  • 40 Watt 8.5 Inch LED Canopy Light
  • 3K/4K/5K CCT Selectable
  • Square Shape
  • 120-347 Volt
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

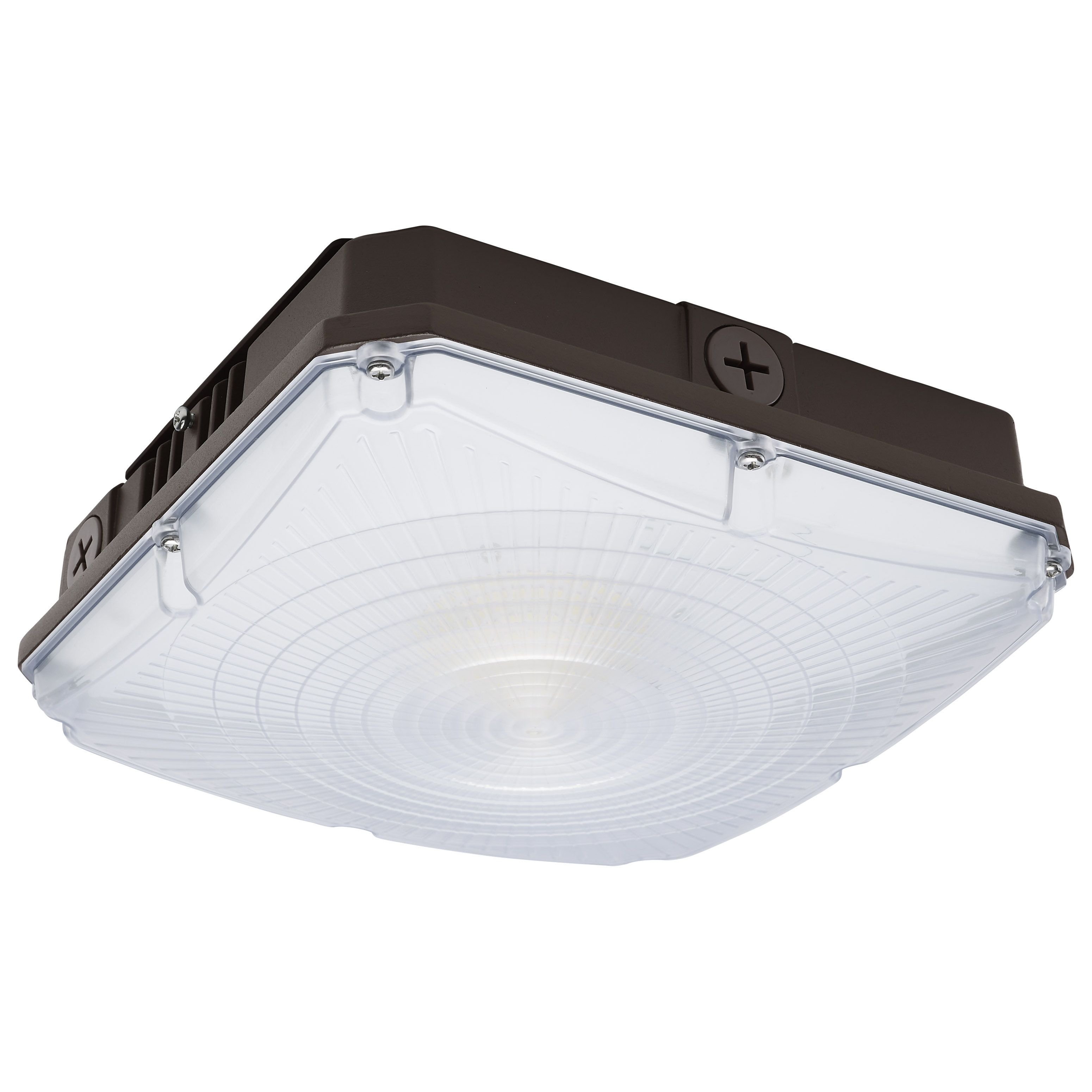

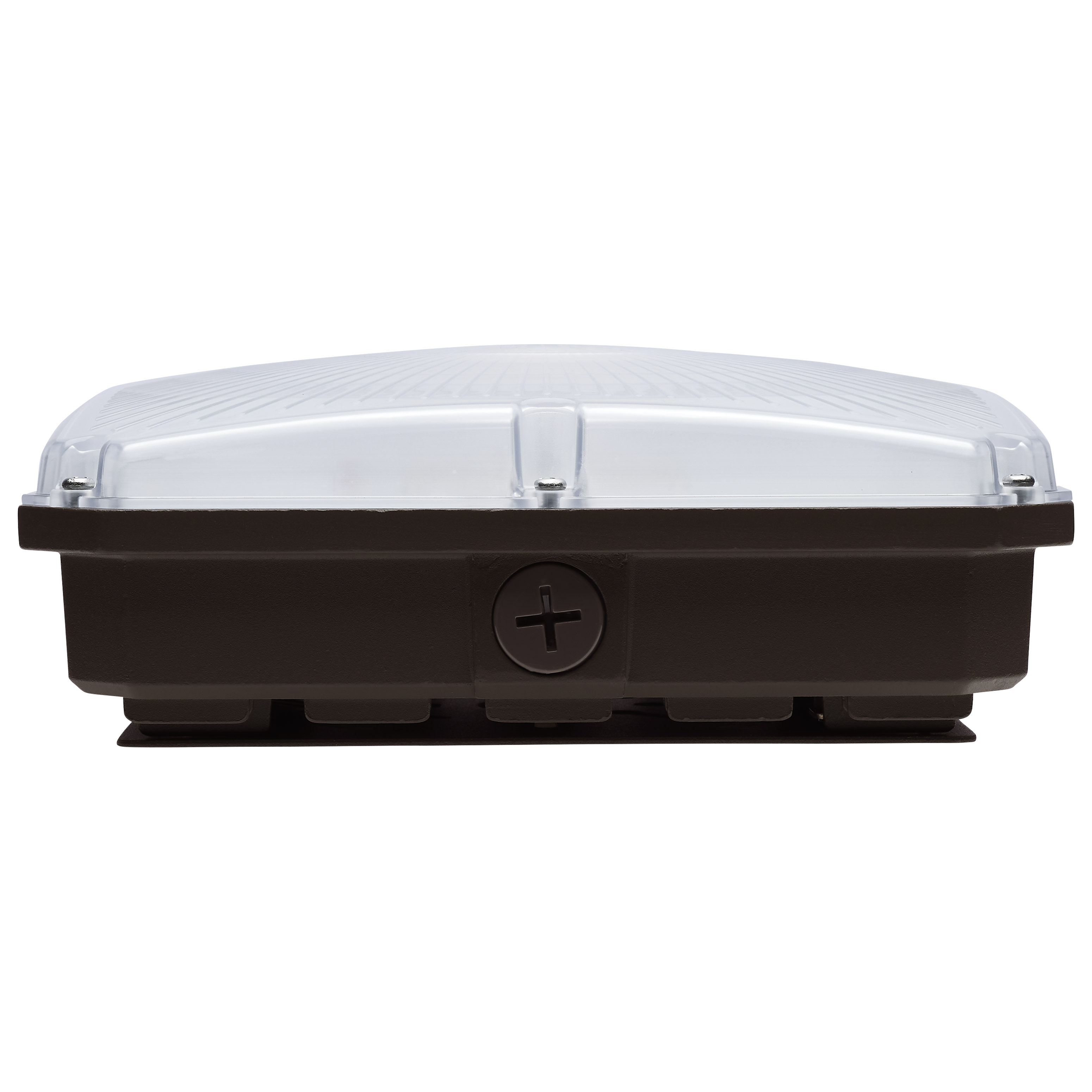

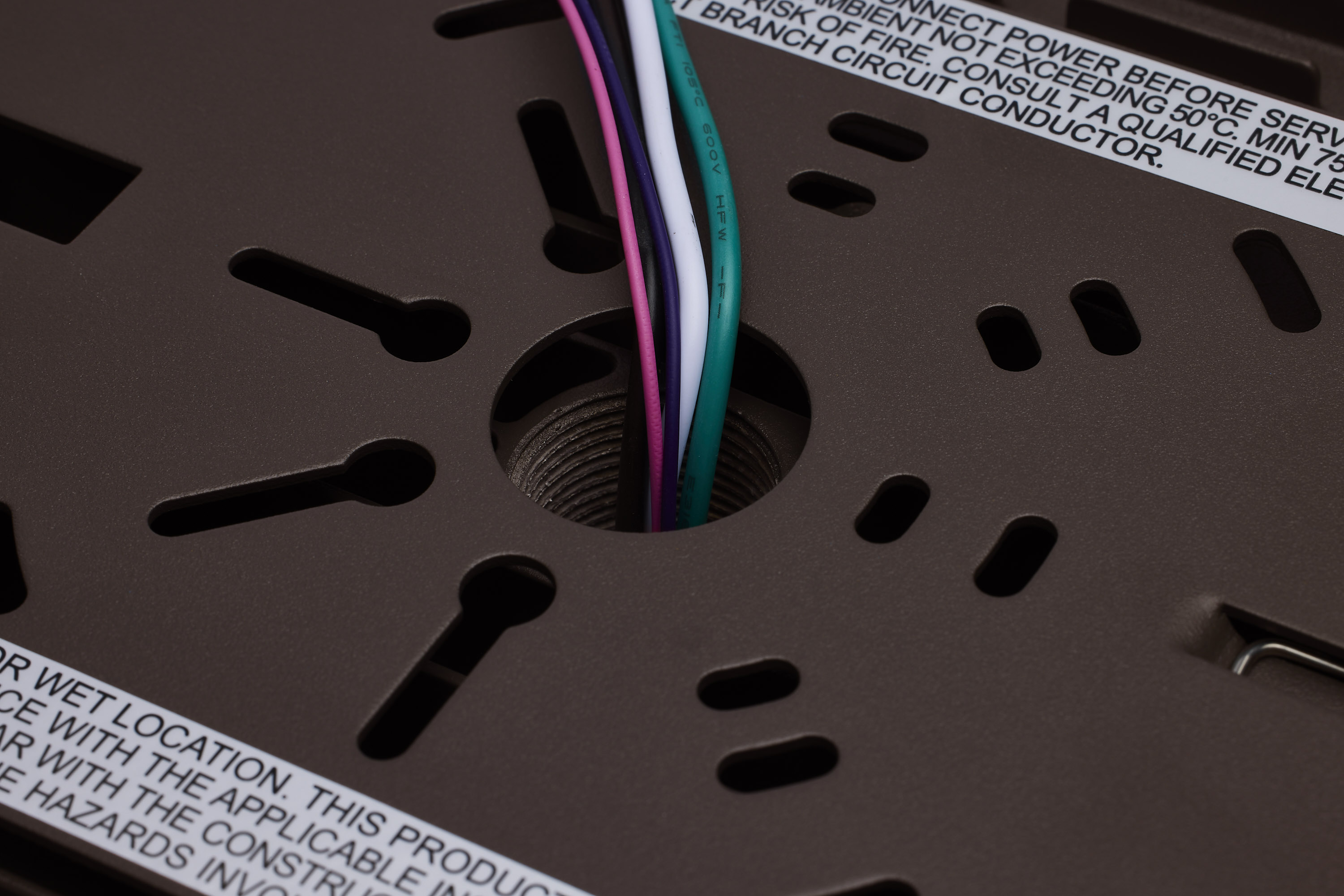

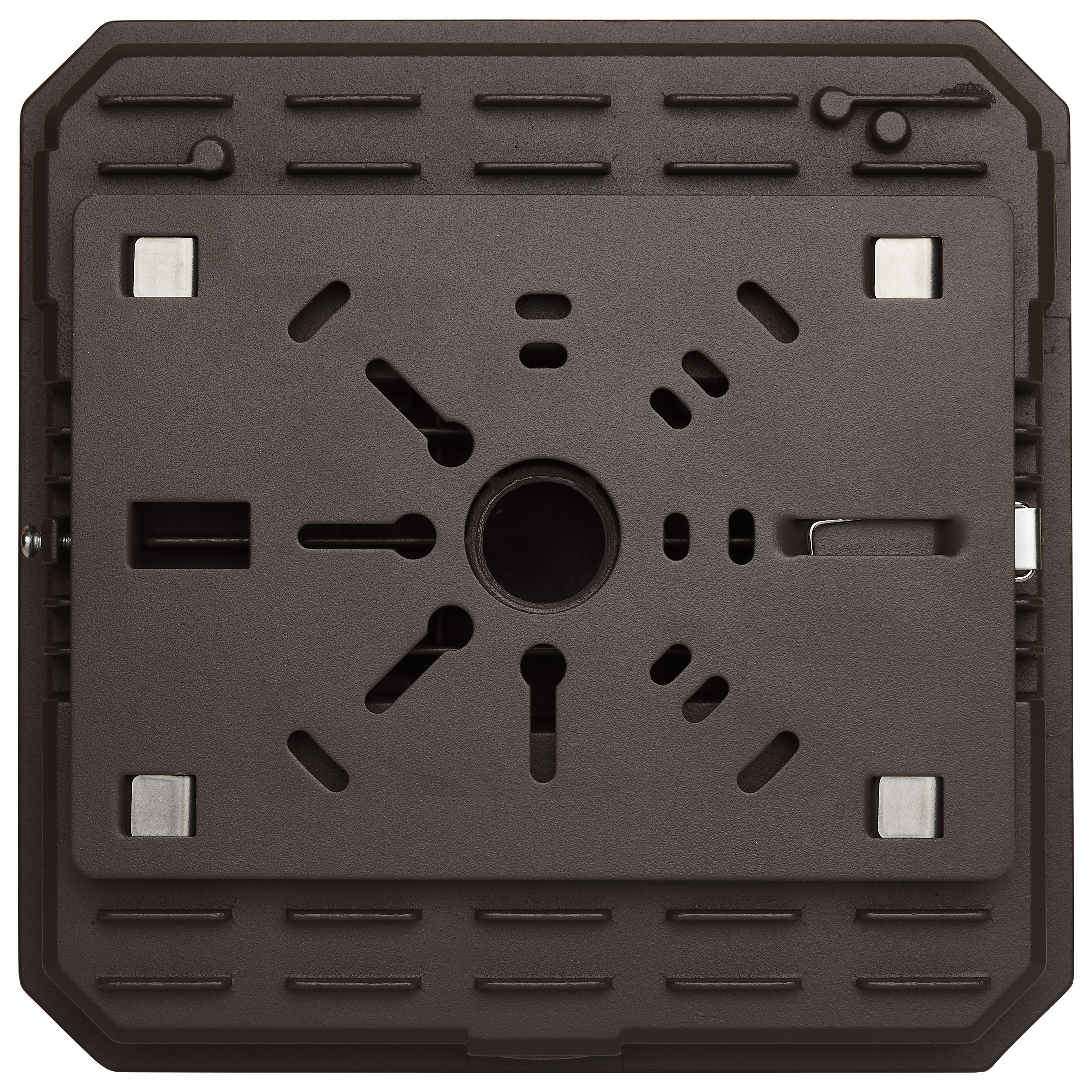

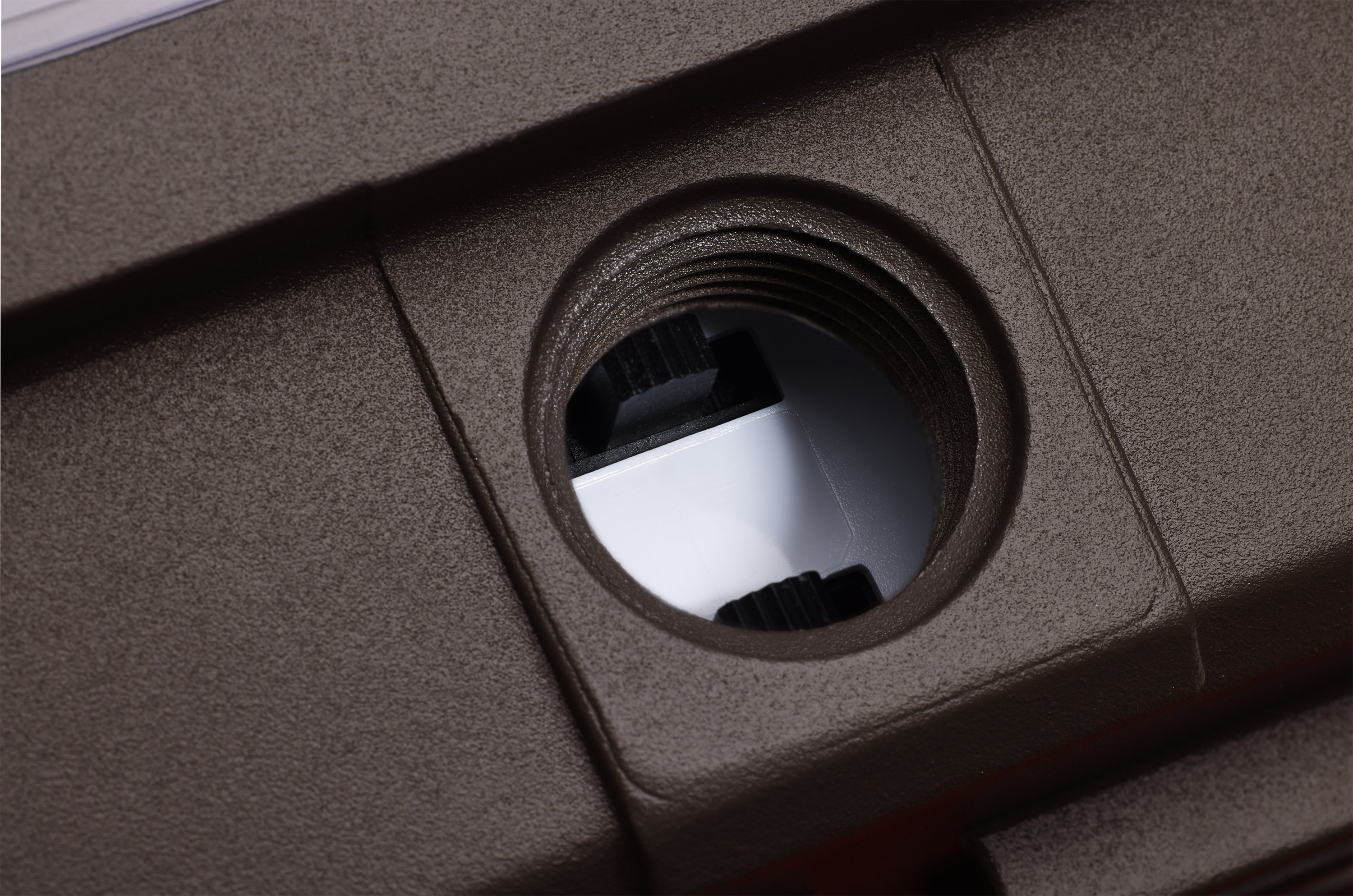

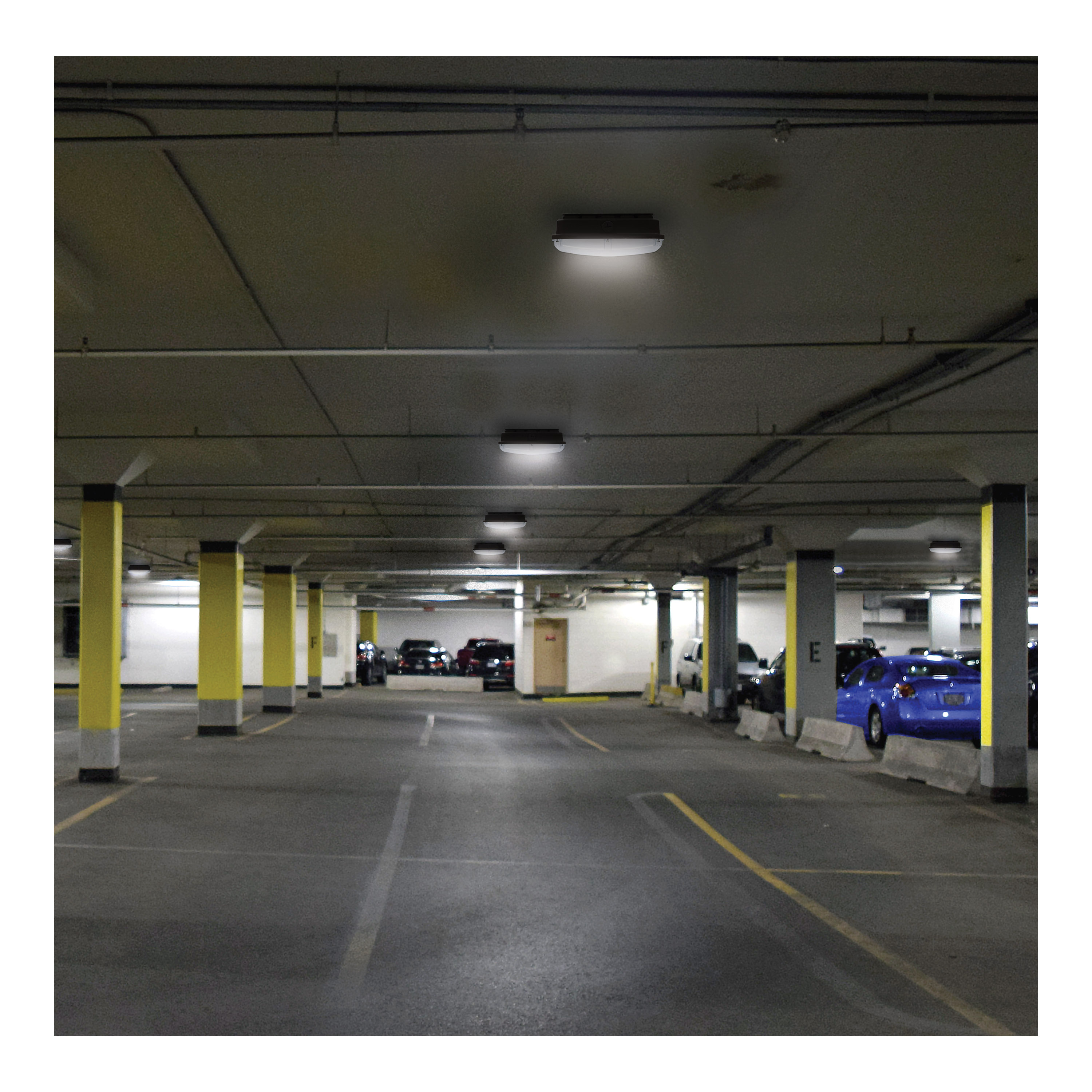

SATCO NUVO's 40W, 8.5 inch square canopy fixture, item #68-171, is now available with integrated Domino network lighting control for simplified setup and intelligent zone-based management through the Domino App. Designed for durability and versatility, this fixture offers three selectable color temperatures-3000K, 4000K, and 5000K-making it an ideal solution for a wide range of commercial applications. Installation is streamlined with a hinged universal bracket for surface mounting or a 3/4" pendant option, while dual side knockouts allow for fast, efficient wiring access. The bronze die-cast aluminum housing is paired with a vandal-resistant IK08-rated polycarbonate lens, an IP65 wet location rating, and a 6kV surge protection to ensure reliable performance in harsh environments. Domino's hub-free, Bluetooth mesh technology brings next-level control to this dependable lighting solution.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Starfish Communication ProtocolDomino Bluetooth Mesh 2.4 GHz
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusActive
Surge ProtectionBuilt-in surge protection - 6KV
CCT SelectableYes
Wattage SelectableNo
Finish FamilyBronze
Amps0.380A-0.130A
Has CameraNo

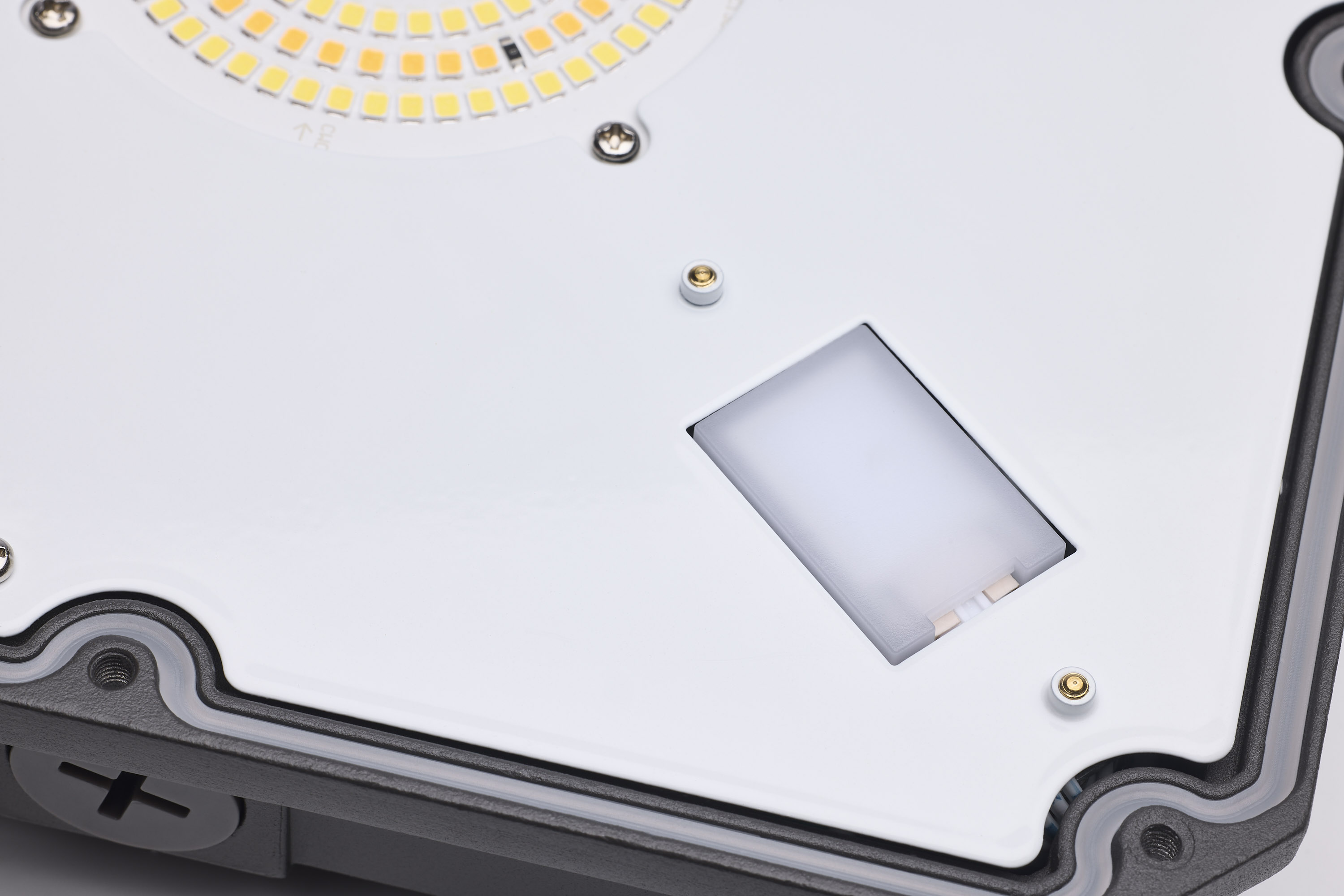

Integrated FeaturesIntegrated NLC Sensor
IOT EnabledYes
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
LensedYes
Photo CellNo
Power Factor0.9
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Incandescent Equivalent250W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempSoft White to Natural Light
CRI80+
Dimming TypeOnly With Domino App
Operating Frequency50/60Hz
Operating Temp-4F to +113F (-20C to +45C)
Lumens5400L
Volts120V-347V
Watts40W
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Mounting ProcedureCeiling
Additional Info
Warranty5-Years
Compliance
ADA CompliantNo
Bug RatingB2-U3-G2
CA Prop 65Lead
DLC IDS-9FP2MV
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923683343
Case Cube1.4205
Case Height10.43
Case Length19.29
Case Quantity6
Case UPC10045923683340
Case Weight25.79
Case Width12.2
EA Cube0.1756
EA Height9.25
EA Length9.06
EA Quantity1
EA Weight3.35
EA Width3.62
Pack TypeBox

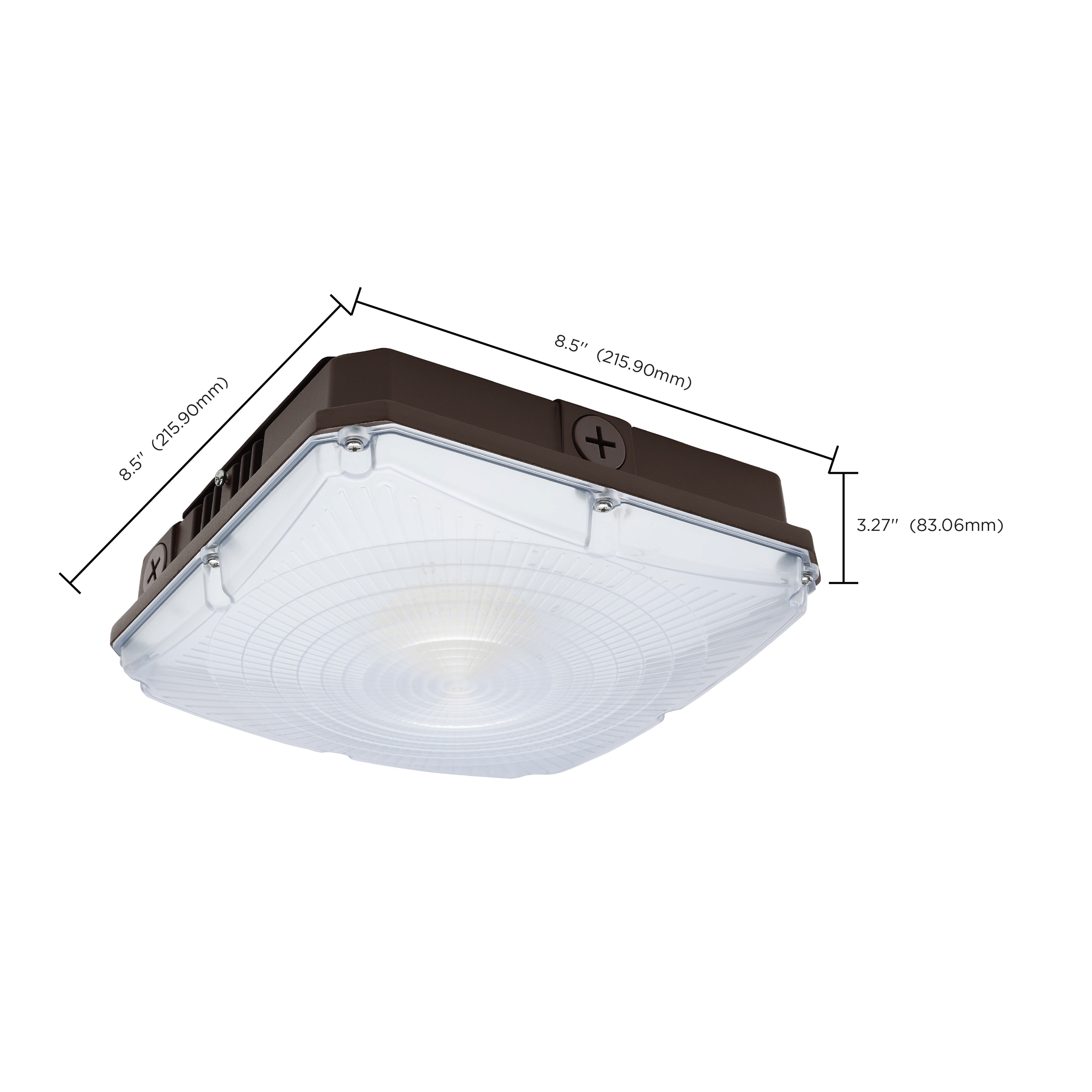

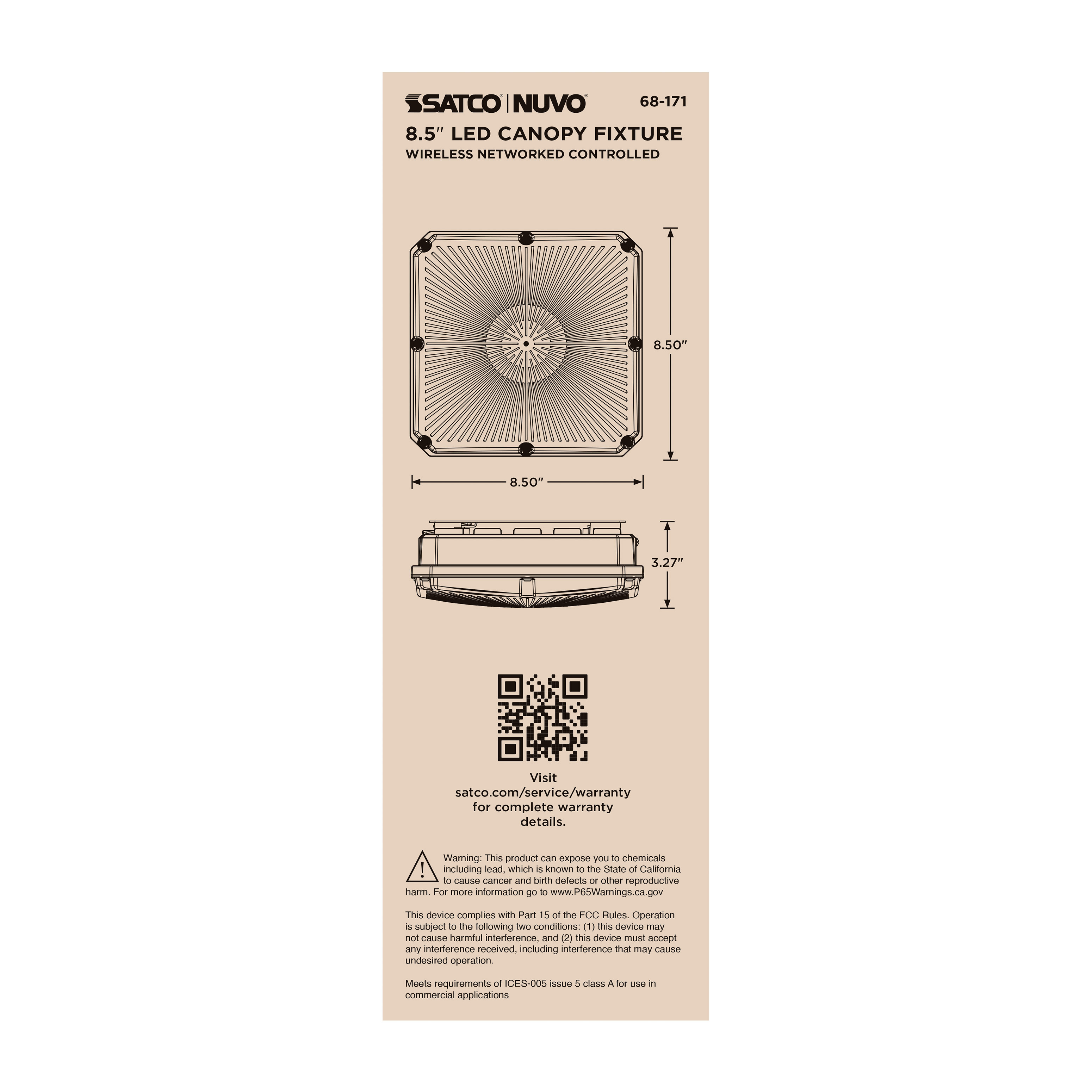

Web Height3.27
Web Length8.5
Web Width8.5
