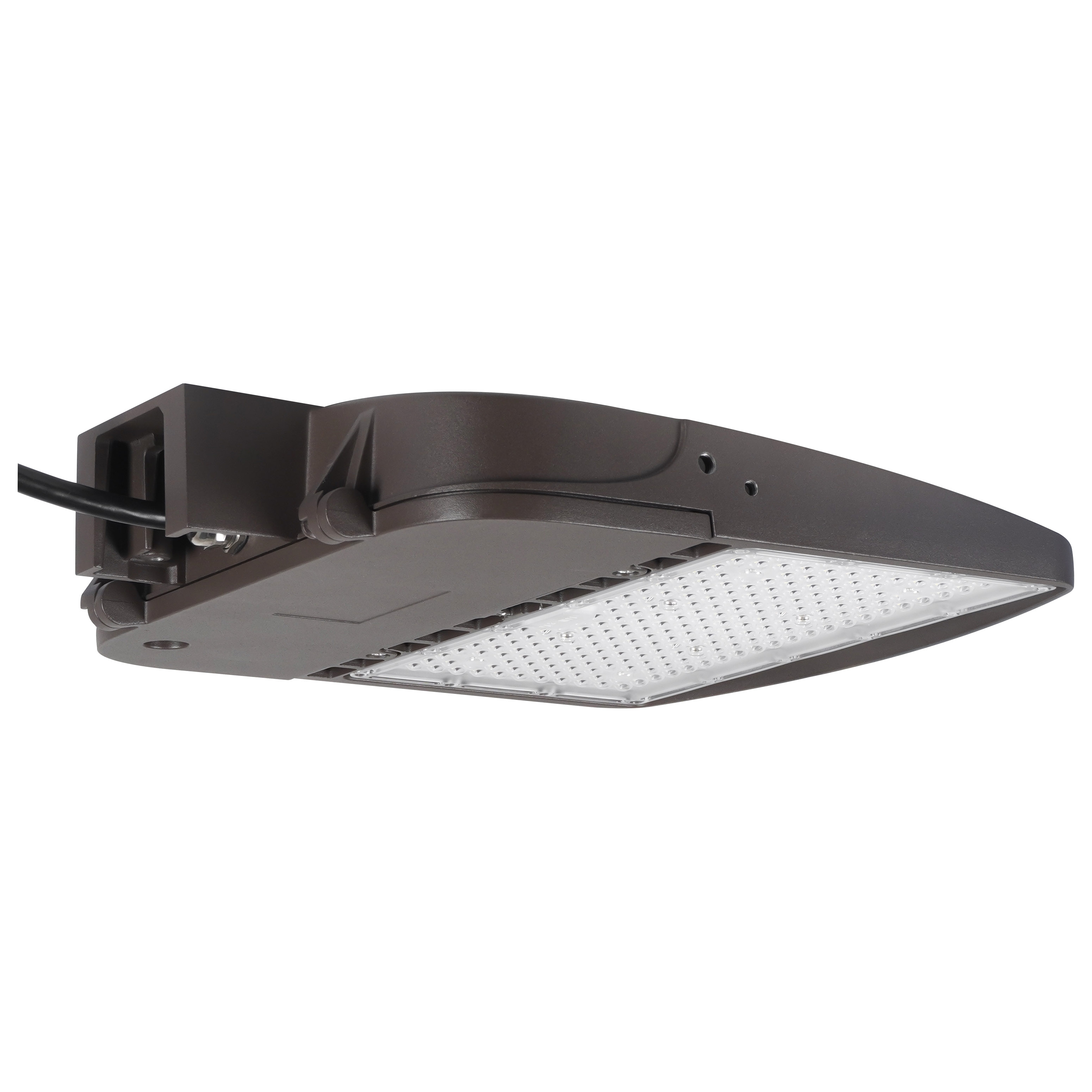

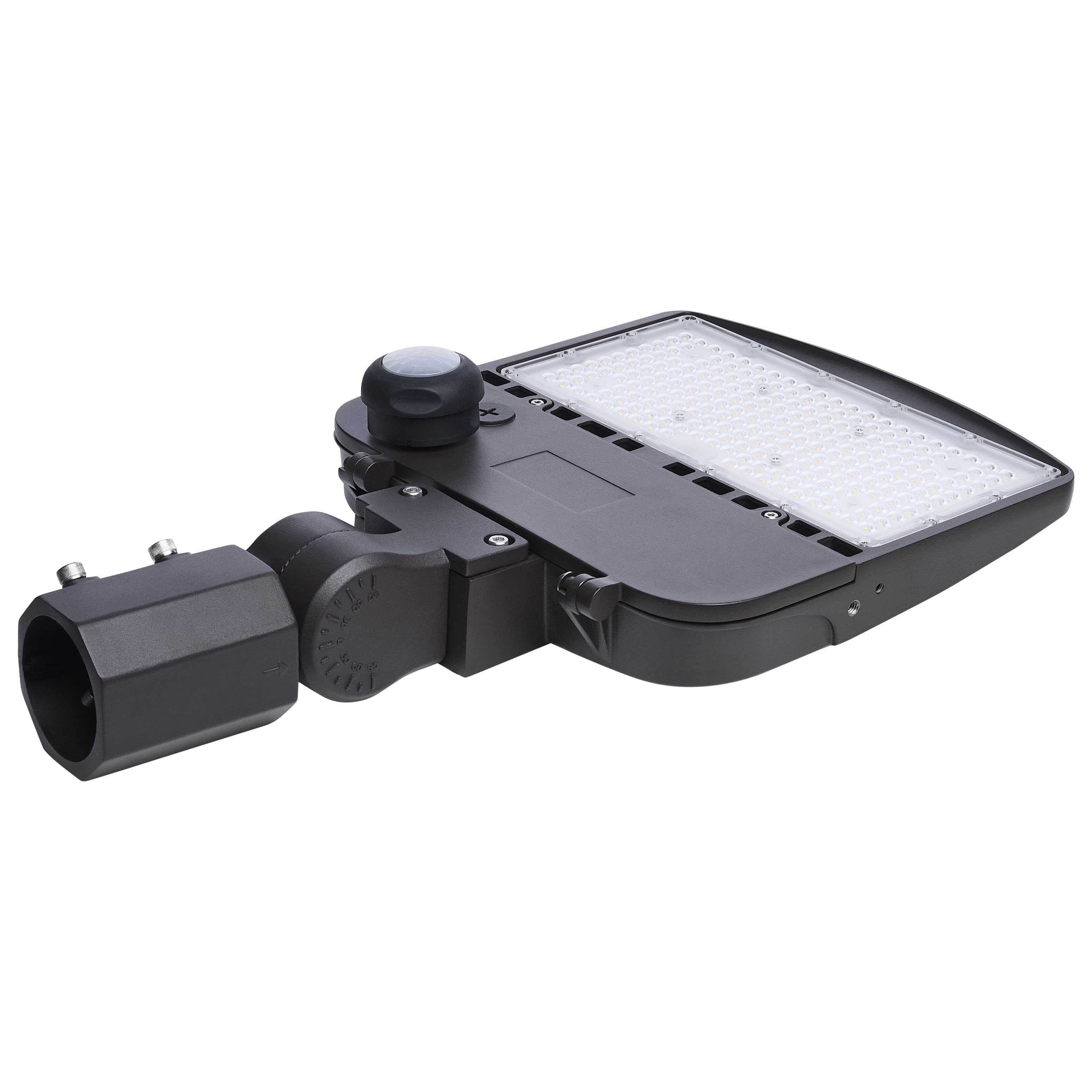

68-202 DOMINO 150W AREA LIGHT

Description

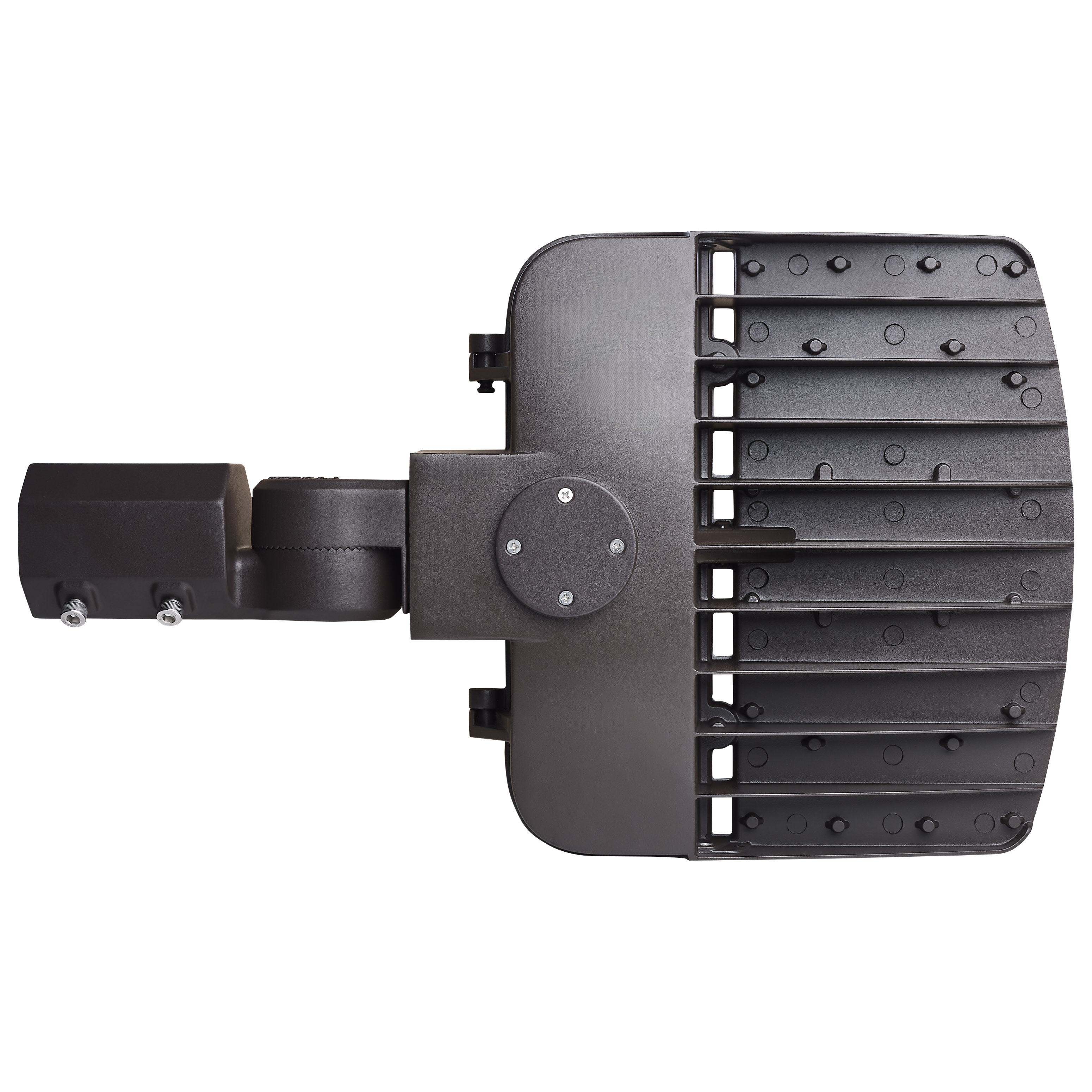

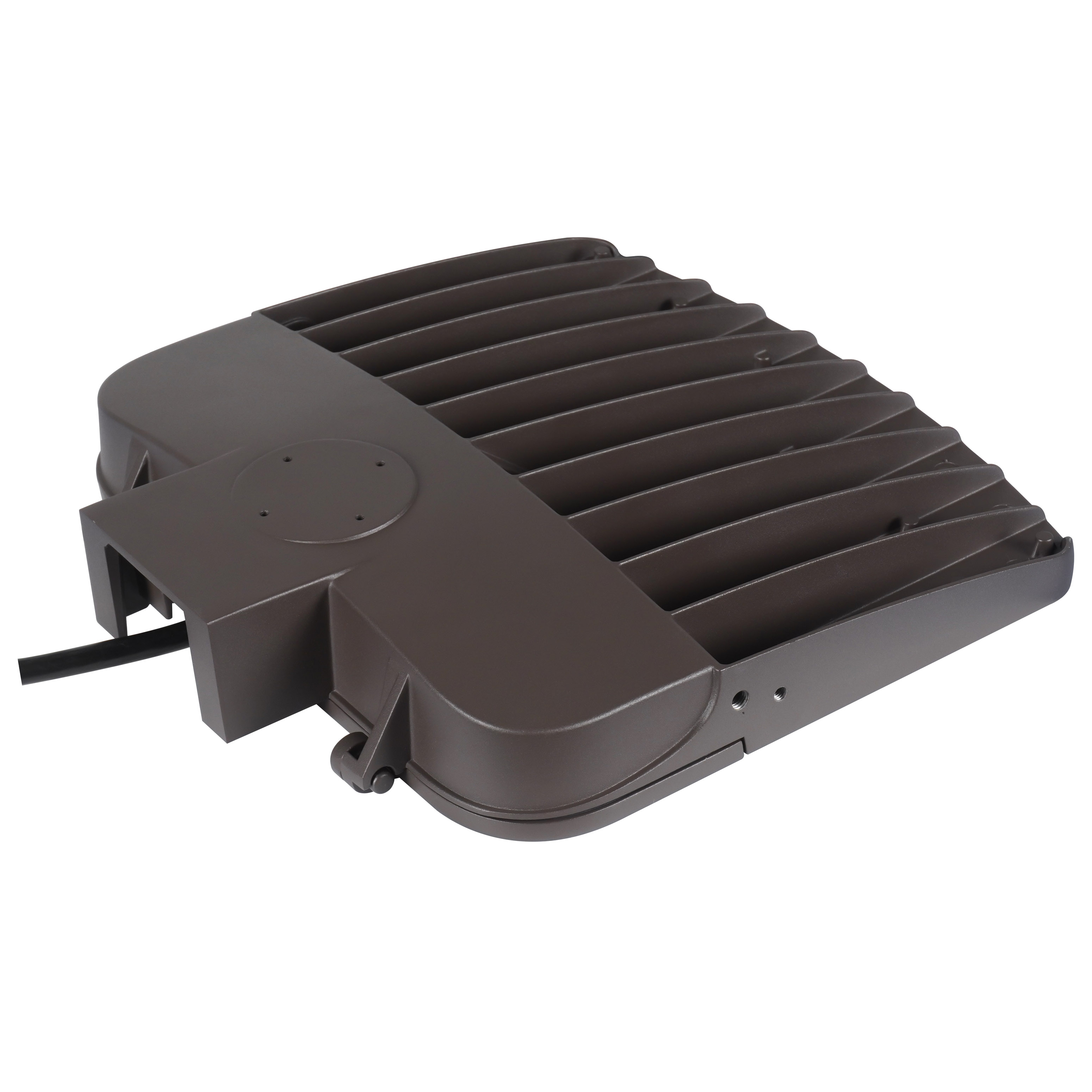

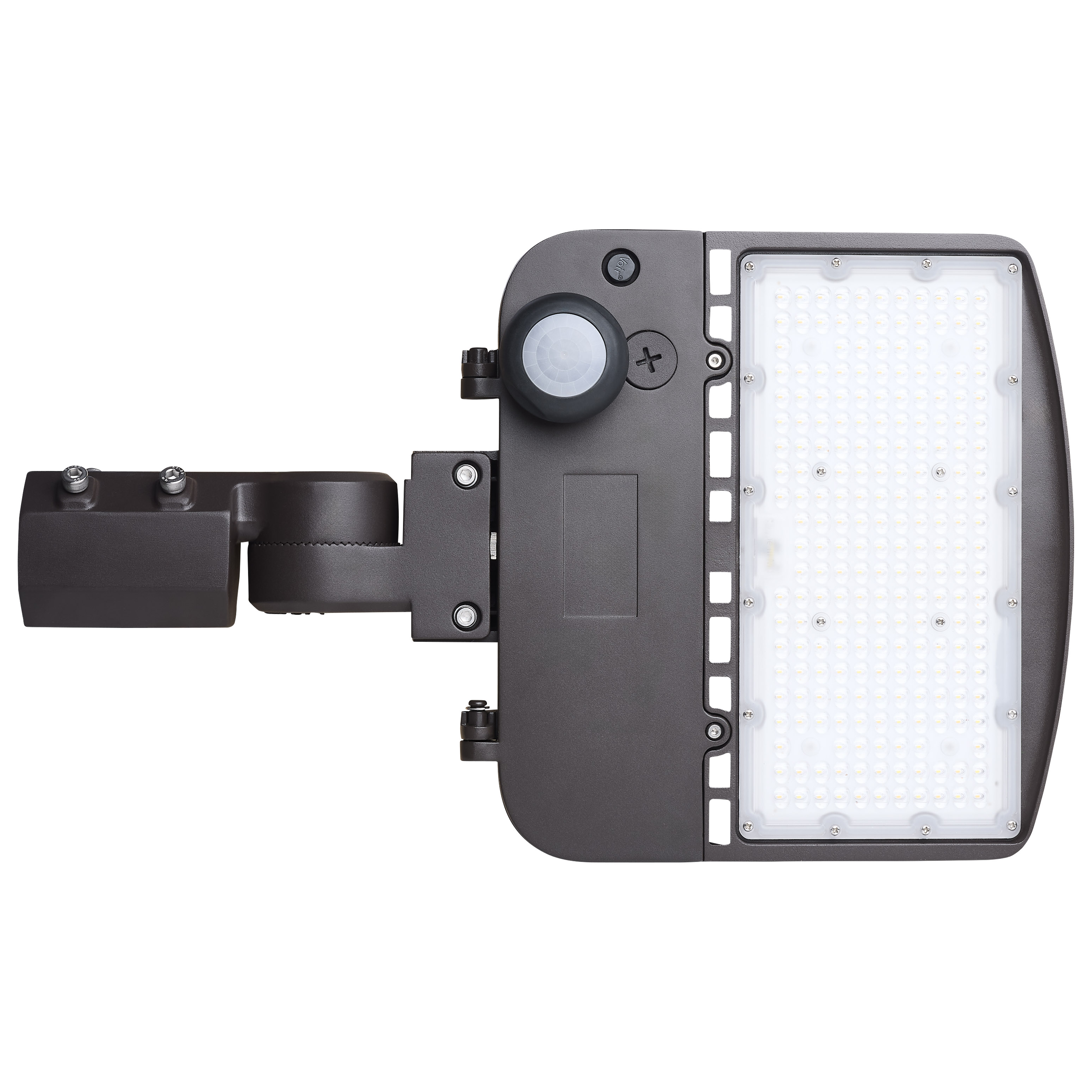

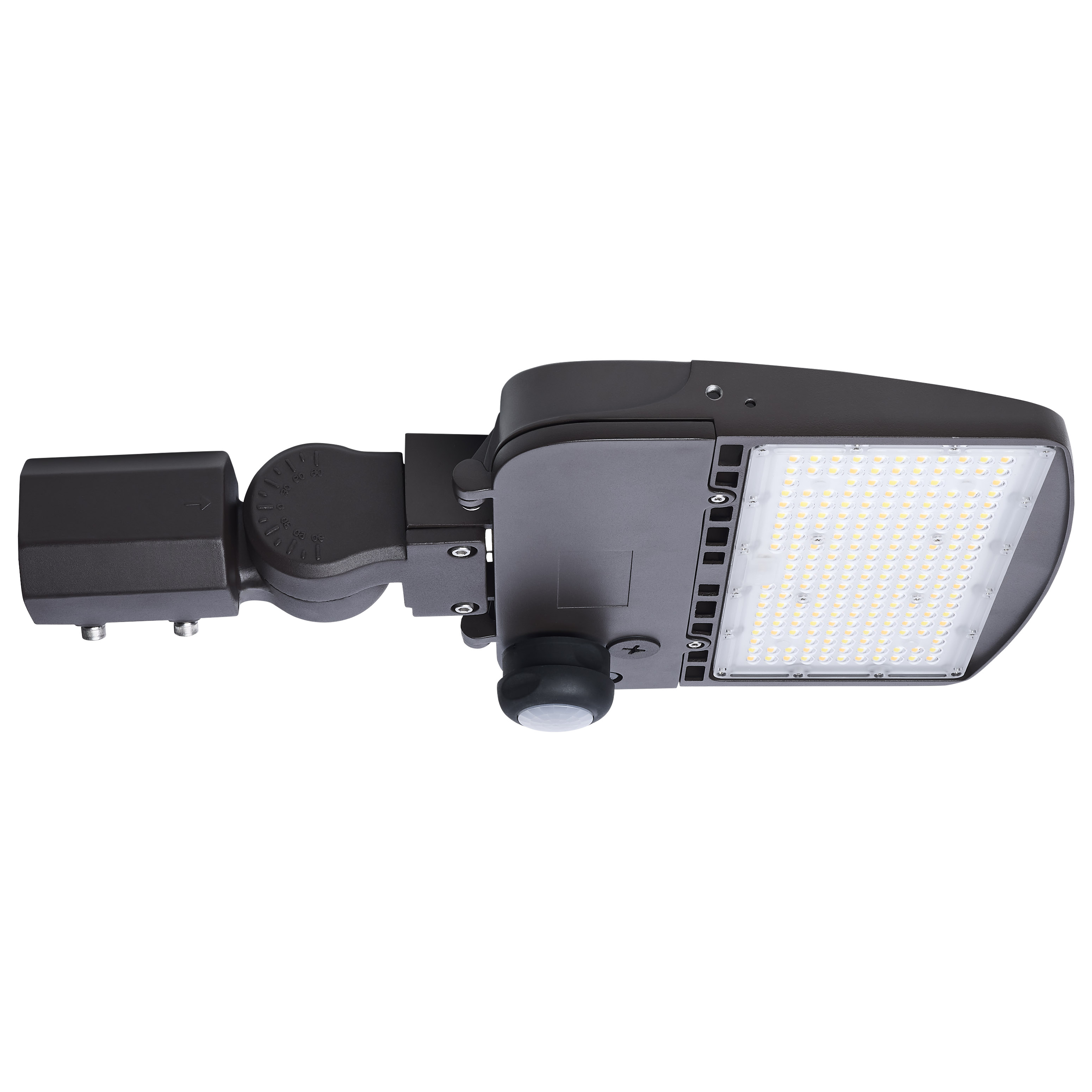

SATCO NUVO's 68-202 150W LED area light is built to the highest standards for outdoor lighting applications and is now available with integrated Domino network lighting control, simplifying setup and management through the Domino App. Constructed with rugged die-cast aluminum housings and an IK08 impact-resistant lens, this IP65-rated fixture is designed to withstand all weather conditions. This fixture has a Type III NEMA distribution, selectable color temperatures (3000K, 4000K, and 5000K) and is compatible with 120–347V systems, making this area light versatile enough for a wide range of commercial and industrial uses. The Domino control system is a hub-free, Bluetooth mesh solution that allows intelligent, zone-based lighting control across complex environments.

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Starfish Communication Protocol	Domino Bluetooth Mesh 2.4 GHz
Material	Die-cast Aluminum
Fixture Type	Area Light
Product Notes	Type III Light Distribution
Status	Active
Surge Protection	Built-in surge protection - 4KV
CCT Selectable	Yes
Wattage Selectable	No
Finish Family	Bronze
Amps	1.250-0.432A
Has Camera	No
Integrated Features	Integrated NLC Sensor
IOT Enabled	Yes
Lens Finish	Opaque
Lens Material	Polycarbonate (PC)
Lensed	Yes
Photo Cell	Has Photocell
Power Factor	0.9
Sloped Ceiling Compatible	No
Indoor Outdoor	Indoor and Outdoor
Product Technology	LED
Incandescent Equivalent	450W

Electrical

CCT (Kelvin Temp)	3000K/4000K/5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Color Temp	Soft White to Natural Light
CRI	70+
Dimming Type	Only With Domino App
Operating Frequency	50/60Hz
Operating Temp	-22F to +113F (-30C to +45C)
HID Equivalent	450W
Lumens	19500L
Volts	120V-347V
Watts	150W
Connection	Hardwire

Physical

Lamp Base	Integrated
Finish	BRONZE
ANSI Base	Integrated
Lamp Type	Integrated LED
Mounting Procedure	Wall/Pipe Arm

Additional Info

Warranty	5-Years

Documents

Wireless Networked Controlled LED Area Lights with PIR & Daylight Harvesting Sensor

68-202 Specifications

68-202_Instructions.pdf

DOMINO NETWORKED LIGHTING CONTROLS

Compliance

ADA Compliant	No
Bug Rating	B3-U3-G3
CA Prop 65	Lead
DLC ID	S-H7FCP4
FCC Compliant	Yes
IP Rating	IP65
Location Rating	Wet
NSF Approved	No
ROHS Compliant	Yes
Safety Listing	cULus
California Ban	Lawful for sale
DLC Approved	Yes
Title 20	Exempt
T24/JA8 Compliant	No

Packaging

UPC	045923683329
Case Cube	0.7157
Case Height	4.13
Case Length	22.05
Case Quantity	1
Case UPC	10045923683326
Case Weight	8.5
Case Width	13.58
EA Cube	0.7157
EA Height	4.13
EA Length	22.05
EA Quantity	1
EA Weight	7.65
EA Width	13.58
Pack Type	Box

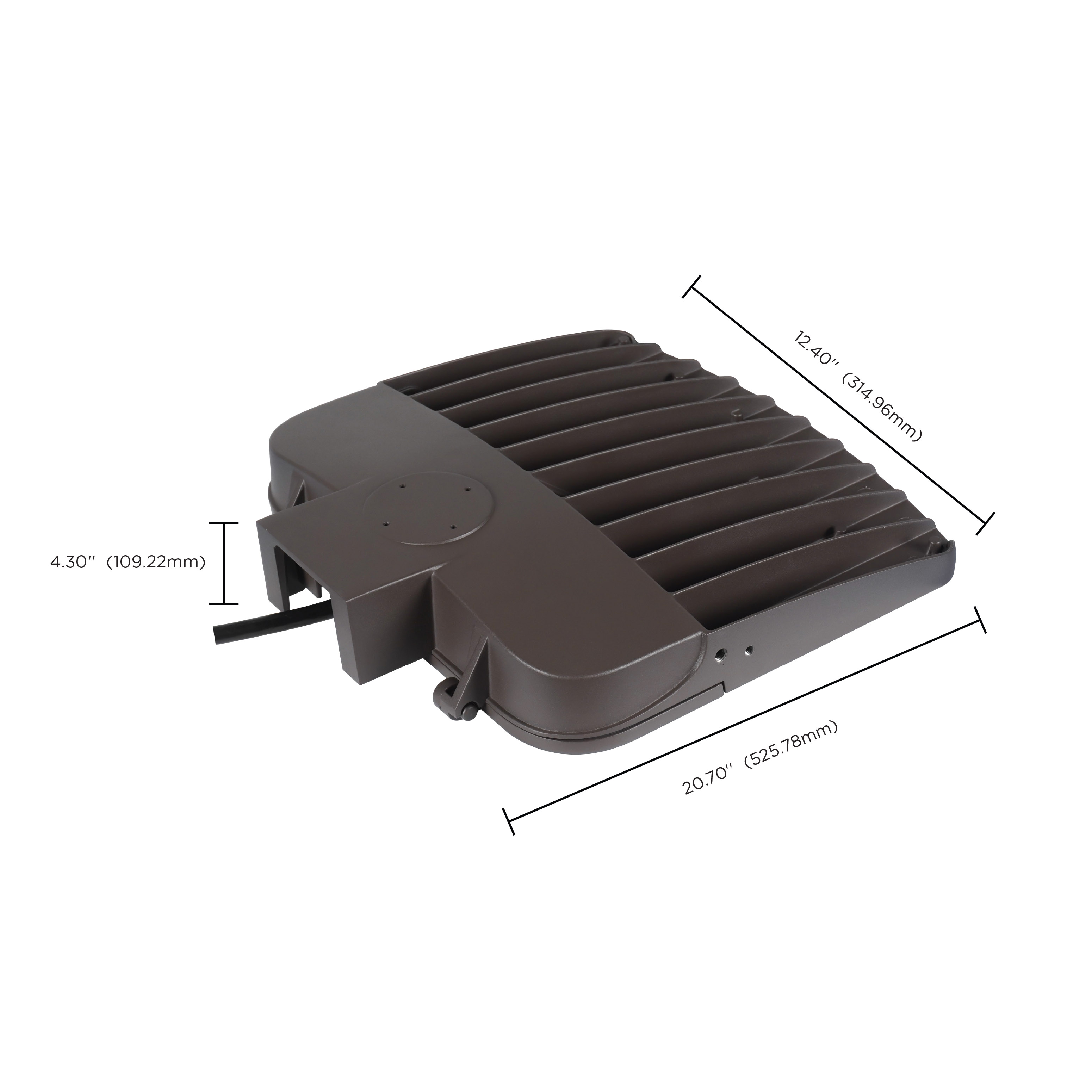

Web Height	4.3
Web Length	20.7
Web Width	12.4
