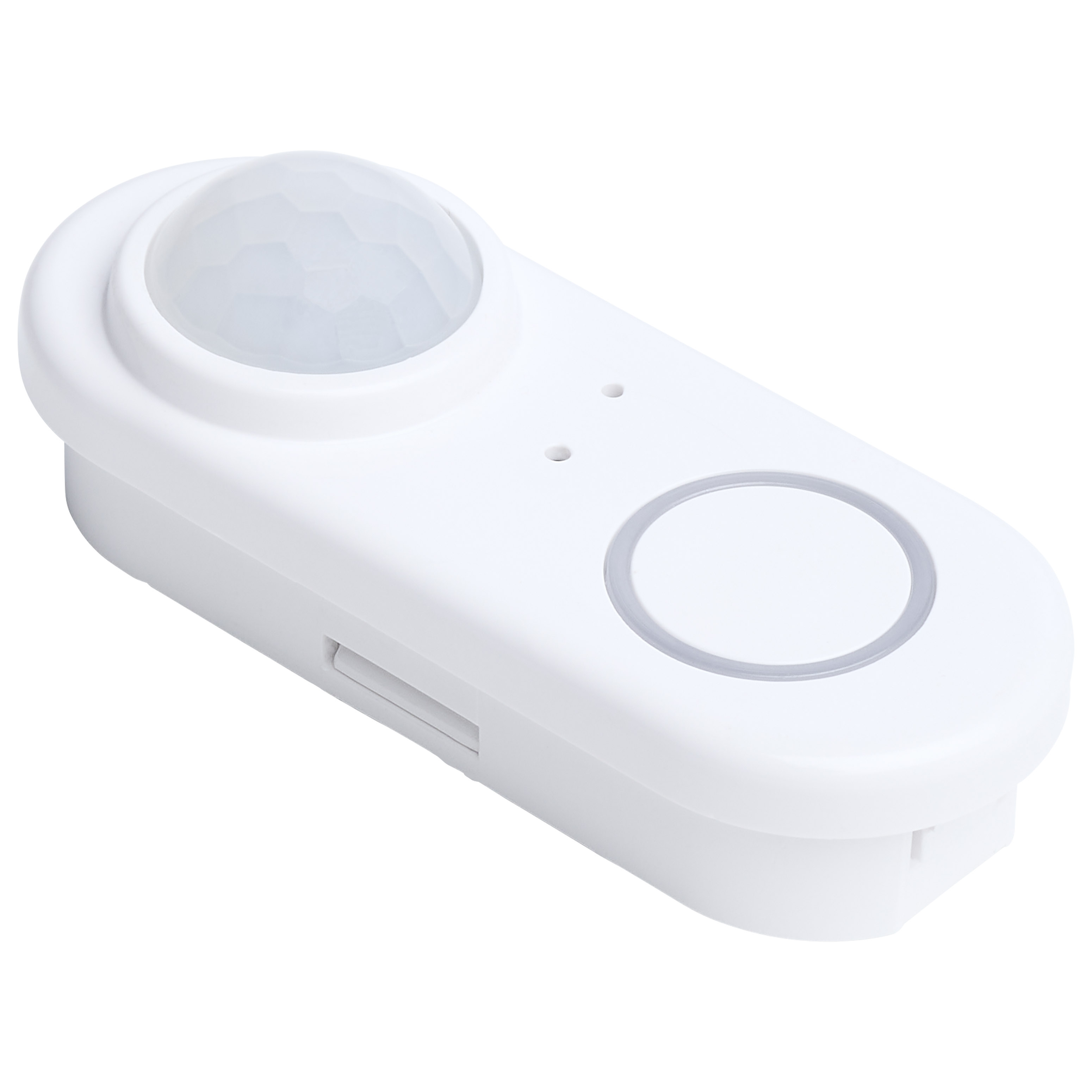

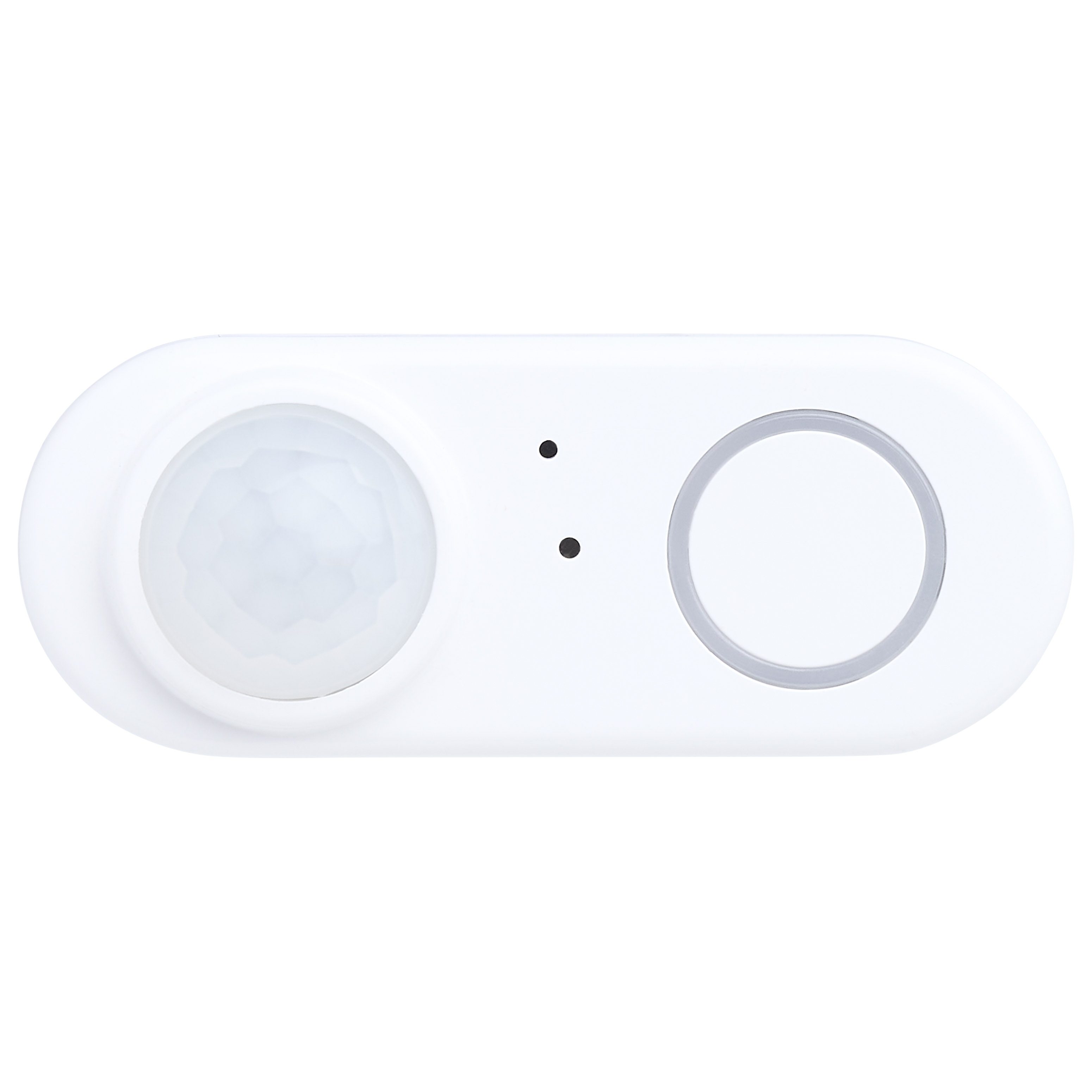

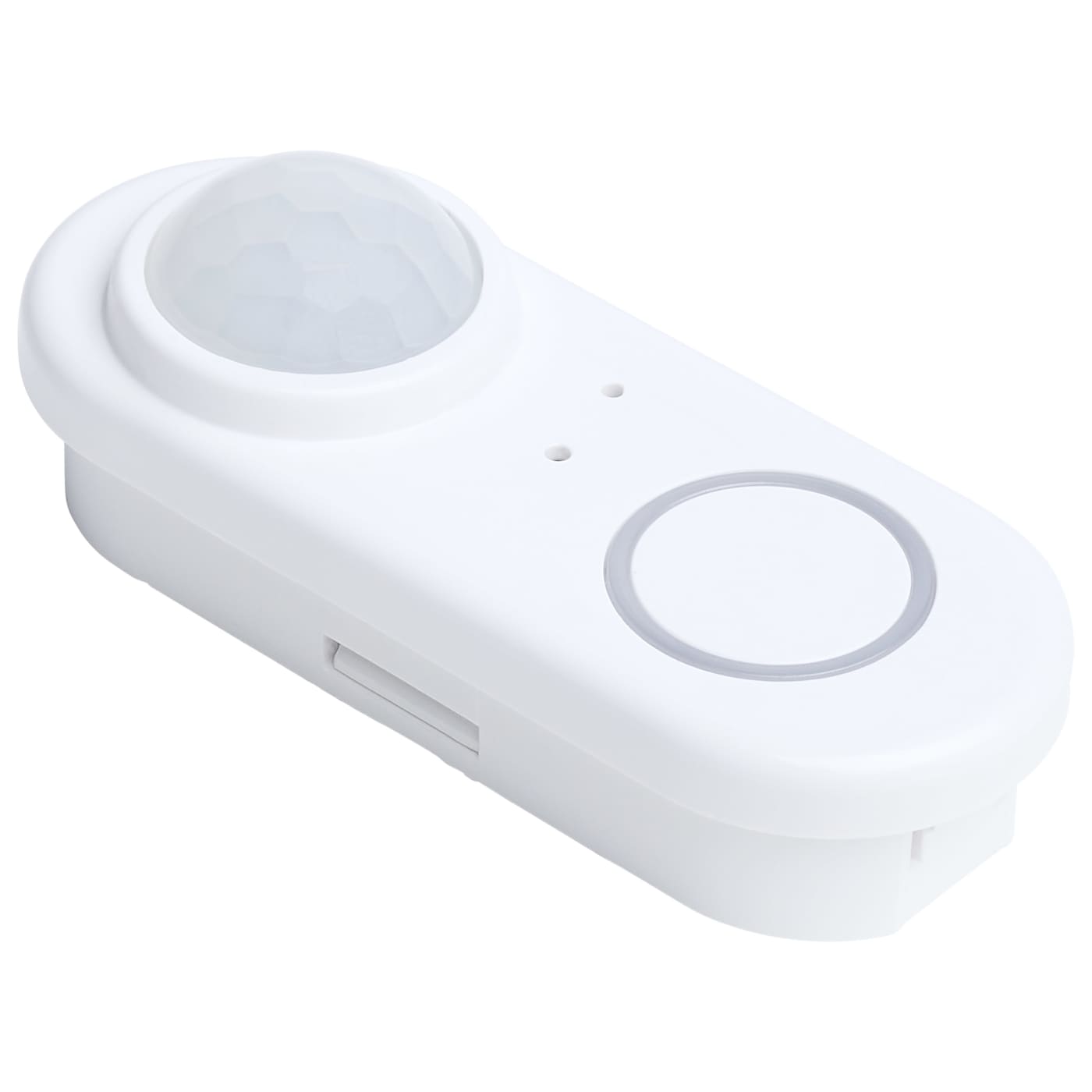

DOMINO FP TROFFER/STRIP SENSOR - 87-103
DOMINO FP TROFFER/STRIP SENSOR - 87-103
87-103

DOMINO FP TROFFER/STRIP SENSOR

  • DOMINO
  • Flat Panel/Troffer/Strip Sensor
  • CCT Selectable
ip_rating^IP20^1
dimmable^dimmable^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
87-103 Specifications87-103 Instructions.pdfLow Profile Sensor with Integrated PIR, Daylight Harvesting & Color Tuning Control
Description
Description
DOMINO; Flat Panel/Troffer/Strip Sensor; CCT Selectable
Products Specs
General
CompanyNUVO
Starfish Communication ProtocolDomino Bluetooth Mesh 2.4 GHz
Dimmable Text0-10V Dimming
MaterialThermoplastic
StatusActive
Finish FamilyWhite
Amps0.025A
Has CameraNo
Lens MaterialAcrylic
Photo CellHas Photocell
Starfish Software SupportedDOMINO App
Starfish Software UpgradeableYes
Indoor OutdoorIndoor
Product TechnologyNot Applicable
Electrical
DimmableYes-Dimmable
Dimming Type0-10V Dimming
Operating Temp-30C (-22F) to +55C (+131F)
Volts12V
Watts0.3W
Physical
FinishWHITE
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IP RatingIP20
Location RatingDry
ROHS CompliantYes
Safety ListingcULus
Packaging
UPC045923871030
Case Cube0.7956
Case Height8.66
Case Length12.6
Case Quantity200
Case UPC10045923871037
Case Weight16.4
Case Width12.6
EA Cube0.0071
EA Height0.79
EA Length3.94
EA Quantity1
EA Weight0.13
EA Width3.94
Pack TypePolybag
Web Height0.31
Web Length0.98
Web Width2.44
