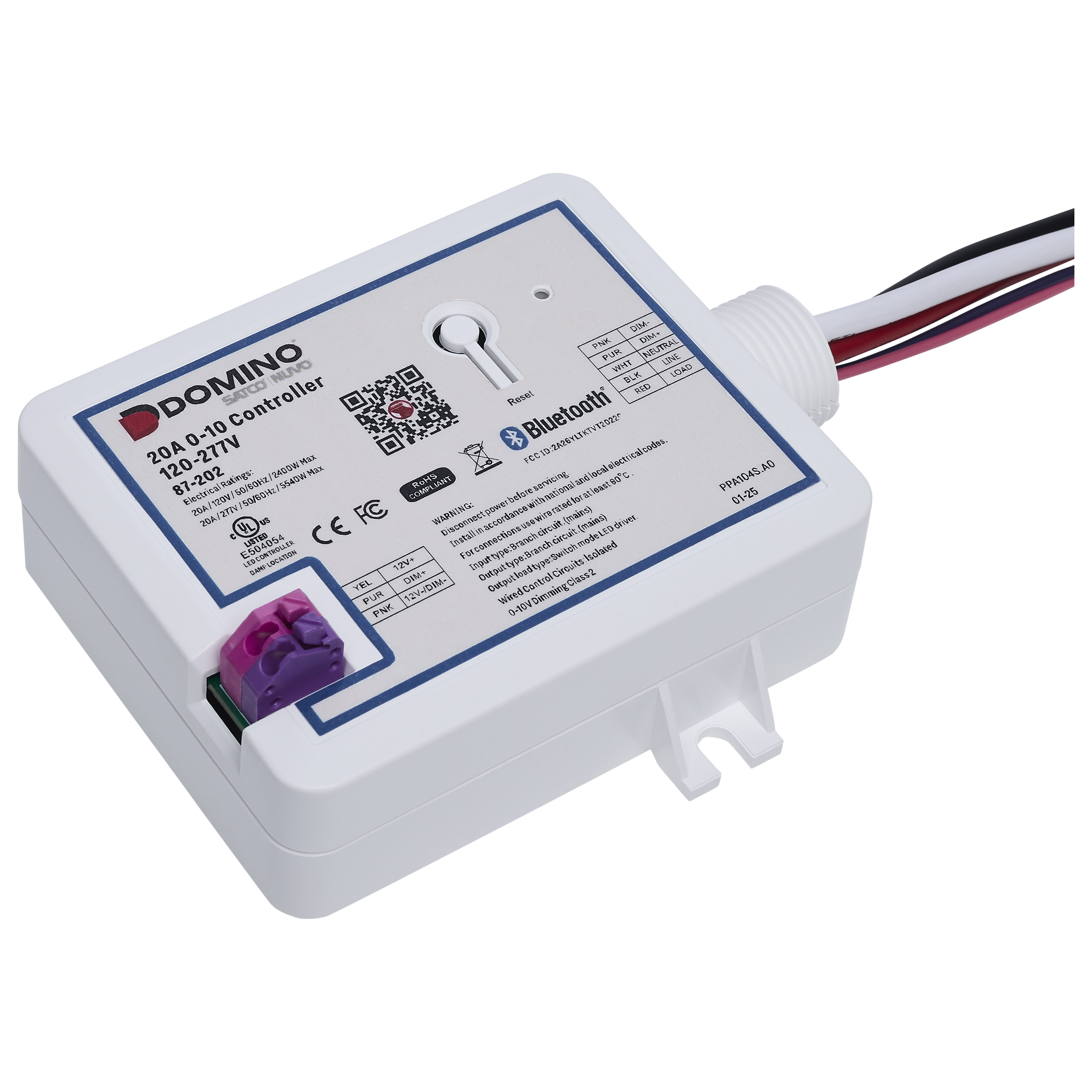

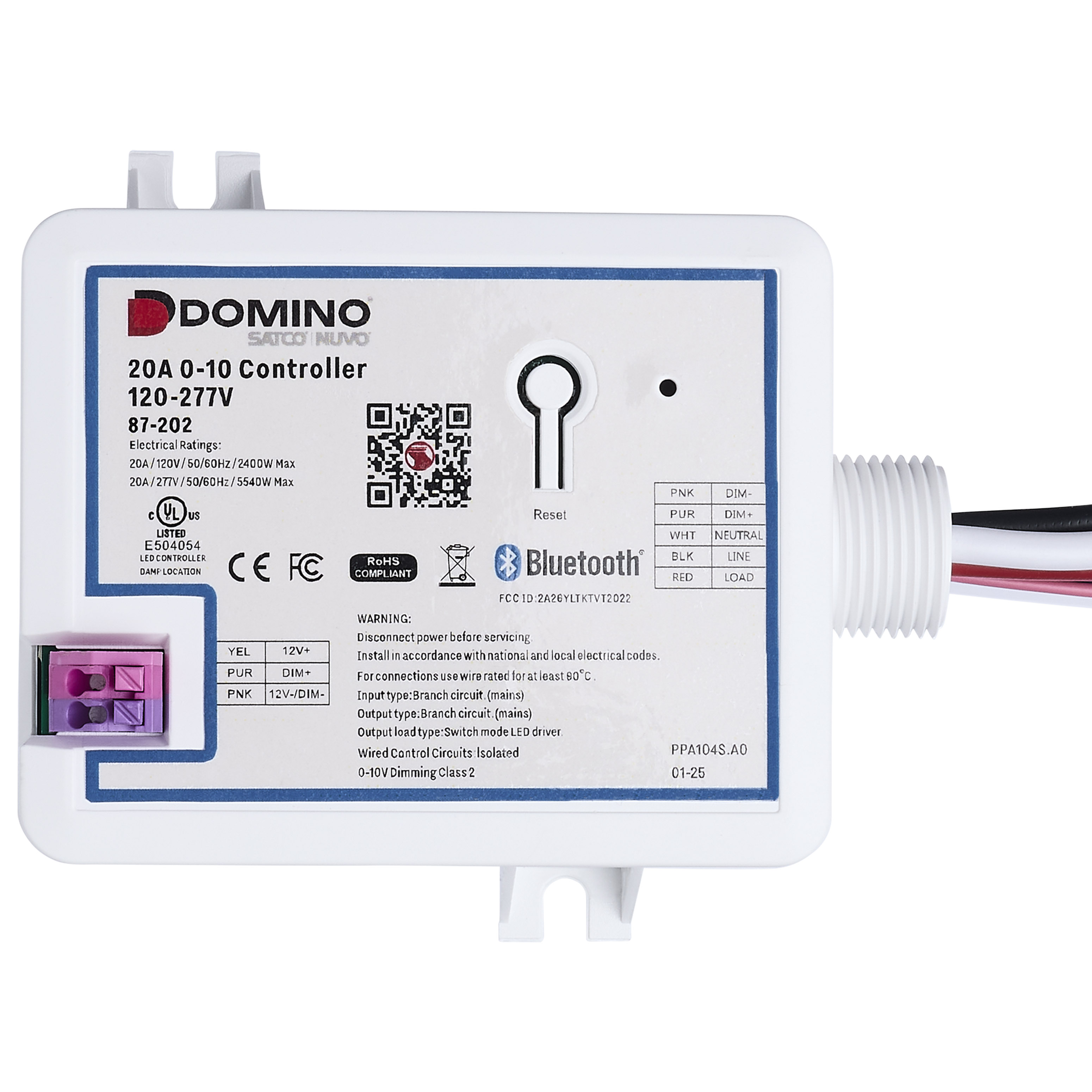

DOMINO 20 AMP 0-10 CONTROLLER - 87-202
DOMINO 20 AMP 0-10 CONTROLLER - 87-202
87-202

DOMINO 20 AMP 0-10 CONTROLLER

  • DOMINO
  • 20 Amp 0-10V Controller
  • In-Fixture Sensor
  • 120/277 Volt
ip_rating^IP20^1
dimmable^dimmable^2
warranty^5_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description
The DOMINO 87-202 20A Zone Controller is a compact, line-voltage module designed for on/off switching and 0-10V dimming in commercial lighting systems. Ideal for distributed control strategies, it features an integrated relay and Bluetooth mesh connectivity for seamless integration into the DOMINO networked lighting system. Housed in a plenum-rated enclosure compliant with UL 2043, it is approved for installation in air-handling spaces such as ceiling voids - simplifying installation in commercial environments.
Products Specs
General
CompanyNUVO
Starfish Communication ProtocolDomino Bluetooth Mesh 2.4 GHz
MaterialThermo Plastic
Product NotesNot required for fixtures equipped with DOMINO-enabled sensor nodes. Intended for use with 0-10V dimmable luminaires without onboard networked control.
StatusActive
Wattage SelectableYes
Finish FamilyWhite
Amps20.000A
Has CameraNo
Photo CellNo
Starfish Software SupportedDOMINO App
Starfish Software UpgradeableYes
Indoor OutdoorIndoor
Product TechnologyNot Applicable
Electrical
DimmableYes-Dimmable
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-22F to +149F (-30C to +65C)
Volts120V/277V
Watts1920W/4432W
Physical
FinishWHITE
Mounting ProcedureWall
Additional Info
Warranty5-Years
Compliance
CA Prop 65Lead
FCC CompliantYes
IP RatingIP20
Location RatingDry
ROHS CompliantYes
Safety ListingcULus
Packaging
UPC045923872020
Case Cube1.0366
Case Height9.84
Case Length18.5
Case Quantity50
Case UPC10045923872027
Case Weight22.0
Case Width9.84
EA Cube0.0171
EA Height4.72
EA Length3.54
EA Quantity1
EA Weight0.35
EA Width1.77
Pack TypeBrown Box
Web Height1.09
Web Length3.97
Web Width2.79
