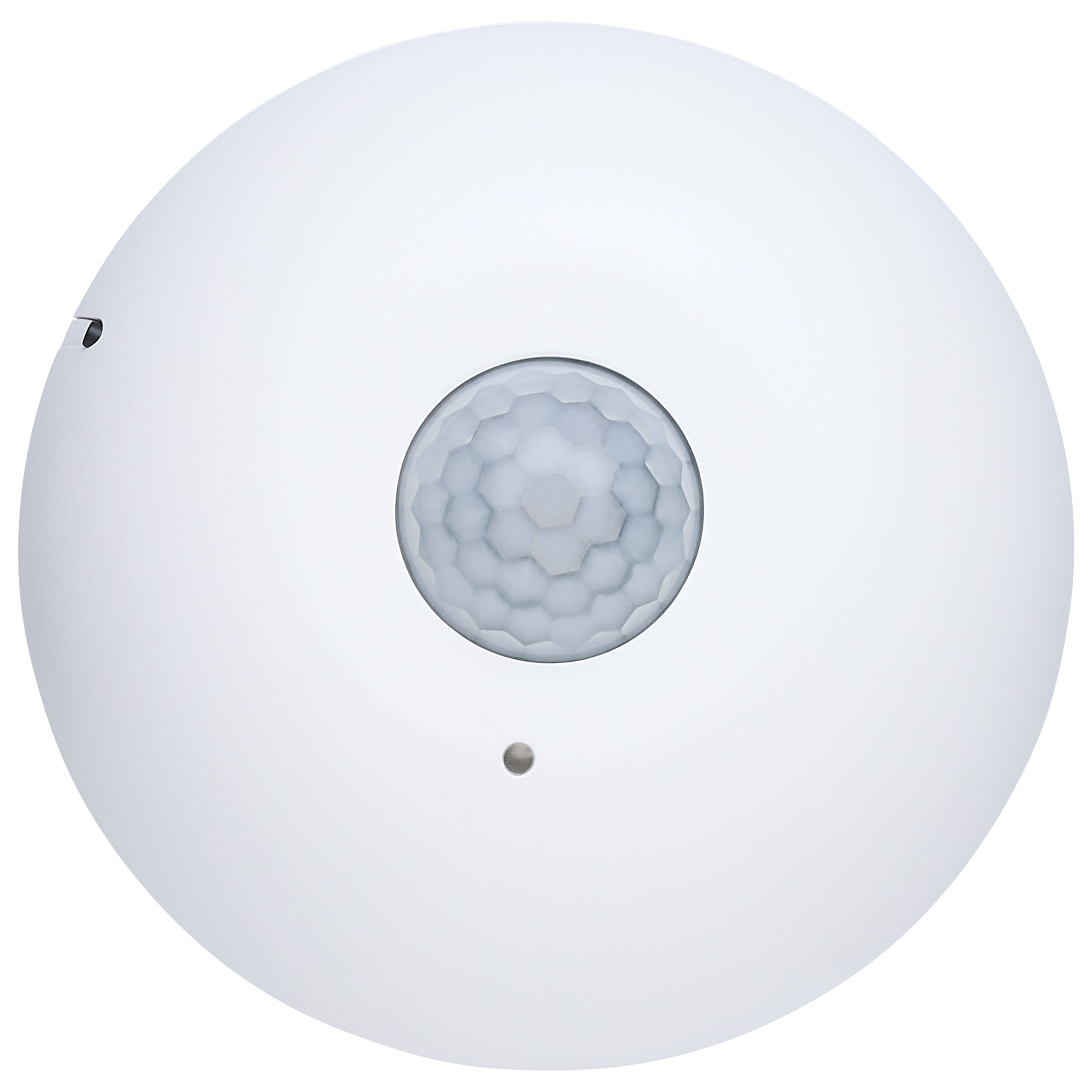

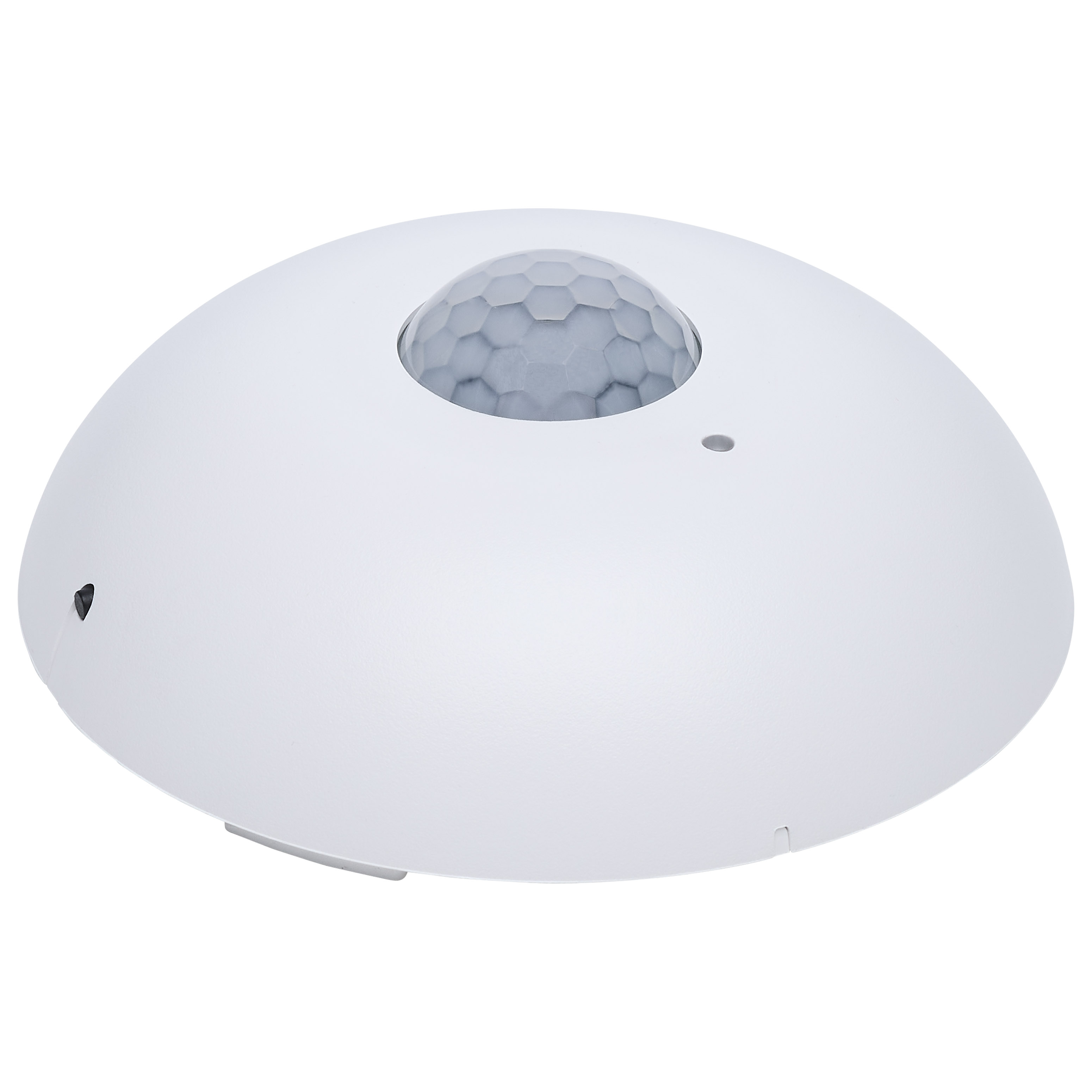

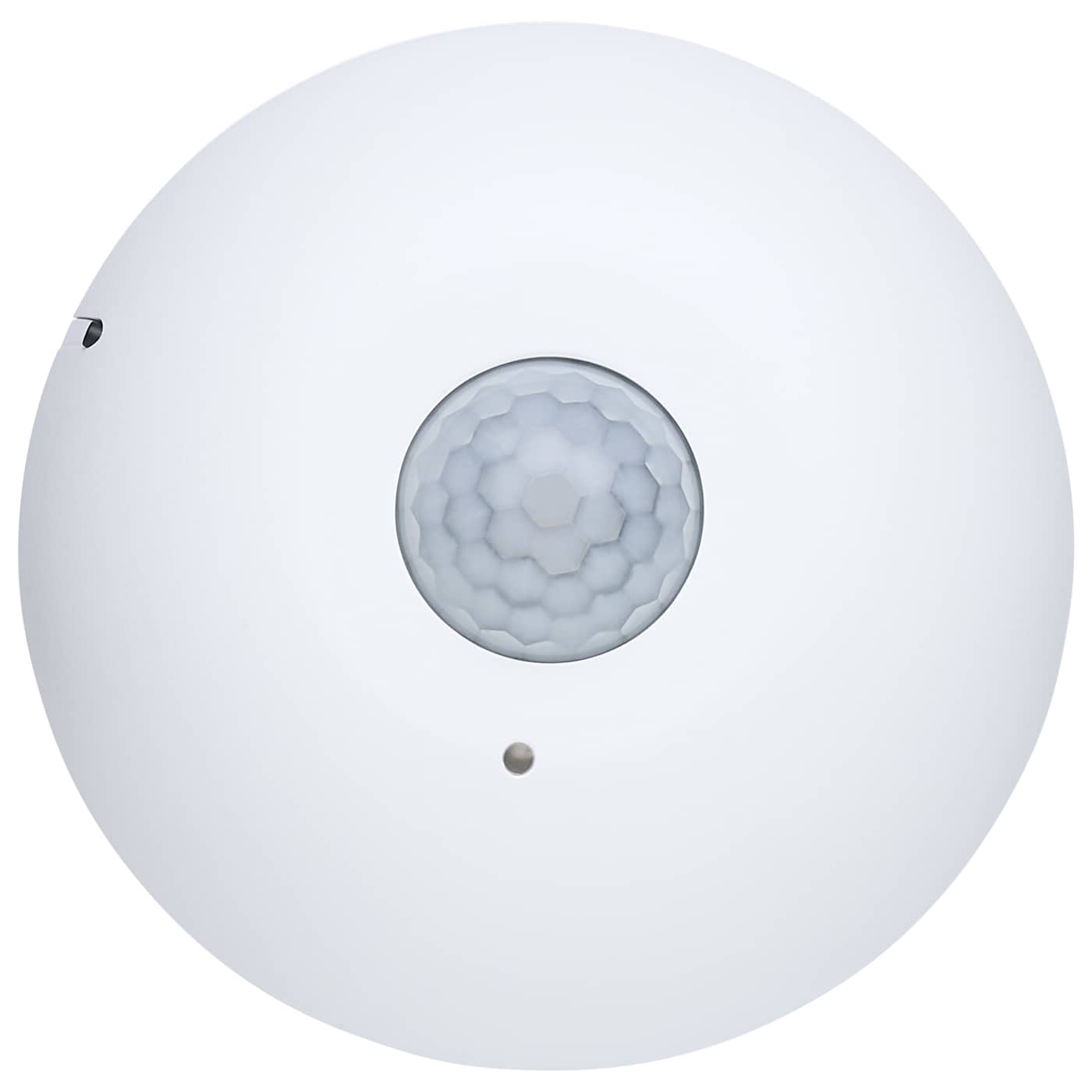

DOMINO BATTERY PIR/DAY SENSOR - 87-306
DOMINO BATTERY PIR/DAY SENSOR - 87-306
87-306

DOMINO BATTERY PIR/DAY SENSOR

  • DOMINO
  • Battery Powered Ceiling Mount PIR Sensor
ip_rating^IP20^1
dimmable^dimmable^2
warranty^5_years^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
87-306 Specifications87-306 Instructions.pdfDOMINO NETWORKED LIGHTING CONTROLS
Description
Description
The DOMINO 87-306 Battery Powered Ceiling Mount Sensor Node is a compact, wireless sensor designed to deliver occupancy detection and daylight harvesting in DOMINO's networked lighting control system. Featuring passive infrared (PIR) sensing and Bluetooth mesh connectivity, it operates on a single CR123A battery with a service life of up to 10 years. Ideal for retrofit applications or locations without access to hardwired power, it installs easily and is commissioned through the DOMINO platform.
Products Specs
General
CompanyNUVO
Starfish Communication ProtocolDomino Bluetooth Mesh 2.4 GHz
Diameter4.75
MaterialThermo Plastic
StatusActive
Finish FamilyWhite
Has CameraNo
Lens MaterialAcrylic
Photo CellHas Photocell
Starfish Software SupportedDOMINO App
Starfish Software UpgradeableYes
Indoor OutdoorIndoor
Product TechnologyNot Applicable
Electrical
DimmableYes-Dimmable
Dimming Type0-10V Dimming
Operating Temp-22F to +131F (-30C to +55C)
Volts3V
Replaceable Battery TypeCR123A
Physical
FinishWHITE
Mounting ProcedureCeiling
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IP RatingIP20
Location RatingDry
ROHS CompliantYes
Safety ListingcULus
Packaging
UPC045923873065
Case Cube0.4435
Case Height5.91
Case Length12.2
Case Quantity10
Case UPC10045923873062
Case Weight2.8
Case Width10.63
EA Cube0.0358
EA Height2.36
EA Length5.12
EA Quantity1
EA Weight0.22
EA Width5.12
Pack TypeBrown Box
Web Height2.5
Web Width4.75
