DOMINO SENSORLESS NODE - 87-402
DOMINO SENSORLESS NODE - 87-402
87-402

DOMINO SENSORLESS NODE

  • DOMINO
  • Sensorless Node for Downlights and Exterior Fixtures
  • Features Two Control Channels Typically Used for Dimming and CCT Tuning
ip_rating^IP20^1
dimmable^dimmable^2
warranty^5_years^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

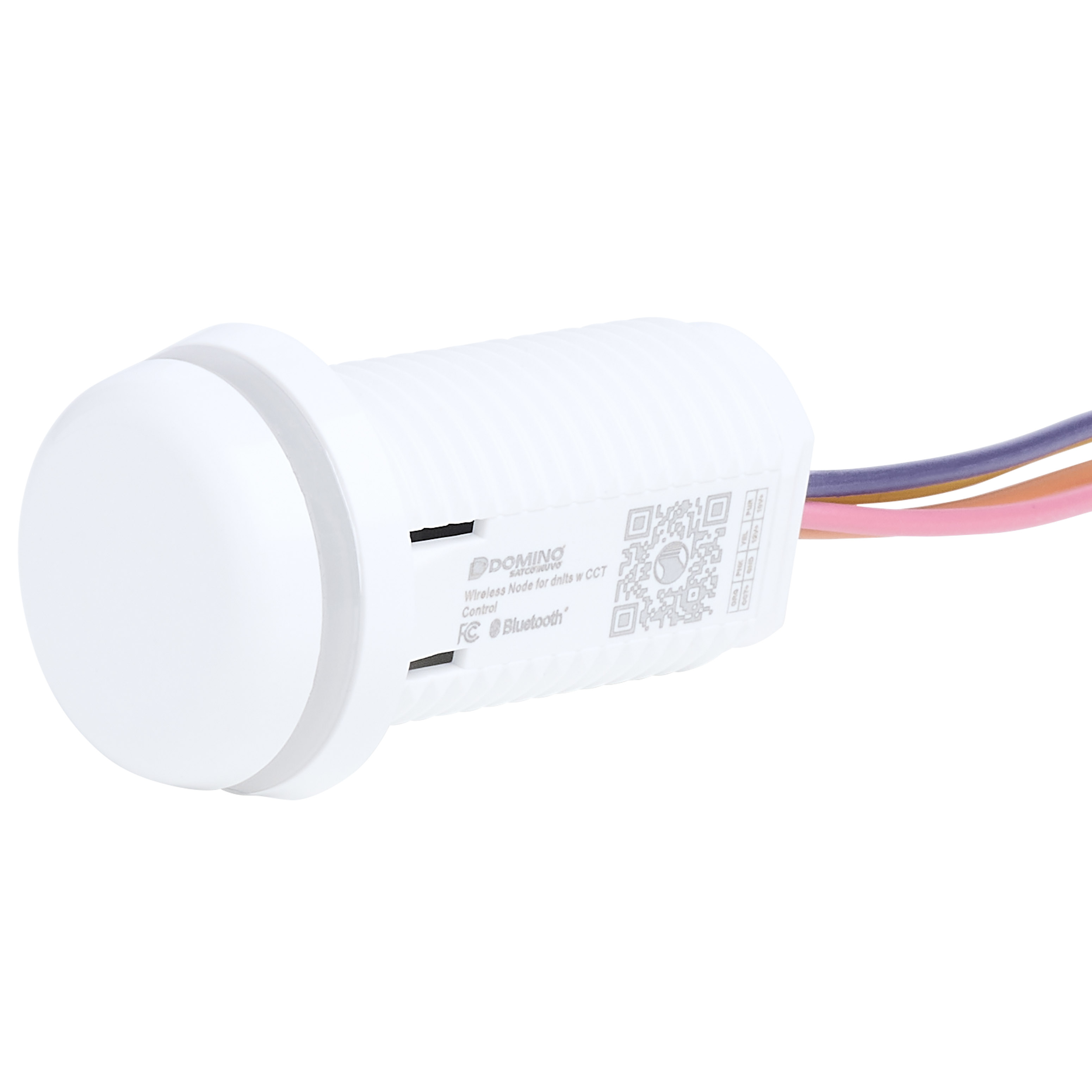

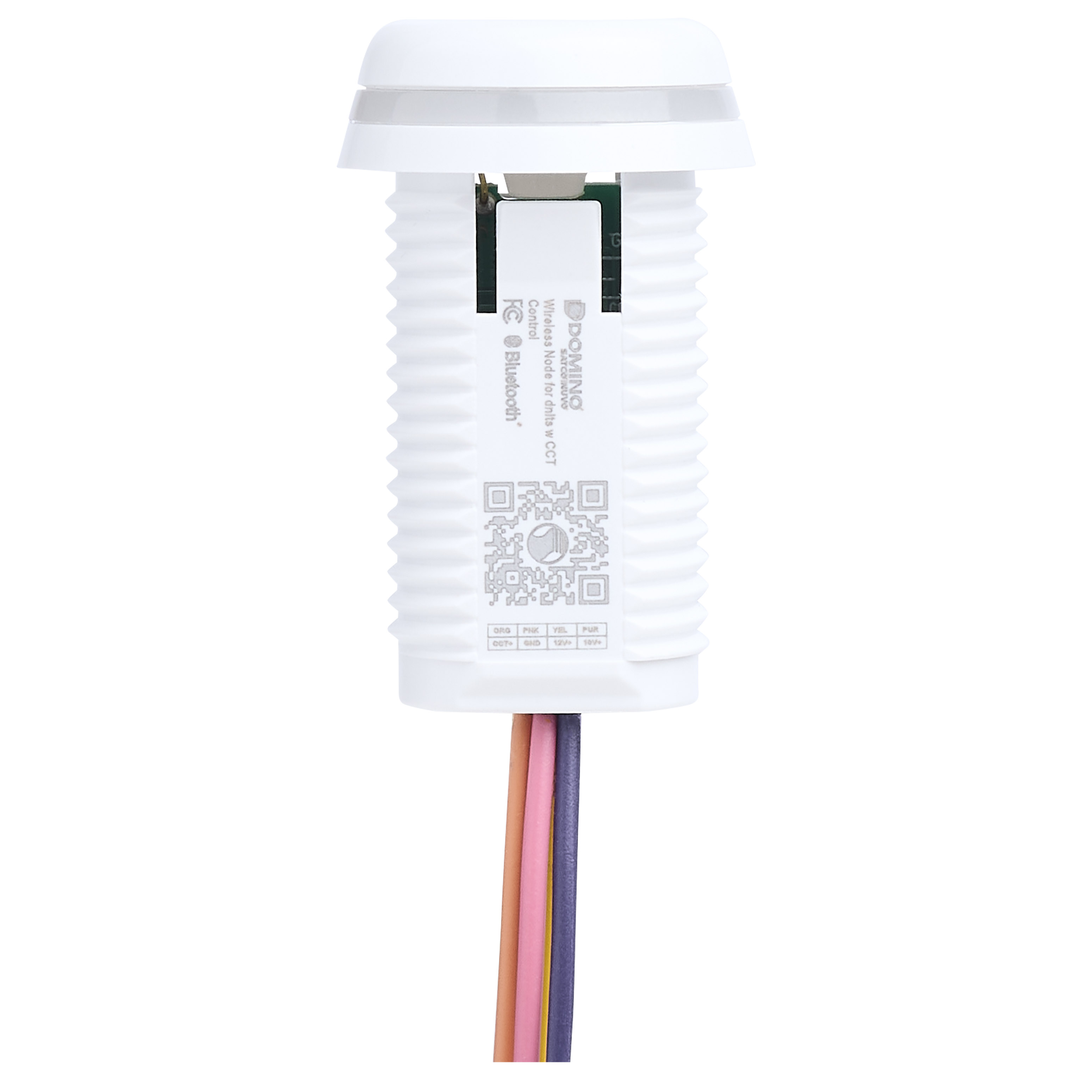

The DOMINO 87-402 Sensorless Controller Node is a compact, control module designed for seamless integration into select DOMINO downlights. Engineered with Bluetooth® mesh connectivity and an enhanced antenna design, it supports extended wireless communication —for addressable dimming and CCT control of recessed lights. The polycarbonate housing ensures reliable performance in, while its simplified factory-reset functionality enables fast reconfiguration in the field. Compatible with 12V auxiliary outputs and dim-to-off LED drivers, this node delivers robust, fixture-level control in commercial lighting applications.
Products Specs
General
CompanyNUVO
Starfish Communication ProtocolDomino Bluetooth Mesh 2.4 GHz
Diameter1.1
MaterialThermo Plastic
StatusActive
Finish FamilyWhite
Amps0.041A
Photo CellNo
Starfish Software SupportedDOMINO App
Starfish Software UpgradeableYes
Indoor OutdoorIndoor
Product TechnologyNot Applicable
Electrical
DimmableYes-Dimmable
Dimming Type0-10V Dimming
Operating Temp-22F to +149F (-30C to +65C)
Volts12V
Physical
FinishWHITE
Additional Info
Warranty5-Years
Compliance
CA Prop 65Lead
FCC CompliantYes
IP RatingIP20
Location RatingDry
ROHS CompliantYes
Safety ListingcULus
Packaging
UPC045923874024
Case Cube0.6947
Case Height11.22
Case Length11.81
Case Quantity100
Case UPC10045923874021
Case Weight4.92
Case Width9.06
EA Cube0.0106
EA Height1.18
EA Length3.94
EA Quantity1
EA Weight0.04
EA Width3.94
Pack TypePolybag
