JH6001

30/40/50W SIDEMOUNT DRIVER WH

  • 30/40/50 Watt

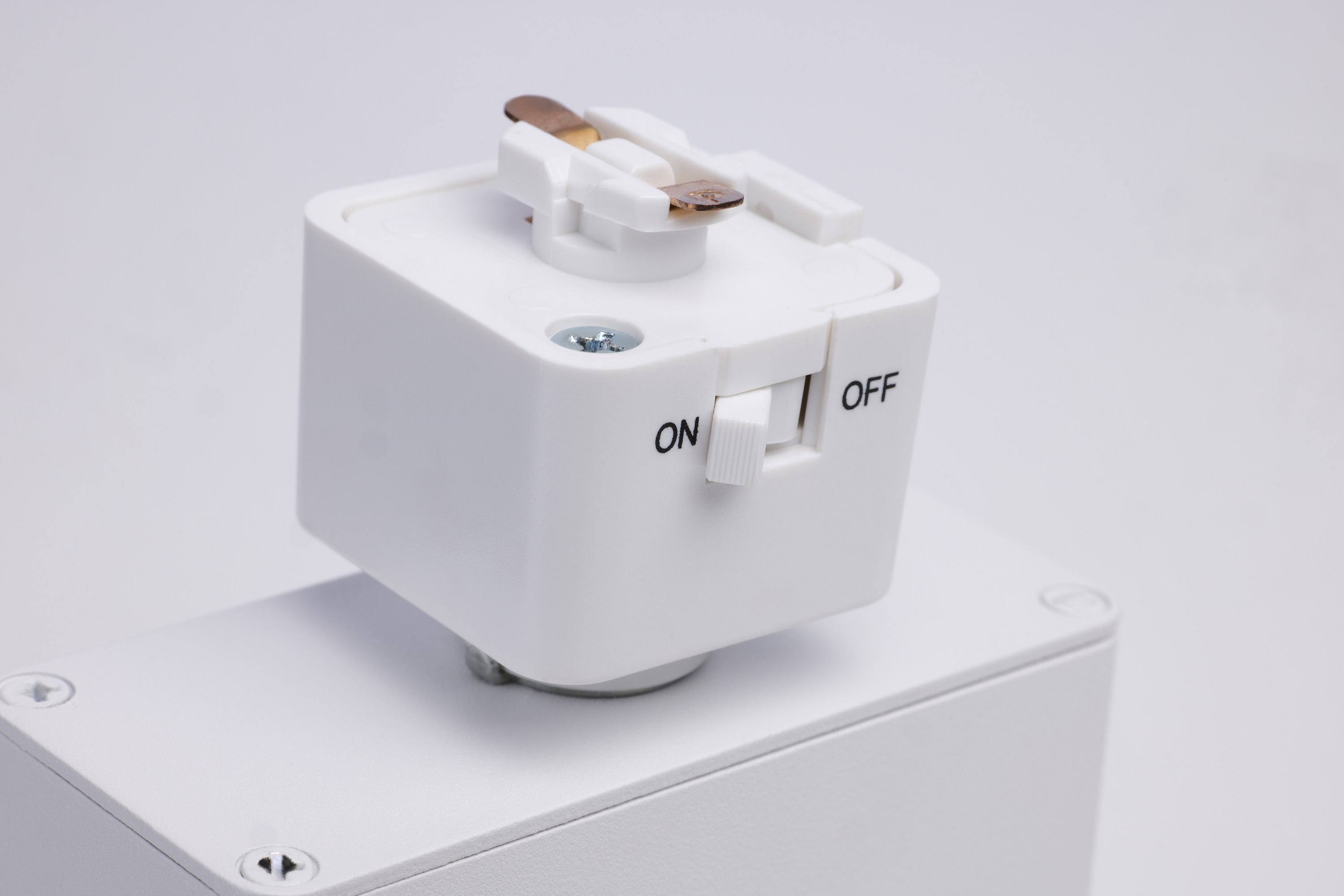

  • Commercial J-Style Track Head
  • 90 CRI
  • 27K/3K/35K/4K/5K CCT
  • 3300-5500 Lumens
  • White Finish
  • Phase Cut Dimming
  • Dry Location Rated
cc_selectable^y^1
ip_rating^IP20^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
beam_angle^60^2
warranty^3_years^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

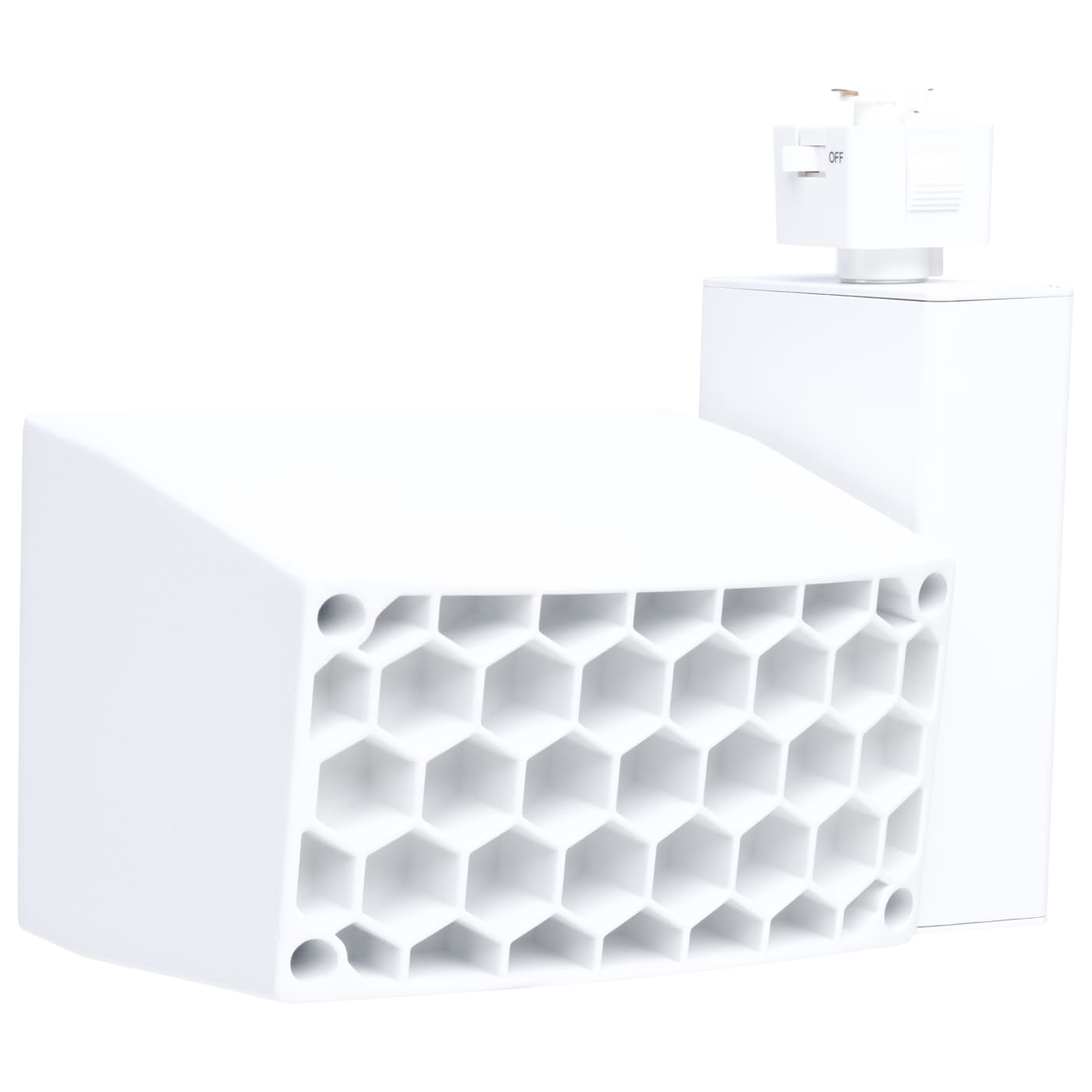

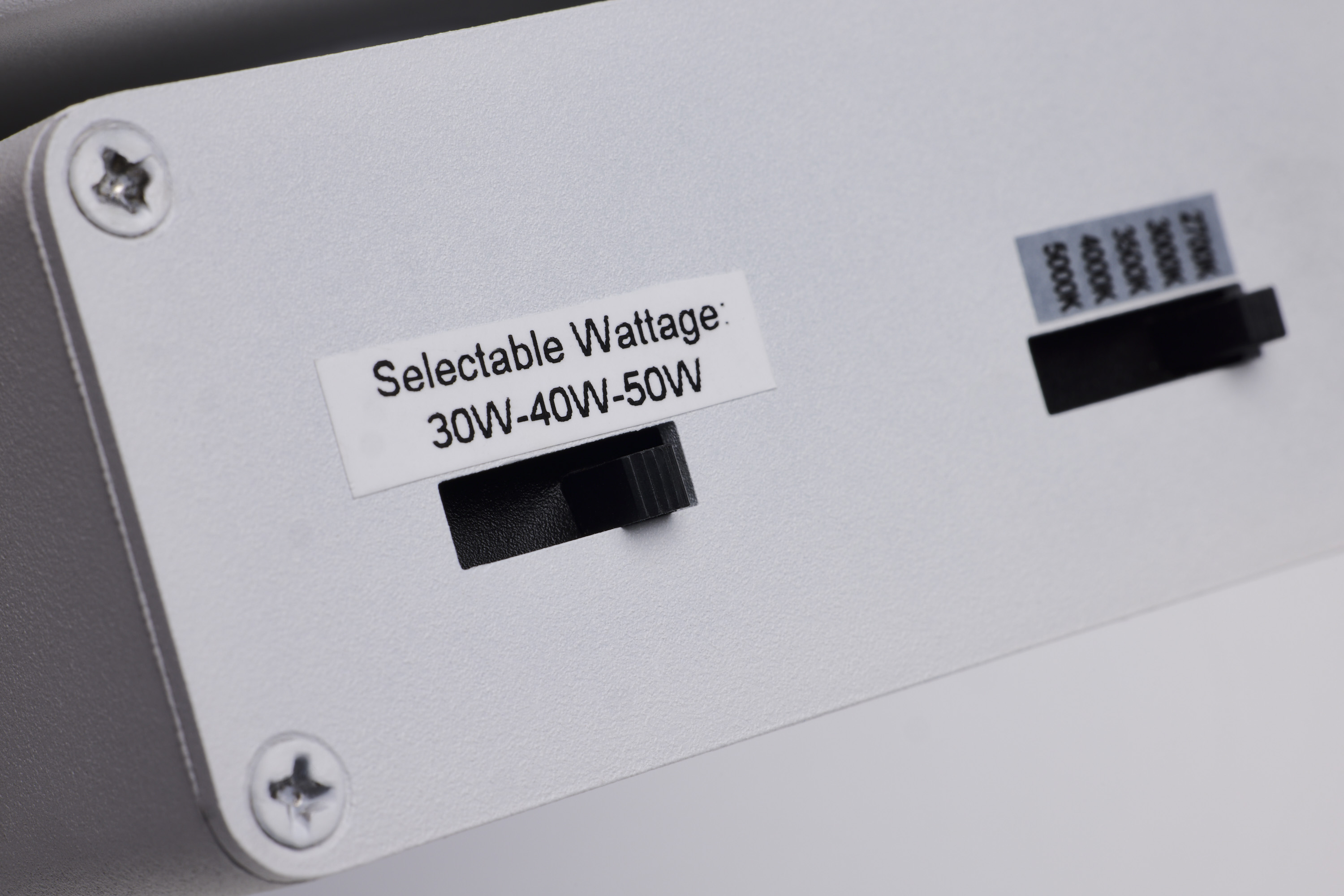

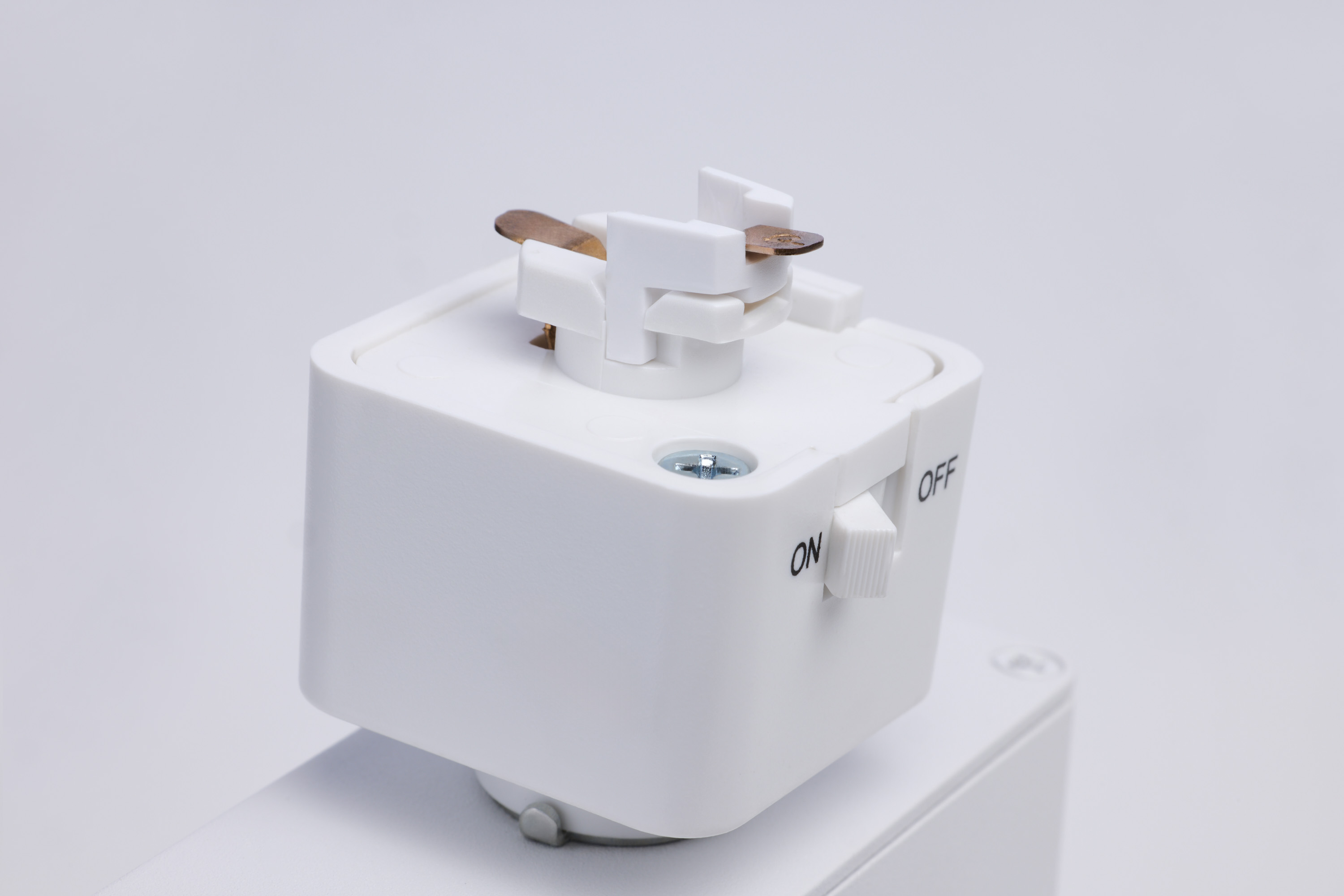

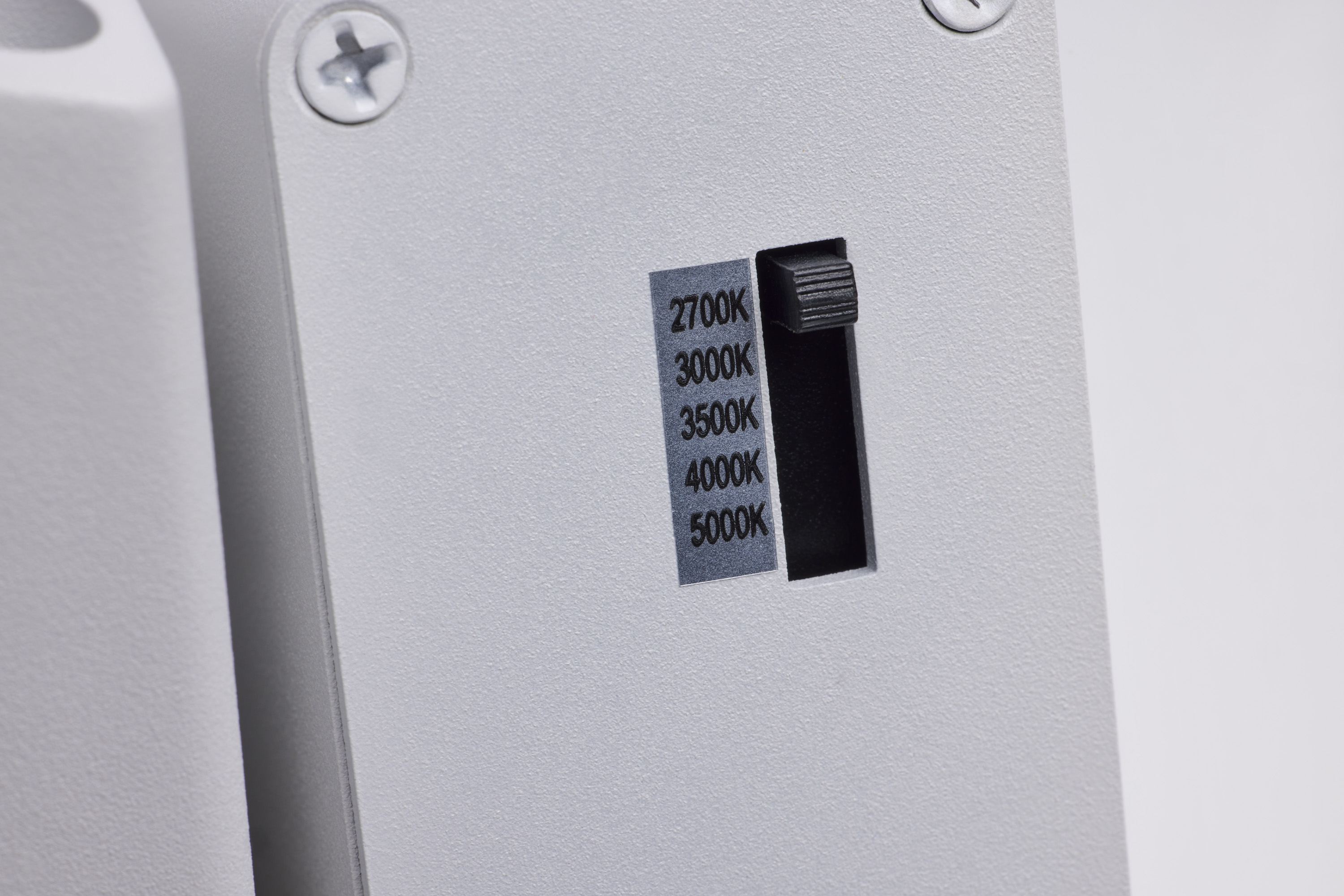

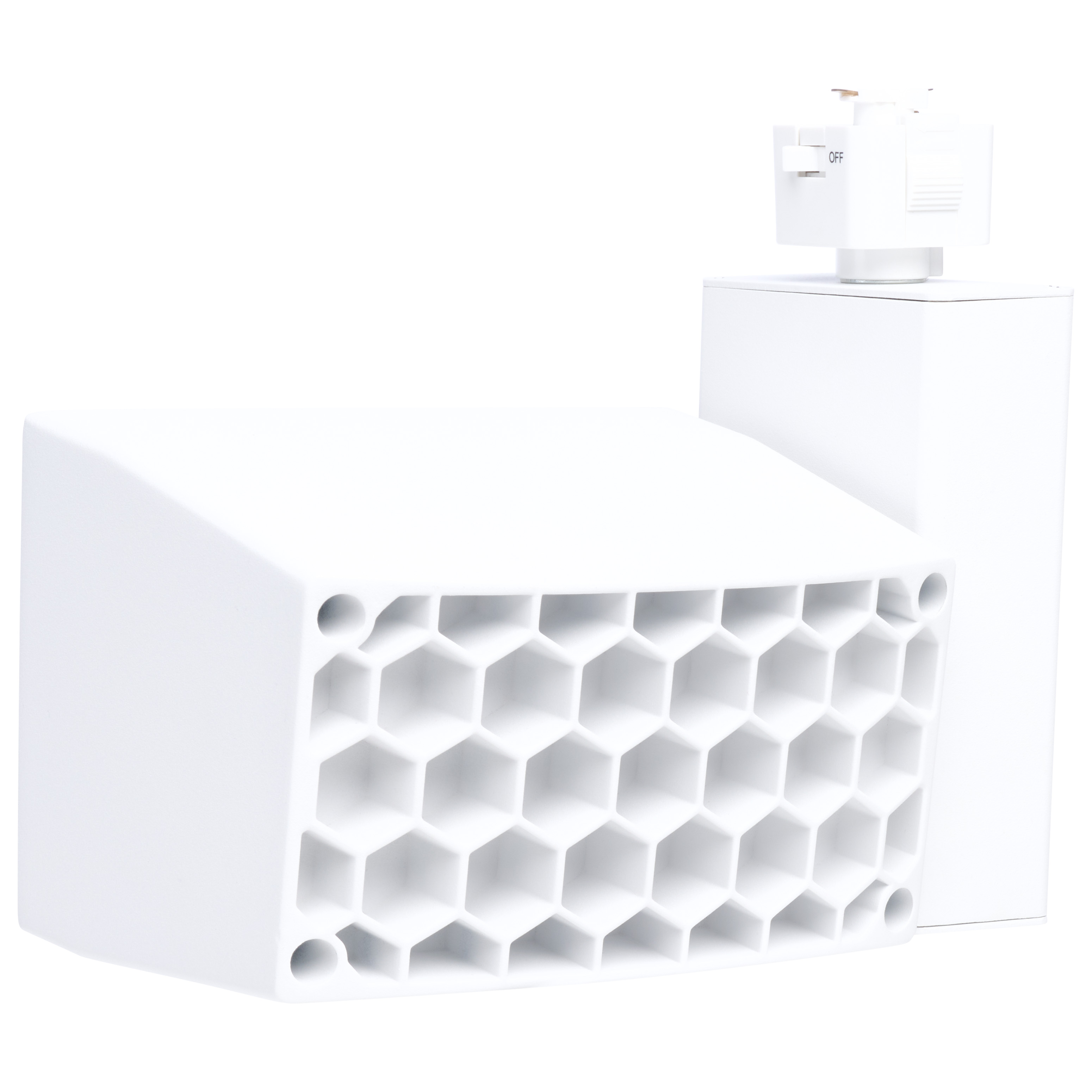

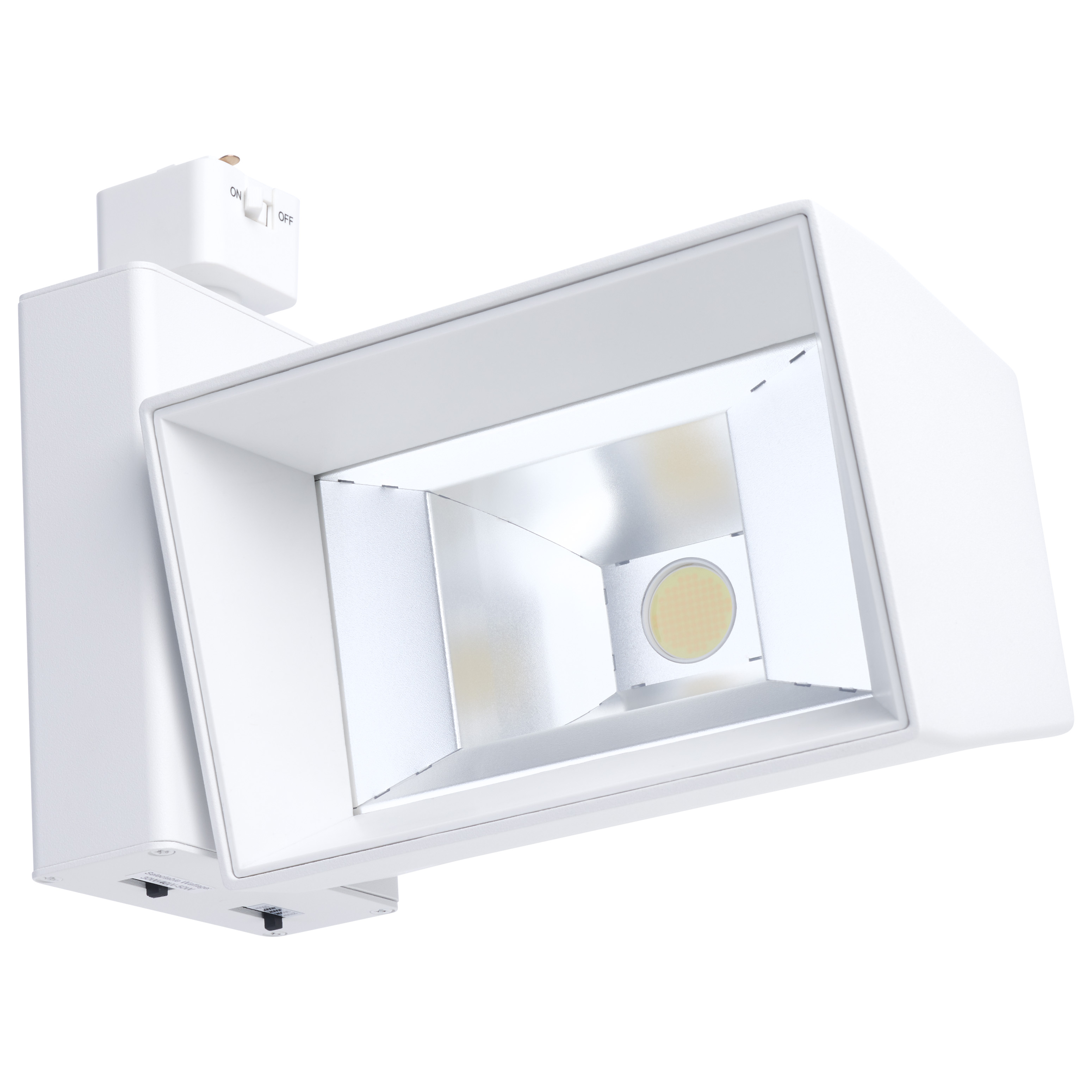

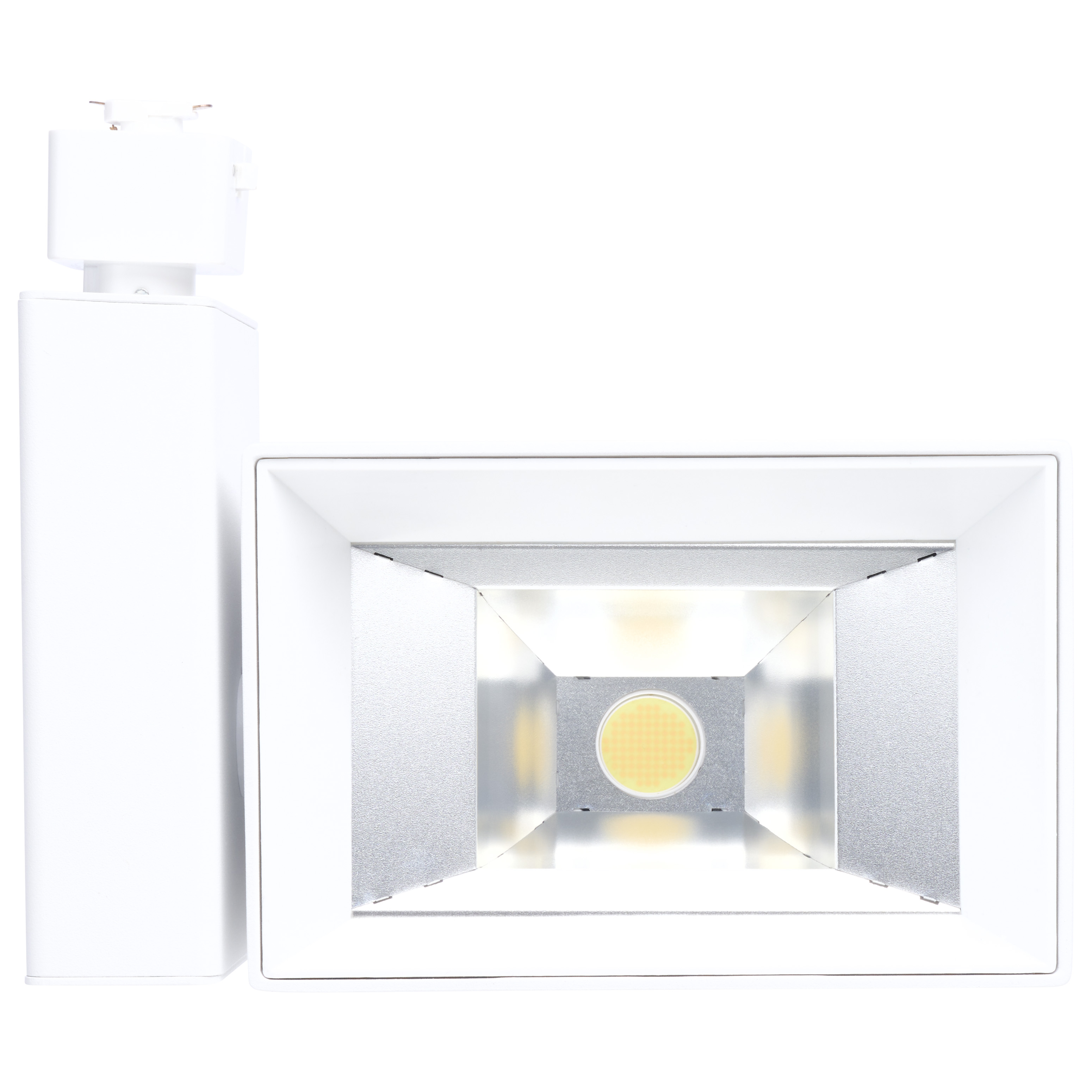

SATCO NUVO'S Side Mount Track Heads JH6001 deliver high output LED illumination for high ceiling applications. These track heads feature J-Track mounting options and are field selectable – meaning wattage and color temperature can easily be selected or changed in the field. The driver is mounted on the side of the fixture, allowing for 355-Degree rotation from side to side and 350-Degree up and down. Side Mount track heads offer 50, 40, and 30W options with a 60-Degree beam spread. Five color temperatures are available 2700, 3000, 3500, 4000, and 5000K which can be easily selected using the switch on the driver compartment.
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
MaterialAluminum / Polycarbonate (PC)
Fixture TypeTrack Head
StatusActive
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<20%
Track Head StyleRectangle
Up Down InstallationUniversal
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Amps0.430A
Lens FinishClear
Lens MaterialGlass
LensedYes
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv96W
Incandescent Equivalent300W
Serviceable BatteryNo
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)60
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +113F (-20C to +45C)
HID Equivalent70W
Lumens3300L-6100L
Volts120v
Watts30W/40W/50W
Max Lumens6100L
Physical
Lamp BaseIntegrated
FinishMatte White
Housing ColorWhite
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty3-Years
Features
Flicker FreeYes
Compliance
Air TightNo
CA Prop 65Lead
Dark Sky RatedNo
FCC CompliantYes
IC RatedNo
IP RatingIP20
Location RatingDry
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923415661
Case Cube1.8521
Case Height8.35
Case Length22.64
Case Quantity12
Case UPC10045923415668
Case Weight30.86
Case Width16.93
EA Cube0.156
EA Height7.6
EA Length8.19
EA Quantity1
EA Weight2.93
EA Width4.33
Pack TypeKraft Box
Web Height6.5
Web Length8.0
Web Width4.6
