S11236

5W/LED/G9/830/FR/120V/DIM

  • 5 Watt
  • JCD LED
  • Frost
  • 3000K
  • G9 Base
  • 120 Volt
location_rating^damp^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^25k^2
warranty^3_years^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11236 SpecificationsCOMMERCIAL GRADE LED T4 LAMPS
Tools
Lighting Layout Analysis For S11236
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

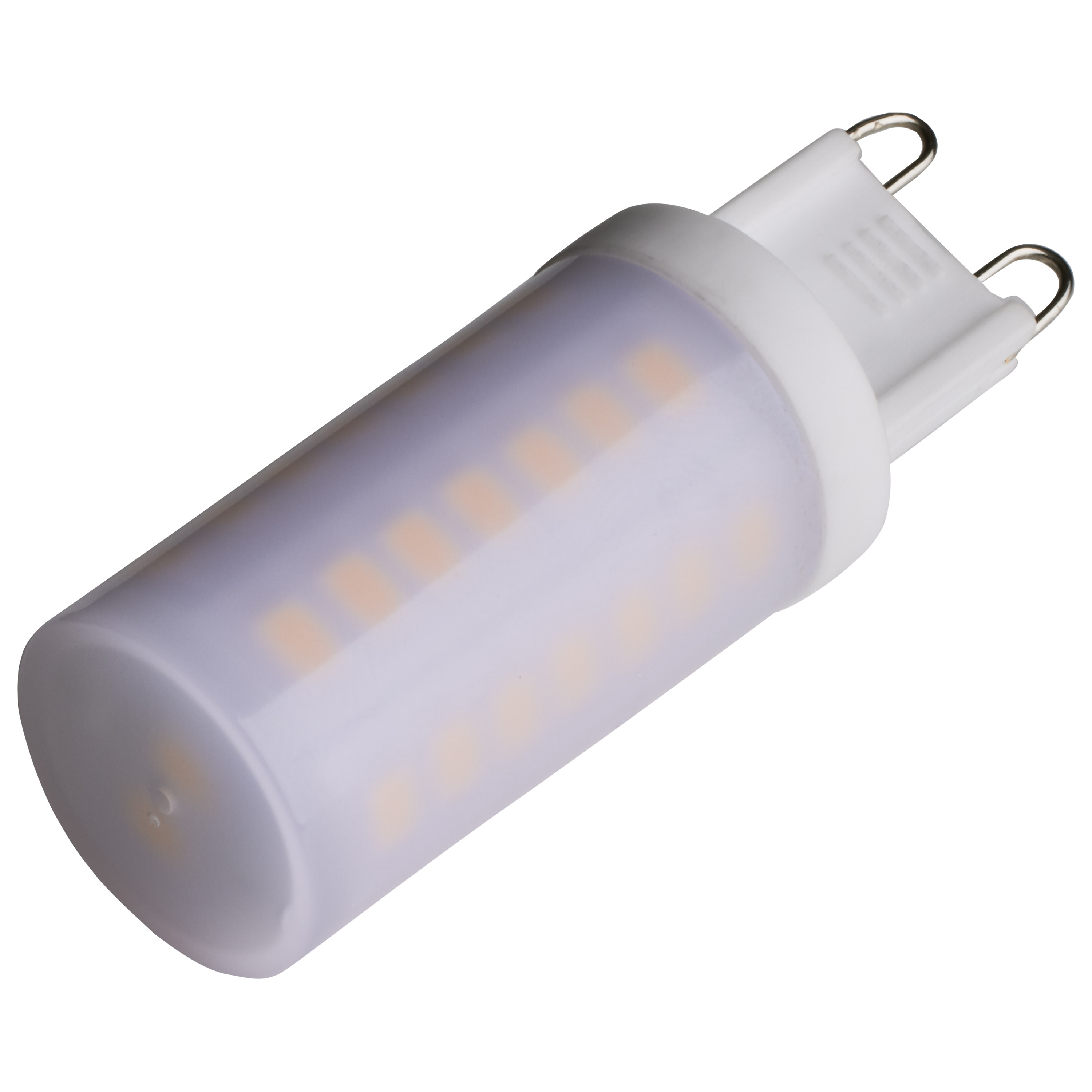

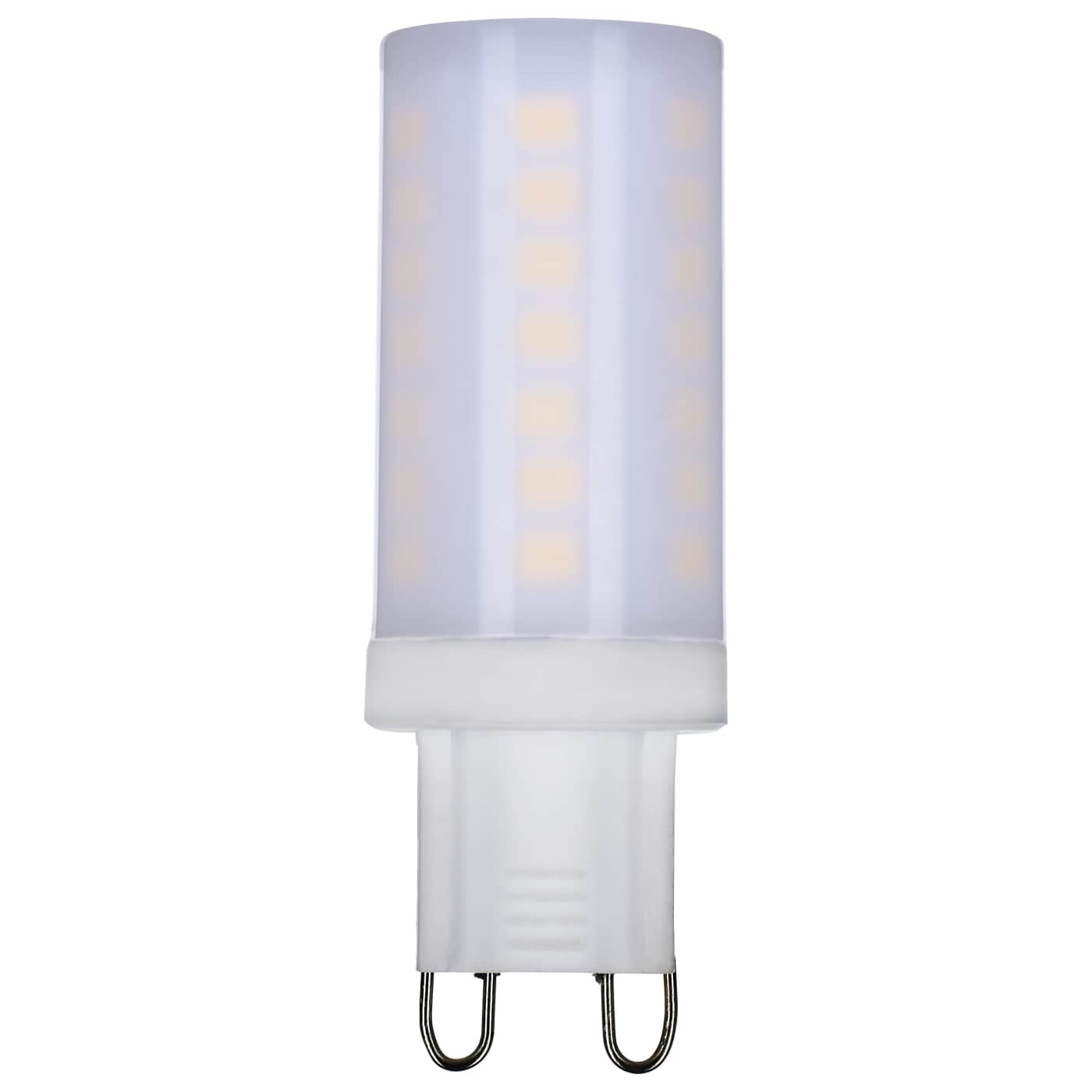

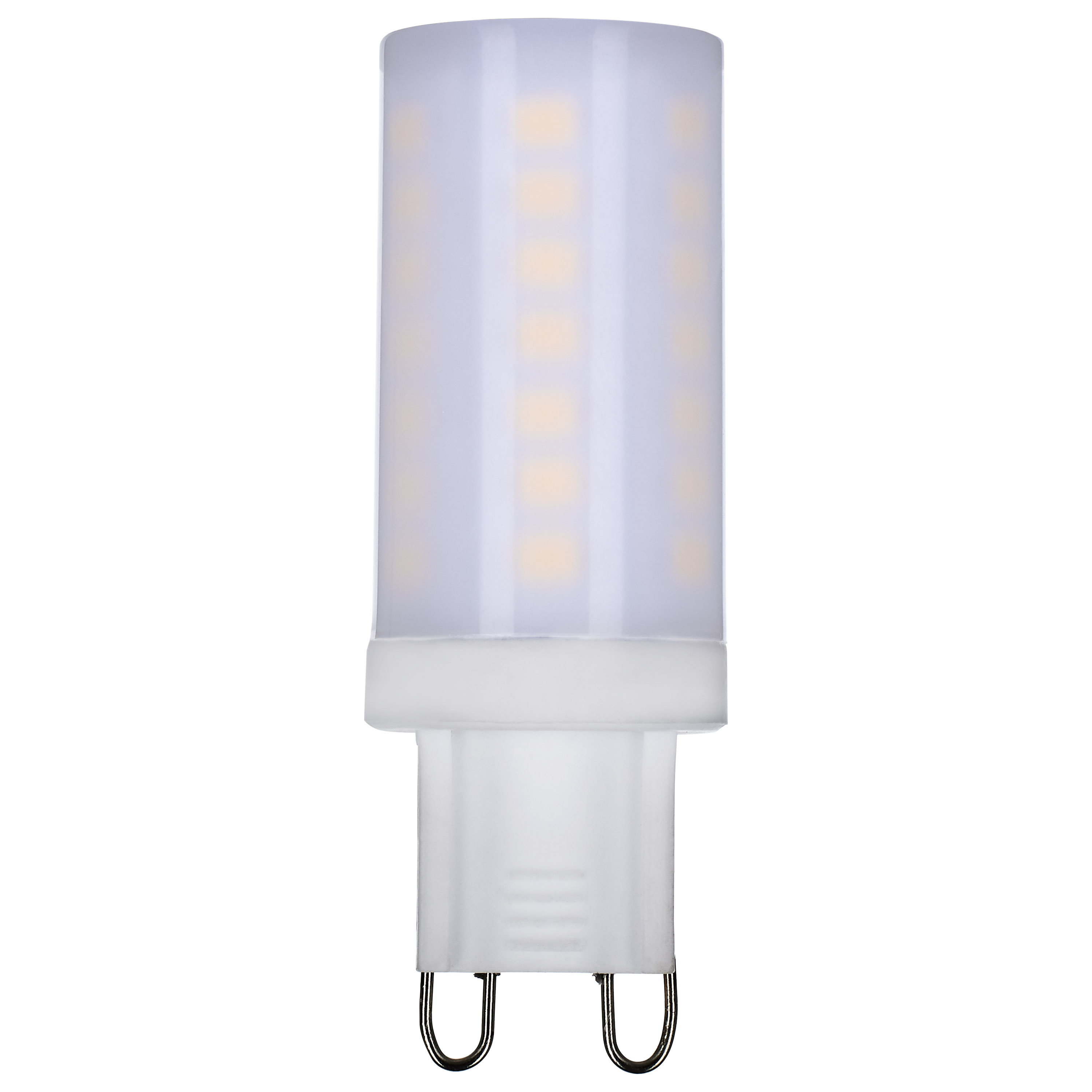

Transform your surroundings with SATCO NUVO's S11236 5-watt, T4, G9-base, Halogen replacement lamp, engineered for optimal energy efficiency and affordability. With a CCT of 3000K and emitting a 300-degree omni-directional light, this lamp is ideal for accentuating various settings. Find the perfect lighting solution for chandeliers, display lighting, landscapes, displays and more with the brilliantly focused light of this lamp, tailored to meet your needs.
Products Specs
General
CompanySATCO
Candle Power45.0
Lamp FilamentLED
MaterialCeramic / Polycarbonate (PC)
Fixture TypeLED
StatusActive
StyleUtility
Total Harmonic Distortion70%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.042A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPlastic
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)300
Color TempSoft White
CRI80+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)
HID Equivalent40W
Lumens500L
Volts120v
Watts5W
Physical
Lamp BaseG9 Double Loop
FinishFrost
Housing ColorWhite
ANSI BaseG9
Lamp TypeT4
MOD Lamps0.75
MOL2.13
Additional Info
Warranty3-Years
Installation NotesNot for use in vapor tight fixtures. For proper ventilation, original protective glass shield for halogen lamps should be removed during installation.
Rated For Enclosed FixtureNo
Documents
Compliance
FCC CompliantYes
IP RatingIP20
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923112362
Case Cube1.1904
Case Height13.62
Case Length17.44
Case Quantity200
Case UPC10045923112369
Case Weight12.57
Case Width8.66
EA Cube0.0042
EA Height2.95
EA Length1.57
EA Quantity1
EA Weight0.06
EA Width1.57
Inner Cube0.1004
Inner Height6.42
Inner Length8.07
Inner Quantity20
Inner UPC20045923112366
Inner Weight1.22
Inner Width3.35
Pack TypeBox
Web Length2.13
Web Width0.75
