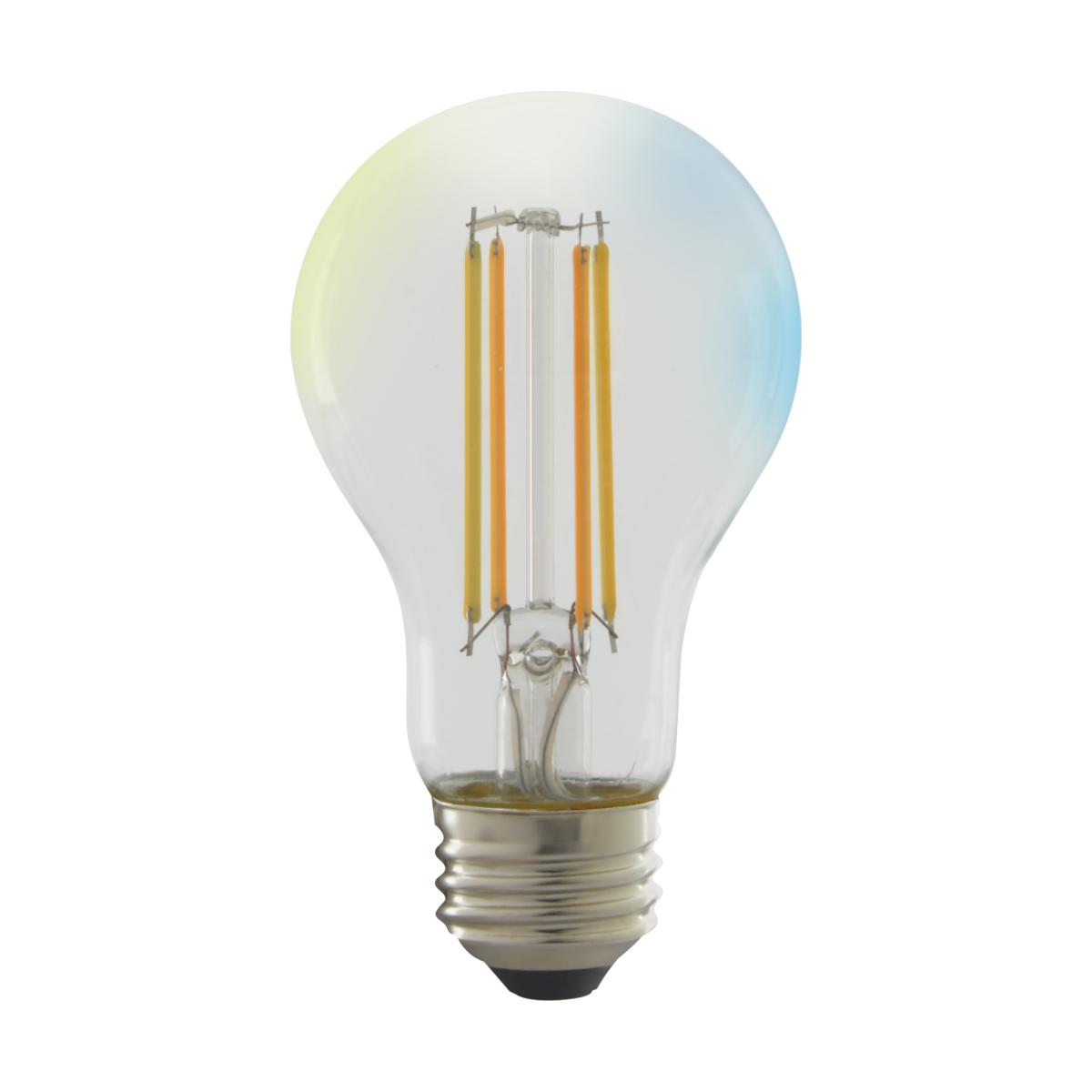

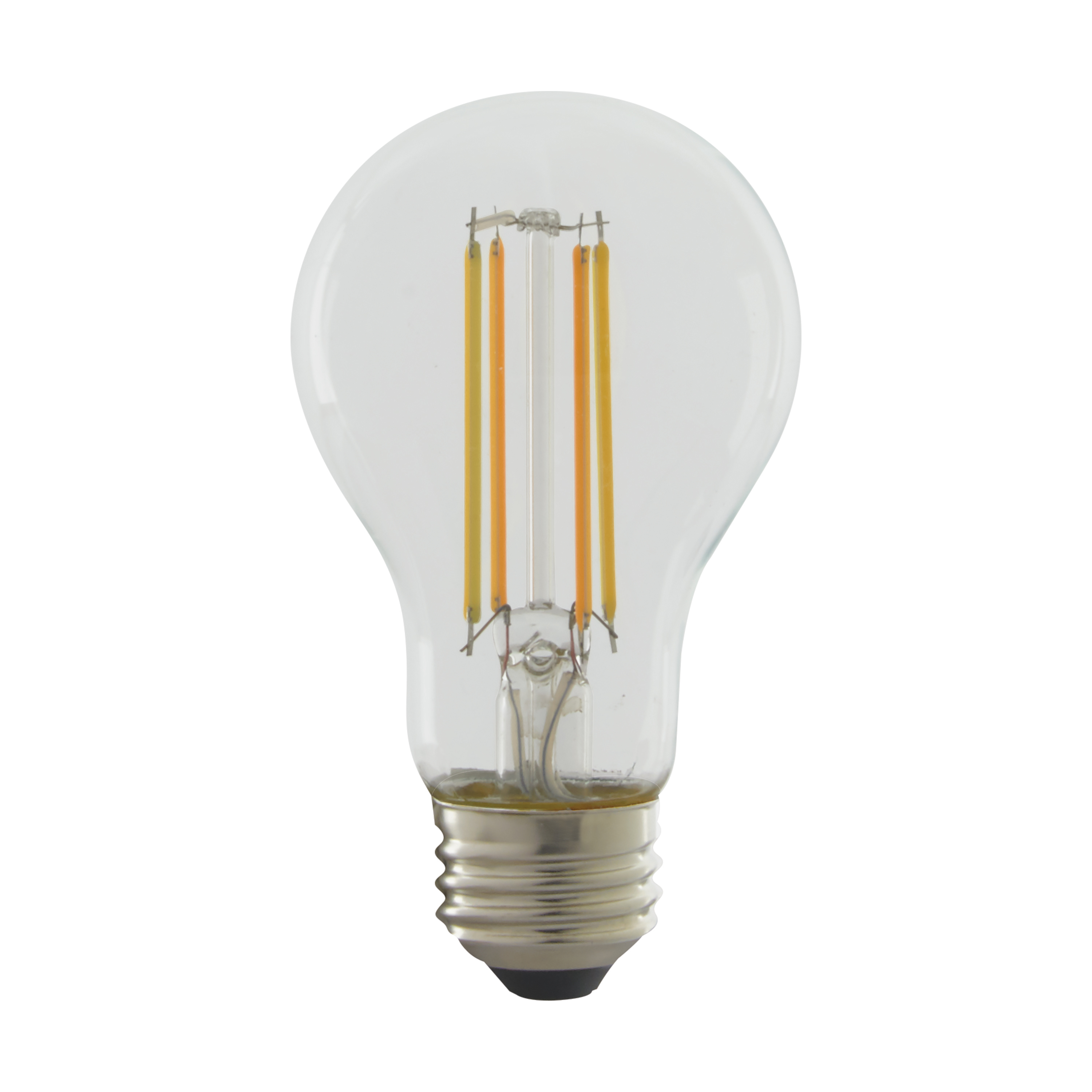

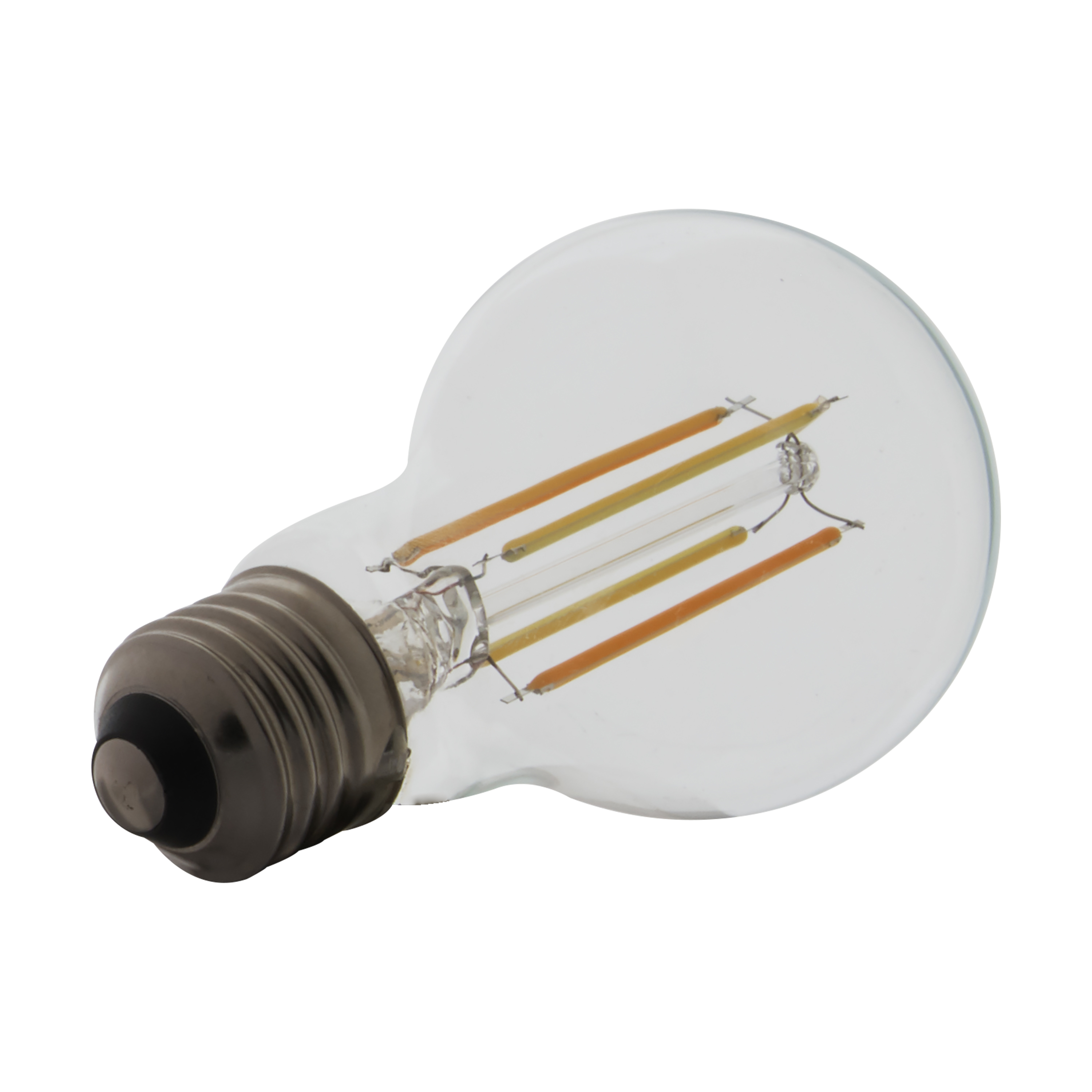

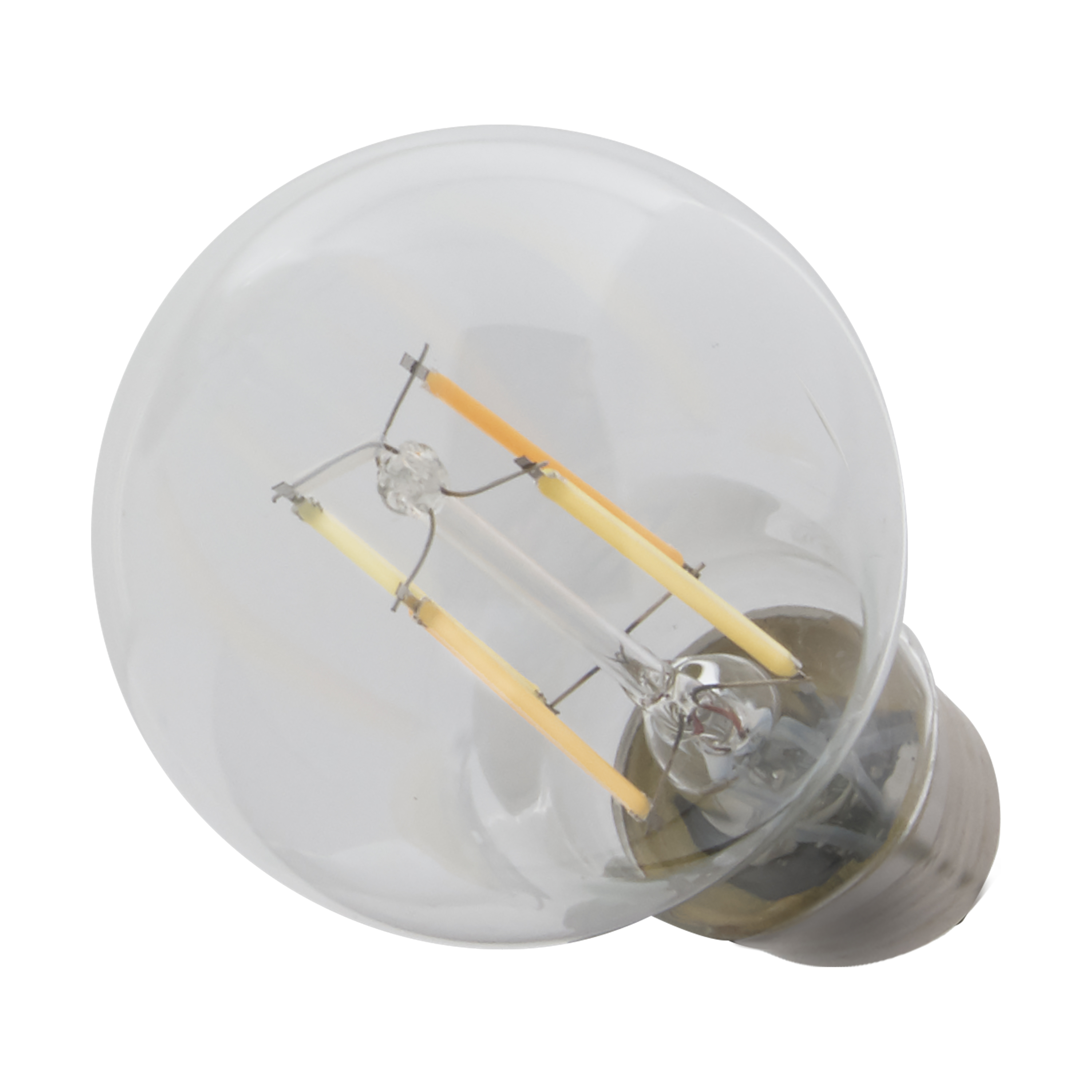

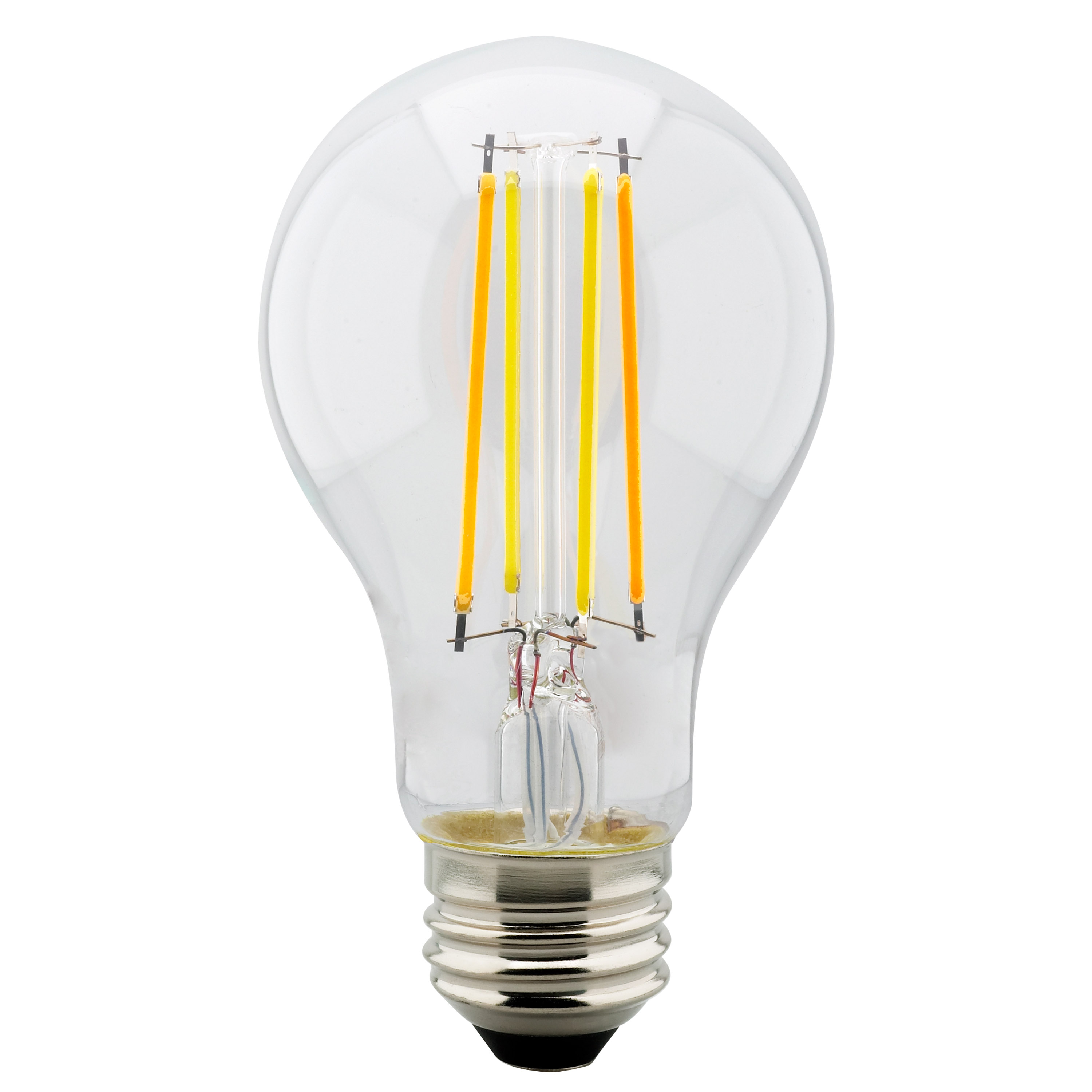

S11250

5A19/LED/TW/CL/SF

Discontinued
  • 5 Watt
  • A19 LED
  • Tunable White
  • Clear
  • Starfish IOT
  • 120 Volt
  • 450 Lumens
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

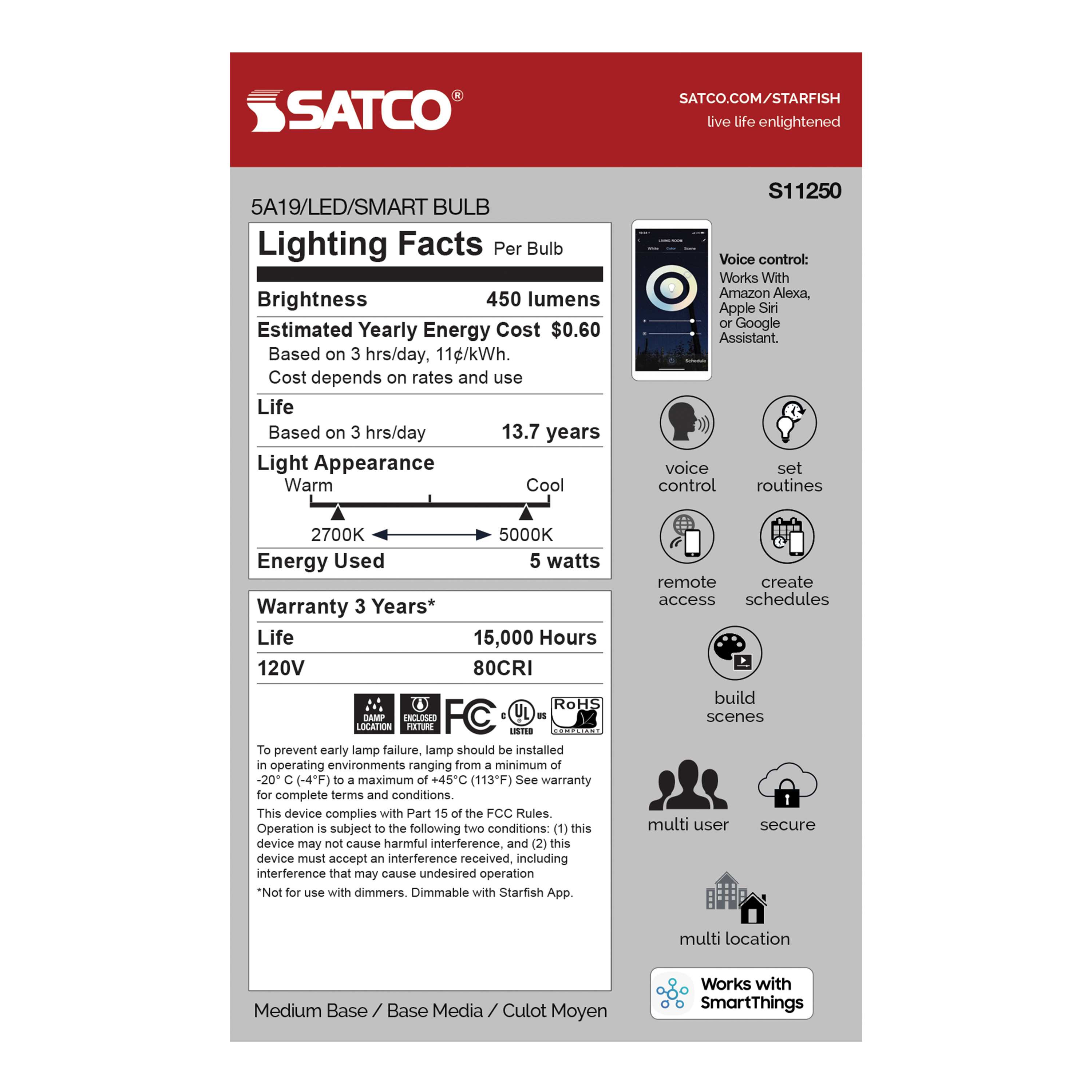

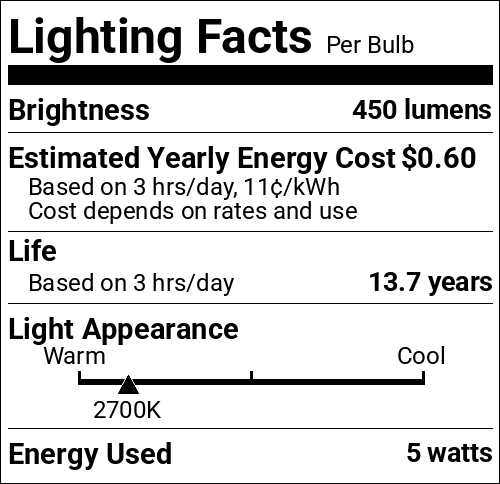

S11250 SpecificationsS11250 Satco Starfish App User Guide.pdfS11250 Lighting Facts Label
Tools
Lighting Layout Analysis For S11250
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
5 Watt; A19 LED; Tunable White; Clear; Starfish IOT; 120 Volt; 450 Lumens
Products Specs
General
CompanySATCO
Starfish Communication ProtocolWiFi-2.4GHz
Dimmable TextSmart-Starfish App only
Lamp FilamentLED
MaterialGlass
Fixture TypeType A
Starting Time0.5
StatusDiscontinued
StyleTraditional
Starfish Voice Assistants SupportedAlexa, Hey Google, Siri Shortcuts, SmartThings
CCT SelectableYes
Wattage SelectableNo
Finish FamilyNo Finish
Amps0.042A
Has CameraNo
IOT EnabledYes
Lens FinishClear
Starfish No Switching Cycles7500
Operating PositionUniversal
Starfish Operational Humidity10% - 80% R.H.
Power Factor0.5
SDS ClassLED_Lamp
Starfish Software SupportedTuya/Starfish App
Starfish Software UpgradeableYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K-5000K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)280
Color TempWarm to Cool White
CRI80+
Dimming TypeSmart-Starfish App only
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens450L
Volts120v
Watts5W
Physical
Lamp BaseMedium
FinishClear
Housing ColorNone
ANSI BaseE26
Lamp TypeA19

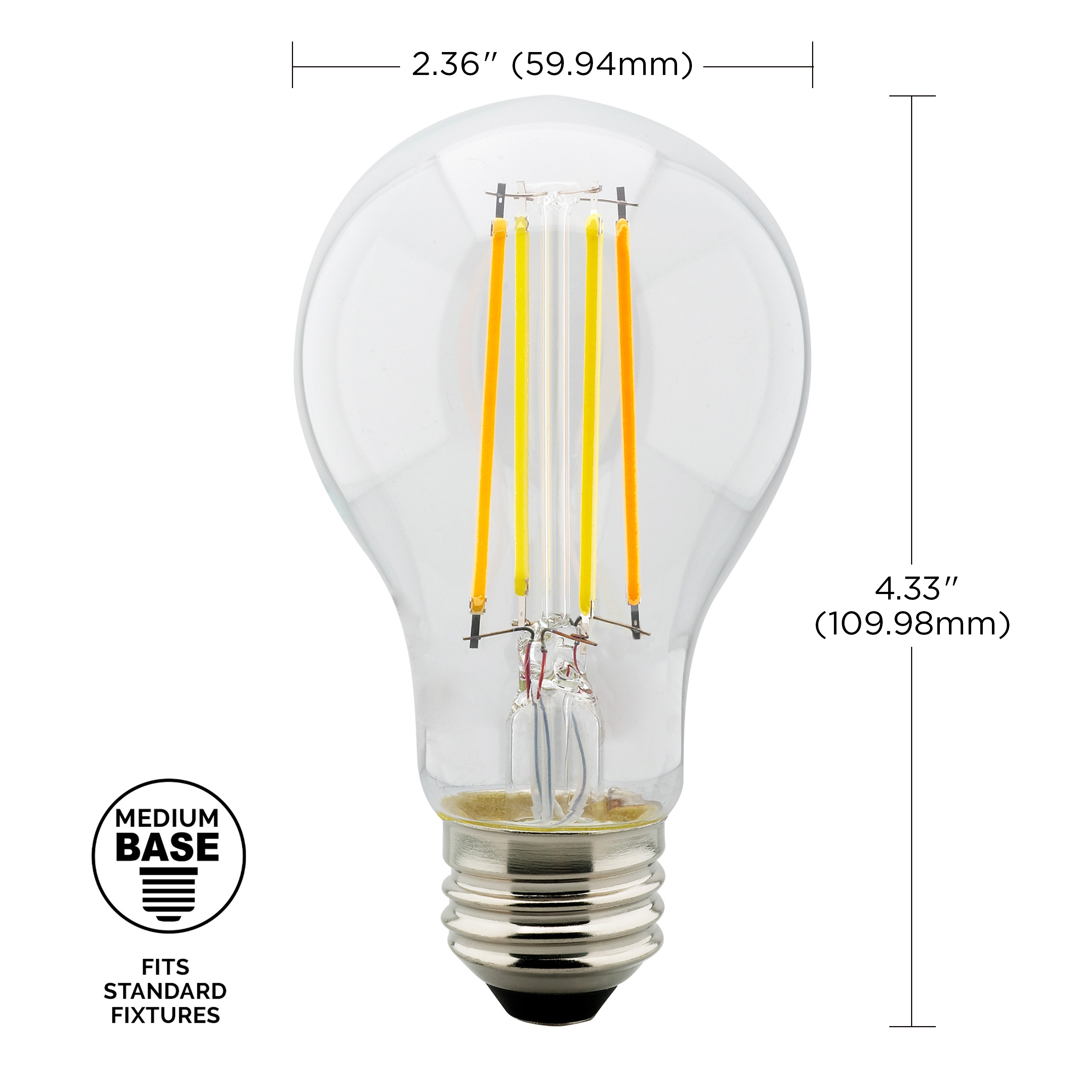

MOD Lamps2.36
MOL4.33
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
CA T20 Compliant SubstituteS11274
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923112508
Case Cube1.4987
Case Height12.6
Case Length15.35
Case Quantity24
Case UPC10045923112505
Case Weight6.08
Case Width13.39
EA Cube0.0312
EA Height5.51
EA Length2.76
EA Quantity1
EA Weight0.15
EA Width3.54
Inner Cube0.4473
Inner Height5.91
Inner Length14.76
Inner Quantity12
Inner UPC20045923112502
Inner Weight2.43
Inner Width8.86
Pack TypeBox
Web Length4.33
Web Width2.36
