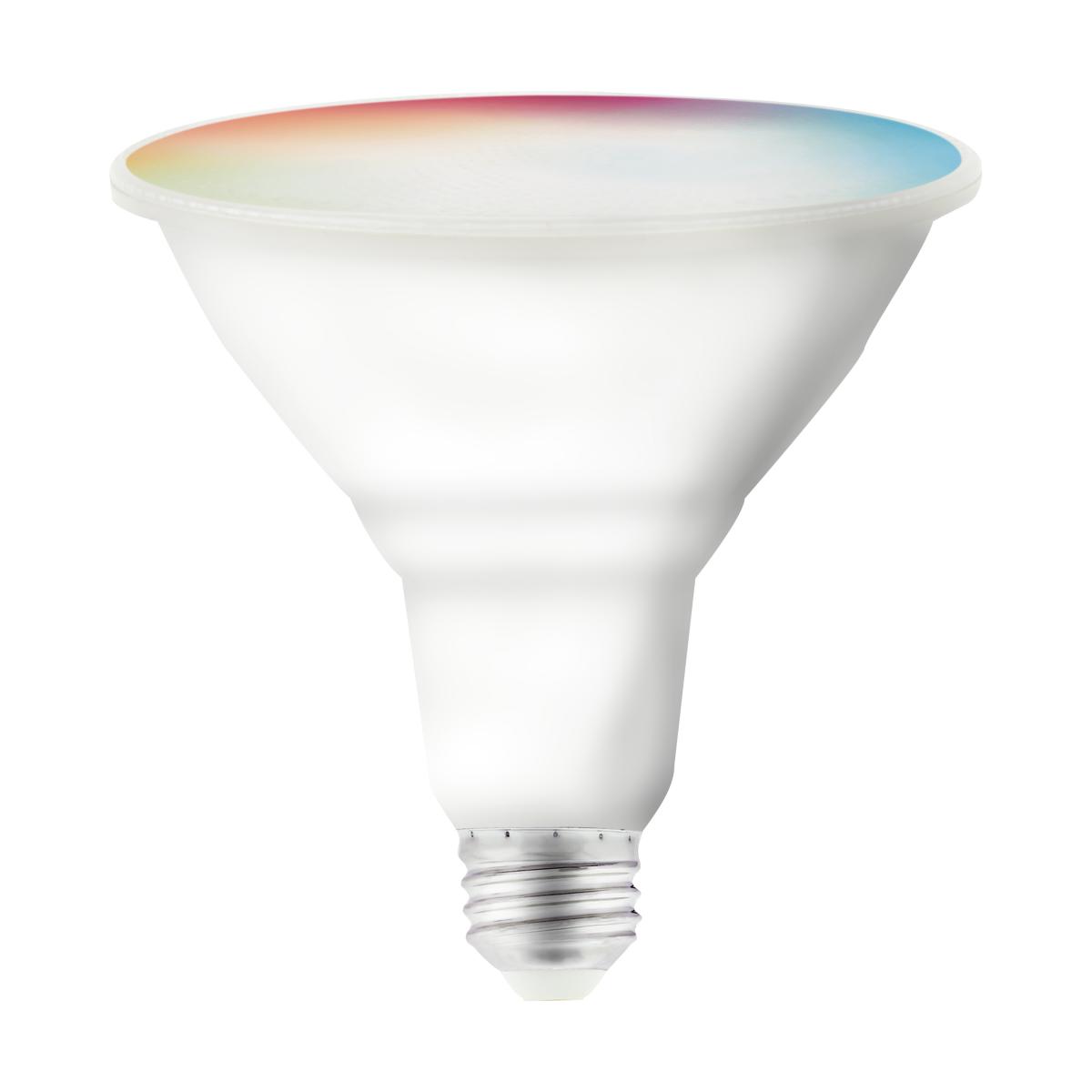

S11258

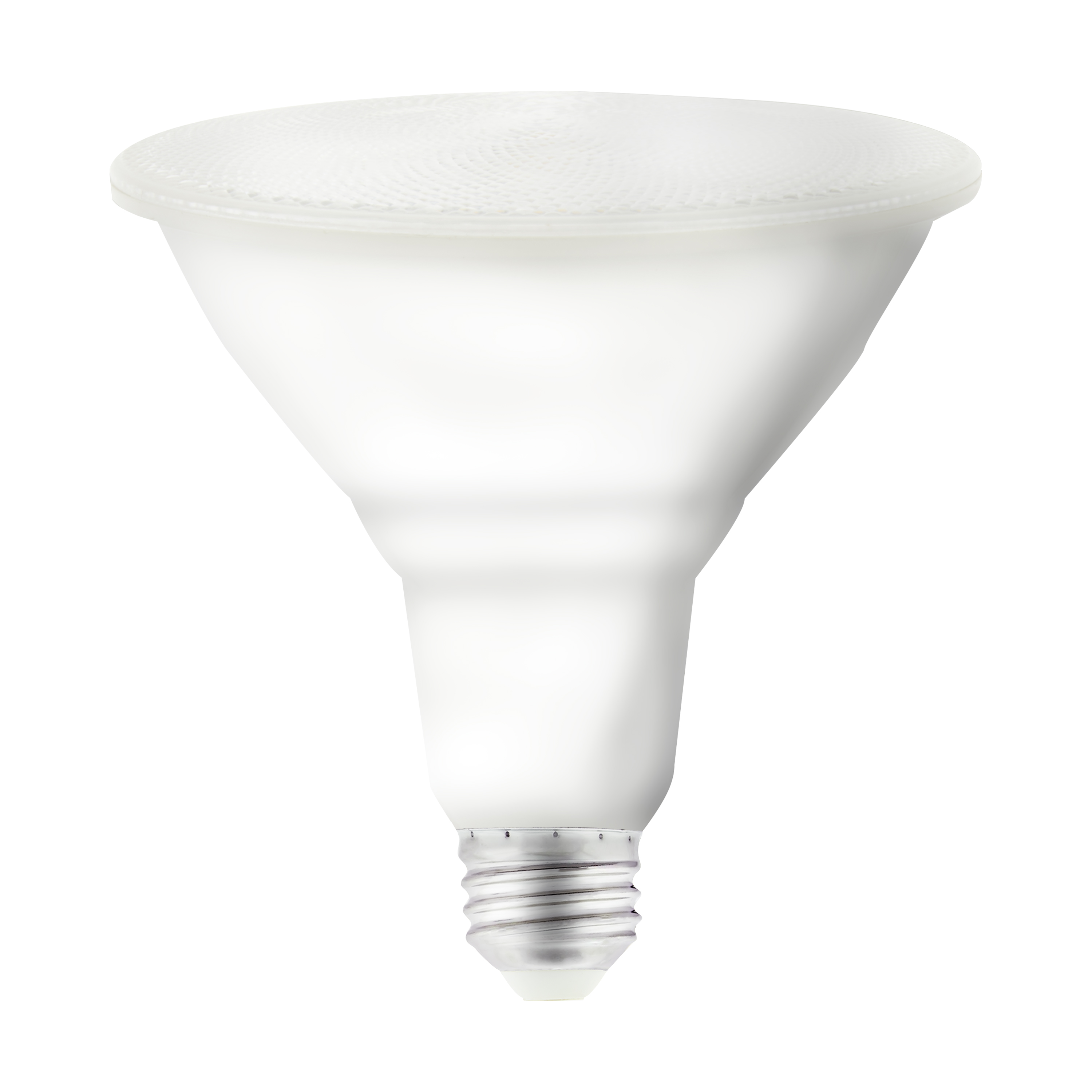

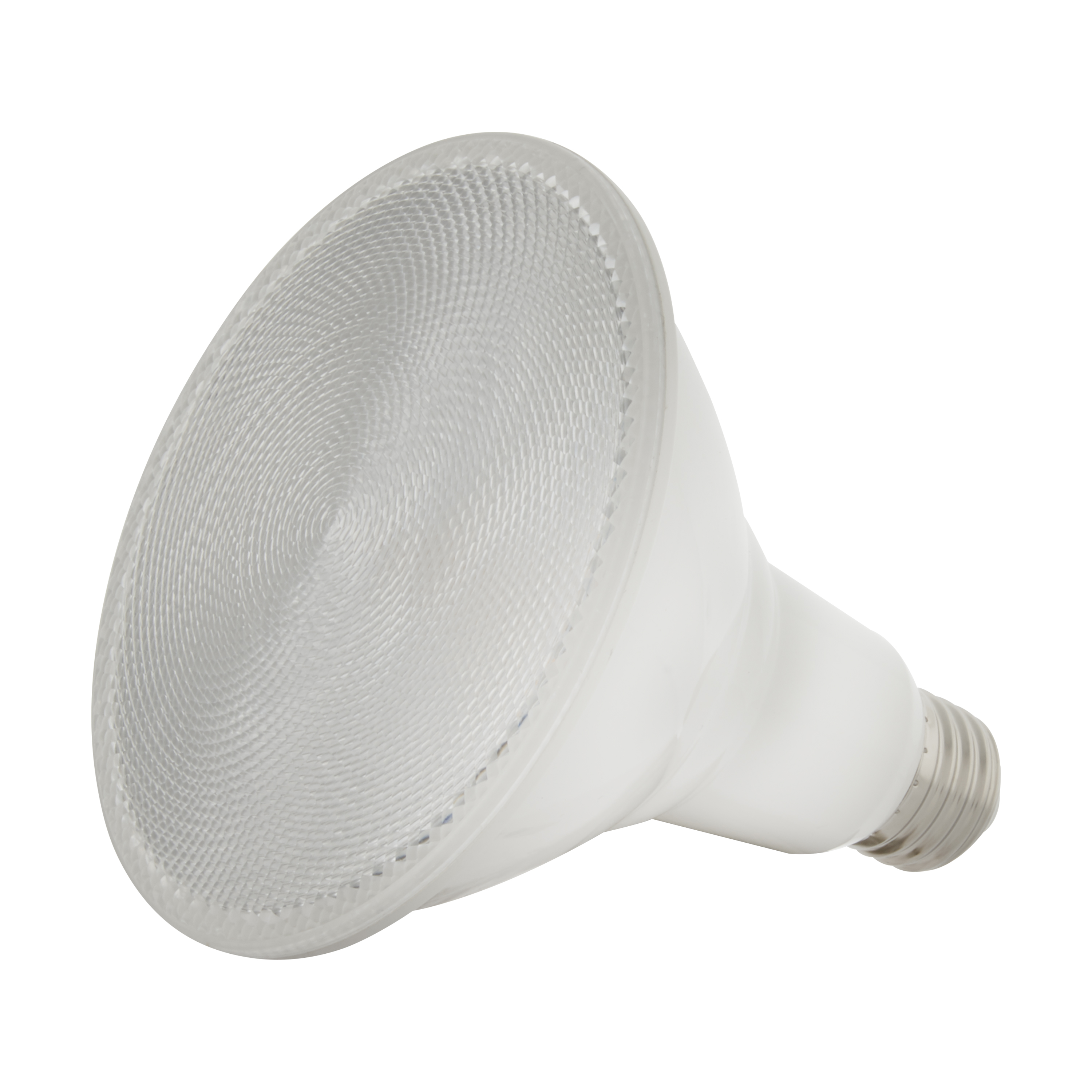

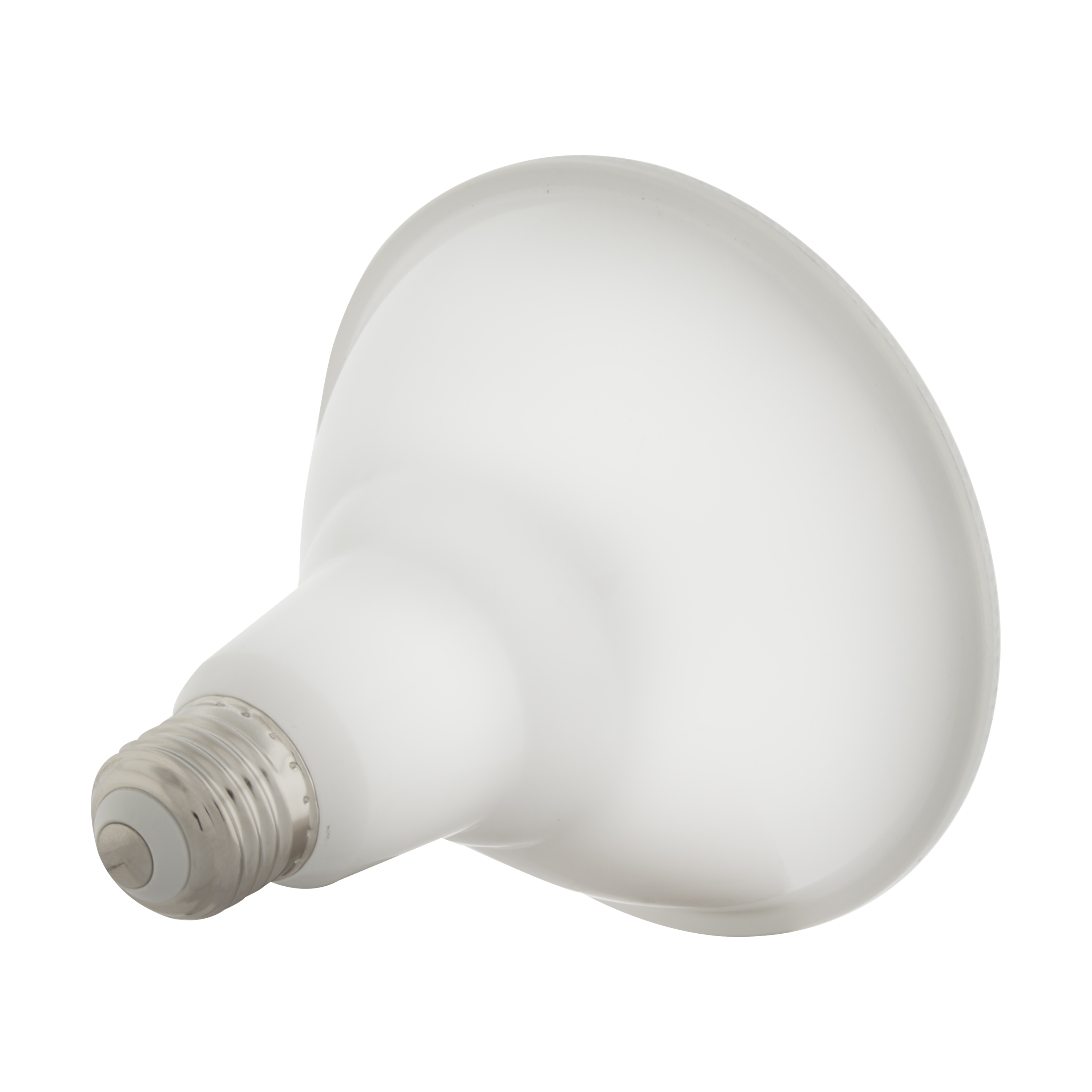

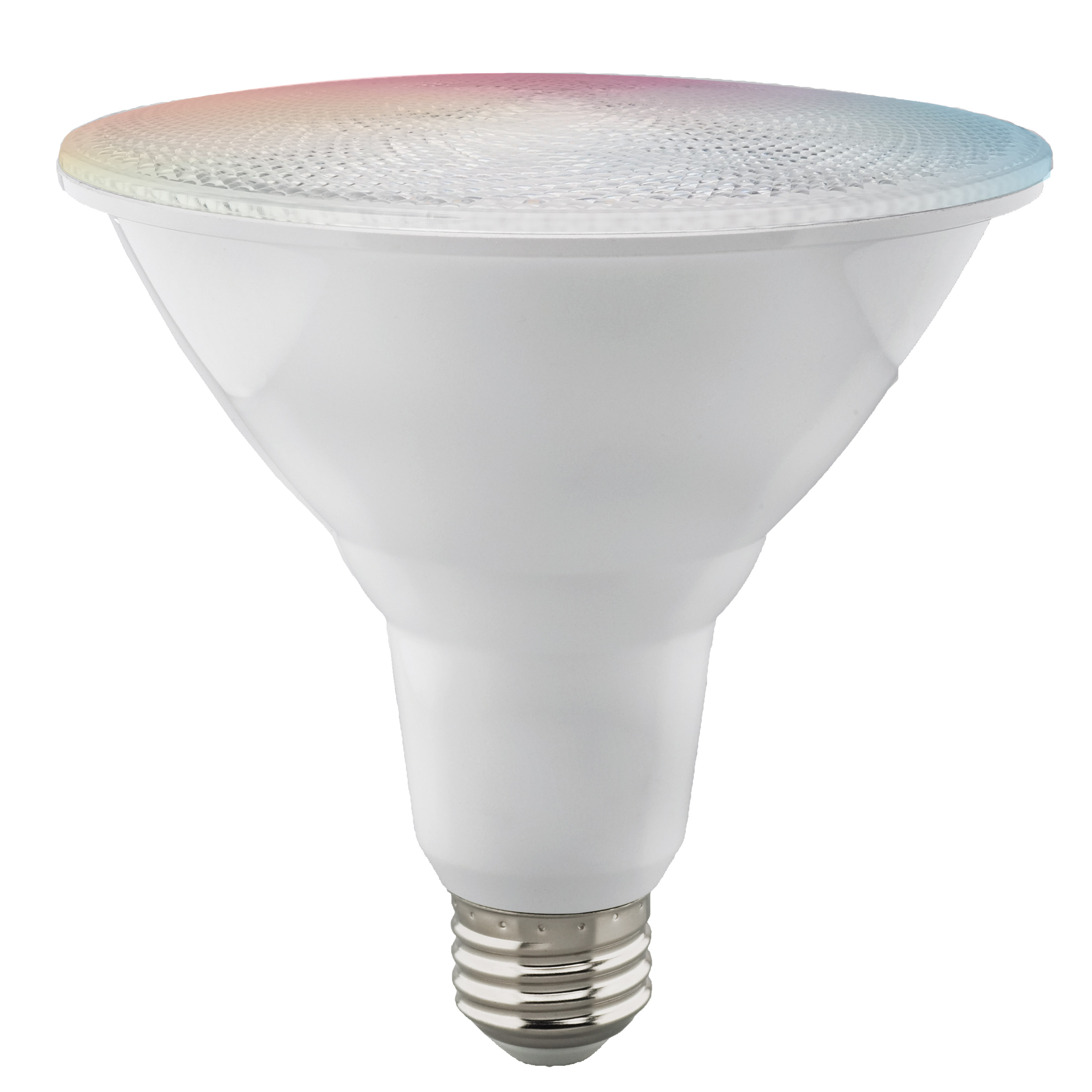

5PAR38/LED/RGB/TW/SF

Discontinued - Suggested Replacement: S11108
  • 15 Watt
  • PAR38 LED
  • RGB & Tunable White
  • Starfish IOT
  • 120 Volt
  • 1200 Lumens
cc_selectable^y^1
location_rating^wet^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

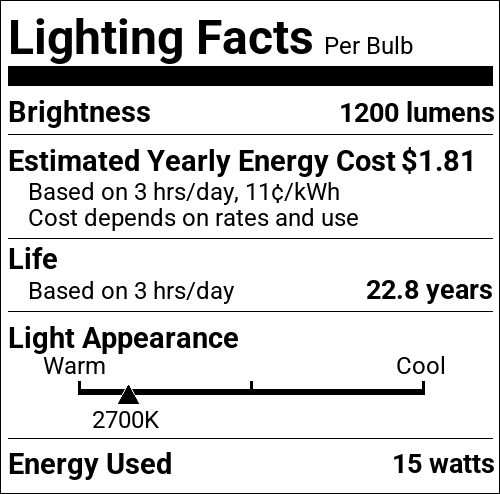

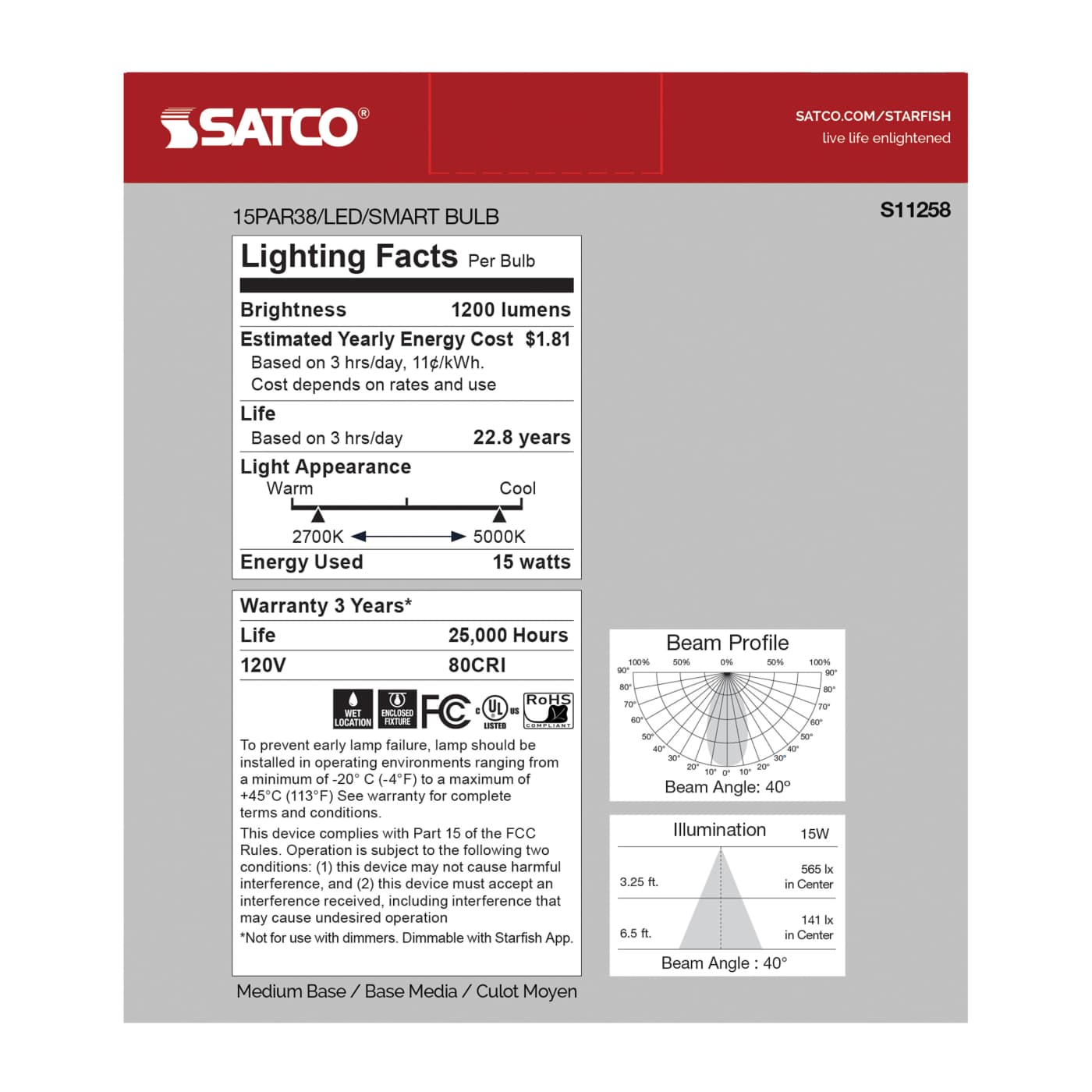

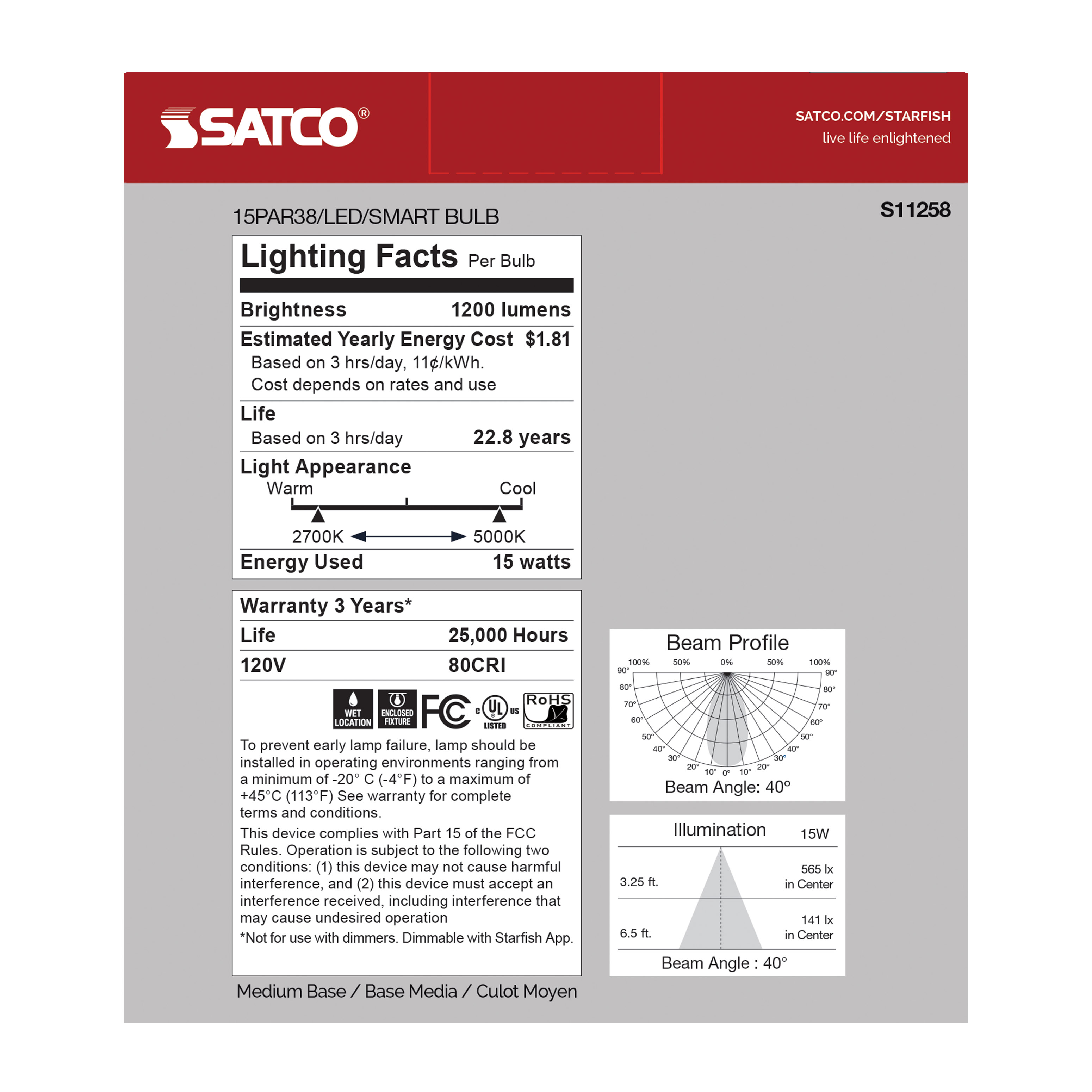

S11258 SpecificationsS11258 Photometrics 2700K.iesS11258 Photometrics 5000K.iesS11258 Lighting Facts Label
Tools
Lighting Layout Analysis For S11258
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
15 Watt; PAR38 LED; RGB & Tunable White; Starfish IOT; 120 Volt; 1200 Lumens
Products Specs
General
CompanySATCO
Starfish Communication ProtocolWiFi
Dimmable TextSmart-Starfish App only
Lamp FilamentLED
MaterialPlastic
Fixture TypePAR
StatusDiscontinued
StyleUtility
Starfish Voice Assistants SupportedAlexa, Hey Google, Siri, SmartThings
CCT SelectableYes
Wattage SelectableNo
Finish FamilyNo Finish
Amps0.125A
Has CameraNo
IOT EnabledYes
Lens FinishClear
Lens MaterialPlastic (PS)
Starfish No Switching Cycles7500
Operating PositionUniversal
Starfish Operational Humidity10% - 80% R.H.
Power Factor0.9
SDS ClassLED_Lamp
Starfish Software SupportedTuya/Starfish App
Starfish Software UpgradeableYes
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)2700K-5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)40
Color TempWarm to Cool White/Color Changeable
CRI80+
Dimming TypeSmart-Starfish App only
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1200L
Volts120v
Watts15W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhite
ANSI BaseE26
Lamp TypePAR38

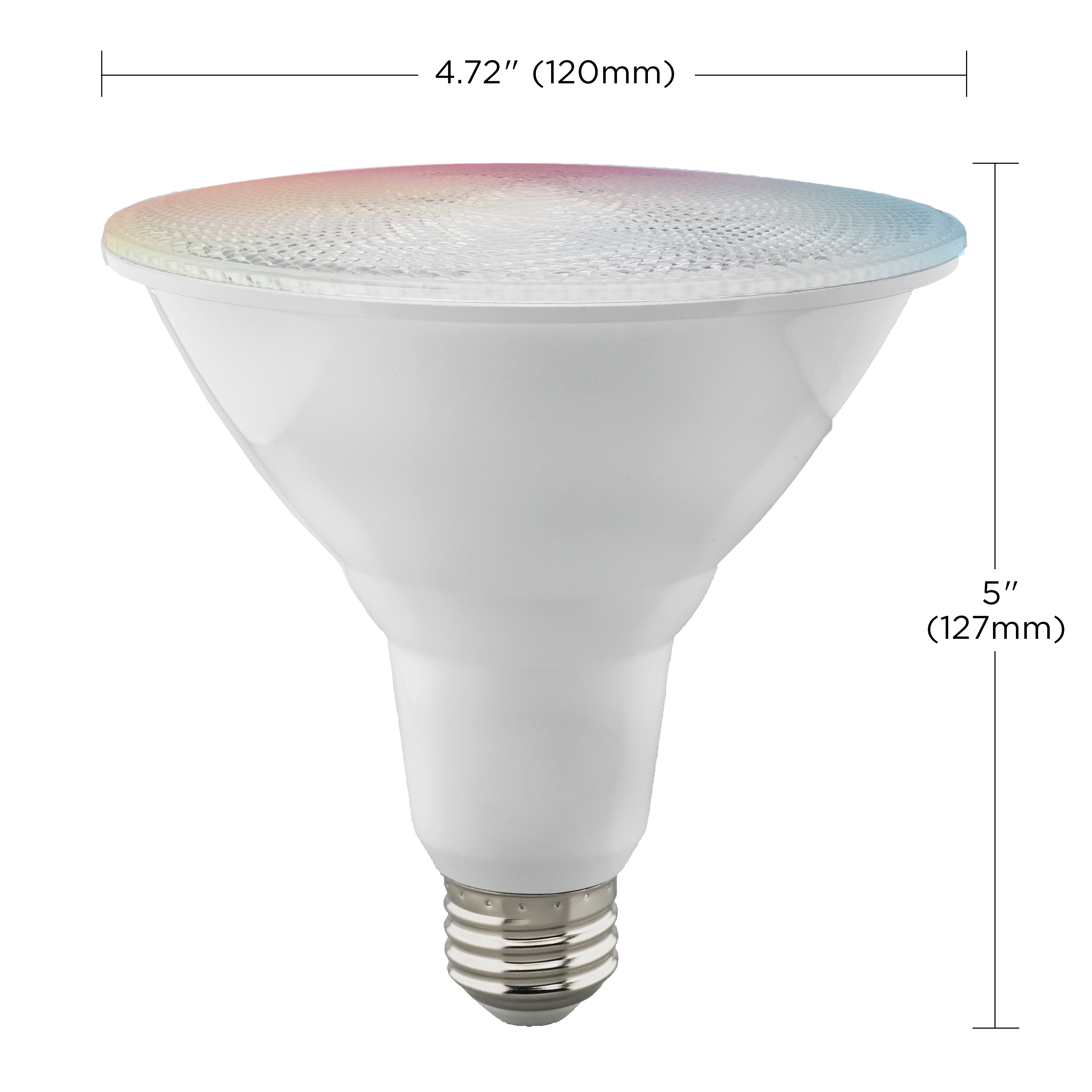

MOD Lamps4.72
MOL5.0
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
CA T20 Compliant SubstituteS11277
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923112584
Case Cube1.2588
Case Height12.6
Case Length15.94
Case Quantity12
Case UPC10045923112581
Case Weight8.55
Case Width10.83
EA Cube0.0772
EA Height5.51
EA Length4.92
EA Quantity1
EA Weight0.52
EA Width4.92
Inner Cube0.5376
Inner Height5.91
Inner Length15.35
Inner Quantity6
Inner UPC20045923112588
Inner Weight3.62
Inner Width10.24
Pack TypeBox
Web Length5.0
Web Width4.72
