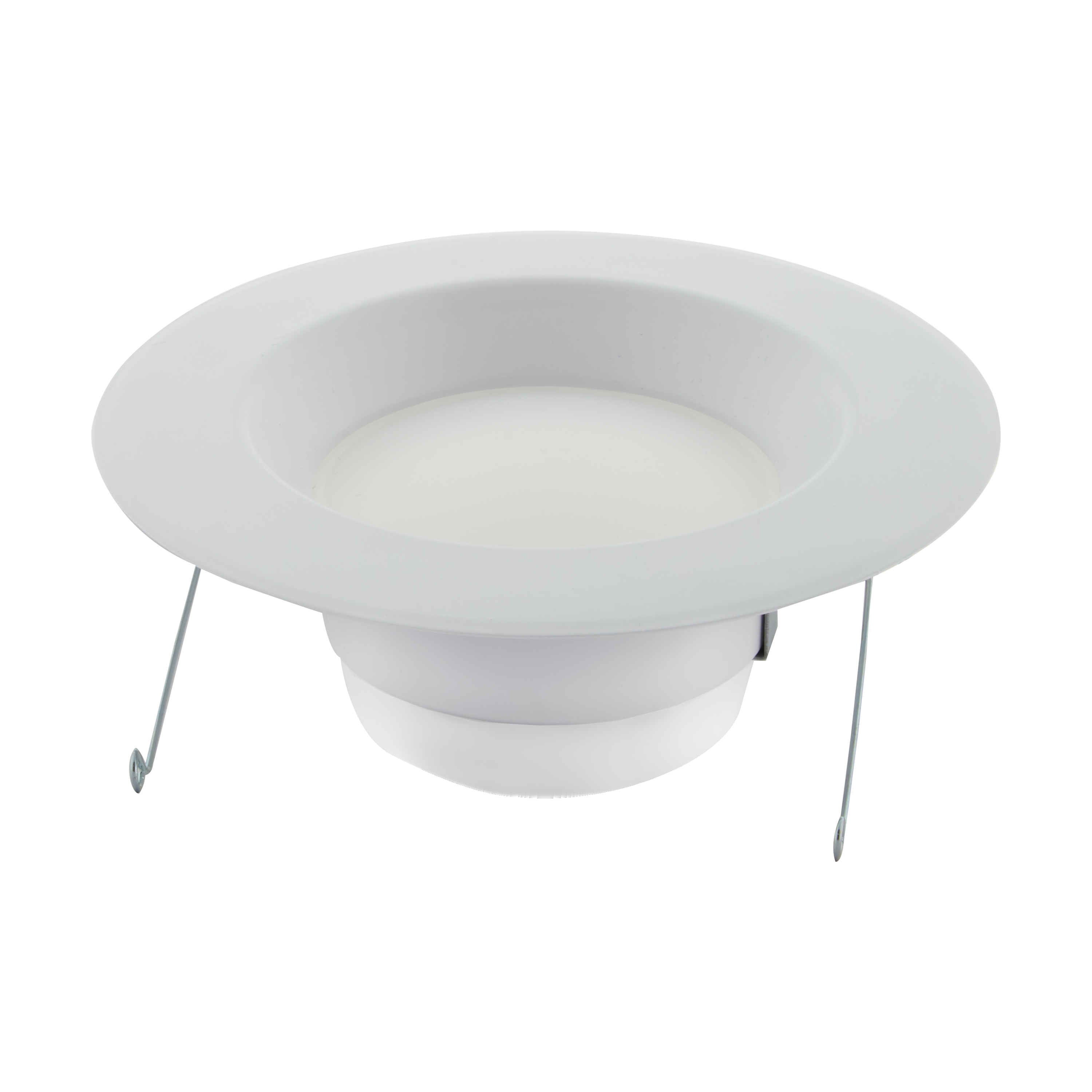

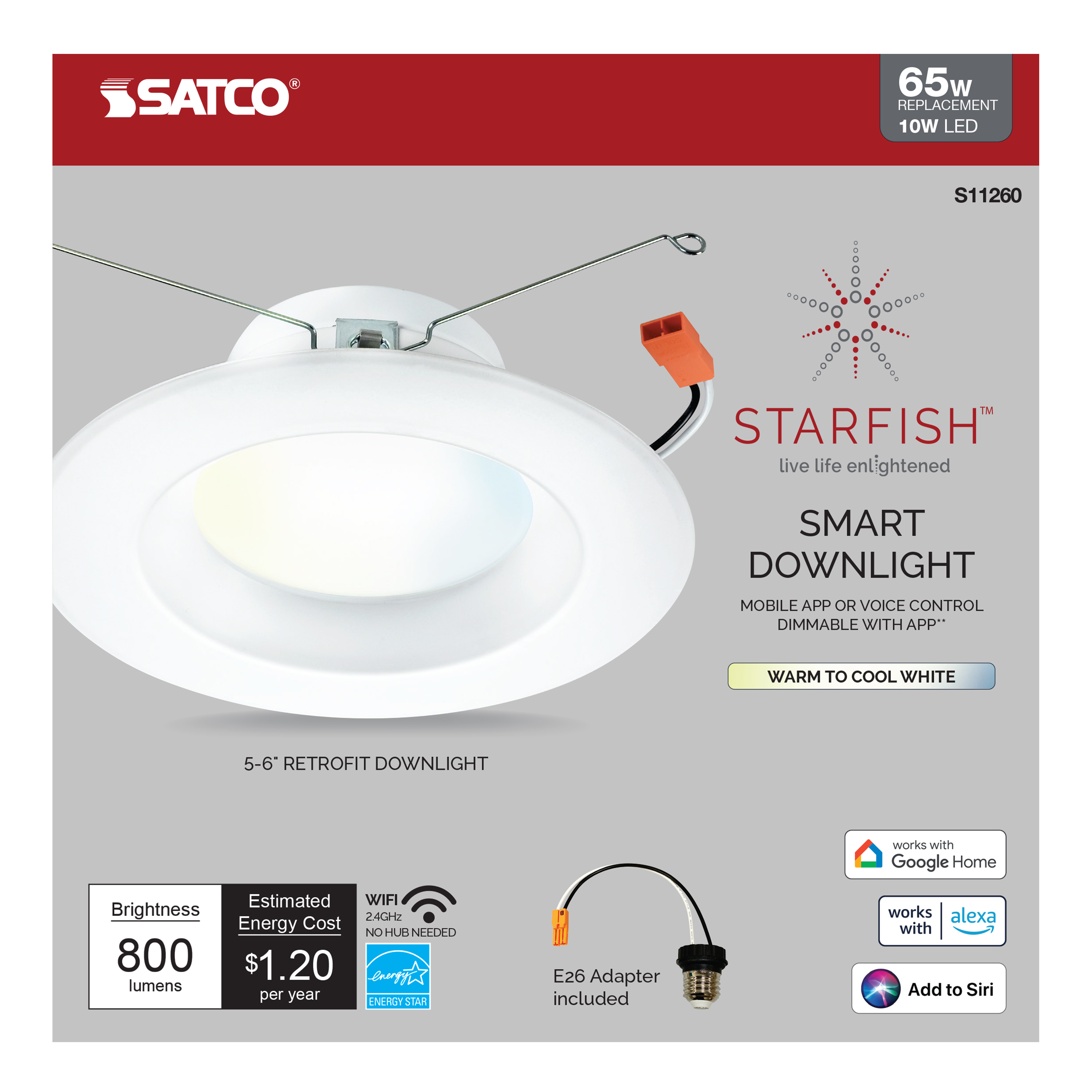

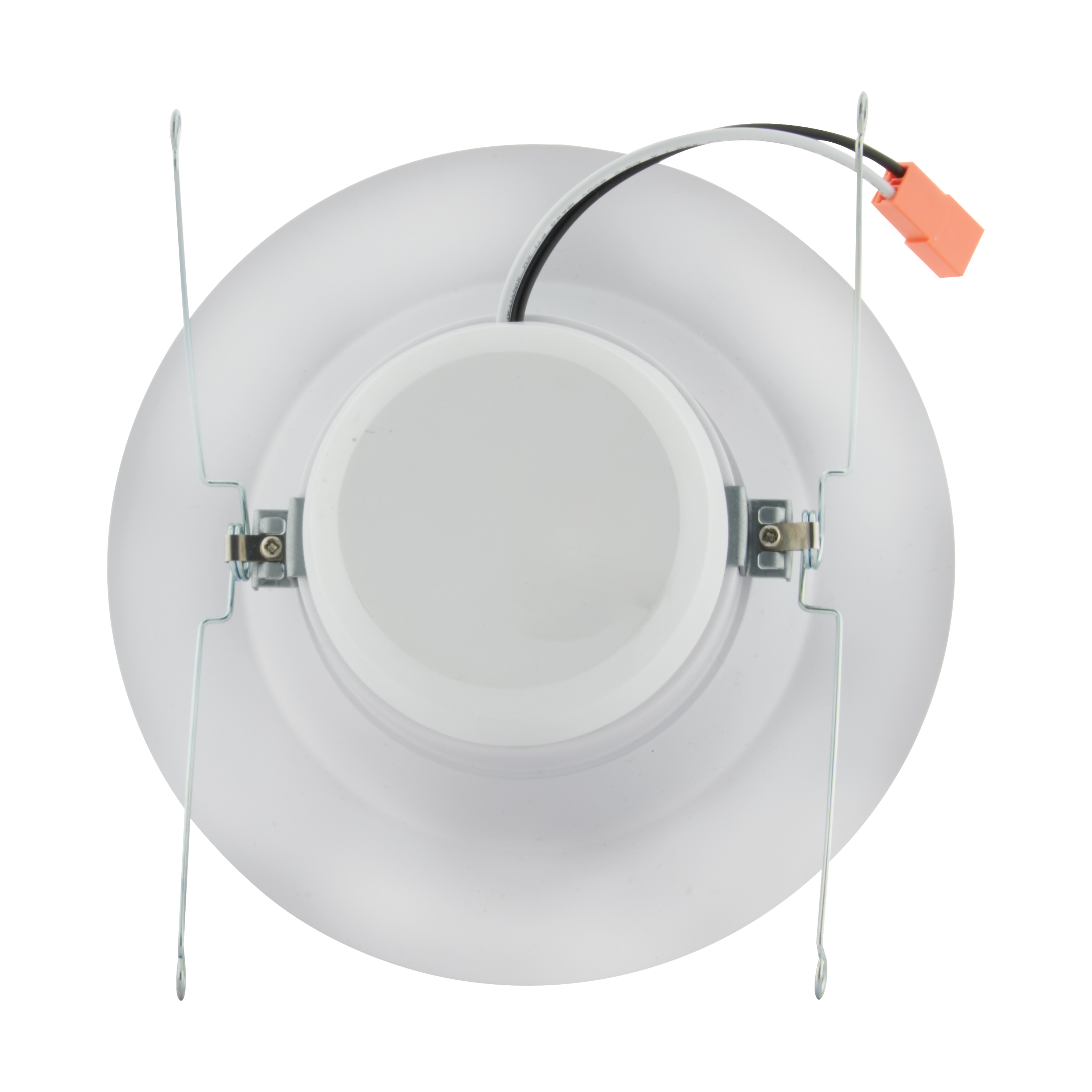

S11260

10W/LED/RDL/5-6/TW/T20/JA8/SF

Discontinued - Suggested Replacement: S11570
  • 10 Watt
  • 5-6 in. LED Recessed Downlight
  • Tunable White
  • Starfish IOT
  • 120 Volt
  • 800 Lumens
cc_selectable^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^25k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11260 SpecificationsS11260 Instructions.pdf
Tools
Lighting Layout Analysis For S11260
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

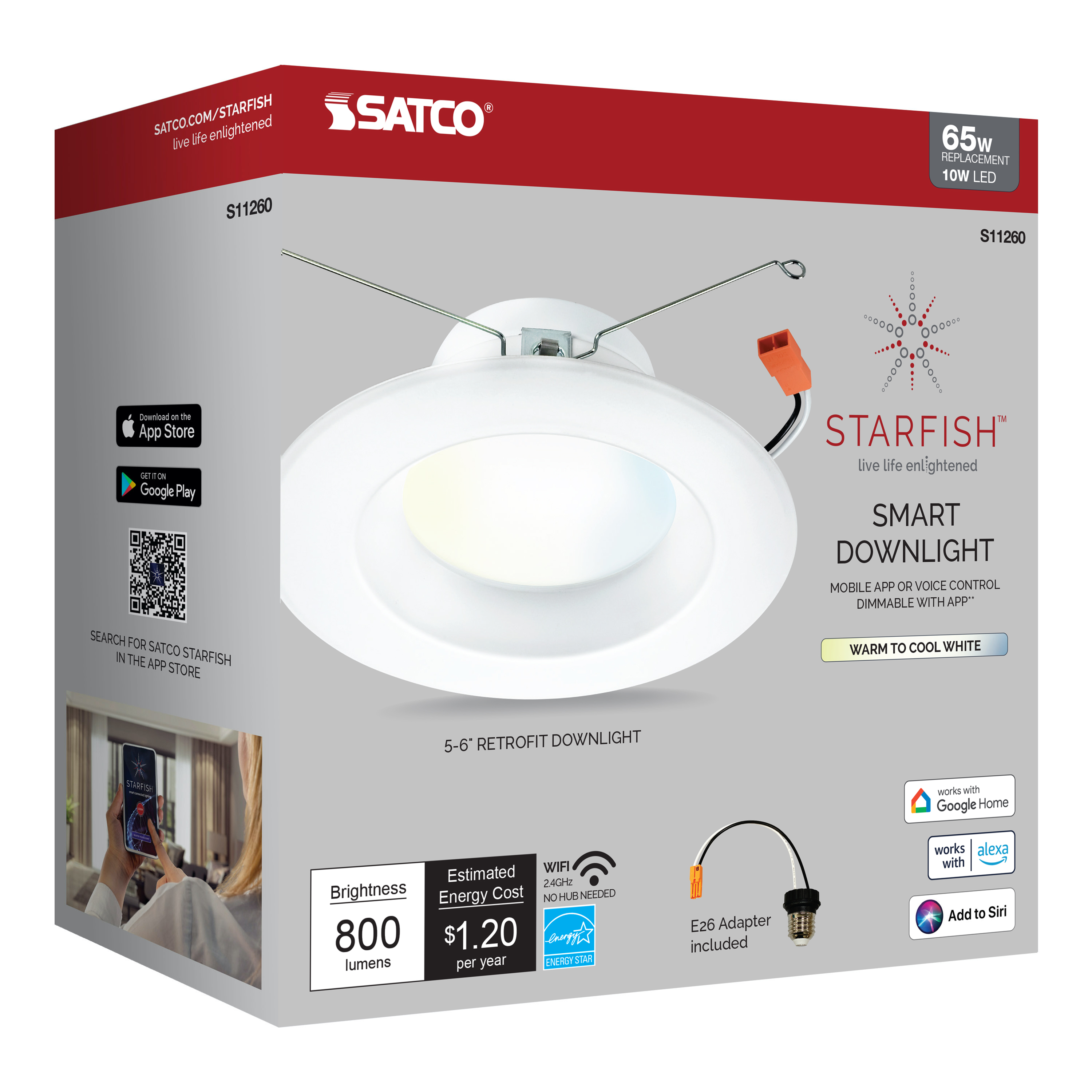

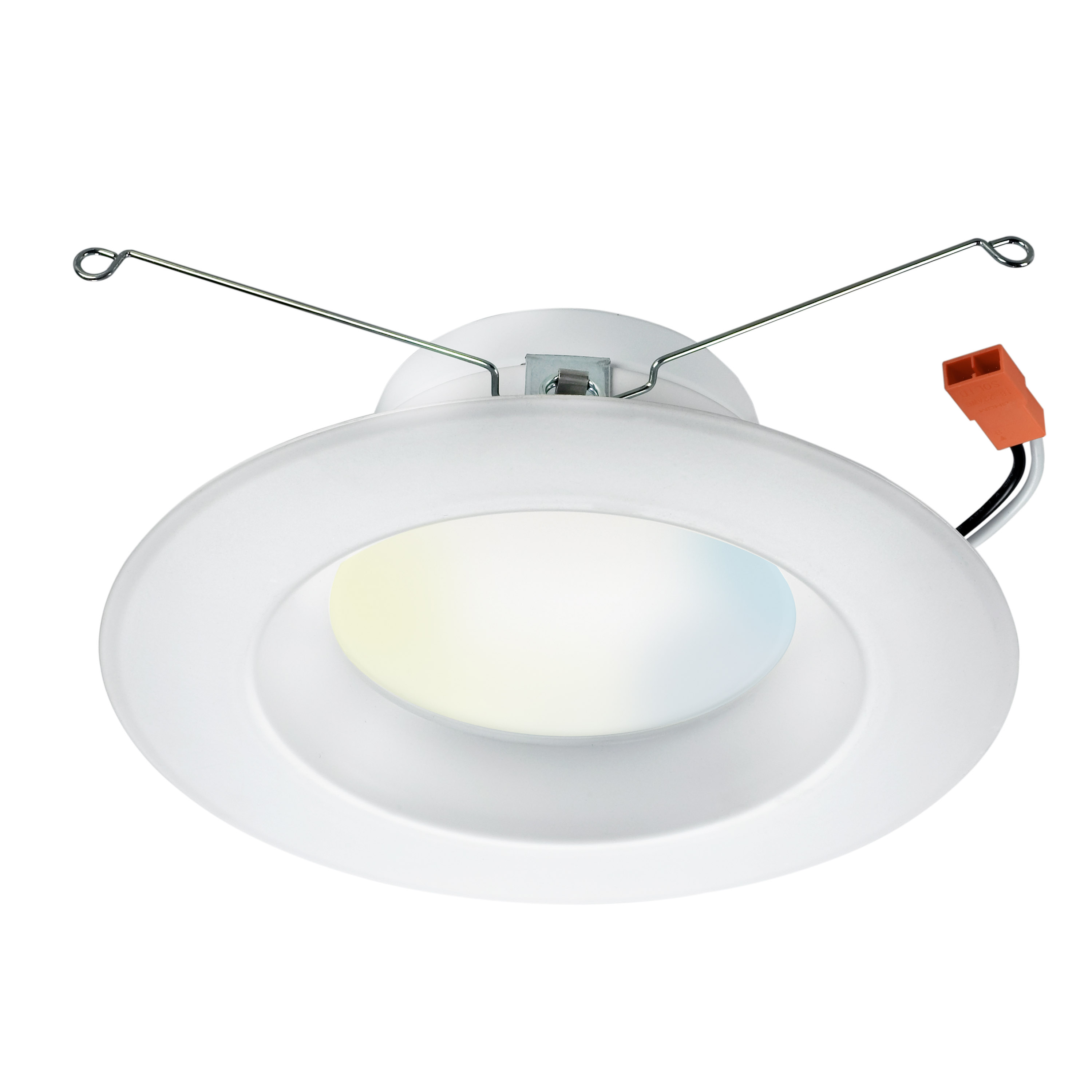

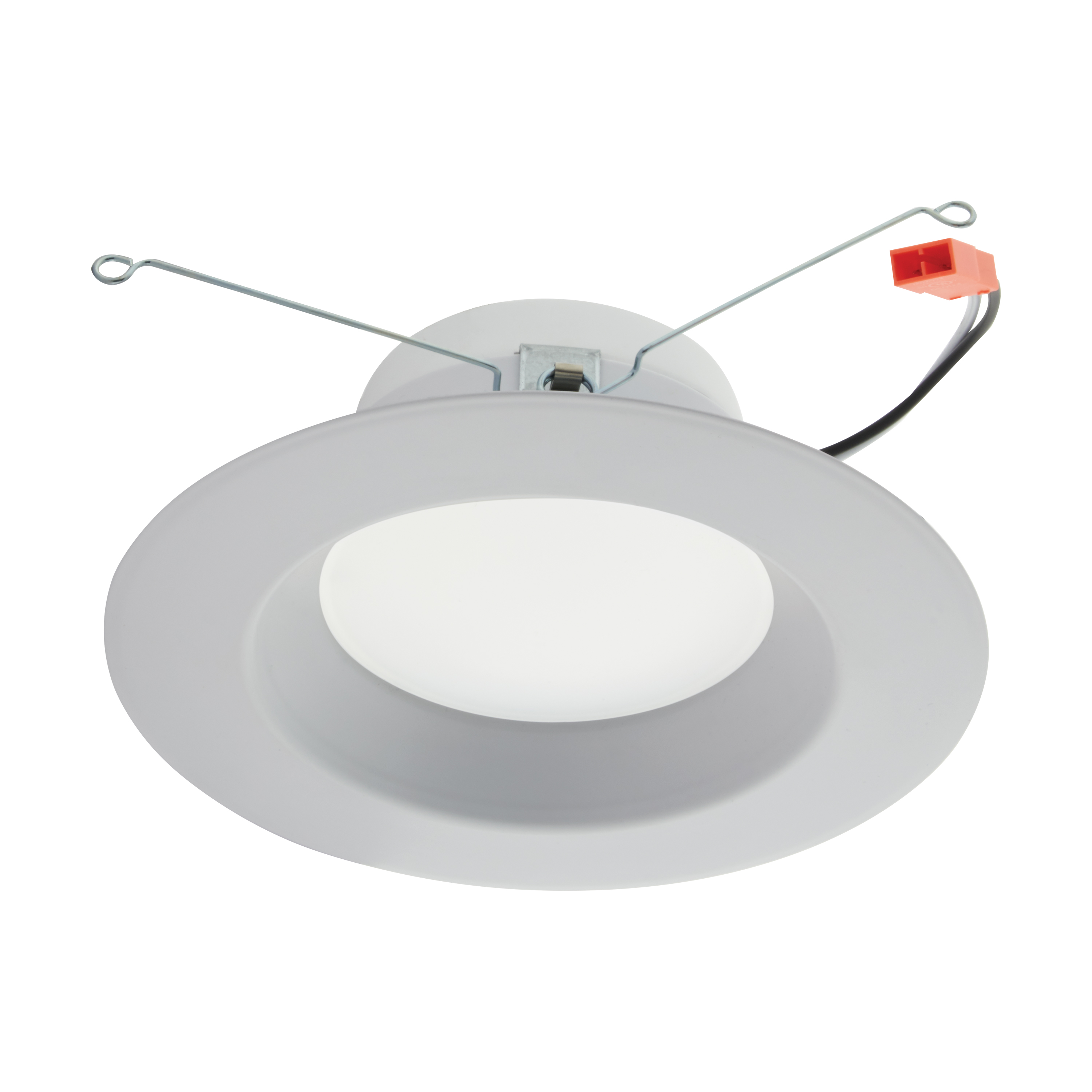

10 Watt; 5-6 in. LED Recessed Downlight; Tunable White; Starfish IOT; 120 Volt; 800 Lumens
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Starfish Communication ProtocolWiFi

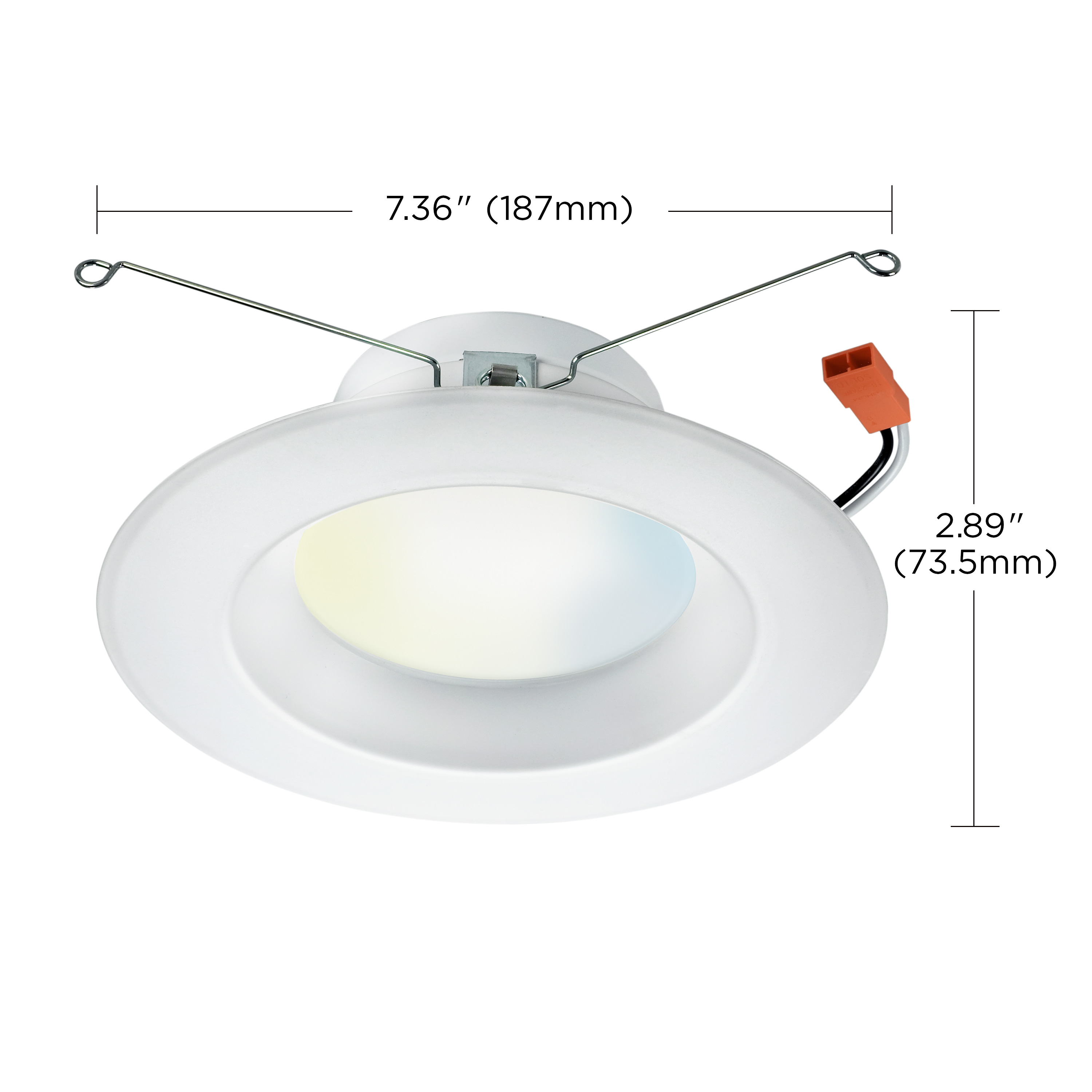

Diameter7.36
MaterialMetal
Fixture TypeDownlight Retrofit

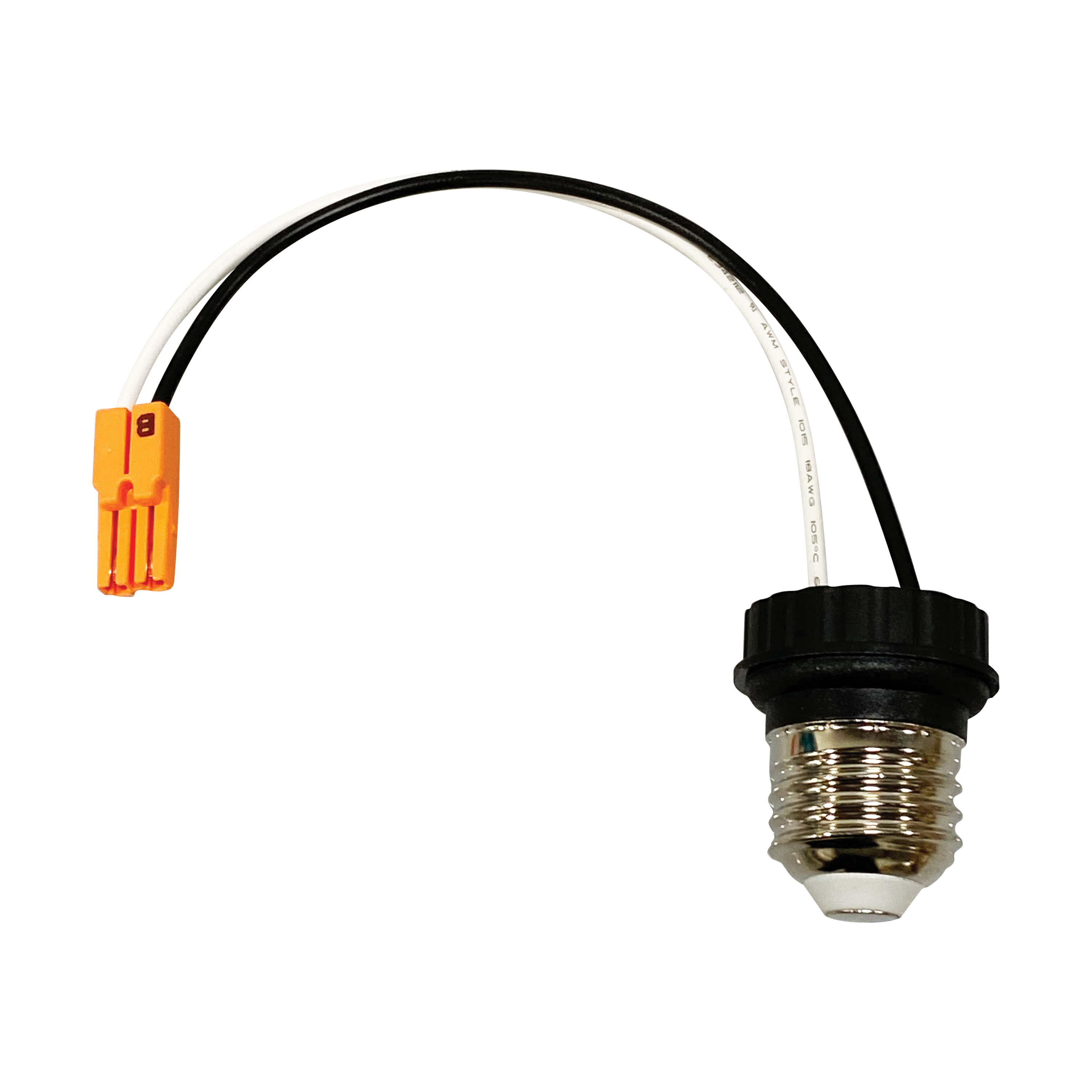

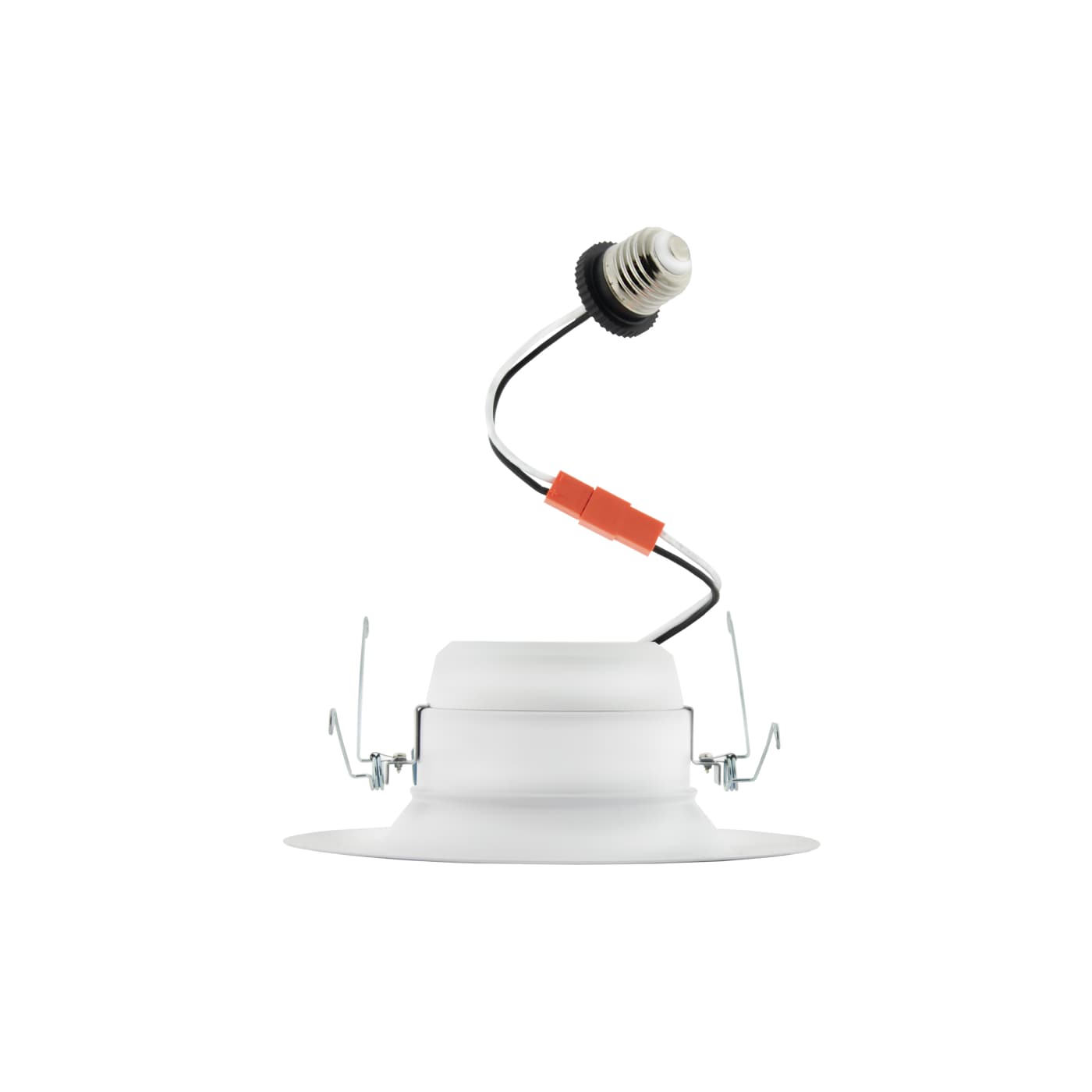

IncludesE26 Adapter
StatusDiscontinued
StyleUtility
Starfish Voice Assistants SupportedAlexa, Hey Google, Siri Shortcuts, SmartThings
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.083A
Has CameraNo
IOT EnabledYes
Lens MaterialPolycarbonate (PC)
Starfish No Switching Cycles12500
Starfish Operational Humidity10% - 85% R.H.
Power Factor0.9
SDS ClassLED_Fixture
Starfish Software SupportedTuya/Starfish App
Starfish Software UpgradeableYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)2700K-5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)100
Color TempWarm to Cool White
CRI90+
Dimming TypeSmart-Starfish App only
Operating Frequency60Hz
Operating Temp-4F to +113F (-20C to +45C)
Lumens800L
Volts120v
Watts10W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Yes
T24/JA8 CompliantYes
Packaging
UPC045923112607
Case Cube0.6693
Case Height7.87
Case Length15.55
Case Quantity6
Case UPC10045923112604
Case Weight6.31
Case Width9.45
EA Cube0.0955
EA Height7.48
EA Length2.95
EA Quantity1
EA Weight0.88
EA Width7.48
Pack TypeBox
Web Height2.89
Web Width7.36
