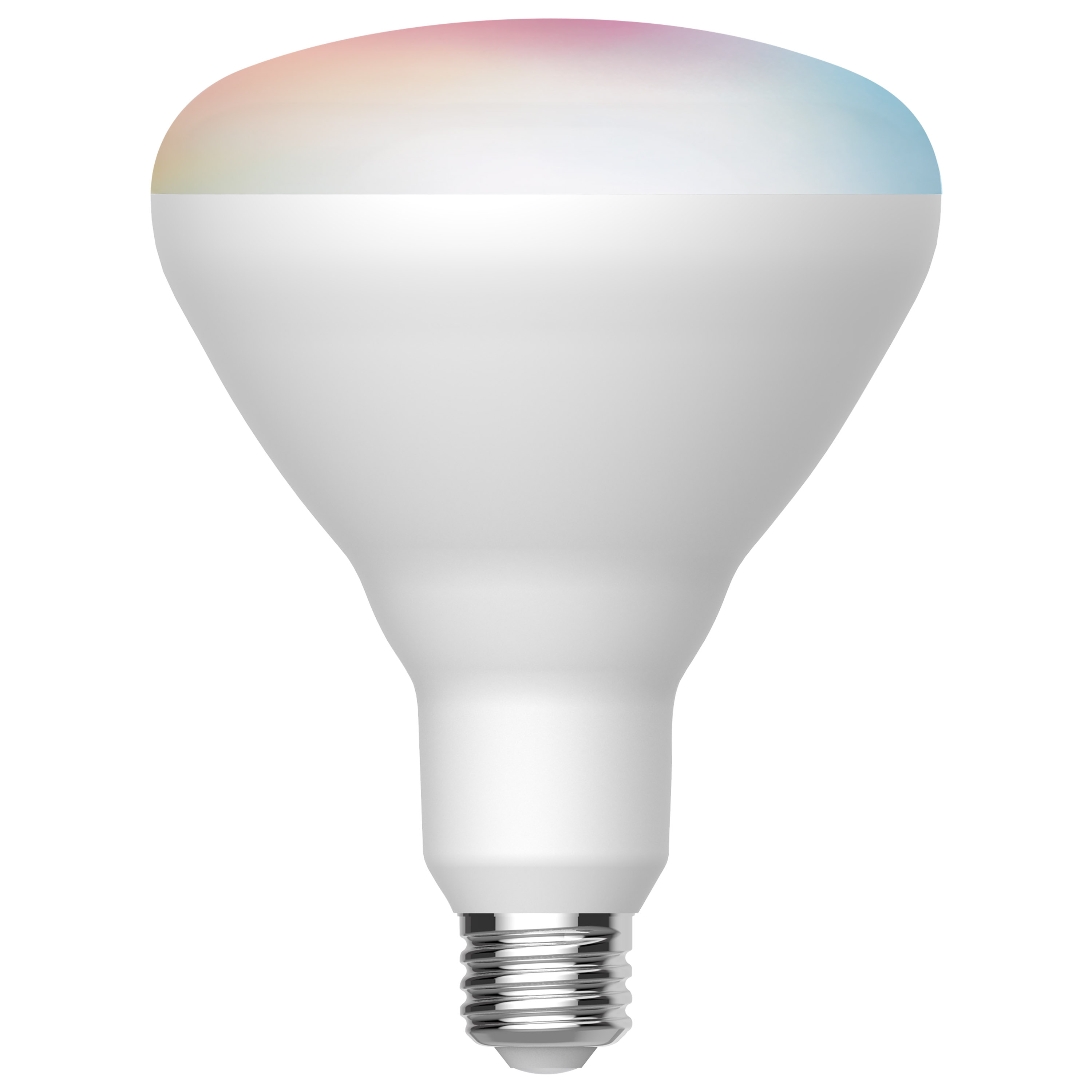

S11284

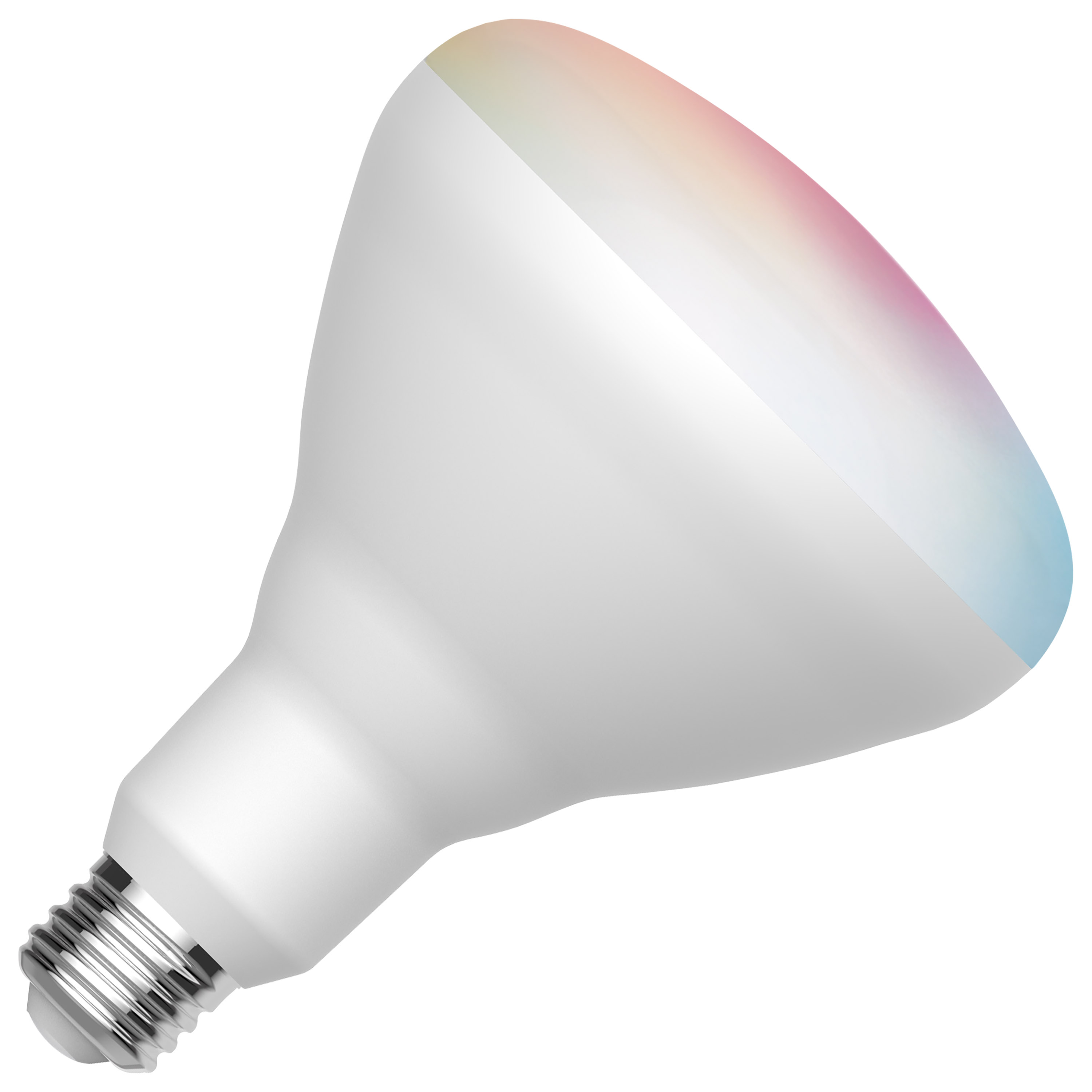

12BR40/LED/RGB/TW/T20/SF

Discontinued - Suggested Replacement: S11105
  • 12 Watt
  • BR40 LED
  • RGB & Tunable White
  • Starfish IOT
  • Medium Base
  • 120 Volt
location_rating^damp^1
cc_selectable^y^1
title_20^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

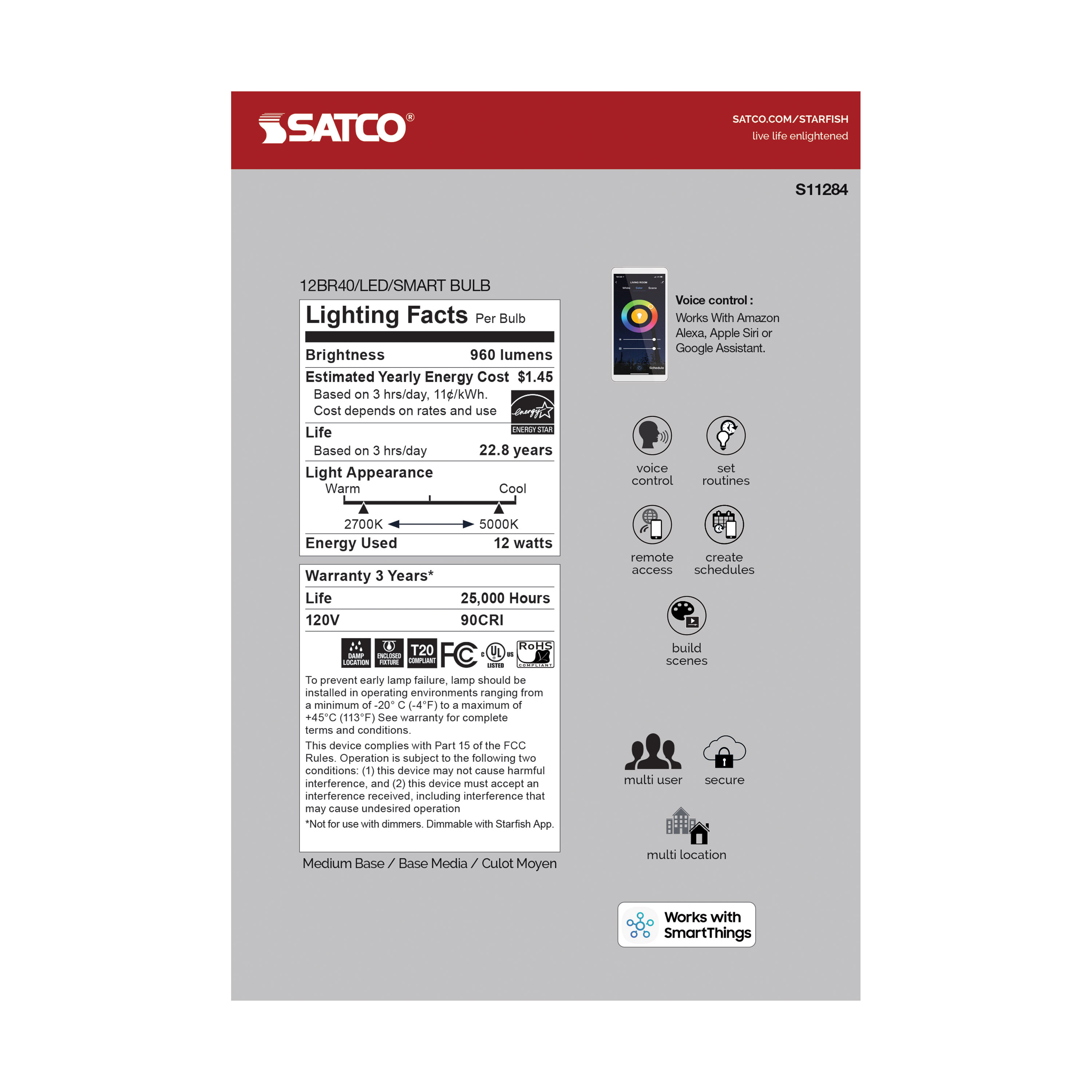

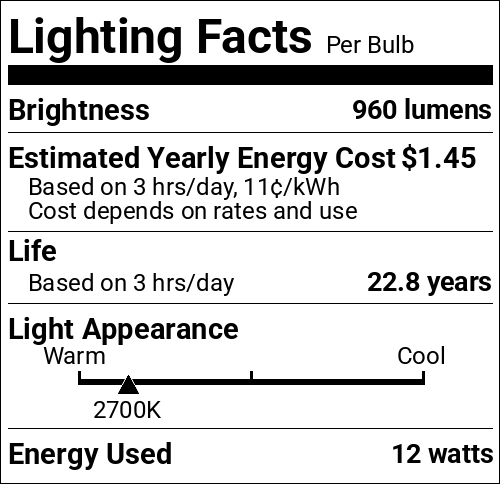

S11284 SpecificationsSTARFISH PRODUCT SHEET COLLECTIONNEW! STARFISH SMART LED LIGHTING AND CONTROLSS11284 Lighting Facts Label
Description
Description
12 Watt; BR40 LED; RGB & Tunable White; Starfish IOT; Medium Base; 120 Volt
Products Specs
General
CompanySATCO
Starfish Communication ProtocolWiFi-2.4GHz
Dimmable TextSmart-Starfish App only
Lamp FilamentLED
MaterialPlastic
Fixture TypeReflector
StatusDiscontinued
StyleContemporary
Starfish Voice Assistants SupportedAlexa, Google Home, Siri, SmartThings
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.100A
Has CameraNo
IOT EnabledYes
Starfish No Switching Cycles12500
Operating PositionUniversal
Power Factor0.7
SDS ClassLED_Lamp
Starfish Software SupportedTuya/Starfish App
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)2700K-5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)110
Color TempWarm to Cool White/Color Changeable
CRI90+
Dimming TypeSmart-Starfish App only
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens960L
Volts120v
Watts12W
Physical
Lamp BaseMedium
FinishWHITE
Housing ColorWhite
ANSI BaseE26
Lamp TypeBR40

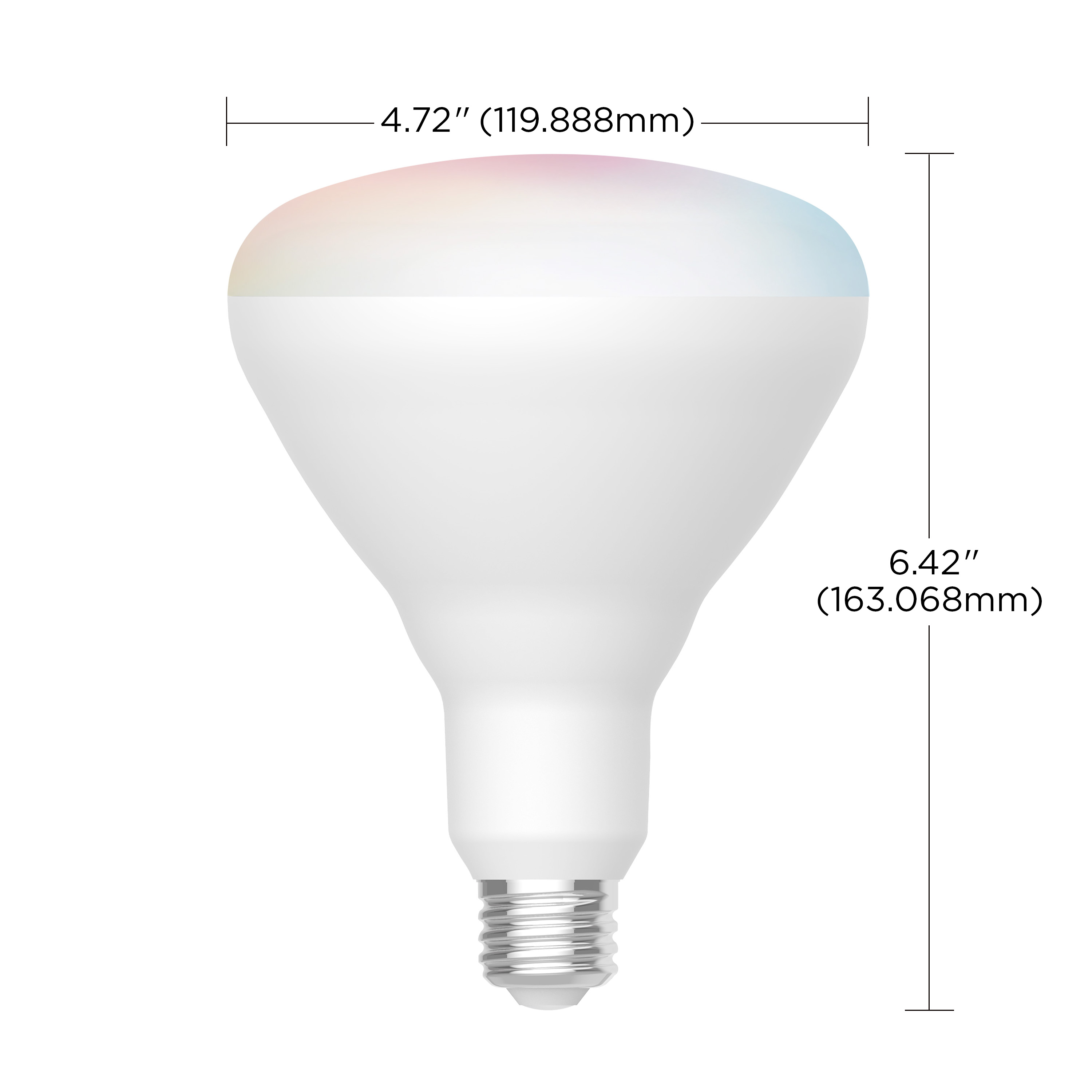

MOD Lamps4.72
MOL6.42
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24 CompliantNo
Packaging
UPC045923112843
Case Cube1.5052
Case Height15.35
Case Length15.94
Case Quantity12
Case UPC10045923112840
Case Weight7.94
Case Width10.63
EA Cube0.0937
EA Height6.69
EA Length4.92
EA Quantity1
EA Weight0.47
EA Width4.92
Inner Cube0.6622
Inner Height7.28
Inner Length15.35
Inner Quantity6
Inner UPC20045923112847
Inner Weight3.97
Inner Width10.24
Pack TypeBox
Web Length6.42
Web Width4.72
