S11285

8.7W/LED/RDL/4/RGB/TW/T20/JA8/

Discontinued - Suggested Replacement: S11568
  • 8.7 Watt

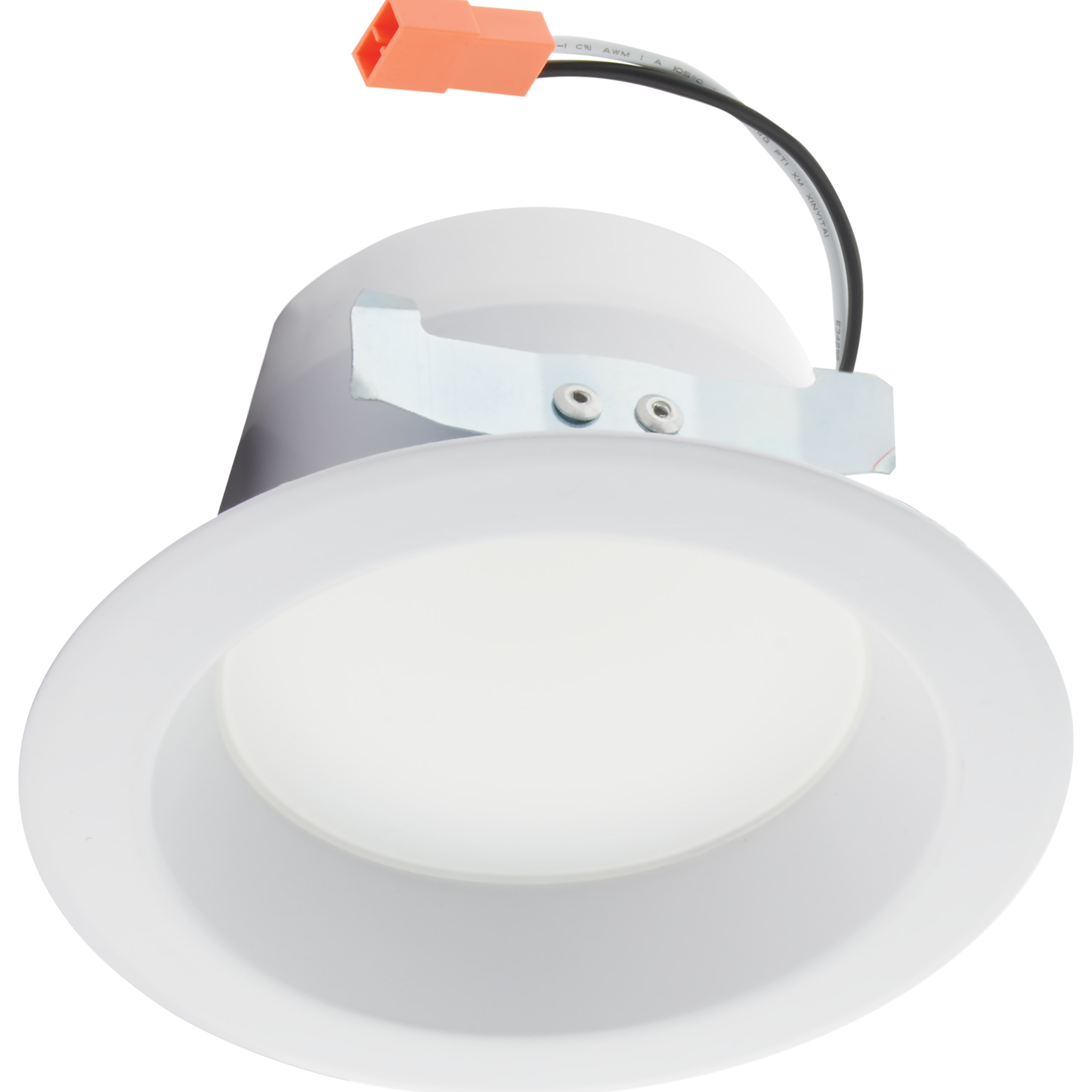

  • 4 in. LED Recessed Downlight
  • RGB & Tunable White
  • Starfish IOT
  • 120 Volt
  • 700 Lumens
  • JA8
cc_selectable^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^25k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11285 SpecificationsS11285 Instructions.pdfWELCOME TO STARFISH
Description
Description

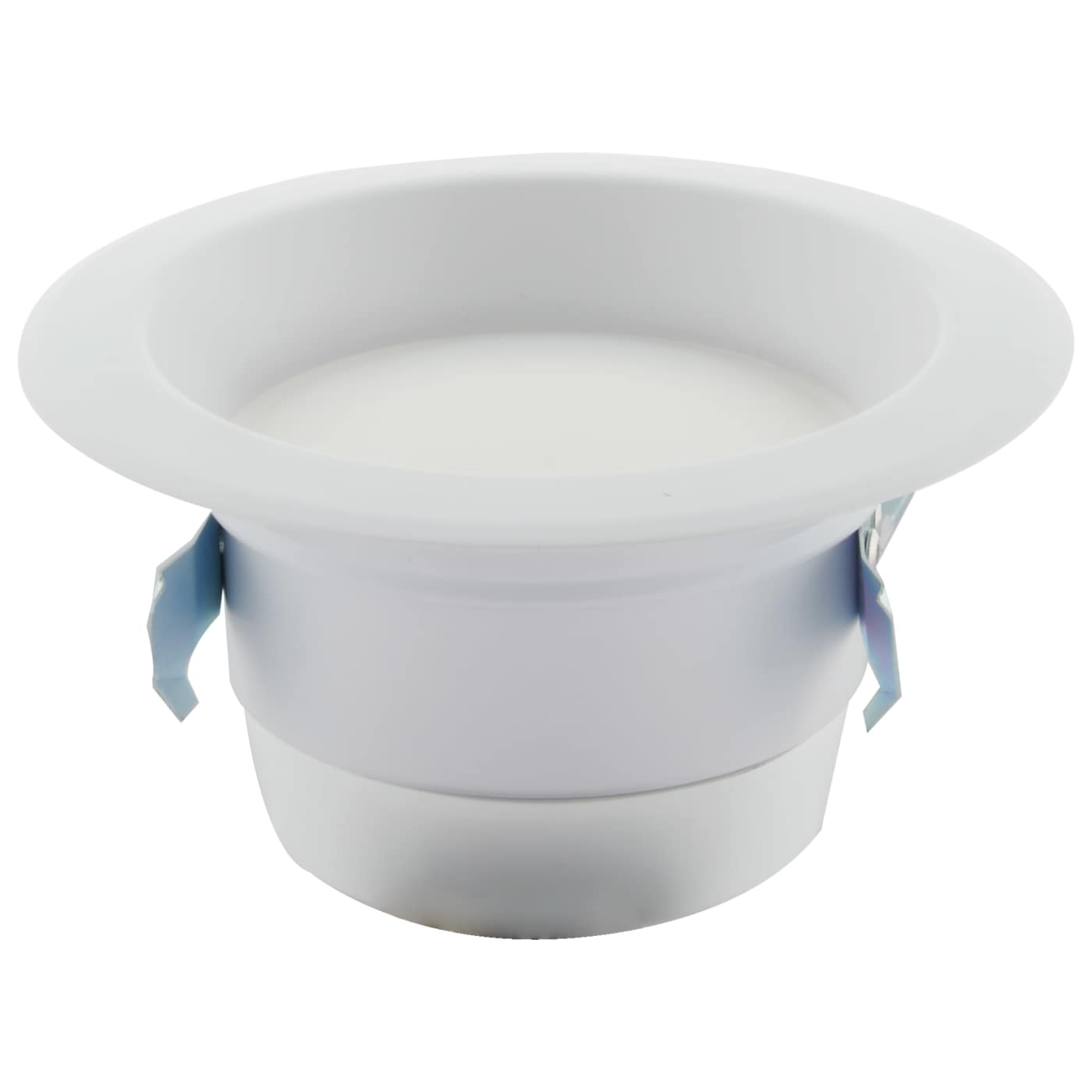

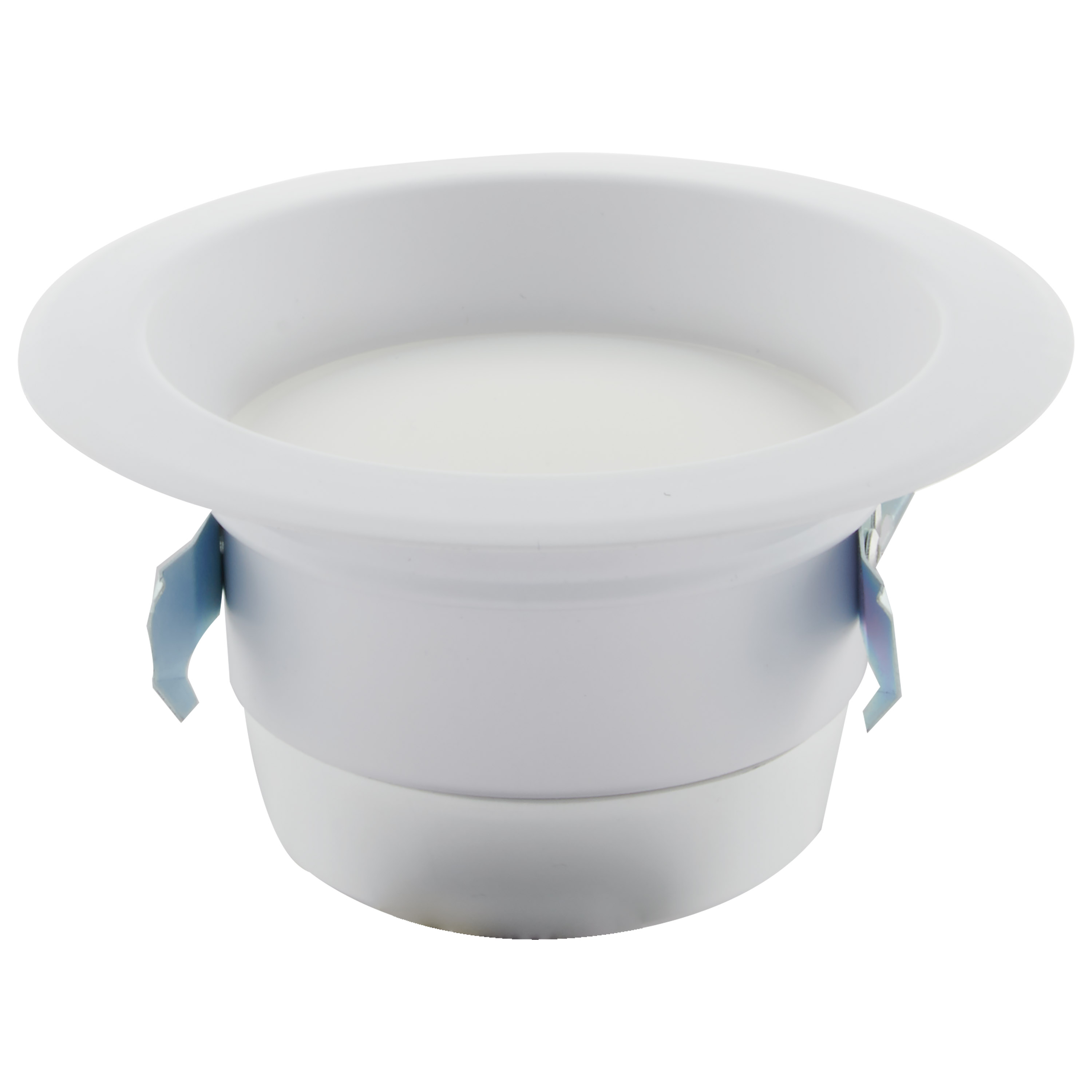

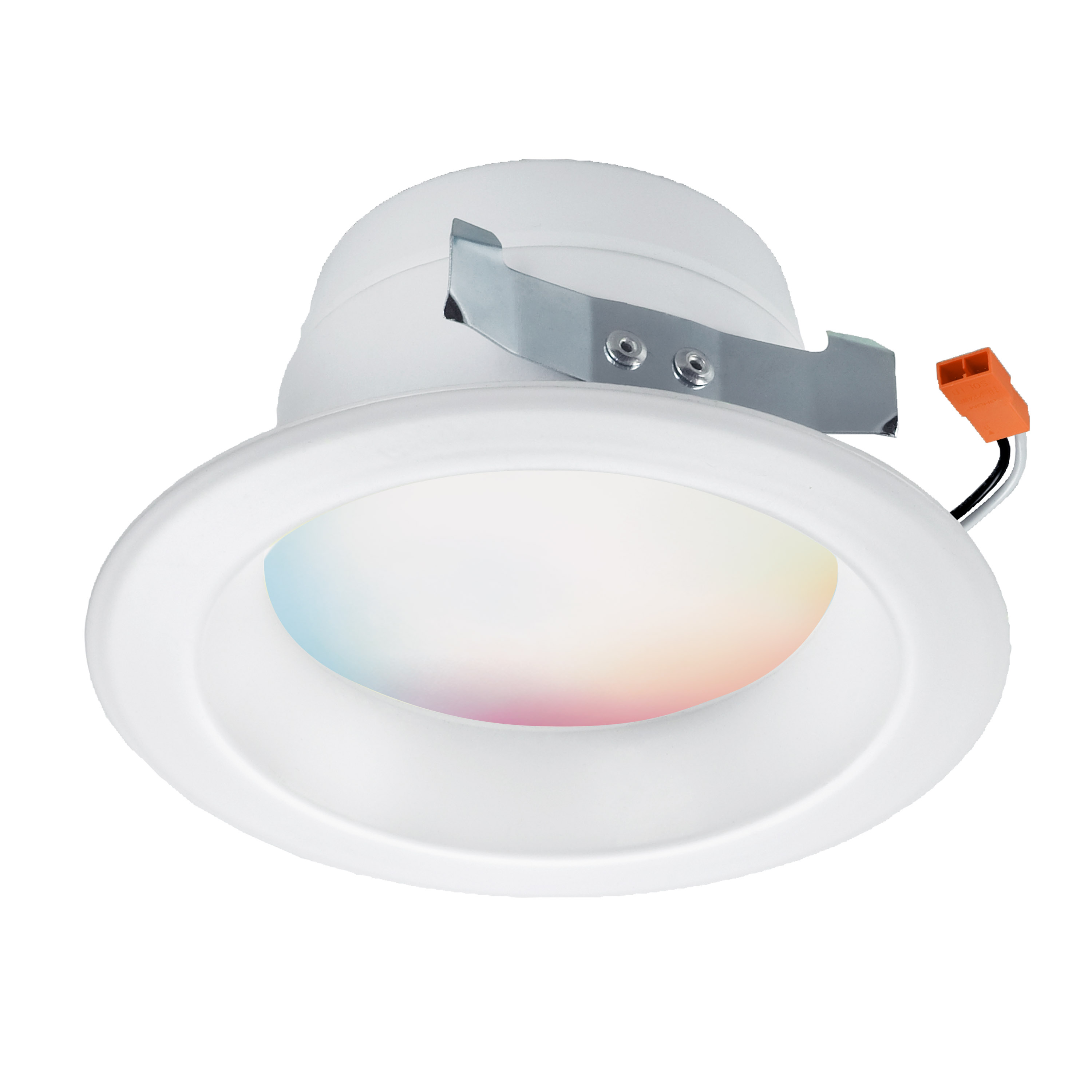

8.7 Watt; 4 in. LED Recessed Downlight; RGB & Tunable White; Starfish IOT; 120 Volt; 700 Lumens; JA8
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Starfish Communication ProtocolWiFi

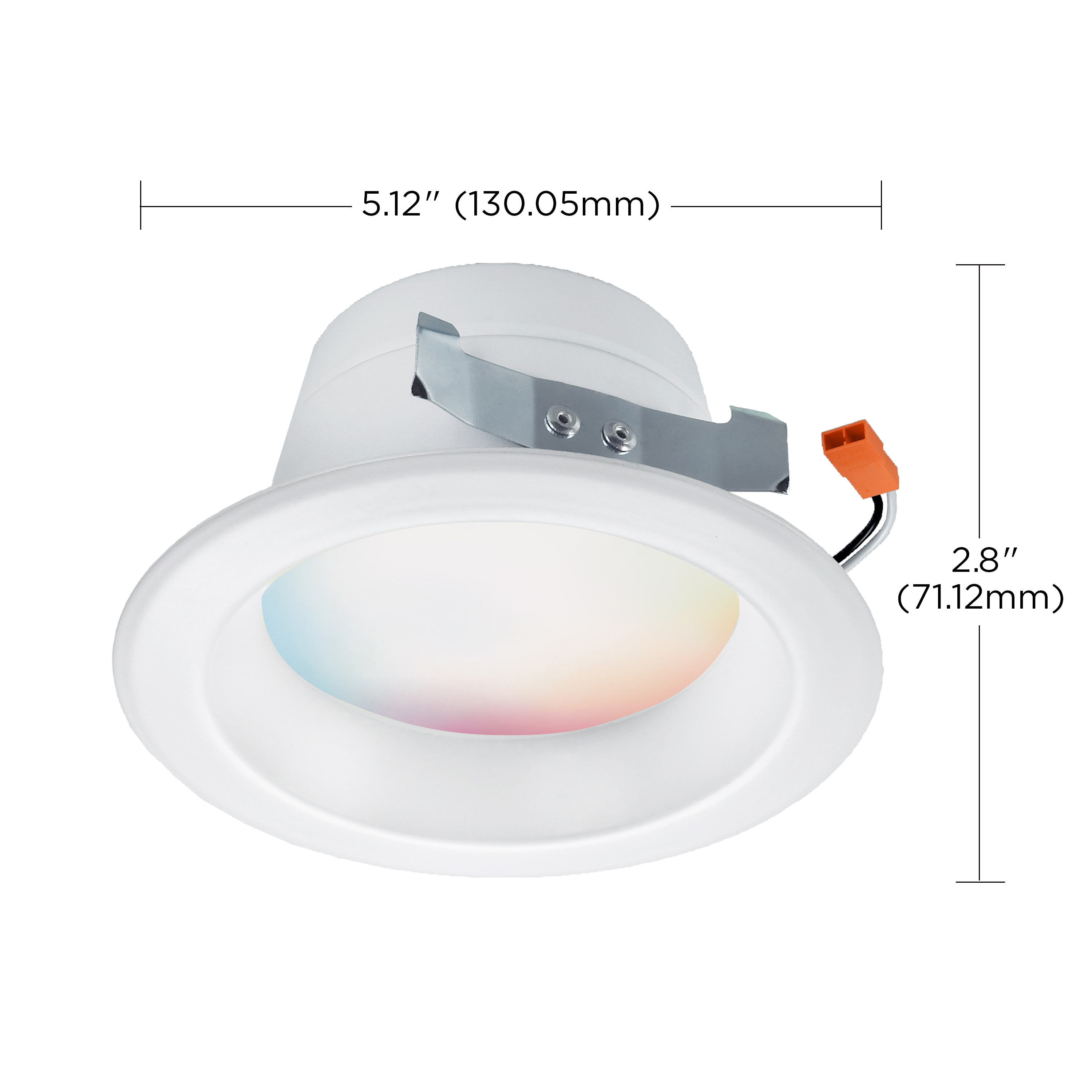

Diameter5.12
Dimmable TextSmart-Starfish App only
MaterialMetal
Fixture TypeDownlight Retrofit

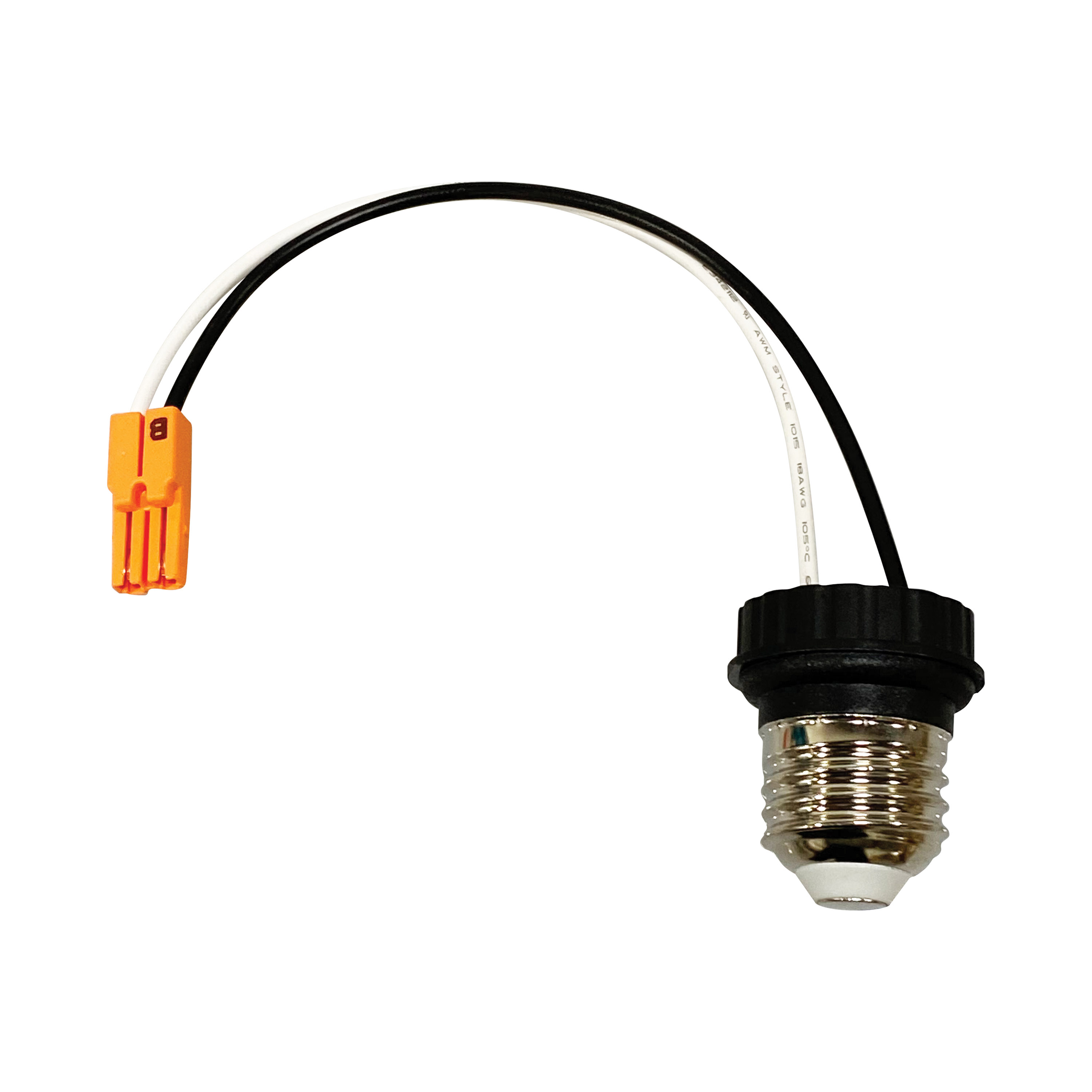

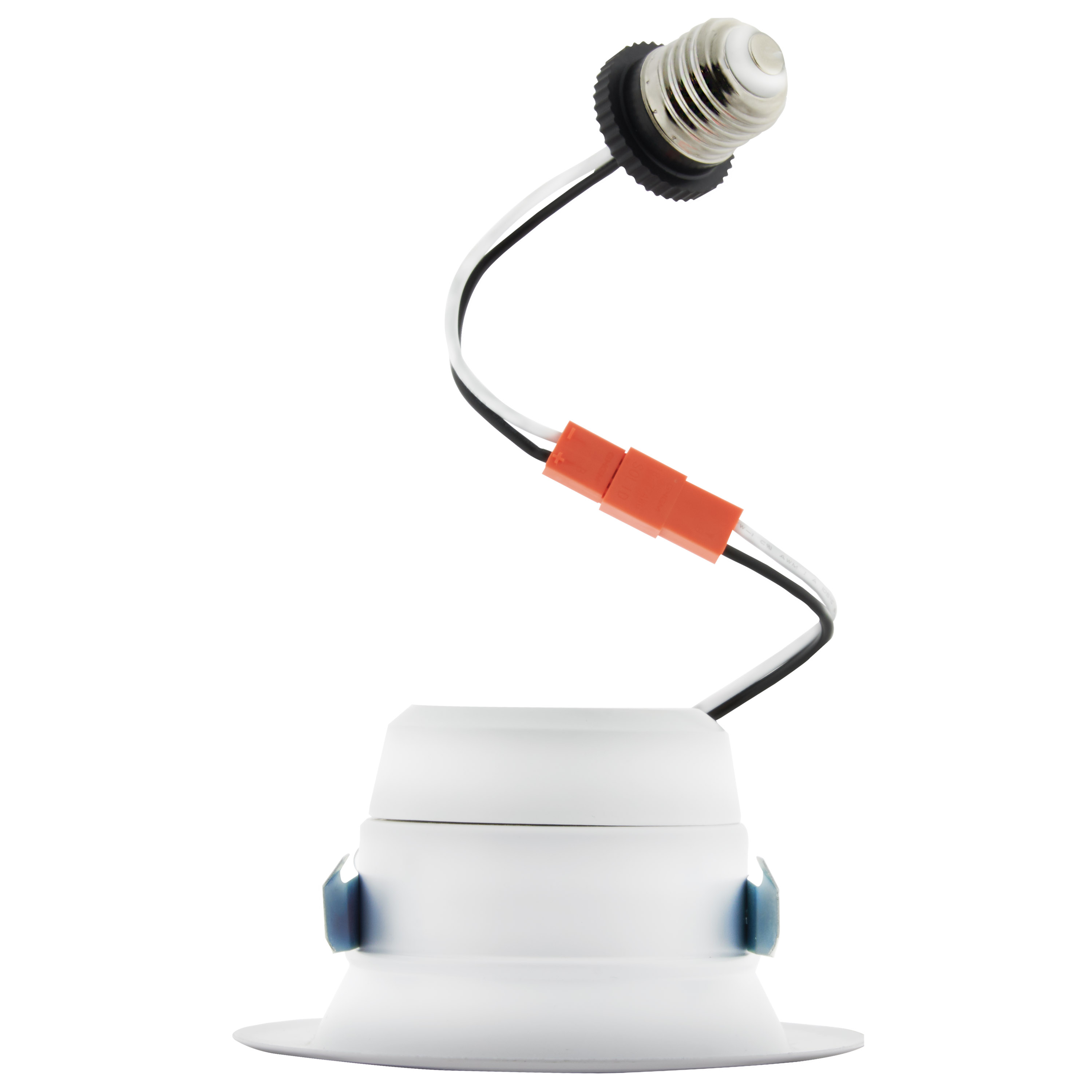

IncludesE26 Adapter
StatusDiscontinued
StyleUtility
Starfish Voice Assistants SupportedAlexa, Hey Google, Siri Shortcuts, SmartThings
CCT SelectableYes
Wattage SelectableNo
Can Size4 in.
Finish FamilyWhite
Amps0.073A
Has CameraNo
IOT EnabledYes
Lens MaterialPolycarbonate (PC)
Starfish No Switching Cycles12500
Minimum Compartment SizeDiameter: 4.25 in. Height: 5.50 in.
Starfish Operational Humidity10% - 85% R.H.
Power Factor0.97
SDS ClassLED_Fixture
Starfish Software SupportedTuya/Starfish App
Starfish Software UpgradeableYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent45W
Electrical
CCT (Kelvin Temp)2700K-5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)90
Color TempWarm to Cool White/Color Changeable
CRI90+
Dimming TypeSmart-Starfish App only
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens700L
Volts120v
Watts8.7W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Yes
T24 CompliantYes
Packaging
UPC045923112850
Case Cube0.8371
Case Height12.2
Case Length10.04
Case Quantity12
Case UPC10045923112857
Case Weight7.05
Case Width11.81
EA Cube0.0409
EA Height5.71
EA Length2.17
EA Quantity1
EA Weight0.45
EA Width5.71
Inner Cube0.3504
Inner Height11.22
Inner Length5.71
Inner Quantity6
Inner UPC20045923112854
Inner Weight3.21
Inner Width9.45
Pack TypeBox
Web Height2.8
Web Width5.12
