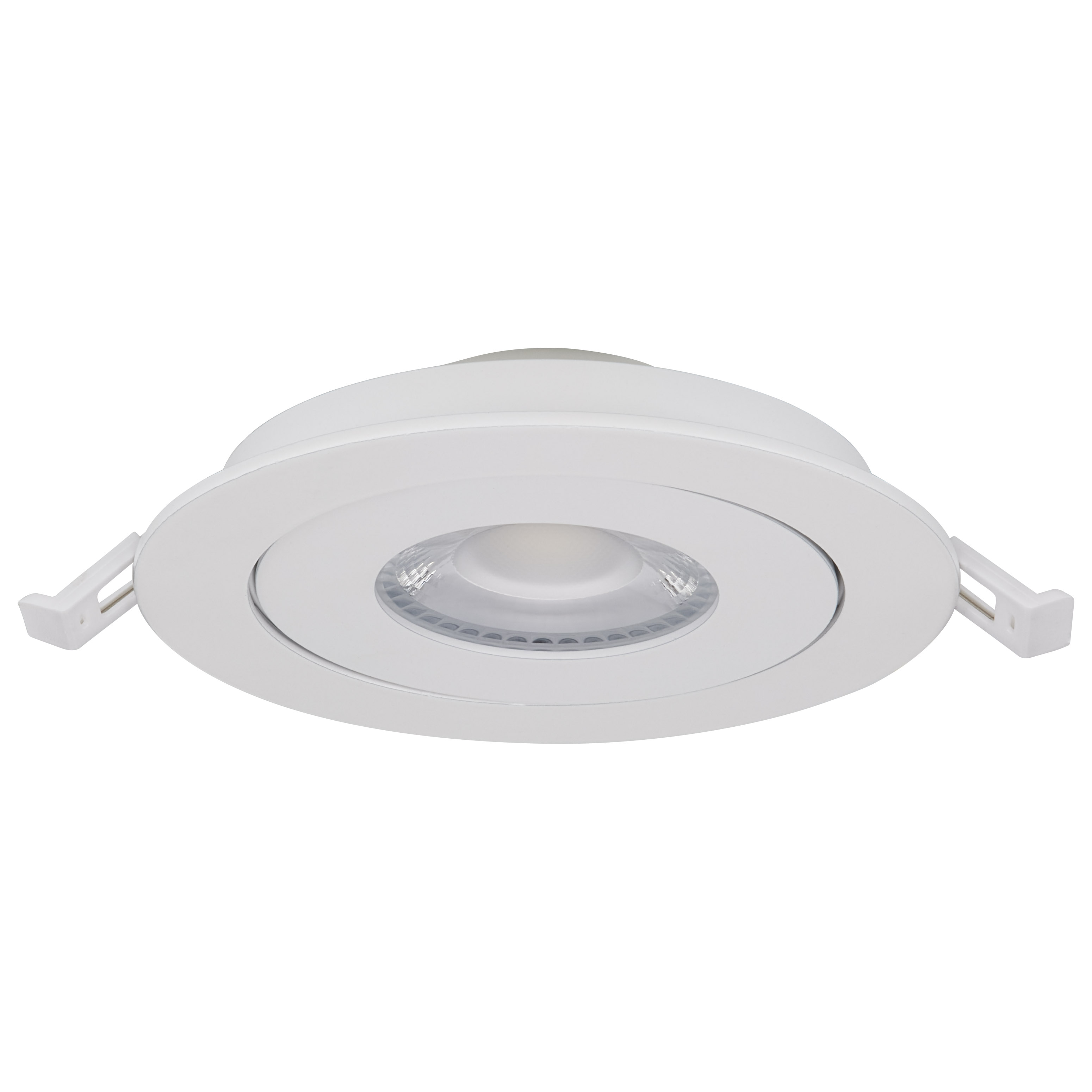

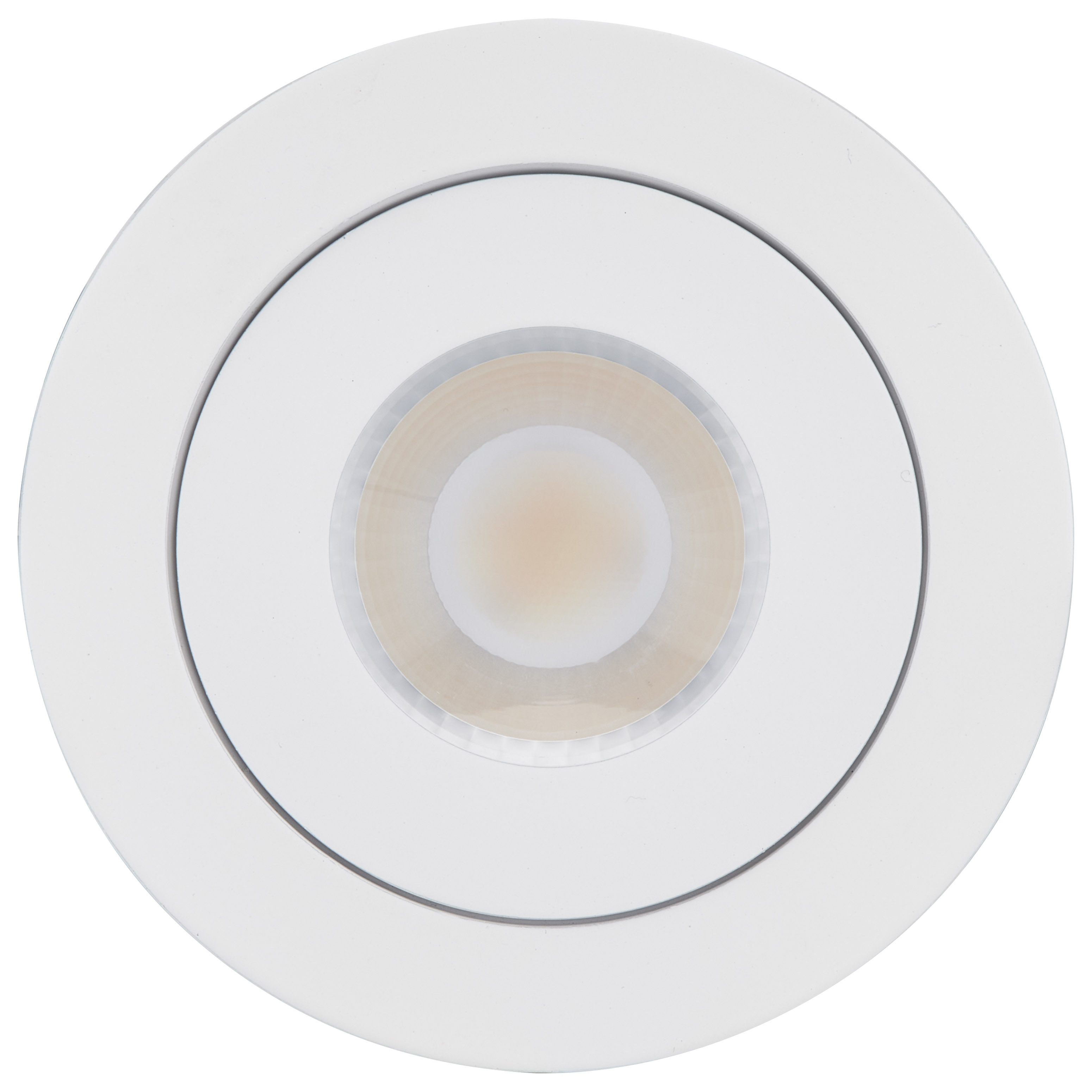

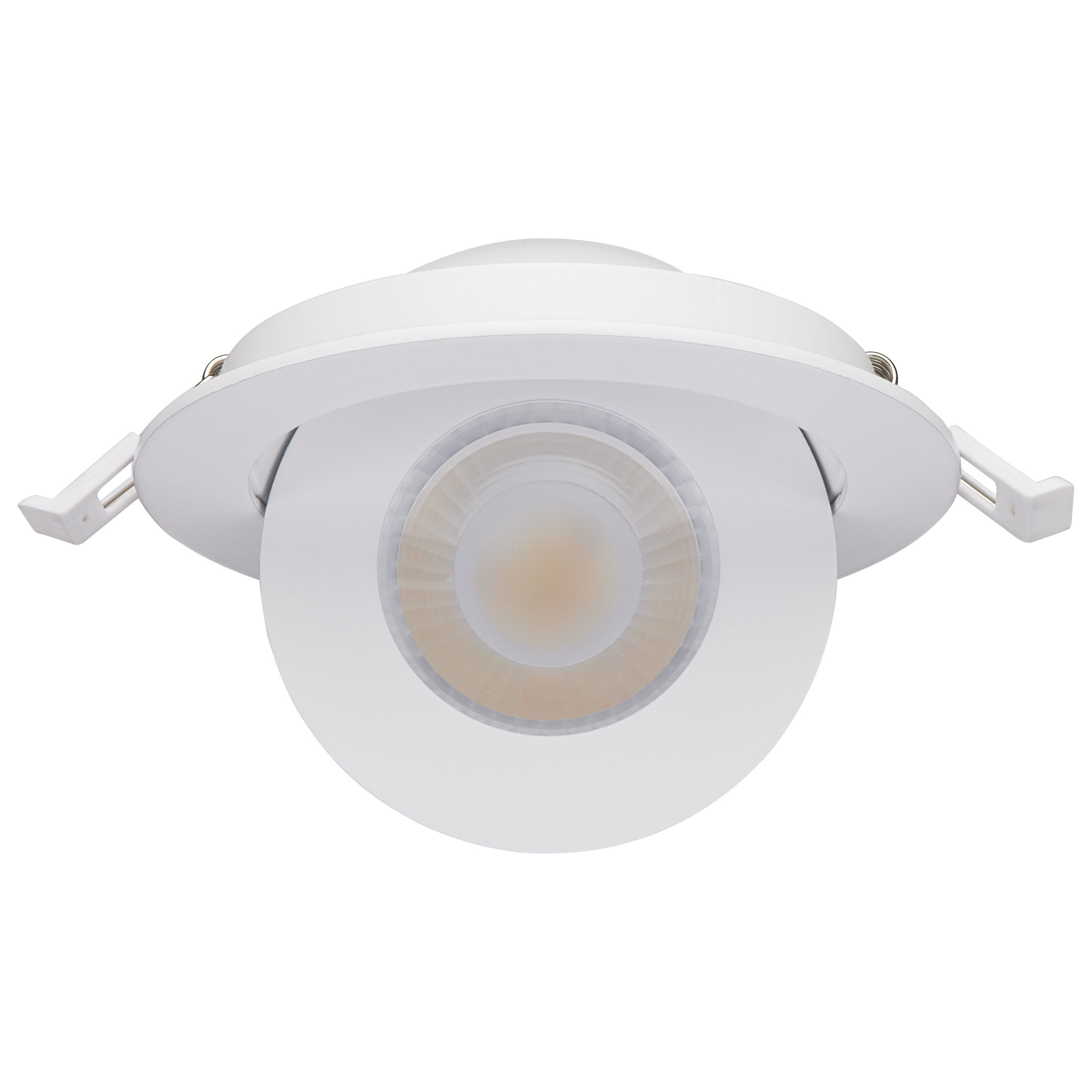

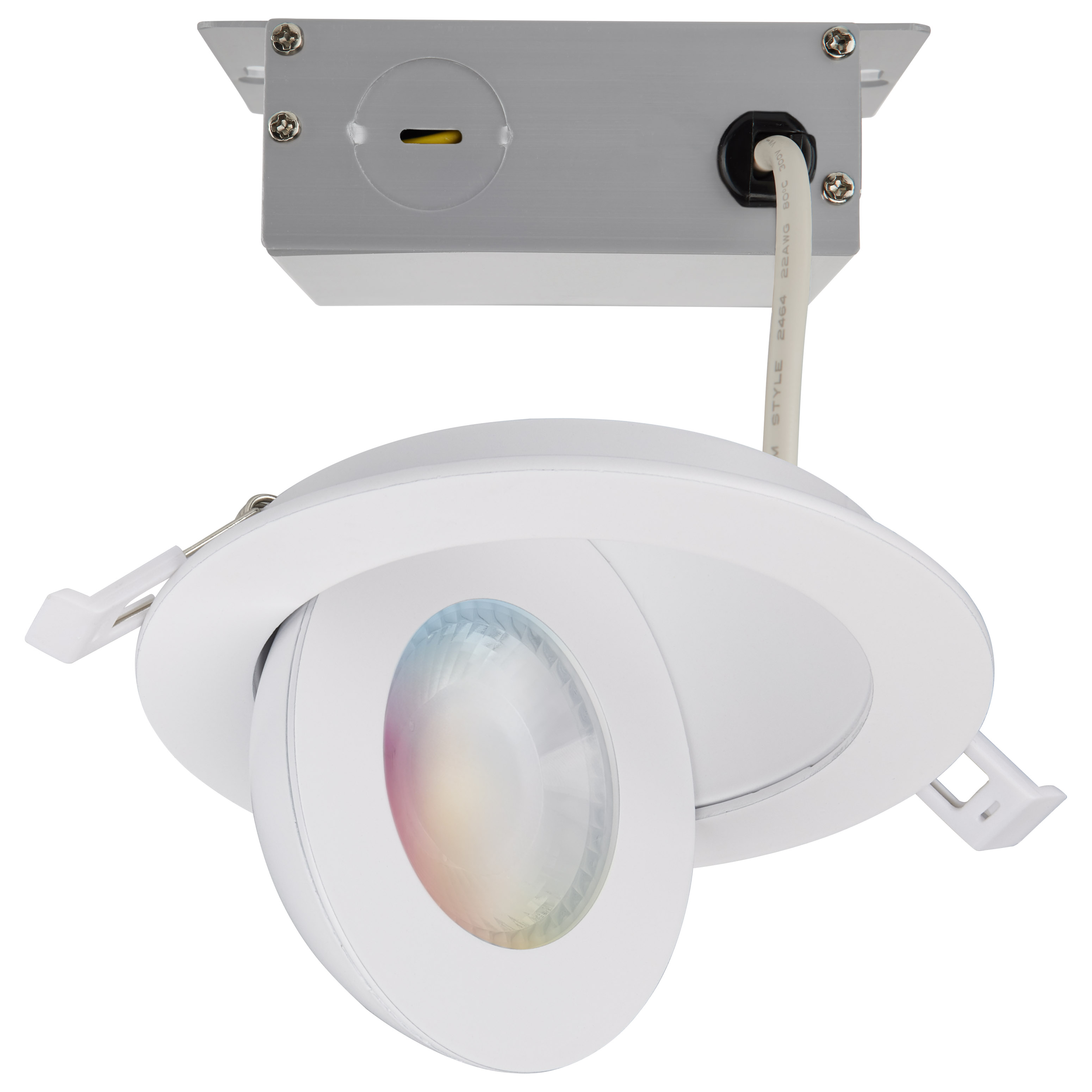

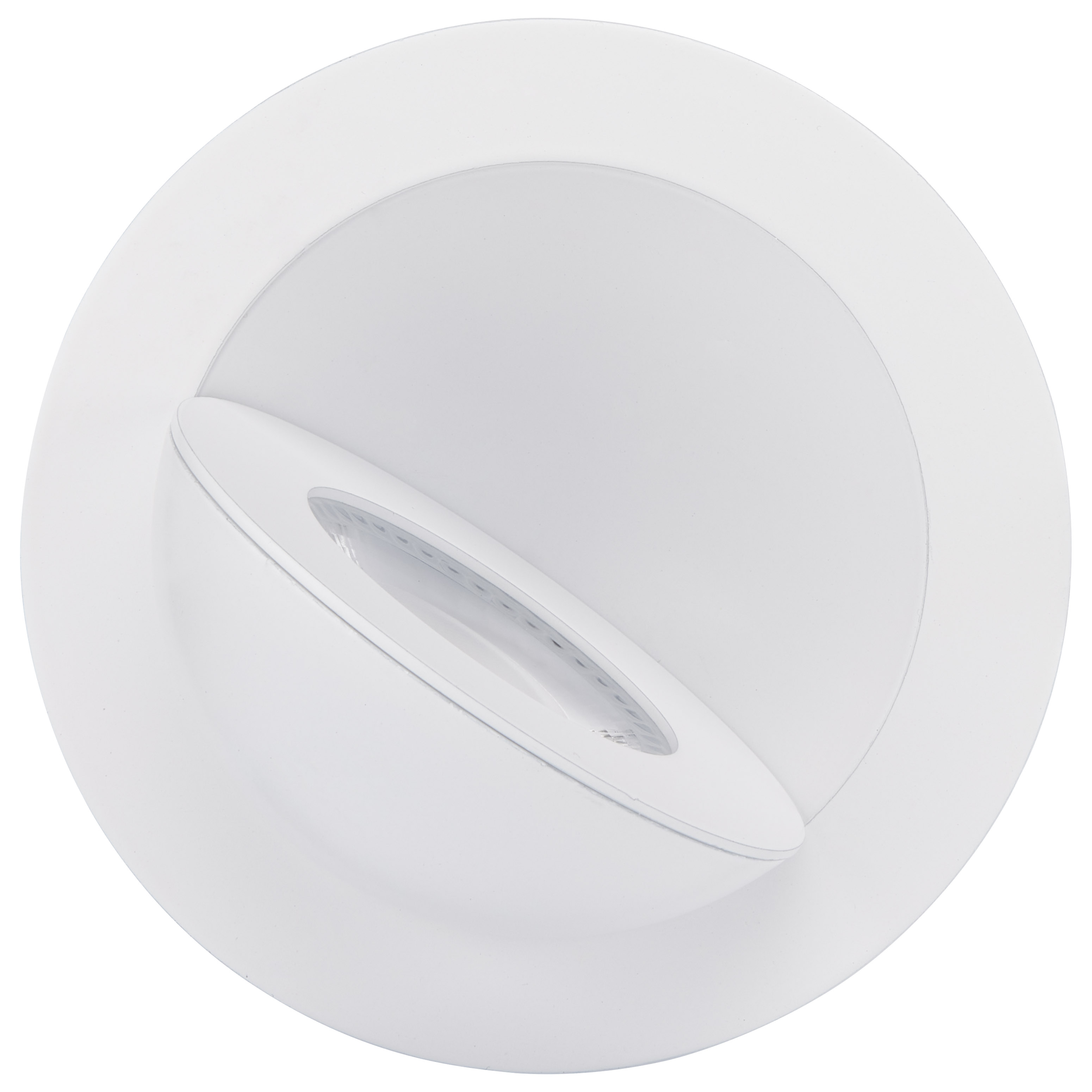

S11293R1

9WLED/GBL/4/RGBTW/WH

  • Starfish

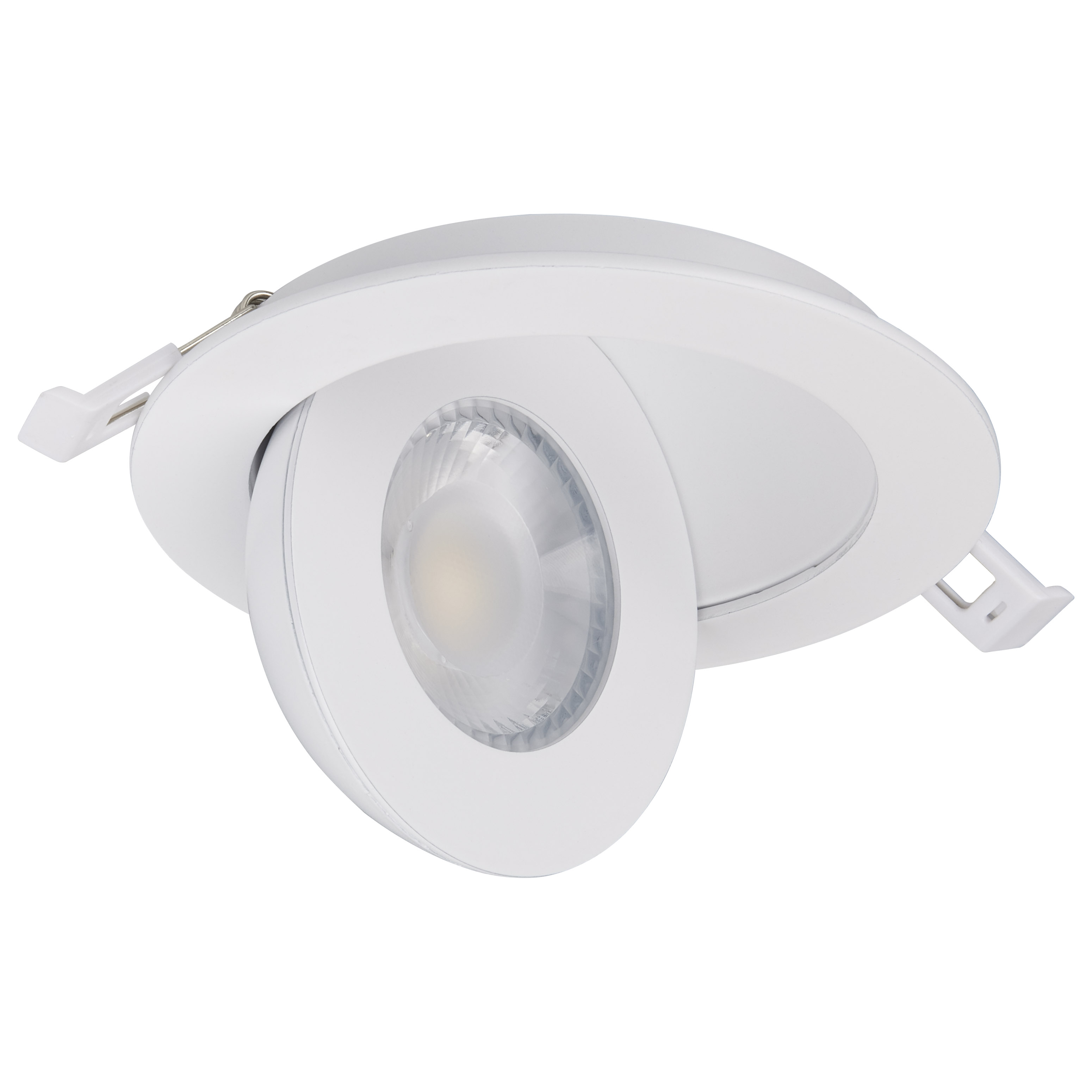

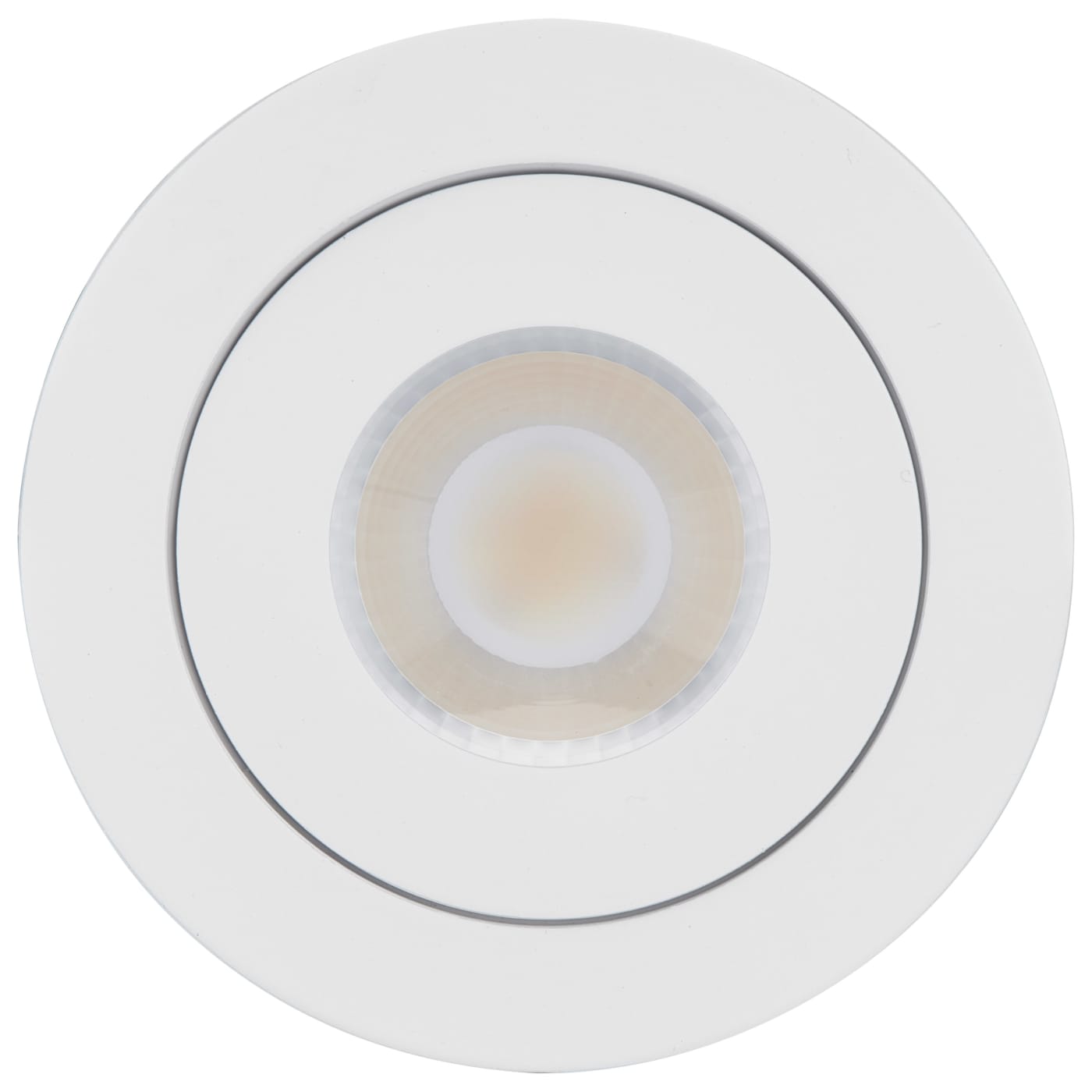

  • 9 Watt LED Gimbal Downlight
  • 4 Inch
  • 2700K-5000K RGB Tunable White

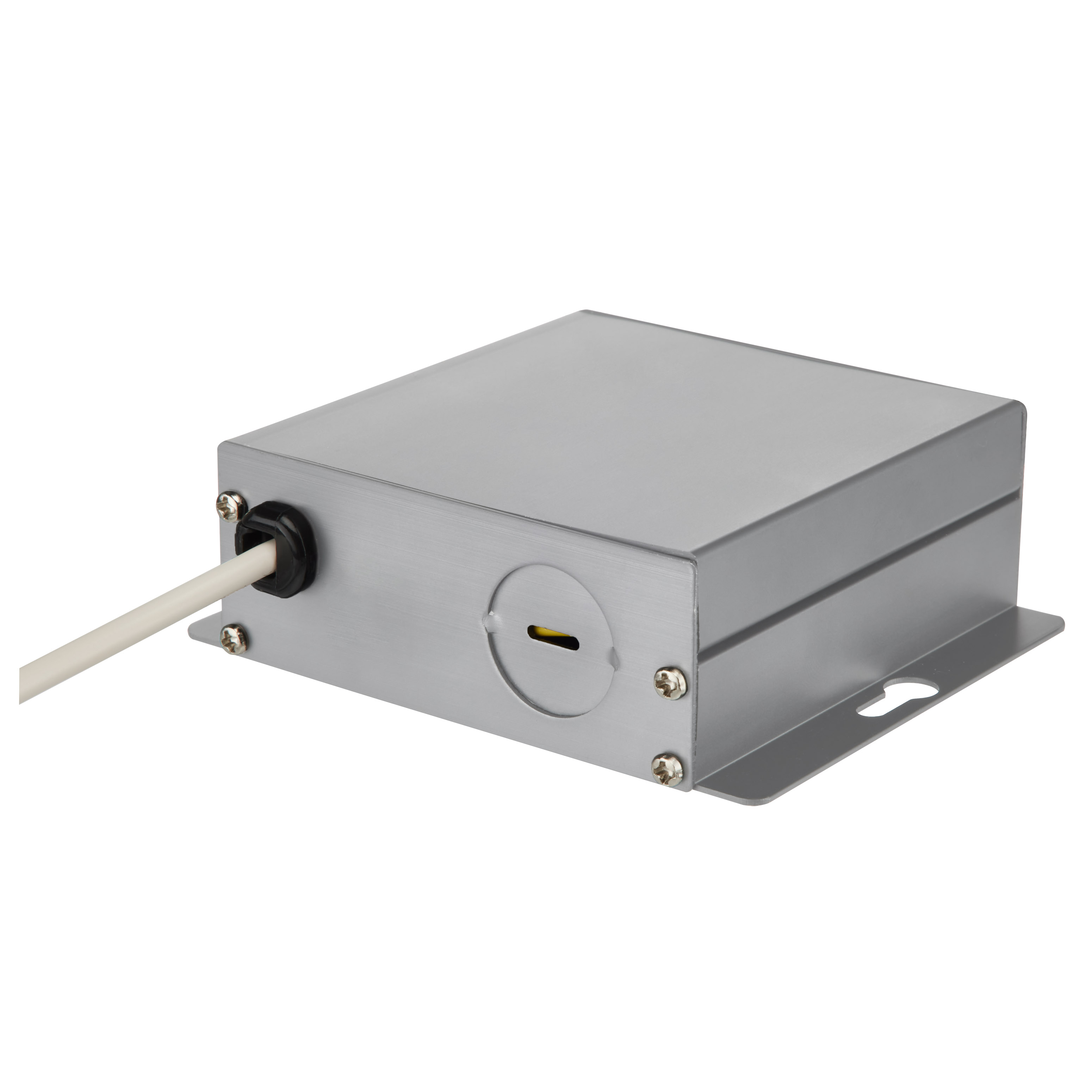

  • Remote Driver
  • White Finish
  • 120-277 Range Voltage
location_rating^damp^1
cc_selectable^y^1
air_tight^y^1
title_24^y^1
cri^90^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
S11293R1 SpecificationsS11293R1 InstructionsSN1897 Starfish Gimbals PI Sheet 9-16-25 v4
Tools
Lighting Layout Analysis For S11293R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Starfish; 9 Watt LED Gimbal Downlight; 4 Inch; 2700K-5000K RGB Tunable White; Remote Driver; White Finish; 120-277 Range Voltage
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
Starfish Communication ProtocolWiFi-2.4GHz
Diameter4.92
Dimmable TextOnly with Starfish App
MaterialAluminum
Fixture TypeDownlight
StatusActive
Starfish Voice Assistants SupportedAlexa, Google Home, Siri, SmartThings

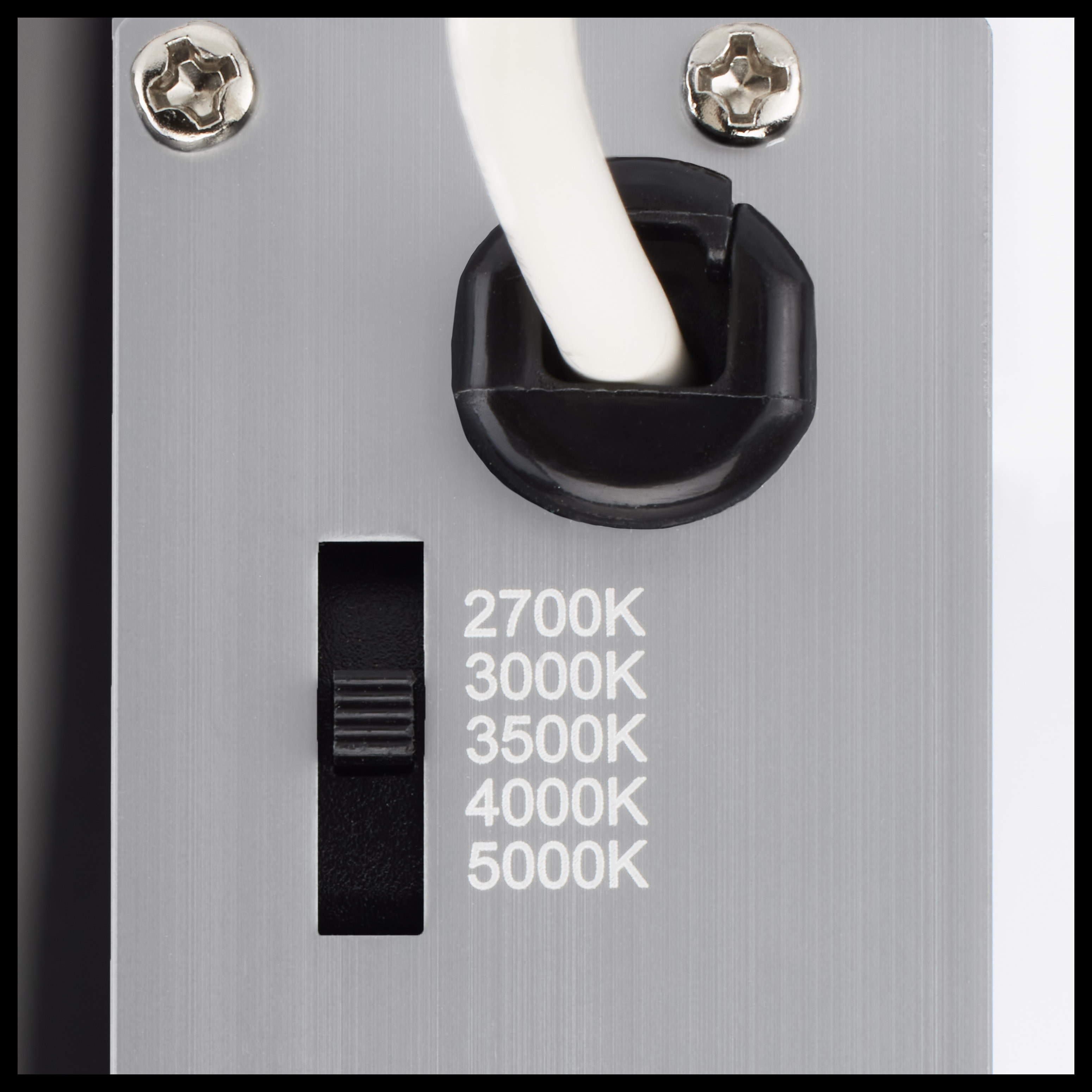

CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.075-0.032A
Has CameraFalse
IOT EnabledTrue
Lens FinishFrost
Lens MaterialPlastic
LensedTrue
Power Factor>0.9
Starfish Software SupportedTuya/Starfish App
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)2700K-5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)36
Color TempRGB and Tunable White
CRI90
Dimming TypeSmart-Starfish App only
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens750L
Volts120V-277V
Watts9W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
Air TightTrue
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
IC RatedTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus
CA Compliance TextLawful for sale
Energy Star CertifiedPending
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923410772
Case Cube0.7196
Case Height11.02
Case Length11.02
Case Quantity12
Case UPC10045923410779
Case Weight12.7
Case Width10.24
EA Cube0.0484
EA Height5.08
EA Length5.16
EA Quantity1
EA Weight1.06
EA Width3.19
Inner Cube0.0
Pack TypeBox
Web Height1.44
Web Width4.92
