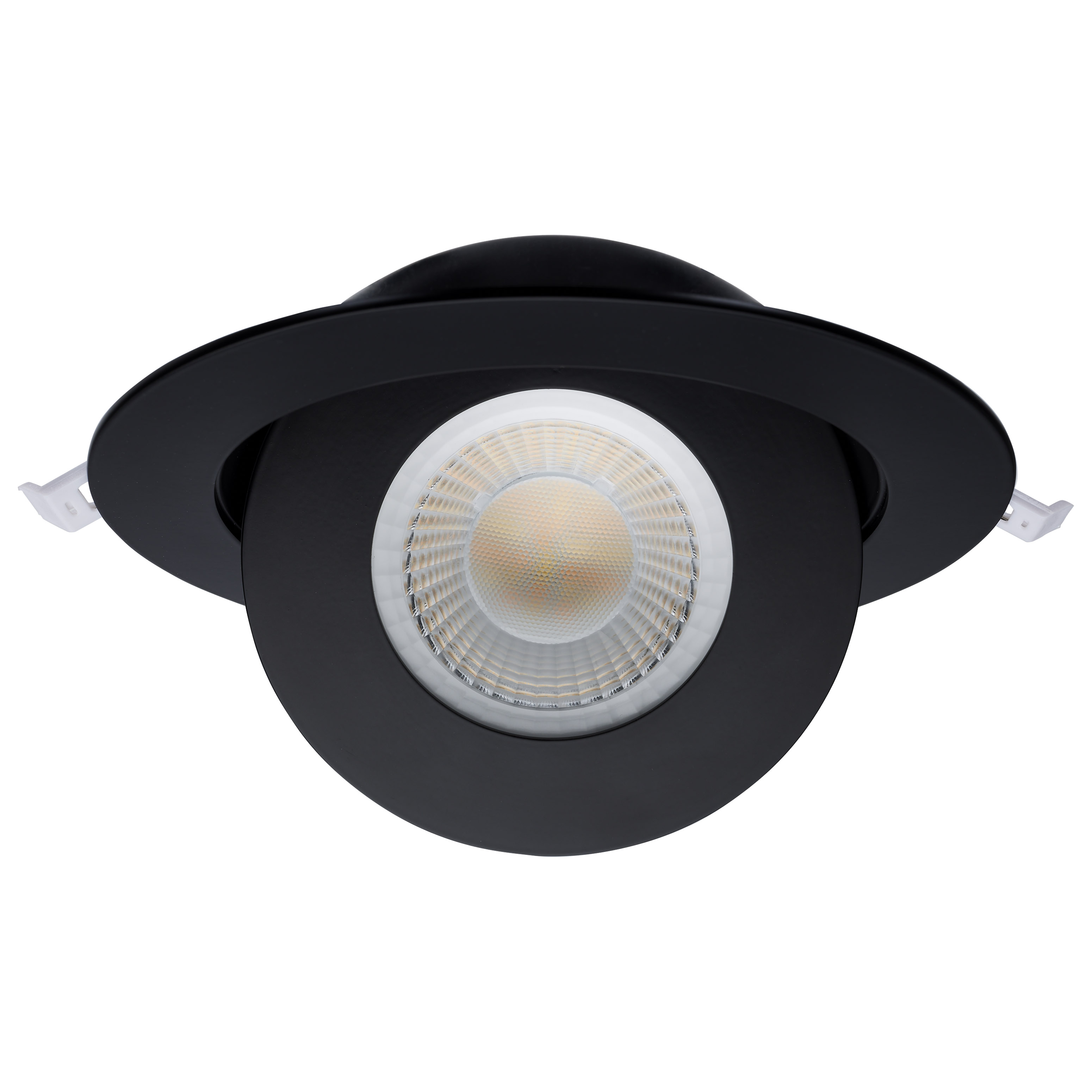

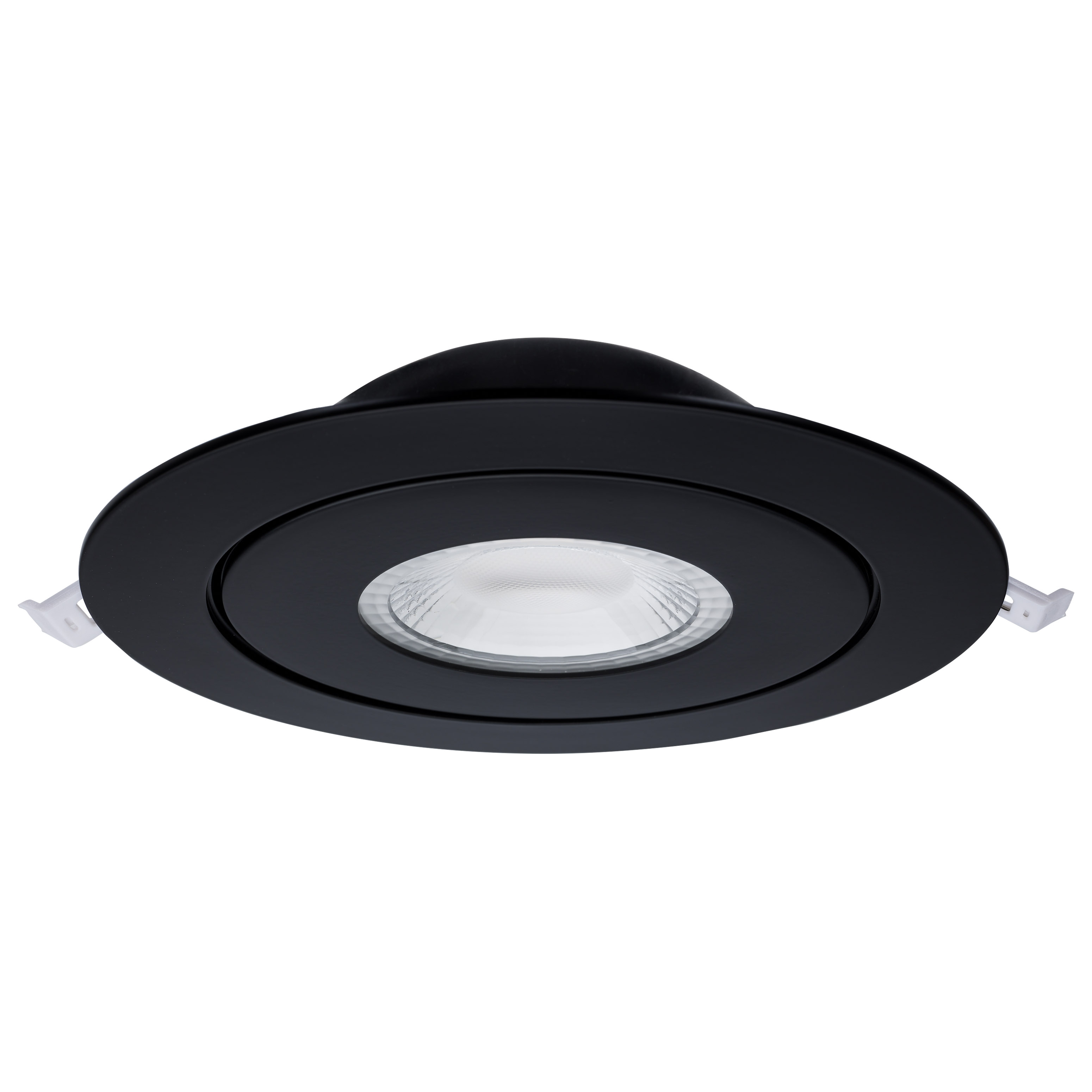

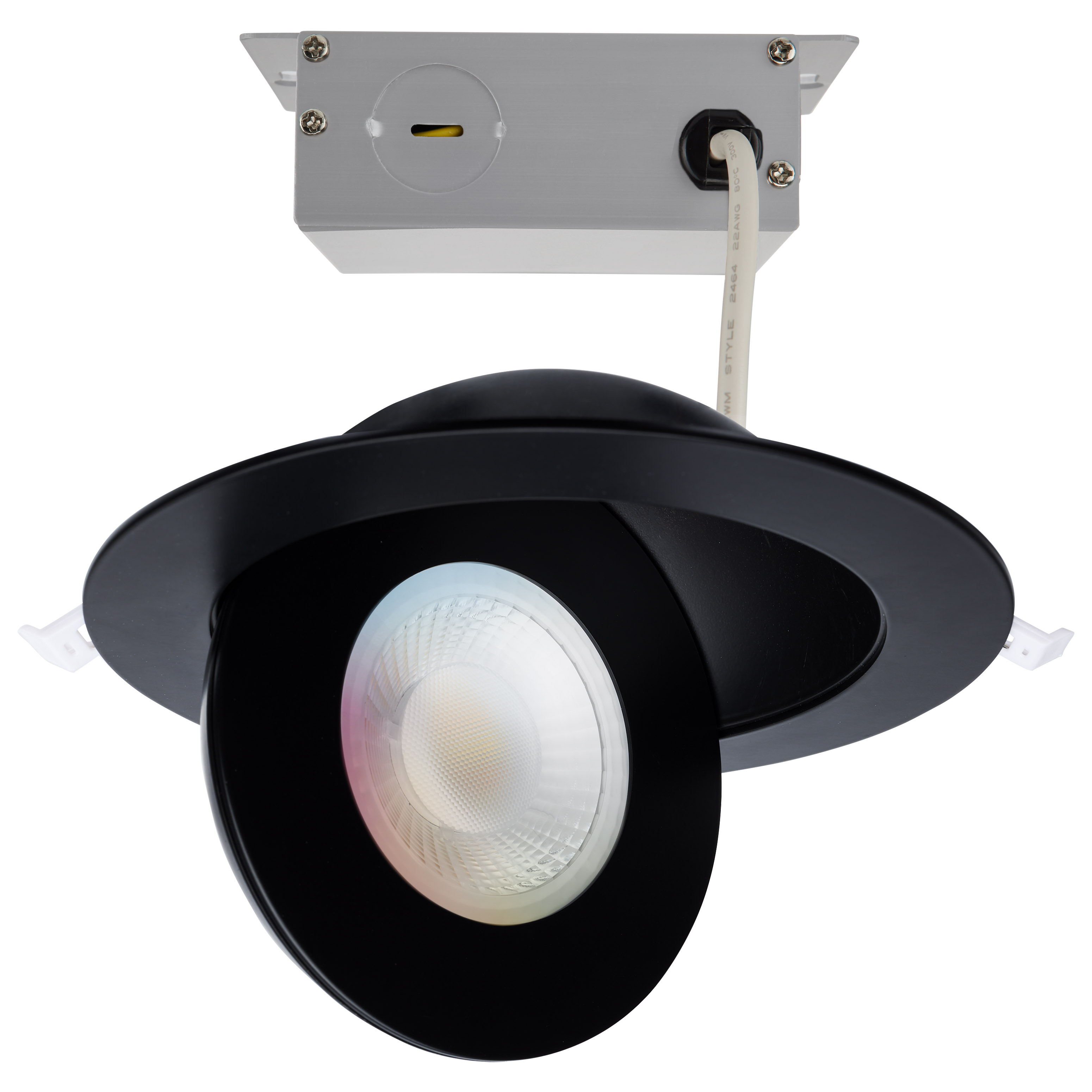

S11296R1

15WLED/GBL/6/RGBTW/BL

  • Starfish
  • 15 Watt LED Gimbal Downlight
  • 6 Inch
  • 2700K-5000K RGB Tunable White

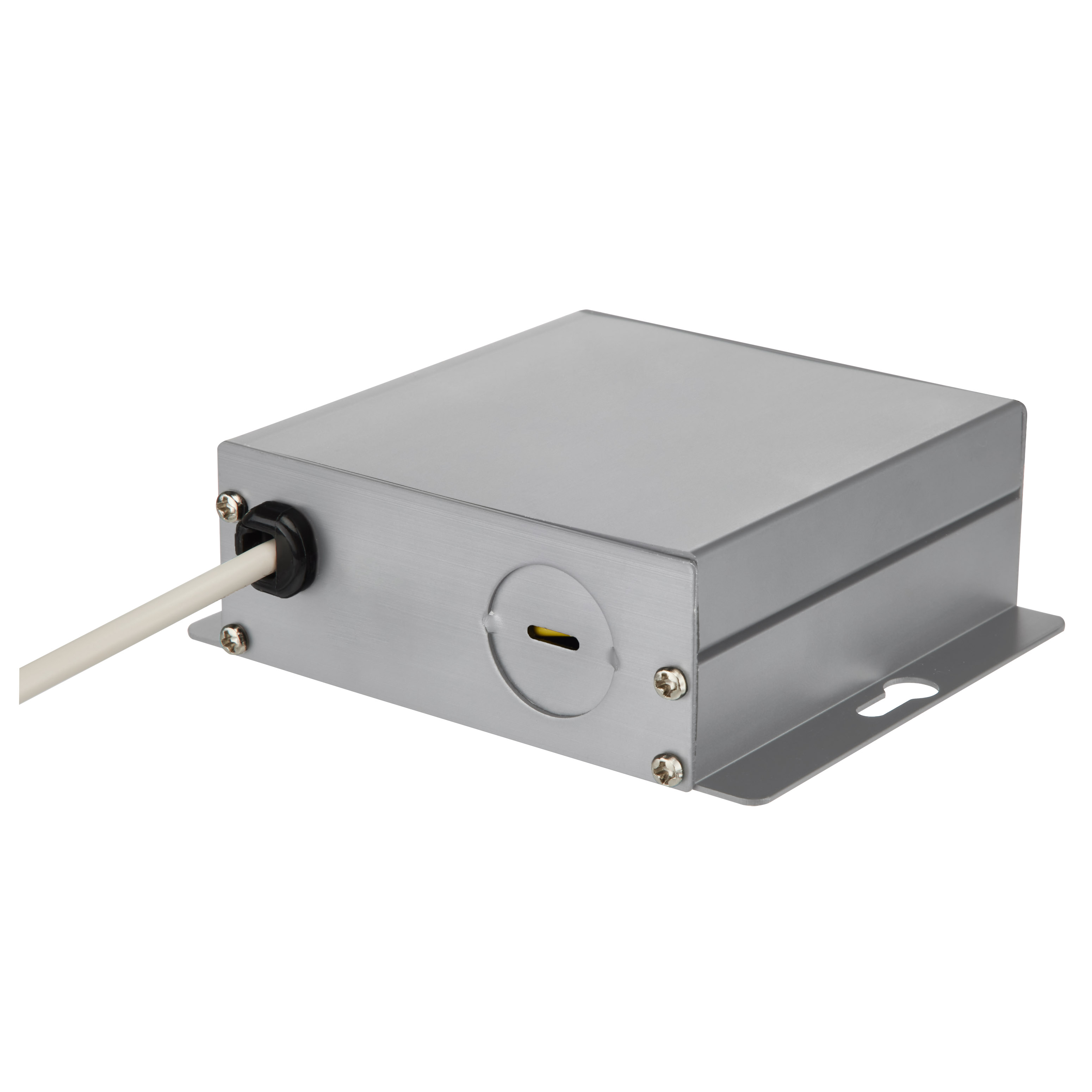

  • Remote Driver
  • Black Finish
  • 120-277 Range Voltage
location_rating^damp^1
cc_selectable^y^1
air_tight^y^1
title_24^y^1
cri^90^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
S11296R1 SpecificationsS11296R1 InstructionsSN1897 Starfish Gimbals PI Sheet 9-16-25 v4
Description
Description
Starfish; 15 Watt LED Gimbal Downlight; 6 Inch; 2700K-5000K RGB Tunable White; Remote Driver; Black Finish; 120-277 Range Voltage
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
Starfish Communication ProtocolWiFi-2.4GHz
Diameter7.48
Dimmable TextOnly with Starfish App
MaterialAluminum
Fixture TypeDownlight
StatusActive
Starfish Voice Assistants SupportedAlexa, Google Home, Siri, SmartThings
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyBlack
Amps0.125-0.054A
Has CameraFalse
IOT EnabledTrue
Lens FinishFrost
Lens MaterialPlastic
LensedTrue
Power Factor>0.9
Starfish Software SupportedTuya/Starfish App
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)2700K-5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)36
Color TempRGB and Tunable White
CRI90
Dimming TypeSmart-Starfish App only
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1250L
Volts120V-277V
Watts15W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
Air TightTrue
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
IC RatedTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus
CA Compliance TextLawful for sale
Energy Star CertifiedPending
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923410802
Case Cube2.1874
Case Height17.32
Case Length17.32
Case Quantity12
Case UPC10045923410809
Case Weight23.26
Case Width12.6
EA Cube0.1544
EA Height8.27
EA Length8.19
EA Quantity1
EA Weight1.94
EA Width3.94
Inner Cube0.0
Pack TypeBox
Web Height2.13
Web Width7.48
