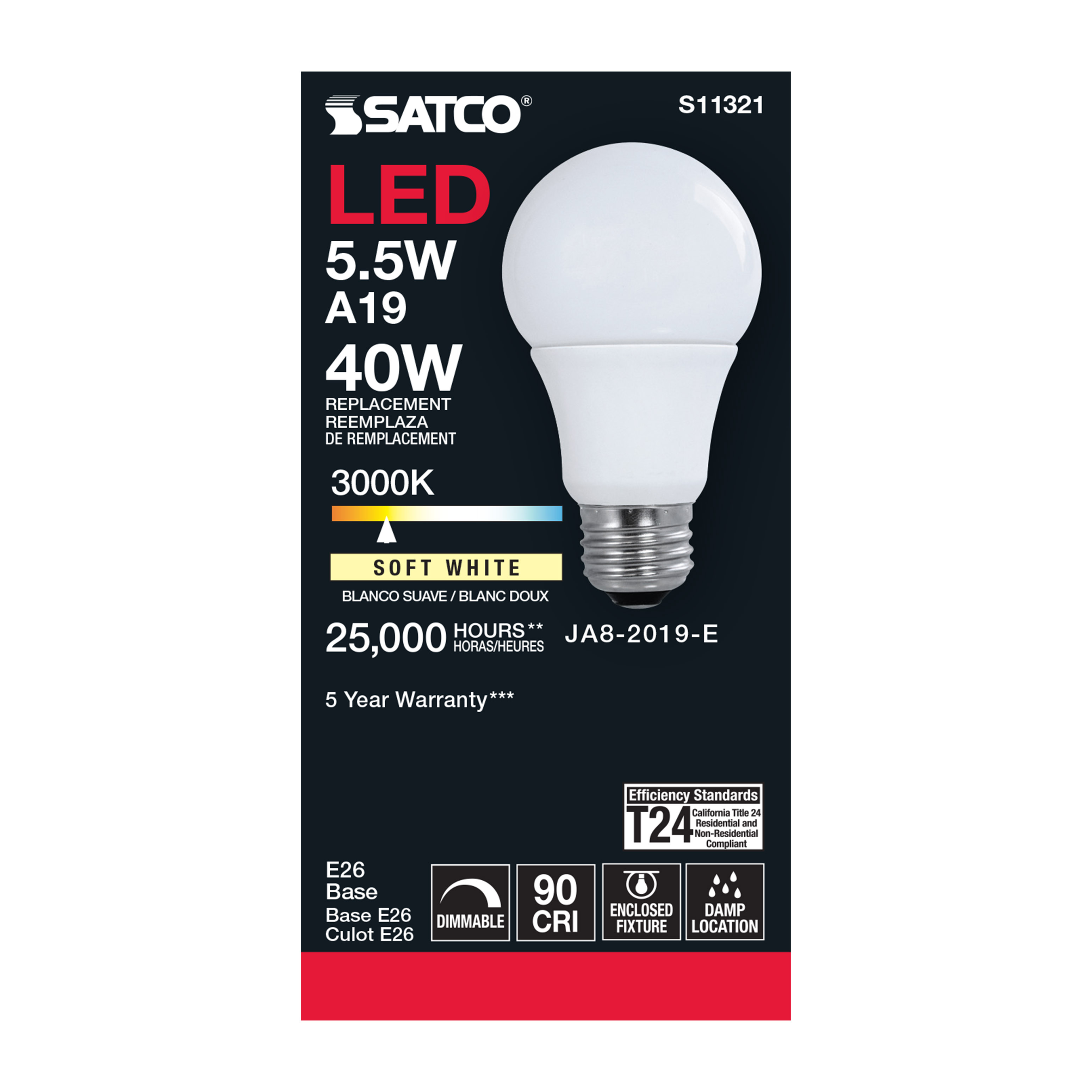

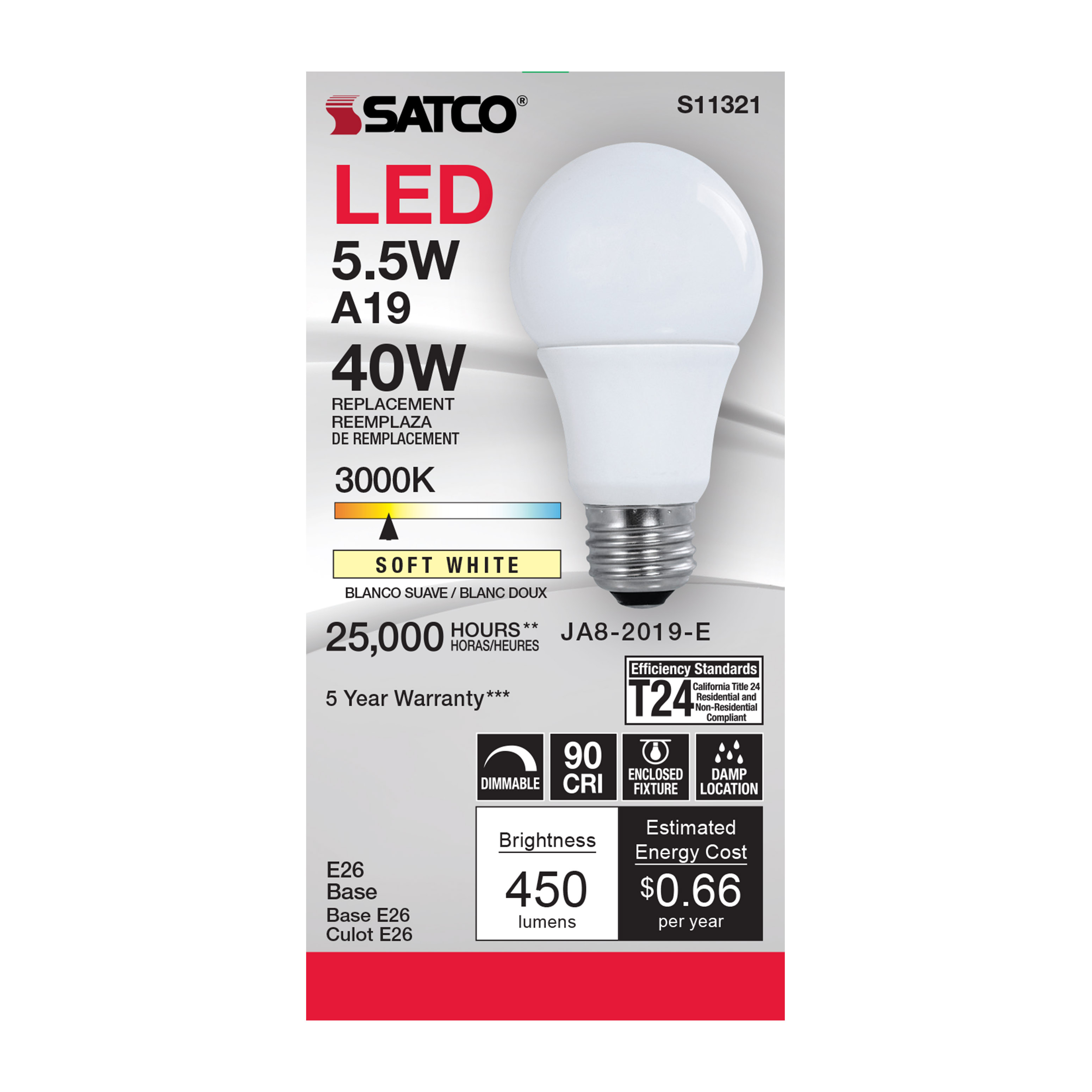

SKU S11321 - Image 1

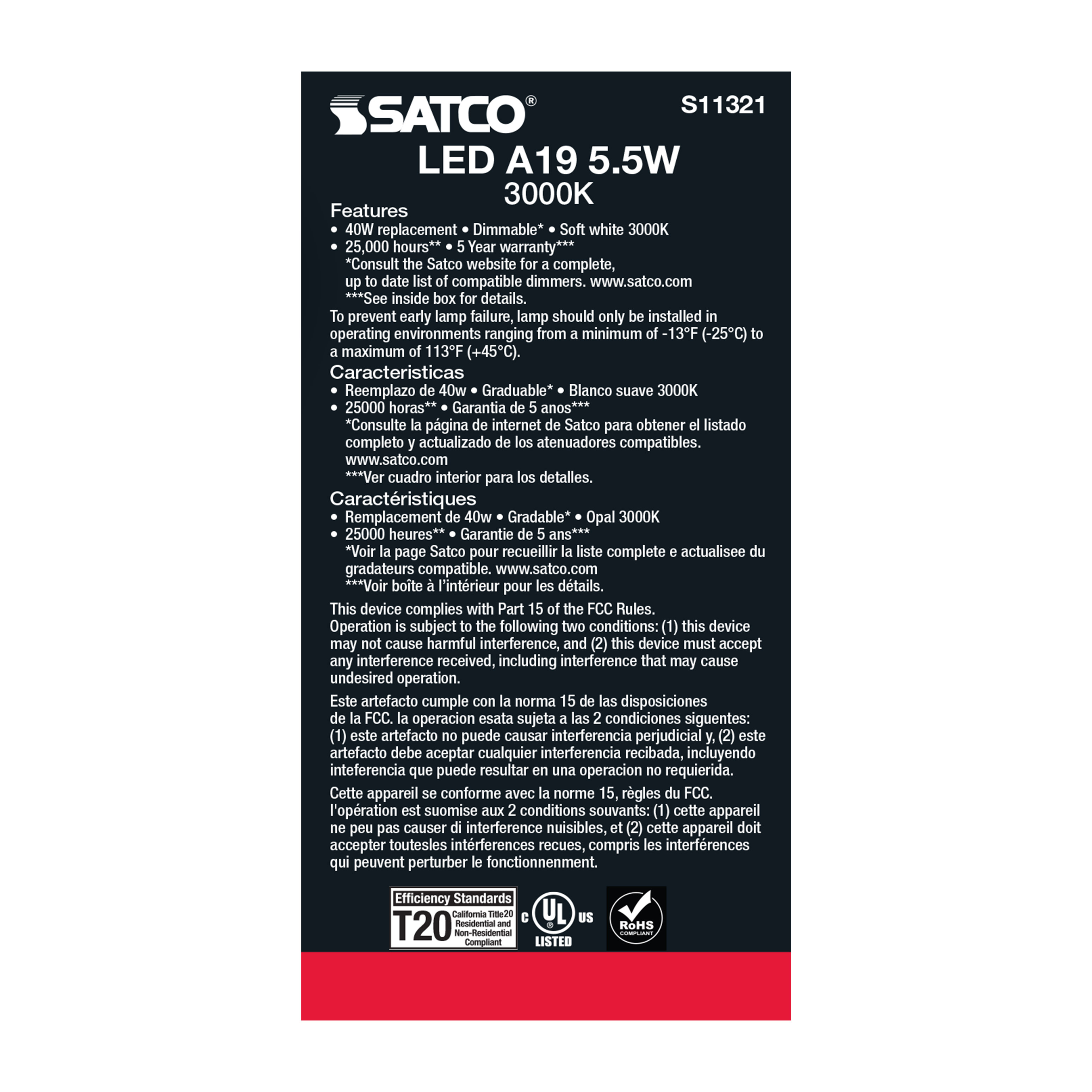

SKU S11321 - Image 2

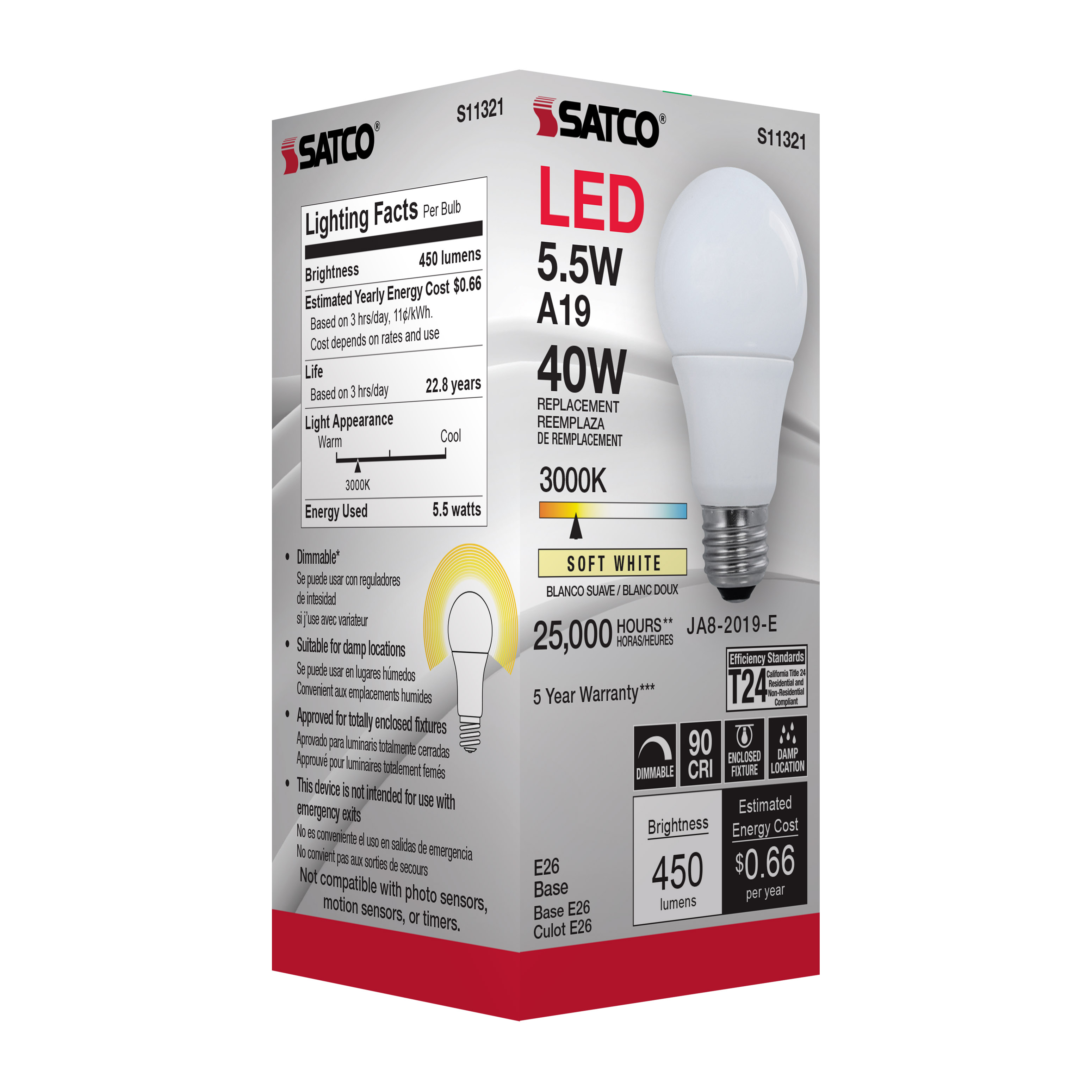

SKU S11321 - Image 3
S11321

5.5A19/LED/930/120V/D

  • 5.5 Watt
  • A19 LED
  • 3000K
  • Medium base
  • 220 deg. Beam Angle
  • 120 Volt
location_rating^damp^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11321 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Tools
Lighting Layout Analysis For S11321
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
5.5 Watt; A19 LED; 3000K; Medium base; 220 deg. Beam Angle; 120 Volt
Products Specs
General
CompanySATCO
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTransitional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyFrost
Amps0.046A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Power Factor0.92
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)

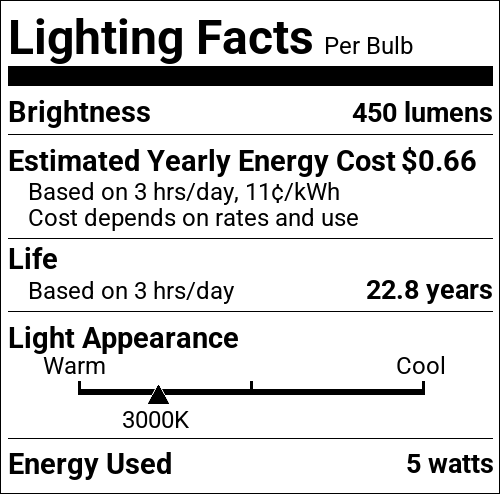

Lumens450L
Volts120v
Watts5.5W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19

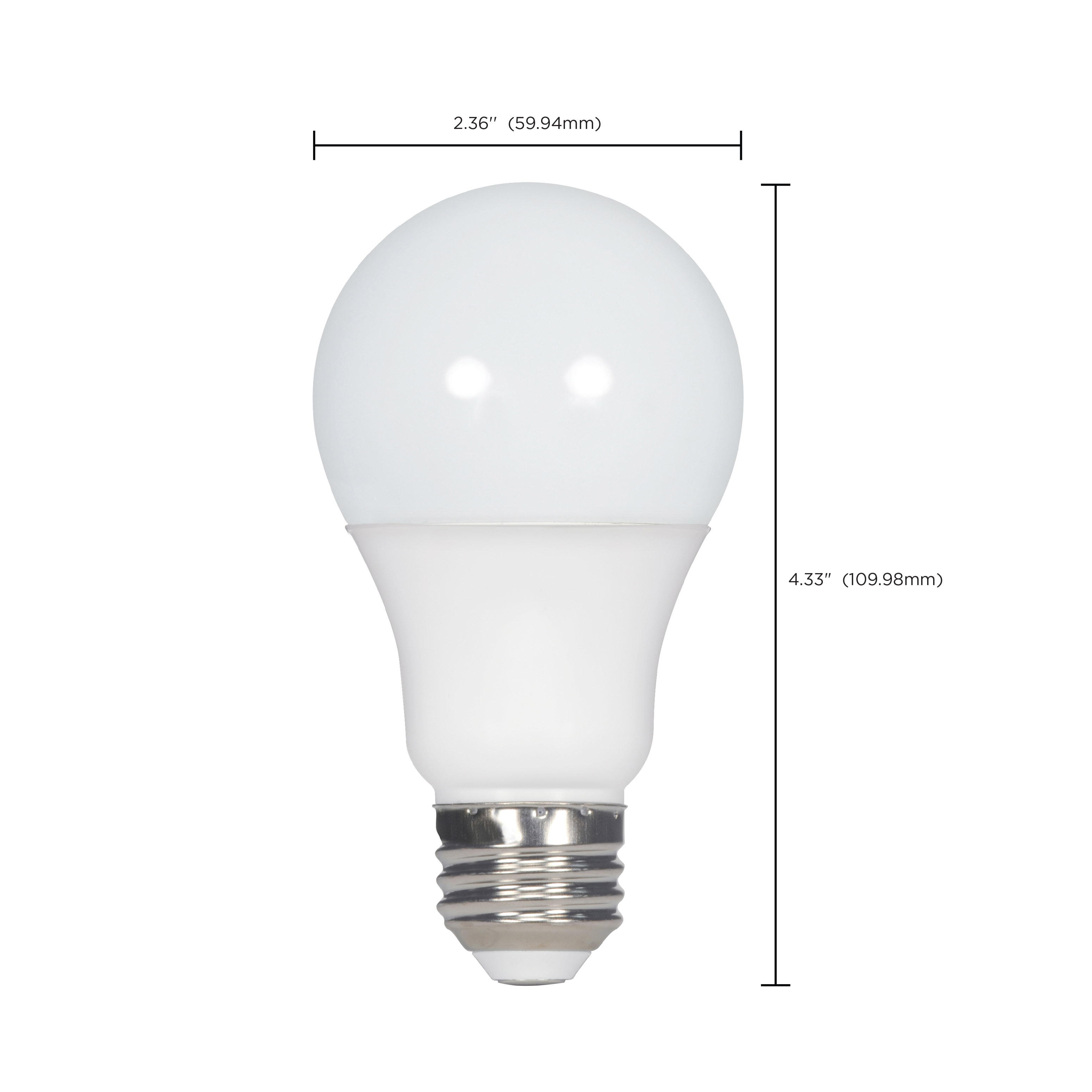

MOD Lamps2.36
MOL4.33
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923113215
Case Cube0.6215
Case Height11.3
Case Length11.22
Case Quantity24
Case UPC10045923113212
Case Weight4.59
Case Width8.47
EA Cube0.0165
EA Height4.8
EA Length2.44
EA Quantity1
EA Weight0.15
EA Width2.44
Inner Cube0.1202
Inner Height5.12
Inner Length7.8
Inner Quantity6
Inner UPC20045923113219
Inner Weight1.01
Inner Width5.2
Pack TypeBox
Web Length4.33
Web Width2.36
