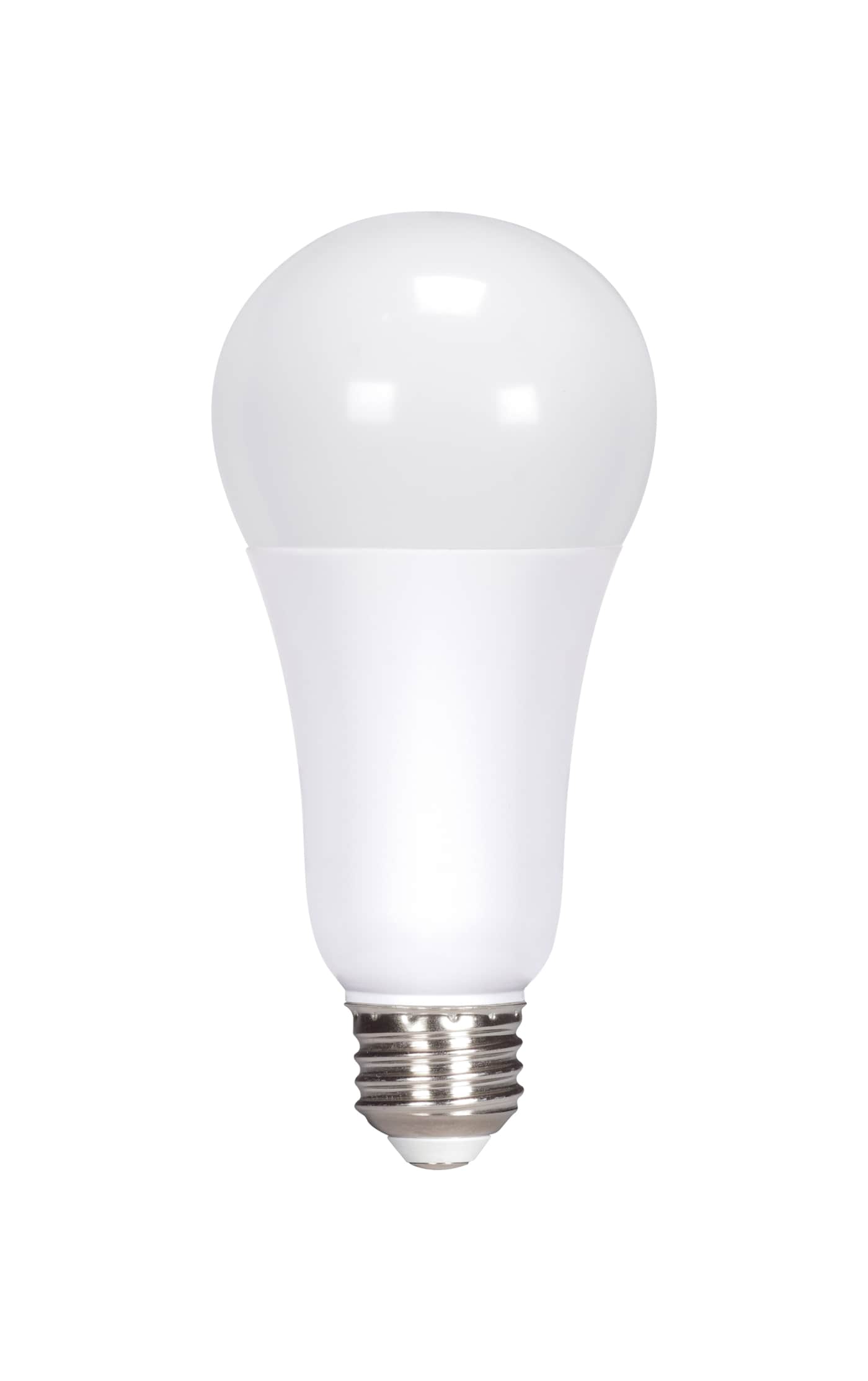

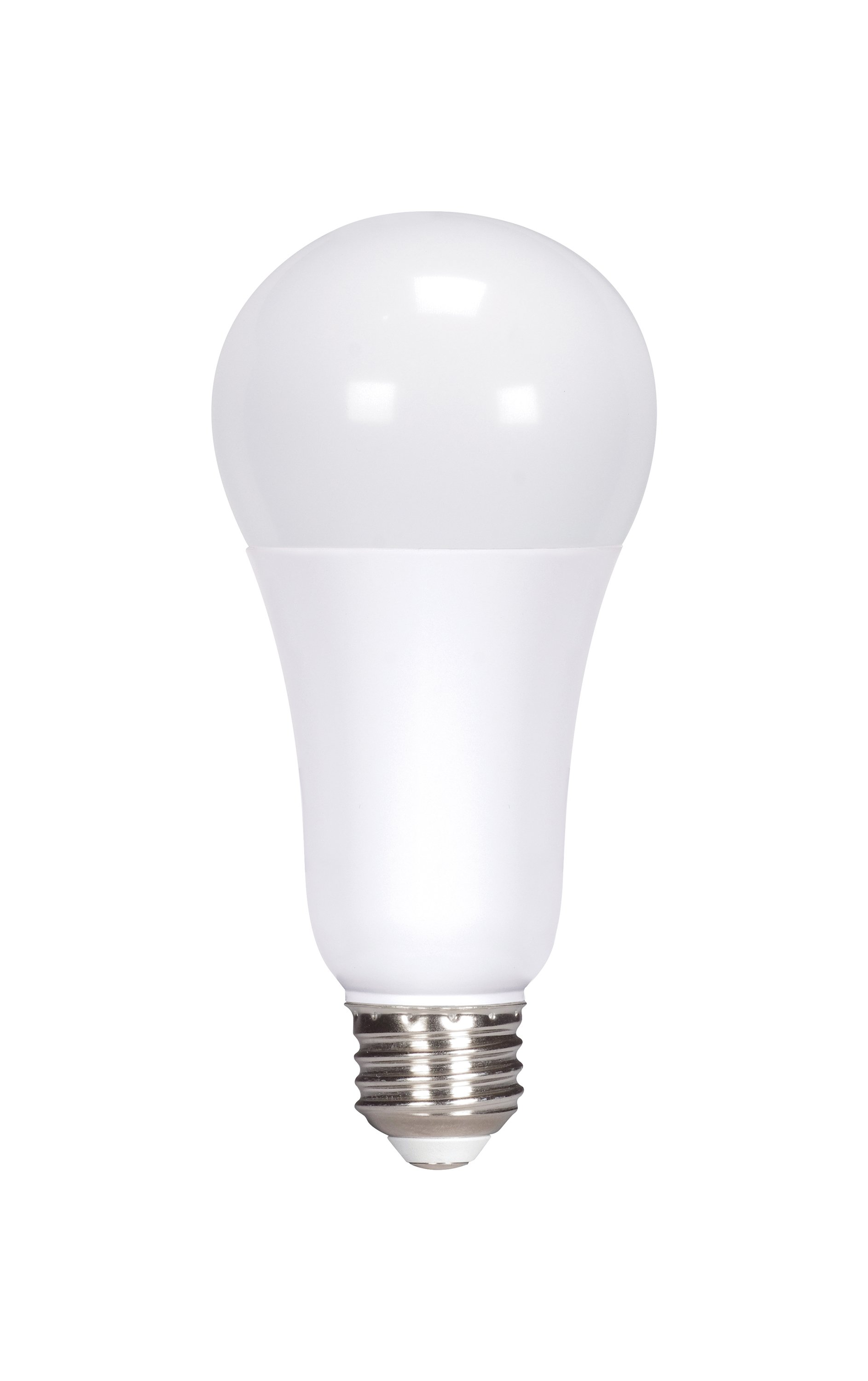

S11331

20A21/LED/940/120-277V/ND

  • 20 Watt
  • A21 LED
  • 4000K
  • Medium base
  • 220 deg. Beam Angle
  • 120-277 Volt
location_rating^damp^1
title_20^y^1
cri^90+^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11331 SpecificationsSA2696 LED A21 20W PI Sheet Lit 11-14-24SN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25
Tools
Lighting Layout Analysis For S11331
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
20 Watt; A21 LED; 4000K; Medium base; 220 deg. Beam Angle; 120-277 Volt
Products Specs
General
CompanySATCO
CA RegulationsT20 Listed
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTransitional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyFrost
Additional InfoAt 120 volts, power factor is 0.94; At 277 volts, power factor is 0.87
Amps0.167-0.072A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Power Factor0.94/0.87
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempCool White
CRI90+
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens2000L
Volts120V-277V
Watts20W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA21
MOD Lamps2.63
MOL5.55
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantFalse
Packaging
UPC045923113314
Case Cube0.9058
Case Height13.78
Case Length12.28
Case Quantity24
Case UPC10045923113311
Case Weight10.8
Case Width9.25
EA Cube0.025
EA Height6.02
EA Length2.68
EA Quantity1
EA Weight0.41
EA Width2.68
Inner Cube0.1789
Inner Height6.34
Inner Length8.54
Inner Quantity6
Inner UPC20045923113318
Inner Weight2.54
Inner Width5.71
Pack TypeBox
Web Length5.55
Web Width2.63
