| Company | SATCO |
|---|---|
| Dimmable Text | Forward Phase or Reverse Phase or Phase Selectable |

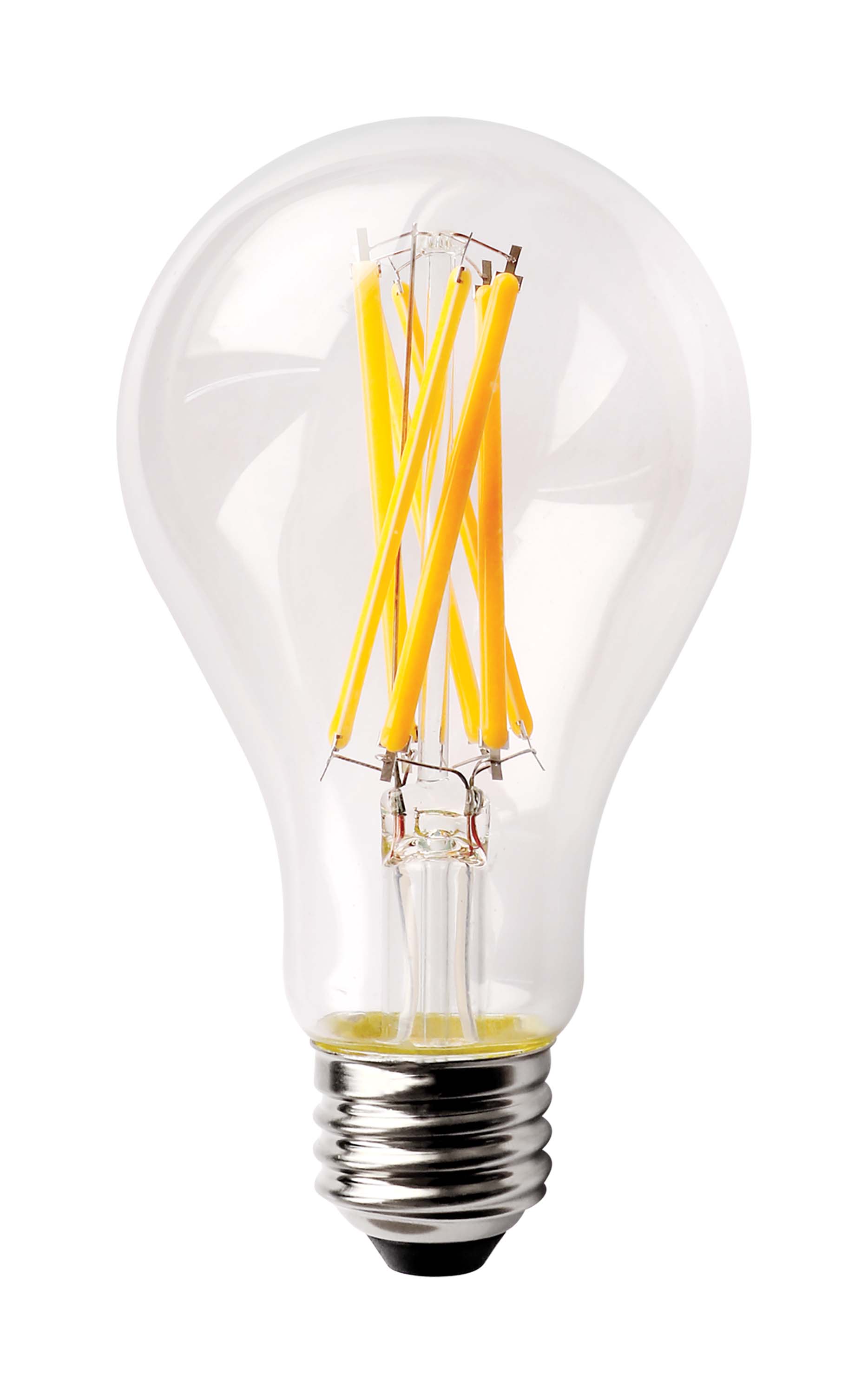

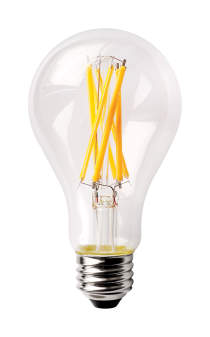

| Lamp Filament | LED Filament |
| Material | Metal / Plastic / Electronic Components |
| Fixture Type | Type A |
| Status | Obsolete |
| Style | Traditional |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | No Finish |
| Additional Info | S11361 (JA8/T24) for CA / S12430 (T20 only) |
| Amps | 0.117A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Clear |
| Lens Material | Plastic (PS) |
| Lensed | Yes |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Incandescent Equivalent | 100W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 15000 |
| Beam Angle (degree) | 320 |
| Color Temp | Warm White |
| CRI | 90+ |
| Dimming Type | 120V only, Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |

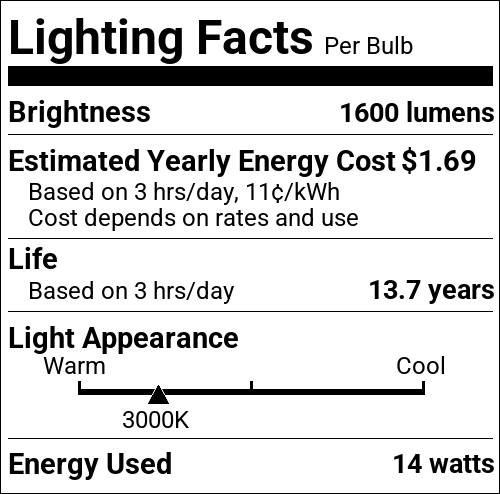

| Lumens | 1600L |
| Volts | 120v |
| Watts | 14W |
| Lamp Base | Medium |
|---|---|
| Finish | Clear |
| ANSI Base | E26 |
| Lamp Type | A21 |

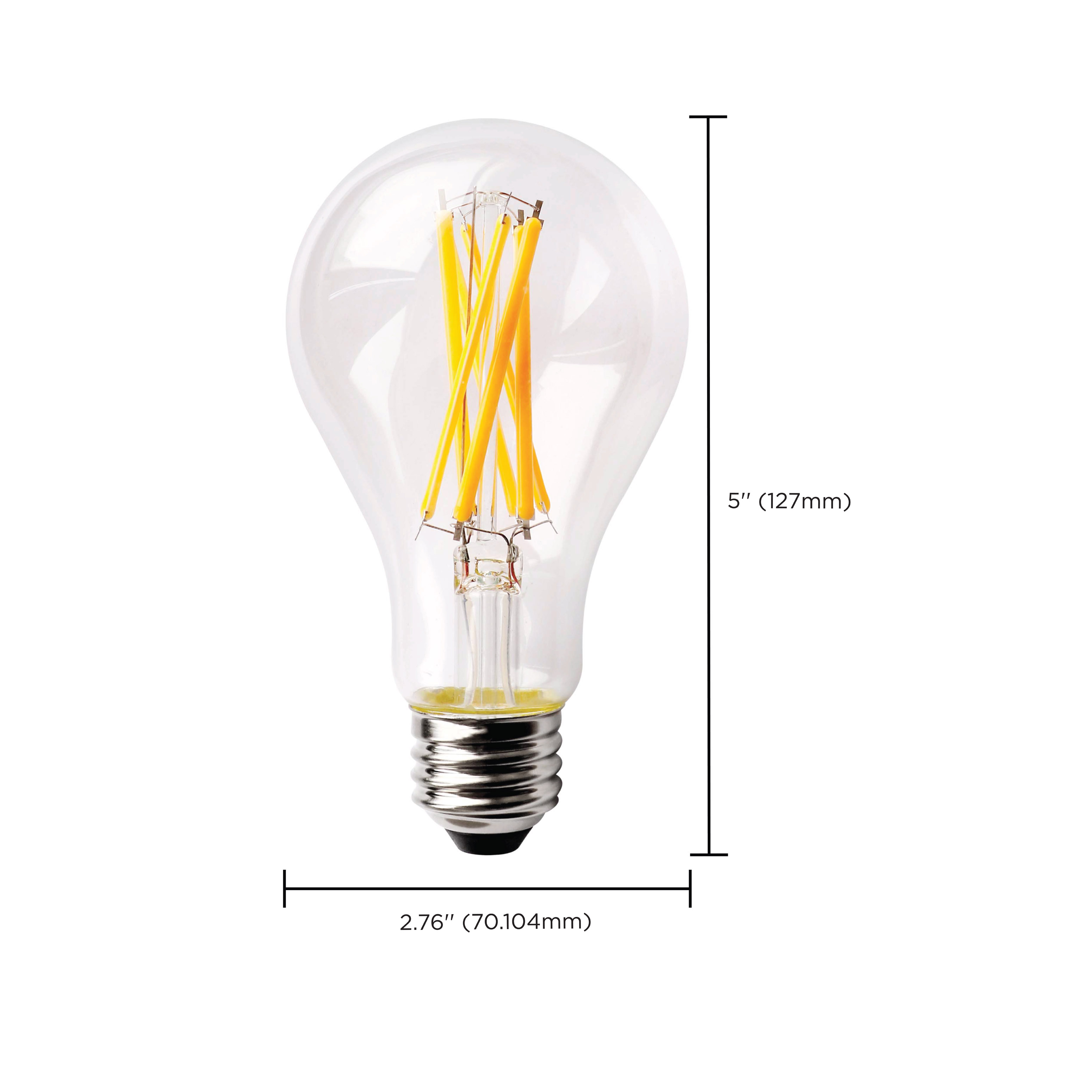

| MOD Lamps | 2.76 |
| MOL | 5.0 |
| Warranty | 2-Years |
|---|---|
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| California Ban | California T24 Listed |
| DLC Approved | No |
| Title 20 | Yes |
| T24 Compliant | Yes |
| UPC | 045923113611 |
|---|---|
| Case Cube | 1.1299 |
| Case Height | 13.39 |
| Case Length | 13.98 |
| Case Quantity | 24 |
| Case UPC | 10045923113618 |
| Case Weight | 4.68 |
| Case Width | 10.43 |
| EA Cube | 0.0288 |
| EA Height | 5.71 |
| EA Length | 2.95 |
| EA Quantity | 1 |
| EA Weight | 0.2 |
| EA Width | 2.95 |
| Inner Cube | 0.2284 |
| Inner Height | 6.22 |
| Inner Length | 9.76 |
| Inner Quantity | 6 |
| Inner UPC | 20045923113615 |
| Inner Weight | 1.17 |
| Inner Width | 6.5 |
| Pack Type | Box |
| Web Length | 5.0 |
| Web Width | 2.76 |
