| Company | SATCO |
|---|---|
| Dimmable Text | Forward Phase or Reverse Phase or Phase Selectable |
| Lamp Filament | LED |
| Material | Aluminum / Plastic |
| Fixture Type | Type A |
| Status | Active |
| Style | Specialty |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Additional Info | Designed for use with Overdrive and Precision brand controls |
| Amps | 0.042A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lens Material | Plastic (PS) |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 40W |
| CCT (Kelvin Temp) | 2700K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 25000 |
| Beam Angle (degree) | 140 |
| Color Temp | Warm White |
| CRI | 80+ |
| Dimming Type | 120V only, Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 550L |
| Volts | 120v |
| Watts | 5W |
| Lamp Base | Medium |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | E26 |
| Lamp Type | A19 |

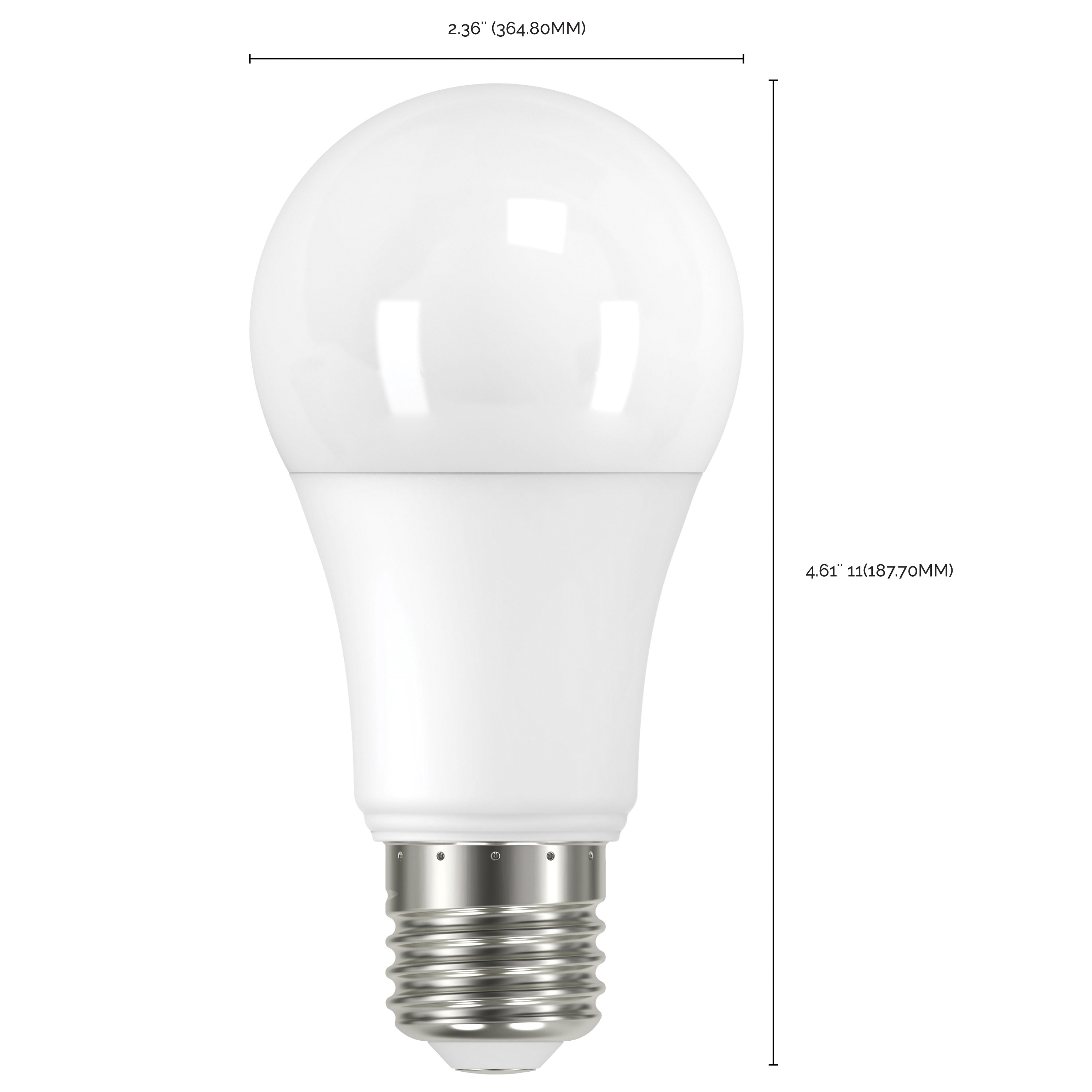

| MOD Lamps | 2.36 |
| MOL | 4.61 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| IP Rating | IP54 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Listed |
| California Ban | Non-Compliant |
| DLC Approved | No |
| Title 20 | No |
| T24 Compliant | No |
| US State Ban | CA |
| UPC | 045923114304 |
|---|---|
| Case Cube | 1.2295 |
| Case Height | 6.1 |
| Case Length | 21.85 |
| Case Quantity | 48 |
| Case UPC | 10045923114301 |
| Case Weight | 10.36 |
| Case Width | 15.94 |
| EA Cube | 0.017 |
| EA Height | 4.92 |
| EA Length | 2.44 |
| EA Quantity | 1 |
| EA Weight | 0.17 |
| EA Width | 2.44 |
| Inner Cube | 0.2464 |
| Inner Height | 5.31 |
| Inner Length | 15.3 |
| Inner Quantity | 12 |
| Inner UPC | 20045923114308 |
| Inner Weight | 2.25 |
| Inner Width | 5.24 |
| Pack Type | Box |
| Web Length | 4.61 |
| Web Width | 2.36 |
