S11480

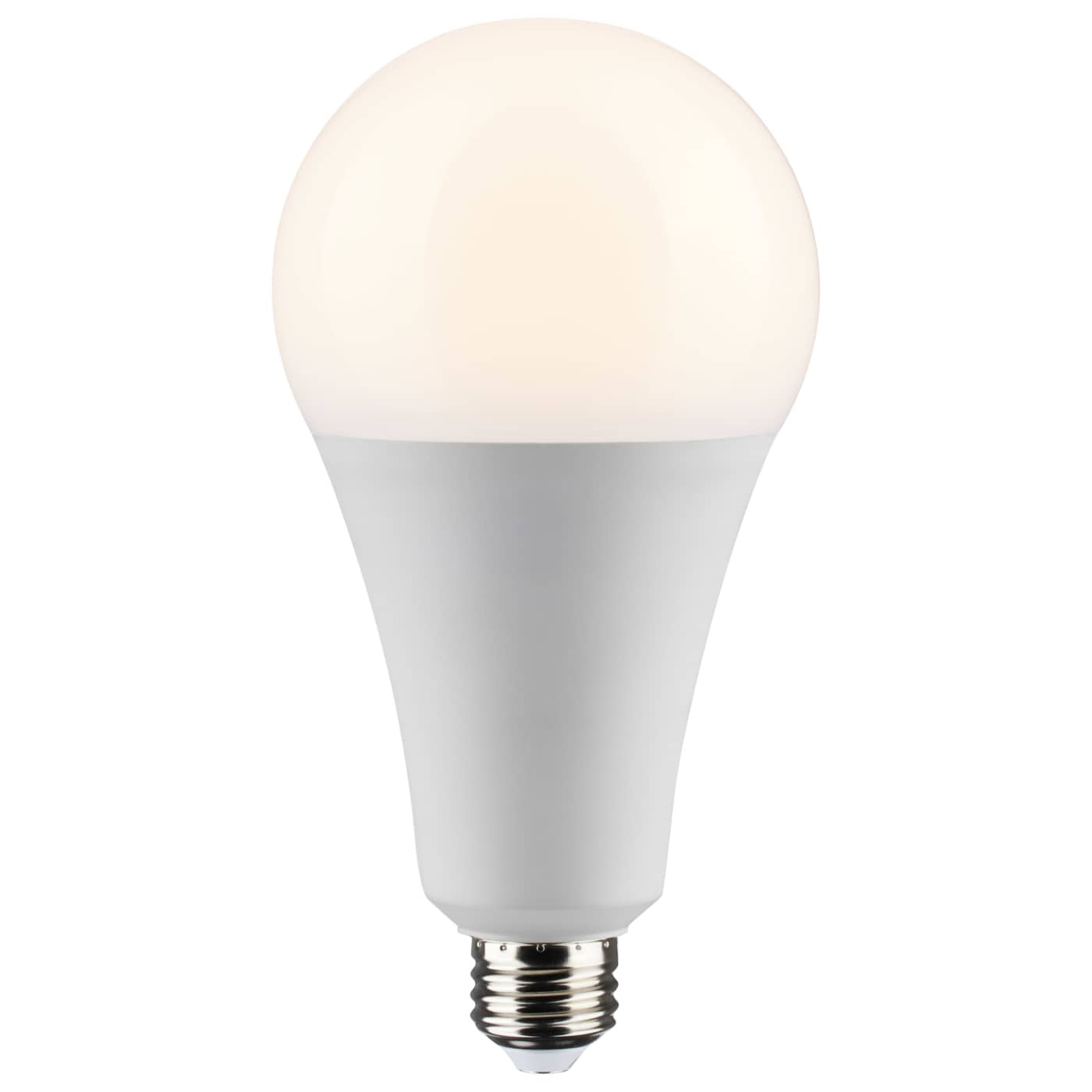

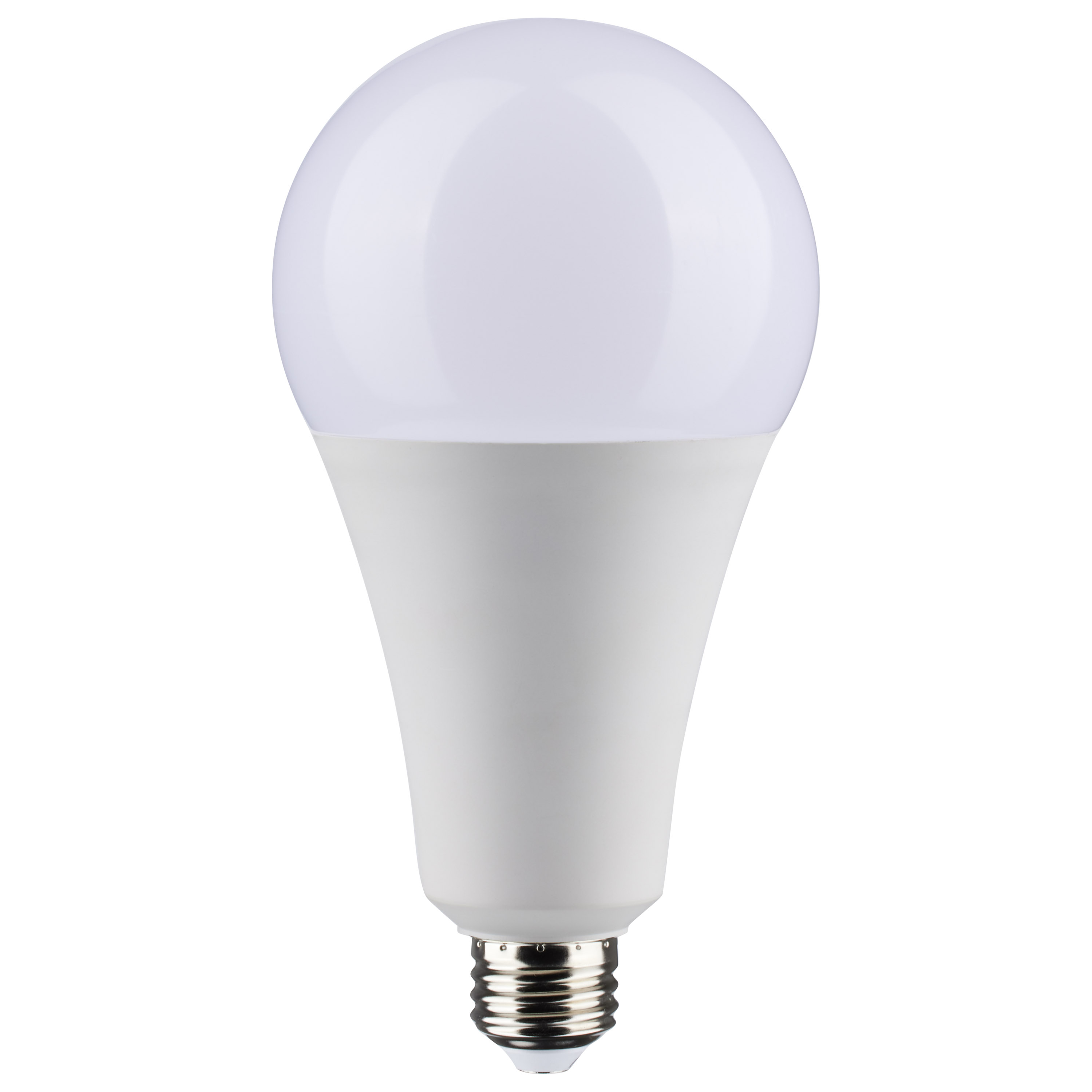

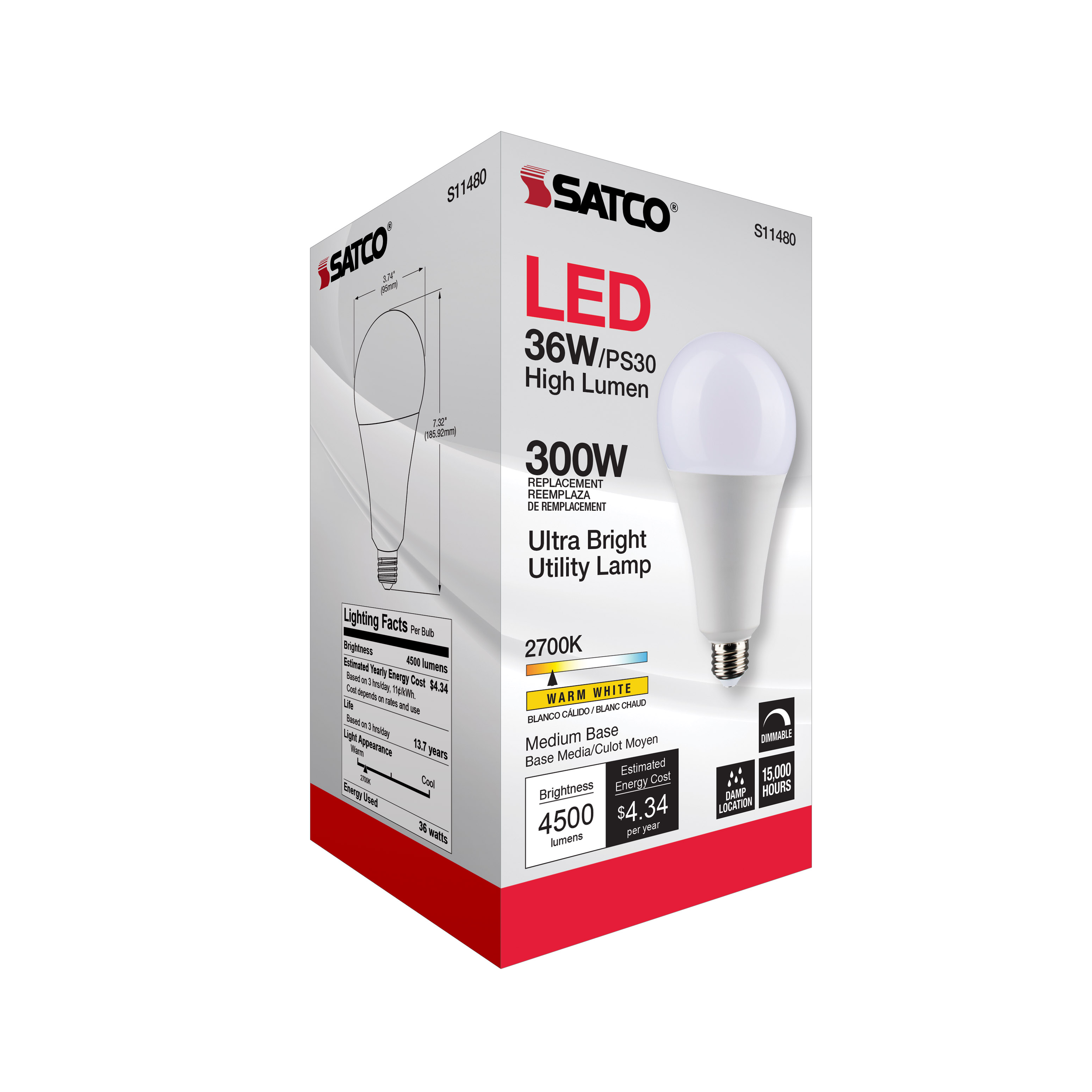

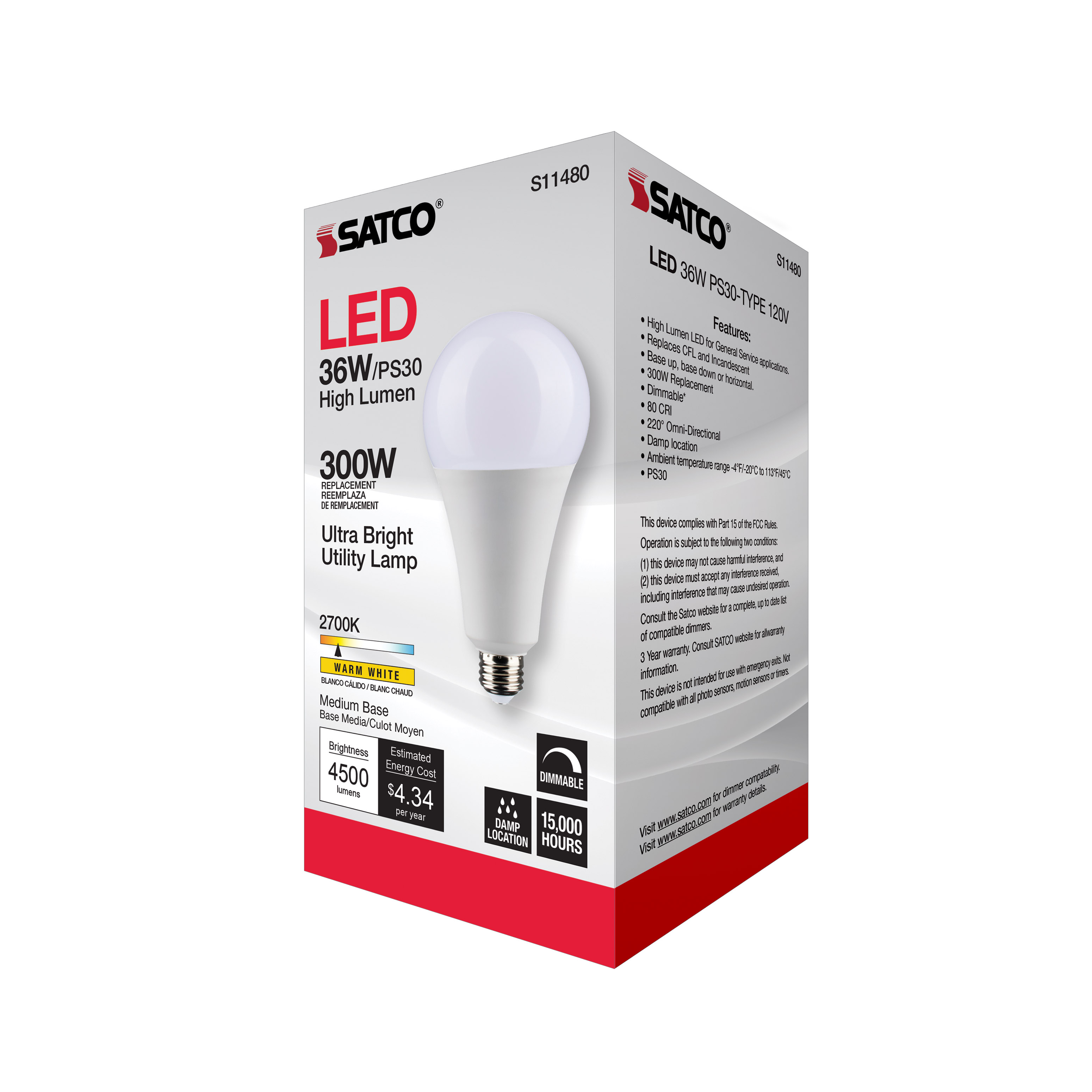

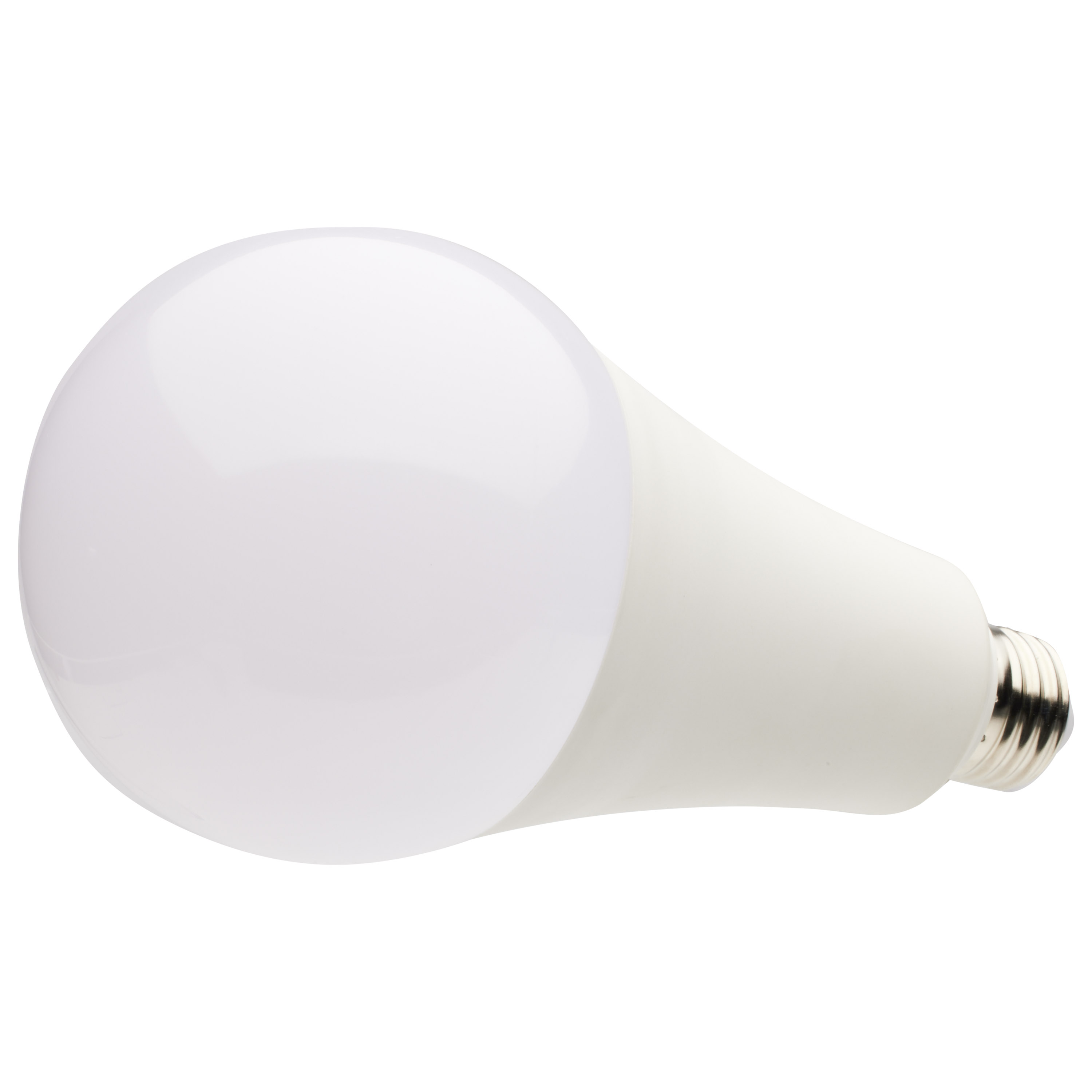

36PS30/LED/827/120V/DIM/E26

  • Ultra Bright Utility Lamp
  • 36 Watt
  • PS30 LED
  • Dimmable
  • White Finish
  • Medium Base
  • 2700K
  • 120 Volt
  • High Lumen
location_rating^damp^1
dimmable^dimmable^2
hours_rated^15k^2
volts^120v^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3

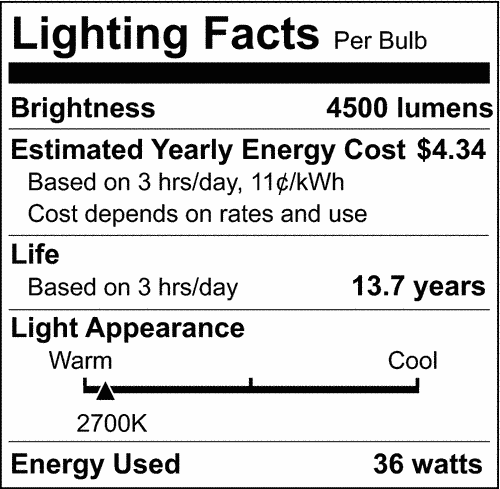

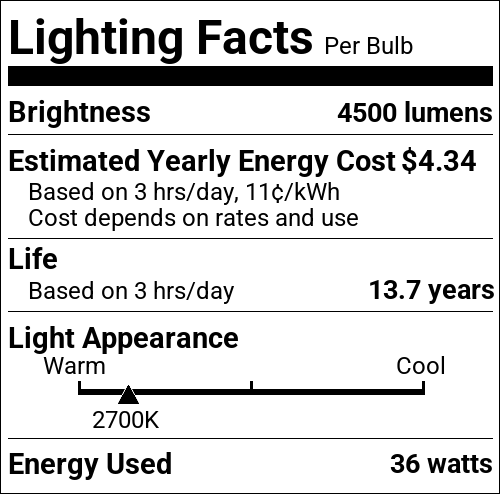

S11480 SpecificationsS11480 Photometrics.iesNEW! ULTRA-BRIGHT PS30 LED UTILITY LAMPS11480 Lighting Facts Label
Tools
Lighting Layout Analysis For S11480
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Ultra Bright Utility Lamp; 36 Watt; PS30 LED; Dimmable; White Finish; Medium Base; 2700K; 120 Volt; High Lumen
Products Specs
General
CompanySATCO
Dimmable TextForward Phase or Reverse Phase or Phase Selectable; 120V only
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
Product NotesSmooth dimming below 10%
StatusActive
StyleTraditional
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoFor use in: Houses of Worship, Hospitality, Warehouses, Barns, Garages, Workshops, etc
Amps0.300A
Has CameraNo
IOT EnabledNo
Operating PositionUniversal
Power Factor0.99
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)220
Color TempWarm White
CRI80+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens4500L
Volts120v
Watts36W
Physical

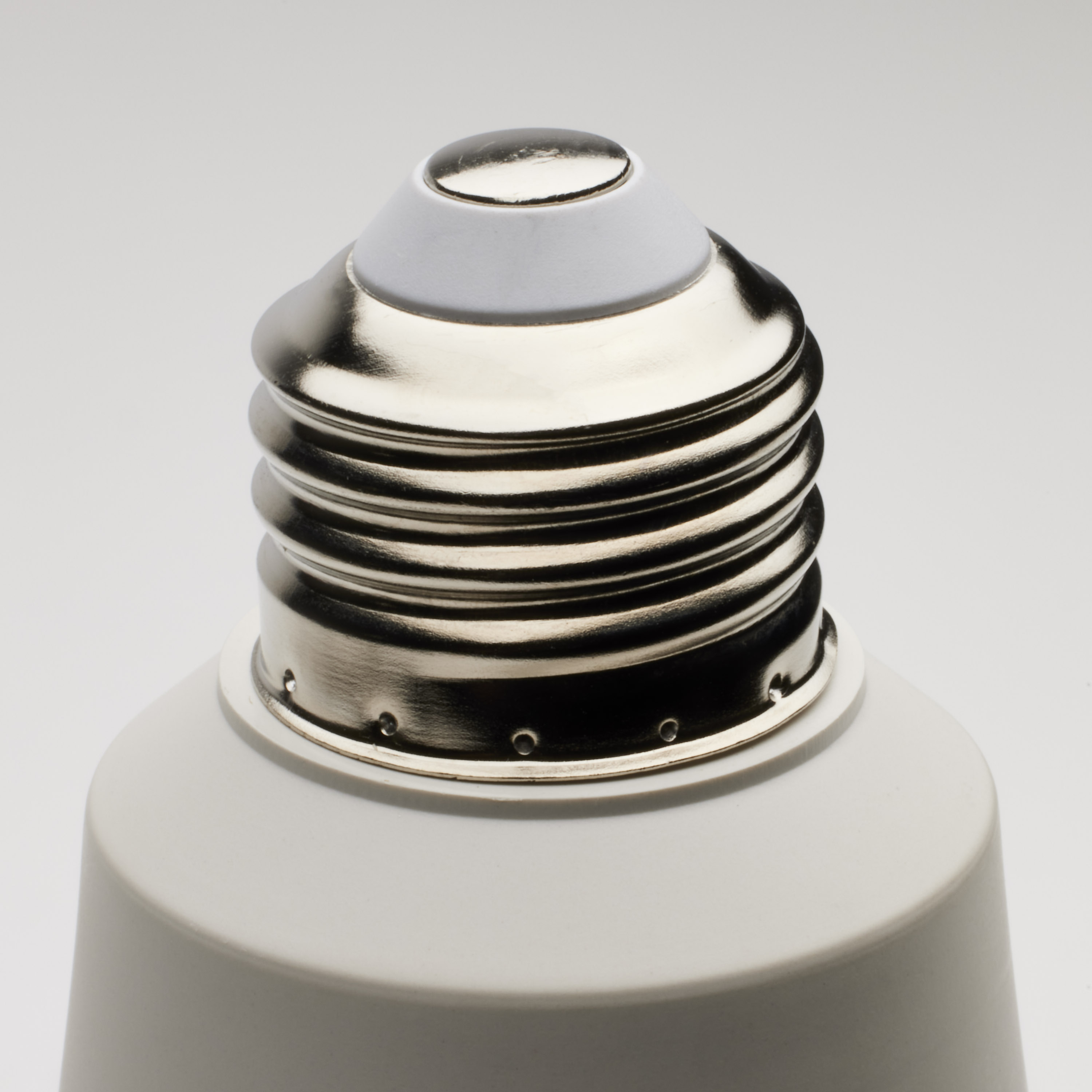

Lamp BaseMedium
FinishWHITE
Housing ColorWhite
ANSI BaseE26
Lamp TypePS30

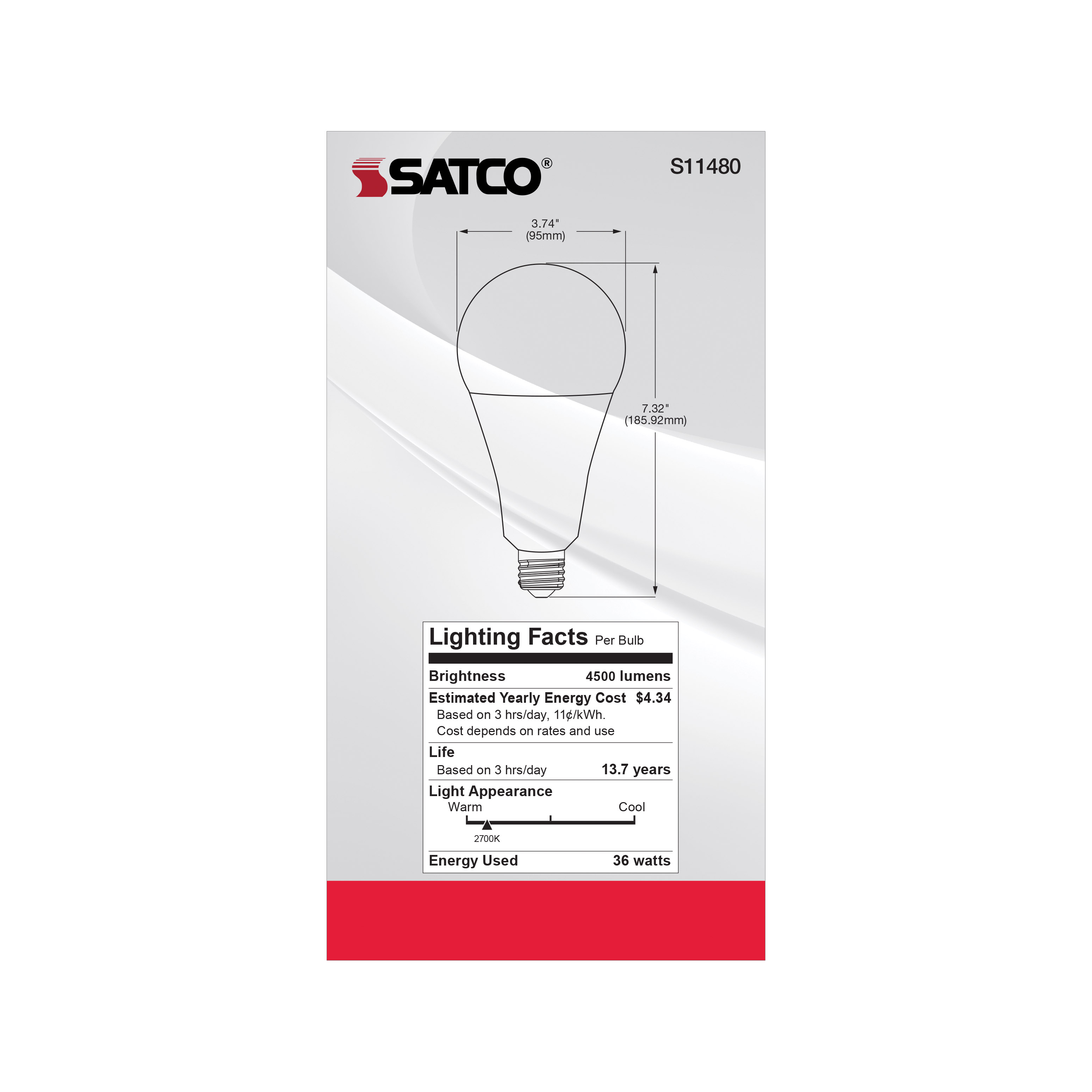

MOD Lamps3.74
MOL7.32
Additional Info
Warranty2-Years
Installation NotesNot approved for totally enclosed fixtures
Rated For Enclosed FixtureNo
Documents
Compliance
FCC CompliantYes
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
UL ApplicationFilament LED Lamp
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923114809
Case Cube2.5811
Case Height17.95
Case Length18.19
Case Quantity24
Case UPC10045923114806
Case Weight23.17
Case Width13.66
EA Cube0.0792
EA Height7.87
EA Length4.17
EA Quantity1
EA Weight0.83
EA Width4.17
Inner Cube1.1042
Inner Height8.39
Inner Length17.4
Inner Quantity12
Inner UPC20045923114803
Inner Weight10.67
Inner Width13.07
Pack TypeColor Box
Web Length7.32
Web Width3.74
