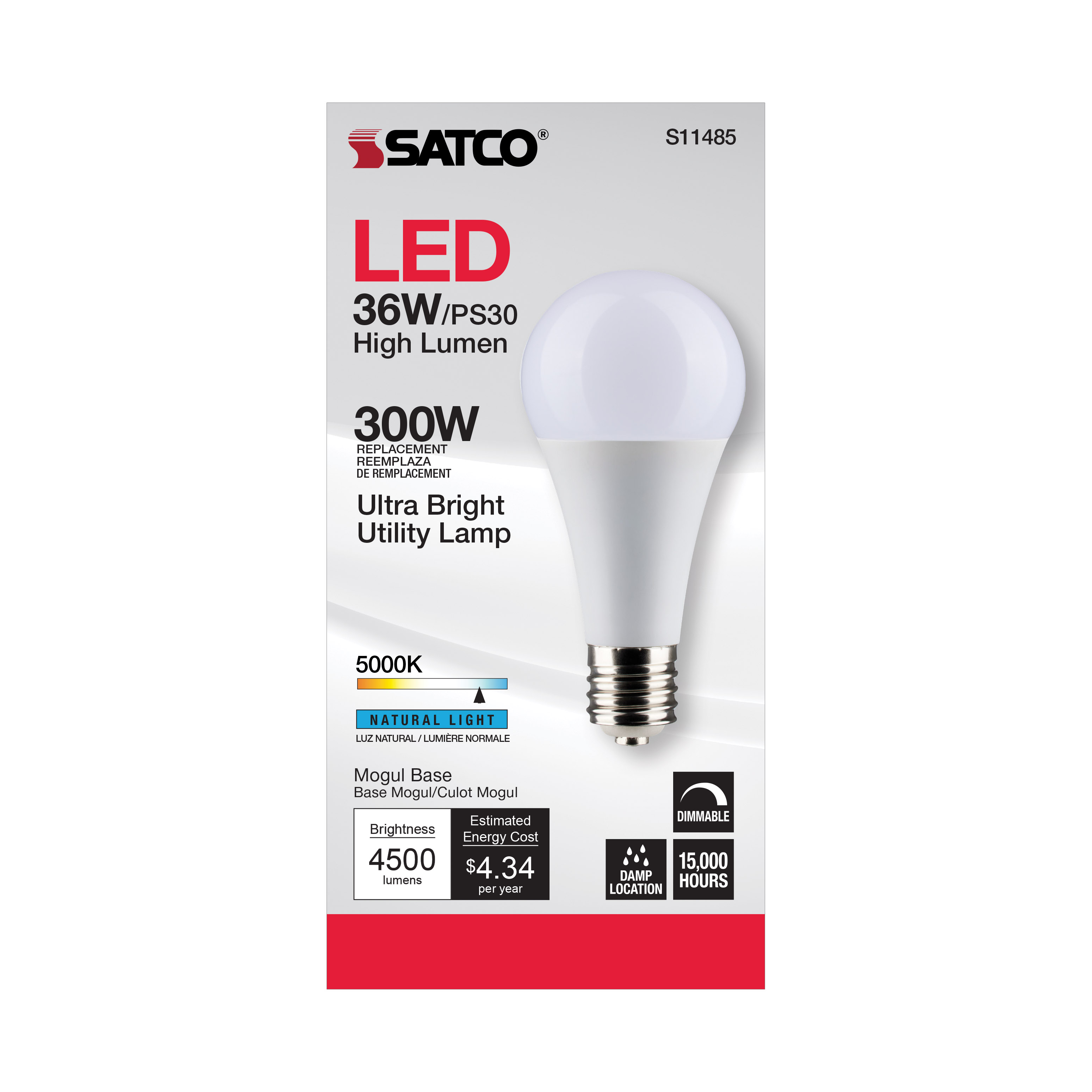

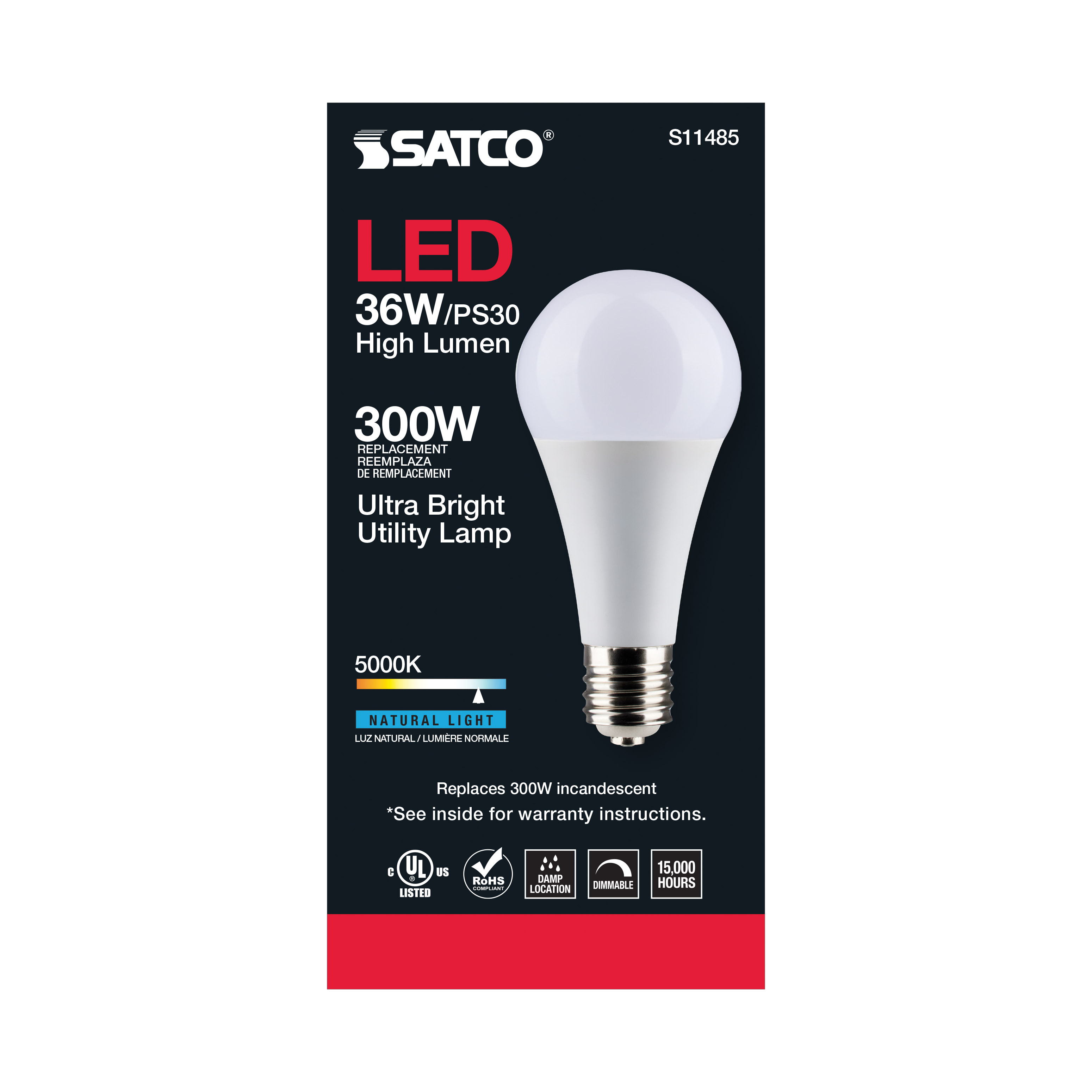

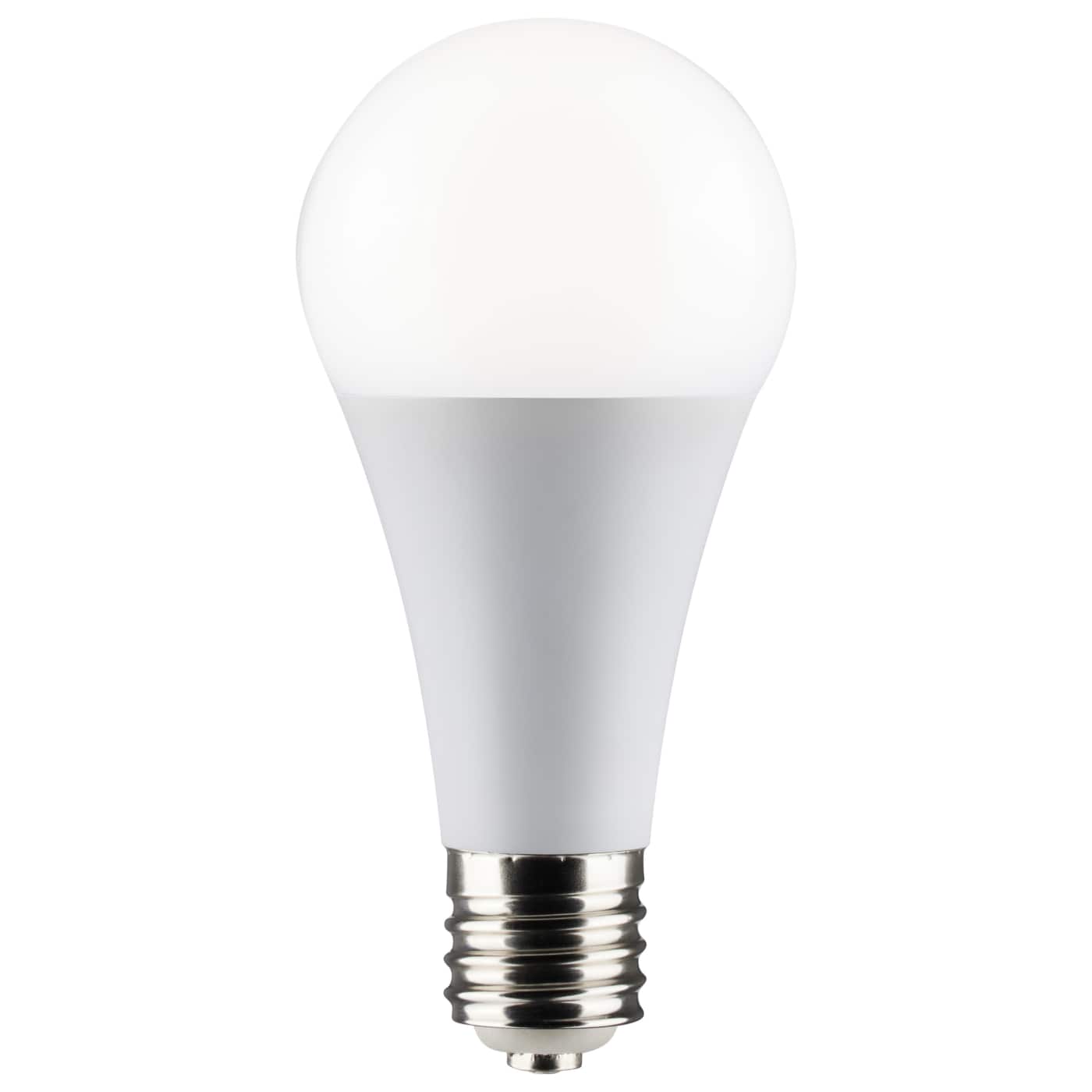

S11485

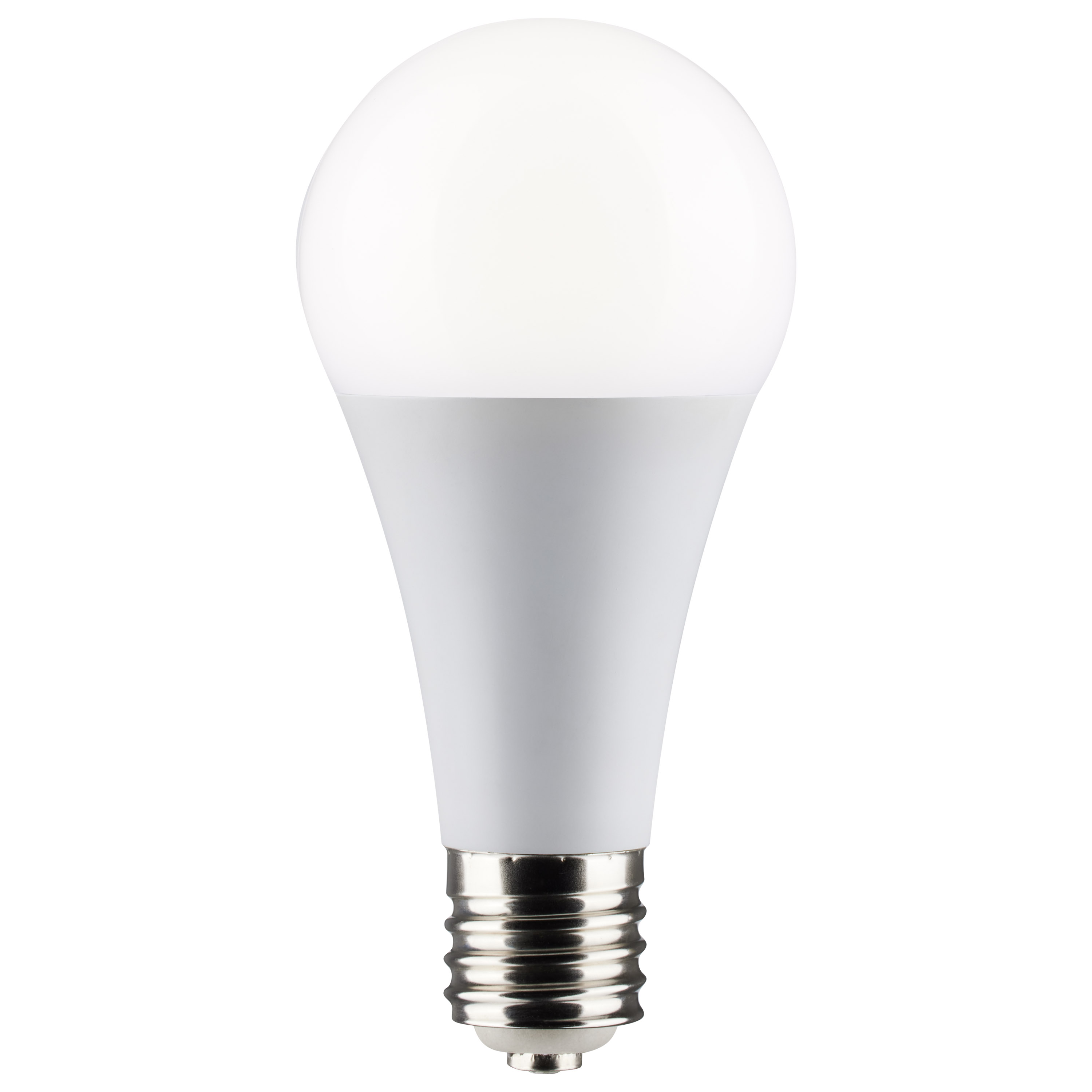

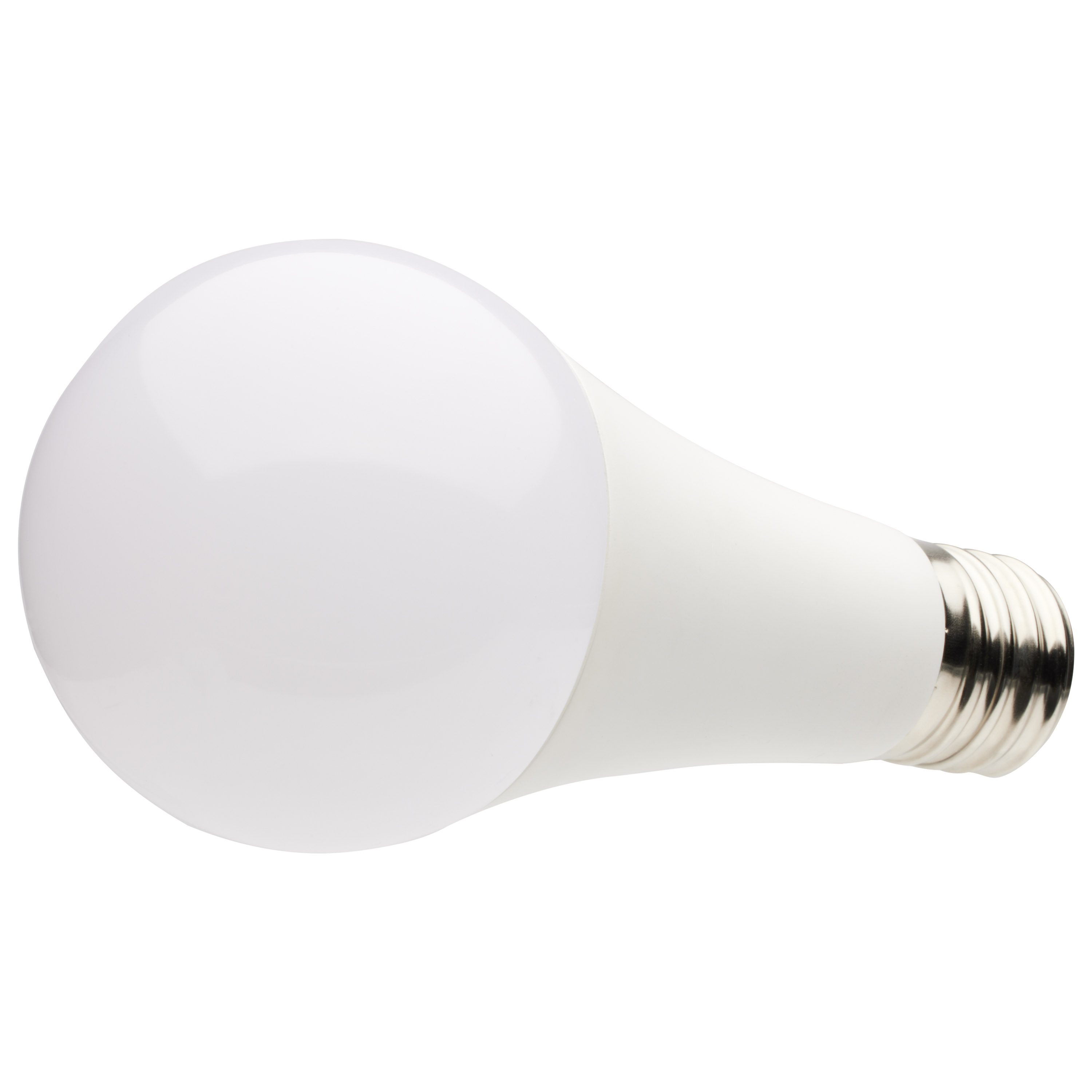

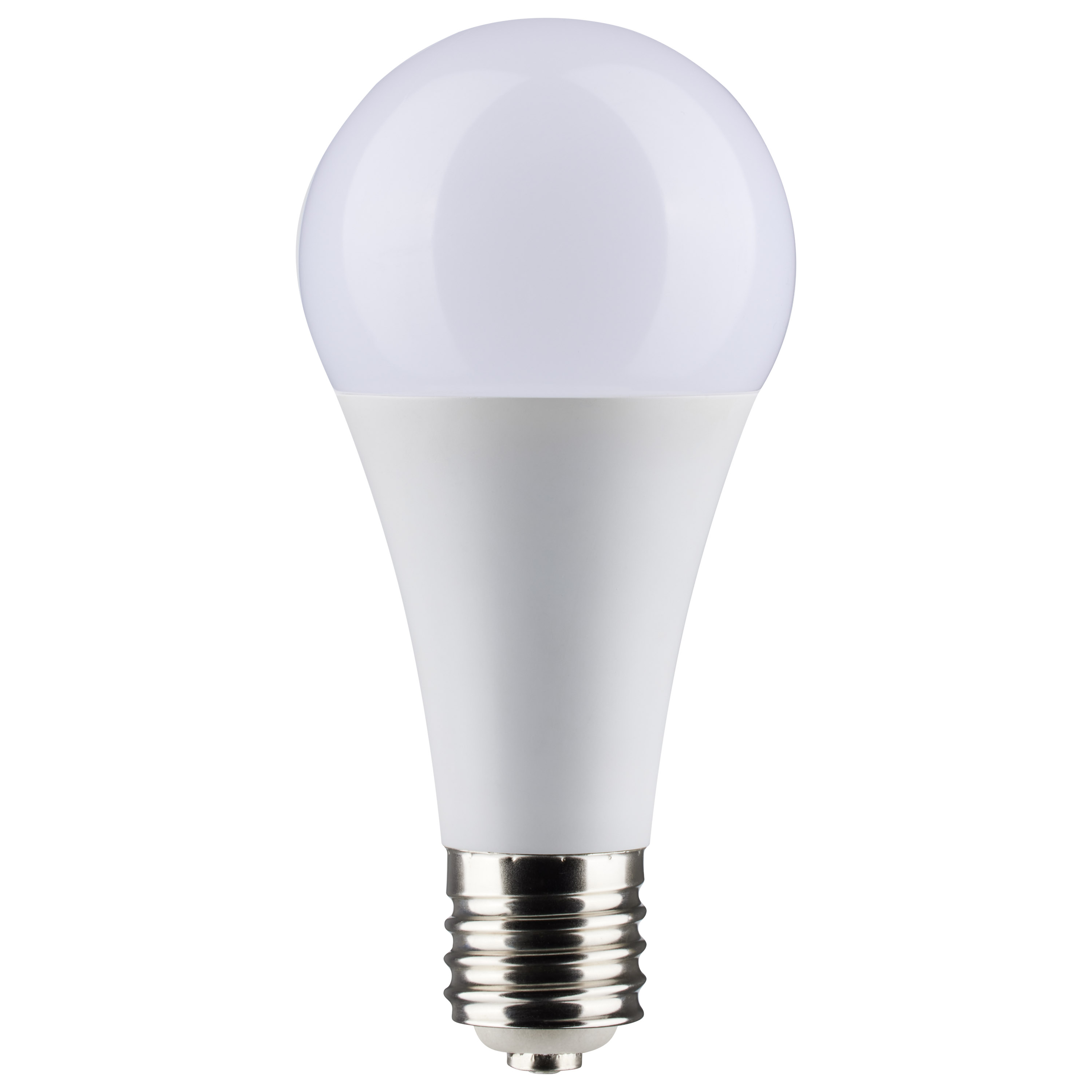

36PS30/LED/850/120V/DIM/E39

  • Ultra Bright Utility Lamp
  • 36 Watt
  • PS30 LED
  • Dimmable
  • White Finish
  • Mogul Base
  • 5000K
  • 120 Volt
  • High Lumen
location_rating^damp^1
dimmable^dimmable^2
hours_rated^15k^2
volts^120v^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
S11485 SpecificationsS11485 Photometrics.iesNEW! ULTRA-BRIGHT PS30 LED UTILITY LAMP
Tools
Lighting Layout Analysis For S11485
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Ultra Bright Utility Lamp; 36 Watt; PS30 LED; Dimmable; White Finish; Mogul Base; 5000K; 120 Volt; High Lumen
Products Specs
General
CompanySATCO
Dimmable TextForward Phase or Reverse Phase or Phase Selectable; 120V only
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
Product NotesSmooth dimming below 10%
StatusActive
StyleTraditional
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoFor use in: Houses of Worship, Hospitality, Warehouses, Barns, Garages, Workshops, etc
Amps0.300A
Has CameraNo
IOT EnabledNo
Operating PositionUniversal
Power Factor0.98
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)220
Color TempNatural Light
CRI80+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

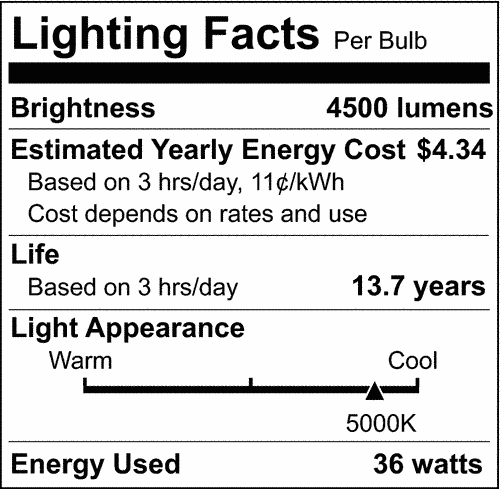

Lumens4500L
Volts120v
Watts36W
Physical

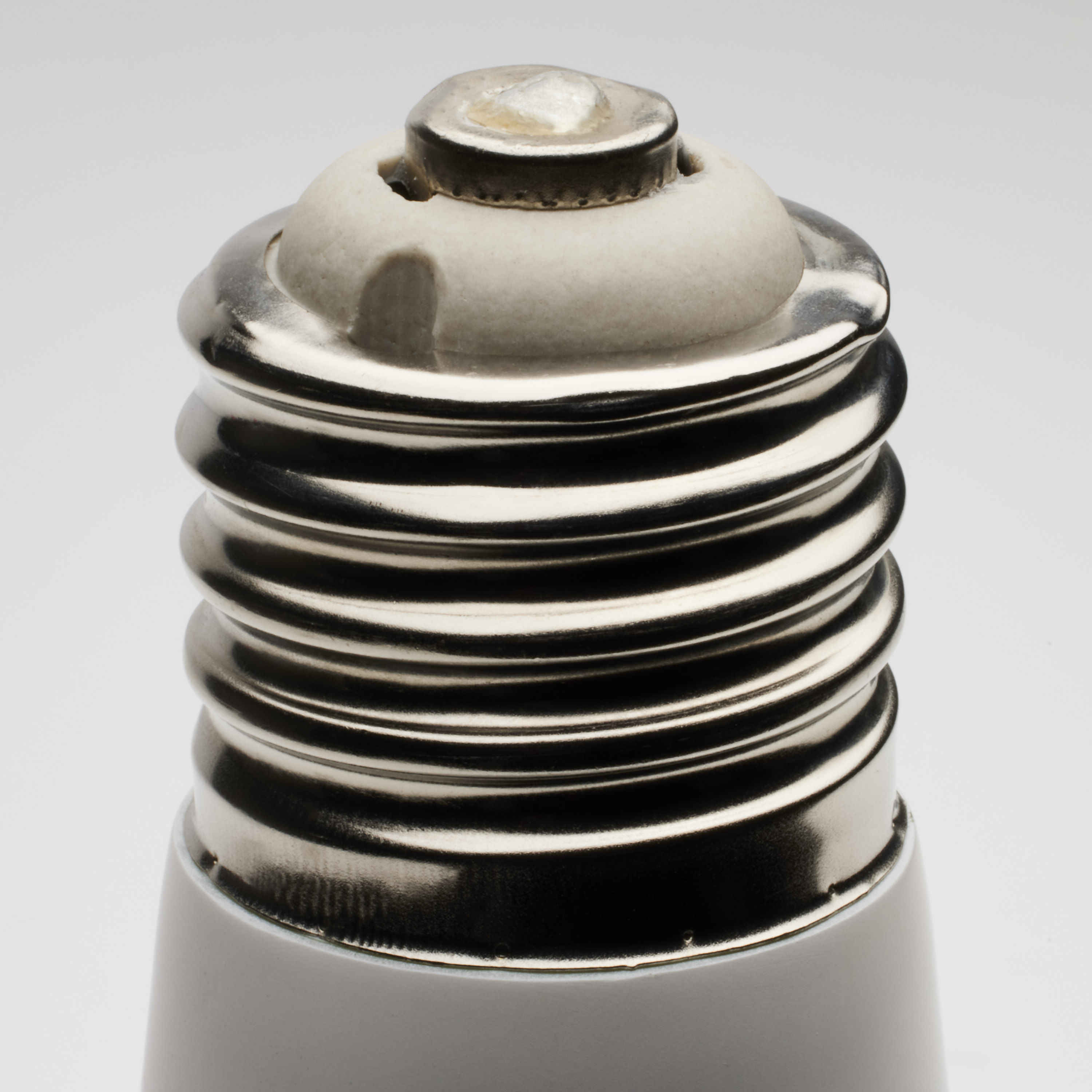

Lamp BaseMogul
FinishWHITE
Housing ColorWhite
ANSI BaseE39
Lamp TypePS30

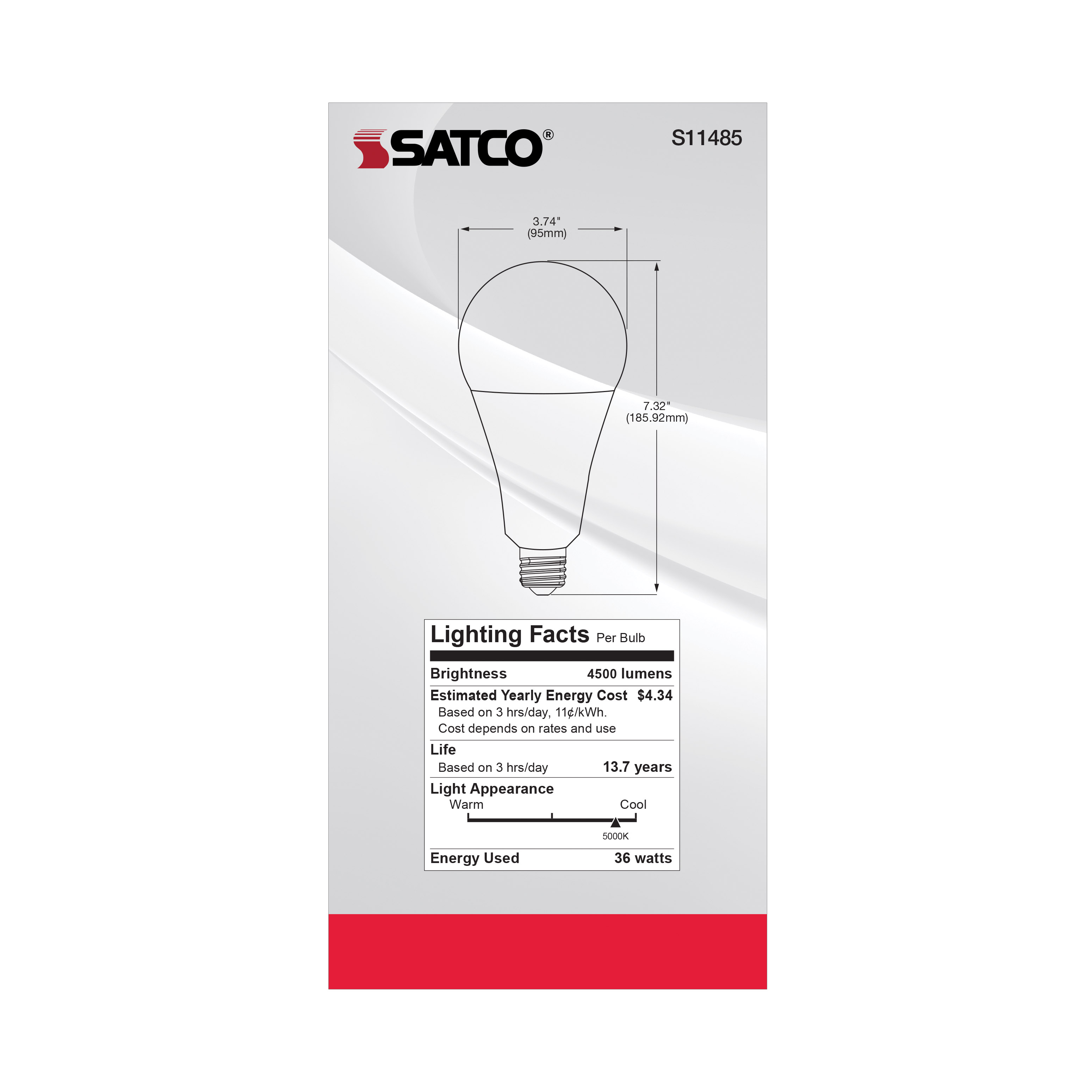

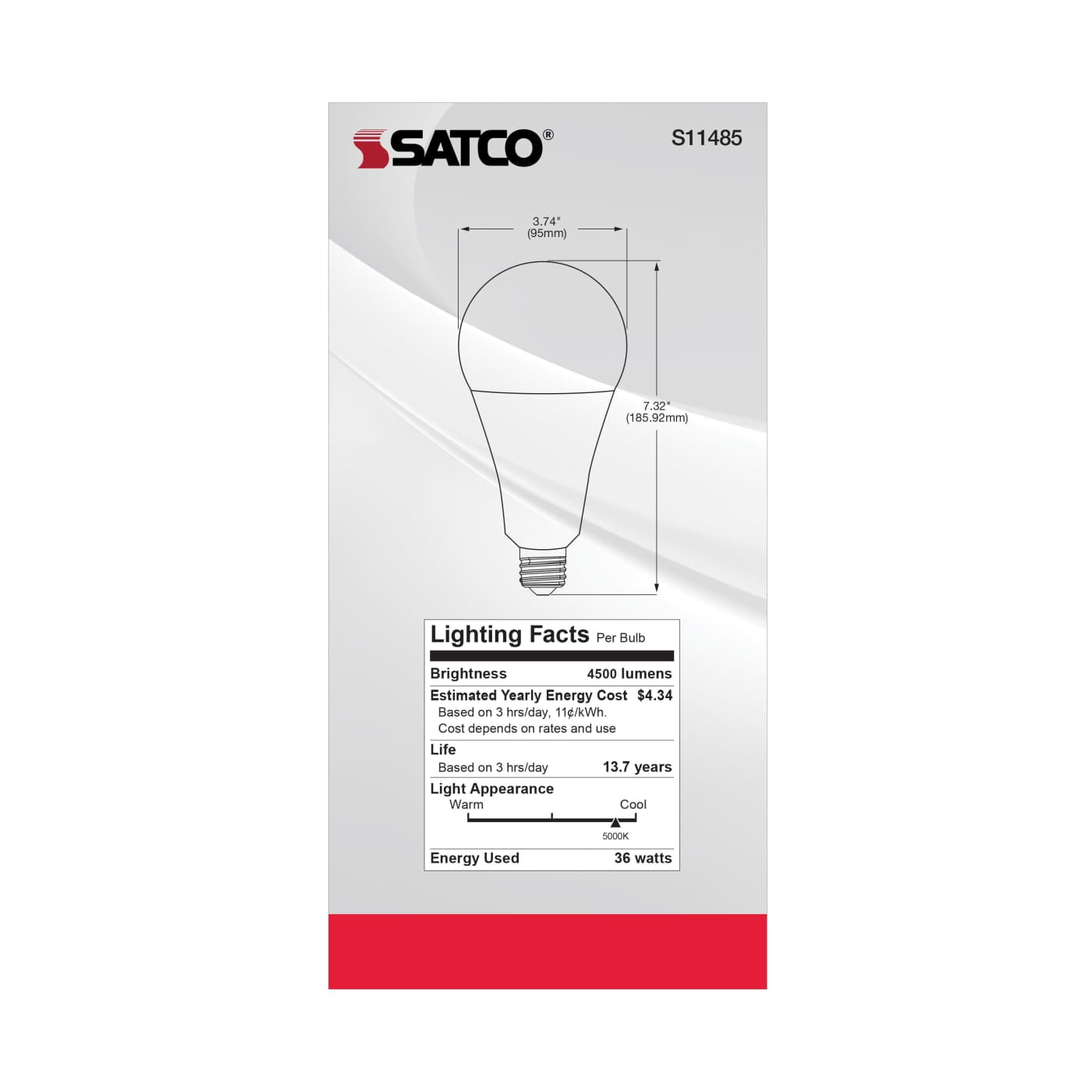

MOD Lamps3.74
MOL7.32
Additional Info
Warranty2-Years
Installation NotesNot approved for totally enclosed fixtures
Rated For Enclosed FixtureNo
Documents
Compliance
FCC CompliantYes
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
UL ApplicationFilament LED Lamp
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923114854
Case Cube2.7407
Case Height19.06
Case Length18.19
Case Quantity24
Case UPC10045923114851
Case Weight25.63
Case Width13.66
EA Cube0.0848
EA Height8.43
EA Length4.17
EA Quantity1
EA Weight0.93
EA Width4.17
Inner Cube1.1766
Inner Height8.94
Inner Length17.4
Inner Quantity12
Inner UPC20045923114858
Inner Weight11.87
Inner Width13.07
Pack TypeColor Box
Web Length7.32
Web Width3.74
