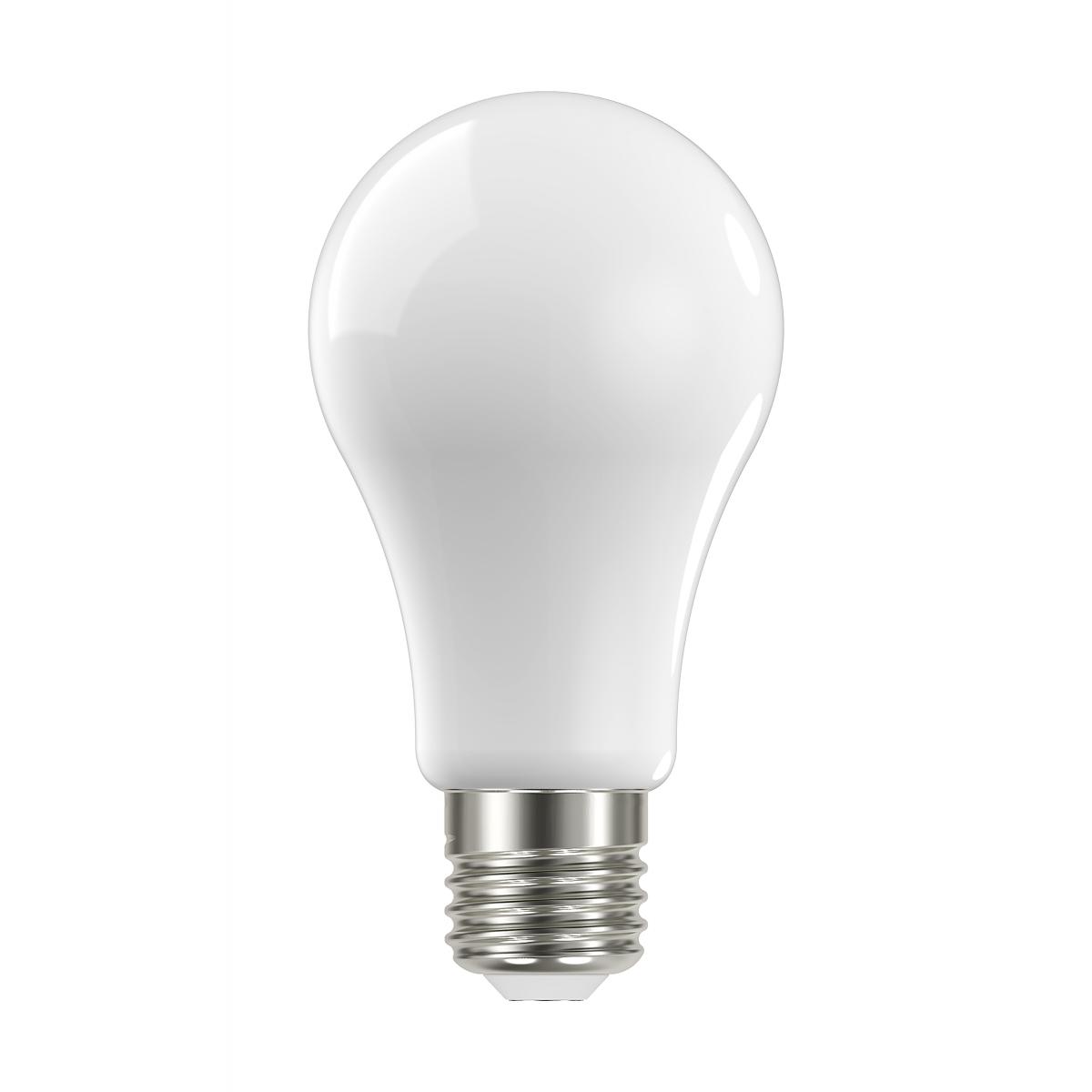

S11509

13A19/FR/LED/E26/830/120V/4PK

Discontinued - Suggested Replacement: S12441
  • 13 Watt A19 LED Filament
  • Frosted
  • Medium base
  • 3000K
  • 120 Volt
  • 4-Pack
location_rating^wet^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11509 SpecificationsSA2607 LO RES LED Filament Lamps PI Sheet 12 19SA2654 LED Filament A Lamps PI 10 19
Tools
Lighting Layout Analysis For S11509
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
13 Watt A19 LED Filament; Frosted; Medium base; 3000K; 120 Volt; 4-Pack
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
Fixture TypeType A
StatusObsolete
StyleTransitional
Most Current GenerationS12441
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.108A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1500L
Volts120v
Watts13W
Physical
Lamp BaseMedium
FinishFrost
ANSI BaseE26
Lamp TypeA19
MOD Lamps2.38
MOL4.41
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingWet
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923115097
Case Cube0.9133
Case Height11.42
Case Length12.54
Case Quantity12
Case UPC10045923115094
Case Weight8.16
Case Width11.02
EA Cube0.0723
EA Height4.96
EA Length10.0
EA Quantity1
EA Weight0.29
EA Width2.52
Inner Cube0.5109
Inner Height5.31
Inner Length15.94
Inner Quantity6
Inner UPC20045923115091
Inner Weight1.74
Inner Width10.43
Pack TypeBox
Web Length4.41
Web Width2.38
