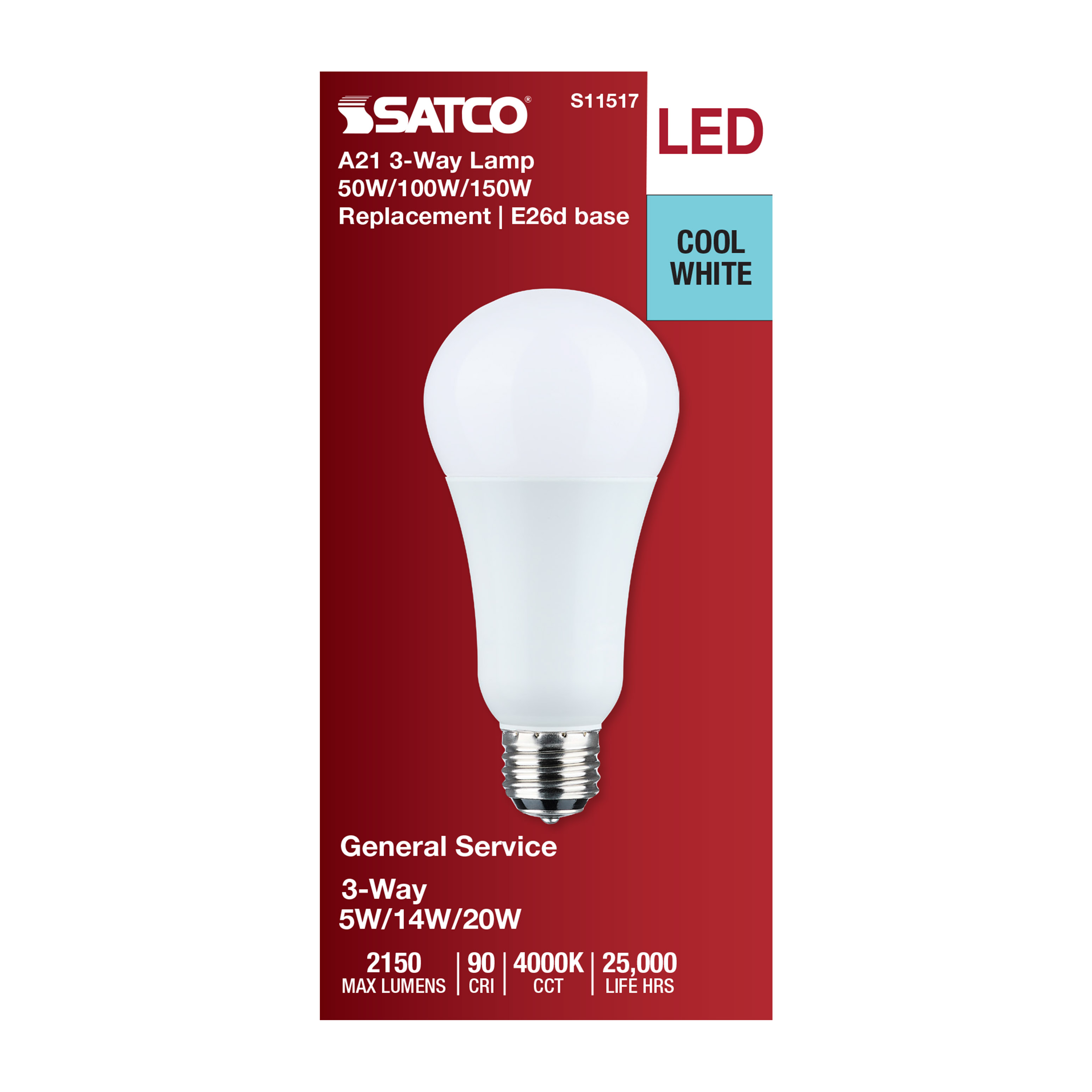

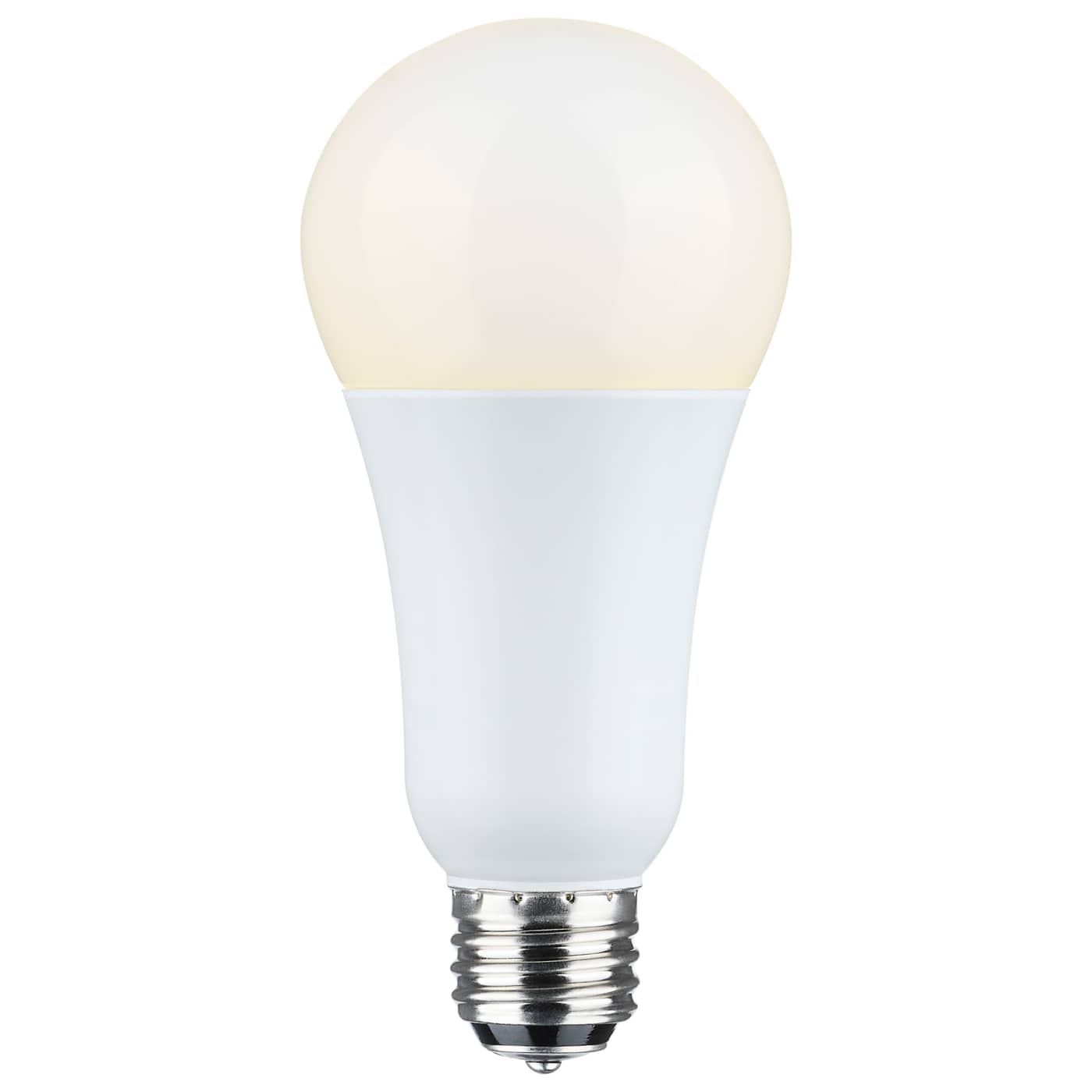

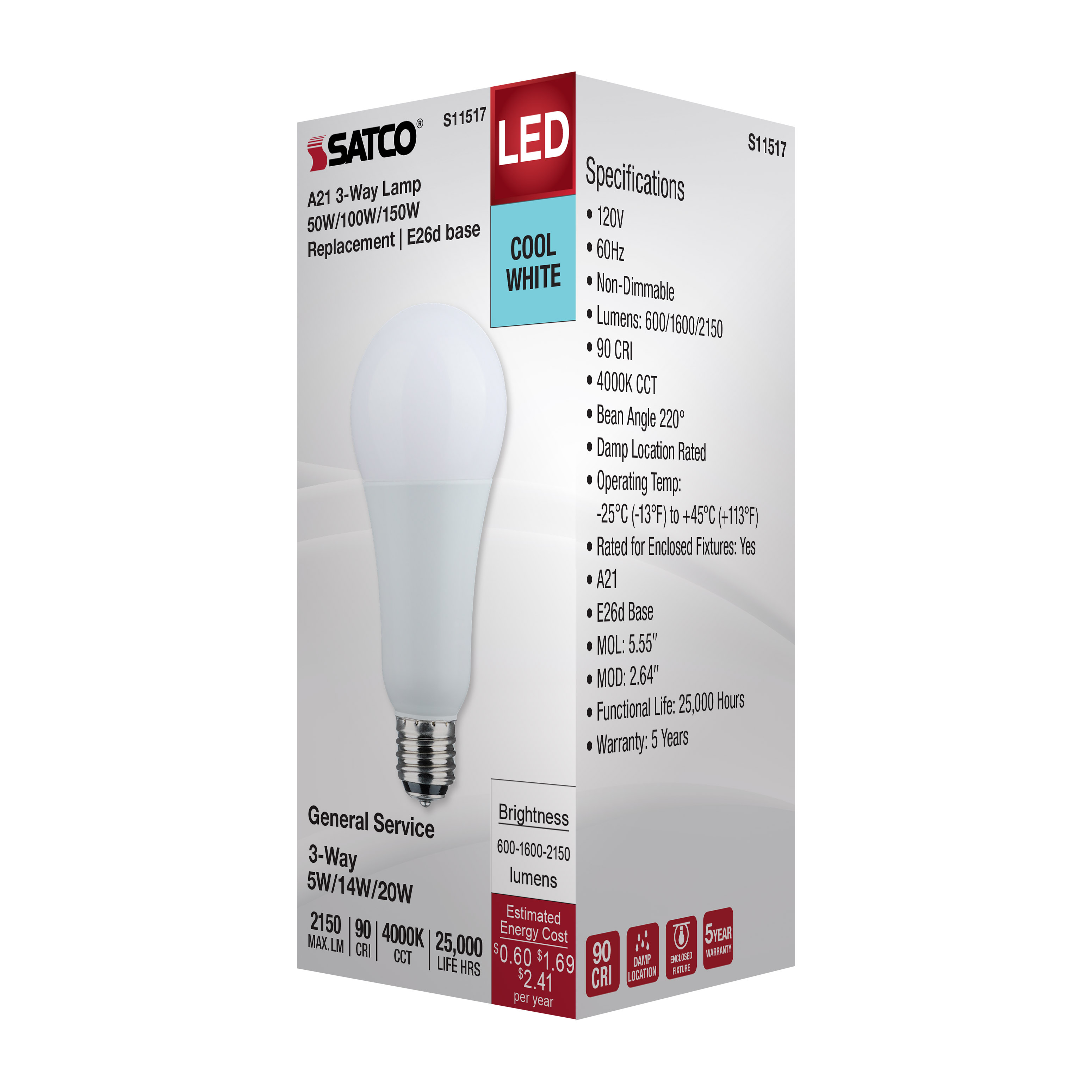

S11517

5/14/20A21/3-WAY/LED/940

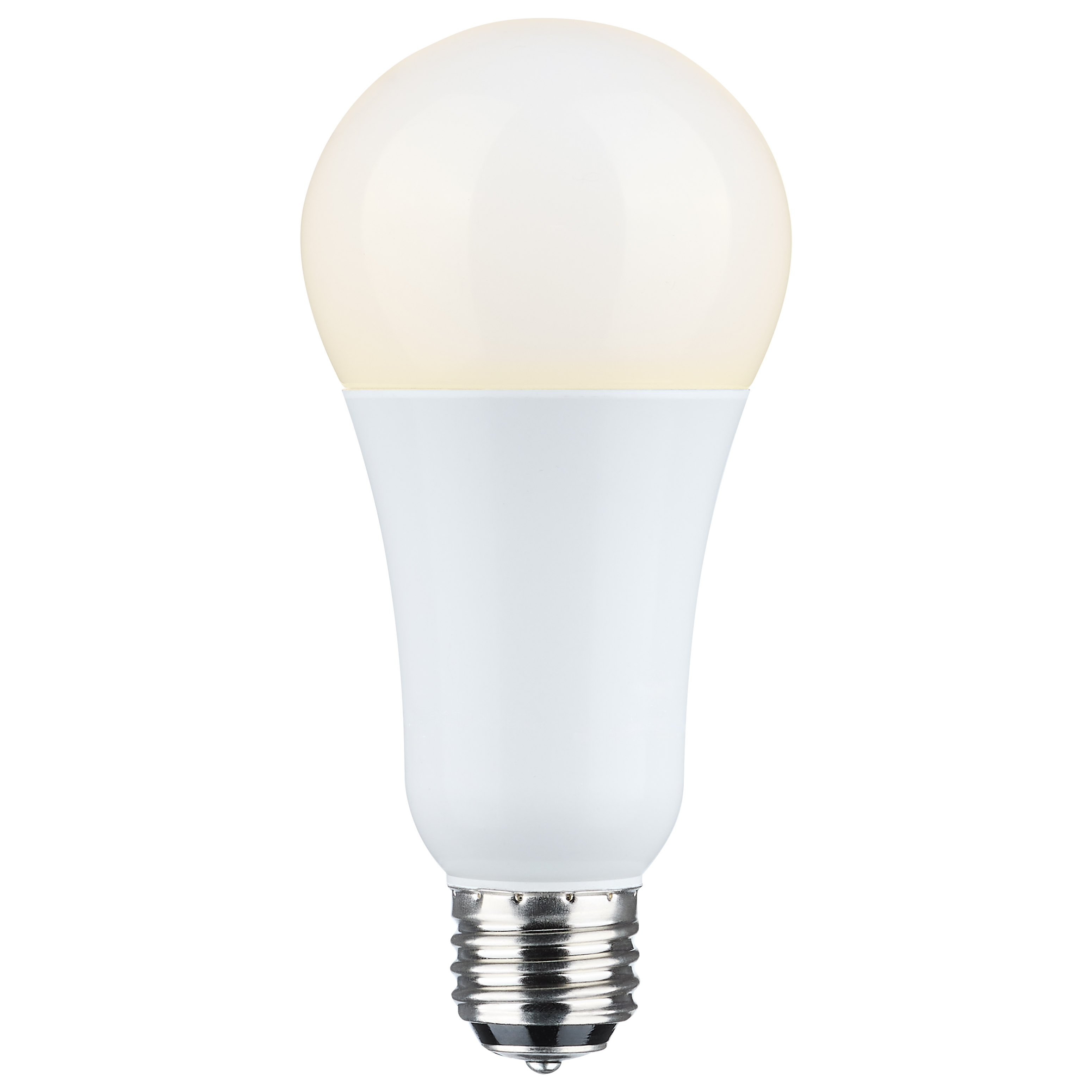

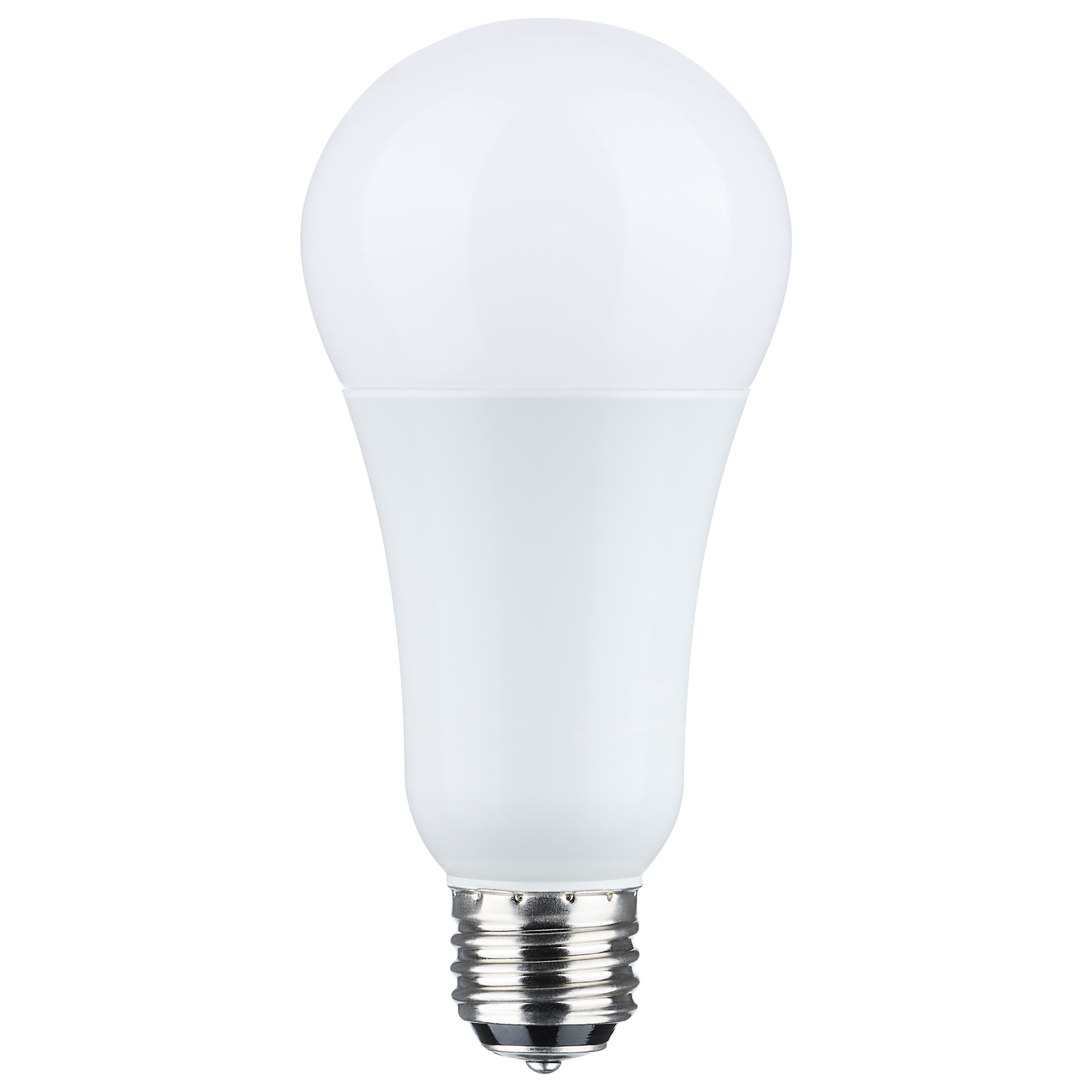

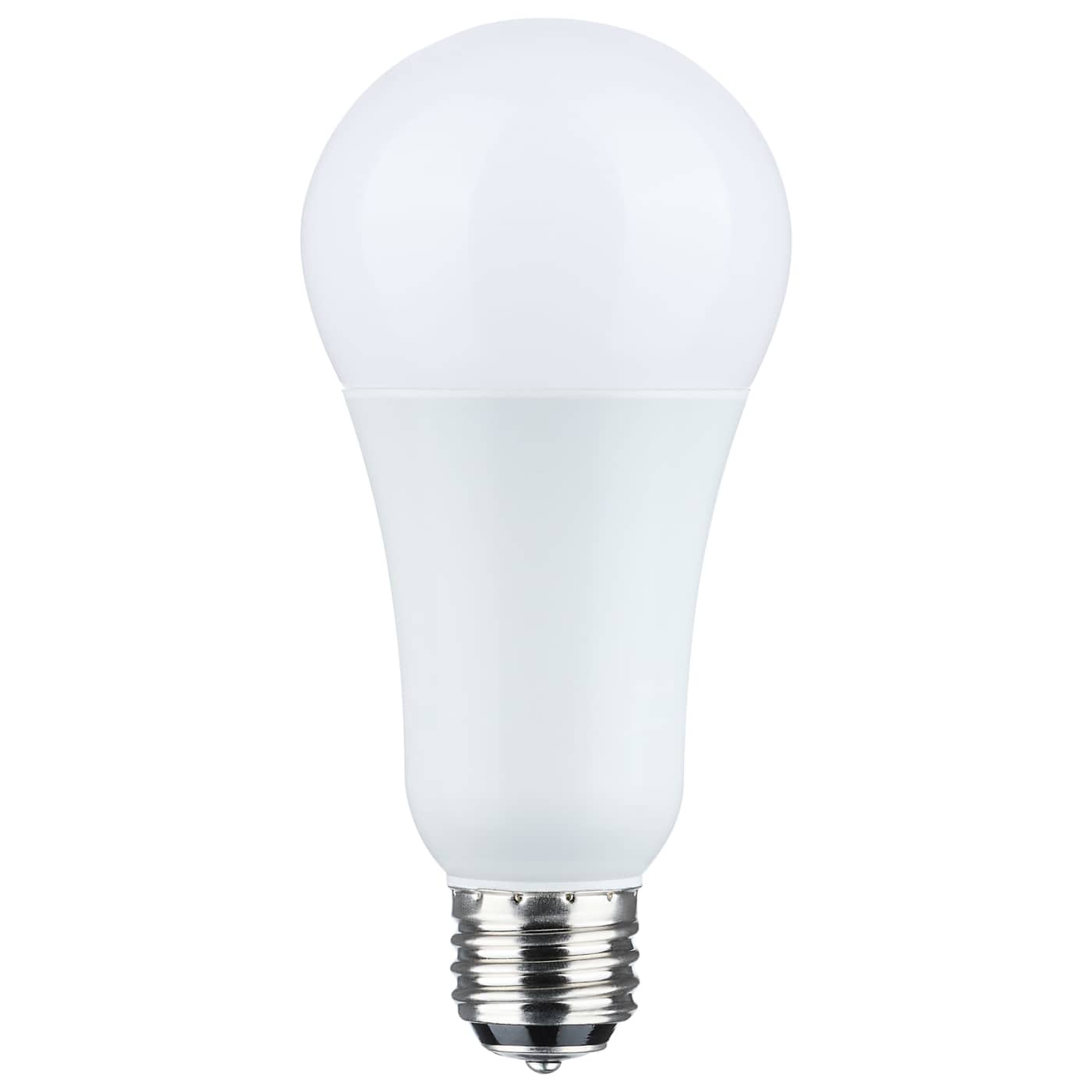

  • 5/14/20 Watt A21 LED
  • 3-Way Lamp
  • White Finish
  • 4000K CCT
  • Medium Double Contact Base
  • 120 Volt
location_rating^damp^1
cri^90+^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11517 SpecificationsSN1710 LED A21 3-WayLamp PI 8-22-24SN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25
Description
Description
5/14/20 Watt A21 LED; 3-Way Lamp; White Finish; 4000K CCT; Medium Double Contact Base; 120 Volt

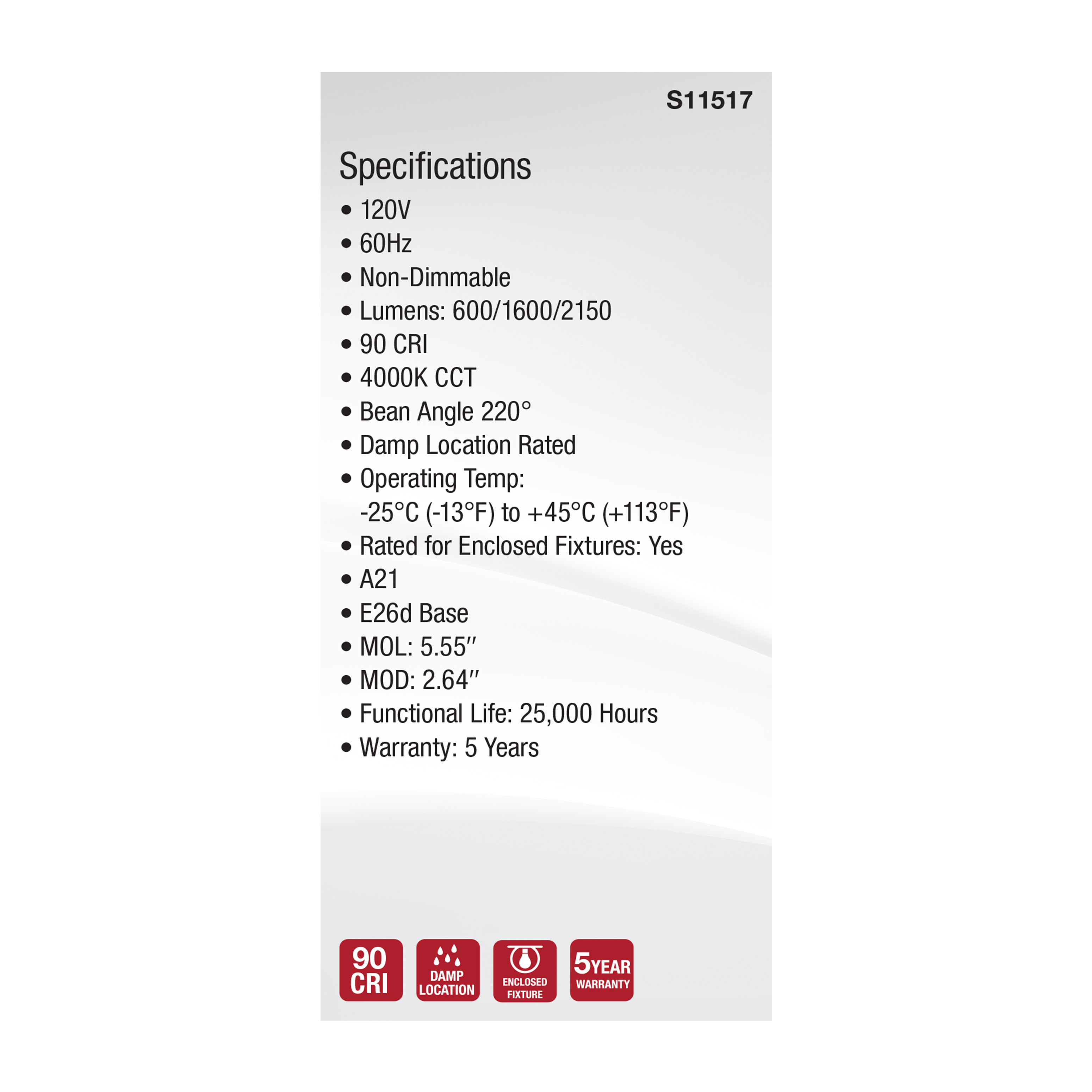

Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialPlastic
Fixture Type3-Way
StatusActive
StyleUtility
Most Current GenerationS14399
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion42%
CCT SelectableFalse
Wattage SelectableTrue
Finish FamilyWhite
Additional InfoThree way lamp
Amps0.042/0.117/0.167A
Has CameraFalse
IOT EnabledFalse
Power Factor0.93
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W/100W/150W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempCool White
CRI90+
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)

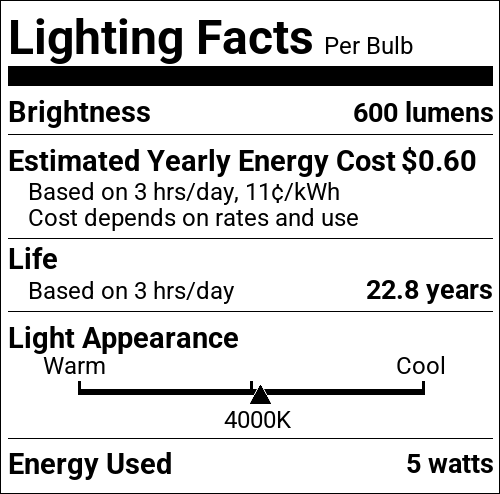

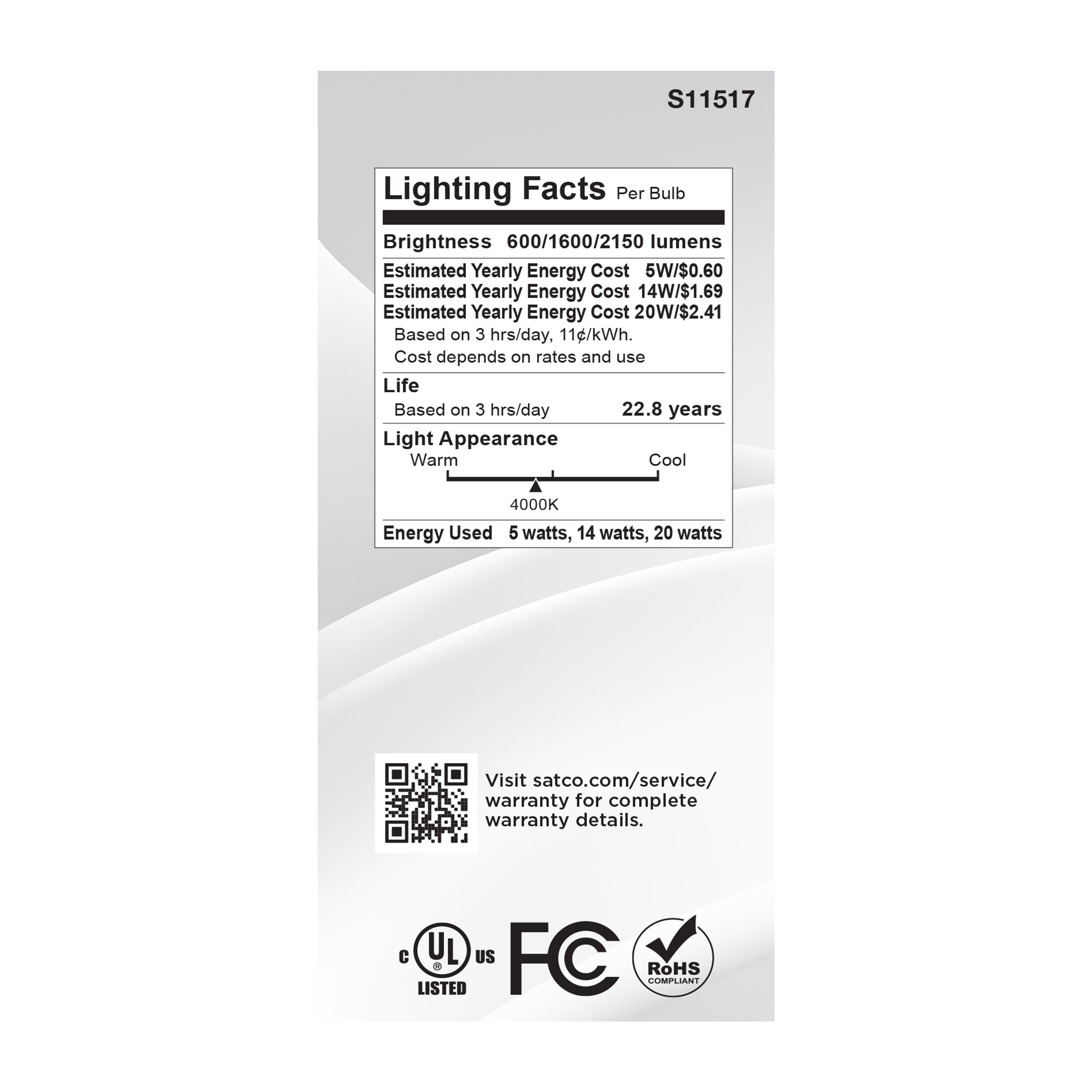

Lumens600L/1600L/2150L
Volts120v
Watts5W/14W/20W
Physical
Lamp BaseMedium Double Contact
FinishWHITE
Housing ColorWhite
ANSI BaseE26d
Lamp TypeA21

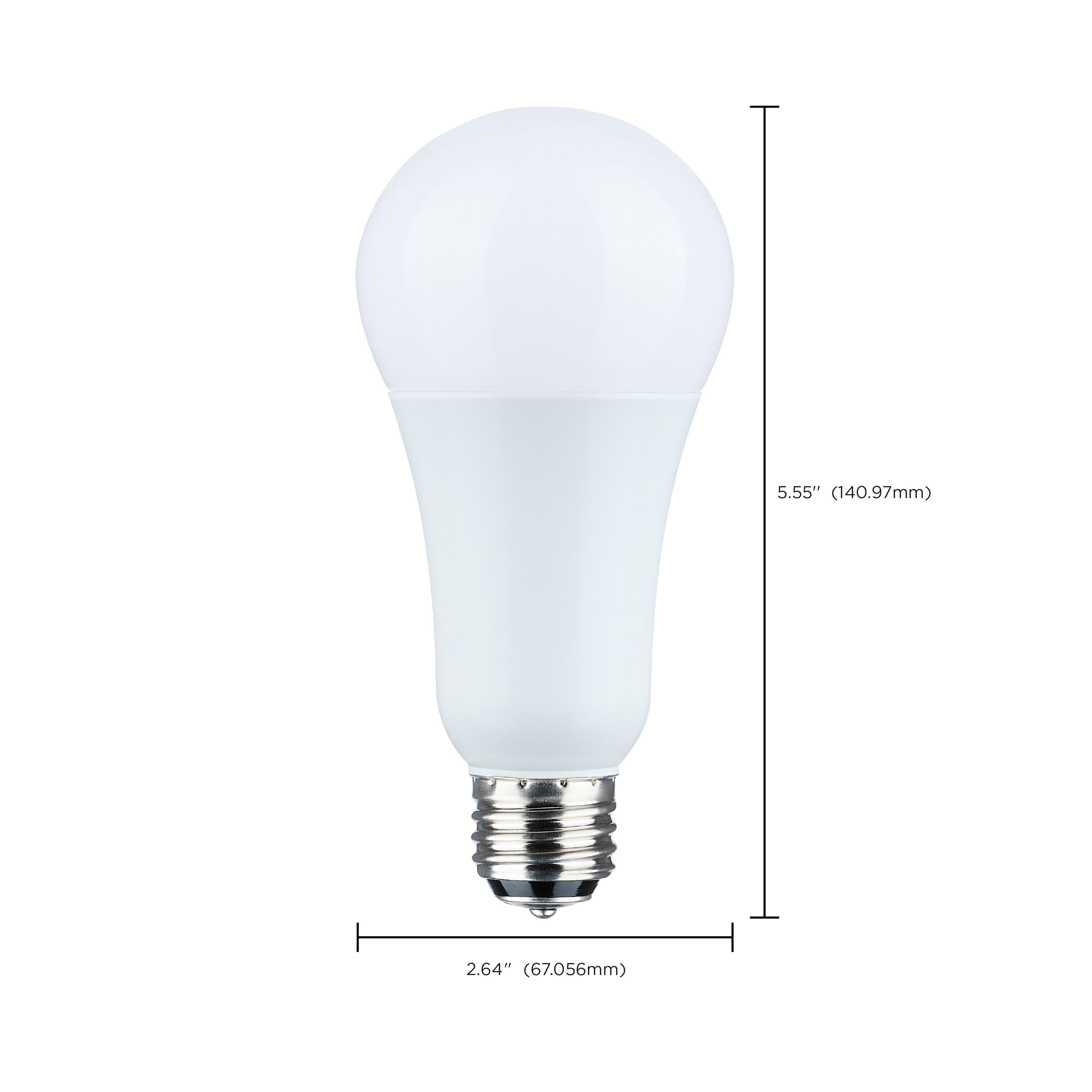

MOD Lamps2.64
MOL5.55
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsExempt - Base Not Regulated
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923115172
Case Cube0.8312
Case Height13.07
Case Length12.13
Case Quantity24
Case UPC10045923115179
Case Weight10.25
Case Width9.06
EA Cube0.0237
EA Height5.71
EA Length2.68
EA Quantity1
EA Weight0.38
EA Width2.68
Inner Cube0.1679
Inner Height6.02
Inner Length8.5
Inner Quantity6
Inner UPC20045923115176
Inner Weight2.4
Inner Width5.67
Pack TypeBox
Web Length5.55
Web Width2.64
