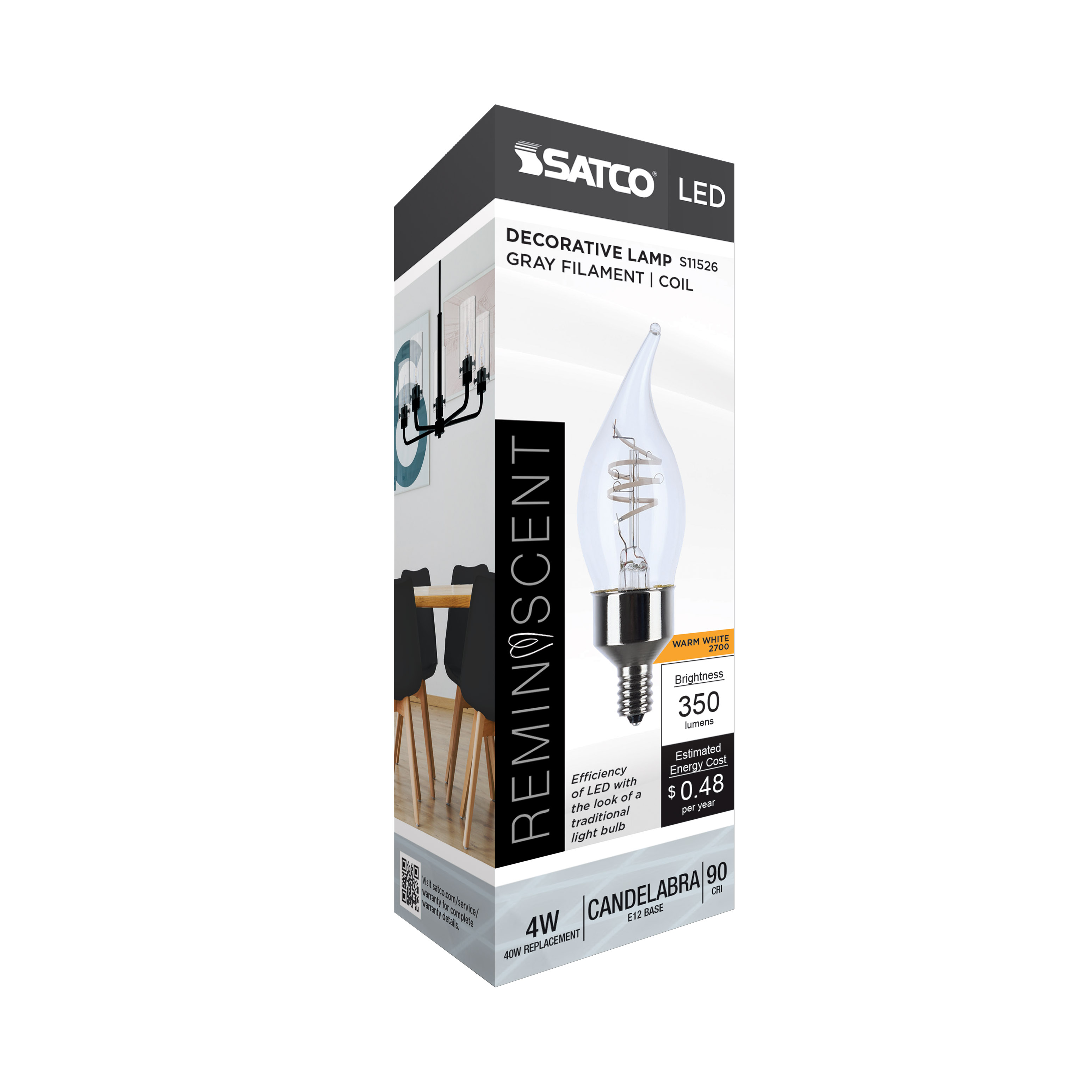

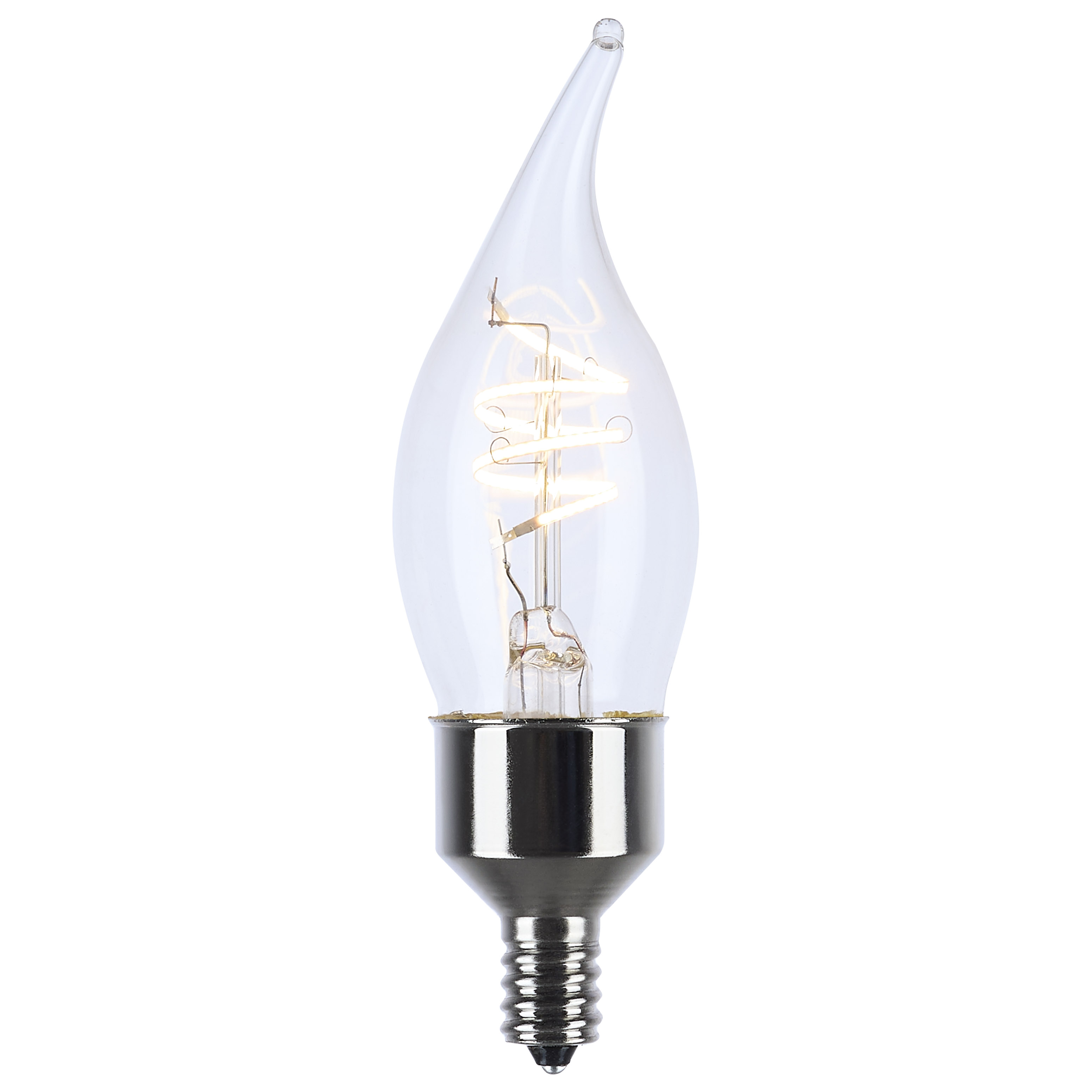

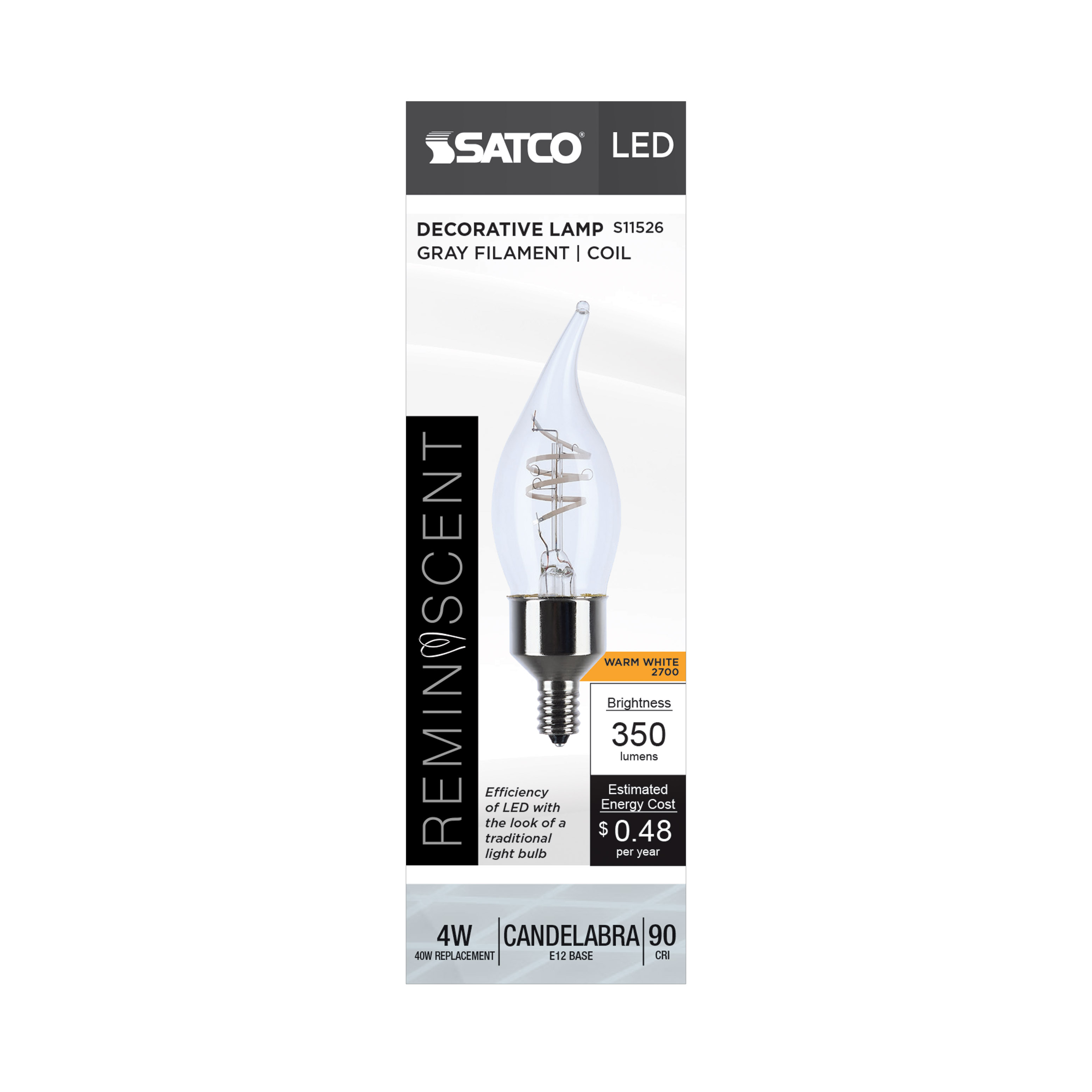

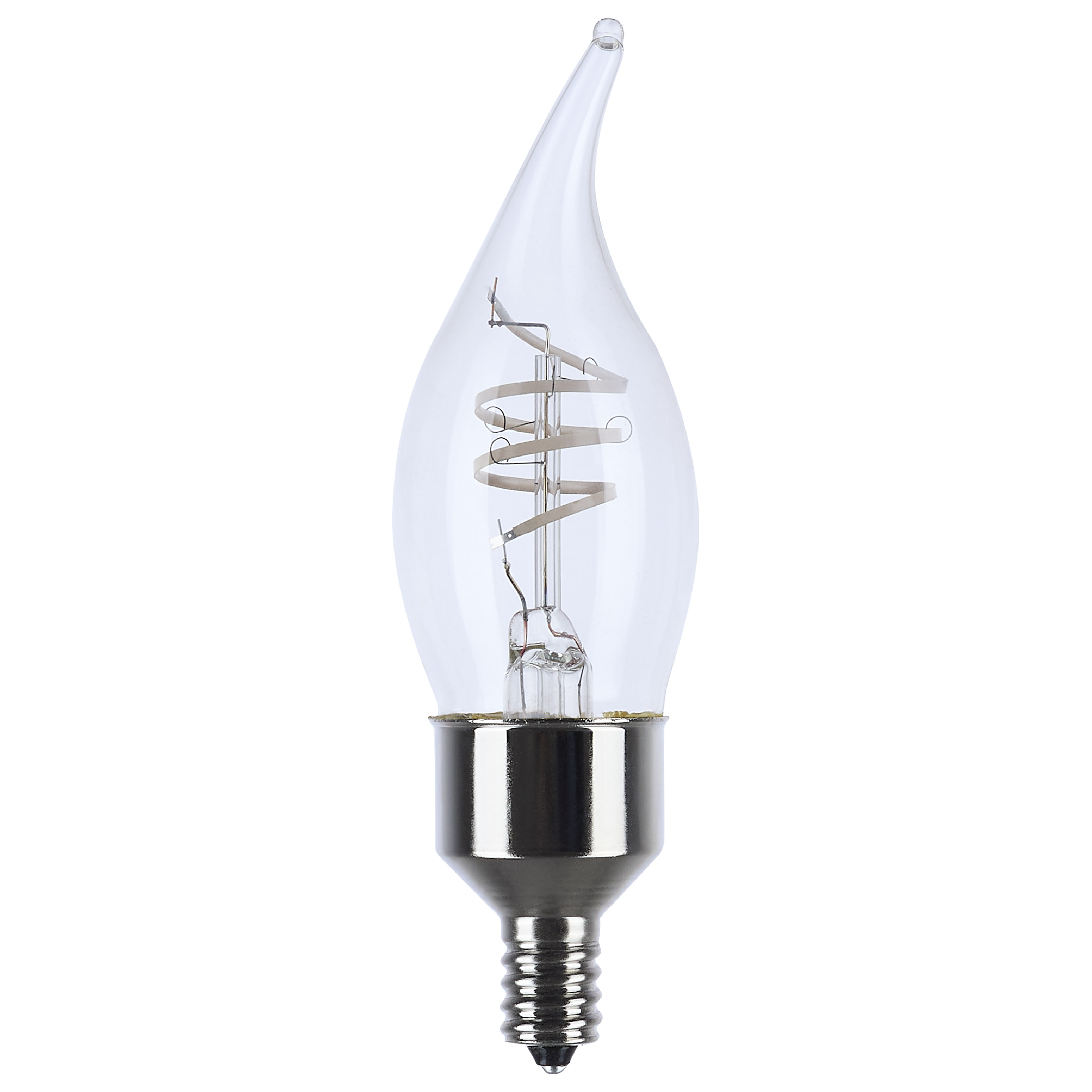

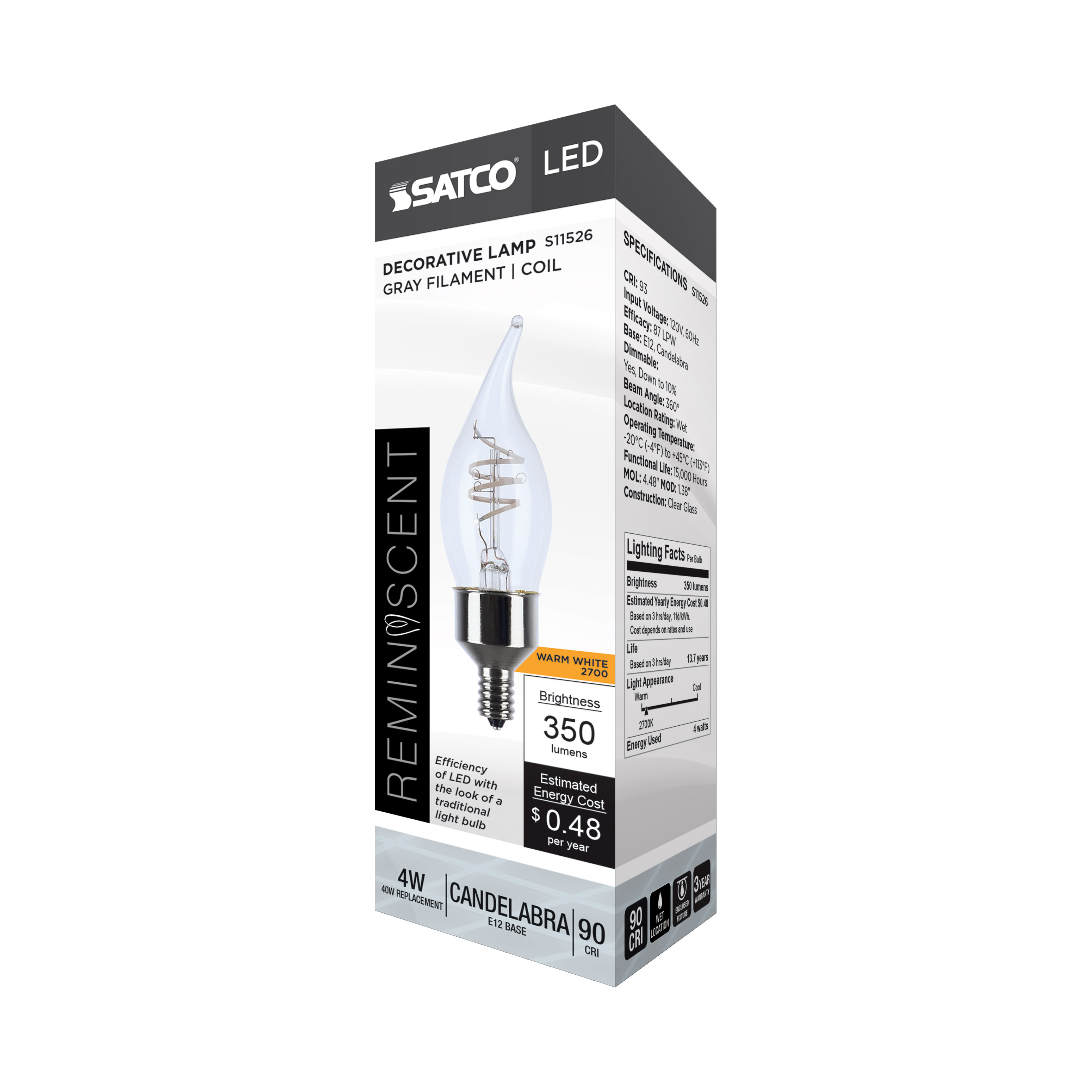

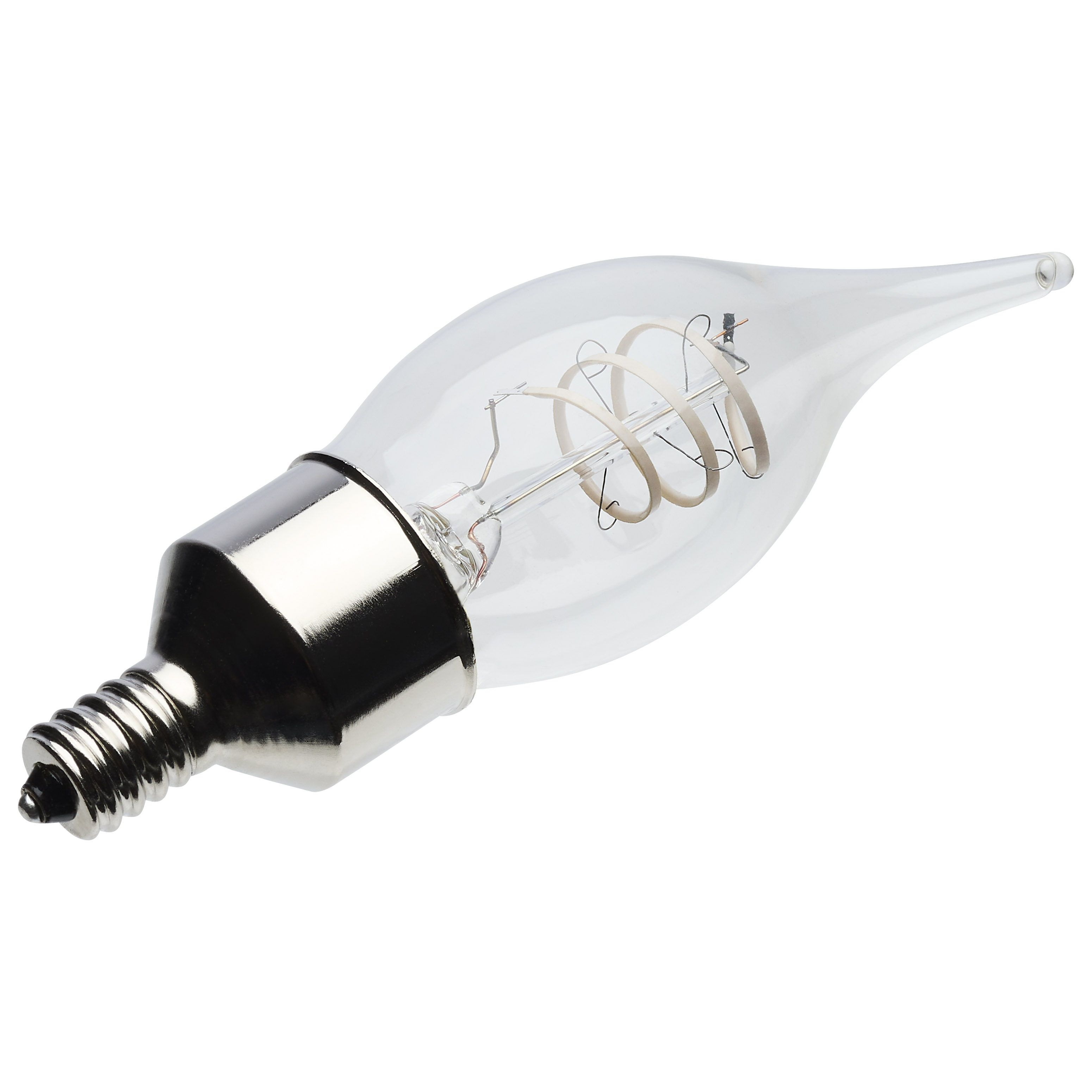

S11526

4CA11/CL/LED-GF/COIL/927/120V

Suggested Replacement: S11526R1
  • 4 Watt LED
  • Reminiscent
  • Flex Gray Coil Filament
  • CA11
  • Candelabra Base
  • 2700K CCT
  • Clear
  • 120 Volt
title_20^y^1
location_rating^wet^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11526 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Tools
Lighting Layout Analysis For S11526
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4 Watt LED; Reminiscent; Flex Gray Coil Filament; CA11; Candelabra Base; 2700K CCT; Clear; 120 Volt

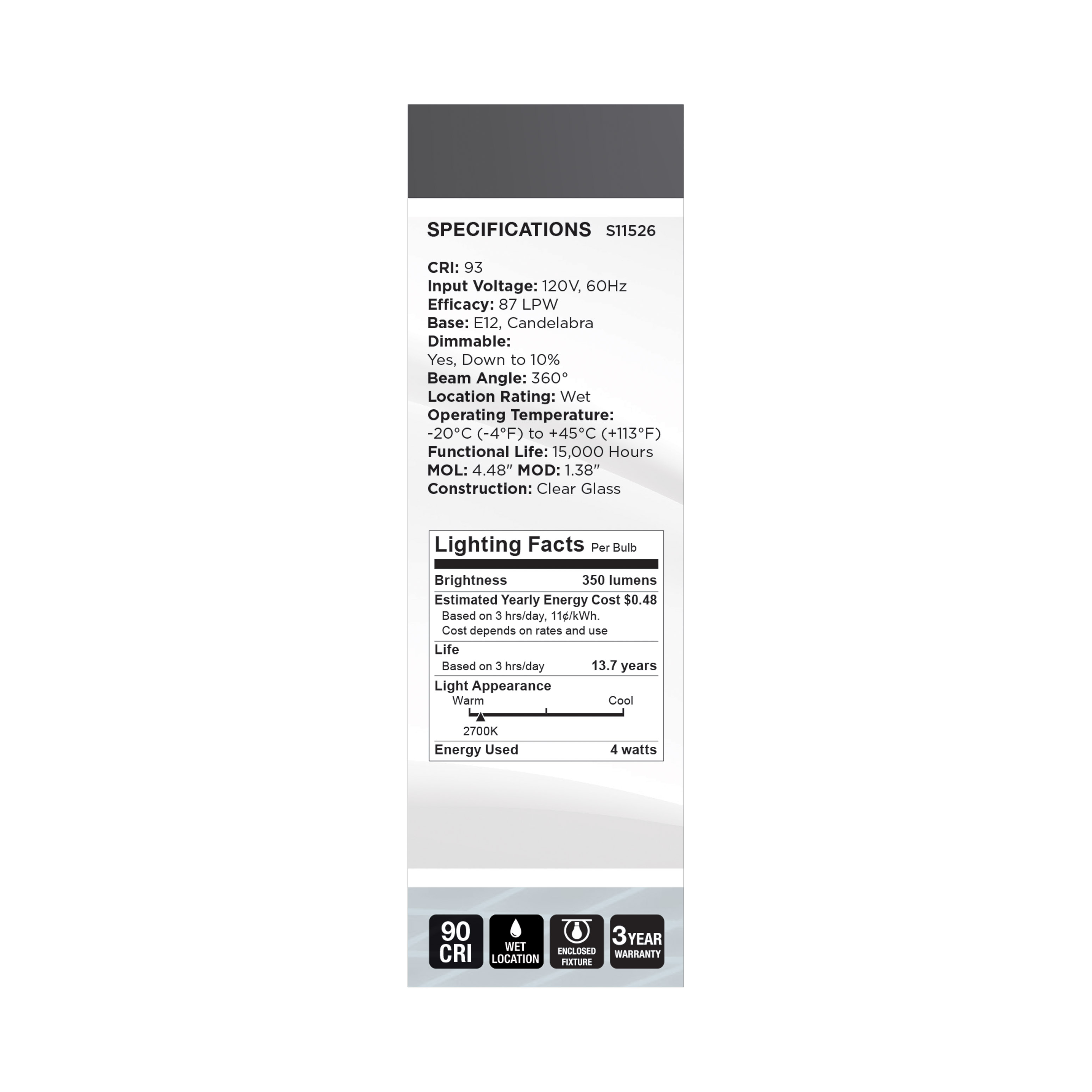

Products Specs
General
CompanySATCO
Dimmable Text120V only
Lamp FilamentLED Flex Filament
MaterialGlass
Starting Time0.5
StatusTransitioning
StyleTransitional
Most Current GenerationS11526R1
Surge ProtectionBuilt-in surge protection - 2.5KV
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyClear
Amps0.045A
Has CameraFalse
IOT EnabledFalse
Power Factor0.7
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI93+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

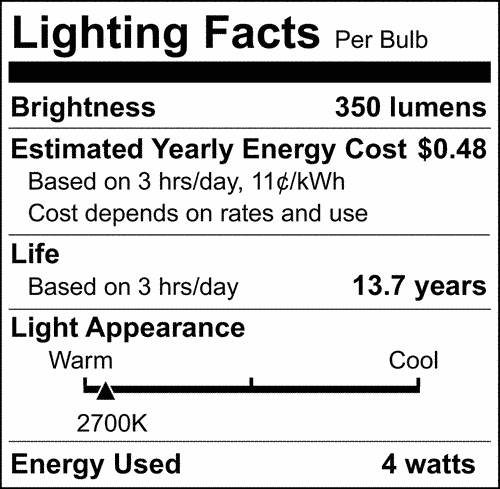

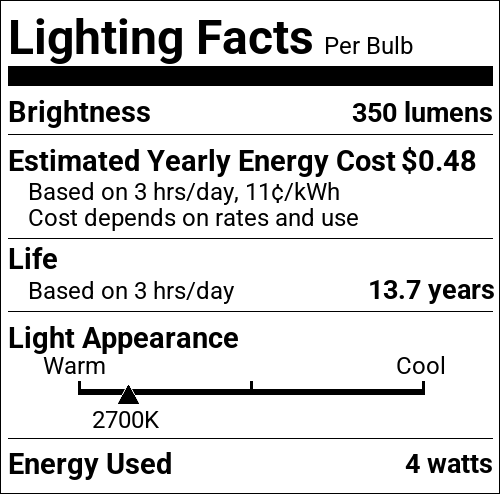

Lumens350L
Volts120v
Watts4W
Physical
Lamp BaseCandelabra
FinishClear
Housing ColorNone
ANSI BaseE12
Lamp TypeCA11

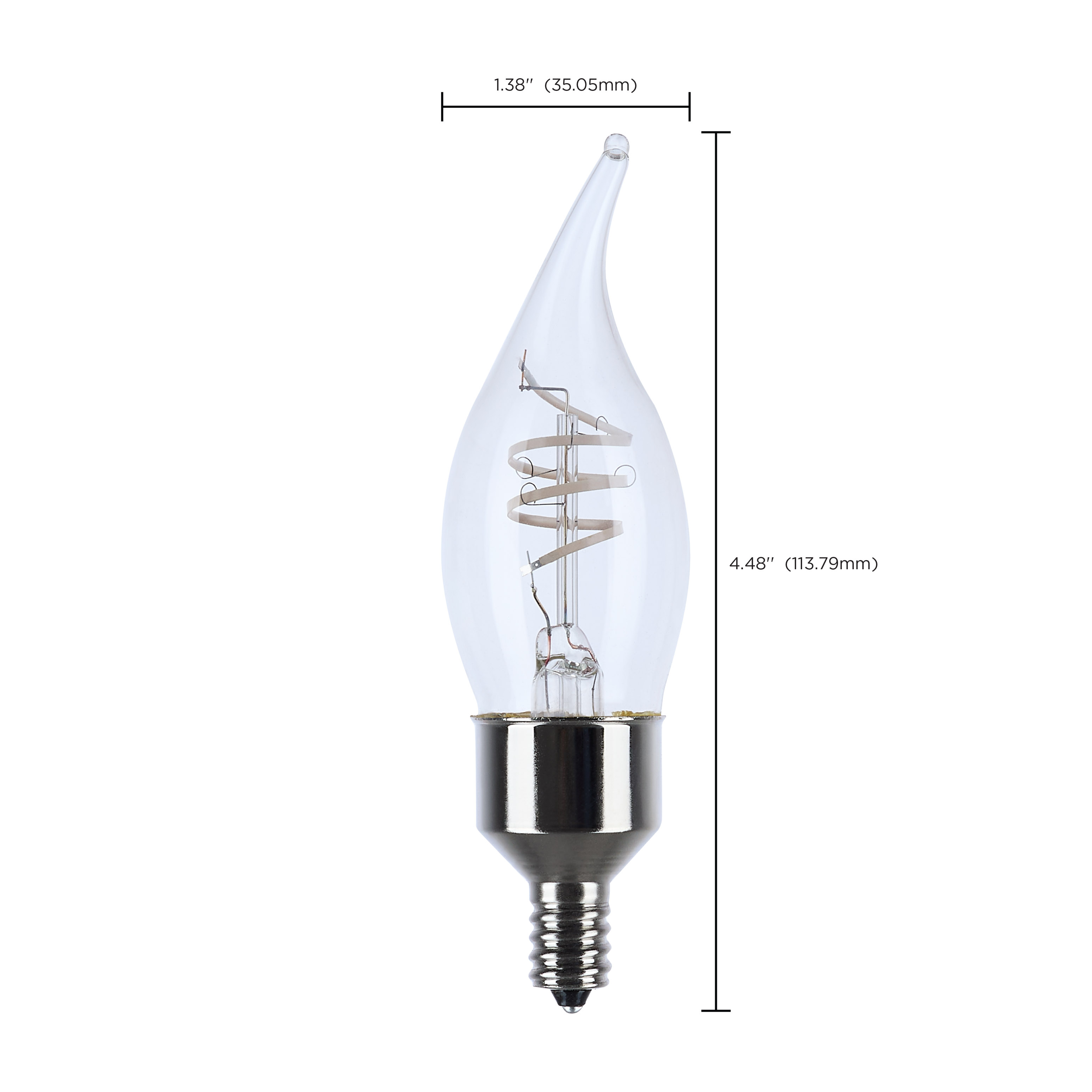

MOD Lamps1.38
MOL4.48
Additional Info
Warranty2-Years
Installation NotesCan be used outdoors only when in an enclosed fixture
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsT20 Listed
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantFalse
Packaging
UPC045923115264
Case Cube0.2534
Case Height5.83
Case Length10.43
Case Quantity24
Case UPC10045923115261
Case Weight2.47
Case Width7.2
EA Cube0.0067
EA Height4.88
EA Length1.54
EA Quantity1
EA Weight0.07
EA Width1.54
Inner Cube0.0508
Inner Height5.28
Inner Length4.96
Inner Quantity6
Inner UPC20045923115268
Inner Weight0.54
Inner Width3.35
Pack TypeBox
Web Length4.48
Web Width1.38
