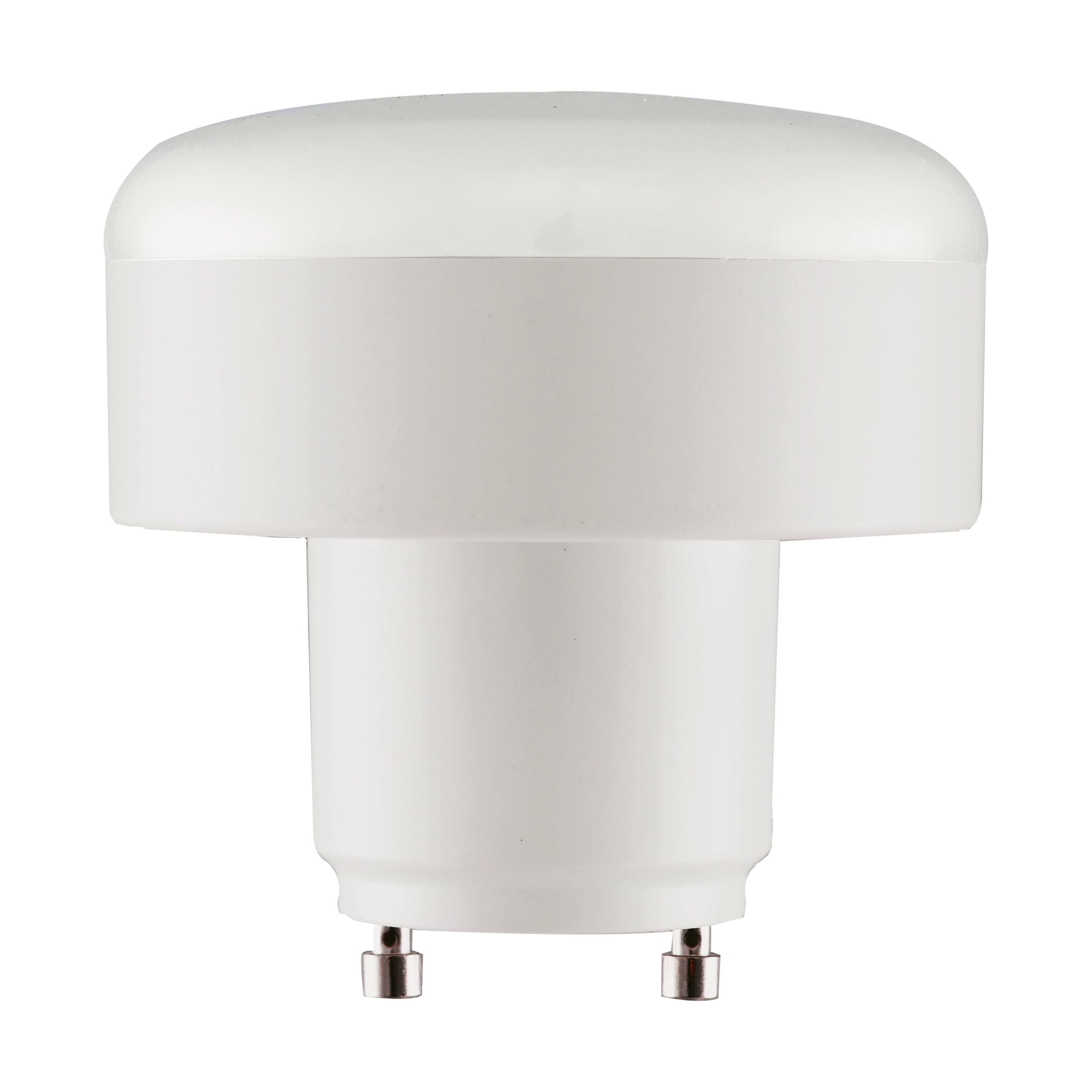

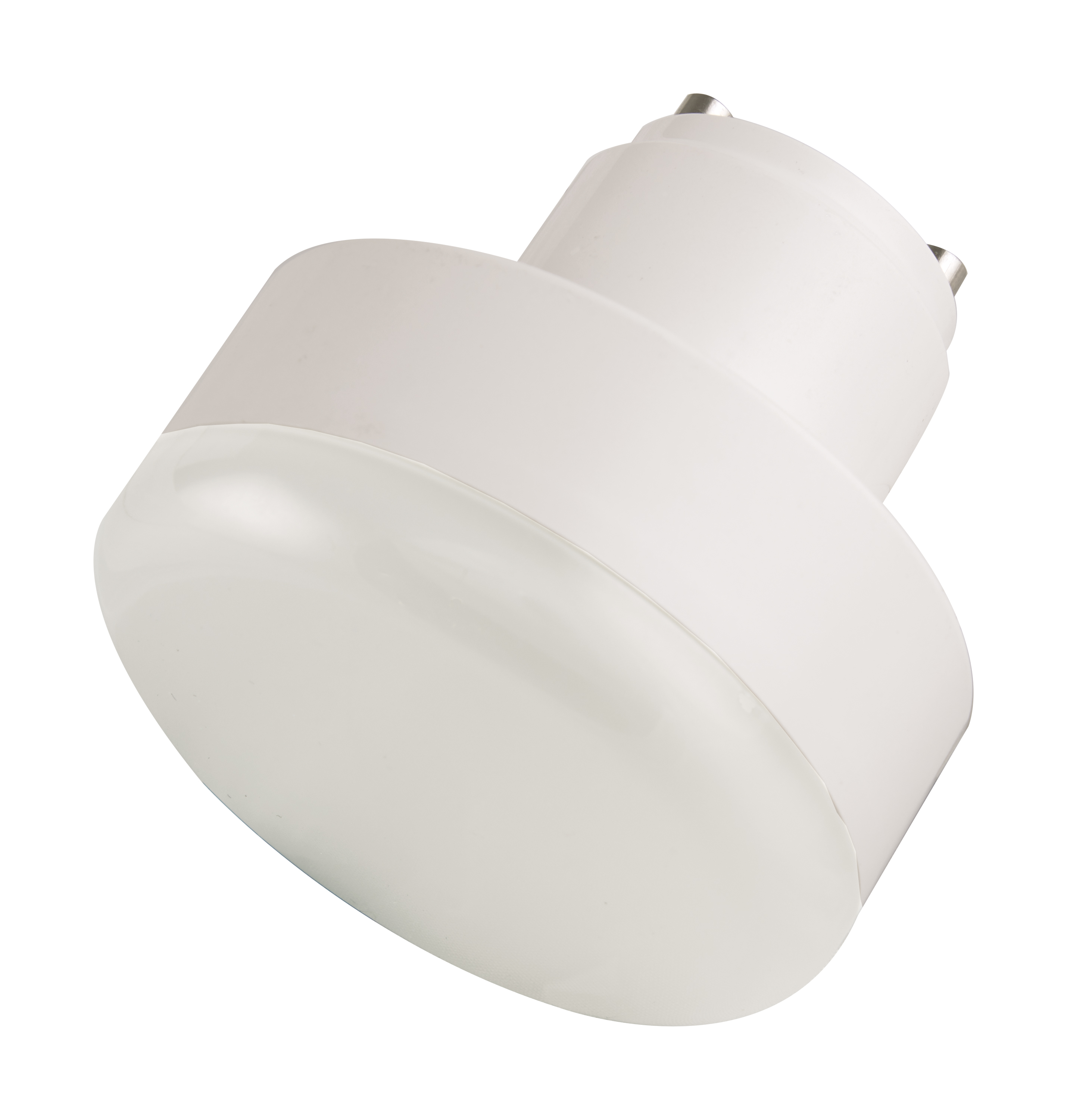

S11540

9.5W/SQUAT/LED/27K/GU24

  • 9.5 Watt
  • LED
  • 2700K
  • GU24 base
  • 120 Volt
location_rating^damp^1
title_20^y^1
cri^90+^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11540 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Tools
Lighting Layout Analysis For S11540
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.5 Watt; LED; 2700K; GU24 base; 120 Volt
Products Specs
General
CompanySATCO
CA RegulationsT20 Listed
Lamp FilamentLED
MaterialMetal / Plastic / Electronic Components
Fixture TypeSquat
StatusActive
StyleContemporary
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.079A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Power Factor0.97
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv13W
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated25000
Beam Angle (degree)100
Color TempWarm White
CRI90+
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens800L
Volts120v
Watts9.5W
Physical
Lamp BaseBi Pin GU24
FinishFrost
Housing ColorWhite
ANSI BaseGU24
Lamp TypeT3
MOD Lamps2.756
MOL2.835
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantFalse
Packaging
UPC045923115400
Case Cube0.5187
Case Height7.6
Case Length12.48
Case Quantity24
Case UPC10045923115407
Case Weight5.18
Case Width9.45
EA Cube0.013
EA Height2.95
EA Length2.76
EA Quantity1
EA Weight0.18
EA Width2.76
Inner Cube0.0969
Inner Height3.27
Inner Length8.78
Inner Quantity6
Inner UPC20045923115404
Inner Weight1.21
Inner Width5.83
Pack TypeBox
Web Length2.835
Web Width2.756
