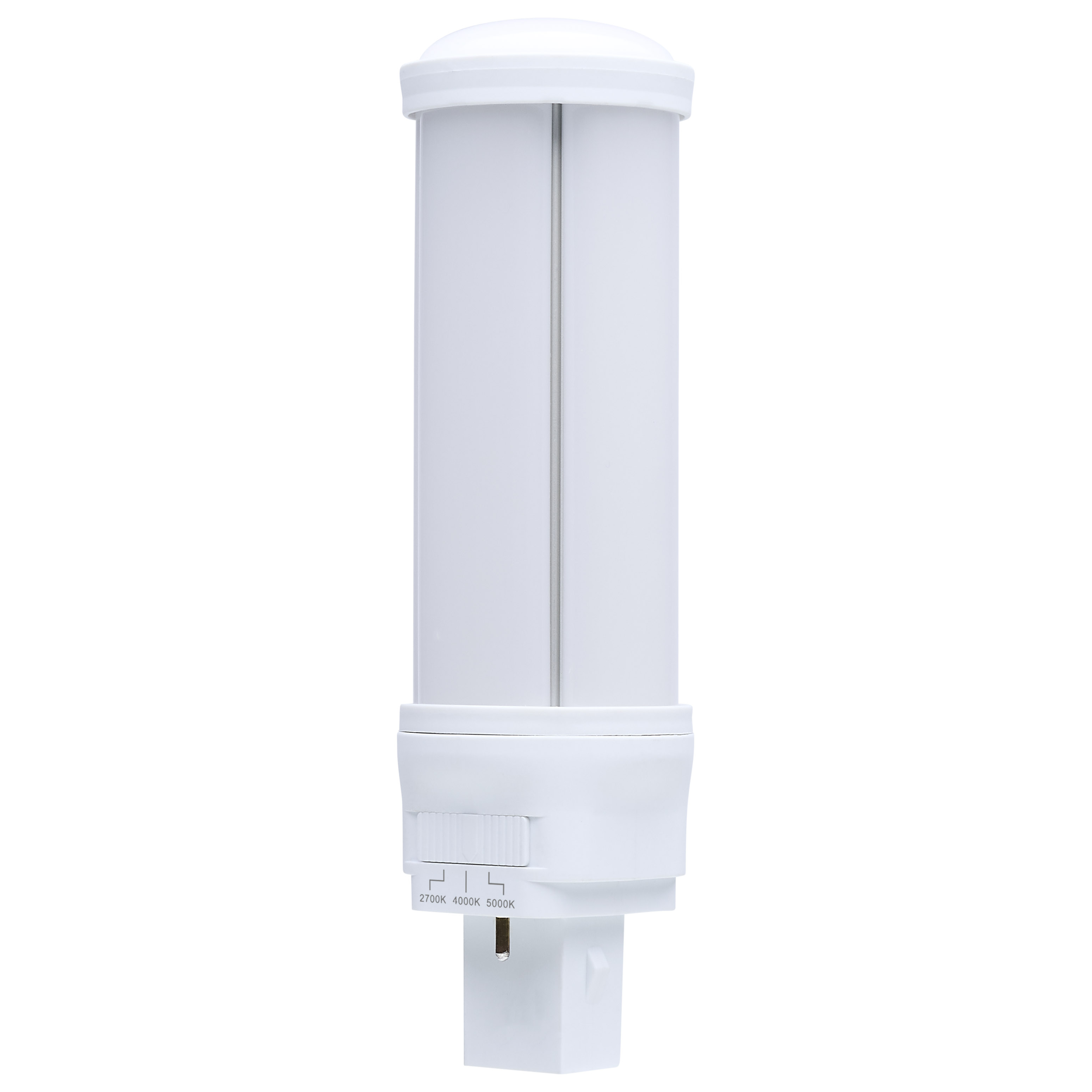

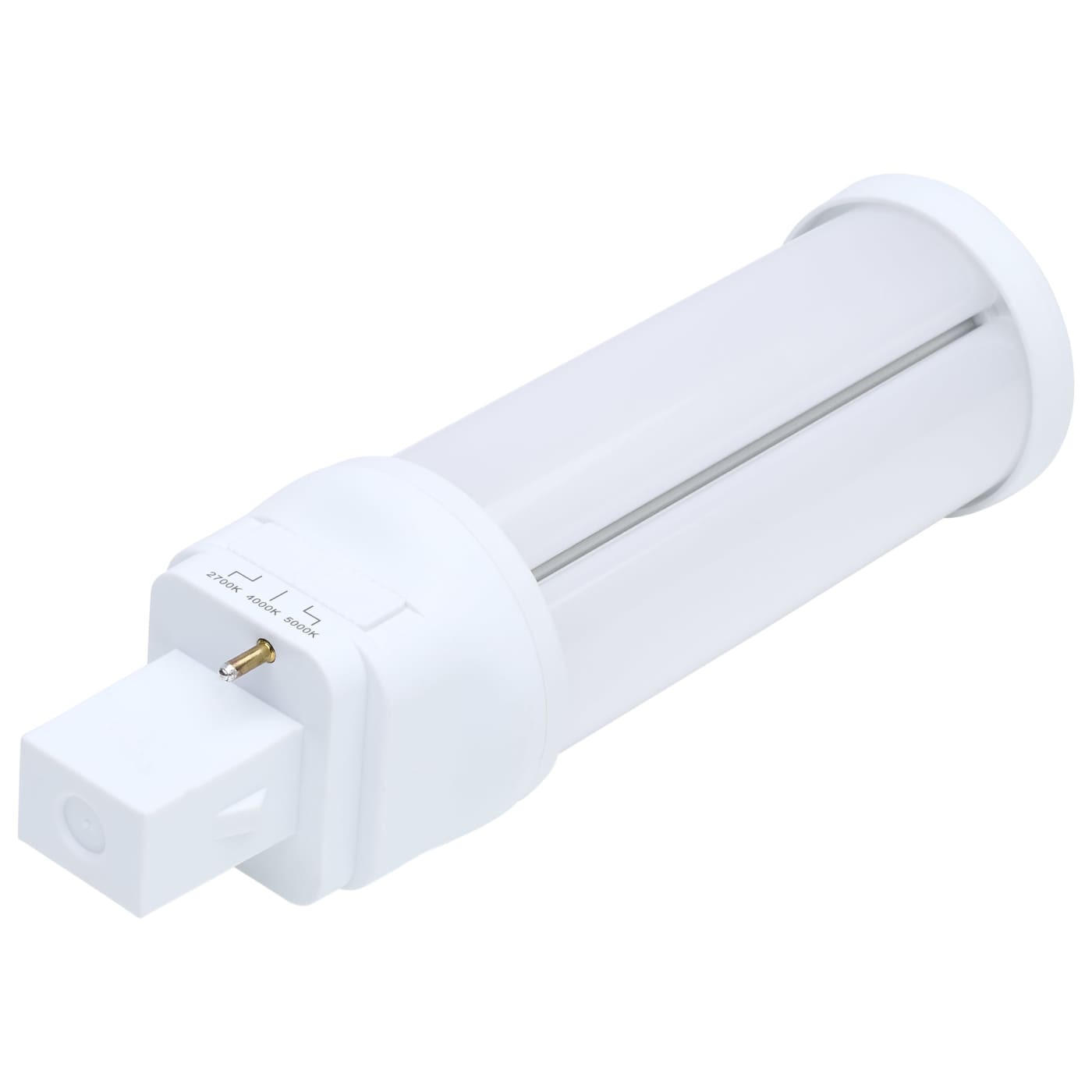

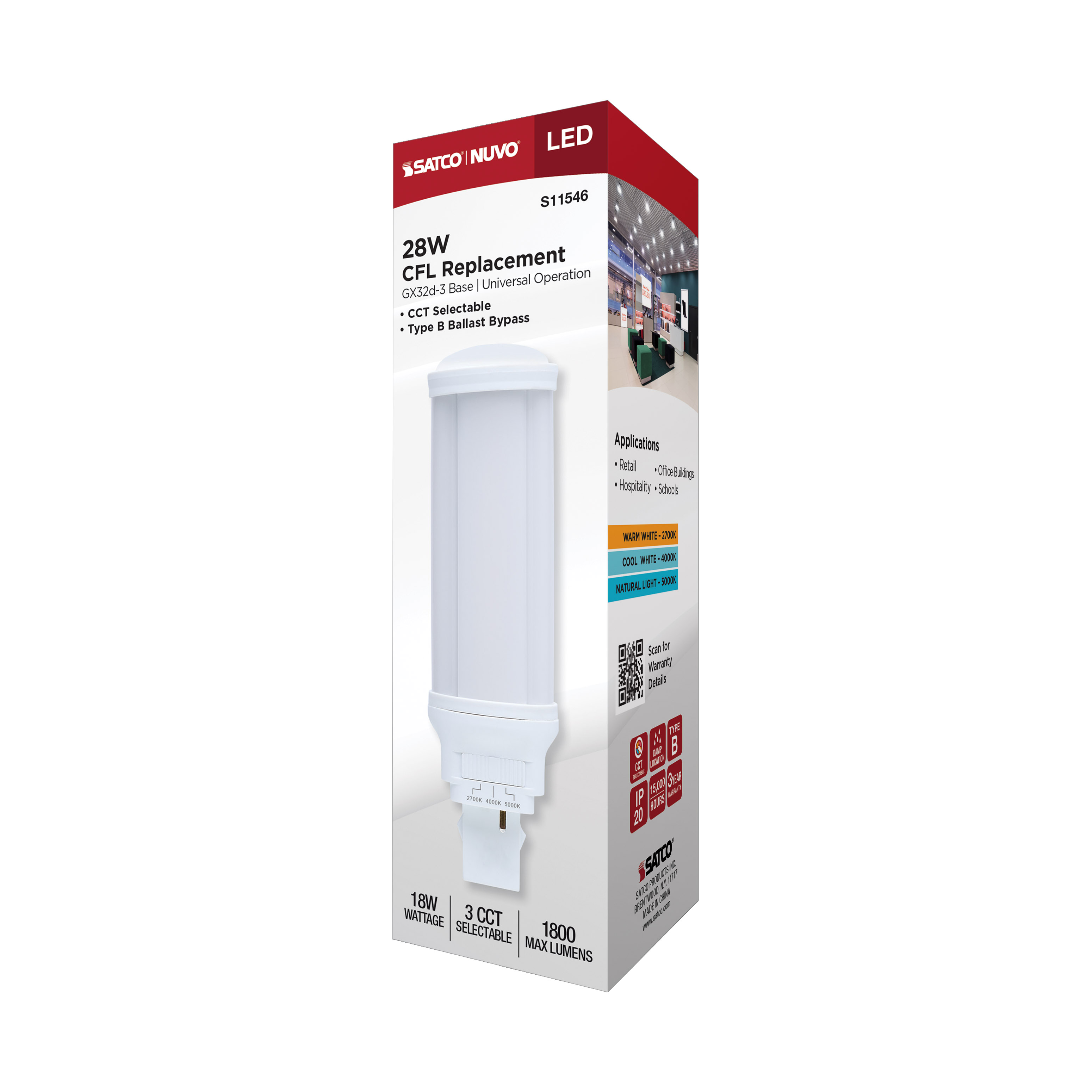

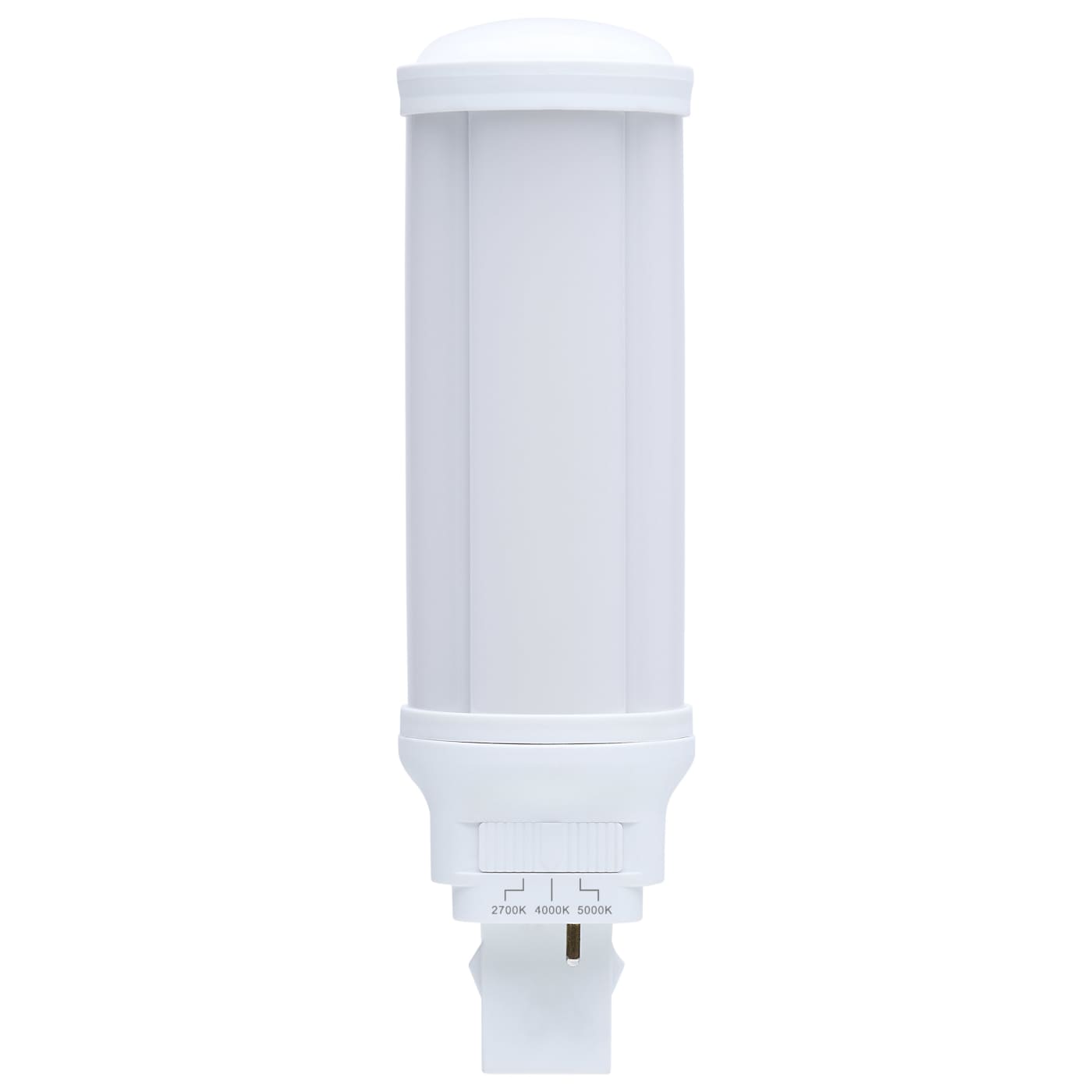

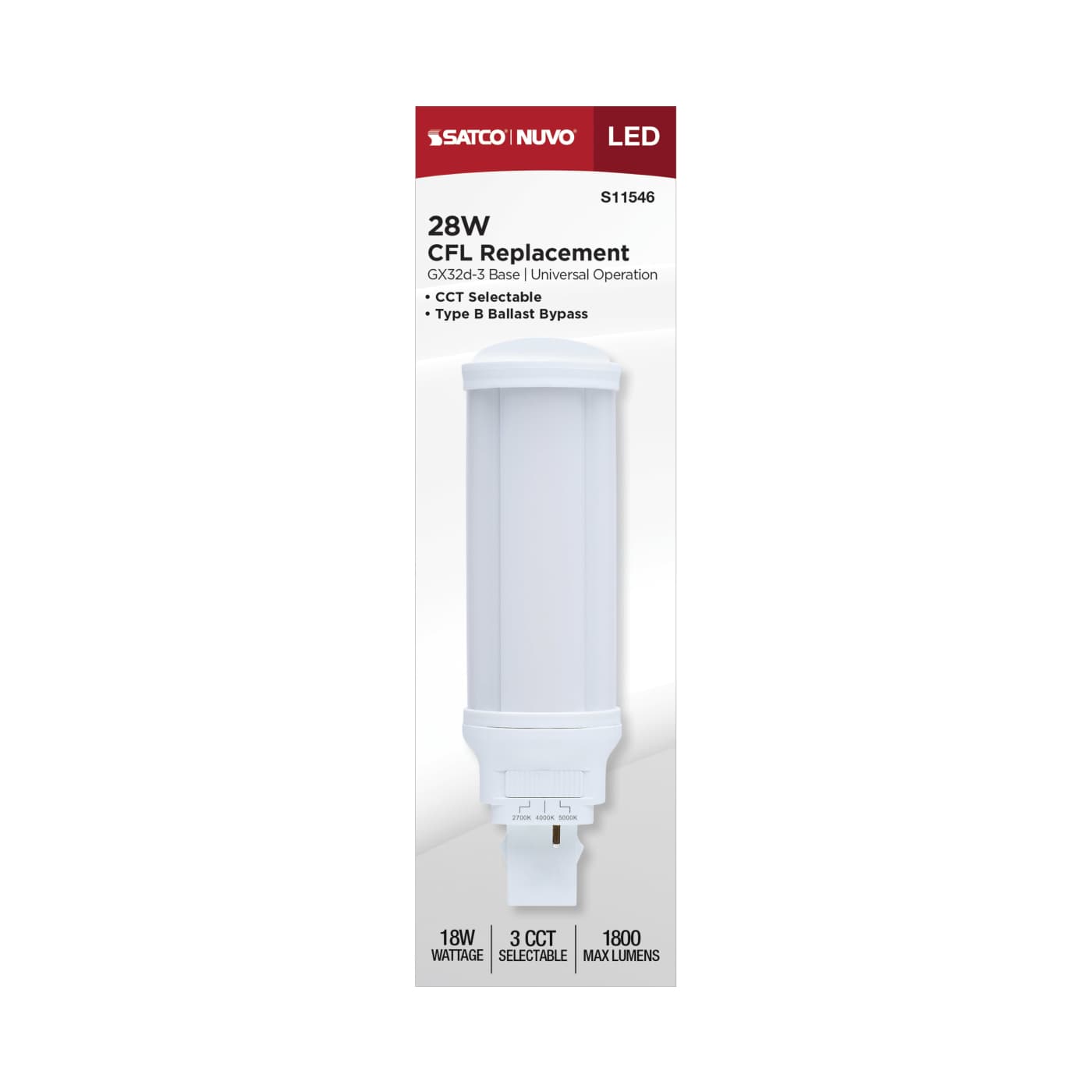

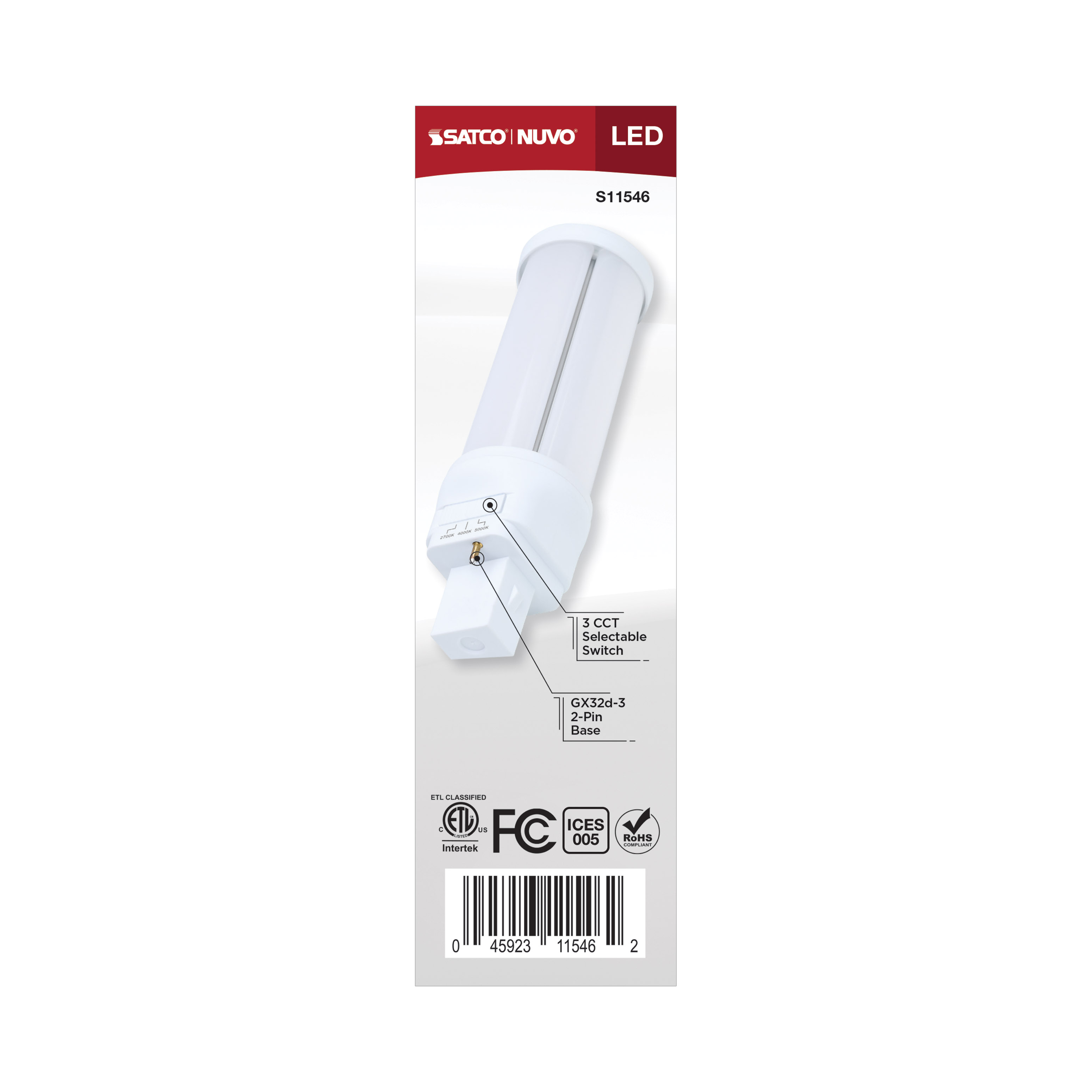

S11546

18W/LED/CFL/3CCT/BP/GX32D-3

  • 18 Watt LED PL
  • 27K/4K/5K CCT Selectable
  • GX32d-3 Base
  • 28W CFL Replacement
  • Type B Ballast Bypass
  • 120-277 Range Voltage
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
hours_rated^15k^2
fcc_compliant^true^3
rohs_compliant^y^3
S11546 SpecificationsSN1809 14 and 18 Watt PL LED Lamps FINAL 4-25S11546 Instructions
Tools
Lighting Layout Analysis For S11546
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
18 Watt LED PL; 27K/4K/5K CCT Selectable; GX32d-3 Base; 28W CFL Replacement; Type B Ballast Bypass; 120-277 Range Voltage

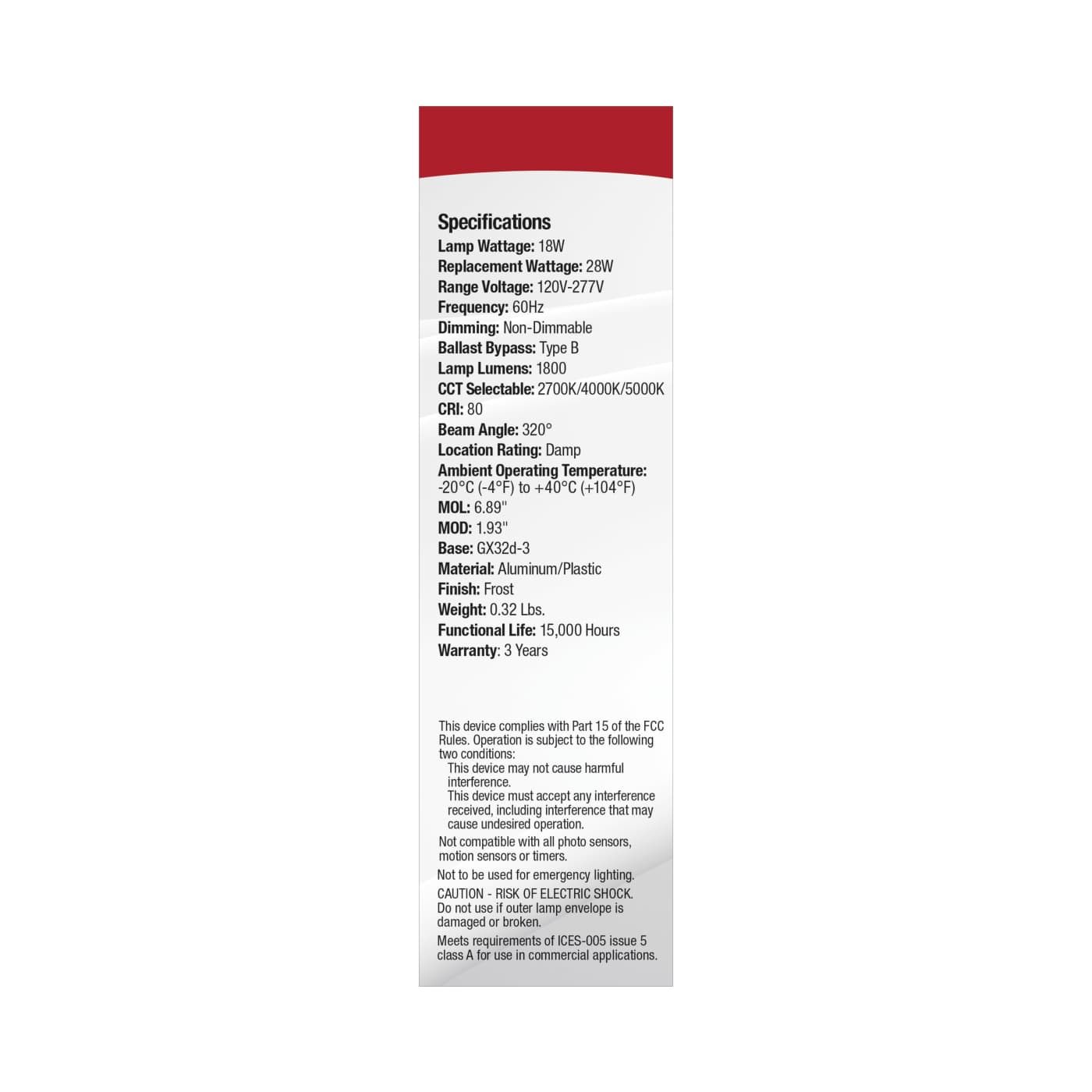

Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
CA RegulationsExempt - Base Not Regulated for SLED; Shape Not Regulated for SDDL
Lamp FilamentLED
MaterialAluminum / Plastic
Fixture TypePL
StatusActive
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyFrost
Amps0.150-0.065A
Has CameraFalse
IOT EnabledFalse
Lens FinishWhite
Lens MaterialPolycarbonate (PC)
LensedTrue
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv28W

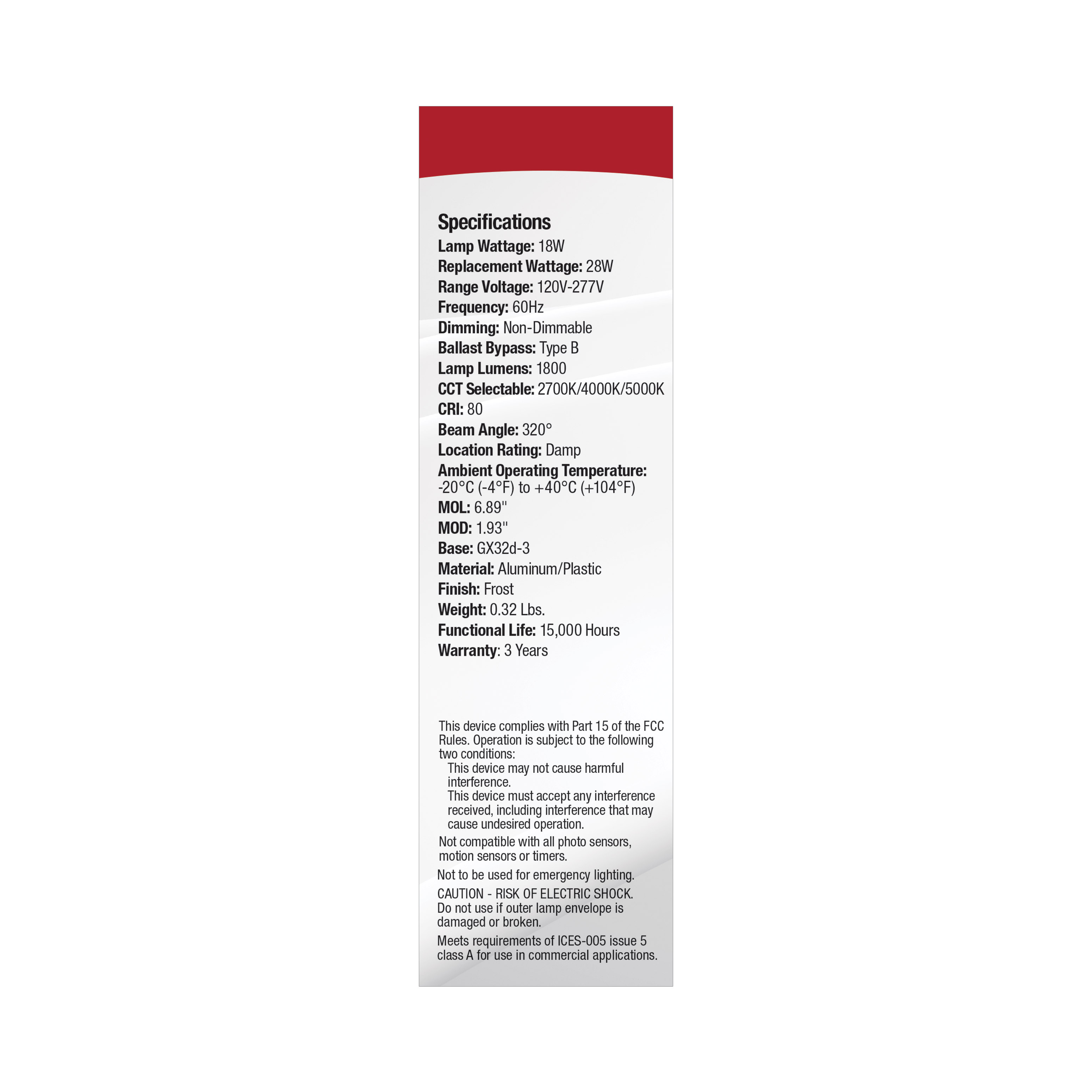

Electrical
CCT (Kelvin Temp)2700K/4000K/5000K
DimmableNon-Dimmable
Hours Rated15000
Beam Angle (degree)320
Color TempWarm White to Natural Light
CRI80+
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1800L
Volts120V-277V
Watts18W
Physical
Lamp BaseGX32d-3
FinishFrost
Housing ColorWhite
ANSI BaseGX32d-3
Lamp TypePL

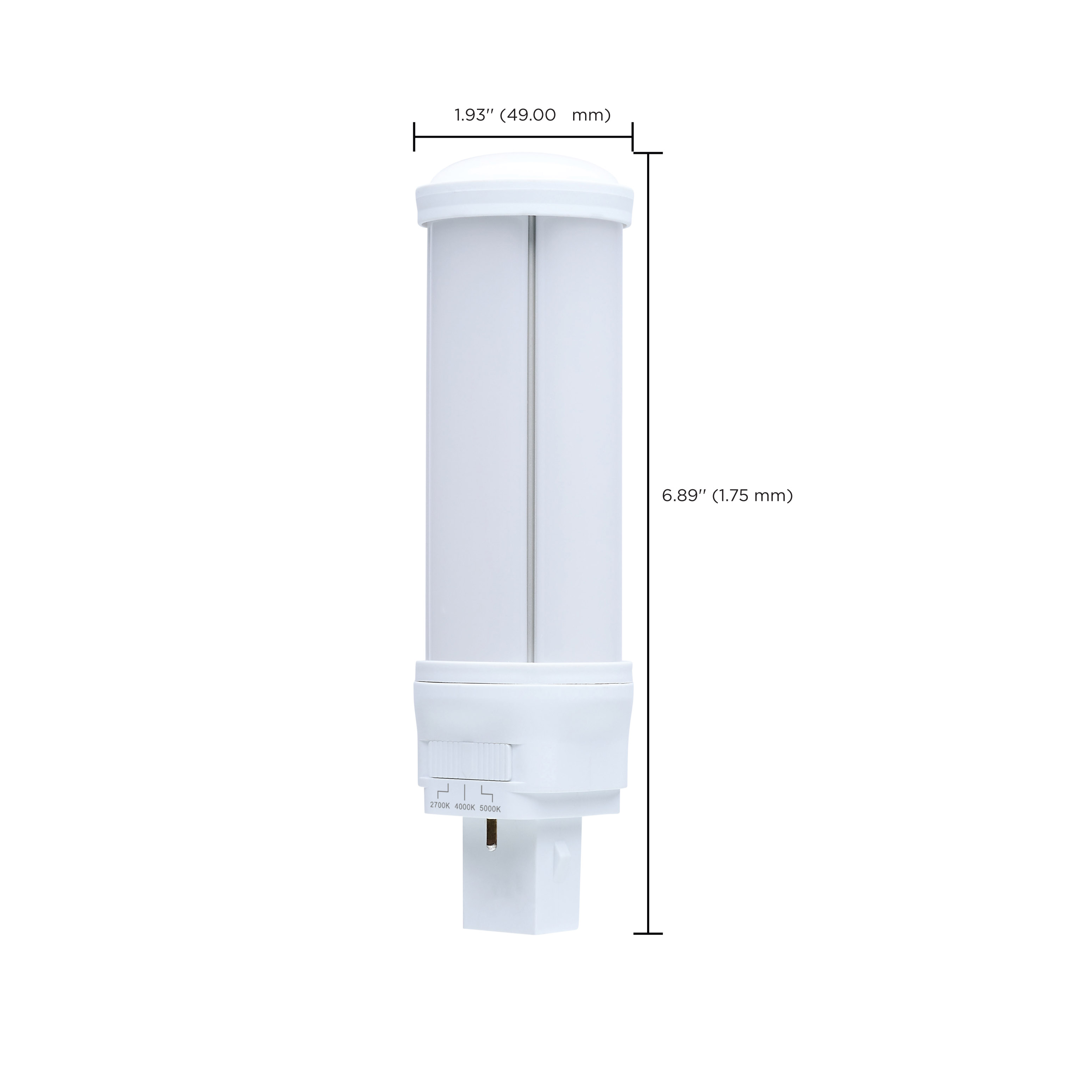

MOD Lamps1.93
MOL6.89
Additional Info
Warranty2-Years
Rated For Enclosed FixtureFalse
Documents
Compliance
CA StatusLawful for sale in California
FCC CompliantTrue
IP RatingIP20
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Classified
CA Compliance TextLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923115462
Case Cube1.1236
Case Height8.27
Case Length19.88
Case Quantity40
Case UPC10045923115469
Case Weight16.16
Case Width11.81
EA Cube0.0179
EA Height7.09
EA Length2.09
EA Quantity1
EA Weight0.4
EA Width2.09
Inner Cube0.2317
Inner Height7.48
Inner Length11.34
Inner Quantity10
Inner UPC20045923115466
Inner Weight3.31
Inner Width4.72

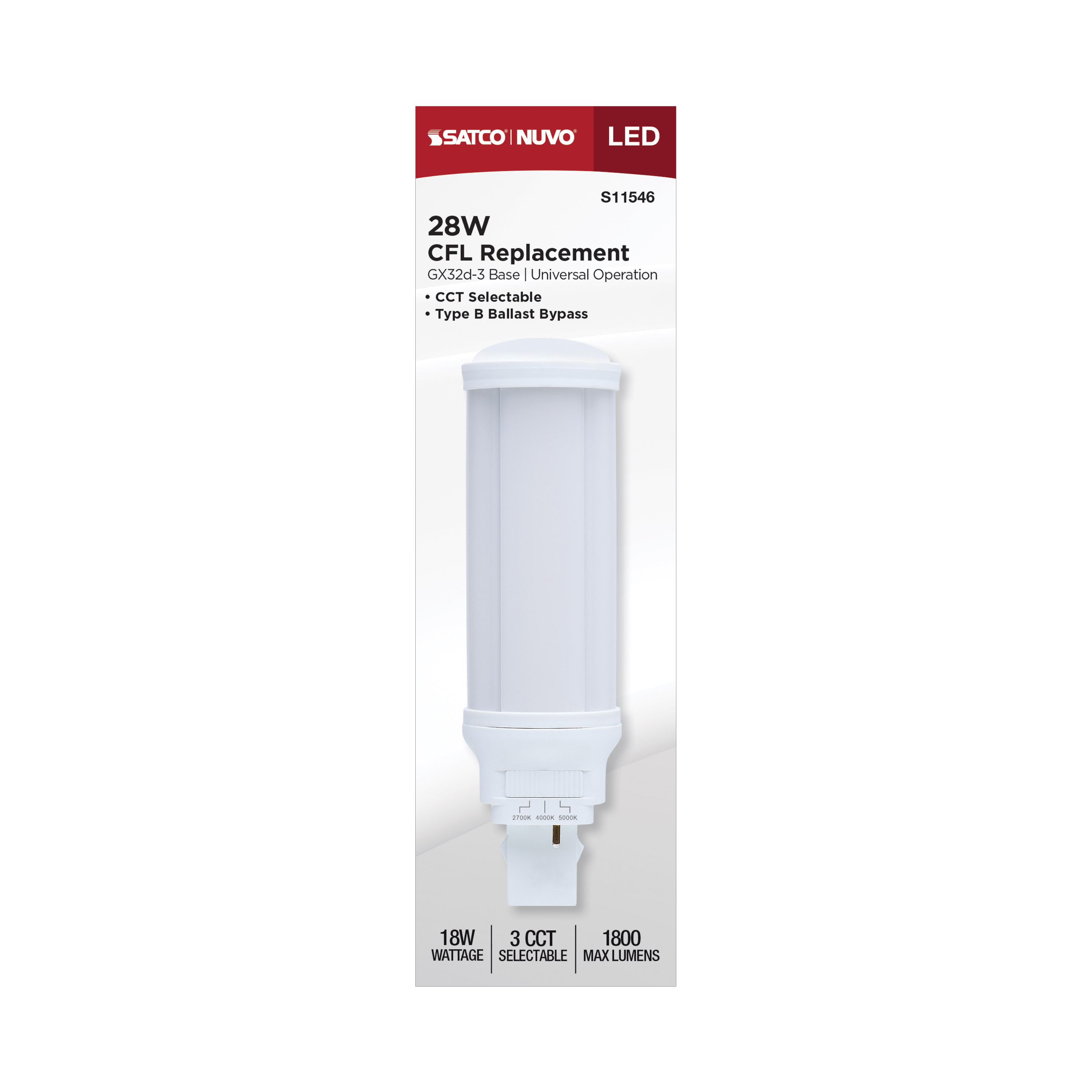

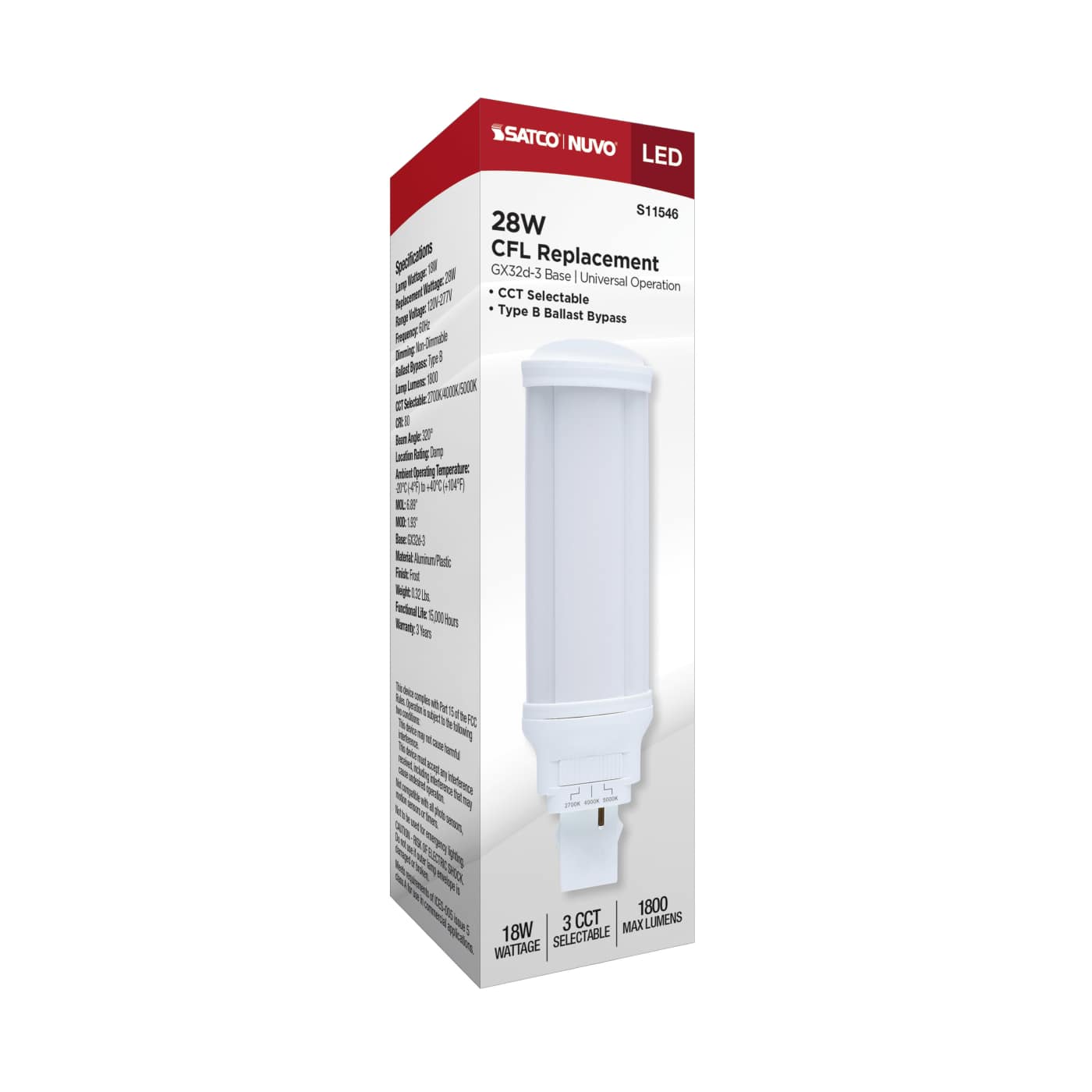

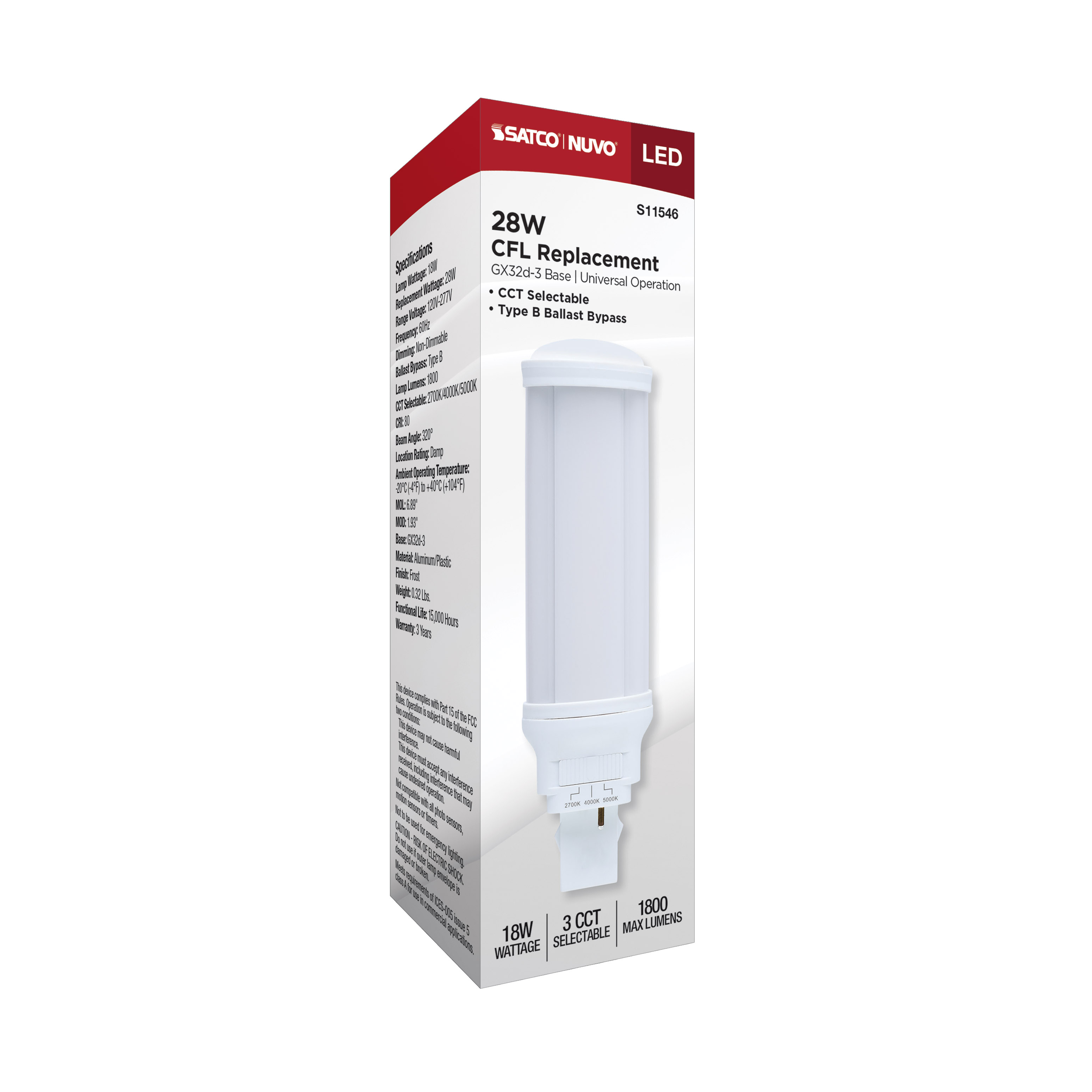

Pack TypeBox
Web Length6.89
Web Width1.93
