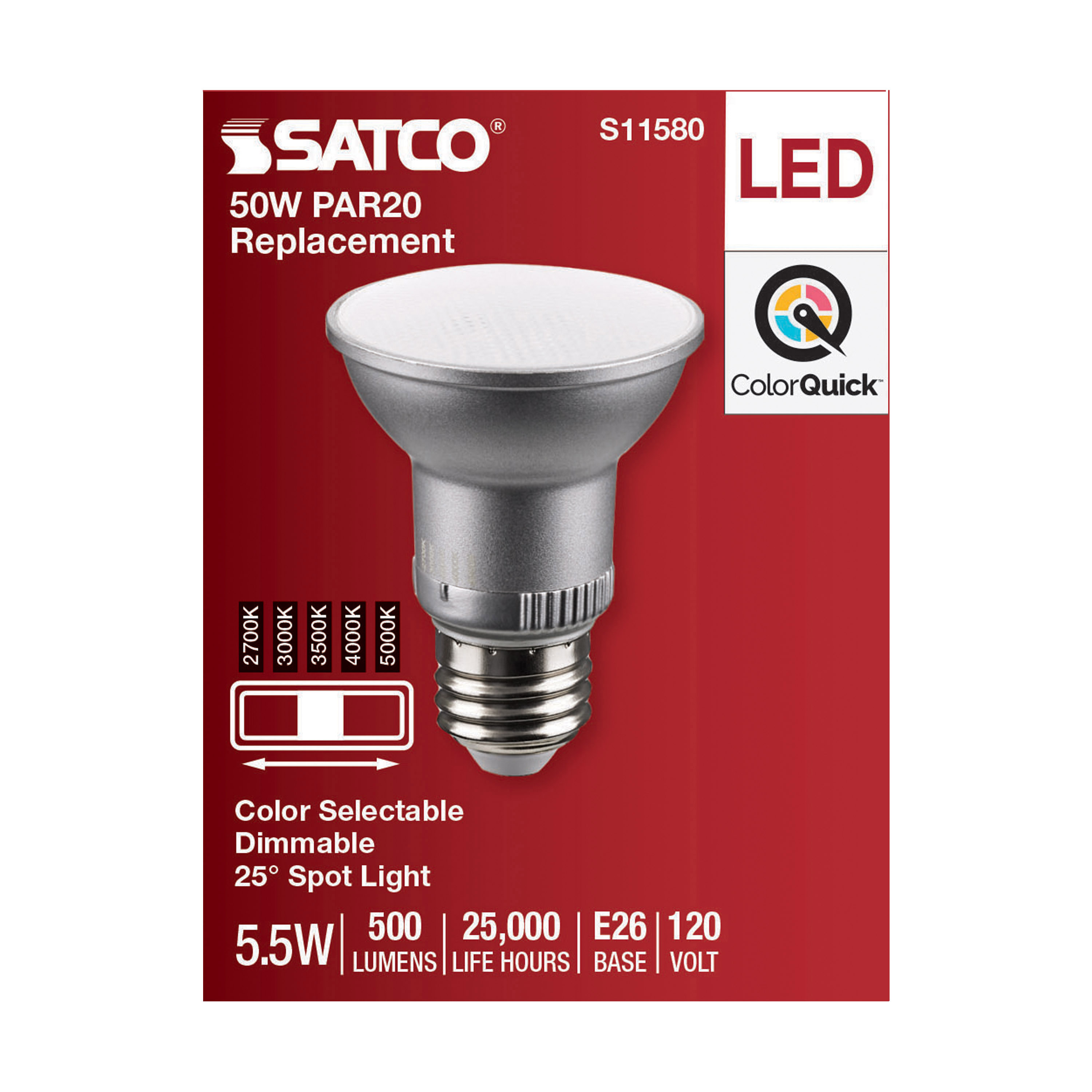

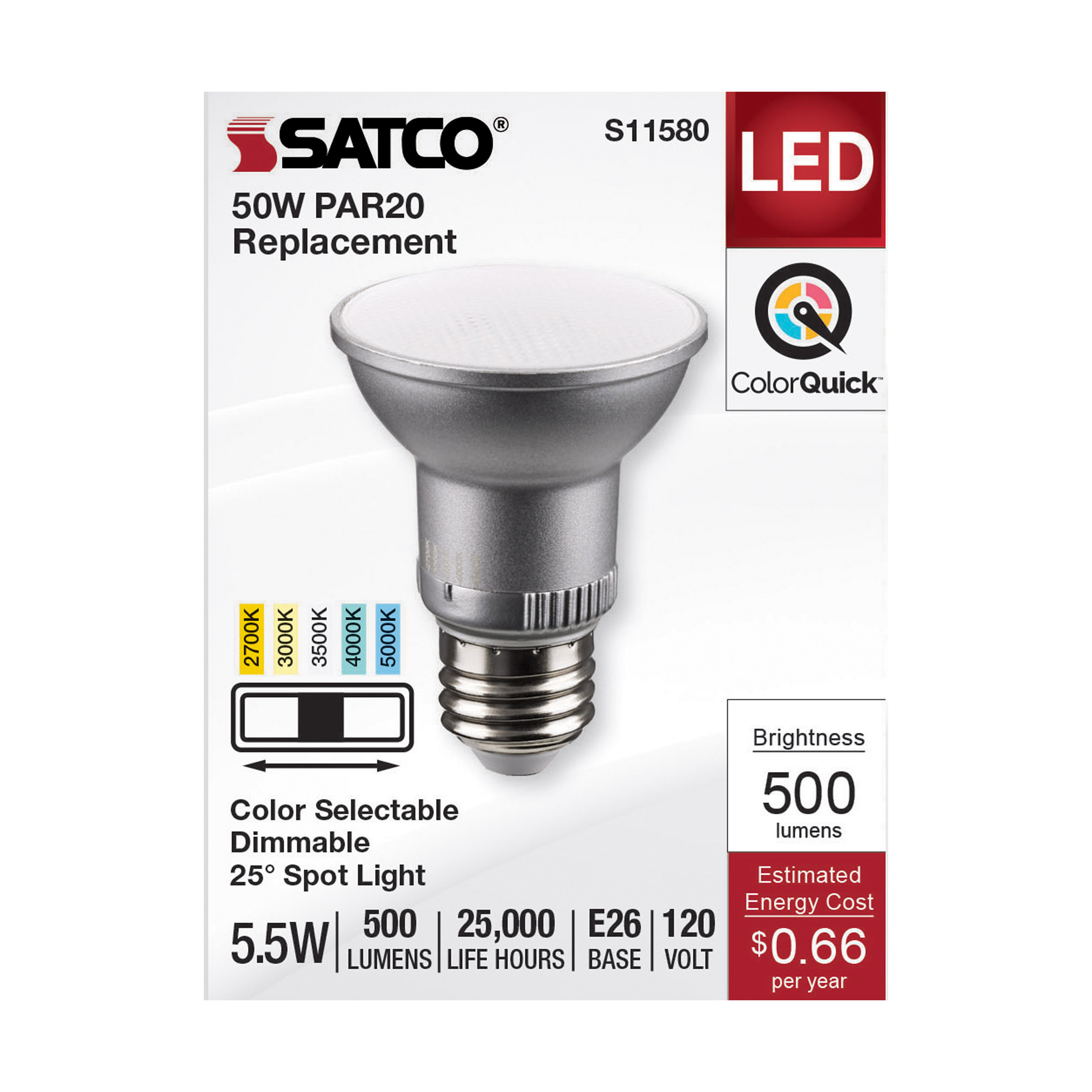

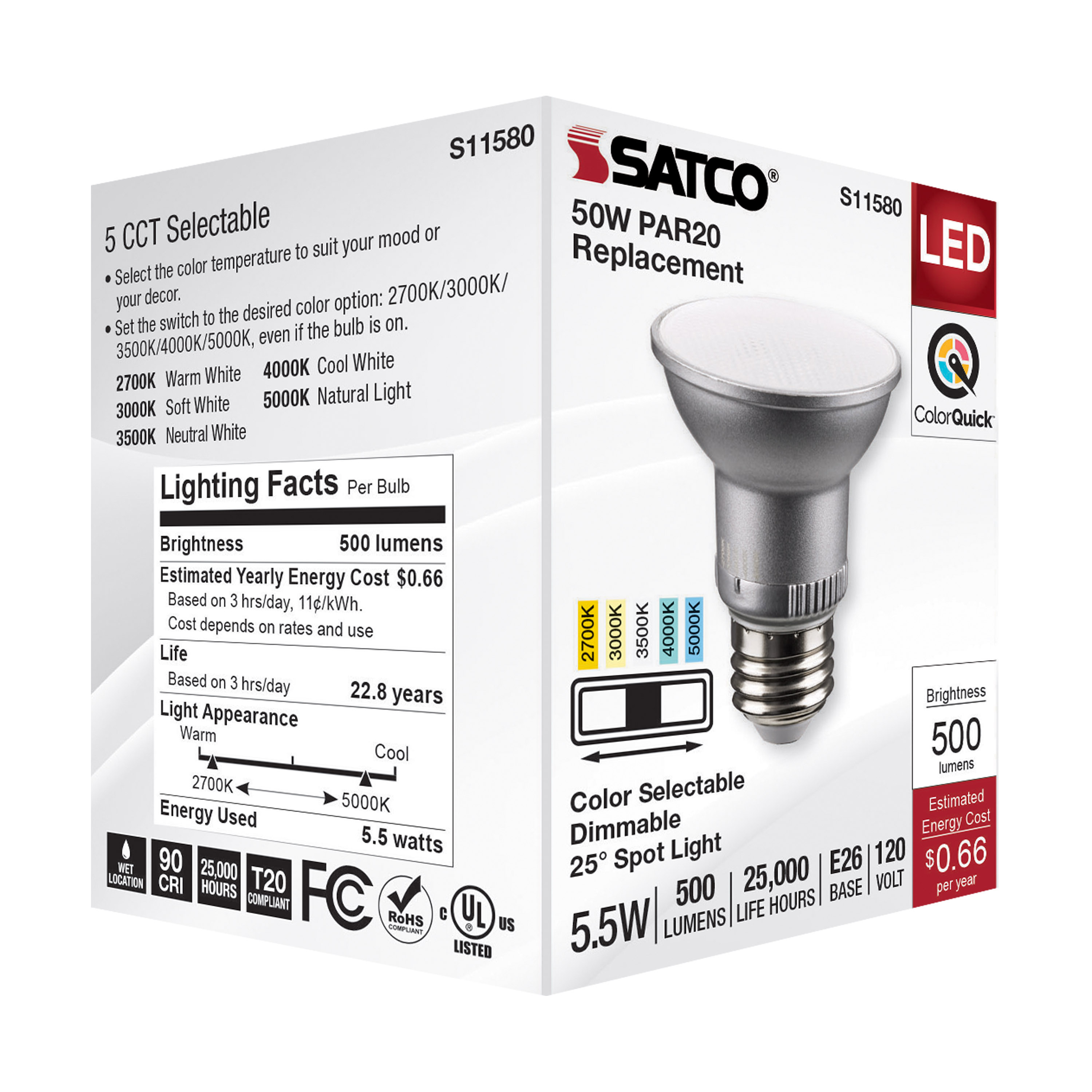

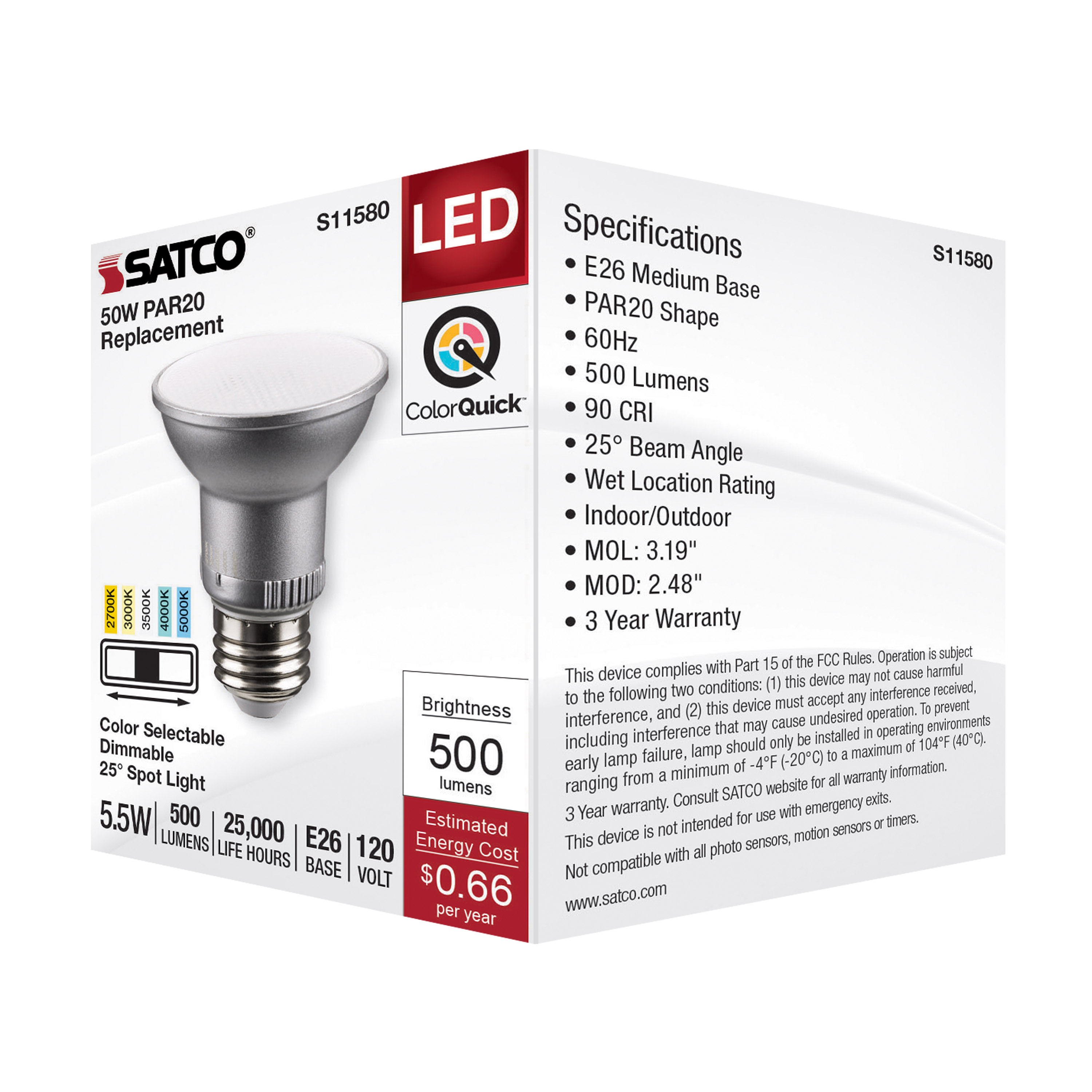

5.5PAR20/LED/5CCT/SP/120V - S11580
5.5PAR20/LED/5CCT/SP/120V - S11580
5.5PAR20/LED/5CCT/SP/120V - S11580
5.5PAR20/LED/5CCT/SP/120V - S11580
5.5PAR20/LED/5CCT/SP/120V - S11580
5.5PAR20/LED/5CCT/SP/120V - S11580
5.5PAR20/LED/5CCT/SP/120V - S11580
5.5PAR20/LED/5CCT/SP/120V - S11580
S11580

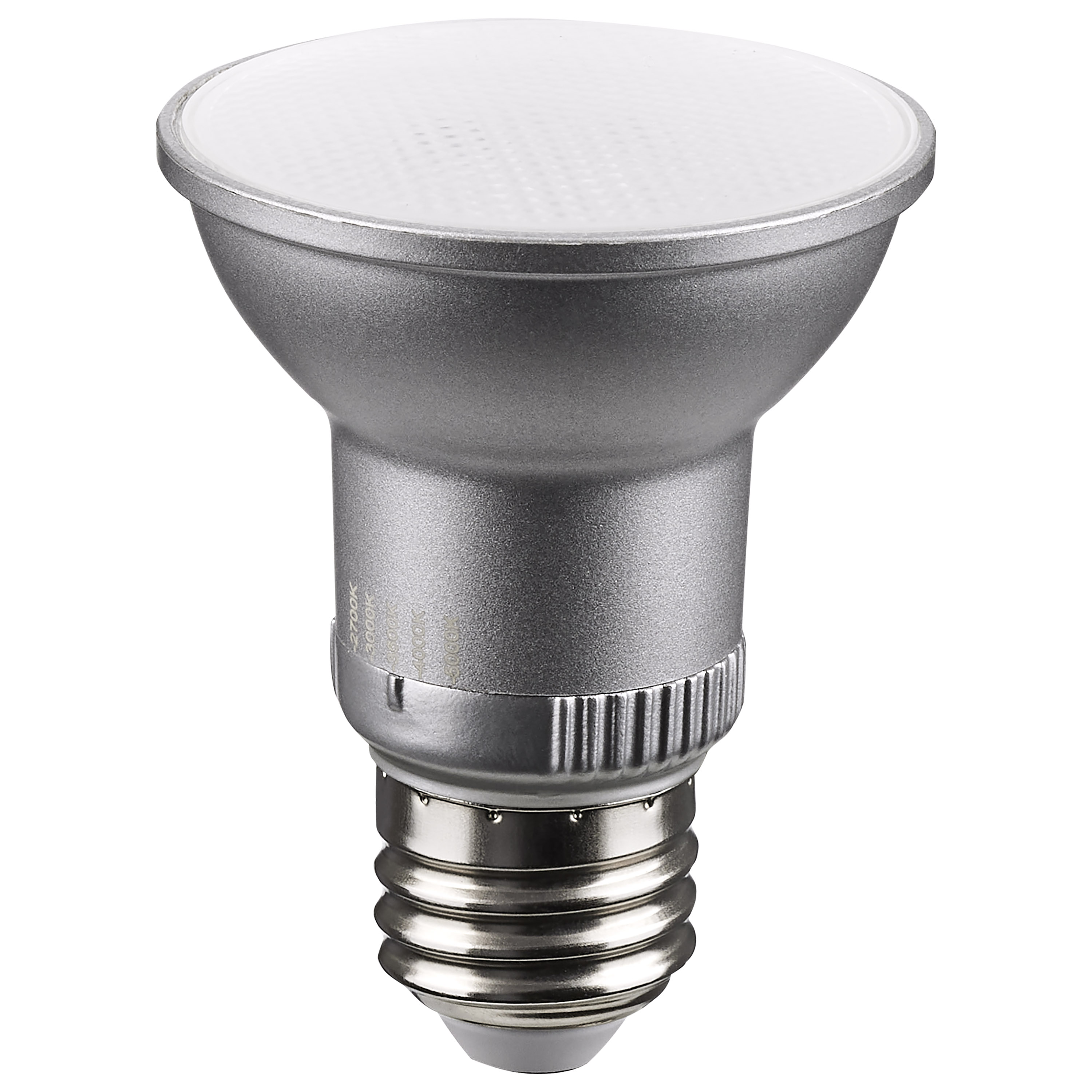

5.5PAR20/LED/5CCT/SP/120V

  • 5.5 Watt PAR20 LED
  • Medium Base
  • Silver Finish
  • CCT Selectable
  • 120 Volt
  • 25 Degree Beam Angle
cc_selectable^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^25^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

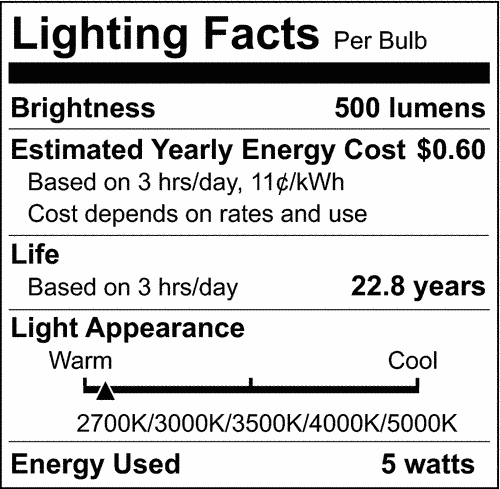

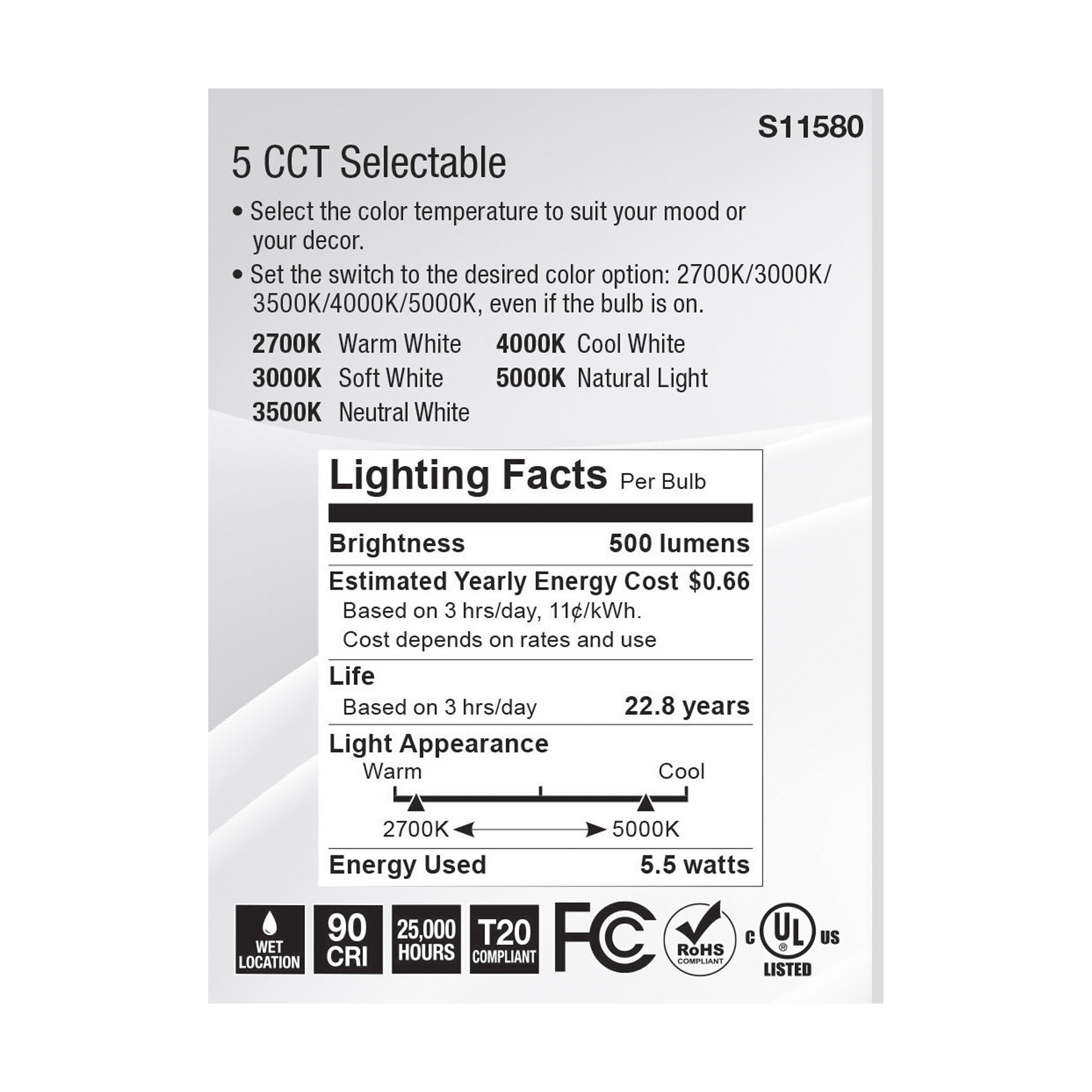

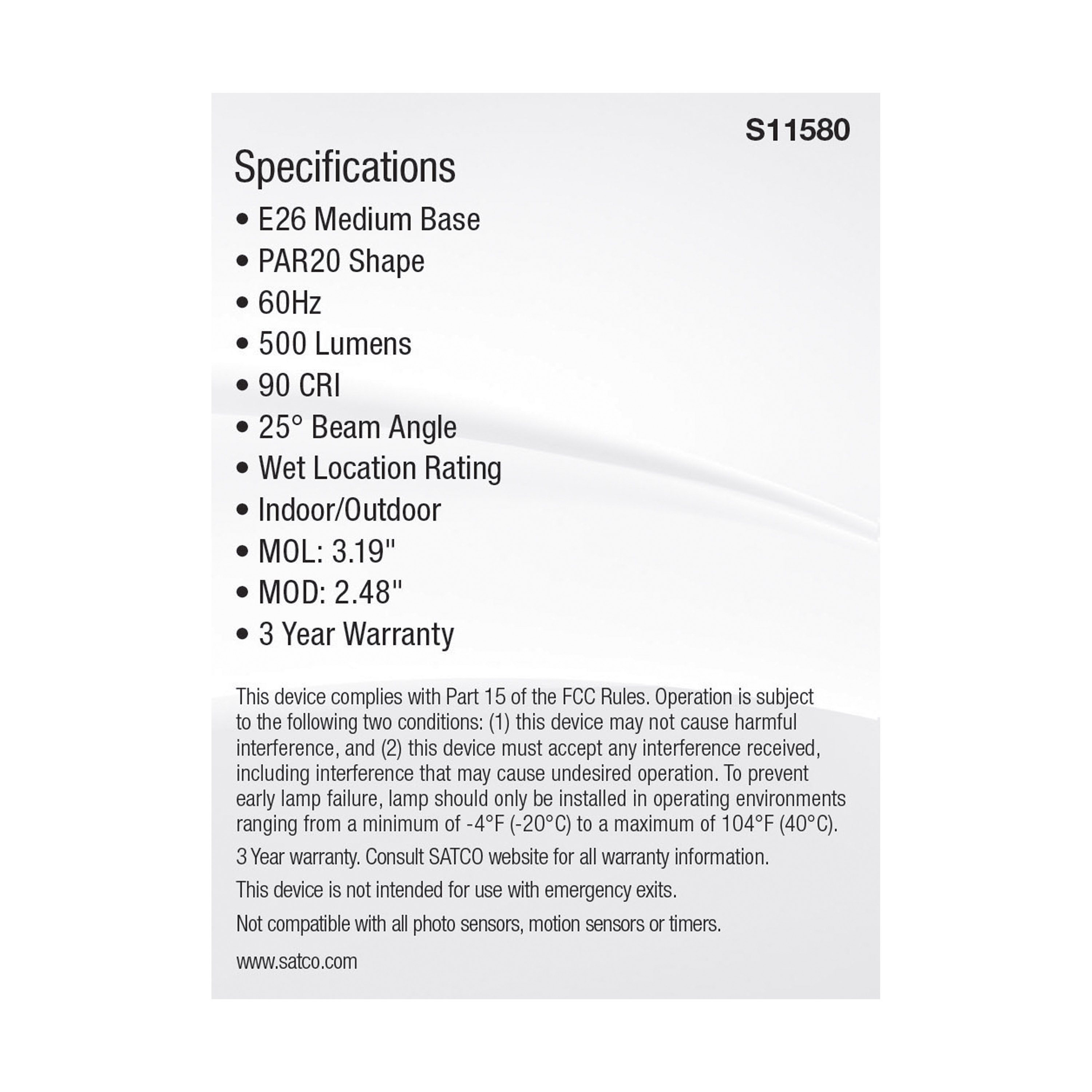

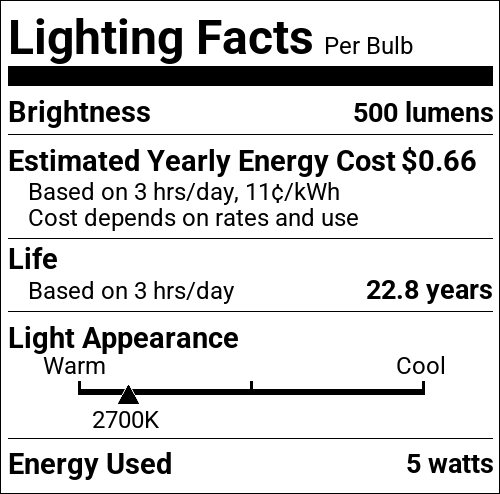

S11580 SpecificationsLED PAR LAMPS CCT SELECTABLES11580 Lighting Facts Label
Tools
Lighting Layout Analysis For S11580
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
5.5 Watt PAR20 LED; Medium Base; Silver Finish; CCT Selectable; 120 Volt; 25 Degree Beam Angle
Products Specs
General
CompanySATCO
Center Beam Candle Power1255
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
Lamp FilamentLED
MaterialPolyamide (PA)
Fixture TypePAR
Spot TypeSP - Spot
StatusActive
StyleUtility

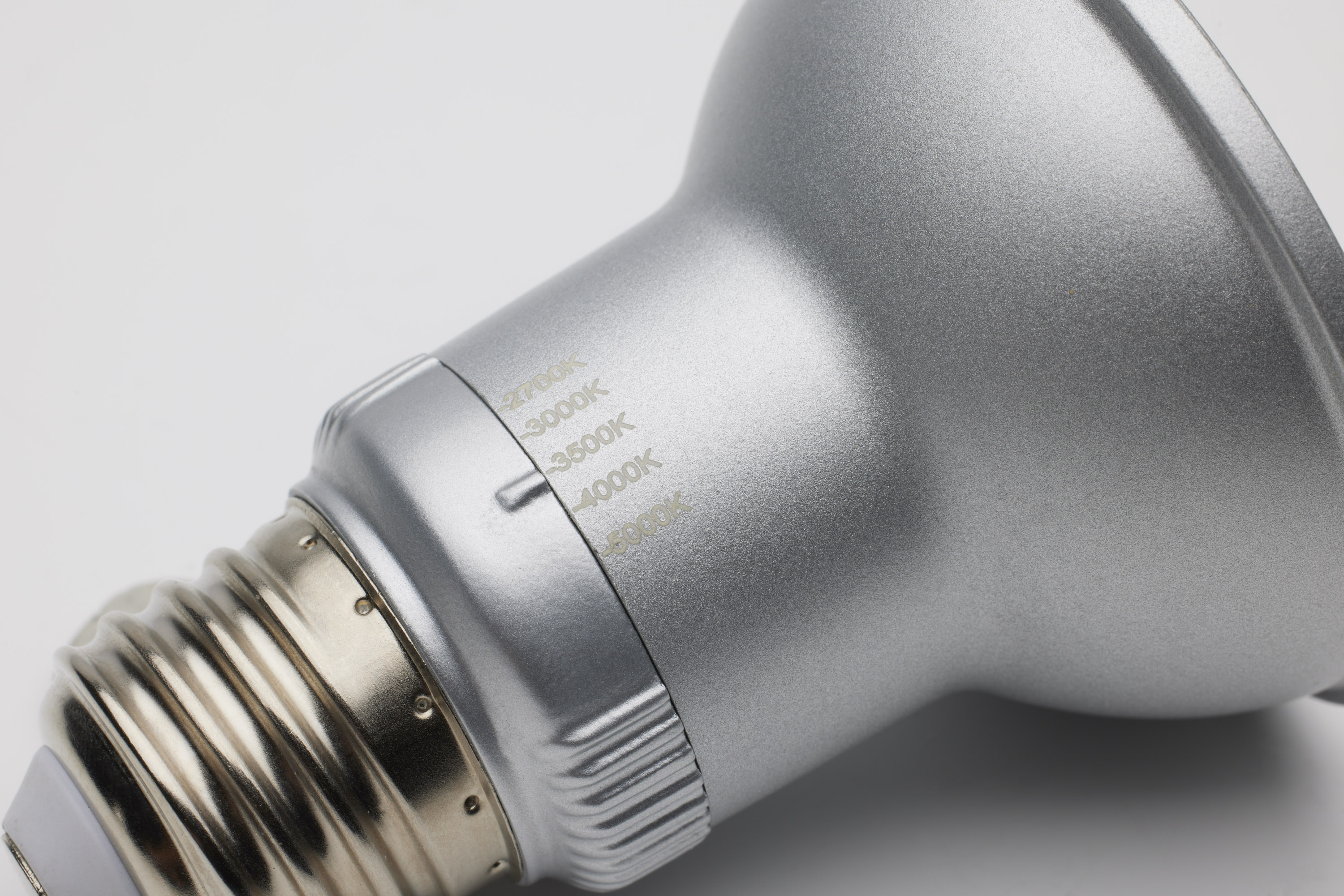

CCT SelectableYes
Wattage SelectableNo
Finish FamilySilver
Amps0.078A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes
Operating PositionUniversal
Power Factor0.7
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv11W
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)25
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens500L
Volts120v
Watts5.5W
Physical
Lamp BaseMedium
FinishSILVER
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR20
MOD Lamps2.48
MOL3.19
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24 CompliantYes
Packaging
UPC045923115806
Case Cube0.5747
Case Height17.52
Case Length4.72
Case Quantity24
Case UPC10045923115803
Case Weight0.75
Case Width12.01
EA Cube0.0141
EA Height3.5
EA Length2.64
EA Quantity1
EA Weight0.05
EA Width2.64
Inner Cube0.1101
Inner Height8.46
Inner Length3.94
Inner Quantity6
Inner UPC20045923115800
Inner Weight0.13
Inner Width5.71
Pack TypeBox
Web Length3.19
Web Width2.48
