S11583

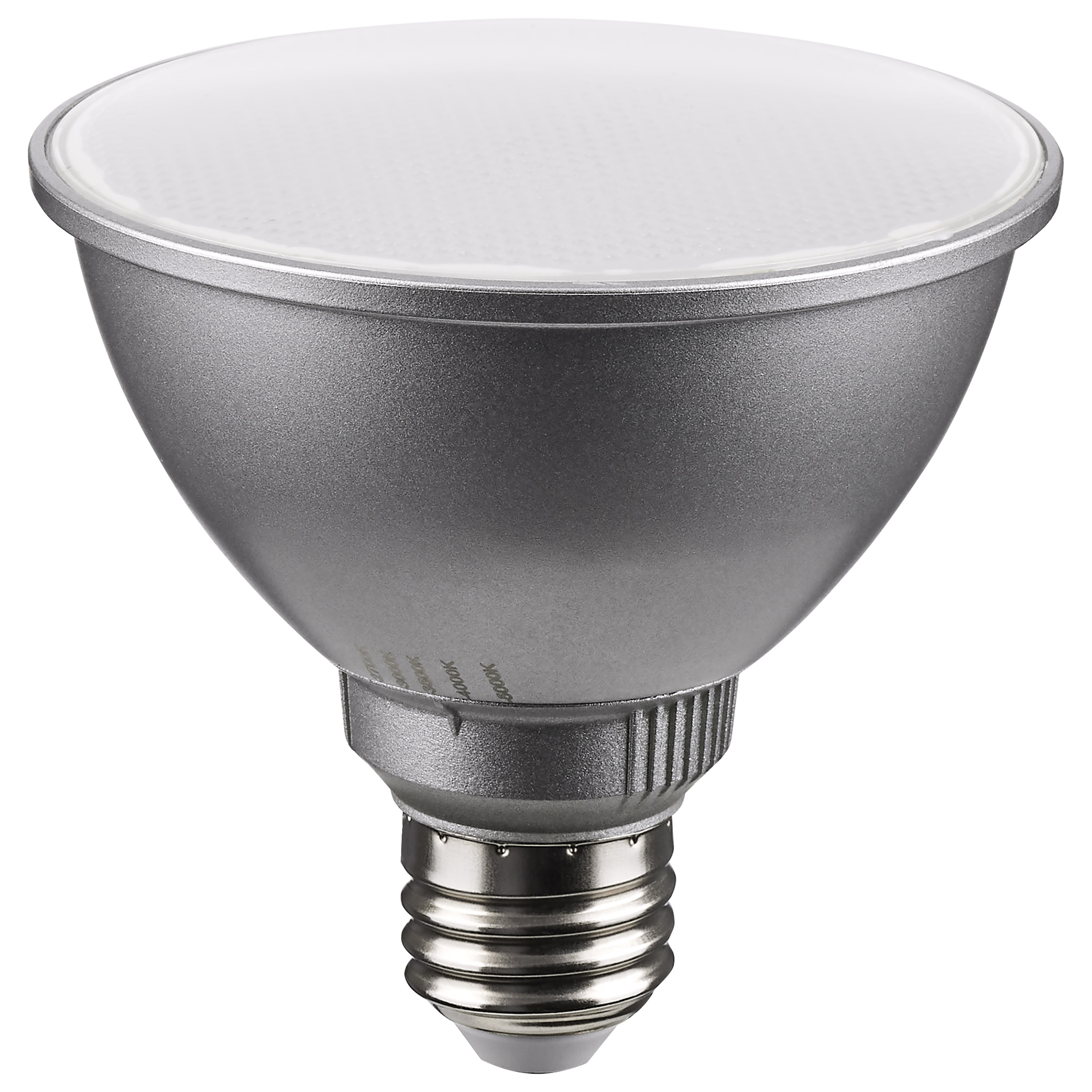

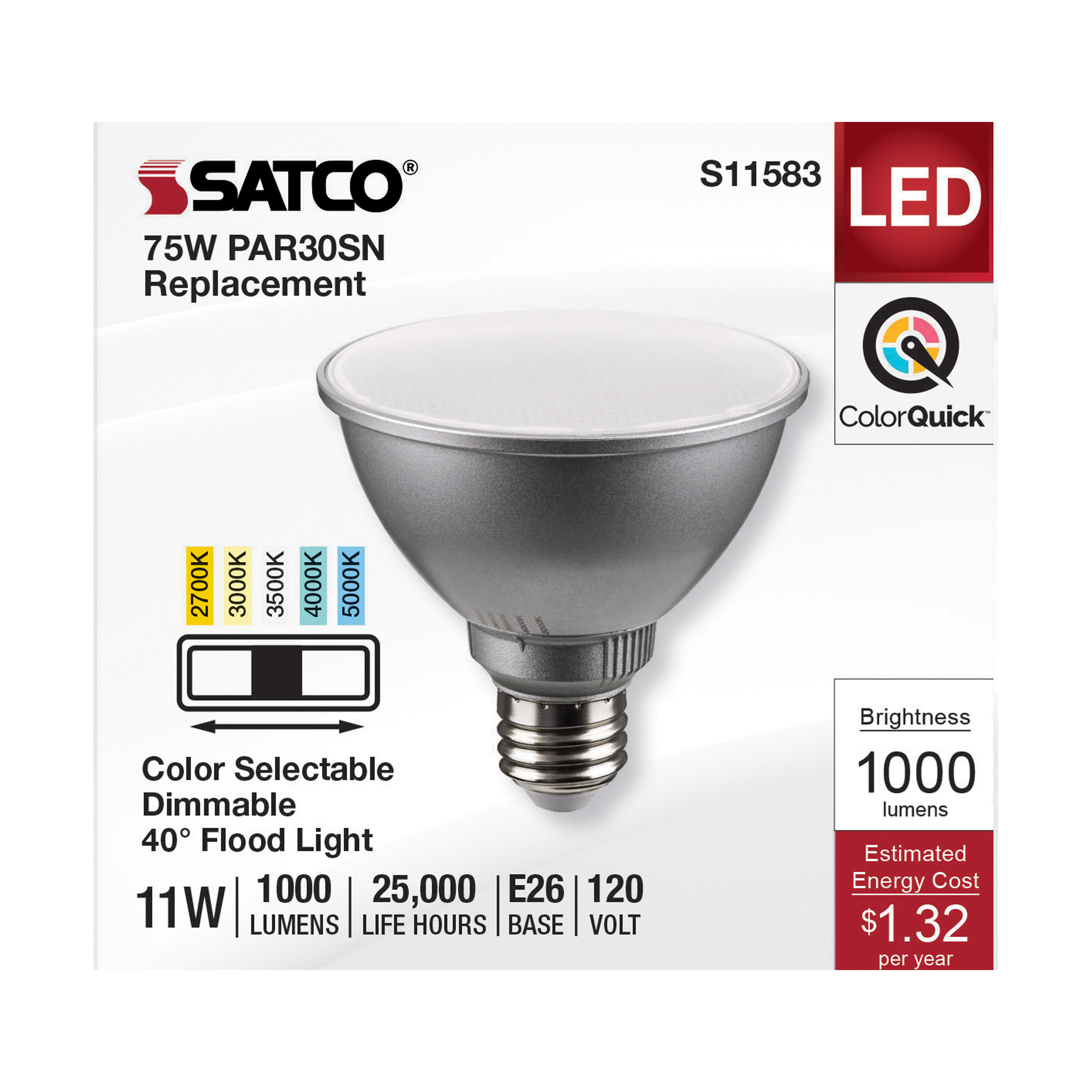

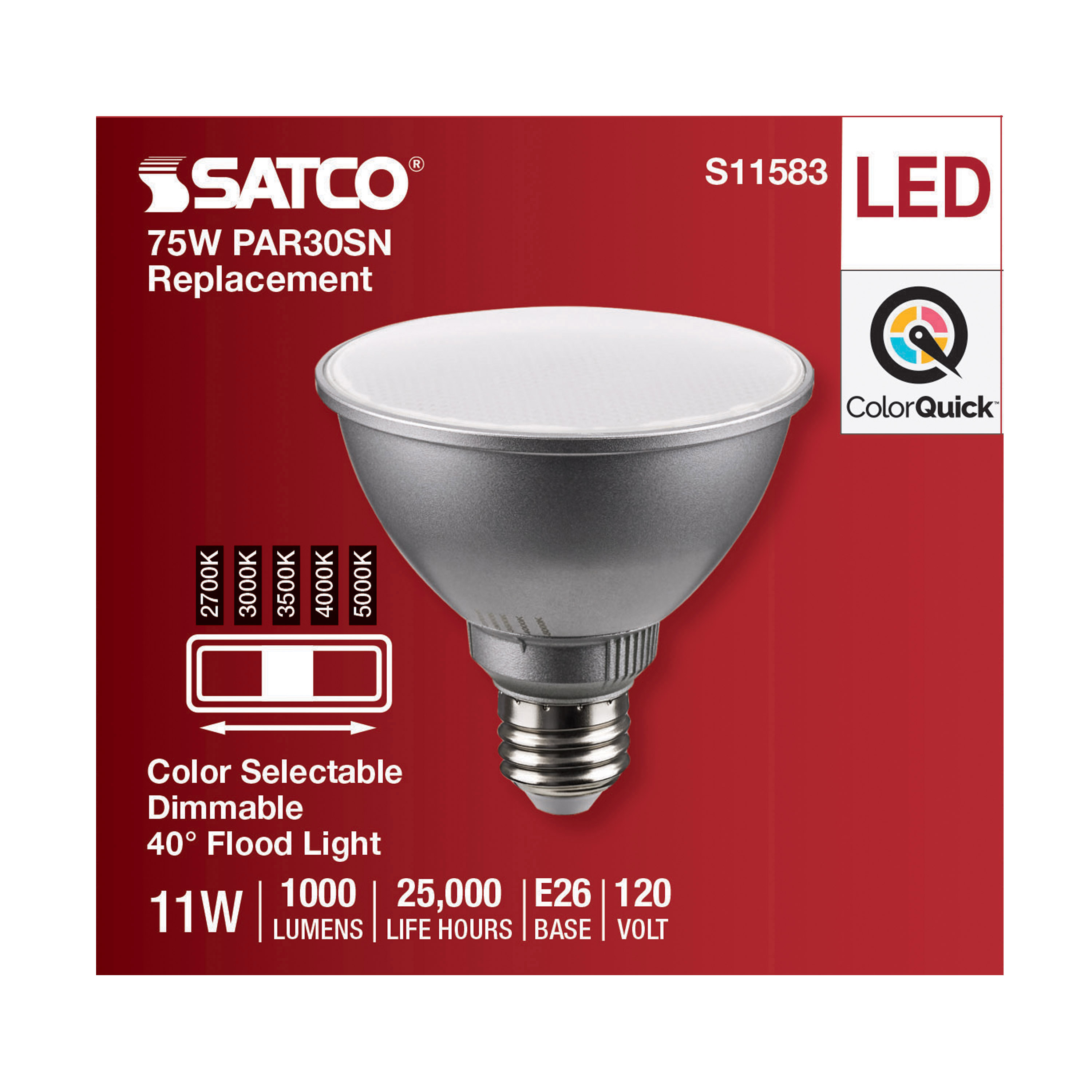

11PAR30SN/LED/5CCT/FL/120V

  • 11 Watt PAR30SN LED
  • Medium Base
  • Silver Finish
  • CCT Selectable
  • 120 Volt
  • 40 Degree Beam Angle
cc_selectable^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

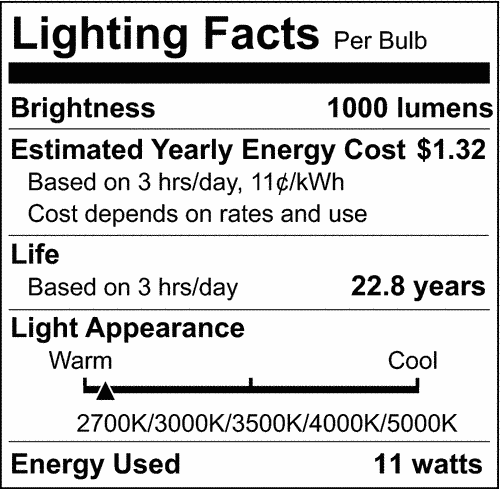

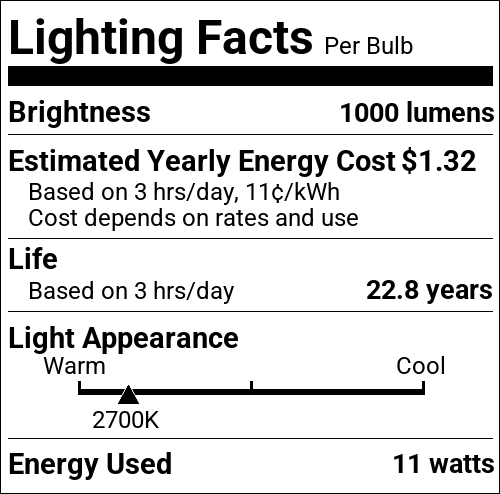

S11583 SpecificationsS11583 Photometrics 2700K.iesS11583 Photometrics 3000K.iesS11583 Lighting Facts Label
Tools
Lighting Layout Analysis For S11583
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
11 Watt PAR30SN LED; Medium Base; Silver Finish; CCT Selectable; 120 Volt; 40 Degree Beam Angle
Products Specs
General
CompanySATCO
Center Beam Candle Power1315
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
Lamp FilamentLED
MaterialPolyamide (PA)
Fixture TypePAR
Spot TypeFL - Flood
StatusActive
StyleUtility

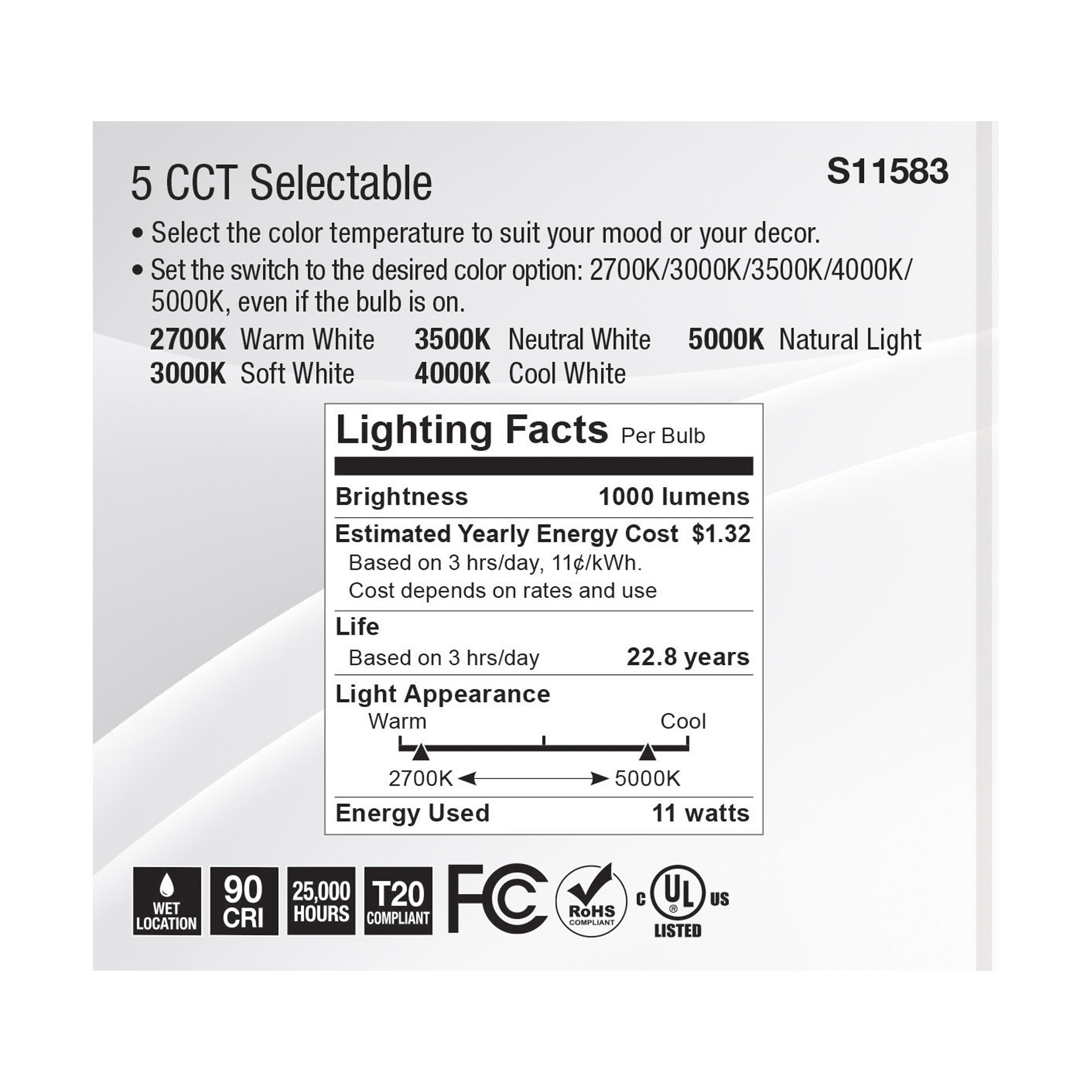

CCT SelectableYes
Wattage SelectableNo
Finish FamilySilver
Amps0.117A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv15W
Incandescent Equivalent75W
Electrical

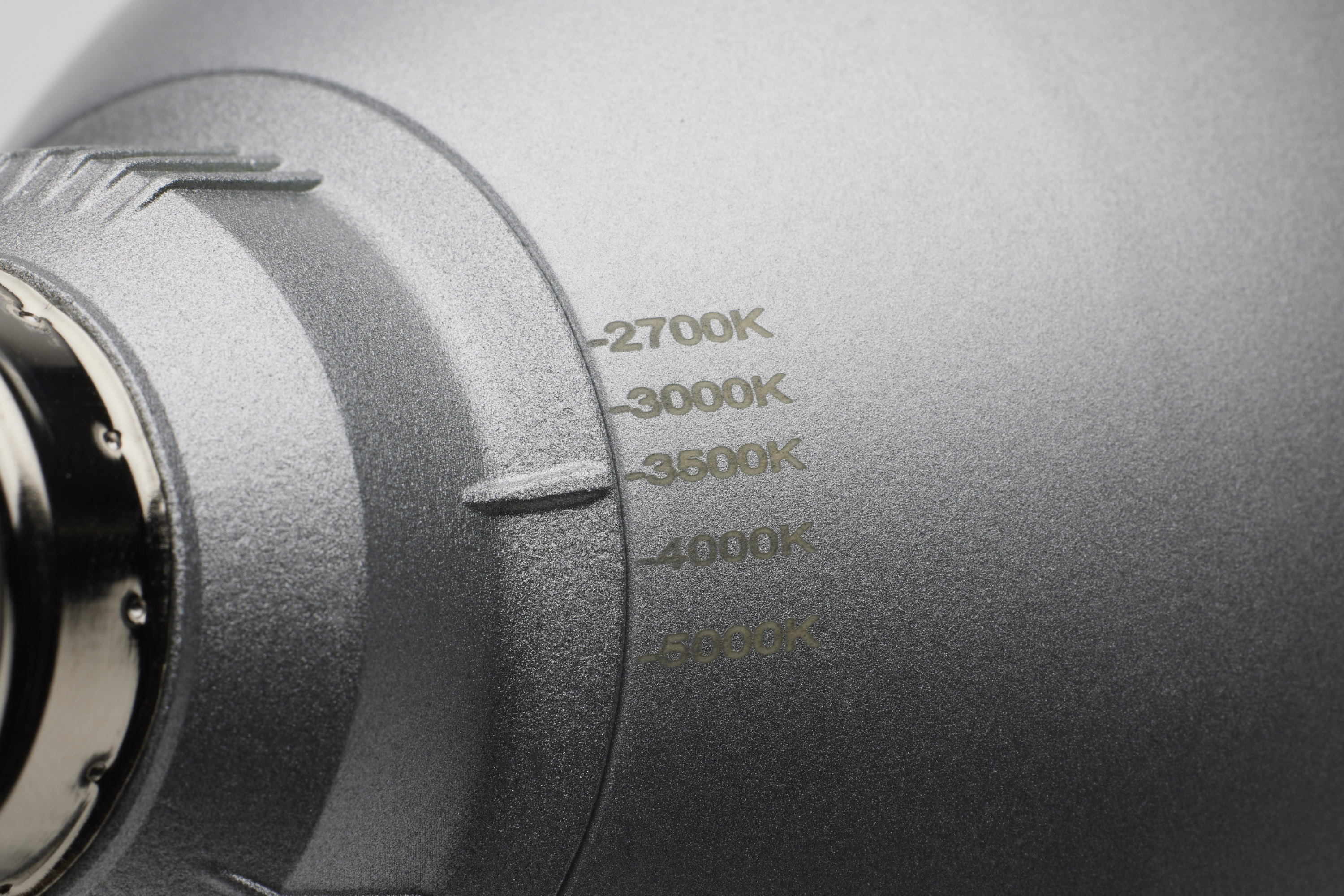

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)40
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1000L
Volts120v
Watts11W
Physical
Lamp BaseMedium
FinishSILVER
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR30SN
MOD Lamps3.74
MOL3.62
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24 CompliantYes
Packaging
UPC045923115837
Case Cube0.6497
Case Height5.12
Case Length17.13
Case Quantity12
Case UPC10045923115834
Case Weight4.96
Case Width12.8
EA Cube0.0347
EA Height3.94
EA Length3.9
EA Quantity1
EA Weight0.31
EA Width3.9
Inner Cube0.2536
Inner Height4.34
Inner Length12.21
Inner Quantity6
Inner UPC20045923115831
Inner Weight2.42
Inner Width8.27
Pack TypeBox
Web Length3.62
Web Width3.74
