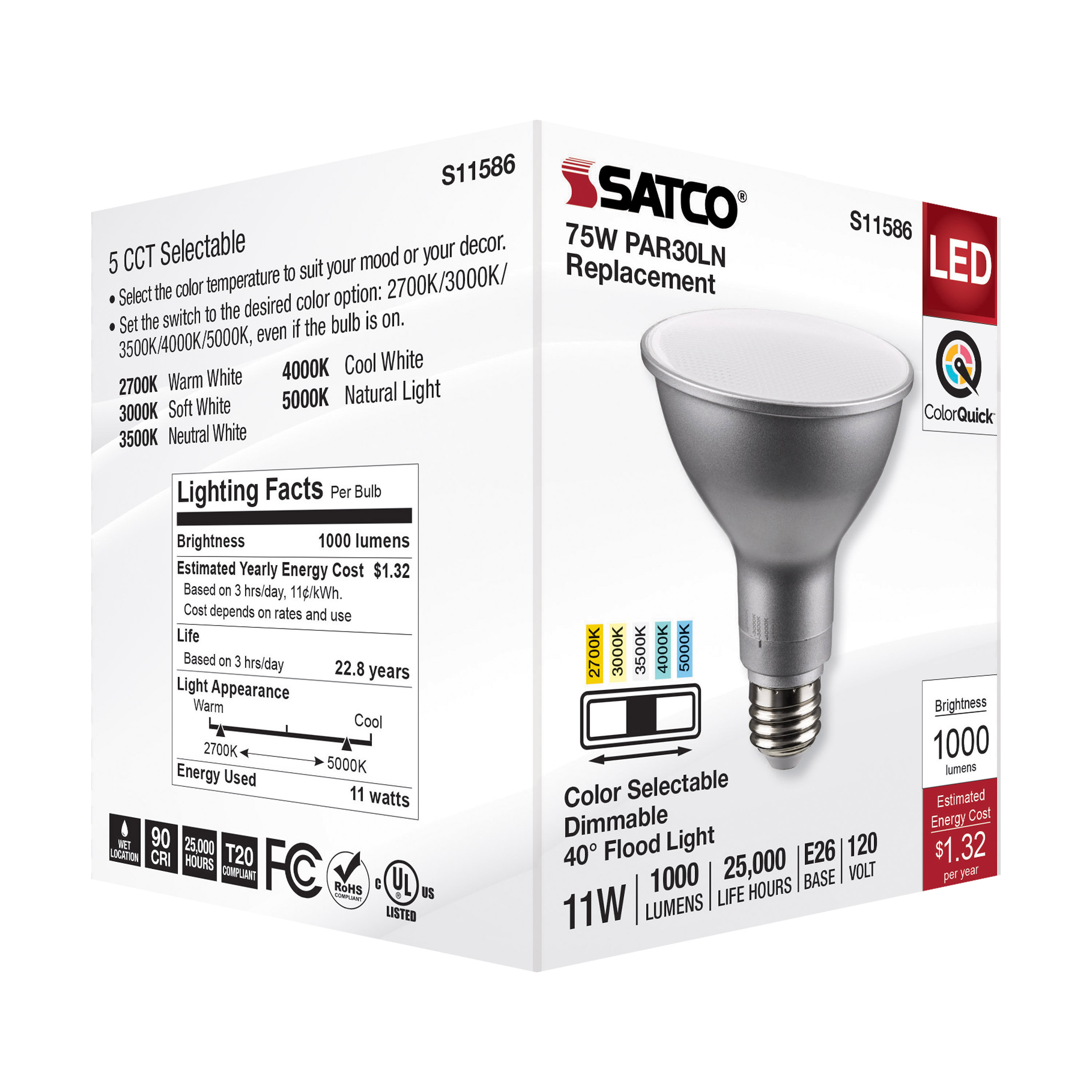

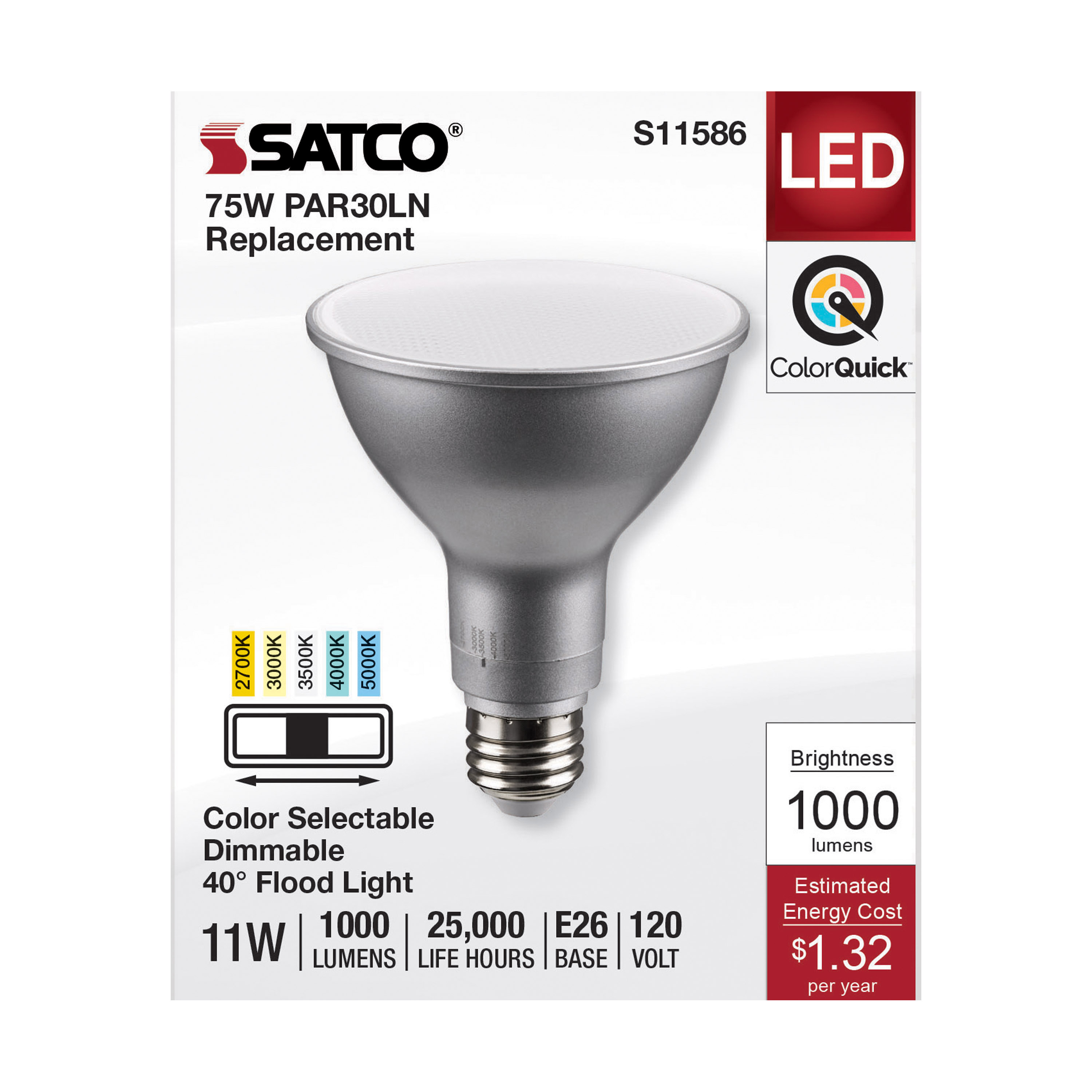

11PAR30LN/LED/5CCT/FL/120V - S11586
11PAR30LN/LED/5CCT/FL/120V - S11586
11PAR30LN/LED/5CCT/FL/120V - S11586
11PAR30LN/LED/5CCT/FL/120V - S11586
11PAR30LN/LED/5CCT/FL/120V - S11586
11PAR30LN/LED/5CCT/FL/120V - S11586
11PAR30LN/LED/5CCT/FL/120V - S11586
11PAR30LN/LED/5CCT/FL/120V - S11586
S11586

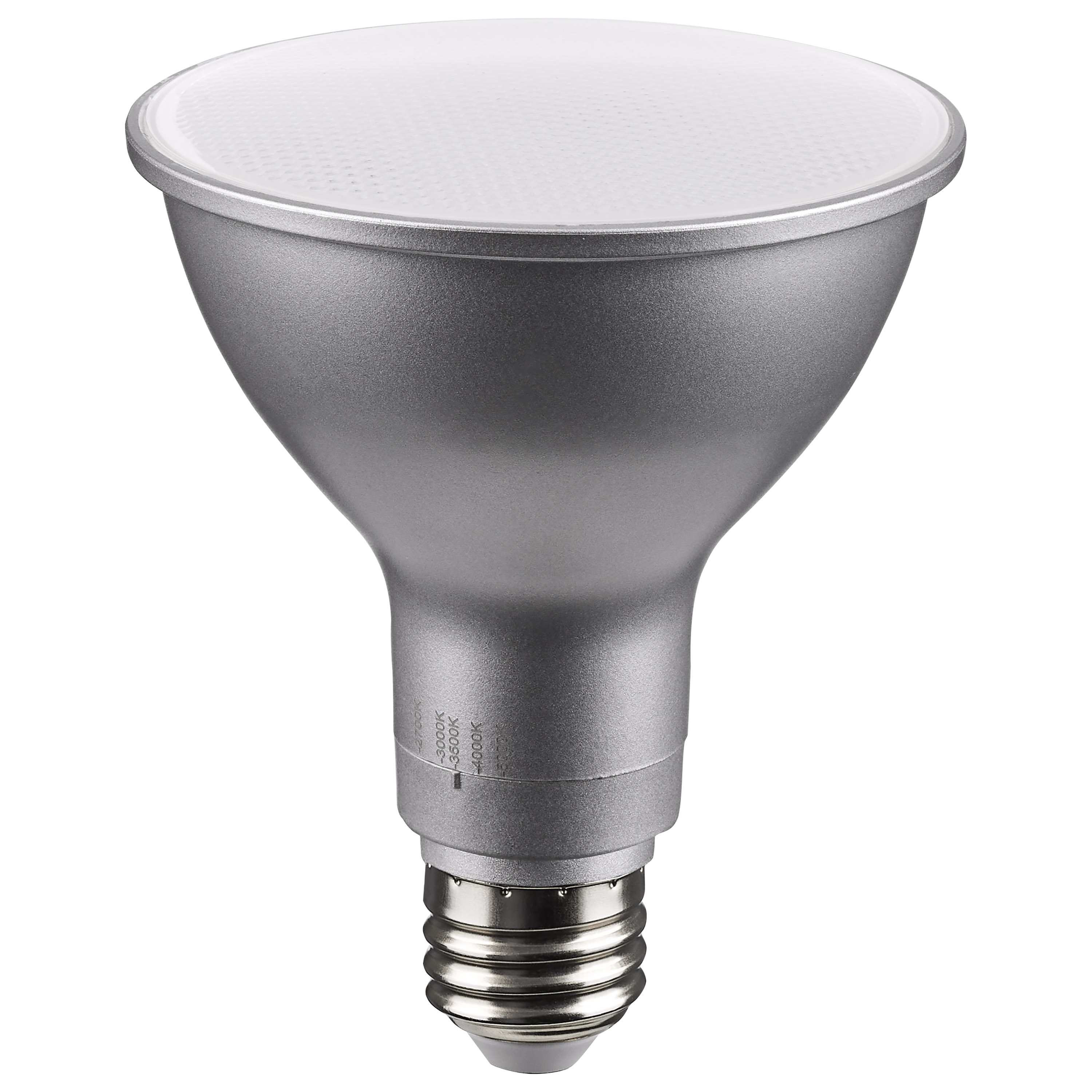

11PAR30LN/LED/5CCT/FL/120V

  • 11 Watt PAR30LN LED
  • Medium Base
  • Silver Finish
  • CCT Selectable
  • 120 Volt
  • 40 Degree Beam Angle
cc_selectable^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

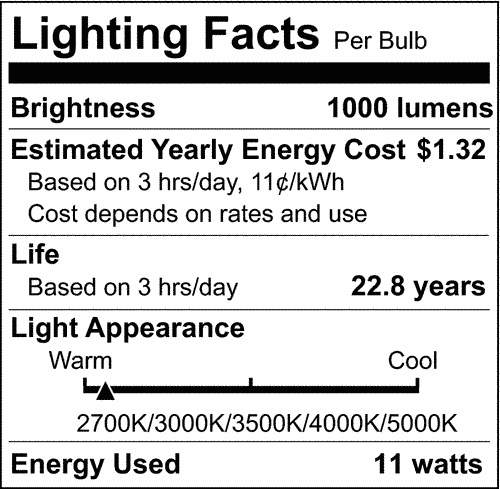

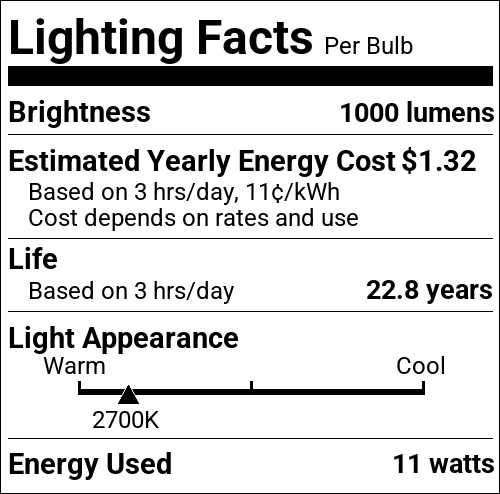

S11586 SpecificationsLED PAR LAMPS CCT SELECTABLES11586 Lighting Facts Label
Tools
Lighting Layout Analysis For S11586
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
11 Watt PAR30LN LED; Medium Base; Silver Finish; CCT Selectable; 120 Volt; 40 Degree Beam Angle
Products Specs
General
CompanySATCO
Center Beam Candle Power1315
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
Lamp FilamentLED
MaterialPolyamide (PA)
Fixture TypePAR
Spot TypeFL - Flood
StatusActive
StyleUtility
CCT SelectableYes
Wattage SelectableNo
Finish FamilySilver
Amps0.117A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv15W
Incandescent Equivalent75W
Electrical

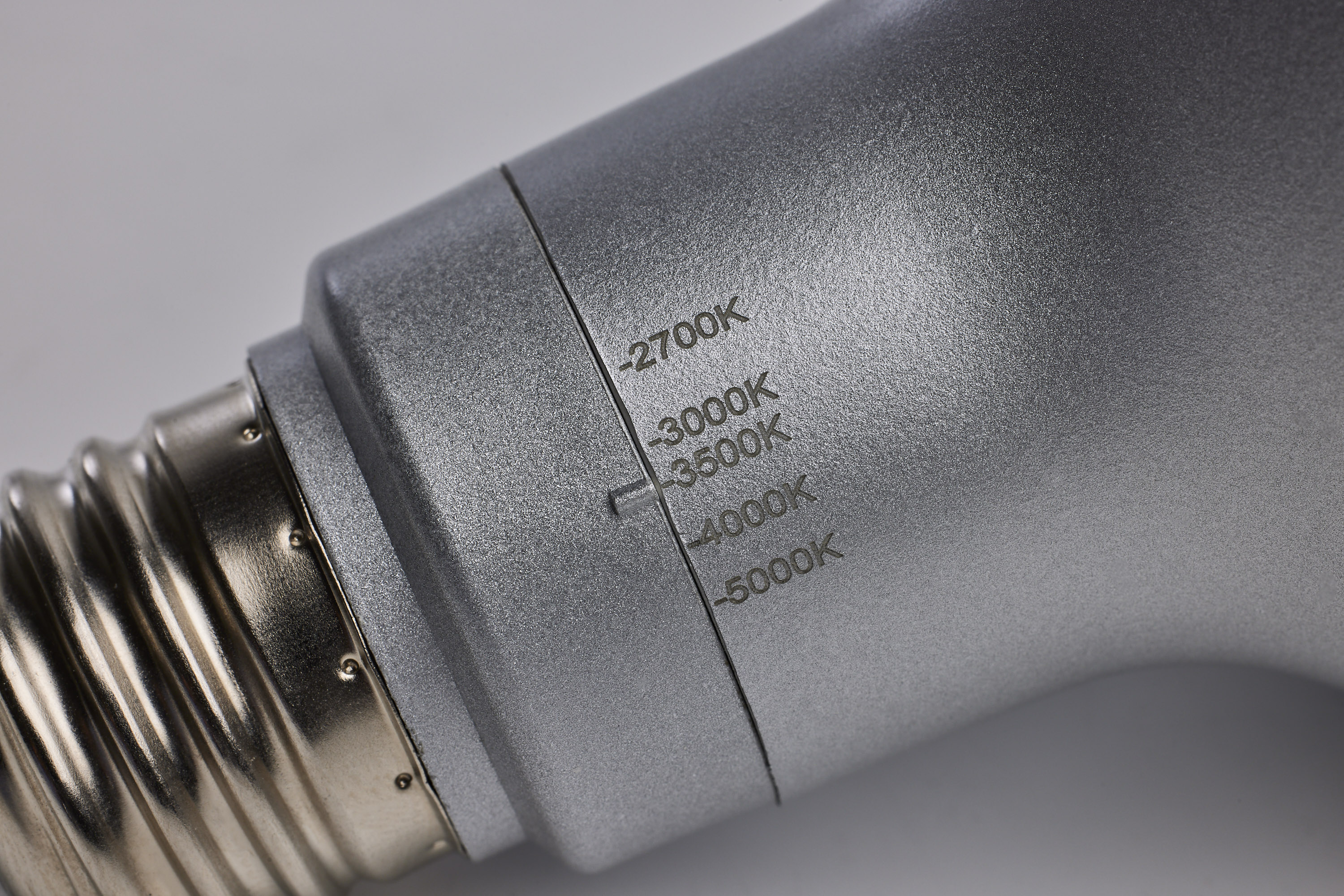

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)40
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1000L
Volts120v
Watts11W
Physical
Lamp BaseMedium
FinishSILVER
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR30LN
MOD Lamps3.74
MOL4.65
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24 CompliantYes
Packaging
UPC045923115868
Case Cube0.7753
Case Height6.11
Case Length17.13
Case Quantity12
Case UPC10045923115865
Case Weight5.18
Case Width12.8
EA Cube0.044
EA Height5.0
EA Length3.9
EA Quantity1
EA Weight0.32
EA Width3.9
Inner Cube0.3109
Inner Height5.32
Inner Length12.21
Inner Quantity6
Inner UPC20045923115862
Inner Weight2.56
Inner Width8.27
Pack TypeBox
Web Length4.65
Web Width3.74
