13.3PAR38/LED/5CCT/SP/120V - S11588
13.3PAR38/LED/5CCT/SP/120V - S11588
13.3PAR38/LED/5CCT/SP/120V - S11588
13.3PAR38/LED/5CCT/SP/120V - S11588
13.3PAR38/LED/5CCT/SP/120V - S11588
13.3PAR38/LED/5CCT/SP/120V - S11588
13.3PAR38/LED/5CCT/SP/120V - S11588
13.3PAR38/LED/5CCT/SP/120V - S11588
S11588

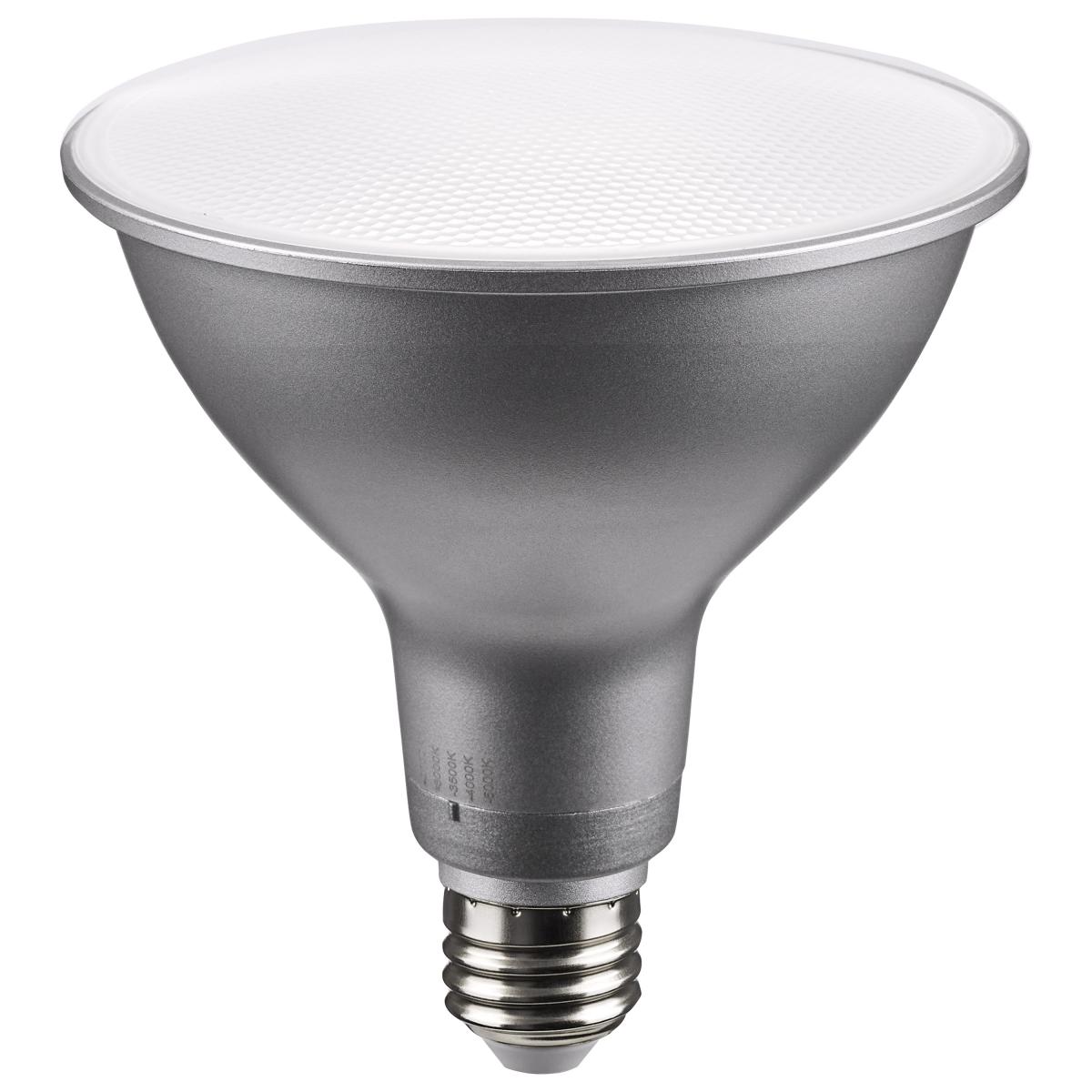

13.3PAR38/LED/5CCT/SP/120V

  • 13.3 Watt PAR38 LED
  • Medium Base
  • Silver Finish
  • CCT Selectable
  • 120 Volt
  • 25 Degree Beam Angle
cc_selectable^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^25^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

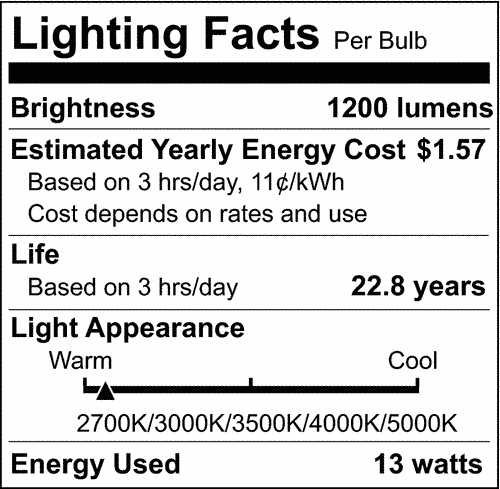

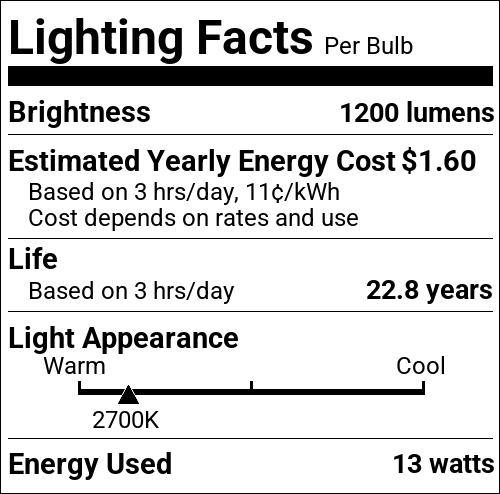

S11588 SpecificationsLED PAR LAMPS CCT SELECTABLES11588 Lighting Facts Label
Tools
Lighting Layout Analysis For S11588
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
13.3 Watt PAR38 LED; Medium Base; Silver Finish; CCT Selectable; 120 Volt; 25 Degree Beam Angle
Products Specs
General
CompanySATCO
Center Beam Candle Power3700
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
Lamp FilamentLED
MaterialPolyamide (PA)
Fixture TypePAR
Spot TypeSP - Spot
StatusActive
StyleUtility
CCT SelectableYes
Wattage SelectableNo
Finish FamilySilver
Amps0.180A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes
Operating PositionUniversal
Power Factor0.7
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv23W
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)25
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1200L
Volts120v
Watts13.3W
Physical
Lamp BaseMedium
FinishSILVER
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR38
MOD Lamps4.76
MOL5.12
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24 CompliantYes
Packaging
UPC045923115882
Case Cube1.2867
Case Height6.7
Case Length21.07
Case Quantity12
Case UPC10045923115889
Case Weight8.52
Case Width15.75
EA Cube0.0759
EA Height5.51
EA Length4.88
EA Quantity1
EA Weight0.53
EA Width4.88
Inner Cube0.5309
Inner Height5.91
Inner Length15.16
Inner Quantity6
Inner UPC20045923115886
Inner Weight4.75
Inner Width10.24
Pack TypeBox
Web Length5.12
Web Width4.76
