| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | Forward Phase or Reverse Phase or Phase Selectable |
| Material | Aluminum |

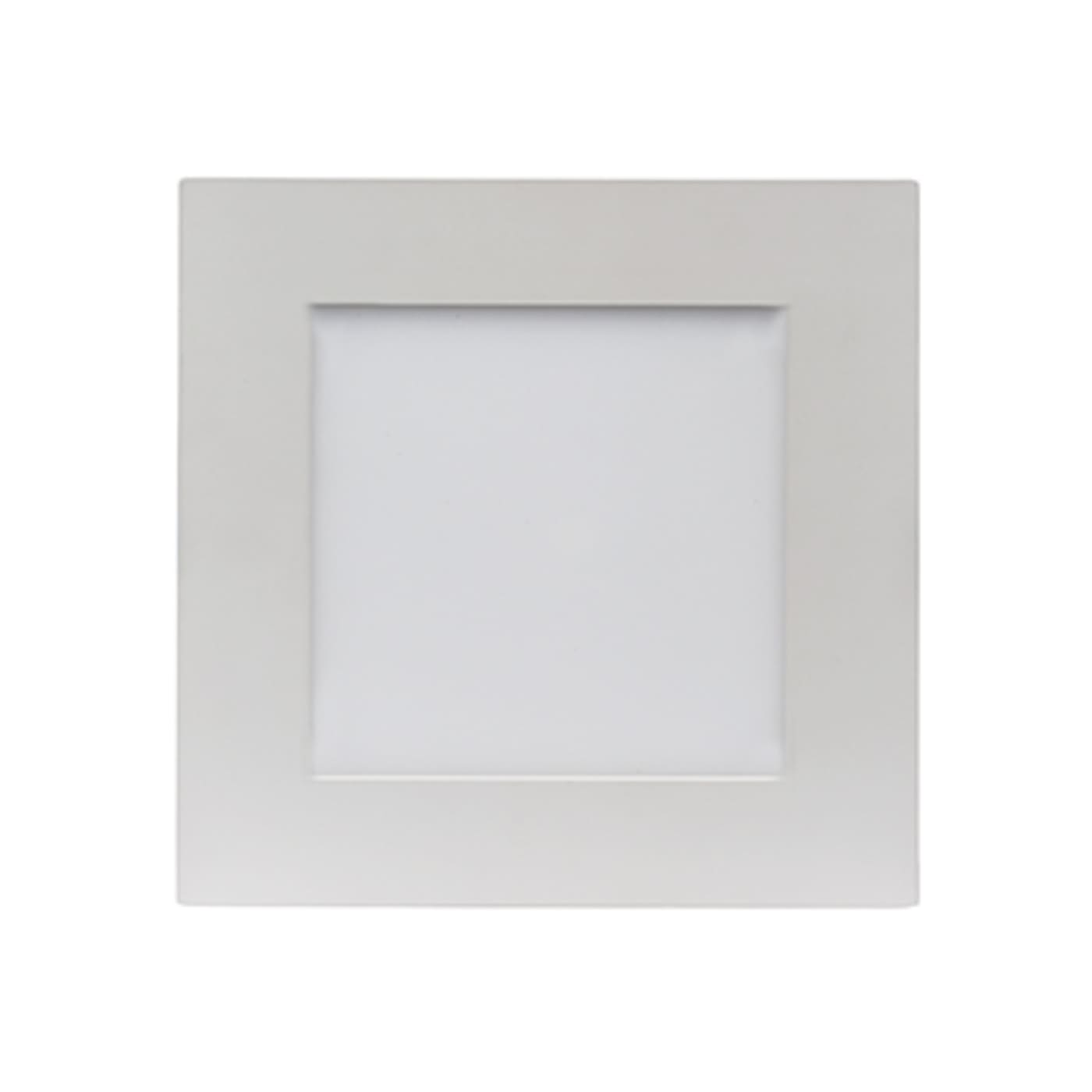

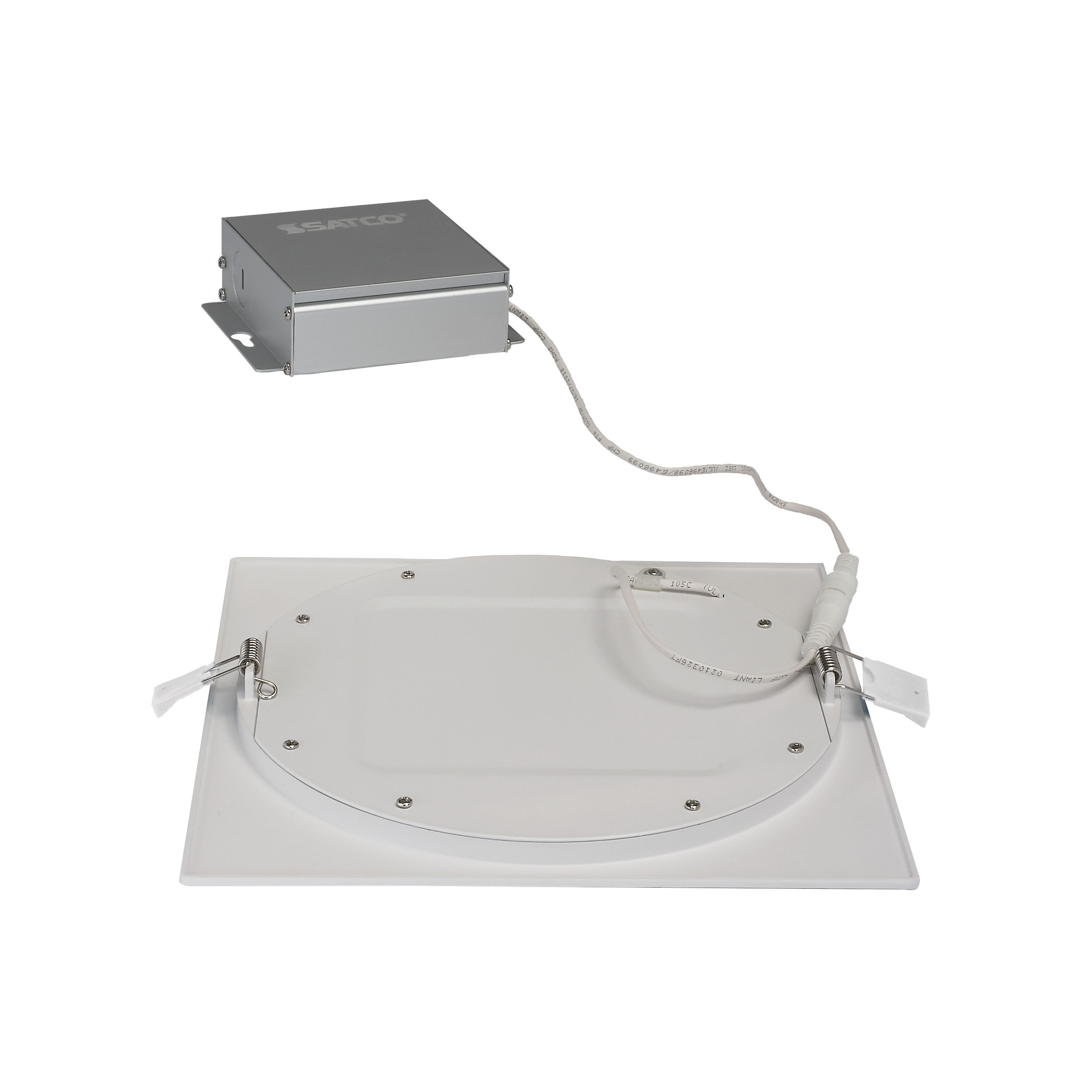

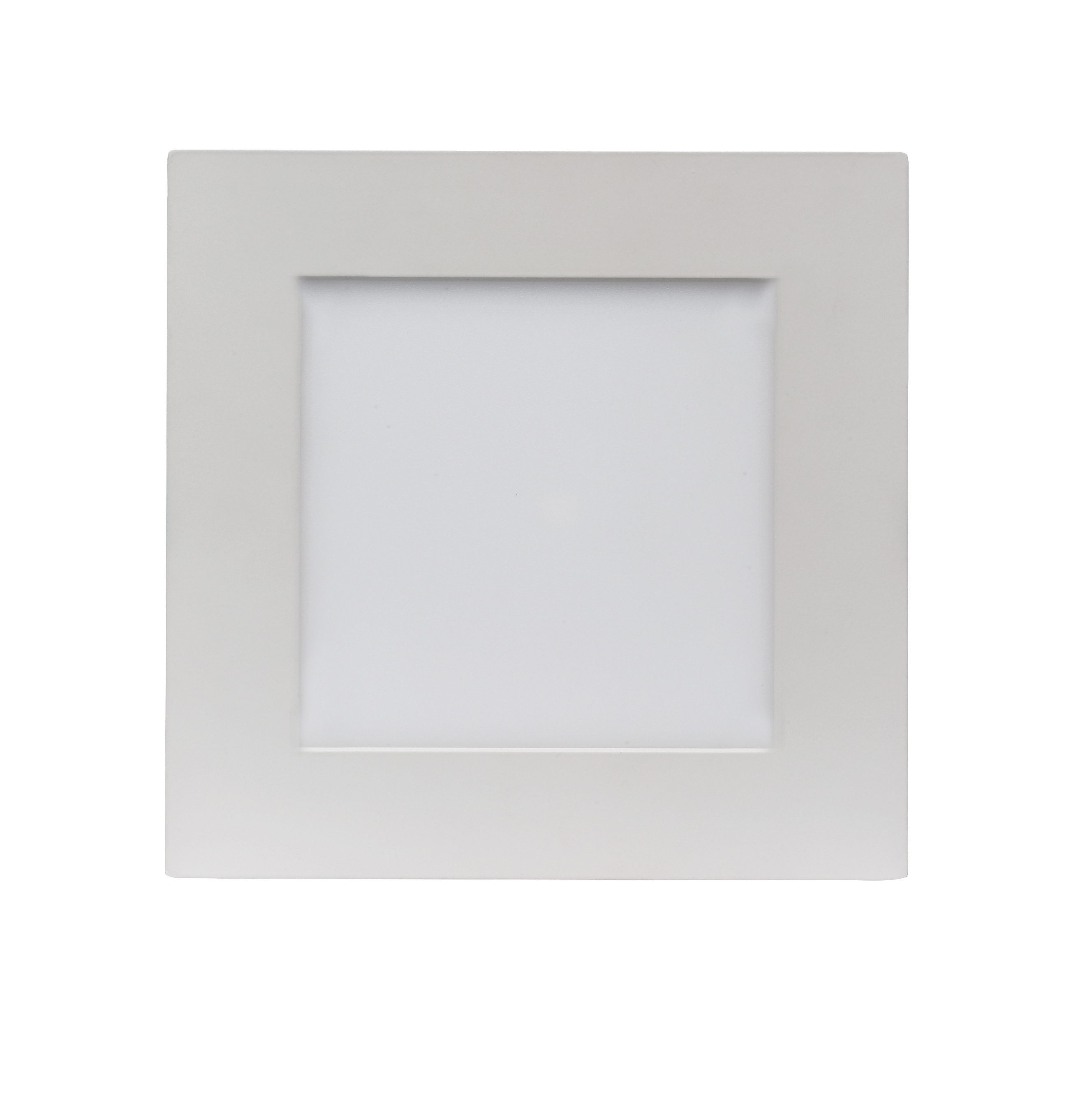

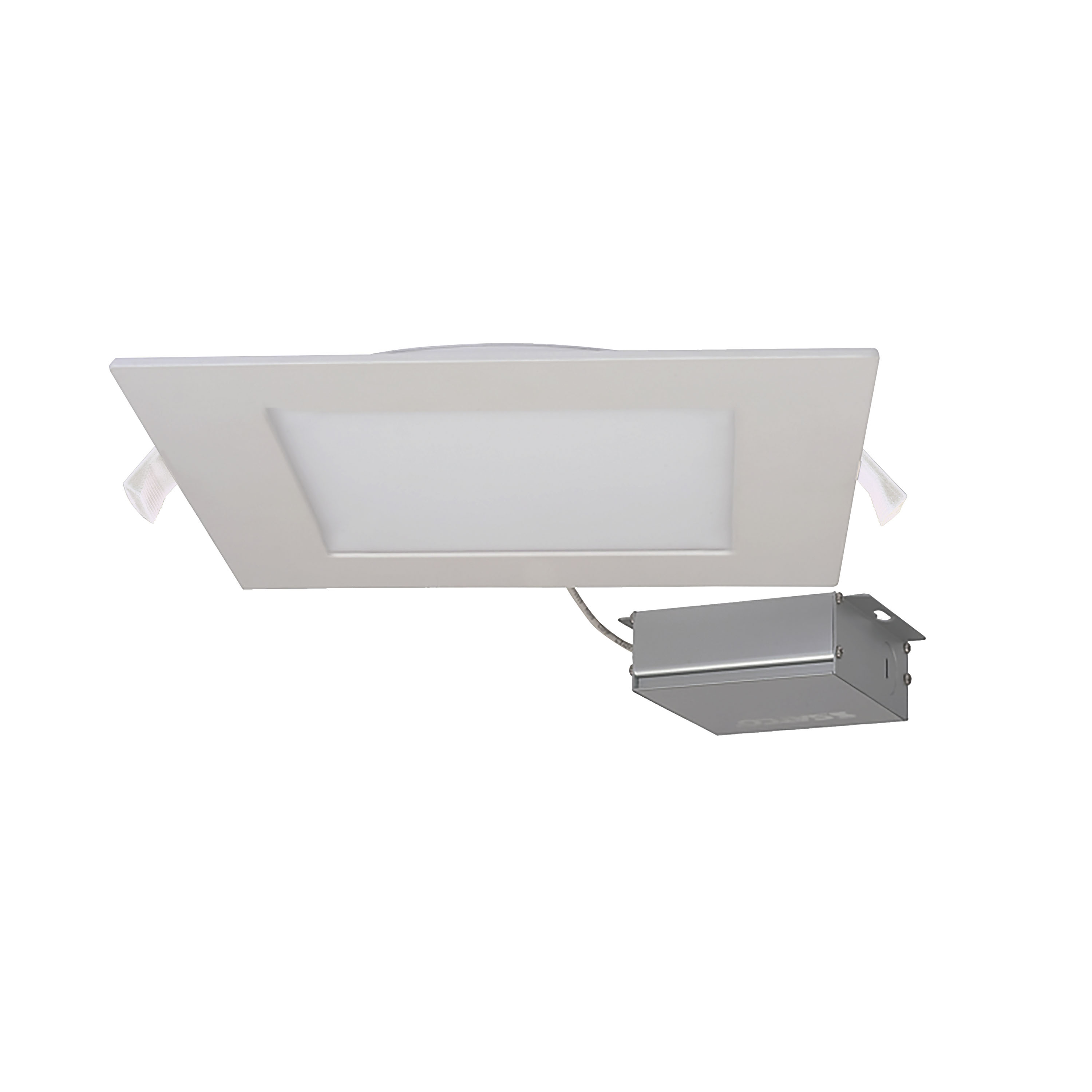

| Fixture Type | Remote Driver LED Downlight |
| Status | Discontinued |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Additional Info | Integrated j-box for direct wire installation |
| Amps | 0.200A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Power Factor | 0.99 |
| SDS Class | LED_Lamp |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 120W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 108 |
| Color Temp | Warm White |
| CRI | 90+ |
| Dimming Type | 120V only, Phase cut |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 1700L |
| Volts | 120v |
| Watts | 24W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Square |
| Warranty | 5-Years |
|---|
| Air Tight | Yes |
|---|---|
| CA Prop 65 | Lead |
| FCC Compliant | Yes |
| IC Rated | Yes |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | California T24 Listed |
| UL Application | Ceiling |
| DLC Approved | No |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| UPC | 045923116155 |
|---|---|
| Case Cube | 1.5609 |
| Case Height | 10.24 |
| Case Length | 23.31 |
| Case Quantity | 12 |
| Case UPC | 10045923116152 |
| Case Weight | 29.53 |
| Case Width | 11.3 |
| EA Cube | 0.1117 |
| EA Height | 9.5 |
| EA Length | 1.88 |
| EA Quantity | 1 |
| EA Weight | 2.12 |
| EA Width | 10.81 |
| Pack Type | Box |
| Web Height | 0.94 |
| Web Length | 8.88 |
| Web Width | 8.88 |
