S11650

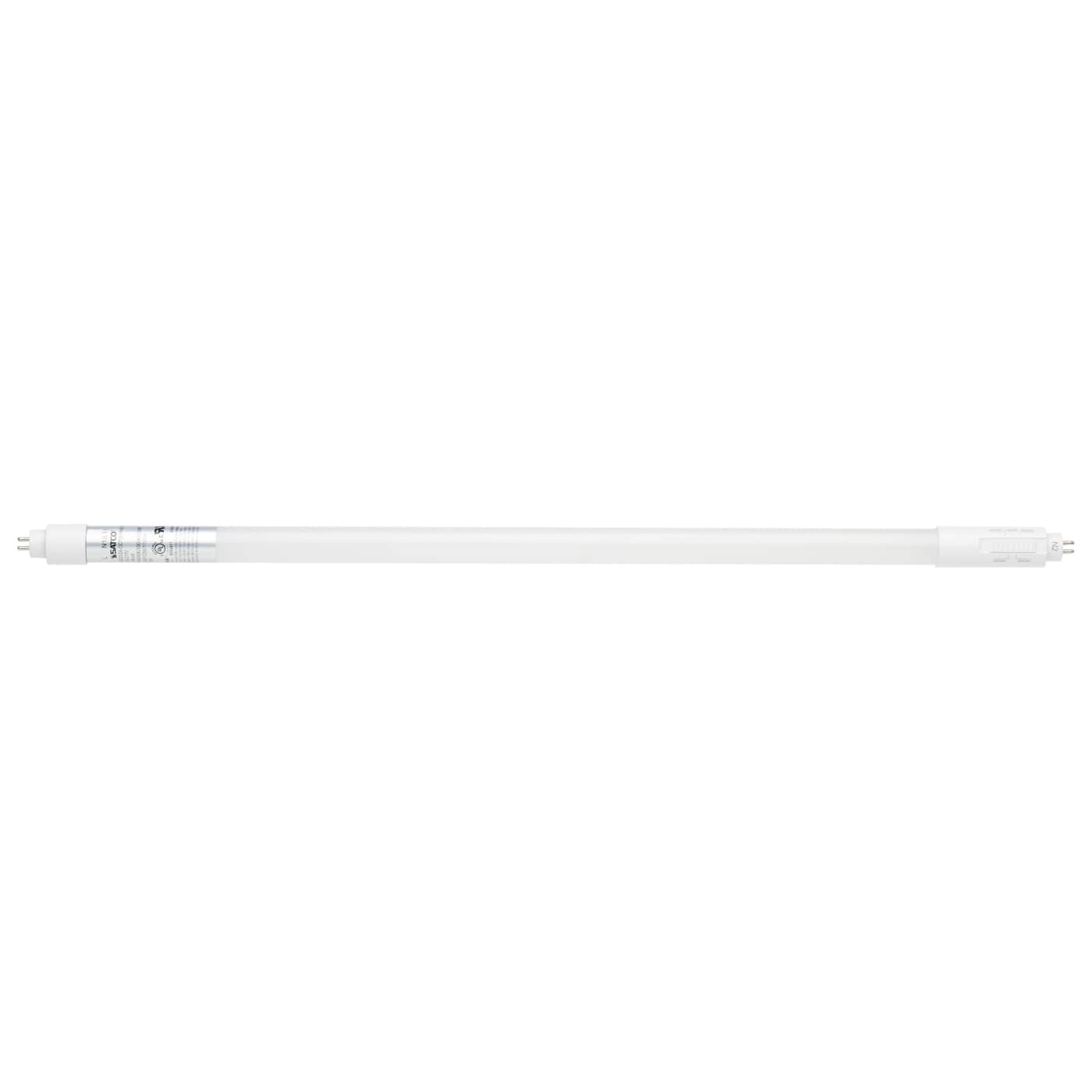

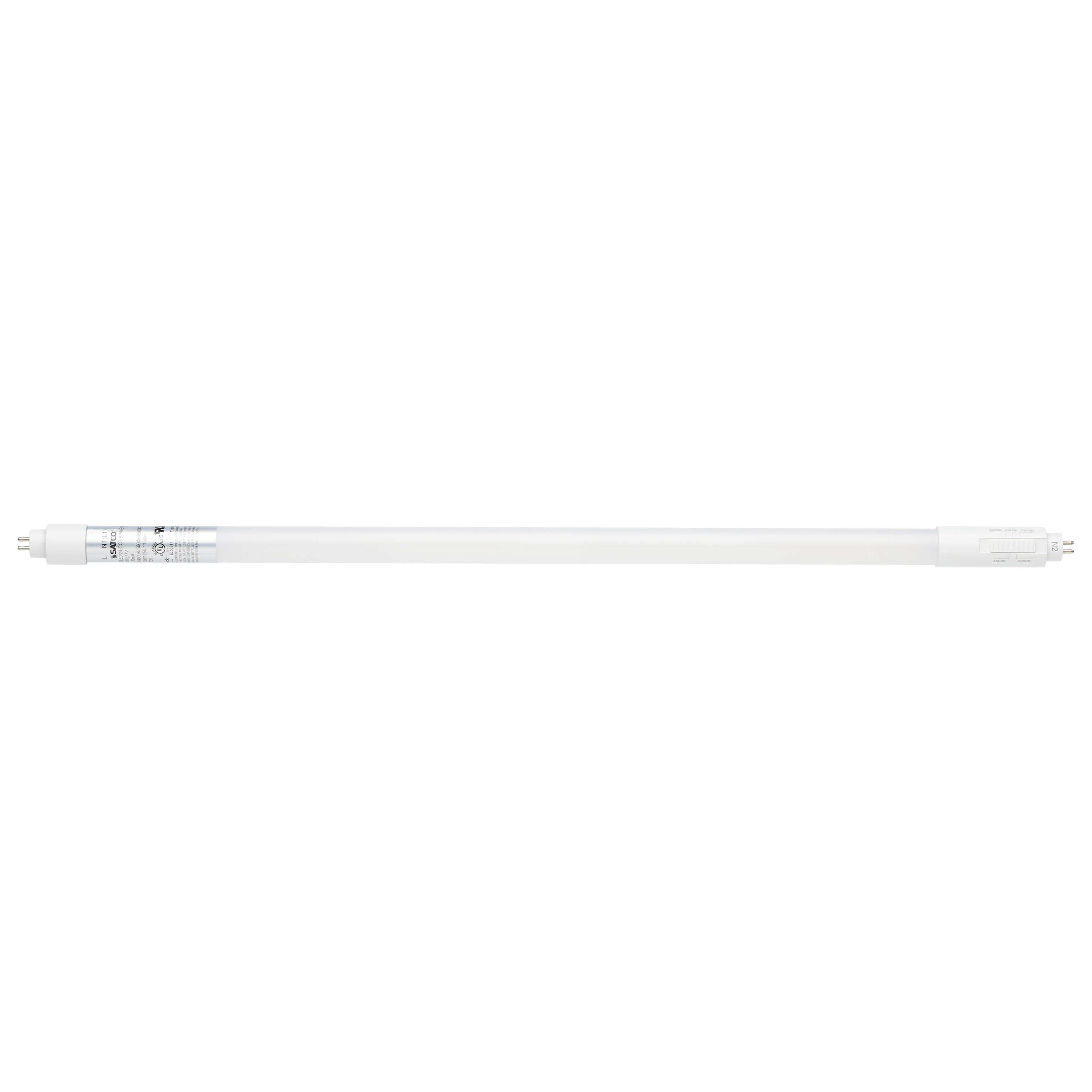

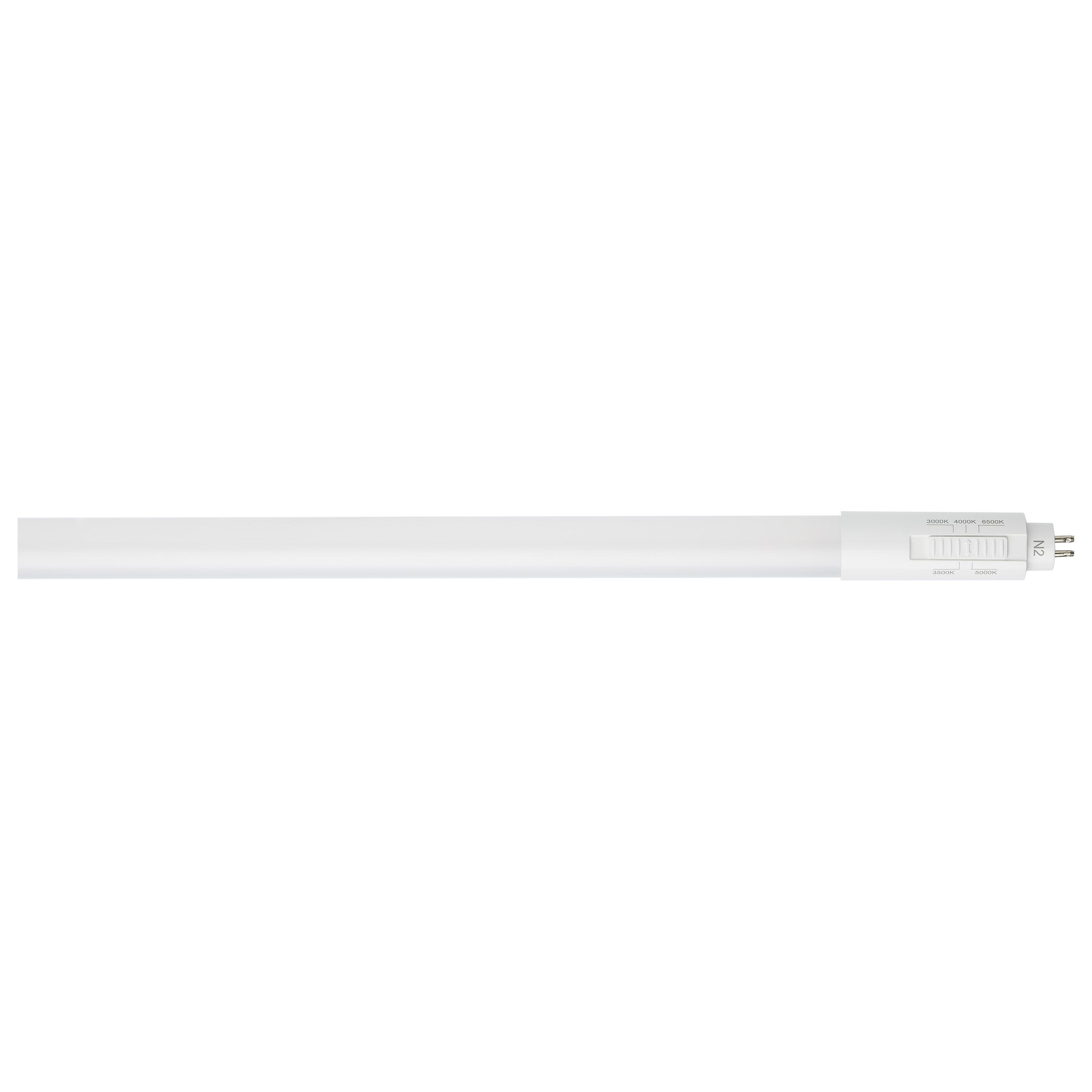

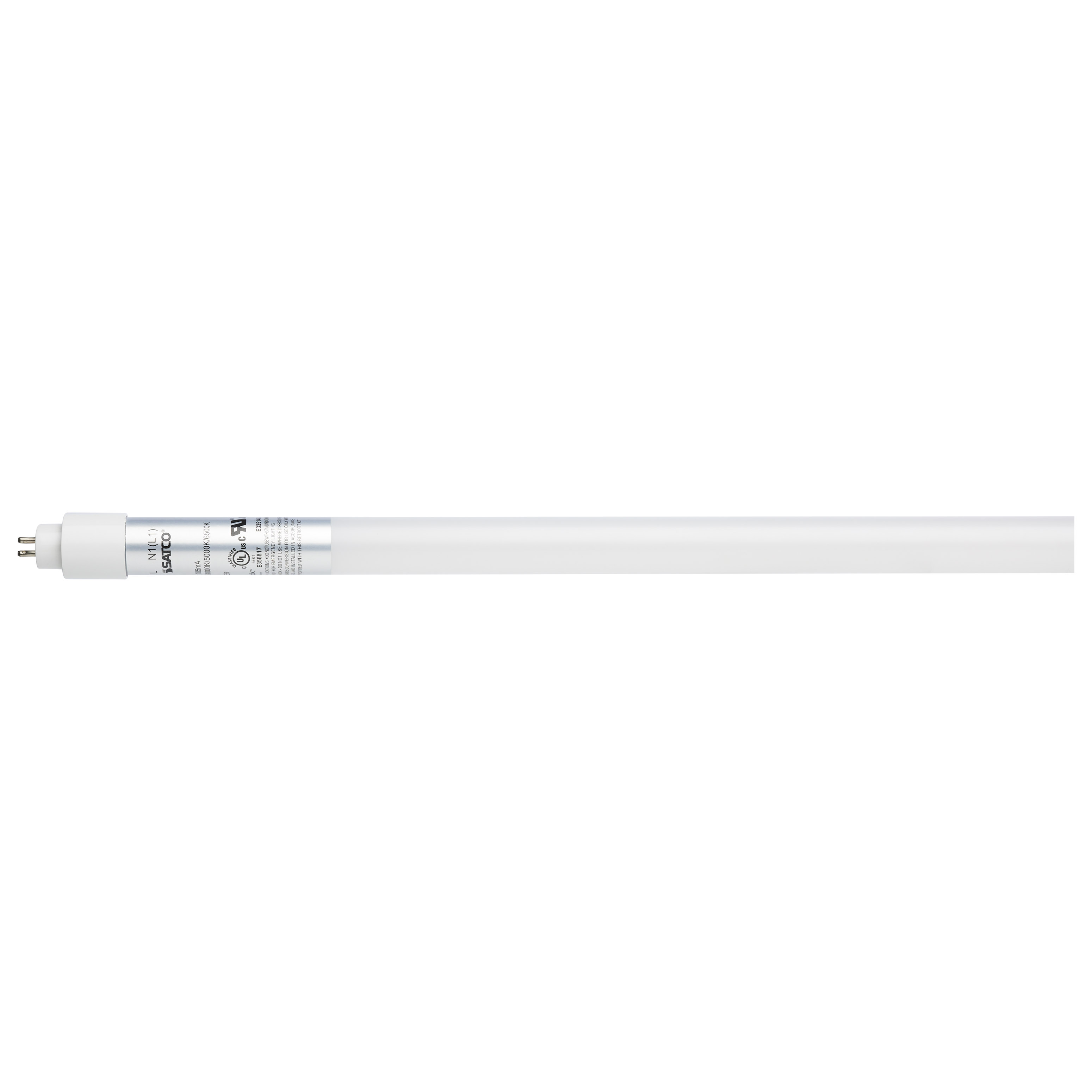

9T5/LED/24-CCT/BP/HE/SE-DE

  • 9 Watt 2 Foot T5 LED
  • CCT Selectable
  • G5 Base
  • Type B
  • Ballast Bypass
  • Single or Double Ended Wiring
  • White Finish
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
beam_angle^160^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11650 SpecificationsS11650 Instructions.pdf
Tools
Lighting Layout Analysis For S11650
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9 Watt 2 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended Wiring; White Finish; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialPlastic
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.7KV
Total Harmonic Distortion<25%
Tube Guard UseNo
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.075-0.0325A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
Nominal Length24.0
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv14W
Incandescent Equivalent75W
Electrical

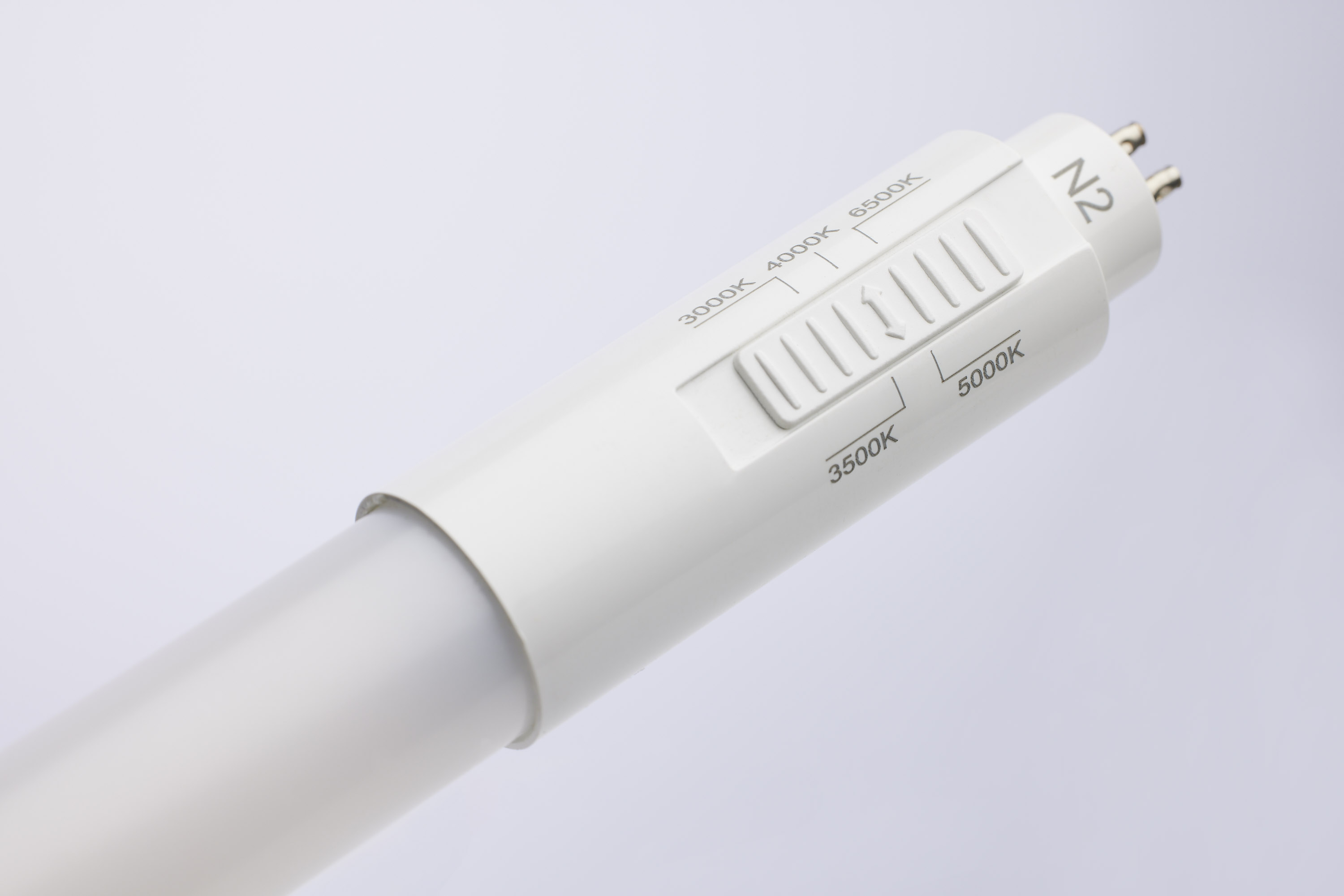

CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
Hours Rated50000
Beam Angle (degree)160
Color TempSoft White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1100L/1175L/1200L/1250L/1150L
Volts120V-277V
Watts9W
Physical
Lamp BaseMiniature Bi Pin
FinishWHITE
Housing ColorWhite
ANSI BaseG5
Lamp TypeT5
MOD Lamps0.88
MOL22.17
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923116506
Case Cube0.3834
Case Height5.24
Case Length24.13
Case Quantity25
Case UPC10045923116503
Case Weight8.5
Case Width5.24
EA Cube0.0095
EA Height0.87
EA Length21.65
EA Quantity1
EA Weight0.37
EA Width0.87
Pack TypeBox
Web Length22.17
Web Width0.88
